Trans. Nonferrous Met. Soc. China 29(2019) 625-633

Simulation of one-dimensional column leaching of weathered crust elution-deposited rare earth ore

Ping LONG^1,2, Guan-shi WANG³, Jun TIAN^1,4, Shi-li HU³, Si-hai LUO³

1. School of Resources and Environmental Engineering, Jiangxi University of Science and Technology, Ganzhou 341000, China;

2. Cooperative Innovation Center of Efficient Development and Application for Ionic Rare Earth Resources, Jiangxi University of Science and Technology, Ganzhou 341000, China;

3. School of Architectural and Surveying and Mapping Engineering, Jiangxi University of Science and Technology, Ganzhou 341000, China;

4. Institute of Applied Chemistry, Jiangxi Academy of Sciences, Nanchang 330029, China

Received 20 March 2018; accepted 11 October 2018

Abstract: The ion exchange model of the leaching process was determined via batch leaching experiments using the Kerr model, with the selectivity coefficient experimentally determined to be 12.59×10^-10 L²/g². Solute transport laws of ammonium ions (NH₄⁺) and rare earth ions (RE³⁺) in column leaching were described by the convection-dispersion equation (CDE). The source and sink in the CDE were determined by the Kerr model. The CDE with strong nonlinearity was solved using the sequential non-iterative method. Compared with the breakthrough curve of RE³⁺, the correlation coefficient between the simulated and experimental curves reached 0.8724. Therefore, this method can simulate the one-dimensional column leaching of weathered crust elution-deposited rare earth ore. Moreover, the effects of different concentrations of ammonium sulfate ((NH₄)₂SO₄) solution on the leaching rate of rare earth were analyzed. The optimal concentration of the (NH₄)₂SO₄ solution had a linear relationship with the rare earth grade.

Key words: weathered crust elution-deposited rare earth ore; column leaching; ion exchange; solute transport

1 Introduction

The basic process of the exploitation of weathered crust elution-deposited rare earth (RE) ore based on the in-situ leaching technique is as follows. First, ammonium sulfate ((NH₄)₂SO₄) solution is injected into the ore body via the injection well network. Second, ammonium ions (NH₄⁺) in the (NH₄)₂SO₄ solution are used to exchange RE ions (assuming the average valence of RE ions is +3, RE³⁺), which are adsorbed onto clay particles and the RE³⁺ enters the solution. RE³⁺ moves with the solution until it flows out of the ore body and enters into the solution collection system [1-5]. The exchange of the solid-phase RE³⁺ (i.e., the RE³⁺ is adsorbed by clay particles) by the liquid-phase NH₄⁺ (i.e., the NH₄⁺ in solution) is a solid-liquid reversible ion exchange reaction [6,7]. The (NH₄)₂SO₄ concentration determines the exchange efficiency. Presently, the appropriate (NH₄)₂SO₄ concentration is usually estimated by experience. Owing to the complexity of geological conditions, different mines have different RE grades, permeabilities, and impurities of the ion content. Therefore, the concentration of the (NH₄)₂SO₄ solution determined by experience is often beyond the reasonable range. Too high a concentration of (NH₄)₂SO₄ will lead to excessive ammonia nitrogen in the surrounding water bodies, and thus environmental pollution. However, low concentrations will result in an insufficient leaching rate of RE and cause resource waste. Establishing a mathematical model for the leaching process provides theoretical reference for the reasonable determination of a suitable (NH₄)₂SO₄ concentration.

Leaching of RE ore primarily includes two processes: one is the RE³⁺ leaching (ion exchange process) and the other is the RE³⁺ transport (transport process). TIAN et al [8-10] analyzed the ion exchange process of RE ore using the shrinking core model and found that the ion exchange process was controlled by inner diffusion. The leaching kinetics when using ammonium salt solution [11] and magnesium sulfate solution [12] as the leaching agents have also been studied, and researchers [13-15] have attempted to analyze the column leaching process with the leaching kinetic model. Studies [16-19] of ion exchange and the transport of RE³⁺ are mainly based on laboratory experiments; however, solute transport of RE³⁺ has a distinct scale effect and laboratory experimental results are often inapplicable to practical engineering. WU et al [20-22] elaborated on the ion exchange and transport mechanism in the heap leaching process, which provided direction for the theoretical analysis of leaching. QIU et al [23,24] simulated the leaching process of weathered elution-deposited RE ore using the lattice Boltzmann theory.

In the preset study, an ion exchange model of RE ore was obtained using batch leaching experiments. NH₄⁺ and RE³⁺ in the column leaching process were described by the convection-dispersion equation (CDE) and the source and sink of the CDE were determined by the ion exchange model. The feasibility of the proposed method was verified with a laboratory experiment. The proposed method was used to determine the optimal concentration of (NH₄)₂SO₄.

2 Experimental

2.1 Batch leaching experiments

Samples were collected from RE ore in Xinfeng County, Jiangxi Province, China, and were screened with a high-frequency sieve shaker having a sifter diameter of 2 mm. Screened mineral samples were baked for 10 h in 110 °C oven to eliminate water in the mineral samples. (NH₄)₂SO₄ solutions with different mass concentrations (2, 3, 4, 5, 6, 7 and 8 g/L) were prepared in volumetric flasks. Next, another seven iodine flasks were used to mix 20 g of mineral sample and 100 mL of (NH₄)₂SO₄ solution with different mass concentrations (2-8 g/L). These seven iodine flasks were first placed in a constant temperature (30 °C) water tank and vibrated for 2 h, and then remained static for 0.5 h. Leachate and mineral samples were separated by medium-speed filter paper and concentrations of RE³⁺ in the leachate were tested using the EDTA titration method. Three parallel experiments were performed.

2.2 Column leaching experiments

Column leaching experiments were performed with the mineral samples. The RE grade of the mineral samples was 0.101%. Length, radius, and porosity of the soil column were set at 0.80 m, 5.2 cm and 1.15%, respectively. The initial water content in the soil column was set to be 17.1%. The porous stone, which was wet with deionized water, was placed into a PVC tube with an inner diameter of 10.4 cm and a length of 1 m. One 1 cm-thick coarse sand filtering layer was paved and samples were filled in eight layers. Another 1 cm-thick coarse sand filtering layer was paved at the top of the soil column. A piece of overflow pipe was installed 5 cm above the coarse sand filtering layer and deionized water was added to the water tank. Water inflow in the PVC tube was controlled by a faucet. To control the height of ponding to be 5 cm, the velocity of the water inflow was fast enough to spill from the overflow pipe. After stabilization of the water flow in the soil column, the ponding at the top of the soil column was quickly extracted. Water in the water tank was changed into 20 g/L (NH₄)₂SO₄ solution. The ponding of the soil column quickly increased to 5 cm. The flow rate of the faucet was adjusted to maintain a constant head.

After replacement of the deionized water with the (NH₄)₂SO₄ solution, the mass of the leachate in the conical flask was weighed every 4 h (assuming the leachate density was 1 g/cm³). Next, 10 mL leachate was added to oxalic acid. If no white precipitation was observed, this indicated that there was no RE³⁺ in the leachate. When RE³⁺ was detected in the testing solution, leachate was collected every 2 h thereafter. The concentration of RE³⁺ was tested using the EDTA titration method. The concentration of NH₄⁺ in the leachate was tested using the formaldehyde method. The concentration of sulfate ions () in the leachate was tested using the permanent white precipitation method. After the concentrations of RE³⁺, NH₄⁺ and  were stabilized close to zero, the experiment was stopped. The breakthrough curves of RE³⁺, NH₄⁺ and  were constructed.

3 Results and discussion

3.1 Ion exchange model

It is a solid-liquid ion exchange process for the liquid-phase NH₄⁺ to exchange the solid-phase RE³⁺. The Kerr model, Vanselow model, and Gapon model are common ion exchange models used to describe this solid-liquid ion exchange process. The expressions of the selectivity coefficients of these three models are as follows [25]:

                             (1)

                        (2)

                      (3)

where K_K, K_V and K_G are the selectivity coefficients of the Kerr model, Vanselow model, and Gapon model, respectively.  and  refer to the concentrations of the liquid-phase NH₄⁺ and liquid-phase RE³⁺, respectively, g/L.  and  are the concentrations of the solid-phase NH₄⁺ and solid-phase RE³⁺, respectively, g/g. γ_N and γ_R are the activity coefficients of the liquid-phase NH₄⁺ and liquid-phase RE³⁺, respectively, which are calculated from the Davies empirical model (Eq. (4)).  and  are the molar fractions of the solid-phase NH₄⁺ and solid-phase RE³⁺, which are calculated using Eqs. (5) and (6), respectively. M_N and M_R are the relative molecular masses of NH₄⁺ and RE³⁺, respectively, g/mol.

                   (4)

                       (5)

                       (6)

where A is the parameter related to the temperature, A=0.513 (mol/L)^-1/2 in 30 °C aqueous solution; m is the valence state of the corresponding ions; μ is the ion strength.

Initially, there was no RE³⁺ in the liquid-phase and no NH₄⁺ was adsorbed during the solid-phase. Ions in the solid-phase and liquid-phase met the following three equality relations before and after the ion exchange process: (1) the amount of substance of solid-phase NH₄⁺ was 3 times that of the liquid-phase RE³⁺; (2) in the system composed of liquid-phase and solid-phase, NH₄⁺ and RE³⁺ met the law of mass conservation; (3) after ion exchange equilibrium, the sum of the amount of substance of the liquid-phase NH₄⁺ and solid-phase NH₄⁺ was equal to the amount of substance of the liquid-phase NH₄⁺ before leaching. These processes are expressed by Eqs. (7)-(9):

                            (7)

                         (8)

                            (9)

where m_s is the mass of the mineral sample, V_L is the volume of the solution,  is the concentration of NH₄⁺ in the leaching agent, and  is the initial concentration of the solid-phase RE³⁺.

Substituting Eqs. (7)-(9) into Eqs. (1)-(3), the selectivity coefficients of the three models are the uniform functions of the concentration of liquid-phase RE³⁺. Given V_L/m_s, ,  and , the selectivity coefficients of the three models were calculated using the experimental data (Fig. 1).

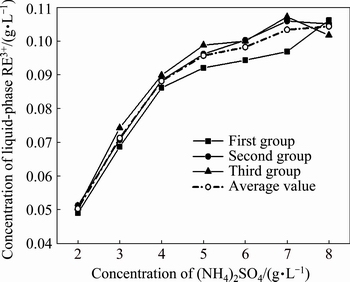

Fig. 1 Relationship between concentration of (NH₄)₂SO₄ and that of liquid-phase RE³⁺

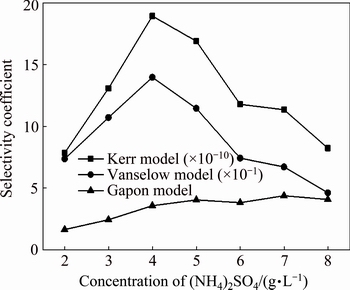

Fig. 2 Relationship between concentration of (NH₄)₂SO₄ and selectivity coefficients for Kerr model, Vanselow model and Gapon model

The concentration of the liquid-phase RE³⁺ was obtained by leaching with different concentrations of (NH₄)₂SO₄, as shown in Fig. 1. Combined with the experimental data from Fig. 1, the selectivity coefficients of the three models under different (NH₄)₂SO₄ concentrations are shown in Fig. 2, where the selectivity coefficient of the Kerr model is amplified by 10¹⁰ times and the selectivity coefficient of the Vanselow model is amplified by 10¹ times. The selectivity coefficient is often assumed to be constant. The mean selectivity coefficient under various (NH₄)₂SO₄ concentrations was calculated using data from Fig. 2. The selectivity coefficients of the Kerr model, Vanselow model, and Gapon model were calculated to be 12.59×10^-10 L²/g², 0.89 L²/mol², and 3.43 (mol/L)^-2/3, respectively.

The calculated selectivity coefficients of the three models were then substituted into Eqs. (1)-(9). The concentration of the liquid-phase RE³⁺ was used as the basic unknown variable. The concentration of the liquid-phase RE³⁺ under different (NH₄)₂SO₄ concentrations in the three models was calculated. The calculated results and experimental data are shown in Fig. 3. Relative errors and the mean of relative errors (Eq. (10)) between the calculated results for each model and experimental data are listed in Table 1. It was found that the relative errors of the Kerr model and Vanselow model are close and basically within 10.00% (although when the concentration of (NH₄)₂SO₄ was 2.0 g/L, the relative error of the Kerr model was 10.32%, which is slightly higher than 10.00%). The mean relative error of the Kerr model was slightly smaller than that of the Vanselow model. The calculation of the Gapon model deviated significantly from the experimental data under low concentrations of (NH₄)₂SO₄. The mean relative error of the Gapon model was more than twice that of the Kerr model and the Vanselow model, indicating that the Kerr model and the Vanselow model are better than the Gapon model. Compared to the Vanselow model and the Gapon model, the Kerr model had a lower mean relative error and a simpler mathematical expression. Therefore, the ion exchange process of leaching was described using the Kerr model. The selectivity coefficient of the Kerr model for the chosen mineral samples was 12.59×10^-10 L²/g². The value of the selectivity coefficient for the Kerr model reflects the adsorption capacity of clays in terms of NH₄⁺ and RE³⁺. The mineral samples have a very small selectivity coefficient, indicating a significantly higher adsorption capacity of RE³⁺ by clay particles than that of NH₄⁺. If exchanging RE³⁺ adsorbed on the clay surface by NH₄⁺, then the concentration of NH₄⁺ would be far higher than the concentration of RE³⁺.

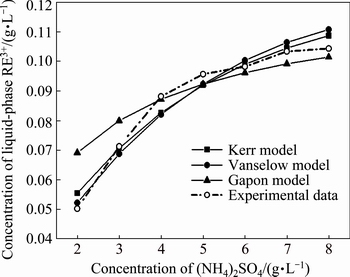

Fig. 3 Relationship between concentration of liquid-phase RE³⁺ and that of (NH₄)₂SO₄ for Kerr model, Vanselow model and Gapon model

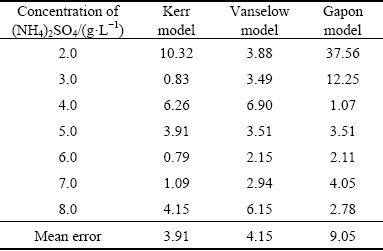

Table 1 Relative error (%) and mean relative error (%) of concentration of liquid-phase RE³⁺ between experimental data and calculated data for three models

This is consistent with the research conclusions of LI [26] and CHI and TIAN [6].

                 (10)

where N is the experimental data number and  is the experimental data for the liquid-phase RE³⁺ concentration.

3.2 Hydrodynamic dispersion coefficient and mean flow velocity in pores

Mineral samples have low  adsorption capacity in solution [27]. In the present study,  was assumed to be a non-reactive solute and the transport of  was described by the CDE. The approximation solution of the breakthrough curve of  was expressed as per SAUTY [28]:

                      (11)

where erfc is the complementary error function,  is the concentration of liquid-phase ,  is the concentration of  in the leaching agent, L is length of the soil column, u is the average flow velocity in pores, D is the hydrodynamic dispersion coefficient, and t is time.

In the case of a non-reactive solution and convection domination, the time corresponding to the breakthrough curve  is the time for solute transport from the top to the bottom of the soil column, at the average flow velocity in pores [28], which is denoted as t_0.5. The average flow velocity in pores can be expressed as u=L/t_0.5. After infiltration in the column leaching experiment became stable, the water content in the soil column was 0.449. Breakthrough curves of RE³⁺, NH₄⁺, and  are shown in Fig. 4, with t_0.5=5.26 d and the average flow velocity in the pores calculated as 0.152 m/d. Based on the least squares method, the breakthrough curve of  was fitted using Eq. (11) and the hydrodynamic dispersion coefficient of the soil column was calculated as 8.88×10^-5 m²/d.

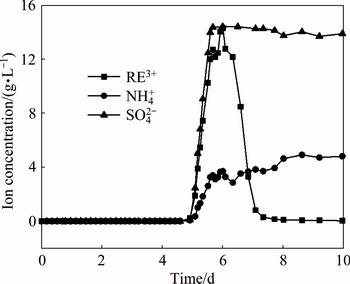

Fig. 4 Breakthrough curves of RE³⁺, NH₄⁺  and

3.3 Breakthrough curves of NH₄⁺ and RE³⁺

The soil column was assumed to be a homogeneous medium. Considering the ion exchange process, the solute transport equations of NH₄⁺ and RE³⁺ were expressed as

             (12)

             (13)

where ρ_b is the density of the soil column and θ is the volume water content.

To solve Eq. (12) and Eq. (13), the boundary condition was required. The concentration of the liquid-phase NH₄⁺ at the top of the soil column was equal to the concentration of NH₄⁺ in the leaching agent, and it remained constant over time. Initially, the concentrations of the liquid-phase NH₄⁺ and liquid-phase RE³⁺ in the soil column were zero. The concentration gradients of the liquid-phase NH₄⁺ and liquid-phase RE³⁺ at the bottom of the soil column were zero. Therefore, the boundary conditions for the liquid-phase NH₄⁺ and the liquid-phase RE³⁺ were

                    (14)

                      (15)

The ion exchange process during leaching was described by the Kerr model. The relationship between the concentration of NH₄⁺ and RE³⁺ is expressed in Eq. (1). According to conservation of the adsorption sites on the mineral samples, there is

                          (16)

Initially, the concentration of the solid-phase RE³⁺ at any position in the soil column was equal to the concentration of the solid-phase RE³⁺ before leaching, and the concentration of the solid-phase NH₄⁺ at any position in the soil column was zero. At the bottom of the soil column, the concentration gradients of the solid- phase NH₄⁺ and solid-phase RE³⁺ were zero. Therefore, the boundary conditions for the solid-phase NH₄⁺ and solid-phase RE³⁺ were

                      (17)

                      (18)

The equation set consisting of Eqs. (1), (12), (13) and (16) represents the solute transport equation for NH₄⁺ and RE³⁺ in the one-dimensional column leaching process. The solute transport equation of NH₄⁺ and RE³⁺ showed strong non-linearity. Under the boundary conditions of Eqs. (14), (15), (17) and (18), directly solving the solute transport equation requires abundant computer memory [29]. To avoid occupying a large amount of computer memory during computation, the transport process and ion exchange process were considered independently using the sequential non-iterative method [30,31]. First,  and  were calculated by the transport process. Second, the ion exchange process was considered to correct , ,  and . The detailed calculation process is shown below.

The solute transport equation expressed by NH₄⁺ and RE³⁺, with sole consideration to the transport process (source and sink terms in Eqs. (12) and (13) were eliminated), was written in a differential form:

            (19)

             (20)

where k is the time nodes (k=0, 1, 2, …, n_k-1, n_k, is the total number of time nodes); i is the positional nodes (i=1, 2, 3, …, n_i-1, n_i, is the total number of positional nodes); △t is the time step length; △z is the positional step length.

The boundary conditions in Eqs. (14) and (15) were also expressed in differential form:

        (21)

        (22)

When k=0 and i=1, the values of ,  and  were obtained by Eq. (21) and are , 0 and 0, respectively. Substituting ,  and  into Eq. (19), the value of  was calculated. The process of transport and ion exchange affected the liquid-phase concentrations of NH₄⁺ and RE³⁺. For discrimination, the concentrations of the liquid-phase NH₄⁺ and the liquid-phase RE³⁺, with sole consideration to the transport process, were recorded as  and . The concentrations of the liquid-phase NH₄⁺ and liquid-phase RE³⁺ with consideration to both the transport process and ion exchange process were recorded as  and . It can be seen from Eq. (22) that ,  and  were all zero. Substituting them into Eq. (20), the value of  was then calculated.

The ion exchange process occurred at the same time. The concentration of NH₄⁺ and RE³⁺ in the liquid-phase and solid-phase, at time level k+1 and position level i, was described by the relationship in Eq. (1), which was rewritten into the discrete form as follows:

                     (23)

The difference between the mole number of the solid-phase NH₄⁺ after ion exchange and the mole number before ion exchange was 3 times the difference between the mole number of the liquid-phase RE³⁺ after ion exchange and the mole number before ion exchange, expressed as

      (24)

where  is the liquid-phase RE³⁺ concentration at time level k+1 and position level i before ion exchange; m_si is the mass of mineral sample in the unit cell i; m_si=ρ_sπr²△z/(1+e), ρ_s is the density of soil particles, e is the porosity and r is radius of the soil column; V_Li is the volume of solution in the unit cell i and V_Li=πr²△zθ.

NH₄⁺ and RE³⁺ met the law of mass conservation before and after ion exchange at position level i. Therefore,

      (25)

         (26)

where  is the concentration of the liquid-phase NH₄⁺ at time level k+1 and position level i before ion exchange.

The boundary conditions of the solid-phase NH₄⁺ and RE³⁺ in Eqs. (17) and (18) were written in a differential form as follows:

        (27)

       (28)

When k=0 and i=1, the values of  and  were obtained from Eqs. (19)-(22). Given K_K, , ,  and , substituting Eqs. (24)–(26) into Eq. (23), the nonlinear equation of  was obtained. This nonlinear equation was solved by the fzero function in MATLAB. The calculated  was used in Eqs. (24)–(26) to calculate ,  and . When k=0 and i=2, the boundary conditions were combined with the previous two steps. Similarly, , ,  and  were calculated. Then, the values of , ,  and  were calculated in the same manner.

The breakthrough curve of the one-dimensional column leaching experiment in Section 2.2 was simulated using the above method. Simulation parameters were identical to those in the column leaching experiment. △t and △z were determined to be 1×10^-3 d and 1×10^-3 m, respectively. The breakthrough curve of RE³⁺ calculated using the proposed method is shown in Fig. 5. The correlation coefficient between the simulated and experimental curves reached 0.8724, indicating that the proposed method could accurately simulate the breakthrough curves of RE³⁺ in the one-dimensional column leaching experiment.

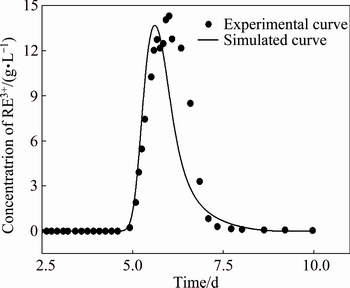

Fig. 5 Simulated and experimental breakthrough curves of RE³⁺

3.4 Optimization of ammonium sulfate solution

The breakthrough curve of RE³⁺ under different concentrations of (NH₄)₂SO₄ was acquired using the proposed method, with the rest of the parameters remaining the same as those in the column leaching experiment. The breakthrough curves of RE³⁺ under 5.0, 10.0 and 20.0 g/L concentrations of (NH₄)₂SO₄ are shown in Fig. 6. With the decrease in (NH₄)₂SO₄ concentrations, the peak concentration of the breakthrough curves of RE³⁺ decreased, and the tailing phenomenon of the breakthrough curves became more obvious, combined with a longer leaching period and lower leaching rate of RE. The curves depicting the relationship between the concentration of (NH₄)₂SO₄ and the leaching rate of RE are shown in Fig. 7. For a given RE grade (η), the leaching rate of RE was positively related to the concentration of (NH₄)₂SO₄. There exists a concentration where the leaching rate of RE is constant after the concentration of (NH₄)₂SO₄ exceeds this concentration. This concentration is called the optimal concentration of (NH₄)₂SO₄ (). The curve for the relationship between  and η is shown in Fig. 8, which showed a linear relationship. Based on linear fitting, =10.19η. Based on the relation equation between   and  η,  the  consumption of  (NH₄)₂SO₄ decreased under the premise of satisfying the leaching rate of RE. This offers theoretical reference for choosing the suitable concentration of (NH₄)₂SO₄ during RE exploitation using the in-situ leaching technique.

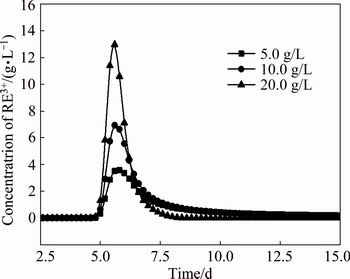

Fig. 6 Breakthrough curves of RE³⁺ under different concentrations of (NH₄)₂SO₄

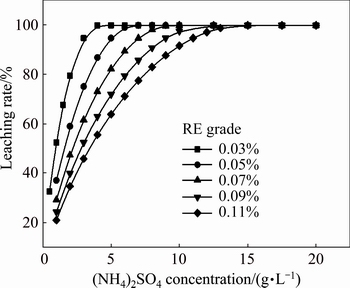

Fig. 7 Variation curves of leaching rate of RE with different concentrations of (NH₄)₂SO₄

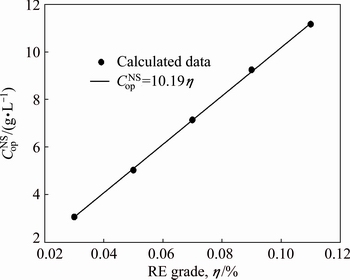

Fig. 8 Relationship between optimal concentration of (NH₄)₂SO₄ () and RE grade (η)

4 Conclusions

(1) Compared with the Vanselow model and Gapon model, the Kerr model was more suitable for describing the ion exchange process of RE leaching. The selectivity coefficient of the Kerr model was experimentally determined to be 12.59×10^-10 L²/g².

(2) Using the Kerr model as the source-sink term, the transport process of RE³⁺ in a one-dimensional soil column was simulated with the CDE model. The correlation coefficient between the simulated and experimental breakthrough curves of RE³⁺ reached 0.8724, which indicates that the proposed method provides a good simulation of one-dimensional column leaching of weathered crust elution-deposited RE ore.

(3) The concentration of (NH₄)₂SO₄ was optimized by the proposed model. It was shown that the optimal concentration of (NH₄)₂SO₄ () varied linearly with the RE grade (η). Under the conditions in the present study, the equation can be expressed as =10.19η.

References

[1] TANG Xun-zhong, LI Mao-nan. In-situ leach mining of ion-absorbed rare-earth mineral [J]. Mining Research and Development, 1996, 17(2): 1-4. (in Chinese)

[2] TANG Xun-zhong, LI Mao-nan, YANG Dian. The research of indoor simulation experiments of the ion-absorbed rare earth mineral in-situ leach mining [J]. Journal of Central South University of Technology, 1999, 30(2): 133-136. (in Chinese)

[3] QIU Ting-sheng, FANG Xi-hui, WU Hong-qiang, ZENG Qing-hua, ZHU Dong-mei. Leaching behaviors of iron and aluminum elements of ion-absorbed-rare-earth ore with a new impurity depressant [J]. Transactions of Nonferrous Metals Society of China, 2014, 24(9): 2986-2990.

[4] JING Qing-xiu, CHAI Li-yuan, HUANG Xxiao-dong, TANG Chong-jian, GUO Huan, WANG Wei. Behavior of ammonium adsorption by clay mineral halloysite [J]. Transactions of Nonferrous Metals Society of China, 2017, 27(7): 1627-1635.

[5] YIN Sheng-hua, QI yan, XIE Fang-fang, CHEN Xun, WANG Lei-ming. Permeability characteristic of weathered crust elution- deposited rare earth ores under different pore structures [J]. The Chinese Journal of Nonferrous Metals, 2018, 28(5): 1043-1049. (in Chinese)

[6] CHI Ru-an, TIAN Jun. Weathered crust elution-deposited rare earth ores [M]. New York: Nova Science Publishers, 2008.

[7] TIAN Jun. Kinetics and mass transfer in leaching rare earth from the weathered crust elution-deposited rare earth ore [D]. Changsha: Central South University, 2010. (in Chinese)

[8] TIAN Jun, LU Sheng-liang, YIN Jing-qun. Kinetic study on leaching a south china rare earth ore [J]. Engineering Chemistry and Metallurgy, 1995, 16(3): 354-357. (in Chinese)

[9] TIAN Jun, CHI Ru-an, YIN Jing-qun. Leaching process of rare earths from weathered crust elution-deposited rare earth ore [J]. Transactions of Nonferrous Metals Society of China, 2010, 20(5): 892-896.

[10] TIAN Jun, YIN Jing-qun, CHI Ru-an, RAO Guo-hua, JIANG Min-tao, OUYANG Ke-xian. Kinetics on leaching rare earth from the weathered crust elution-deposited rare earth ores with ammonium sulfate solution [J]. Hydrometallurgy, 2010, 101(3-4): 166-170.

[11] LI Ying-ting, TU An-bin, ZHANG Yue-fei, ZHANG Mei, CHI Ru-an. Kinetics of leaching rare earth from a weathered crust elution- deposited rare earth ore in South China with mixed ammonium salt [J]. Industrial Minerals and Processing, 2009(2): 19-24. (in Chinese)

[12] XIAO Yan-fei, CHEN Ying-ying, FENG Zong-yu, HUANG Xiao-wei, HUANG Li, LONG Zhi-qi, CUI Da-li. Leaching characteristics of ion-adsorption type rare earths ore with magnesium sulfate [J]. Transactions of Nonferrous Metals Society of China, 2015, 25(11): 3784-3790.

[13] HE Zheng-yan, ZHANG Zhen-yue, YU Jun-xia, ZHOU Fang, XU Yuan-lai, XU Zhi-gao, CHEN Zhe, CHI Ru-an. Kinetics of column leaching of rare earth and aluminum from weathered crust elution-deposited rare earth ore with ammonium salt solutions [J]. Hydrometallurgy, 2016, 163: 33-39.

[14] RAN Xiu-chuan, REN Zi-jie, GAO Hui-min, ZHENG Ren-ji, JIN Jun-xun. Kinetics of rare earth and aluminum leaching from Kaolin [J]. Minerals, 2017, 7(9): 152-164.

[15] SUN Yuan-yuan, XU Qiu-hua, LI Yong-xiu. Leaching kinetics of ion adsorption rare earths using low concentration of ammonium sulfate solution [J]. Chinese Rare Earths, 2017, 38(4): 61-67. (in Chinese)

[16] WANG Rui-xiang, XIE Bo-yi, YU Pan, ZHANG Zhao-xue, MAO Ji-yong, XIONG Jia-chun. Selection of leaching agent and optimization of column leaching process of ion-absorbed rare earth deposits [J]. Chinese Journal of Rare Metals, 2015, 39(11): 1060-1064. (in Chinese)

[17] HE Zheng-yan, ZHANG Zhen-yue, YU Jun-xia, XU Zhi-gao, XU Yuan-lai, ZHOU Fang, CHI Ru-an. Column leaching process of rare earth and aluminum from weathered crust elution-deposited rare earth ore with ammonium salts [J]. Transactions of Nonferrous Metals Society of China, 2016, 26(11): 3024-3033.

[18] HE Zheng-yan, ZHANG Zhen-yue, YU Jun-xia, XU Zhi-gao, CHI Ru-an. Process optimization of rare earth and aluminum leaching from weathered crust elution-deposited rare earth ore with compound ammonium salts [J]. Journal of Rare Earths, 2016, 34(4): 413-419.

[19] HE Zheng-yan, ZHANG Zhen-yue, CHI Ru-an, XU Zhi-gao, YU Jun-xia, WU Ming, BAI Ru-yu. Leaching hydrodynamics of weathered elution-deposited rare earth ore with ammonium salts solution [J]. Journal of Rare Earths, 2017, 35(8): 824-830.

[20] YIN Sheng-hua, WU Ai-xiang, HU Kai-jian, WANG Hong-jiang. Solute transportation mechanism of heap leaching and its influencing factors [J]. Journal of Central South University (Science and Technology), 2011, 42(4): 1092-1098. (in Chinese)

[21] WU Ai-xiang, YIN Sheng-hua, WANG Hong-jiang, SU Yong-ding. Solute transport mechanism and model of dump leaching [J]. Journal of Central South University (Science and Technology), 2006, 37(2): 385-389. (in Chinese)

[22] WU Ai-xiang, LIU Jin-zhi, YIN Sheng-hua, XI Yong. The mathematical model of the solute transportation in the heap leaching and the analytic solutions [J]. Mining and Metallurgical Engineering, 2005, 25(5): 7-10. (in Chinese)

[23] QIU Ting-sheng, ZHU Dong-mei, WU Cheng-you, WANG L M. Lattice Boltzmann model for simulation on leaching process of weathered elution-deposited rare earth ore [J]. Journal of Rare Earths, 2017, 37(10): 1014-1021.

[24] WU Cheng-you, QIU Ting-sheng, WANG Li-ming. Numerical study on solute transport in leaching process of rare earth by lattice Boltzmann method [J]. The Chinese Journal of Process Engineering, 2014, 14(5): 730-736. (in Chinese)

[25] EVANGELOU V P, PHILLIPS R E. Comparison between the Gapon and Vanselow exchange selectivity coefficients [J]. Soil Science Society of America Journal, 1988, 52(2): 379-382.

[26] LI Yong-xiu. Ion adsorption rare earth resources and their green extraction [M]. Beijing: Chemical Industry Press, 2014. (in Chinese)

[27] SOKOLOVA T A, ALEKSEEVA S A. Adsorption of sulfate ions by soils (A review) [J]. Eurasian Soil Science, 2008, 41(2): 140-148.

[28] SAUTY J P. An analysis of hydrodispersive transfer in aquifers [J]. Water Resources Research, 1989, 16(1): 145-158.

[29] STEEFEL C I, MACQUARRIE K T B. Approaches to modeling of reactive transport in porous media [J]. Reactive Transport in Porous Media, 1996, 34(5): 83-125.

[30] WALTER A L, FRIND E O, BLOWES D W, PTACEK C J, MOLSON J W. Modeling of multicomponent reactive transport in groundwater: 1. Model development and evaluation [J]. Water Resources Research, 1994, 30(11): 3137-3148.

[31] CLEMENT T P, SUN Y, HOOKER B S, PETERSEN J N. Modeling multispecies reactive transport in ground water [J]. Ground Water Monitoring and Remediation, 2010, 18(2): 79-92.
