Trans. Nonferrous Met. Soc. China 23(2013) 2312-2316

Synthesis and electrochemical properties of Li_1.03Co_0.1Mn_1.9F_zO_4-z material for lithium-ion batteries

Wen-jing LIU, Yun ZHANG, Fu WANG, Chao LU

College of Materials Science and Engineering, Sichuan University, Chengdu 610064, China

Received 9 September 2012; accepted 17 March 2013

Abstract: Li_1.03Co_0.10Mn_1.90F_zO_4-z (z=0, 0.05, 0.10, 0.15 and 0.20) cathode materials were synthesized by solid-state reaction using Mn₂O₃, Li₂CO₃, Co₂O₃ and LiF as raw materials. The chemical compositions of Li_1.03Co_0.1Mn_1.9F_zO_4-z were examined by inductively coupled plasma (ICP) and potentiometric analysis, the effects of F-substitution contents on structure, morphology and electrochemical performance of spinel Li_1.03Co_0.10Mn_1.90O₄ were studied by X-ray diffraction (XRD), scanning electron microscopy (SEM) and electrochemical measurements. It is found that the Li_1.03 Co_0.10Mn_1.90F_zO_4-z samples display a single phase of cubic spinel structure. The lattice parameters increase with the increase of F content when z≤0.10. However, the lattice parameters begin to decrease when F content continues to increase. The results show that an appropriate amount of F substitution for O element with Li⁺, Co³⁺ improves discharge capacity and structure stability of the materials. The Li_1.03Co_0.10Mn_1.90F_0.15O_3.85 sample shows an initial discharge capacity of 111.0 mA·h/g and has capacity retention of 97.0% after 30 cycles at 0.2C.

Key words: cathode materials; solid-state reaction; F-substitution; cycle performance

1 Introduction

In recent years, lithium-manganese spinel LiMn₂O₄ has been considered one of the most promising positive electrode materials for lithium-ion batteries because of its low cost, abundant reserves, simple synthesis technique, and environmental benign [1,2]. However, lithium-manganese spinel LiMn₂O₄ also has some disadvantages such as severe capacity fading [3]. The main reason of the occurrence of these disadvantages [4,5] is structural instability in the charged state. In order to improve the electrochemical stability of the spinel LiMn₂O₄ material, many studies have been directed to ion-substituted compounds to improve structural stability and electrochemical performance of the materials. It is found that doping with Li⁺, Co³⁺, Al³⁺, Cr³⁺ and F^- ions [6-10] could enhance the electrochemical stability and cycling performance of the materials. LU et al [11] have reported lithium-rich Li_1.02Mn₂O₄ having an initial discharge capacity of 120 mA·h/g. However, it has serious capacity fade and remains less than 100 mA·h/g after 50 cycles. LiCo_xMn_2-xF_yO_4-y, investigated by XIAO et al [5], demonstrated an initial discharge capacity of 123.5 mA·h/g, and the capacity retention was 92.5% after 20 cycles. LIU et al [12] have reported that LiAl_xMn_2-xO_4-yF_y prepared by a sol–gel method has an initial capacity of 115 mA·h/g which only drops to 109 mA·h/g after 50 cycles. Thus, it is believed that the substitution of Co³⁺, F^- ions for Mn and O ions can enhance the initial capacity of Li excess spinel LiMn₂O₄, and the capacity fading speed can also be reduced.

In this work, Li_1.03Mn₂O₄ was considered to be base compound due to its more lithium content while retaining the same structure as LiMn₂O₄, thus we have an attempt to solve both the initial capacity and capacity fading problems by co-doping with Co³⁺ and F^- in the base structure. Li_1.03Co_0.10Mn_1.90F_zO_4-z was prepared by solid-state reaction using Li₂CO₃, LiF, Co₂O₃ and Mn₂O₃ as raw materials. The effects of F-substitution on synthesis, morphology and electrochemical performance were examined by X-ray diffraction (XRD), scanning electron microscopy (SEM) and electrochemical measurements.

2 Experimental

2.1 Preparation of spinel Li_1.03Co_0.10Mn_1.90F_zO_4-z

The mixtures consisting of stoichiometric ratio of Li_1.03Co_0.10Mn_1.90F_zO_4-z (z=0, 0.05, 0.10, 0.15 and 0.20) using Li₂CO₃, LiF, Co₂O₃ and Mn₂O₃ as raw materials were ball milled for 2 h with ethanol as dispersant. Then the milled powders were dried at 80 °C. The well-mixed mixtures with different contents of F-substitution were initially heated at 500 °C for 4 h, cooled to the temperature, and re-grind again. Then, the materials were calcined at 800 °C for 12 h in air, cooled to room temperature slowly, and Li_1.03Co_0.10Mn_1.90F_zO_4-z cathode samples were obtained.  Li₂CO₃ and Co₂O₃ with the purity of 99.0% are of merchant battery grade. LiF used in the experiment was analytical reagent. Mn₂O₃ was prepared by calcining MnO₂ of merchant electronic grade at 700 °C for 12 h in air.

2.2 Characterization

The contents of Li, Co and Mn elements were examined by inductively coupled plasma (ICP), and content of F was examined by potentiometric analysis. The structures of the Li_1.03Co_0.10Mn_1.90F_zO_4-z samples were detected by X-ray powder diffraction analysis using Cu K_α radiation at room temperature, 40 kV and 25 mA, and the diffraction angle ranged from 10° to 90° with a continuous scanning step of 0.02 (°)/s. The morphology and size of the samples were observed using a scanning electron microscope (JSM-5900 Japan).

2.3 Electrochemical measurement

With lithium metal pieces as the negative electrode, the positive electrode was prepared by mixing 85% active materials, 10% acetylene black (Alfa), and 5% polyvinylidene difuoride (PVDF, Solvay) binder, and N-methyl-2-pyrrolidine (NMP, Alfa) as solvent. The mixed cathode slurry was evenly coated on aluminum foil, then pressed at 20 MPa and dried at 120 °C for 20 h in a vacuum oven. The cells were assembled in an argon-filled glove box using lithium foil as anode, Celgard2400 as separator and 1 mol/L LiPF₆ dissolved in a mixture of EC and DMC (1:1) as electrolyte. The charge/discharge tests were performed on a neware battery program control instrument through constant current/constant voltage charge and in constant current discharge in voltage range of 3.0-4.3 V at room temperature.

3 Results and discussion

3.1 X-ray diffraction analysis

Figure 1 shows the X-ray diffraction patterns of Li_1.03Co_0.10Mn_1.90F_zO_4-z. It can be seen that all the four materials doped with F^- exhibit the cubic spinel structure of space group Fd3m, demonstrating that F^- are incorporated into the spinel structure. These show that Li_1.03Co_0.10Mn_1.90F_zO_4-z materials prepared by solid-state method have a well spinel structure. But from Fig. 1, it can be seen that Li_1.03Co_0.10Mn_1.90F_0.15O_3.85 and Li_1.03Co_0.10Mn_1.90F_3.80O_0.20 show a MnF₃ impurity diffraction. From Table 1, it can be seen that the diffraction angle moves to the lower angle with the increase of F^- content. When F-substitution is 15% (mole fraction, the same below if not mentioned), the shift extent of the diffraction peak is reduced, which is consistent with the changes of the lattice parameters in Table 2. The correspondent peaks of lattice planes (222), (400), (331), (440) become more and more acute, which shows that the particle size tends to increase with F^- doping. When the amount of F-substitution is 15% (mole fraction), the peak of the sample is the acutest and the peak intensity reaches the maximum, demonstrating that the sample with 15% of F-substitution has the best crystalline. This is consistent with the results of the FWHM and diffraction angle analyses in Table 2.

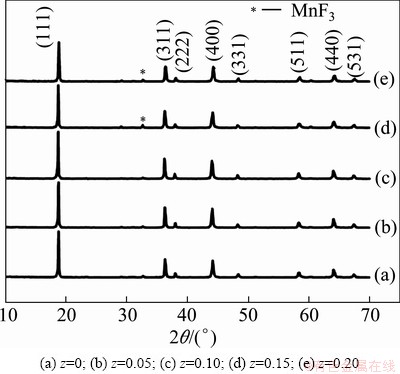

Fig. 1 XRD patterns of prepared Li_1.03Co_0.10Mn_1.90F_zO_4-z materials

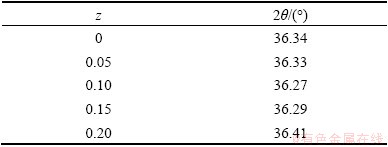

Table 1 Relationship between (311) diffraction angle and F content

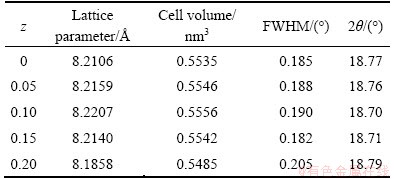

Table 2 Relationship among lattice parameter, (111) FWHM and F content

As shown in Table 2, with the substitution of F for O in Co-doped and Li-doped lithium manganese oxide, the lattice parameters gradually increase with the molar ratio of F element increasing from 0 to 0.10. However, when the amount of F-substitution is more than 10%, the lattice parameters begin to decrease with the increase of F^- content. The incorporation of fluorine has two effects on the materials. On one hand, O ions are replaced by F^-, which makes the amount of Mn³⁺ increase. Since the radium of the Mn³⁺ is larger than that of the Mn⁴⁺, the incorporation of F^- causes a part of oxygen defects in crystal, which make the lattice parameters increase. On the other hand, the electronegativity of F^- is larger than that of O ion and σ (Mn—O) enhances due to F^- incorporating [13], which makes the lattice parameters decrease. Thereby, in the case of a small amount of F-substitution, the amount of Mn³⁺ plays a leading role, which makes the lattice parameters increase. However, with more F^- incorporated to the materials, the strong electronegativity of F^- will play a leading role, which makes the lattice parameters decrease gradually. The expansion of the crystal lattice, which provides more lattice space, is conducive to lithium intercalation and deintercalation, but disadvantageous to the stability of the structure of the material. The small crystal lattice is helpful to the stability of the structure of lithium manganese oxide, but prejudices lithium intercalation and deintercalation in charge/discharge. Table 2 reports that FWHM value is minimum at z=0.15. This demonstrates that crystallinity of the sample, which plays an important role in electrochemical performance, is the best at this moment. When z=0.20, FWHM is more than 0.200, the crystal form of the sample is incomplete, which will be detrimental to the battery cycle performance. This is consistent with SEM. From the ICP analysis and potentiometric analysis, it was confirmed that the chemical compositions of the prepared powders were stoichiometric.

3.2 Morphology

The morphologies of the F-substituted spinel Li_1.03Co_0.10Mn₂O₄ are presented in Fig. 2. As can be seen from the figure, the particles of F-substituted samples have uniform size dispersion and unobvious reunion.

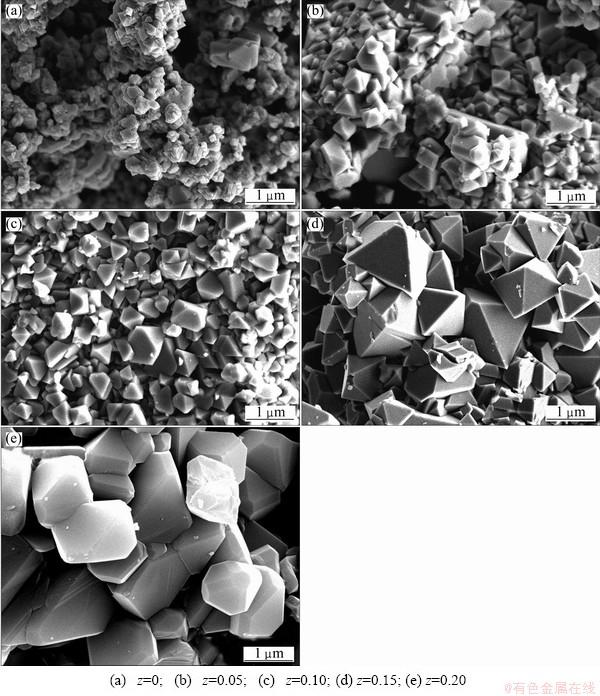

Fig. 2 SEM images of Li_1.03Co_0.10Mn_1.90F_zO_4-z materials

Comparing with undoped-Li_1.03Co_0.10Mn_1.9O₄, the F-substitution samples have favorable spinel octahedral structure, which agrees with XRD. It can also be observed that when z=0.15, the sample has the particles with smooth surface, angular grain, the most perfect polymorphs, and the decrease of the particles specific surface area, which reduces the dissolving of Mn, makes the structure retain stability during lithium intercalation and deintercalation.

3.3 Electrochemical performance

3.3.1 Charge and discharge

Figure 3 shows that both charge/discharge profiles of lithium manganese oxide with or without F incorporation exhibit two platforms, demonstrating that the insertion and extraction of lithium ions occur in two stages [14] and the substitution of F does not change the spinel structure of the material. From charge-discharge curves, it is found that the cathode materials doped with F have initial discharge capacities of 105.9, 107.4, 113.2, 111.0 and 103.9 mA·h/g for z=0, 0.05, 0.10, 0.15 and 0.20, respectively, at 0.2C. It can be obviously seen that the initial discharge capacity of the Li_1.03Co_0.10Mn_1.90F_zO_4-z cathode materials gradually increases first and then decreases with the increase of F content. This can explain that substitution of F^- for O^2- leads to an increase of Mn³⁺. As we know, the capacity of the lithium-manganese spinel LiMn₂O₄ depends on the amount of Mn³⁺. Therefore, a small amount of F-substitution will increase the discharge capacity. However, over 10% substitution of F^- will cause the formation of MnF₃ impurity. MnF₃ diffraction is shown in XRD when z>10%. As an inactive substance, the formation of MnF₃ results in the decrease of active substance content, so the discharge capacity of the cathode materials decreases. Thus, there is a lower discharge  capacity  than  the  sample  with  10% F-substitution. Compared with the composition of Li_1.03Co_0.10Mn_1.90F_0.10O_3.90, it is clear from Fig. 3 that the initial discharge capacity of Li_1.03Co_0.10Mn_1.90F_0.15O_3.85 is 111.0 mA·h/g, which only reduces by 2.2 mA·h/g, while the sample Li_1.03Co_0.10Mn_1.90F_0.20O_3.80 has a lower initial discharge capacity of 103.9 mA·h/g due to the fact that Li_1.03Co_0.10Mn_1.90F_3.85O_0.15 has fine crystallinity and minor particle size which may has great benefit to migration and proliferation of Li⁺, and reduces the polarization of lithium manganate in the discharge process [15].

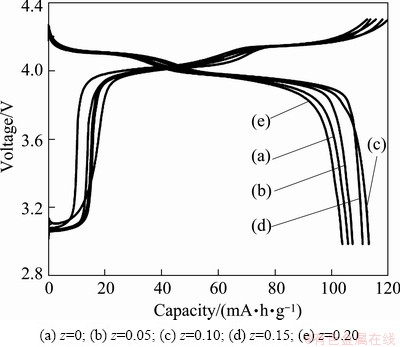

Fig. 3 Initial charge/discharge profiles of Li_1.03Co_0.10Mn_1.90- F_zO_4-z

3.3.2 Cycling performance

The cycling performances of the samples with different amounts of F^- substitution are shown in Fig. 4. It can be seen from the figure that the capacity retentions of Li_1.03Co_0.10Mn_1.90F_zO_4-z with z=0.05 and 0.10 are 95.3% and 94.5%, respectively, which are slightly lower compared with Li_1.03Co_0.10Mn_1.9O₄ (97.8%). It is due to the fact that the amount of Mn³⁺ increasing results in the enhancement of Jahn-Teller effect and dissolution of Mn²⁺ which lead to the loss of the discharge capacity during cycling [15]. From the cycling results shown in Fig. 4, it can be seen that when z=0.20, the capacity retention reduces to 94.4%. However, for the sample with 15% of F-substitution, the capacity fading is only 3% after the 30th cycle, which is due to the fact that the increase of F^- substitution amount maintains the stability of the structure of the spinel lithium manganese oxide in the charge and discharge process, improves the electrochemical stability and reduces the capacity attenuation of the spinel during cycle process. But from XRD, when z=15%, there is obvious MnF₃ diffraction, which demonstrates that the amount of F substitution for O element reaches the maximum. With the increase of F amount, the content of MnF₃ impurity will increase, so, it will result in the discharge capacity and cycling lifetime decrease. Combined cycle performance and discharge capacity, the Li_1.03Co_0.10Mn_1.90F_0.15O_3.85 electrode shows excellent electrochemical performances.

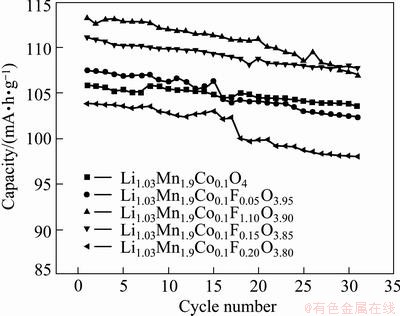

Fig. 4 Cycling performance of Li_1.03Co_0.10Mn_1.90F_zO_4-z

4 Conclusions

Li_1.03Co_0.10Mn_1.90F_zO_4-z (z=0, 0.05, 0.10, 0.15, 0.20) cathode materials were synthesized with the mixture of Li₂CO₃, LiF, Co₂O₃ and Mn₂O₃ by solid-state reaction. The XRD analysis reveals that the prepared Li_1.03Co_0.10Mn_1.90F_zO_4-z materials have well-ordered spinel structure (space group Fd3m). The average particle size of F-substitution materials is greater than the un-doped Li_1.03Co_0.10Mn_1.90O₄ sample. The effects of different F-substitution content on Li_1.03Co_0.10Mn_1.90O₄ indicates that the prepared Li_1.03Co_0.10Mn_1.90F_0.15O_3.85 sample exhibits a discharge capacity of 111.0 mA·h/g and a capacity retention of 97.0% after 30 cycles. Therefore, it can be concluded that electrochemical performance of spinel LiMn₂O₄ can be enhanced by combination of Li excess, substitution of Co and appropriate amount of F (15%).
