Trans. Nonferrous Met. Soc. China 27(2017) 2647-2655

Shape memory TiNi powders produced by plasma rotating electrode process for additive manufacturing

Gang CHEN^1,2, Shao-yang ZHAO¹, Ping TAN¹, Jing-ou YIN¹, Quan ZHOU^1,3, Yuan GE¹, Zeng-feng LI¹, Jian WANG¹, Hui-ping TANG^1,4, Peng CAO⁵

1. State Key Laboratory of Porous Metal Materials, Northwest Institute for Non-ferrous Metal Research, Xi’an 710016, China;

2. State Key Laboratory of Powder Metallurgy, Central South University, Changsha 410083, China;

3. School of Materials Science and Engineering, Northeastern University, Shenyang 110819, China;

4. Xi’an Sailong Metal Materials Co., Ltd., Xi’an 710016, China;

5. Department of Chemical and Materials Engineering, The University of Auckland, Private Bag 92019, Auckland 1142, New Zealand

Received 21 February 2017; accepted 5 June 2017

Abstract: This study aimed to produce spherical TiNi powders suitable for additive manufacturing by plasma rotating electrode process (PREP). Scanning electron microscopy, X-ray diffractometry and differential scanning calorimetry were used to investigate the surface and inner micro-morphology, phase constituent and martensitic transformation temperature of the surface and inner of the atomized TiNi powders with different particle sizes. The results show that the powder surface becomes smoother and the grain becomes finer gradually with decreasing particle size. All the powders exhibit a main B2-TiNi phase, while large powders with the particle size ≥178 μm contain additional minor Ti₂Ni and Ni₃Ti secondary phases. These secondary phases are a result of the eutectoid decomposition during cooling. Particles with different particle sizes have experienced different cooling rates during atomization. Various cooling rates cause different martensitic transformation temperatures and routes of the TiNi powders; in particular, the transformation temperature decreases with decreasing particle size.

Key words: atomization; plasma rotating electrode process; TiNi; particle size; martensitic transformation

1 Introduction

The equiatomic TiNi shape memory alloy was first discovered by BUEHLER et al [1] accidentally. Since its discovery, TiNi alloy has been attracting continuous research interest due to its unique properties such as shape memory effect, good corrosion resistance and good biocompatibility [2]. Recently, additive manufacturing (AM) such as selective laser melting (SLM) process, has been used to fabricate TiNi products for medical implants or actuators [3-8]. In the SLM process, spherical TiNi powders produced by gas atomization were used as the raw feedstock. Since SLM involves very high localized temperature, the characteristics of raw powders play an important role in determining the microstructure and properties of the additively manufactured (AMed) products. For instance, LI et al [8] found that the Ti₂Ni secondary phase originally from the raw TiNi powders retained in the AMed sample after SLM; some defects or pores in the AMed sample are also thought to inherit from the raw powders. YABLOKOVA et al [9] also found that particle size, shape, size distribution and surface properties of the feedstock powders affect the powder flowability and processing conditions for SLM. Therefore, a thorough characterization of the starting TiNi powders in terms of microstructure, particle size and shape, and martensitic transformation temperature provides critical information about the technical operation and the attained AMed engineering products.

In addition to gas atomization, plasma rotating electrode process (PREP) is also a widely used technique to produce spherical powders with high sphericity, low porosity and low interstitials [10-13]. In the PREP set-up, the pre-alloyed TiNi ingot is the electrode. An argon plasma arc is used to melt the rapidly rotating TiNi electrode and molten droplets are spun off and then solidified to form spherical particles in flight in the argon atmosphere [12]. In general, PREP is a rapid cooling process and therefore the high temperature phases can be retained to room temperature. The cooling rate in each individual particle is different, depending on its particle size. Therefore, the phase constituents in various particles might be different. For example, BASAK et al [14] found some Ti₂Ni phase nano-particles co-existing with predominant B2-TiNi phase in the macro-sized powders. They speculated that the existence of Ti₂Ni is a result of an equilibrium eutectic reaction owing to the low cooling rate. Nevertheless, the clarification of the existence of secondary phases in the PREP NiTi powder is still lacking. On the other hand, if secondary phases do exist, the mechanism by which these secondary phases are formed is not well understood. BASAK et al [14] suggested that a possible correlation exists between particle size and phases presented in the particles. This study therefore aims to clarify such a correlation, using the PREP technique to produce spherical TiNi powders with a wide range of particle size. The objectives of this study are thereby to investigate the effect of particle size on the micro-morphology, phase constituent and martensitic transformation of the PREPed TiNi powders, and to explain the formation of secondary phases, if they are present.

2 Experimental

The pre-alloyed TiNi rods (48.7%Ti-51.3%Ni, mole fraction), 75 mm in diameter and 400 mm in length, were used as the rotating electrode. The oxygen level in the starting TiNi rod is 0.037% (mass fraction). The spherical TiNi powders were subsequently produced using a PREP atomizer (SLPREP-1, Sailong Metal Materials Co., Ltd., China) [13], as shown in Fig. 1. The entire experiment was performed in a high-purity argon atmosphere. The main PREP processing parameters in this study are shown in Table 1.

Table 1 Information for PREP processing parameters

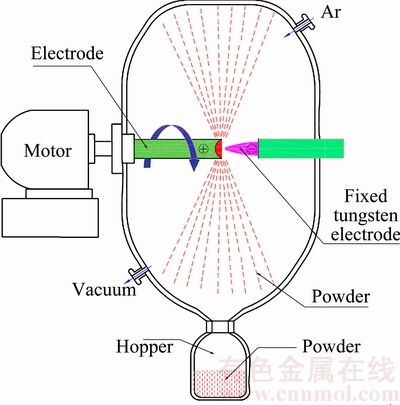

Fig. 1 Schematic of plasma rotating electrode process (PREP)

Afterwards, the powders were sieved into three batches with various particle size ranges, i.e., ≥178 μm (denoted by TiNi-Coarse), 74-150 μm (TiNi-Med), ≤40 μm (TiNi-Fine), respectively. The flowability of the PREPed TiNi powders was determined according to the ASTM B213-13 standard with a Hall flowmeter, while their apparent density was determined as per the ASTM B212-13 standard. Phase constituents of the powders were determined by X-ray diffraction (XRD, Bruker D8 Advance Phaser) with Cu K_α radiation at room temperature. The X-ray diffraction (XRD) analysis was performed on a Bruker D8 Advance Phaser diffractometer at 40 kV with 2q angle from 10° to 90°. To prepare the cross-section metallographic samples, the powder particles were mounted in epoxy resin, mechanically polished with SiC papers and finally etched with Kroll’s reagent. Scanning electron microscopy (SEM, JEOL JSM-6460) equipped with energy- dispersive X-ray spectrometry (EDX) was used to characterize the surface and cross-sectional microstructures of powders. The interstitial contents were measured with an inert gas fusion analytical instrument (Leco TCH 600). Phase transformation temperatures of the TiNi powders were determined by differential scanning calorimetry (DSC, NETZSCH DSC 204F1) with a heating-and-cooling rate of 10 K/min between -120 and 150 °C.

To investigate the effect of cooling rate on the phase transformation of TiNi during cooling, disk samples of 20 mm in diameter and 5 mm in thickness, cut from the starting TiNi rod were heated to 660 °C, held at this temperature for 0.5 h and then quenched in water. The heating and quenching were conducted in a water- quenching vacuum furnace (vacuum level: 1×10^-2 Pa). Another experiment was carried out with the same heat profile but followed by furnace cooling instead of water-quenching. In recent work, CHEN et al [15-18] used in-situ neutron diffraction to  confirme that there exists a eutectoid decomposition of TiNi → Ti₂Ni + Ni₃Ti at 630 °C if samples are furnace- cooled from the single-phase region. However, if the cooling rate is sufficiently high, the eutectoid reaction should be suppressed, thus yielding no secondary phases. Hence, we chose 660 °C as the heat treatment temperature to achieve a starting single phase, which was then  subjected to various cooling rates. The information obtained from these heat treatment experiments were then fed back to investigate the relationship between the particle size and phase constituents in the PREPed TiNi powder.

3 Results and discussion

3.1 TiNi powders by PREP

Figure 2 shows the features of the edge and surface of the TiNi anode after PREP. It can be seen that the edge and cross-section surfaces of the anode are smooth. According to CHAMPAGNE and ANGERS [19], the melt flows to the edge of anode as a consequence of the centrifugal force, forming an earring that is further disintegrated into liquid droplets, which are solidified into “primary particles”, as shown in Fig. 2(c). The  large liquid droplets may be further disintegrated into smaller ones, which are solidify into the so-called “secondary particles”. Due to surface tension during rapid solidification, spherical or spheroid particles are formed [14,19-21]. The atomizing mechanisms  involved in PREP include direct drop formation (DDF), ligament disintegration (LD), and film disintegration  (FD) [19].

The morphology of the PREPed TiNi powders without sieving is shown in Fig. 3(a). Most of the powders exhibit high sphericity and “satellite” powders can be rarely observed, which contributes to a good flowability of 19.7 s/(50 g) (Table 2). As displayed in   Fig. 3(b), the particle size ranges from 40 to 180 μm with a typical bimodal distribution, which is thought to be a result of the DDF mechanism [19]. Moreover, the resulting particle size primarily depends on the operation parameters such as rotating speed, electrode diameter and DC current [22]. The apparent density and oxygen content of the PREPed powders (below 100 μm) is  4.03 g/cm³ and 0.036%, respectively (Table 2).

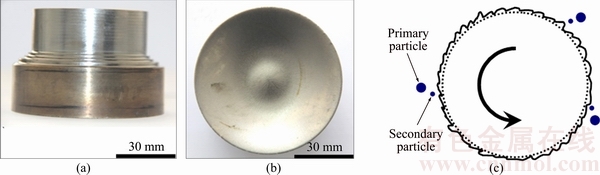

Fig. 2 Edge (a) and surface (b) of TiNi anode after PREP operation, and schematic illustration (c) of ideal process of droplets formation [19]

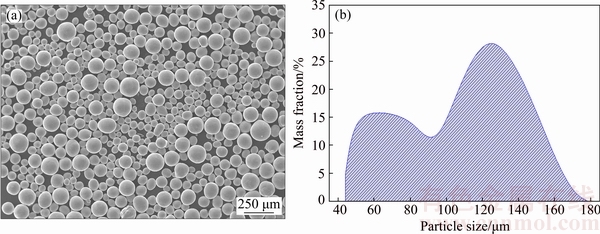

Fig. 3 Micro-morphology (a) and particle size distribution (b) of PREPed TiNi powders

Table 2 Basic characteristics of TiNi powders (<100 μm) produced by PREP

3.2 Effect of particle size on microstructure

A detailed observation of micro-morphologies of the powders is presented in Figs. 4 and 5. Figure 4 displays surface morphologies of the PREPed powders as a function of particle size. The particle surface becomes smoother and the grain structure becomes finer gradually as the particle size decreases, as shown in Figs. 4(b), (d) and (f). With respect to large particles such as the ones shown in Figs. 4(a) and (c), typical dendritic solidification morphology is observed. The dendritic feature becomes less obvious if the particle size is <40 μm, as presented in Fig. 4(f). This is mainly attributed to various cooling rates of powders associated with the particle size. It has been reported that the typical cooling rate of PREPed titanium powders is estimated to be 10⁴-10⁶ K/s [23], depending on particle size. With increasing cooling rate, the dendrites are gradually inhibited [10,20,24,25]. At extremely high cooling rates, even the cells (i.e., dendrites without secondary arms) may be completely suppressed, forming a featureless microstructure. Therefore, smaller particles yield smoother surface without any visible feature, e.g., Fig. 4(f). However, crystallization features can be obviously seen on the surface of larger particles (Figs. 4(b) and (d)). The arrow in Fig. 4(d) may indicate an intersection point of grain boundaries formed on its surface during rapid solidification.

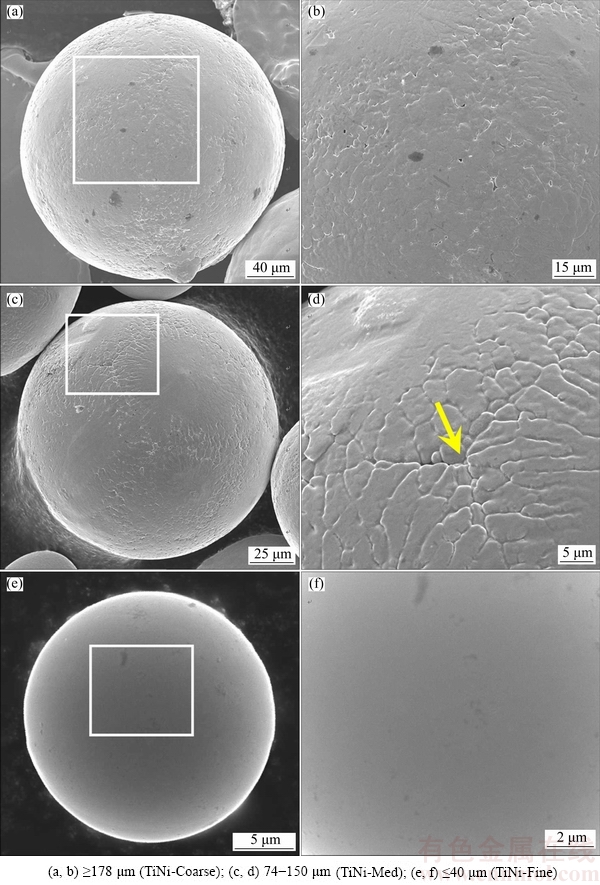

Fig. 4 Surface morphologies of PREPed TiNi powders with different particle sizes

The microstructures observed on the cross-sections are illustrated in Fig. 5. A small particle size corresponds to a fine-grained microstructure (Fig. 5). For example, the average grain size is approximately 3 μm in the intermediate sized particles (TiNi-Med powder in Fig. 5(d)). It is interesting from Figs. 5(e) and (f) that the phase constituent in smaller particles is TiNi phase. Detailed discussion of phase constituents in powders with various particle sizes will be given in the following section.

3.3 Effect of cooling rate on phase constituents

Figure 6 [26] shows the phase constituents of the PREPed TiNi powders with different particle sizes determined by XRD. The pattern of the starting material is also presented in Fig. 6(d), showing a single B2-TiNi phase. In contrast, the powders demonstrate other phase constituents, although the main phase is still the B2-TiNi phase (Figs. 6(a)-(c)). Particularly, large particles with the size ≥178 μm exhibit additional minor secondary phases, i.e., Ti₂Ni, Ni₃Ti and Ni₄Ti₃ (see Fig. 6(c)).  Table 3 summarizes the phase compositions of the raw TiNi rod and PREPed powders with various particle sizes. TiNi, Ni₃Ti and Ti₂Ni phases were confirmed by EDX analysis, while the Ni₄Ti₃ phase was not detected by EDX since it was too small in either size or quantity. Different from large particles, smaller powders (with the particle size of 74-150 μm and ≤40 μm) only show the B2-TiNi and Ni₄Ti₃ phases as shown in Figs. 6(a), (b) and Table 3.

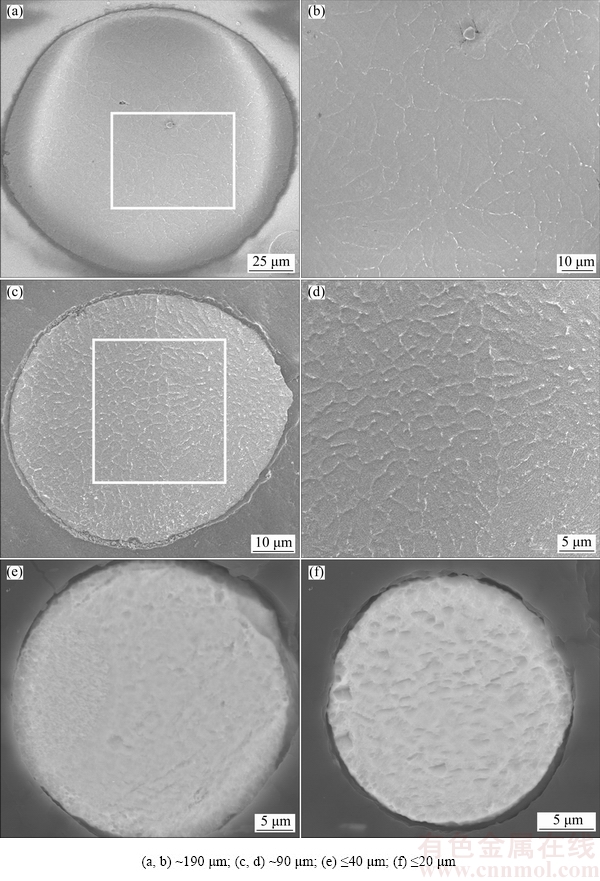

Fig. 5 Cross-sectional microstructures of various TiNi particles

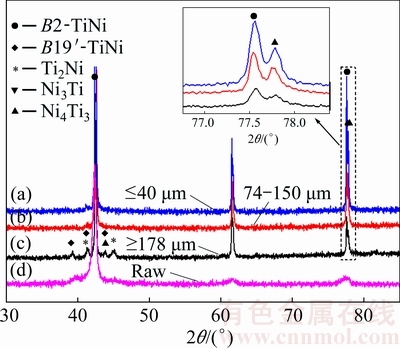

Fig. 6 XRD patterns of raw material and PREPed TiNi powders with various particle sizes [26]

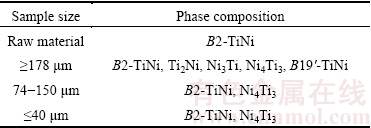

Table 3 Phase compositions of raw material and PREPed powders

According to the binary Ti-Ni phase diagram in Fig. 7 [26], the small amount of secondary Ni₃Ti and Ti₂Ni detected by XRD for the particles above 178 μm (Fig. 6(c)) is therefore possibly attributed to eutectoid decomposition of NiTi → NiTi₂ +Ni₃Ti at 630 °C. Although the liquid melt would rapidly be solidified into the B2-NiTi phase, the cooling process in large particles from B2 phase might be slowed so that the eutectoid phases NiTi₂ and Ni₃Ti are readily formed. The persistent eutectoid reaction has been confirmed in the works by CHEN et al [15-18]. If the particles are small, the cooling from B2 phase is expected to be sufficiently rapid, thus suppressing the eutecoid decomposition.

To further confirm our speculation and investigate the effect of cooling rate on the phase transformation during cooling, bulk TiNi samples cut from the raw rod were subjected to a water-quenching and a furnace- cooling heat treatment, respectively. As illustrated in the experimental section, one batch of disk samples was first heated to 660 °C (well above 630 °C) and held for 0.5 h in a vacuum furnace, followed by water quenching. The other batch was subjected to the same heating treatment but followed by furnace cooling. Figure 8 shows the XRD patterns of bulk samples after the two heat treatments. Only the B2-TiNi phase is observed in the water-quenched sample (Figs. 8(a) and (c)). On the contrary, as shown in Fig. 8(b), the phases observed after furnace cooling from 660 °C include B2-TiNi, Ni₃Ti and Ti₂Ni. This suggests that different cooling rates result in diverse phases or phase transformations, although both experiments used the identical raw material. Again, this further proves that the eutectoid reaction of TiNi → Ni₃Ti + Ti₂Ni at 630 °C (Fig. 7) is inhibited by water quenching due to very high cooling rate, while this reaction is inevitable during furnace cooling. Therefore, this result agrees well with the previous analysis, confirming the effect of cooling rate on the eutectoid reaction at 630 °C, leading to different phase  constituents. This further indicates that the existence of Ni₃Ti and Ti₂Ni secondary phases in large powders is most possibly owing to the eutectoid decomposition of TiNi → Ni₃Ti + Ti₂Ni at 630 °C during cooling. BASAK et al [14] also observed nano-sized Ti₂Ni particles co-existing with predominant B2-TiNi phase in the macro-sized PREPed Ni-Ti-Fe powders. They also speculated that the existence of Ti₂Ni is a result of an equilibrium eutectic reaction owing to its low cooling rate. It needs to note that the mean particle size of the PREPed Ni-Ti-Fe macro-powders in Ref. [14] was much larger, i.e., 400 μm, than that of powders in this study. Nevertheless, the eutectoid reaction of TiNi→ Ni₃Ti+Ti₂Ni at 630 °C should be more likely to occur during rapid cooling in larger particles.

Fig. 7 Ti-Ni binary phase diagram (Redrawn from Ref. [26])

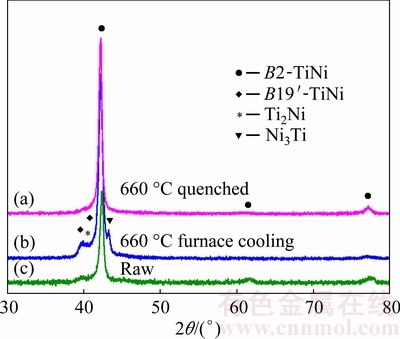

Fig. 8 XRD patterns of raw TiNi sample and TiNi bulk samples conducted after furnace cooling and vacuum water quenching

3.4 Effect of particle size on martensitic trans- formation temperature

Figure 9 presents DSC curves of the PREPed TiNi powders with various particle sizes upon cooling and heating. Additionally, phase transformation temperatures for powders analyzed from Fig. 9 are shown in Table 4. The peak temperatures of martensitic transformation  (M_p) during cooling are 6, -43 and -68 °C for powders with the particle size ≥178 μm, 74-150 μm and ≤40 μm, respectively. Interestingly, two important observations can be drawn from Fig. 9 and Table 4. Firstly, the martensitic transformation temperature decreases with decreasing the particle size of powders. Secondly, powders above 178 μm undergo a one-step of B2→B19′ phase transformation during cooling, while smaller powders exhibit a two-step B2→R→B19′ martensitic transformation process.

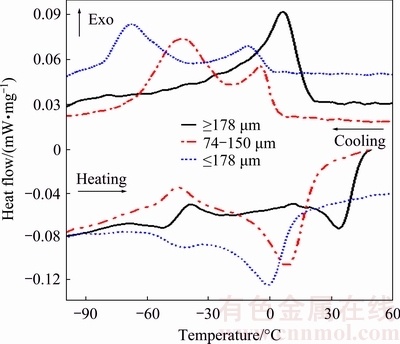

Fig. 9 DSC curves upon cooling and heating for PREPed TiNi powders with various particle sizes

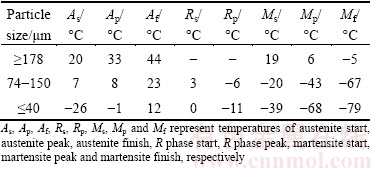

Table 4 Phase transformation temperatures for PREPed TiNi powders with different particle sizes

The crystal structures of the B2, R and B19′ phases are cubic, trigonal and monoclinic [27], respectively. In addition to the B2 and B19′ phases, the R phase is a commensurate phase that arises under certain conditions prior to transforming to the B19′ phase. B2→R transformation is also a martensitic transformation process, which competes with B2→ B19′ transformation. If the B2→B19′ transformation occurs first, the B2→R transformation is suppressed. MIYAZAKI and  OTSUKA [28] summarized a few factors effective to depress the martensite start temperature (M_s) and to favor the R phase formation: 1) substitution of a third element such as Fe or Al in the TiNi alloys; 2) the precipitation  of Ti₃Ni₄ (R) phase after aging heat treatment; and 3) introduction of dislocations. WAITZ et al [29] observed that the B2→B19′ martensitic transformation is suppressed by decreasing grain size in a Ni-50.3%Ti alloy; M_s drops below the transformation temperature of the R phase if the grain size is < 150 nm. This leads to a two-step transformation from B2 to B19′ via the R phase. Our results also support that the grain refinement suppresses the martensitic transformation.

In addition, the existence of secondary phases, i.e., Ni₃Ti and Ti₂Ni (Fig. 6(c)) in large powders may favor the one-step B2→B19′ martensitic transformation, as shown in Fig. 9. It is interesting to note that the reverse martensitic transformation is only one-step B19′→B2 transformation for all the TiNi powders (Fig. 9), indicating that reverse R phase transformation and reverse martensitic transformation are overlapped [30,31]. This phenomenon has been analyzed systematically by REN et al [27,32,33].

It needs to point out the effect of Ni content on the martensitic transformation temperature [27,34]. In particular, with 0.1% (mole fraction) variation in Ni content the martensitic transformation temperature could change by about 10 °C [34].

4 Conclusions

1) The cooling rate of TiNi powders varies with particle size. Due to various cooling rates, coarser powders exhibit dendritic solidification morphology, while finer powders achieve much smoother surface and finer grain size.

2) Powders with smaller particle size (74-150 μm and ≤40 μm) demonstrate the B2-TiNi and Ti₃Ni₄ phases, while larger powders above 178 μm show B2-TiNi as the main phase plus minor Ni₃Ti and Ti₂Ni secondary phases most possibly owing to the eutectoid decomposition of TiNi → Ni₃Ti + Ti₂Ni at 630 °C during cooling.

3) The martensitic transformation temperature of TiNi powders decreases with decreasing particle size. In larger powders (≥178 μm) a one-step martensitic transformation (B2→B19′) occurs, while in smaller ones (74-150 μm and ≤40 μm) a two-step of B2→R→B19 path takes place. The suppression of one-step B2→B19′ martensitic transformation is mainly caused by grain refinement, as a result of rapid cooling.

Acknowledgements

The authors acknowledge the support from Hunan ACME Co., Ltd., China, for providing the water- quenching vacuum furnace used in this work. We also thank Mr. Lei SHEN at Northwest Institute for Non-ferrous Metal Research for his technical assistance.
