Preparation and characterization of LaB₆ ultra fine powder by combustion synthesis

DOU Zhi-he, ZHANG Ting-an, ZHANG Zhi-qi, ZHANG Han-bo, HE Ji-cheng

Key Laboratory for Ecological Utilization of Multimetallic Mineral of Ministry of Education,

 Northeastern University, Shenyang 110004, China

Received 25 November 2010; accepted 16 May 2011

Abstract: High-purity, homogeneous and ultra fine LaB₆ powders were prepared by combustion synthesis. The effects of reactant ratio and molding pressure on the phase and morphology of the combustion products were studied. The combustion products and leached products were analyzed by XRD, SEM and EDS. The results indicate that the combustion product consists of LaB₆, MgO and a little Mg₃B₂O₆. The combustion product becomes denser and harder when the molding pressure increases. The purity of LaB₆ is higher than 99.0%. The LaB₆ particle size is in range of 1.92–3.00 ?m and the lattice constant of LaB₆ is a=0.414 8 nm.

Key words: combustion synthesis; lanthanum hexaboride; Mg₃B₂O₆

1 Introduction

Lanthanum hexaboride (LaB₆) with divalent rare-earth cubic hexaborides [1] has high melting point (2 715 °C), high hardness, high chemical stability [2] and the other special peculiarities [3] such as high and constant electrical conductivity, low electronic work function, low expansion coefficient and high neutron absorbability [4]. At the same time, LaB₆ has lower evaporation rate and more carbon fouling resistance than LaB₆ as the cathode emission material. Now LaB₆ has been widely used in metallurgy [5-6], wave-absorbing materials, cathode emission materials [7-8], nuclear industry and so on [9]. LaB₆ is also a promising refractory ceramic [10-12]. The major methods of preparing LaB₆ powders include direct combination method of B and La, carbothermal reduction method and boron carbide synthesis method [13]. The direct elements combination method of preparing LaB₆ powders cannot be used for industrial production because of the high cost. At present, the carbothermal reduction method and the boron carbide method are widely used in industry. However, the powders prepared by these methods have a larger particle size, a lower purity (because of higher content of free carbon in LaB₆ products) and a poorer sintering property. Although the nano-sized powders of LaB₆ could be prepared by chemical vapor deposition (CVD) [9], the yield was lower for a longer production process. Therefore, it is important to develop an efficient method to prepare LaB_6­ powders with high purity and small particle size. Combustion synthesis has attracted much attention to the synthesis of novel materials because of high reaction speed, high temperature, high cooling speed, simple equipment involved and low energy consumption [14]. The object of this work is to prepare LaB₆ ultra powders with high purity and small particle size from Mg-B₂O₃-La₂O₃ system by combustion synthesis method [15].

2 Experimental

2.1 Preparation

The materials included magnesium powder with 99% purity and particle size from 74 to 149 ?m, B₂O₃ powder with 98% purity and particle size smaller than 149 ?m and La₂O₃ powder with 99.5% purity and particle size smaller than 149 ?m. The materials were weighed stoichiometrically according to the following equation:

La₂O₃+6B₂O₃+21Mg = 2LaB₆+21MgO           (1)

Detailed reactant ratio is listed in Table 1.

Table 1 Combustion synthesis reaction condition

The powders were mixed by milling for 24 h. Subsequently, the mixed powders were pressed into cylinders under pressure of 5-20 MPa. The cylindrical bulks were then placed in the open equipment to perform the combustion synthesis. The ignitor of magnesium powders was placed on the surface of the bulk sample. The combustion products were acid-leached and LaB₆ powders were obtained after filtration and drying.

2.2 Analytical methods

The phase compositions of the combustion product and the acid-leached product were analyzed by X-ray diffractometry (Model D8 Bruke German; working conditions: Cu K_α1, 40 kV, 40 mA). The powder morphology was observed using scanning electron microscopy (SEM, Model Hitachi S–4700, Japan). The powder element composition was analyzed by energy dispersive spectrometry (EDS, Model AMETEKEDAX GENESIS, USA). The molar ratio of B to La was determined by inductively coupled plasma atomic emission spectrometry (Model ICP-Prodigy, Optima 4300 DV, Lehman USA).

3 Results and discussion

3.1 XRD analysis of combustion product

Because Mg volatilizes during the combustion reaction process with reaction temperature rising rapidly, there are some brown MgO particles (determined by the XRD) formed attached to the inner wall of the reaction chamber. Figure 1 shows the XRD pattern of the combustion product. It is seen that the combustion product includes Mg₃B₂O₆ besides MgO and LaB₆. The reaction mechanism can be expressed as

La₂O₃+6B₂O₃+21Mg = 2LaB₆+21MgO           (1)

3MgO+B₂O₃= Mg₃B₂O₆                       (2)

The by-product Mg₃B₂O₆ appears because of reaction (2). The reasons can be explained as [14-15]: 1) Mg partly volatilizes to form MgO in oxidation due    to the high reaction temperature during the self propagating high temperature synthesis (SHS) process, MgO reacts with the local surplus B₂O₃ to form Mg₃B₂O₆; and 2) there is a long heating process at the beginning of SHS reaction, promoting the formation of Mg₃B₂O₆.

Fig. 1 XRD pattern of combustion product

Based on the quantitative analysis of XRD results, it can be concluded that the content of by-product Mg₃B₂O₆ decreases with increasing Mg reactant ratio. The excessive Mg could make up for the Mg volatilization loss, and the reduction degree of B₂O₃ and La₂O₃ seen from Eq. (1) is enhanced. Therefore, the yield of LaB₆ increases, indicating that the optimum Mg ratio should be 10% more than stoichiometry.

3.2 Microstructure of combustion products

The SEM images of the combustion products are shown in Fig. 2. It can be seen in Fig. 2 that the combustion products present black-brown, obviously layered and full of cavities, and the volume expands. Figure 2 shows that there are soft aggregates in sample 1 which could be ground easily. But sample 3 synthesized under molding pressure of 20 MPa is denser/harder and has no voids and layer structure. This can be expressed as [15]: 1) the combustion of Mg-B₂O₃-La₂O₃ system is a periodic oscillation process which promotes the formation of layer structure; 2) the volatilization of Mg and the discharge of gas result in some cavities and volume expansions in the combustion products. The combustion products become denser and less layered when the reactant ratio of Mg and the molding pressure increase.

The EDS analyses of the combustion product are shown in Fig. 3. The spherical particles are MgO (see Fig. 3(a)). The aggregates distributing around MgO are mainly Mg₃B₂O₆ and LaB₆ (see Fig. 3(b)).

3.3 XRD analysis of acid-leached products

It can be seen that the combustion product consists of LaB₆, MgO and Mg₃B₂O₆. Mg₃B₂O₆ and MgO are solvable in hydrochloric acid, while LaB₆ is unsolvable, so the combustion product could be acid-leached with HCl acid of 4 mol/L in a water bath at 60-80 °C for more than 4 h with mechanical agitation of 300 r/min.

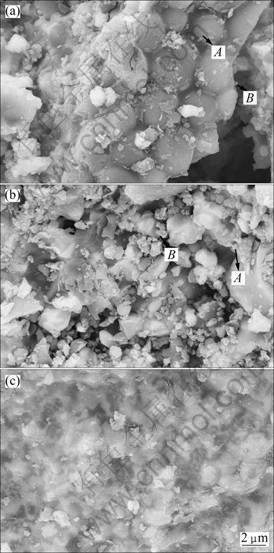

Fig. 2 SEM photographs of combustion product samples: (a) Sample 1; (b) Sample 2; (c) Sample 3

The XRD pattern of leached product sample 3 is shown in Fig. 4. It indicates that high HCl concentration, water bath temperature and high agitation speed could favor the removal of the impurity. Pure powders of LaB₆ are obtained after leaching, the purity of which is higher than 99.0%. Table 2 shows the chemical analysis results of impurities determined by inductively coupled plasma atomic emission spectrometry (ICP– prodigy). The mole ratio of B to La is 6, which is also determined by ICP.

Table 2 Impurity in LaB₆ powders (mass fraction, %)

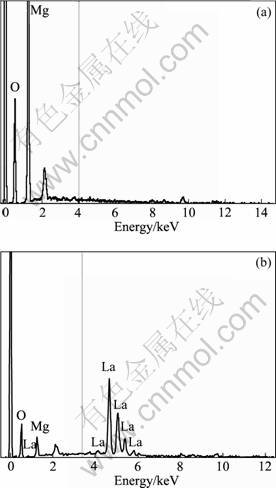

Fig. 3 EDS analyses of combustion products: (a) Point A in sample 1; (b) Point B in sample 1

Fig. 4 XRD pattern of leached product sample 3

3.4 SEM analysis of acid-leached products

The SEM images of leached products are shown in Fig. 5. It can be seen from Fig. 5 that the size of LaB₆ particle ranges from 1.92 to 3.00 ?m and distributes evenly. The single particle is cubic, anastomosed to the cubic crystal type of LaB₆. In Figs. 5(a)-(c), LaB₆ particles become finer with increasing molding pressure, respectively. There are some particles aggregate (see Fig. 5(a)), but the soft particle aggregations do not exist in samples 1 and 3 under higher molding pressures of 10 and 20 MPa. The growth of LaB₆ grain is prevented at higher pressure. The average grain size is about 3 ?m at the pressure of  5 MPa, and then the average grain size is smaller than 2.0 ?m when the molding pressures are 10 and 20 MPa. Reaction temperature increases with increasing pressure. The high reaction temperature could favor the synthesis of LaB₆.

The TEM image and diffraction design of LaB₆ are shown in Fig. 6. It indicates that the LaB₆ particles are polycrystalline, the lattice constant is a=0.415 0 nm, which anastomoses to a=0.415 2 nm.

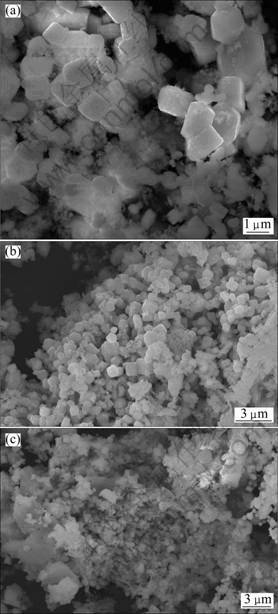

Fig. 5 SEM images of different LaB₆ powders: (a) Sample 1; (b) Sample 2; (c) Sample 3

Fig. 6 TEM image and diffraction design of LaB₆

4 Conclusions

1) The combustion product consists of LaB₆, MgO and Mg₃B₂O₆. The combustion products are unconsolidated and layered. The combustion product becomes denser and harder when the molding pressure increases.

2) The leached product is cubic, anastomosed to the cubic crystal type of LaB₆. The purity of LaB₆ is higher than 99.0%. The size of LaB₆ particle is 1.92–3.00 ?m and the lattice constant of LaB₆ is a=0.414 8 nm.

References

[1] ZHANG Mao-feng, YUAN Liang, WANG Xiao-qing, WANG Xu-yang, WU Xue-ying, WANG Hai-zhen, QIAN Yi-tai. A low-temperature route for the synthesis of nanocrystalline LaB₆[J]. Journal of Solid State Chemistry, 2008, 181(2): 294-297. (in Chinese)

[2] ZHANG Ting-an, DOU Zhi-he. Preparation of LaB₆ micropowder by high-temperature self-propagating synthesis and characterization[J]. Journal of Northeastern University (Natural Science), 2004, 25(1): 271-273. (in Chinese)

[3] PADERNO V, PADERNO Y, BRITUN V. Features of the real structure of lanthanum hexaboride single crystals [J]. Journal of Alloys and Compounds, 1995, 219(94): 228-231.

[4] ZHANG Ting-an, HE Ji-cheng. Ceramic micro- powders of TiB₂ and LaB₆ by SHS metallurgy [M]. Shenyang: Northeastern University Press, 1999: 69-147. (in Chinese)

[5] TAKAHO T, EISUKE B, SHICHIO K. Preparation of EuB₆ single crystal [J]. Cryst Growth, 1977, 40(2): 125-128.

[6] TAKAHASHI T, KUNII S. Single crystal growth and properties of incogruently melting ThB₆, DyB, HaB₆, YB₆[J]. Solid State Chem, 1977, 133(1): 198-200.

[7] BAT’KO, BAT’KOVA M, FLACHBART K, FILIPPOV V B, PADERNO Y B, SHICEVALOVA N Y, WAGNER T. Electrical resistivity and superconductivity of LaB₆ and LuB₁₂[J]. J Alloys Compd, 1995, 217(2): L1-L3.

[8] ZHENG Shu-qi, MIN Gunang-hui, ZOU Zeng-da, YU Hua-shun, ZHANG Chuan-jiang. Fabrication process of LaB₆ powder by borothermic reduction method[J]. Journal of the Chinese Ceramic Soceity, 2001, 29(2): 129-131. (in Chinese)

[9] SHI Qing-xuan, LIN Zu-lun, LI Jian-jun, CHEN Ze-xiang. LaB₆ thin films prepared by electron beam evaporation and its property[J]. Chinese Journal of Electron Devices, 2007, 30(3): 745-747. (in Chinese)

[10] MATSUSSHITA J, MORI K, NISHI Y, SAWADA Y. Oxidation of calcium boride at high temperature[J]. Mater Syn Pro, 1986(6): 407-410.

[11] PADERNO V B, PADERNO Y B, MARTYNENKO A N, VOLKOGON V M. Effect of production procedure on structure formation and fracture of CaB₆-TiB₂[J]. Pseude alloy Poroshk Metal, 1992, 10(1): 52-55. (in Russian)

[12] SHIGEKI O. Preparation of CaB₆ crystal by the floating zone method[J]. Journal of Crystal Growth, 1998, 192(1-2): 346-349.

[13] ZHANG Ting-an, DOU Zhi-he, YANG Huan, DING Qian-li. Preparation of boron carbide by magnesium reducing-SHS[J]. Journal of Northeastern University (Natural Science), 2003, 24(10): 936-939. (in Chinese)

[14] DOU Zhi-he, ZHANG Ting-an, HOU Chuang, XU Shu-xiang, YANG Huan, LI Huang. Elementary research on CaB₆ prepared by SHS[J]. The Chinese journal of Nonferrous Metals, 2004, 14(2): 322-326. (in Chinese)

[15] WANG Y L, ZHANG T A, YANG H, WEI S C. Preparation of tungsten powder by SHS with a reduction process[J]. Journal of Advanced Materials, 2004, 36(2): 44-48.

燃烧合成法制备LaB₆超细粉末及表征

豆志河, 张廷安, 张志琦, 张含博, 赫冀成

东北大学 多金属共生矿生态化利用教育部重点实验室，沈阳 110004

摘 要: 采用燃烧合成法制备高纯超细LaB₆粉末。考察反应物配比和制样压力等条件对燃烧产物相组成和微观结构的影响，利用XRD、SEM和EDS等技术对燃烧产物和浸出产物进行表征。结果表明，燃烧产物由LaB₆, MgO 和少量Mg₃B₂O₆组成。 随着制样压力的增加，燃烧产物变得致密坚硬。 LaB₆的纯度高于99.0%，其粒度为 1.92-3.0 ?m，晶格常数a=0.414 8 nm。

关键词: 燃烧合成; LaB₆; Mg₃B₂O₆

(Edited by FANG Jing-hua)

Foundation item: Projects (51002025, 50644016, 5087402) supported by the National Natural Science Foundation of China

Corresponding author: ZHANG Ting-an; Tel: +86-24-83687732; E-mail: zta2000@163.com

DOI: 10.1016/S1003-6326(11)60932-1
