岩爆等级预测的随机森林模型及应用

来源期刊：中国有色金属学报(英文版)2013年第2期

论文作者：董陇军李夕兵彭康

文章页码：472 - 477

关键词：采矿工程；隧道工程；地下硐室；岩爆；随机森林

Key words：mining engineering; tunnel engineering; underground caverns; rockburst; Random Forest

摘要：将随机森林分类方法应用于岩爆等级判定问题中。选用洞室围岩最大的切向应力、岩石单轴抗压强度、抗拉强度、岩石弹性能量指数作为岩爆等级判定的因素，并按照不同的组合形式将其分为指标组I和II。以收集到的工程中的实际岩爆情况及数据作为训练样本，进行分析计算，建立岩爆等级判定的随机森分析模型。运用该分析模型对未参加训练的国内外工程实际岩爆情况进行判定，并与支持向量机及神经网络的判定结果进行比较。研究表明，指标组I优于指标组II；用随机森林、支持向量机和神经网络方法计算的正确率分别为100%、90%、80%。可见，随机森林方法判别能力强，误判率低，是解决岩爆等级判定的一条有效途径。

Abstract: The method of Random Forest (RF) was used to classify whether rockburst will happen and the intensity of rockburst in the underground rock projects. Some main control factors of rockburst, such as the values of in-situ stresses, uniaxial compressive strength and tensile strength of rock, and the elastic energy index of rock, were selected in the analysis. The traditional indicators were summarized and divided into indexes I and II. Random Forest model and criterion were obtained through training 36 sets of rockburst samples which come from underground rock projects in domestic and abroad. Another 10 samples were tested and evaluated with the model. The evaluated results agree well with the practical records. Comparing the results of support vector machine (SVM) method, and artificial neural network (ANN) method with random forest method, the corresponding misjudgment ratios are 10%, 20%, and 0, respectively. The misjudgment ratio using index I is smaller than that using index II. It is suggested that using the index I and RF model can accurately classify rockburst grade.

Trans. Nonferrous Met. Soc. China 23(2013) 472-477

Prediction of rockburst classification using Random Forest

Long-jun DONG, Xi-bing LI, Kang PENG

School of Resources and Safety Engineering, Central South University, Changsha 410083, China

Received 8 November 2011; accepted 27 March 2012

Key words: mining engineering; tunnel engineering; underground caverns; rockburst; Random Forest

1 Introduction

The increasingly rock engineering projects, such as tunnels, underground cavern, and mining stopes, are constructed at great depth or high tectonics stress fields. The occurrence of rockburst is often during the excavation [1,2]. Rockburst is considered a dynamic instability phenomenon of surrounding rock mass of underground space in high geostatic stress and caused by the violent release of strain energy stored in rock mass. Rockburst occurs during excavating underground space in the form of stripe of rock slices or rock fall or throwing of rock fragments, sometimes accompanied by crack sound. Rockbursts are related to the fracture of rock in place and require two conditions for their occurrence: a stress in the rock mass sufficiently high to exceed its strength, and physical characteristics of the rock which enable it to store energy up to the threshold value for sudden rupture. Rocks which yield gradually in plastic strain under load usually do not generate rockbursts. The likelihood of rock bursts occurring increases as the depth of the mine increases. Rockbursts are also affected by the size of excavation (the larger the more risky), becoming more likely if the excavation size is around 180 m and above. Induced seismicity such as faulty methods of mining can trigger rockbursts. Other causes of rockbursts are the presence of faults, dykes, or joints.

Because it occurs suddenly and intensely, rockburst usually causes injury including death to workers, damage to equipment, and even substantial disruption and economic loss of underground space excavation.

At present, the studies on rockburst have been converted from report on the phenomenon, scale, regularity and hazard of rockburst to the mechanism, the cause of formation, the critical conditions and preventive methods of rockburst. Many scholars have suggested various theories, many prediction methods, and empirical correlation, such as fuzzy comprehensive evaluation [3], analytical principle and problems [4,5], distance discriminant analysis [6], support vector machine (SVM) [7], laboratory integrated evaluation method [8,9], artificial neural network (ANN), prior knowledge and the instability of rock masses [10-16], effects of sonic speed on rockburst location [17], seismological parameters [18], rockburst mechanisms [19], numerical simulation [20,21], case study [22-24], and source location methods [25-29].

Furthermore, due to the complexity of rockburst mechanism and prediction, study on the mechanism of rockburst, learning of knowledge from rockburst case history and recognition of prevention measurement of rockbursts are comprehensively needed.

Random Forest (RF) and SVM are considered the most effective and reliable new artificial intelligence methods [30-32] for solving classification problems. In this work, according to the practice of complicated problems of the rockburst prediction, the Random Forest is applied to predicting rockburst classification.

2 Criteria and indexes of rockburst

2.1 Criteria considering stress in surrounding rock

The criteria listed in Table 1 were proposed early, and only considered the stress level in surrounding rock. Furthermore, different scholars chose different parameters as evaluation index of criterion for rockburst, and the classification of rockburst intensity also differed from each other. So it is difficult to use these criteria in construction of underground engineering.

2.2 Comprehension criteria considering stress, properties of surrounding rock and energy

1) The following criterion [2] is presented with rockburst tendency index and energy condition of surrounding rock.

W_qx≥1.5 (1)

≥ (2)

(3)

(4)

where W_qxis the rockburst tendency index; σ₁ and σ₂ are the major and middle principal stress in surrounding rock, respectively; μ is the Poisson ratio.

2) It is stipulated by ZHANG that rockburst could occur if σ_θ /σ_c≤K_s, in which the value of K_s related to σ_t/σ_c [3] criterion.

3) KIDYBINSKI [24] proposed an elastic energy index W_et. No rockburst activity, medium rockburst activity and violent rockburst activity meet the conditions W_et<2.0, 2.0≤W_et≤5.0, and W_et>5.0, respectively.

Table 1 Criteria only considering stress in surrounding rock

2.3 Indexes as input variables for RF

The indexes of criterion should reflect the main factors of rockburst—the properties and stress of surrounding rock. At the same time, they should be obtained easily and can be compared with each other for different cases. In this work, the compressive rock strength σ_c, tensile strength σ_t, elastic energy index W_et and the maximum tangential stress σ_θare chosen as the indexes of criterion. Compressive rock strength σ_c, tensile strength σ_t, and elastic energy index W_et can reflect the properties of surrounding rock, and the tangential stress σ_θ can reflect the virgin geostatic stress condition and the influence of the shape and dimension of the underground space on rockburst.

In this work, indexes I and II of traditional variables for classifying rockburst are summarized as input variables. Index I of traditional variables includes the maximum tangential stress in surrounding rock mass σ_θ, ratio of tangential stress of surrounding rock and uniaxial compressive σ_θ/σ_c, ratio of compressive rock strength and tensile strength σ_c/σ_t, and elastic energy index W_et. Index II of traditional variables includes the maximum tangential stress in surrounding rock mass σ_θ, the compressive strength σ_c, tensile strength σ_t, and elastic energy index W_et. Both of two indexes were used to predicting the degrees of rockburst activity using RF.

3 Applications

46 sets of rockburst samples which come from underground rock projects in domestic and abroad were collected to test the rationality of the model (Table 2).

The relationship among the indexes of criteria, the occurrence of rockburst and its intensity is very complex. For the sake of the capability of RF for pattern recognition, we attempt to predict the rockburst activity by using RF. A RF model is established with 350 NTtrees and 2 varibles in rodes.

Four degrees of rockburst activity, including voilent rockburst activity, medium rockburst activity, light rockburst activity, and no rockburst activity, are indicated by 4, 3, 2, and 1, respectively. They are considered output variables in the RF model.

RF model and criterion were obtained through training 36 sets of rockburst samples which come from underground rock projects in domestic and abroad. Another 10 samples were tested and evaluated with the model. The evaluated results agree well with the measured record (MR).

The results of RF method were compared with that of SVM and ANN methods. A SVM model with RBF of kernel function type was established. A neural network was established with three layers. The input layer has 4 neurodes, the hidden layer has 9 hidden neurodes, and the output layer has 2 neurodes. Indexes I and II as input variables, 4 degrees of rockburst activity were considered in the neural network model, which are (0, 0, 0, 1) for voilent rockburst activity, (0, 0, 1, 0) for medium rockburst activity, (0, 1, 0, 0) for light rockburst activity, and (1, 0, 0, 0) for no rockburst activity.

Table 2 Collected samples of rockburst cases

The calculated results of RF, SVM, and ANN are listed in Table 3. It shows that the index I is more reasonable than index II. Misjudgment ratios of tested samples using RF, SVM, and ANN are 0, 10%, and 20%, respectively. Misjudgment ratios of training samples using RF, SVM, and ANN are 0, 5%, and 5%, respectively. The calculated probabilities of 4 grades using RF model with index I of training samples are shown in Fig. 1. The calculated probabilities of 4 grades using RF model with indexes I and II for testing samples are shown in Figs. 2 and 3, respectively. It also shows that the index I is more clearly classified than index II. The predicted results of both training and tested samples show that it is feasible and appropriate to use RF model for rockburst prediction with index I.

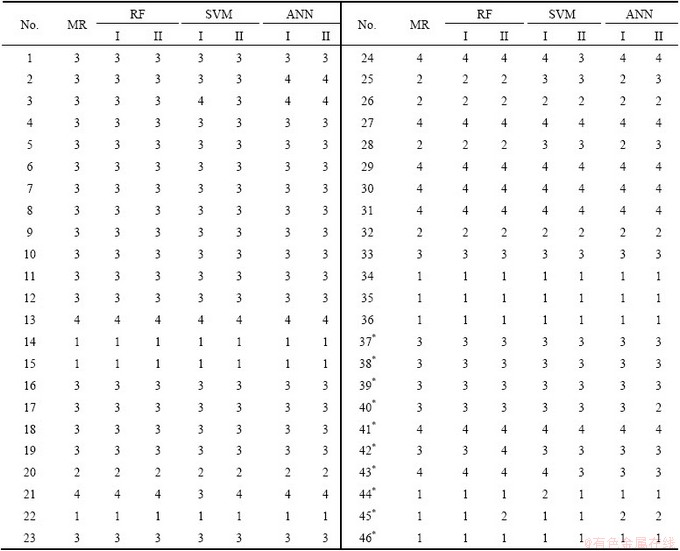

Table 3 Comparison of calculation results by different methods

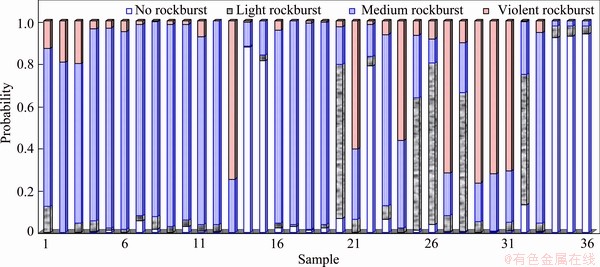

Fig. 1 Calculated results using RF model with index I for training samples

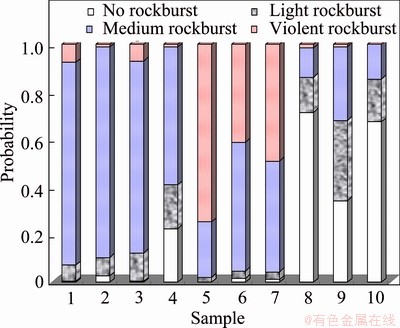

Fig. 2 Calculated results using RF model with index I for testing samples

Fig. 3 Calculated results using RF model with index II for testing samples

4 Conclusions

1) Rockburst can be regarded as the dynamic instability process of the deformation system of sound stiff rock mass in high geostatic stress. The properties and the stress of surrounding rock are dominant factors for rockburst.

2) It is reasonable and feasible to choose index I including the maximum tangential stress in surrounding rock mass σ_θ, ratio of tangential stress of surrounding rock and uniaxial compressive σ_θ/σ_c, ratio of compressive rock strength and tensile strength σ_c/σ_t, and elastic energy index W_et as indexes to predict rockburst.

3) Misjudgment ratios of tested samples using RF, SVM and ANN are 0, 10% and 20%, respectively. Misjudgment ratios of training samples using RF, SVM and ANN are 0, 5% and 5%, respectively. The prediction results of both training and tested samples demonstrated that the developed RF model is effective and efficient approach to predict rockburst potential grade.

References

[1] ZHANG G, ZHENG Y X. Study of the theory of rockburst and its application [C]//CSRME. Proceedings of the Third National Conference on Rock Dynamics. Wuhan: Wuhan University of Mapping Technology Press, 1992: 422-435. (in Chinese)

[2] HOU F L, LIU X M, WANG M C. Re-analysis of rockburst mechanism and discussion on the gradation of the rockburst intensity [C]//CSRME. Proceedings of the Third National Conference on Rock Dynamics. Wuhan: Wuhan University of Mapping Technology Press, 1992: 448-457.

[3] WANG Y H, LI W D, LEE P K K, THAM L G. Method of fuzzy comprehensive evaluation for rockburst prediction [J]. Chinese Journal of Rock Mechanics and Engineering, 1998, 17(5): 493-501. (in Chinese)

[4] ZHANG Zhuo-yuan, WANG Shi-tian, WANG Lan-sheng. The analytical principle for engineering geology [M]. Beijing: Geology Press, 1994. (in Chinese)

[5] ZHANG Z D. Several problems of rock mechanics in tunnel engineering design [J]. Tunneling and Underground Works, 1995(4): 2-11.

[6] WANG Ji-liang, CHEN Jian-ping, YANG Jing, QUE Jin-sheng. Method of distance discriminant analysis for determination of classification of rockburst [J]. Rock and Soil Mechanics, 2009, 30(7): 2203-2208. (in Chinese)

[7] ZHAO Hong-bo. Classification of rockburst using support vector machine [J]. Rock and Soil Mechanics, 2005, 26(4): 642-644. (in Chinese)

[8] DU Zi-jian, XU Meng-guo, LIU Zhen-ping, WU Xuan. Laboratory integrated evaluation method for engineering wall rock rock-burst [J]. Gold, 2006, 11(27): 26-30. (in Chinese)

[9] CAI Si-jing, ZHANG Lu-hua, ZHOU Wen-lue. Research on prediction of rock burst in deep hard-rock mines [J]. Journal of Safety Science and Technology, 2005, 1(5): 17-20. (in Chinese)

[10] ZHANG Xuan-zhuang. Prediction of rock burst at underground works based on artificial neural network [J]. Yangtze River, 2005, 36(5): 17-18. (in Chinese)

[11] WU De-xing, YANG Jian. Prediction and countermeasure for rockburst in Cangling mountain highway tunnel [J]. Chinese Journal of Rock Mechanics and Engineering, 2005, 24(21): 3965-3971.

[12] YANG Tao, LI Guo-wei. Study on rockburst prediction method based on the prior knowledge [J]. Chinese Journal of Rock Mechanics and Engineering, 2000, 19(4): 429-431. (in Chinese)

[13] BAI Ming-zhou, WANG Lian-jun, XU Zhou-yi. Study on a neutral network model and its application in predicting the risk of rock blast [J]. China Safety Science Journal, 2002, 12(4): 65-69. (in Chinese)

[14] LI Dong-qing, WANG Li-guan. Theory and technology of the large-scale mining in hard-rock and deep mine—A case study of Dongguashan copper mine [M]. Beijing: Metallurgical Industry Press, 2009: 50-77. (in Chinese)

[15] LINKOV A M. Rockbursts and the instability of rock masses [J]. Int J Rock Mech Min Sci & Geomech Abstr, 1996, 33(7): 727-732.

[16] LI Qi-yue, DONG Long-jun, LI Xi-bing, YIN Zhi-qiang, LIU Xi-ling. Effects of sonic speed on location accuracy of acoustic emission source in rocks [J]. Transactions of Nonferrous Metals Society of China, 2011, 21(12): 2719-2726.

[17] SIRNIVASAN C, ARORA S K, YAJI R K. Use of mining and seismological parameters as premonitors of rockburst [J]. Int J Rock Mech Min Sci, 1997, 34(6): 1001-1008

[18] ORTLEPP W D, STACEY T R. Rockburst mechanisms in tunnels and shafts [J]. Tunneling and Underground Space Technology, 1994, 9: 59-65.

[19] W. Numerical simulation of rock bursts [J]. Mining Science and Technology, 1991, 12: 27-42.

[20] DURRHEIM R J, HAILE A, ROBERTS M K C, SCHWEITZER J K, SPOTTISWOODE S M, KLOKOW J W. Violent failure of a remnant in a deep South African gold mine [J]. Tectonophysics, 1998, 289: 105-116.

[21] ZHU W C, LI Z H, ZHU L, TANG C A. Numerical simulation on rockburst of underground opening triggered by dynamic disturbance [J]. Tunnelling and Underground Space Technology, 2010, 25(5): 587-599.

[22] MANSUROV V A. Prediction of rockbursts by analysis of induced seismicity data [J]. Inter J Rock Mech Min Sci, 2001, 38(6): 893-901.

[23] WANG J A, PARK H D. Comprehensive prediction of rockburst based on analysis of strain energy in rocks [J]. Tunnelling and Underground Space Technology, 2001, 16: 49-57.

[24] KIDYBINSKI A. Bursting liability indices of coal [J]. Journal of Rock Mechanics and Mining Sciences, 1981, 18(4): 295－304.

[25] LI X B,DONG L J. Comparison of two methods in acoustic emission source location using four sensors without measuring sonic speed [J]. Sensor Letters, 2011, 9(5): 2025-2029.

[26] DONG Long-jun, LI Xi-bing. Three-dimensional analytical solution of acoustic emission or microseismic source location under cube monitoring network [J]. Transactions of Nonferrous Metals Society of China, 2012, 22(12): 3087–3094.

[27] DONG Long-jun, LI Xi-bing, TANG Li-zhong, GONG Feng-qiang. Mathematical functions and parameters for microseismic source location without premeasuring speed [J]. Chinese Journal of Rock Mechanics and Engineering, 2011, 30(10): 2057-2067. (in Chinese)

[28] DONG Long-jun, LI Xi-bing, GONG Feng-qiang. An analytical location method for acoustic emission and microseismic sources: China, 201110273728.8 [P]. 2012-05-02. (in Chinese)

[29] LI Xi-bing, DONG Long-jun, GONG Feng-qiang, ZHOU Zi-long. A location method for acoustic emission and microseismic sources: China, 201010600262.3 [P]. 2011-07-20. (in Chinese)

[30] BREIMAN L. Random Forests [J]. Machine Learning, 2001, 45: 5-32.

[31] TANG Qi-yi. DPS Data processing system: Experimental design, statistical analysis, and data mining [M]. Beijing: Science Press, 2010. (in Chinese).

[32] DONG Long-jun, LI Xi-bing, Xu Ming, Li Qi-yue. Comparisons of random forest and support vector machine for predicting blasting vibration characteristic parameters [J]. Procedia Engineering. 2011, 26: 1772-1781.
