简介概要

锻造和热处理对Al-Si和Al-Pb轴承合金 在油润滑条件下耐磨性的影响

来源期刊:中国有色金属学报(英文版)2013年第12期

论文作者:Erol FEYZULLAHO?LU Alpay Tamer ERTüRK Ersin Asim GüVEN

文章页码:3575 - 3583

关键词:热处理;锻造;Al-Si合金;Al-Pb合金;磨损

Key words:heat treatment; forging; Al-Si alloy; Al-Pb alloy; wear

摘    要:研究了锻造态和热处理态不同成分铝基轴承合金在油润滑条件下的摩擦行为,以及材料的硬度、热处理制度和锻造对材料耐磨性的影响。所用材料是Al-8.5Si-3.5Cu和Al-15Pb-3.7Cu-1.5Si-1.1Fe。在锻造过程中,应变范围为10%~20%。并对材料进行T6热处理。在销-盘式磨损试验机上对材料的摩擦性能进行测试。结果表明,锻造过程使材料的硬度得到增加;铸造应变在10%~20%的范围内对材料的摩擦磨损影响不明显。

Abstract: The tribological behaviours of aluminium-based bearing alloys with different compositions, forged and heat treated materials, were investigated in oil lubricated conditions. Tested materials were Al-8.5Si-3.5Cu and Al-15Pb-3.7Cu-1.5Si-1.1Fe. The effects of hardness, heat treatment and forging on wear behaviours of the tested materials were investigated. In forging process, 10%-20% strains were applied. Heat treatment (T6) was performed to the materials. The wear tests of all specimens were performed with a pin- on-disc wear test machine. Forging process increased hardness value of the tested materials. A forging strain of 10%-20% has no significant effect on mass loss.



详情信息展示

锻造和热处理对Al-Si和Al-Pb轴承合金 在油润滑条件下耐磨性的影响

Erol FEYZULLAHO?LU, Alpay Tamer ERTüRK, Ersin Asim GüVEN

(Mechanical Engineering Department, Engineering Faculty, Kocaeli University, Izmit-Kocaeli, Turkey)

摘 要:研究了锻造态和热处理态不同成分铝基轴承合金在油润滑条件下的摩擦行为,以及材料的硬度、热处理制度和锻造对材料耐磨性的影响。所用材料是Al-8.5Si-3.5Cu和Al-15Pb-3.7Cu-1.5Si-1.1Fe。在锻造过程中,应变范围为10%~20%。并对材料进行T6热处理。在销-盘式磨损试验机上对材料的摩擦性能进行测试。结果表明,锻造过程使材料的硬度得到增加;铸造应变在10%~20%的范围内对材料的摩擦磨损影响不明显。

关键词:热处理;锻造;Al-Si合金;Al-Pb合金;磨损

Influence of forging and heat treatment on wear properties of Al-Si and Al-Pb bearing alloys in oil lubricated conditions

Erol FEYZULLAHO?LU, Alpay Tamer ERTüRK, Ersin Asim GüVEN

(Mechanical Engineering Department, Engineering Faculty, Kocaeli University, Izmit-Kocaeli, Turkey)

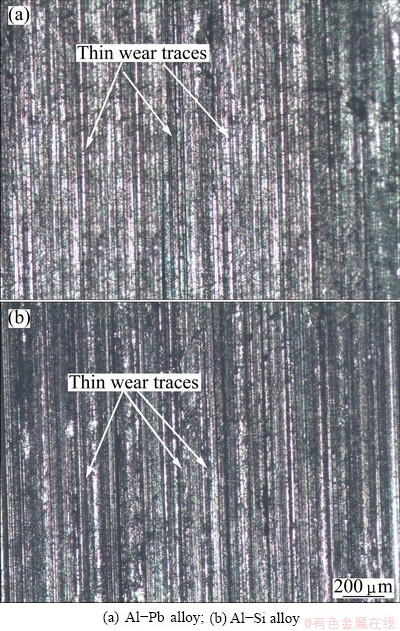

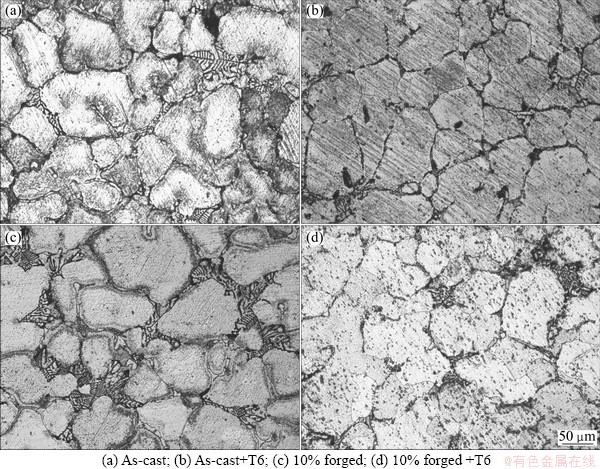

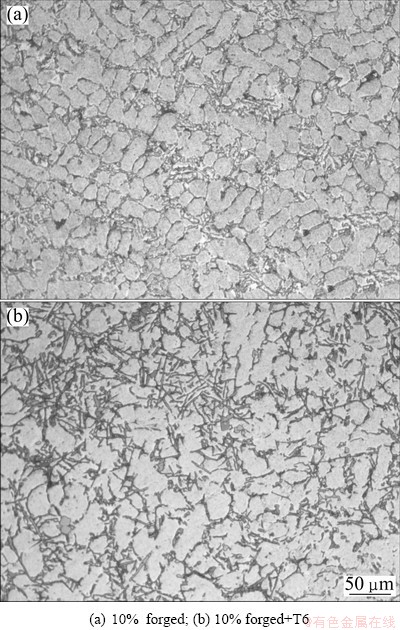

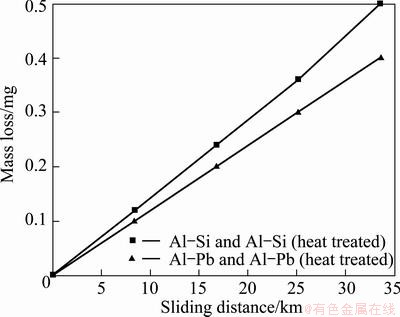

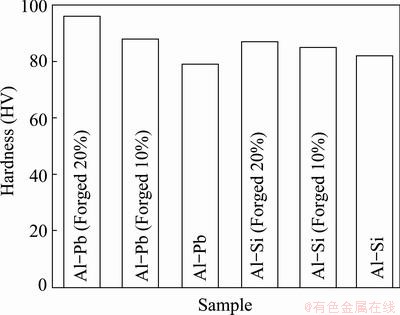

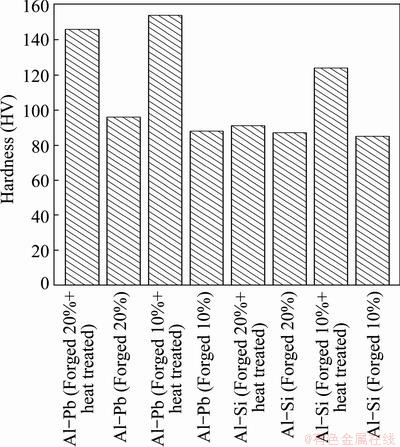

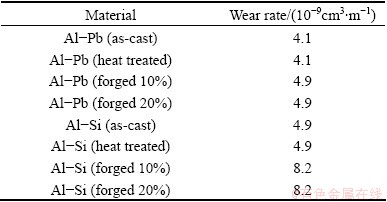

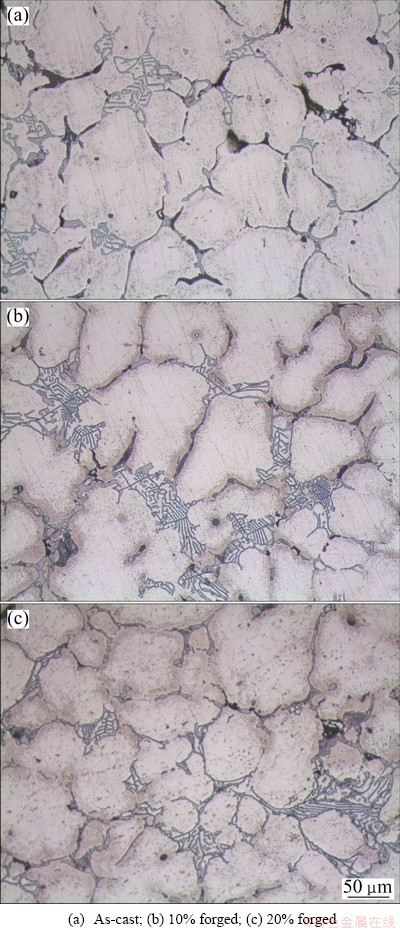

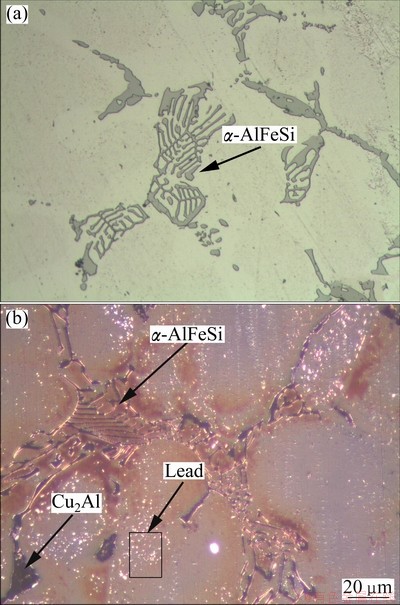

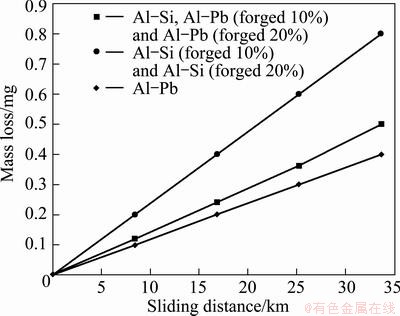

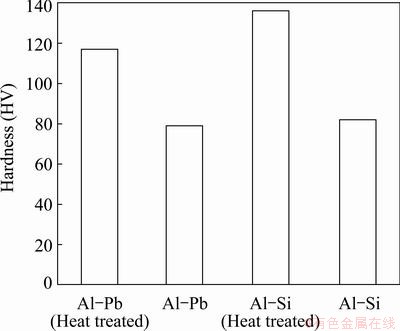

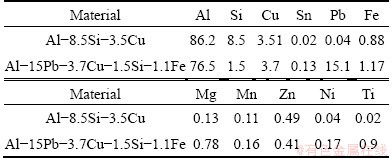

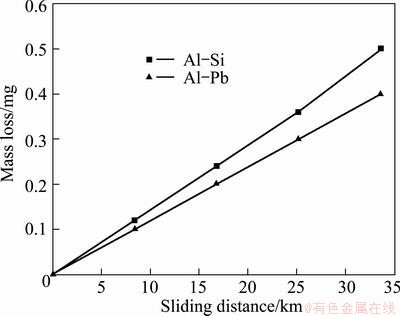

Abstract:The tribological behaviours of aluminium-based bearing alloys with different compositions, forged and heat treated materials, were investigated in oil lubricated conditions. Tested materials were Al-8.5Si-3.5Cu and Al-15Pb-3.7Cu-1.5Si-1.1Fe. The effects of hardness, heat treatment and forging on wear behaviours of the tested materials were investigated. In forging process, 10%-20% strains were applied. Heat treatment (T6) was performed to the materials. The wear tests of all specimens were performed with a pin- on-disc wear test machine. Forging process increased hardness value of the tested materials. A forging strain of 10%-20% has no significant effect on mass loss.

Key words:heat treatment; forging; Al-Si alloy; Al-Pb alloy; wear

<上一页 1 下一页 >

有色金属在线官网  |   会议  |   在线投稿  |   购买纸书  |   科技图书馆

中南大学出版社 主办 版权声明   电话:0731-88830515 88830516   传真:0731-88710482   Email:administrator@cnnmol.com

互联网出版许可证:新出网证(湘)字005号   湘ICP备09001153号
