Trans. Nonferrous Met. Soc. China 28(2018) 819-828

Measurement of phase equilibria in Ti-Ni-Sn system

Meng WANG, Hua-shan LIU, Ge-mei CAI, Zhan-peng JIN

School of Materials Science and Engineering, Central South University, Changsha 410083, China

Received 22 November 2016; accepted 7 July 2017

Key words: isothermal section; Ti-Ni-Sn system; phase equilibria

1 Introduction

Ti-Ni based alloys belong to one of the most important shape memory alloys (SMAs). They involve three types of martensitic transformations, which are responsible for their excellent shape memory effect along with pseudo-elasticity [1]. Methods, including thermo- mechanical treatments and/or alloying, have been investigated to improve the shape memory (SM) properties of these alloys for industrial and medical applications.

Element addition to the Ti-Ni alloys exerts significant effect on martensitic transformation and thus on mechanical behaviour. Recently, Sn addition to the Ti-Ni alloys has attracted increasing attention [2-7]. It has been reported that Sn can bring about one-staged B19′-B2 transformation upon heating [2,3] and two-staged B2-R-B19′ martensitic transformation during cooling [3,4]. Also, the starting temperature (T_R) for B2-R transformation decreases with increase of Sn content [6]. To better comprehend the role of Sn in Ti-Ni SMAs, knowledge of phase equilibrium in the Ti-Ni-Sn system is of great significance importance.

2 Phase relationship of Ti-Ni-Sn system in literatures

2.1 Binary system

Phase diagram of the Ti-Ni binary system has been studied experimentally and thermodynamically [8-18]. Most of the experiments on the Ti-Ni binary system are related to martensitic transformation [8,9]. For phase diagram studies, KAUFMAN and NESOR [10] calculated this system firstly. They regarded all the intermediate compounds as line compounds. Subsequently, MURRAY [11] assessed this system after considering literature data up to 1985. LIANG and JIN [12] used the sub-regular solution model to reevaluate the terminal solid solutions ((α-Ti), (β-Ti), (Ni)), and treated the Ti₂Ni and TiNi₃ as line compounds. More recently, JIA et al [13] investigated the solubility range of the TiNi₃ phase. Following this, BELLEN et al [14], TANG et al [15] and DEKEYZER et al [16] used single Gibbs energy to describe the order and disordered phase in the TiNi phase. Then, TOKUNAGA et al [17], SANTHY and KUMAR [18] and POVODEN-KARADENIZ et al [19] optimised this system. Recently, POVODEN-KARADENIZ et al [19] provided new thermodynamic data about the D024-ordered TiNi₃ phase and two metastable Ti₃Ni₄ and Ti₂Ni₃phases. According to POVODEN-KARADENIZ et al [19], four stable compounds, i.e., TiNi₃, Ti₂Ni, B19′ and TiNi exist in the Ti-Ni system.

As for the Ti-Sn system, FINLAY et al [20], McQUILLAN et al [21], and GLAZOVA and KURNAKOV [22] studied the Ti-rich part of Ti-Sn system. BONDAR et al [23] and EREMENKO and VELIKANOVA [24] studied the phase transformation of the Ti_81.5Sn_18.5 alloy and the Sn-rich part by DTA. In addition, KUPER et al [25] found a new intermetallic phase Ti₂Sn₃ with a composition of about 60% Sn (molar fraction). Recently, YIN et al [26] performed DTA experiments at Sn-rich side and used these results in the assessment. It is accepted that the Ti-Sn system contains five stable intermetallic compounds: Ti₃Sn, Ti₂Sn, Ti₅Sn₃, Ti₆Sn₅ and Ti₂Sn₃.

Most of the experiments in the Ni-Sn system date back to the first half of the 20th Century [27,28]. Recently, LIU et al [29] assessed this binary system, which included the intermediate phases Ni₃Sn_LT, Ni₃Sn_HT, Ni₃Sn₂_LT, Ni₃Sn₂_HT and Ni₃Sn₄.

2.2 Ternary system

There have been reports about phase equilibria in the Ti-Ni-Sn ternary system. Phase relations of the Ti-Ni-Sn ternary system at 770 K were measured by STADNYK and SKOLOZDRA [30] firstly. Later, isothermal sections at 1073 K [31] and 1223 K [32] have been subsequently determined. The existence of the Ti₅NiSn₃ compound was reported by SCHUSTER et al [33], who believed that this compound was a substitutional solution of Ti₅Sn₃ containing Ni, rather than a ternary phase. Meanwhile, BERCHE et al [34] reported that Sn substitutes Ni in equiatomic TiNi alloy, forming a pseudo-binary system. More recently, a supplementary phase (Ti_1-x-yNi_xSn_y)Ni₃ (τ, AuCu₃-type) was reported by GüRTH et al [32]. So far, four ternary phases have been detected in the Ti-Ni-Sn ternary system, namely, TiNiSn, TiNi₂Sn, Ti₂Ni₂Sn and (Ti_1-x-yNi_xSn_y)Ni₃.

However, stability of the compound Ti₂Ni₂Sn in the Ti-Ni-Sn ternary system at 770 K is not so clear. According to ROMAKA et al [31], Ti₂Ni₂Sn was stable between 673 K and 1073 K, but it was not observed in the ternary phase diagram of the Ti-Ni-Sn system at 770 K [30]. This work tends to measure phase equilibria in the Ti-Ni-Sn ternary system at 508, 873 and 973 K.

3 Experimental

Alloy sampling was adopted to experimentally study phase relations of the Ti-Ni-Sn system at 508, 873 and 973 K. More than 40 alloys have been prepared. Raw materials of high purity (99.99% Ti, 99.99% Ni, and 99.99% Sn, mass fraction) were used to prepare the experimental alloys. The mass of each sample was limited to be about 8 g. Pre-determined amount of each raw material was weighted with analytical balance. Then, the weighted raw materials were mixed and melted by arc-melting in a water-cooled copper crucible under high purity argon atmosphere (with Ti getter). To ensure the homogeneity, all alloys were re-melted at least four times. After direct arc melting, all raw materials became button alloys and were weighted again. The mass losses were found to be less than 1% of the total mass. Subsequently, the button alloys were cut into four parts. Each part was respectively annealed at 508 K for 180 d, 873 K for 100 d, and 973 K for 90 d in the evacuated quartz tubes, and followed by quenching in ice water.

Constituent phases in annealed samples were studied by electron probe microanalysis (EPMA) (JXA-8800R, JEOL, Japan) equipped with OXFORD INCA 500 wavelength dispersive X-ray spectrometer (WDS). Standard deviations of the measured concentration are ±0.6% (molar fraction). The total content of Ti, Ni and Sn in each phase is in the range of 97%-103% (molar fraction), indicating that reaction between alloy and silica capsules can be neglected. X-ray diffraction (XRD) was also performed to the same annealed alloys using a Cu K_α radiation on a Rigaku D-max/2550VB+ X-ray diffractometer at 40 kV and 30 mA. By comparing the XRD patterns of the samples with the powder diffraction database (PDF-4+2012) of the International Center for Diffraction Data (ICDD), the phase compositions of each sample were determined.

4 Results

4.1 Phase equilibrium at 508 K

More than 40 samples covering the entire composition range were employed to determine phase relations in the Ti-Ni-Sn ternary system at 508 K. The constituent phases in the annealed alloys and corresponding equilibria are summarized in Table 1.

Microstructure of the Ti-rich Alloy A1 annealed at 508 K is illustrated in Fig. 1(a). According to EPMA analysis, A1 is composed of Ti₃Sn, solution (Ti) and Ti₂Ni. As shown in Fig. 1(b), X-ray diffraction for A1 discloses existence of solution (Ti), Ti₂Ni, and Ti₃Sn. That is to say, A1 locates in the three-phase region of Ti₃Sn+Ti₂Ni+Ti. It is also worth nothing that about 10% (molar fraction) Sn dissolves in (Ti) according to EPMA-WDS analysis.

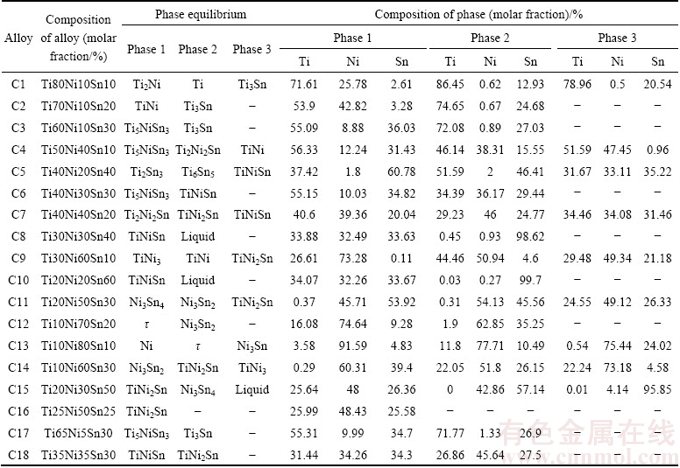

Table 1 Constituent phases in annealed Ti-Ni-Sn alloys at 508 K

Fig. 1 Constituent phases in Alloy A1 annealed at 508 K

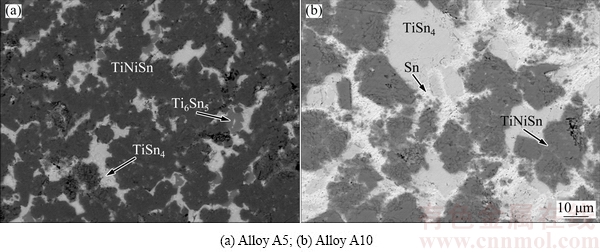

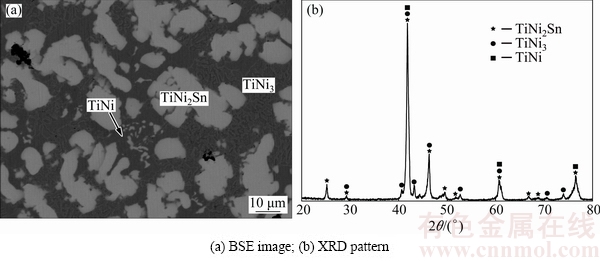

Fig. 2 BSE images of ternary alloys annealed at 508 K

Figure 2(a) shows back-scattered electron (BSE) image of the Sn-rich Alloy A5 after annealing at 508 K, where three phases could be observed. According to EPMA-WDS, the black phase is TiNiSn, the gray is Ti₆Sn₅and the bright one is a phase with composition of Ti_19.47Ni_0.95Sn_79.58. BSE image of Alloy A10 is shown in Fig. 2(b), which contains the bright phase Sn, the dark gray TiNiSn and an unknown phase whose composition is Ti_16.97Ni_0.23Sn_82.8, close to that in A5. It is guessed that Ti_19.47Ni_0.95Sn_79.58 in A5 and Ti_16.97Ni_0.23Sn_82.8 in A10 are the same phase, and both are of composition close to the formula TiSn₄. So, they are temporarily called the TiSn₄ phase here. In order to confirm the existence of TiSn₄, X-ray diffraction was carried out for alloys A5 and A10. Except for the peaks indexed to Ti₆Sn₅, TiNiSn and Sn, some peaks remained unidentified in Fig. 3(a) and in Fig. 3(b) show correspondingly similar angles and relative intensity. These unindexed peaks should belong to the unknown phase TiSn₄. Further work is necessary to determine the crystal structure and standard PDF of TiSn₄.

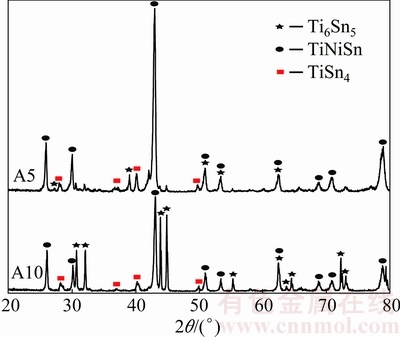

Fig. 3 XRD patterns of A5 and A10 ternary alloys annealed at 508 K

As seen in Fig. 4, the dark-gray TiNi₂Sn, gray Ti₅NiSn₃, and bright Ti₆Sn₅ in Alloy A6, and the dark black TiNi, gray TiNi₂Sn, and bright Ti₅NiSn₃ in Alloy A7 could be easily distinguished via EPMA. This means that two three-phase regions are determined, i.e., TiNi₂Sn+Ti₅NiSn₃+Ti₆Sn₅ and TiNi₂Sn+Ti₅NiSn₃+TiNi.

Figure 5 illustrates that constituent phases Ti₃Sn, Ti₂Sn and Ti₅NiSn₃ coexist in A18, indicating that there exists a three-phase region: Ti₂Sn+Ti₃Sn+Ti₅NiSn₃.

Based on the experimental results of this work and the relevant binary systems, isothermal section of the Ti-Ni-Sn ternary system at 508 K is constructed (Fig. 6), which consists of 19 three-phase and 34 two-phase regions. The single-phase region TiNi₃ extends along the iso-concentration of Ni, implying that Sn substitutes for Ti in TiNi₃. The solubility of Sn in TiNi₃ is found to be 6.5% (molar fraction). And binary phases TiNi and Ti₅Sn₃ show remarkable ternary solubility, e.g., the solubility of Sn in TiNi can be up to 5.08% and the solubility of Ni in Ti₅Sn₃ can up to 11.42%. It is worth noting that the three-phase equilibrium TiSn₄+Ti₆Sn₅+ Ti₂Sn₃ was deduced based on the Sn-rich part of the Ti-Sn binary system and the adjacent three-phase region TiNiSn+Ti₆Sn₅+TiSn₄.

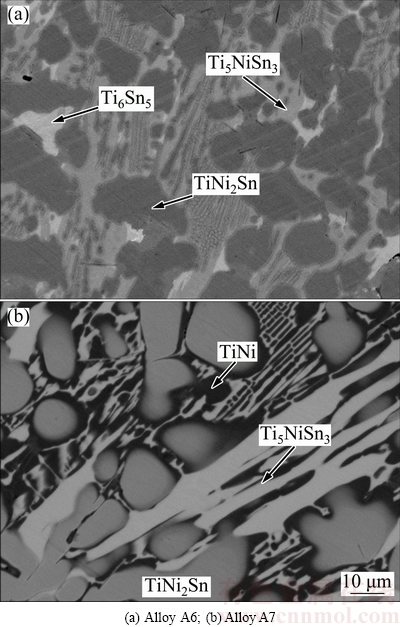

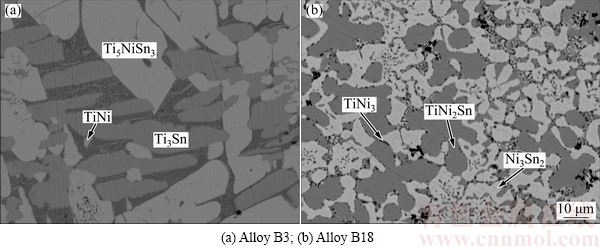

Fig. 4 BSE images of annealed alloys at 508 K

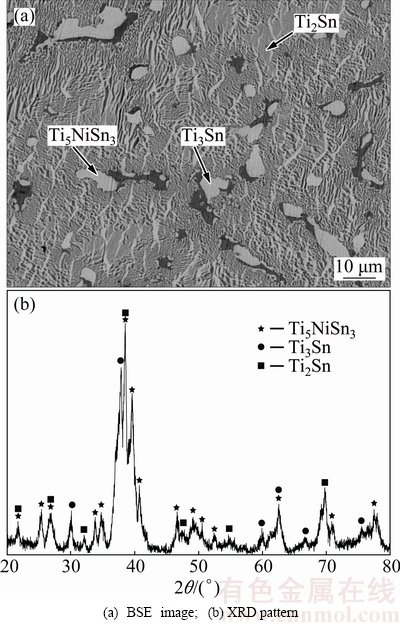

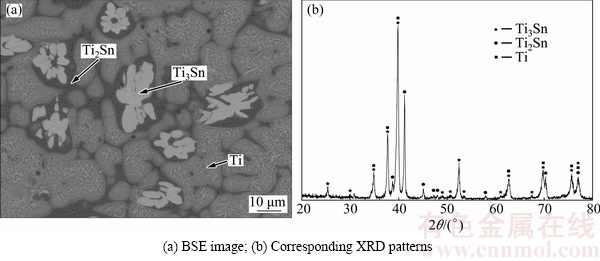

Fig. 5 Constituent phases in Alloy A18

4.2 Phase equilibrium at 873 K

To determine the isothermal section at 873 K, 18 samples were synthesized. The detected equilibrium phases in various samples are listed in Table 2.

Figure 7(a) exhibits BSE image of Alloy B5, where the gray Ti₂Ni₂Sn, gray TiNiSn, and bright Ti₅NiSn₃ are detected. Ti₂Ni₂Sn was also observed in Alloy B6 (Fig. 7(b)) which shows a three-phase equilibrium: Ti₂Ni₂Sn+ TiNi₂Sn+TiNi.

Microstructure of Alloy B8 is revealed in Fig. 8(a). According to BSE and the EPMA analysis, the bright TiNi₂Sn is the primary crystal, which is surrounded by the gray eutectic structure (TiNi and TiNi₃). To confirm this three-phase region, X-ray diffraction analysis was employed, as shown in Fig. 8(b). Thus, the three-phase equilibrium TiNi₂Sn+TiNi₃+TiNi is determined.

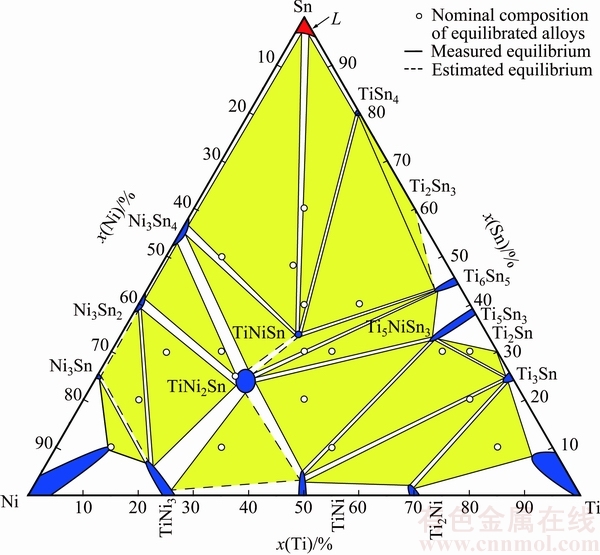

Fig. 6 Isothermal section of Ti-Ni-Sn ternary system at 508 K

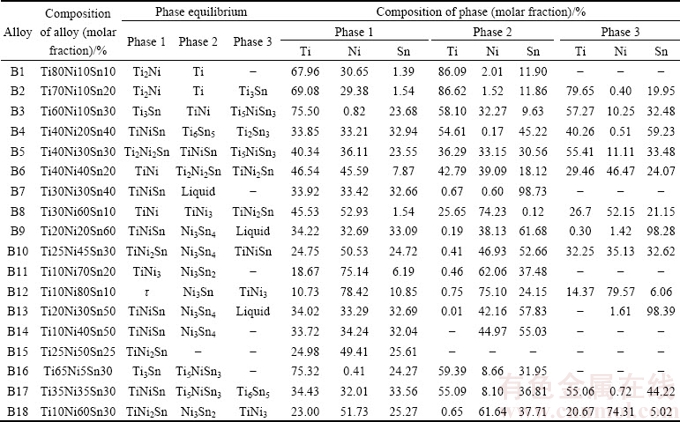

Table 2 Constituent phases in annealed Ti-Ni-Sn alloys at 873 K

According to Fig. 9, equilibria TiNi+Ti₃Sn+ Ti₅NiSn₃ and TiNi₂Sn+Ni₃Sn₂+TiNi₃are determined.

Fig. 7 BSE images of ternary alloys annealed at 873 K

Fig. 8 Constituent phases in Alloy B8 annealed at 873 K

Fig. 9 BSE images of ternary alloys annealed at 873 K

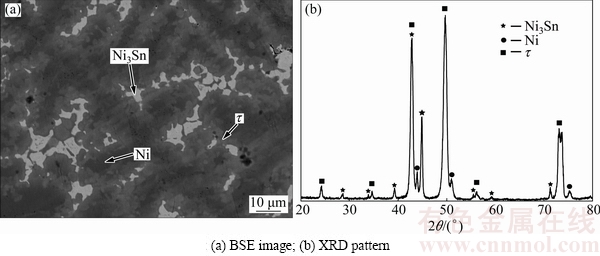

Fig. 10 Constituent phases in Alloy B12 annealed at 873 K

As seen from Figs. 10(a) and (b), constituent phases Ni₃Sn, Ni and τ coexist in B12 at 873 K.

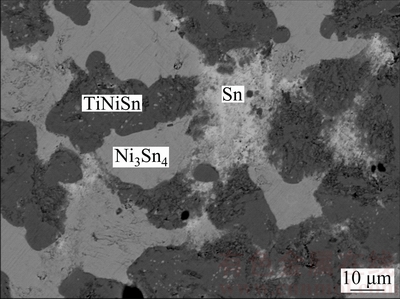

Microstructure of Alloy B13 is demonstrated in Fig. 11, where the dark gray TiNiSn and gray Ni₃Sn₄ can be easily determined. The bright area is Sn-rich and of composition of Ni_1.6Sn_98.4. In light of the Ni-Sn and Ti-Sn binary systems, the bright area in Fig. 11 must be the liquid phase which exists stably during annealing at 873 K. Thus, the actual equilibrium in Alloy B13 should be TiNiSn+Ni₃Sn₄+Liquid.

Fig. 11 BSE image of Alloy B13 ternary alloys annealed at 873 K

So far, isothermal section of the Ti-Ni-Sn ternary system at 873 K can be established, as described in Fig. 12, where 20 three-phase and 36 two-phase regions are identified. In addition, ternary solubility in binary compounds is remarkable, e.g., Sn in TiNi can be up to 7.87%, and Ni in Ti₅Sn₃ can be up to 11.11%, respectively.

4.3 Phase equilibrium at 973 K

More than 40 alloy samples were prepared for determining the isothermal section of the Ti-Ni-Sn ternary system at 973 K. Phase equilibria have been detected, as summarized in Table 3.

In light of Fig. 13, constituent phases in Alloy C8 include (Sn) and TiNiSn. Easy to be understood, (Sn) should exist as liquid when Alloy C5 was annealed at 973 K. This means that C8 locates in the two-phase field of Liquid+TiNiSn at 973 K.

BSE image of Alloy C15 is presented in Fig. 14. With EPMA-WDS analysis, it can be known that C15 involves the dark gray TiNi₂Sn, the gray Ni₃Sn₄ and the bright (Sn) which is actually liquid. Therefore, the three-phase region Liquid+TiNi₂Sn+Ni₃Sn₄ can be identified.

So far, isothermal section of the Ti-Ni-Sn ternary system at 973 K can be constructed, as demonstrated in Fig. 15, where 20 three-phase regions and 36 two-phase regions are identified. By the way, ternary solubility in binary compounds is remarkable, e.g., the solubility of Sn in TiNi can be up to 4.60%, and that of Ni in Ti₅Sn₃ can be up to 12.24%, respectively.

5 Discussion

By recalling Figs. 6 and 12, a preliminary comparison of the phase relation can be made at 508 and 873 K. The ternary phase Ti₂Ni₂Sn that is observed at 873 K, firstly disappears at 508 K. This agrees with ROMAKA et al [31], that Ti₂Ni₂Sn is stable from 673 to 1073 K. Secondly, the new binary phase TiSn₄, is stable at 508 K before disappearing at 873 K. In this work, the alloys were annealed at 508 K for 180 d, ensuring full equilibrium. The TiSn₄ phase in the BSE images is large and uniform.

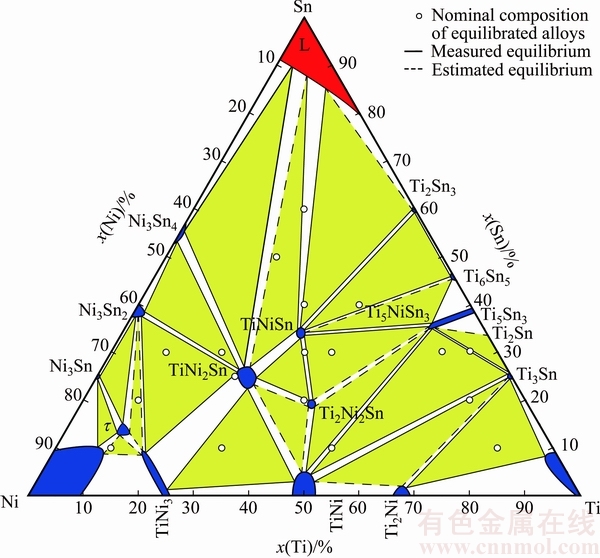

Fig. 12 Isothermal section of Ti-Ni-Sn ternary system at 873 K

Table 3 Constituent phases in annealed Ti-Ni-Sn alloys at 973 K

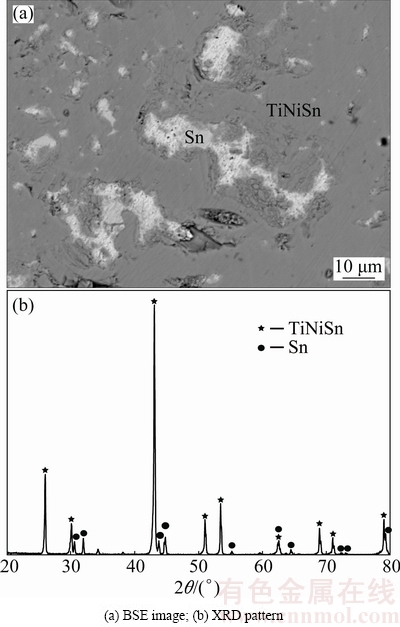

Fig. 13 Constituent phase in Alloy C8 annealed at 973 K

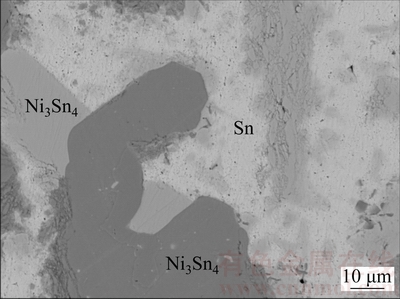

Fig. 14 BSE image of Alloy C15 ternary alloys annealed at 973 K

As seen in Figs. 12 and 15, a notable difference can be manifested between the isothermal sections at 873 K, and 973 K. When the temperature decreases from 973 to 873 K, the three-phase regions, Sn+Ni₃Sn₄+TiNi₂Sn and Sn+TiNiSn+TiNi₂Sn, transform into two other three-phase regions, Sn+Ni₃Sn₄+TiNiSn and Ni₃Sn₄+ TiNi₂Sn+TiNiSn. It can be inferred that a peri-eutectic reaction L+TiNi₂Sn→Ni₃Sn₄+TiNiSn between 873 and 973 K must occur. Recently, BERCHE et al [34] thermodynamically assessed the Ti-Ni-Sn ternary system. By adopting thermodynamic parameters from BERCHE et al [34], peri-eutectic reaction L+TiNi₂Sn→ Ni₃Sn₄+TiNiSn will occur at 1168.8 K, much higher than 973 K. According to Ref. [32] and our findings, this peri-eutectic reaction must occur below 973 K. We confirmed this with annealed alloys B13, C15 and other alloys which reflected the phase equilibrium among L, TiNi₂Sn, Ni₃Sn₄ and TiNiSn. This again reveals the requirement for this work.

Whether the τ phase is a stable compound or not remains undefined. In this work, the τ phase was observed at 873 K (annealed for 100 d) and 973 K (annealed for 90 d), but disappeared at 508 K.

Fig. 15 Isothermal section of the Ti-Ni-Sn ternary system at 973 K

6 Conclusions

1) Isothermal sections of Ti-Ni-Sn ternary system at 508, 873 and 973 K are established.

2) Ternary compounds TiNi₂Sn and TiNiSn are found to be stable at 508, 873 and 973 K, while Ti₂Ni₂Sn and (Ti_1-x-yNi_xSn_y)Ni₃ are stable at 873 and 973 K. A new binary phase with composition of about TiSn₄ is detected at 508 K.

3) A peri-eutectic reaction L+TiNi₂Sn→Ni₃Sn₄+ TiNiSn at a certain temperature between 873 and 973 K is deduced.
