Trans. Nonferrous Met. Soc. China 23(2013) 2945-2950

Preparation and characterization of ZrO₂/TiO₂ composite photocatalytic film by micro-arc oxidation

Qiang LUO¹, Qi-zhou CAI¹, Xin-wei LI¹, Zhen-hua PAN¹, Yu-jie LI¹, Xi-di CHEN¹, Qing-song YAN²

1. State Key Laboratory of Material Processing and Dies and Mould Technology, Huazhong University of Science and Technology, Wuhan 430074, China;

2. National Defense Key Disciplines Laboratory of Light Alloy Processing Science and Technology, Nanchang Hangkong University, Nanchang 330063, China

Received 21 August 2012; accepted 30 January 2013

Abstract: ZrO₂/TiO₂ composite photocatalytic film was produced on the pure titanium substrate using in-situ Zr(OH)₄ colloidal particle by the micro-arc oxidation technique and characterized by scanning electron microscope (SEM), energy dispersive X-ray (EDX), X-ray diffraction (XRD) and ultraviolet-visible (UV-Vis) spectrophotometer. The composite film shows a lamellar and porous structure which consists of anatase, rutile and ZrO₂ phases. The optical absorption edge of film is shifted to longer wavelength when ZrO₂ is introduced to TiO₂. Furthermore, the photocatalytic reaction rate constants of degradation of rhodamine B solution with ZrO₂/TiO₂ composite film and pure TiO₂ film under ultraviolet irradiation are measured as 0.0442 and 0.0186 h^-1, respectively.

Key words: pure titanium; micro-arc oxidation; Zr(OH)₄; colloidal particle; ZrO₂/TiO₂; composite photocatalytic film

1 Introduction

TiO₂ photocatalysis is currently accepted as one of the most promising technologies for destruction of organic pollutions in the environment because it is cheap, chemically and biologically inert, non-toxic, photostable, and highly photo-reactive [1-4]. The immobilization of TiO₂ is so critical for the practical photocatalytic application. Micro-arc oxidation (MAO) is a processing technique which can convert the surfaces of valve metals, such as aluminum, magnesium and titanium, into ceramic coatings [5-7]. The technique is considered to be appropriate for immobilizing the TiO₂ photocatalyst, because the distinct properties of TiO₂ formed via MAO include chemical durability, large specific surface area, remarkable thickness and good adhesion to metal substrate. Furthermore, the complex TiO₂ film can be formed by adjusting electrolyte composition. There are only few reports on growing composite TiO₂ photocatalytic films by MAO method. HE et al [8] prepared the WO₃/TiO₂ photocatalytic films on pure titanium substrate via MAO technique in tungstate electrolyte. BAYATI et al [9] used the MAO method to synthesize V₂O₅/TiO₂ photocatalytic films. JIANG et al [10] fabricated the TiO₂/YAG:Ce³⁺ compound photocatalytic films upon titanium alloy by micro-arc oxidation.

On the other hand, the fast recombination of photogenerated electron-hole pairs deteriorates the photocatalytic activity of TiO₂, which limits the commercialization of this technology [11]. Some semiconductors have been used to couple with TiO₂ in order to improve its photocatalytic activity. Among these semiconductors, ZrO₂ is considered an appropriate semiconductor coupled with TiO₂ because it is beneficial for the increase of surface area, the stabilization of anatase and the existence of stable electron-hole pairs [12-14]. As far as we know, ZrO₂/TiO₂ composite photocatalytic film has not been prepared by MAO technique to date. In this work, ZrO₂/TiO₂ composite photocatalytic film is prepared using in-situ Zr(OH)₄ colloidal particle by MAO technique and the photocatalytic activity of the film is investigated.

2 Experimental

2.1 Preparation of film

The equipment used during the MAO process consists of an AC power supply, an electrolyte cell, a stirring system, a cooling system and an exhaust system. The pure titanium (99.5%) sheets with dimensions of  20 mm × 20 mm × 2 mm were polished by emery paper (150#-1200# grit), degreased by acetone and then rinsed by distilled water before the MAO process. The pure titanium sheet was selected as the anode and the stainless steel plate was used as the cathode. The electrolyte consisted of K₂ZrF₆ (7.1 g/L), NaOH (5 g/L) and NaF (1 g/L). In order to compare the microstructure and photophysical property of the ZrO₂/TiO₂ composite film with those of pure TiO₂ film which was prepared in the electrolyte consisting of Na₃PO₄·12H₂O (9.5 g/L), NaOH (1 g/L) and NaF (1 g/L). The electrolytes used to prepare ZrO₂/TiO₂ composite film and pure TiO₂ film were marked as electrolytes A and B, respectively. The electrolyte temperature was kept under 40 °C through circulating water cooling system during the complete MAO process. The positive voltage, negative voltage, frequency, duty cycle and treatment time for both the ZrO₂/TiO₂ composite film and the pure TiO₂ film were 300 V, -40 V, 700 Hz, 0.3 and 6 min, respectively. The as-prepared films were rinsed by distilled water, dried in hot air and then kept in a drying chamber.

2.2 Analysis of film

The phase composition and crystalline structure of films were determined by XRD analysis using a D/Max-IIIB diffractometer with Cu K_α radiation. A Quanta 200 scanning electron microscopy (SEM) was used to characterize the morphological feature of the films. The composition of films was analyzed with an energy dispersive X-ray (EDX) detector incorporated into the SEM. A Shimadzu UV-2550 UV-Vis spectrophotometer with an integrating sphere attachment recorded the diffuse reflectance spectra (DRS) of films.

2.3 Evaluation of photocatalytic activity

The photocatalytic activity of films was determined by degrading aqueous solutions of rhodamine B. The samples were submerged into 10 mL of rhodamine B solution (10 mg/L) in the dark for 30 min prior to irradiation in order to achieve adsorption/desorption equilibrium. An ultraviolet lamp (36 W) with a maximum irradiation peak at 254 nm was used as light source, the solution was constantly supplied with air during the irradiation process, a fixed quantity of solution was removed every 2 h to measure the absorbance. The absorbance of rhodamine B solution was tested at the wavelength of 550 nm with a UV-Vis spectrophotometer.

3 Results and discussion

3.1 XRD analysis

The XRD patterns of films prepared in different electrolytes are shown in Fig. 1. The characteristic peaks of Ti are detected from pure titanium substrates. A mixed phase of anatase, rutile and ZrO₂ occurs in the ZrO₂/TiO₂ composite film. The mechanism for formation of ZrO₂/TiO₂ composite film can be interpreted as follows. At first, the reaction between K₂ZrF₆ and NaOH occurs in the electrolyte:

→     (1)

Zr(OH)₄ is the colloidal particle, whose isoelectric point is 6.8, which means that Zr(OH)₄ is electropositive when the pH of electrolyte is lower than 6.8 and Zr(OH)₄ is electronegative when the pH of electrolyte is higher than 6.8 [15]. So, Zr(OH)₄ colloidal particle should be electronegative in the alkaline electrolyte. When the MAO process begins, an oxidation reaction occurs on the surface of titanium substrate [16]:

Ti→Ti⁴⁺+4e                                (2)

Meanwhile, the Zr(OH)₄ particles and OH^- anions move toward the anode surface because of the strong electrical field between anode and cathode, and then the following reactions occur because of the strong spark discharge on the surface of anode [16,17]:

Zr(OH)₄→ZrO₂+2H₂O                       (3)

Ti⁴⁺+4OH^-→TiO₂+2H₂O                      (4)

The crystalline phase of the pure TiO₂ film is anatase, because it is very difficult for the metastable anatase phase to transform to thermodynamically stable rutile phase due to less heat produced by mild spark discharge on the surface of anode. The ratio of rutile to anatase in the ZrO₂/TiO₂ composite film is very high. Furthermore, the photocatalytic activity of rutile is lower than that of anatase. At the same time, because the conductive band of anatase phase locates at a higher energy position than that of rutile phase by about 0.20 eV, the photo-generated electron can transfer from rutile to anatase, which effectively inhibits the recombination of photo-generated electron-hole pairs [18,19]. Therefore, the ZrO₂/TiO₂ composite film should have a higher photonic efficiency compared with pure TiO₂ film.

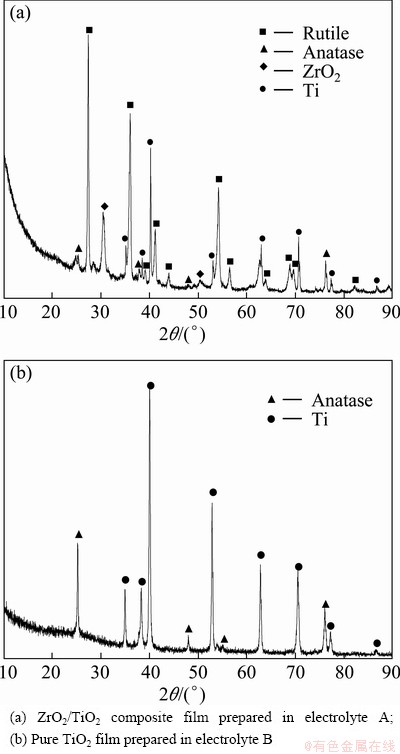

Fig. 1 XRD patterns of films prepared in different electrolytes

3.2 Microstructures

The surface micrographs of films prepared in different electrolytes are shown in Fig. 2. Obviously, the surface of ZrO₂/TiO₂ composite film exhibits a lamellar and porous microstructure. Furthermore, on the surface of film, there are many bright particles which are agglomerated. The EDX analysis of the bright particle marked in Fig. 2(b) is shown in Fig. 3, and the contents of elements are presented in Table 1. The bright particle mainly contain 22.95% Zr, 11.13% Ti and 65.91% O (mole fraction), which is similar to the chemical compositions of the mixture of ZrO₂ and TiO₂. The holes in the film are not only the reaction channels between electrolyte and substrate but also the channels through which molten oxide ejects during the MAO process. The strong spark discharge on the surface of anode generates high temperature and pressure, which results that the titanium substrate melts and then enters into the reaction channels, and is oxidized. The oxidized titanium rapidly ejects from the channels and solidifies because of the cold quenching of electrolyte. Meanwhile, the Zr(OH)₄ particles translate to the ZrO₂ particles on the surface of anode and then combine with the oxidized titanium to form the mixture of ZrO₂ and TiO₂. Although the surface of pure TiO₂ film also exhibits a porous microstructure, the surface of pure TiO₂ film is relatively smooth compared with the ZrO₂/TiO₂ composite film. Mild spark discharge means fewer discharge channels on the surface of pure TiO₂ film compared with the ZrO₂/TiO₂ composite film, which results that the surface of pure TiO₂ film is relatively smooth compared with the ZrO₂/TiO₂ composite film.

Fig. 2 Surface micrographs of films prepared in different electrolytes

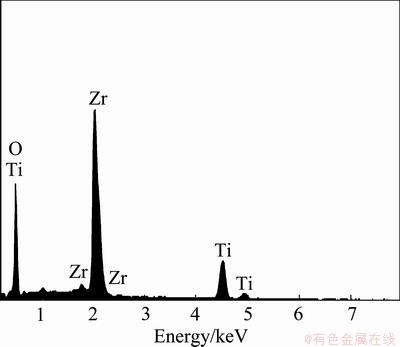

Fig. 3 EDX analysis corresponding to point A in Fig. 2(b)

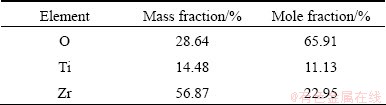

Table 1 Contents of surface element of bright particles

Fig. 4 Cross-section micrographs of films prepared in different electrolytes

The cross-section micrographs of films prepared in different electrolytes are shown in Fig. 4. There is no obvious discontinuity between the films and the substrate, which proves that the films are well adhered to the titanium substrate. This is beneficial to long-term degradation of organic compounds. However, there are two considerable differences in cross-section micrographs of two films. The thicknesses of the ZrO₂/TiO₂ composite film and the pure TiO₂ film are approximately 10 and 3 μm, respectively. Furthermore, compared with the pure TiO₂ film, there are many micro-pores in the inner layer of the ZrO₂/TiO₂ composite film. The growth of the MAO film is the result of melting and solidifying of oxide through the discharge channels, therefore, more discharge channels mean faster growth rate and the ZrO₂/TiO₂ composite film should be thicker than the pure TiO₂ film during the same period.

The differences of the surface and cross-section morphologies between the two films are attributed to more violent spark discharge during the MAO process of ZrO₂/TiO₂ composite film. For ZrO₂/TiO₂ composite film, the lamellar and porous microstructure, agglomerated ZrO₂/TiO₂ mixed particles and micro-pores in the inner layer of film should be responsible for providing more surface sites, in which more organic compounds and photons can be absorbed compared with the pure TiO₂ film.

3.3 UV-Vis absorption spectra

The UV-Vis absorption spectra of films prepared in different electrolytes are shown in Fig. 5. Obviously, the optical absorption edges of the ZrO₂/TiO₂ composite film and the pure TiO₂ film are about 421 and 412 nm, respectively. A slight shift towards longer wavelength in absorption band is detected when ZrO₂ is introduced to TiO₂. This behavior is in a good agreement with achievement of Ref. [20]. Zr ions may enter into the lattice of TiO₂ because of violent spark discharge during the MAO process, which leads to the lattice deformation as reported by WANG et al [21]. Therefore, some structural defects such as vacancies in the lattice would be produced particularly on the surface to partially offset the lattice strain [22]. The enhanced concentration of the oxygen vacancies in binary oxides system forms a defect band that further changes the energy of conduction band [23]. However, the ZrO₂/TiO₂ composite film exhibits lower absorption in the visible light region compared with the pure TiO₂ film, because ZrO₂ has a lower ability of absorbing visible light compared with TiO₂ and the excessive ZrO₂ can cover the surface of composite films, resulting that very little visible light is absorbed by ZrO₂/TiO₂ composite film.

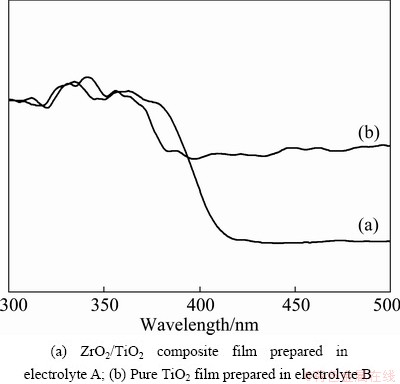

Fig. 5 UV-Vis absorption spectra of films prepared in different electrolytes

3.4 Photocatalytic activity

No detectable degradation of rhodamine B occurs without MAO films under UV light radiation. It is proved that the photocatalytic decomposition of rhodamine B solution agrees with the apparent first-order model [24]:

lnC₀/C=kt                                   (5)

where C₀ is the initial concentration of the rhodamine B solution at t=0; C is the concentration of the rhodamine B solution at latter time t; t is the irradiation time and k is the reaction rate constants. Figure 6 illustrates the relationship of ln C₀/C versus irradiation time for two films. The photocatalytic reaction rate constants of degradation of rhodamine B solution with ZrO₂/TiO₂ composite film and pure TiO₂ film under UV irradiation are measured as 0.0442 and 0.0186 h^-1, respectively. A comparison between the photocatalytic activities of the two films emphasizes the photocatalytic enhancement in the ZrO₂/TiO₂ composite film, which can be mainly attributed to the mixed phase, more surface sites and formation of structural defects. The ZrO₂/TiO₂ composite film has the mixed phase of anatase, rutile and ZrO₂, which results that the photo-generated electron can transfer from rutile to anatase. This effectively inhibits the recombination of photo-generated electron-hole pairs. The lamellar and porous microstructure, agglomerated ZrO₂/TiO₂ mixed particles and micro-pores in the inner layer should be responsible for providing more surface sites, in which more absorbed organic compounds can be degraded by OH^-. Furthermore, some oxygen might be escaped from the surface of the lattice to trap the photo-generated holes because of the formation of vacancies on the surface [22]. In addition, metal oxides with more structure defects on surface are able to substantially ionosorb oxygen, in the form of O^2- species, which are involved in electron capture in aqueous phase reactions, to let photoholes react with surface OH^- groups [25]. Another reason of the enhanced photocatalytic activity is zirconia modified titania with higher surface acidity, the surface sites with higher acidity may prove to be better adsorption sites or hole traps [20].

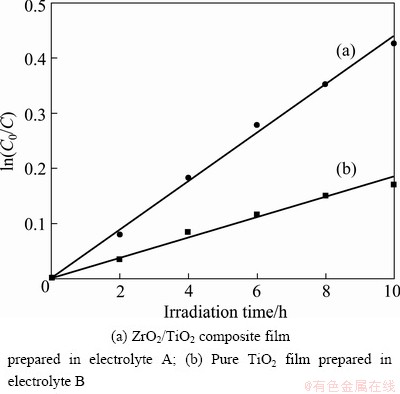

Fig. 6 Relationship of ln C₀/C versus irradiation time for films prepared in different electrolytes

4 Conclusions

ZrO₂/TiO₂ composite film with a lamellar and porous morphology was successfully produced in the electrolyte consisted of in-situ Zr(OH)₄ colloidal particle by the MAO technique. The composite film consists of anatase, rutile and ZrO₂ phases. The optical absorption edges of the ZrO₂/TiO₂ composite film and the pure TiO₂ film are about 421 and 412 nm, respectively. It is also revealed that the photocatalytic activity of ZrO₂/TiO₂ composite film enhances approximate three times compared with pure TiO₂ film under UV irradiation. Future works will be focused on the further improvement of photocatalytic activity of ZrO₂/TiO₂ composite film under ultraviolet and visible irradiations by adjusting process parameters, such as power voltage, reaction time and electrolyte composition.

References

[1] POPA M, DIAMANDESCU L, VASILIU F, TEODORESCU C M, COSOVEANU V, BAIA M, FEDER M, BAIA L, DANCIU V. Synthesis, structural characterization, and photocatalytic properties of iron-doped TiO₂aerogels [J]. Journal of Materials Science, 2009, 44(2): 358-364.

[2] HOFFMANN M R, MARTIN S T, CHOI W, BAHNEMANN D W. Environmental applications of semiconductor photocatalysis [J]. Chemical Reviews, 1995, 95(1): 69-96.

[3] CHEN Hua-wei, KU Young, KUO Yu-lin. Effect of Pt/TiO₂ characteristics on temporal behavior of o-cresol decomposition by visible light-induced photocatalysis [J]. Water Research, 2007, 41(10): 2069-2078.

[4] KOSOWSKA B, MOZIA S, MORAWSKI A W, GRZMIL B, JANUS M, KALUCKI K. The preparation of TiO₂-nitrogen doped by calcination of TiO₂xH₂O under ammonia atmosphere for visible light photocatalysis [J]. Solar Energy Materials and Solar Cells, 2005, 88(3): 269-280.

[5] LU Li-hong, SHEN De-jiu, ZHANG Jing-wu, SONG Jian, LI Liang. Evolution of micro-arc oxidation behaviors of the hot-dipping aluminum coatings on Q235 steel substrate [J]. Applied Surface Science, 2011, 257(9): 4144-4150.

[6] WANG Ping, LI Jian-ping, GUO Yong-chun, YANG Zhong. Growth process and corrosion resistance of ceramic coatings of micro-arc oxidation on Mg-Gd-Y magnesium alloys [J]. Journal of Rare Earths, 2010, 28(5): 798-802.

[7] KIM M S, RYU J J, SUNG Y M. One-step approach for nano-crystalline hydroxyapatite coating on titanium via micro-arc oxidation [J]. Electrochemistry Communications, 2007, 9(8): 1886-1891.

[8] HE Jian, CAI Qi-zhou, JI Y G, LUO H H, LI D J, YU B. Influence of fluorine on the structure and photocatalytic activity of TiO₂ film prepared in tungstate-electrolyte via micro-arc oxidation [J]. Journal of Alloys and Compounds, 2009, 482(1-2): 476-481.

[9] BAYATI M R, MOSHFEGH A Z, GOLESTANI-FARD F. Synthesis of narrow band gap (V₂O₅)_x-(TiO₂)_1-x nano-structured layers via micro arc oxidation [J]. Applied Surface Science, 2010, 256(9): 2903-2909.

[10] JIANG Xu-dong, WANG Yong-qian, PAN Chun-xu. Micro-arc oxidation of TC4 substrates to fabricate TiO₂/YAG: Ce³⁺ compound films with enhanced photocatalytic activity [J]. Journal of Alloys and Compounds, 2011, 509(8): L137-L141.

[11] XU Zi-li, YANG Qiu-jing, XIE Chao, YAN Wei-jun, DU Yao-guo, GAO Zhong-min, ZHANG Jia-hua. Structure, luminescence properties and photocatalytic activityofeuropium doped-TiO₂ nanoparticles [J]. Journal of Materials Science, 2005, 40(6): 1539-1541.

[12] MCMANAMON C, HOLMES J D, MORRIS M A. Improved photocatalytic degradation rates of phenol achieved using novel porous ZrO₂-doped TiO₂ nanoparticulate powders [J]. Journal of Hazardous Materials, 2011, 193: 120-127.

[13] HIRANO M, NAKAHARA C, OTA K, TANAIKE O, INAGAKI M. Photoactivity and phase stability of ZrO₂-doped anatase-type TiO₂ directly formed as nanometer-sized particles by hydrolysis under hydrothermal conditions [J]. Journal of Solid State Chemistry, 2003, 170(1): 39-47.

[14] HERNANDEZ-ALONSO M D, TEJEDOR-TEJEDOR I, CORONADO J M, SORIA J, ANDERSON M A. Sol–gel preparation of TiO₂-ZrO₂ thin films supported on glass rings: Influence of phase composition on photocatalytic activity [J]. Thin Solid Films, 2006, 502(1-2): 125-131.

[15] XU Yu-fen, FAN Wen-yuan. Research on separating Zr(OH)₄ suspension with ceramic microfiltration membranes [J]. China Powder Science and Technology, 2000, 6: 251-253. (in Chinese)

[16] BAYATI M R, MOSHFEGH A Z, GOLESTANI-FARD F. In situ growth of vanadia-titania nano/micro-porous layers with enhanced photocatalytic performance by micro-arc oxidation [J]. Electrochimica Acta, 2010, 55(9): 3093-3102.

[17] LUO Hai-he. Preparation, characterization and performances of ZrO₂-Y₂O₃-containing composite ceramic coatings on AZ91D magnesium alloy by microarc oxidation [D]. Wuhan: Huazhong University of Science and Technology, 2009: 57. (in Chinese)

[18] BICKLEY R I, GONZALEZ-CARRENO T, LEES J S, PALMISANO L, TILLEY R J D. A structural investigation of titanium dioxide photocatalysts [J]. Journal of Solid State Chemistry, 1991, 92(1): 178-190.

[19] SHI Lei, WENG Duan. Highly active mixed-phase TiO₂ photocatalysts fabricated at low temperature and the correlation between phase composition and photocatalytic activity [J]. Journal of Environmental Sciences, 2008, 20(10): 1263-1267.

[20] WU Bao-chao, YUAN Ru-sheng, FU Xian-zhi. Structural characterization and photocatalytic activity of hollow binary ZrO₂/TiO₂ oxide fibers [J]. Journal of Solid State Chemistry, 2009, 182(3): 560-565.

[21] WANG Yan-min, LIU Su-wen, LU Meng-kai, WANG Shu-fen, GU Feng, GAI Xue-zhou, CUI Xiao-peng, PAN Jie. Preparation and photocatalytic properties of Zr⁴⁺-doped TiO₂ nanocrystals [J]. Journal of Molecular Catalysis A: Chemical, 2004, 215(1-2): 137-142.

[22] YU J C, LIN J, KWOK R W M. Ti_1-xZr_xO₂ Solid solutions for the photocatalytic degradation of acetone in air [J]. Journal of Physical Chemistry B, 1998, 102(26): 5094-5098.

[23] P, BAKARDJIEVA S,  J. Influence of Zr as TiO₂ doping ion on photocatalytic degradation of 4-chlorophenol [J]. Applied Catalysis B: Environmental, 2007, 74(1-2): 83-91.

[24] LIU Guo-guang, ZHANG Xue-zhi, XU Ya-jie, NIU Xin-shu, ZHENG Li-qing, DING Xue-jun. Effect of ZnFe₂O₄ doping on the photocatalytic activity of TiO₂ [J]. Chemosphere, 2004, 55(9): 1287-1291.

[25] SCLAFANI A, HERRMANN J M. Comparison of the photoelectronic and photocatalytic activities of various anatase and rutile forms of titania in pure liquid organic phases and in aqueous solutions [J]. Journal of Physical Chemistry, 1996, 100(32): 13655-13661.

ZrO₂/TiO₂复合光催化膜的微弧氧化法制备及表征

罗 强¹，蔡启舟¹，李欣蔚¹，潘振华¹，李玉洁¹，陈喜娣¹，严青松²

1. 华中科技大学 材料成形与模具技术国家重点实验室，武汉 430074；

2. 南昌航空大学 轻合金加工科学与技术国防重点学科实验室，南昌 330063

摘  要：采用微弧氧化方法和原位生成的Zr(OH)₄胶体颗粒，在纯钛基体上制备ZrO₂/TiO₂复合光催化膜。采用SEM、EDX、XRD、UV-Vis DRS等分析手段，对膜层进行分析表征。结果表明：复合膜显示出层状和多孔的结构，由锐钛矿、金红石和ZrO₂组成；相对于纯TiO₂膜，复合膜层的光吸收截止边缘产生红移；ZnO₂/TiO₂复合膜层和纯TiO₂膜层在紫外光照射下，对罗丹明B的光催化速率常数分别为0.0442和0.0186 h^-1。

关键词：纯钛；微弧氧化；Zr(OH)₄；胶体颗粒；ZrO₂/TiO₂；复合光催化膜

(Edited by Chao WANG)

Foundation item: Project (gf200901002) supported by the Open Research Fund of National Defense Key Disciplines Laboratory of Light Alloy Processing Science and Technology of Nanchang Hangkong University, China

Corresponding author: Qi-zhou CAI; Tel/Fax: +86-27-87558190; E-mail: caiqizhou@mail.hust.edu.cn

DOI: 10.1016/S1003-6326(13)62818-6
