­­­ Isothermal oxidation behavior of Ti3Al-based alloy at

700-1 000 ℃ in air

QIAN Yu-hai(钱余海)^{1, 2}, LI Mei-shuan(李美栓)², LU Bin(卢 斌)²

1. R & D Center, Baoshan Iron & Steel Co, Ltd, Shanghai 201900, China;

2. Shenyang National Laboratory for Materials Science, Institute of Metals Research, Chinese Academy of Sciences, Shenyang 110016, China

Received 18 July 2008; accepted 28 September 2008

Abstract: The isothermal oxidation behavior of a Ti₃Al-based alloy (Ti-24Al-14Nb-3V-0.5Mo-0.3Si, molar fraction, %) at 700-    1 000 ℃ in air was investigated. The oxidation kinetics of tested alloy approximately obeys the parabolic law, which shows that the oxidation process is dominated by the diffusion of ions. The oxidation diffusion activity energy is 241.32 kJ/mol. The tested alloy exhibits good oxidation resistance at 700 ℃. However, when the temperature is higher than 900 ℃, the oxidation resistance becomes poor. The XRD results reveal that the oxide product consists of a mixture of TiO₂ and Al₂O₃. Serious crack and spallation of oxide scale occur during cooling procedure after being exposed at 1 000 ℃ in air for 16 h. According to the analysis of SEM/EDS and XRD, it is concluded that the Al₂O₃ oxide forms at the initially transient oxidation stage and most of it keeps in the outer oxide layer during the subsequent oxidation procedure.

Key words: oxidation resistance; Ti₃Al-based intermetallic alloy; oxidation kinetics

1 Introduction

With outstanding properties, intermetallics such as Ti₃Al and TiAl may act as potential structural materials serving under high temperature environments[1-2] and are paid much attention extensively. However, there are some disadvantages for intermetallics, such as brittleness and poor working performance at room temperature. What’s more, oxidation resistance of intermetallics with Ti-Al system was poor at 650 ℃ and above[3]. Much research showed that addition of alloying elements and application of protective coating might improve oxidation resistance of Ti-Al system intermetallics effectively[1,4-8]. For the oxidation behavior of Ti₃Al-based alloys, many research results showed that a mixture oxide consisting of main TiO₂ rather than protective Al₂O₃ was produced and their oxidation kinetics was very complicated[9-12].

For structural materials at high temperature, their high temperature oxidation resistance is a very important aspect during their service life. In this work, the oxidation behaviors of a kind of Ti₃Al-based alloy was investigated to evaluate its oxidation resistance in the temperature range of 700-1 000 ℃ in static air. Mean- while, the formation mechanism of oxide scale and the effect of addition of Nb on the oxidation behavior were discussed.

2 Experimental

The Ti₃Al-based alloy, Ti-24Al-14Nb-3V-0.5Mo- 0.3Si (molar fraction, %), for test was provided by Institute of Metals Research, Chinese Academy of Sciences. The processing methods were as follows. Alloy ingots were obtained after melting two times in vacuum consumable electrode furnace. The ingots were wrought at β-single phase area firstly and then at (α₂+β) double-phase areas. Round rods with diameter of 21 mm were produced. The heat treatment schemes after forging procedure were 1 000 ℃, 1 h, AC and 850 ℃, 2 h, AC, respectively.

Square specimens with dimensions of 10 mm×2 mm were cut by electrical-discharge method. The surfaces of specimens were ground down to 800^# SiC paper. The samples were cleaned in acetone and alcohol in an ultra-sonic bath before testing.

The oxidation test was performed at 700-1 000 ℃ in static air. The continuous measurements of isothermal mass gain were conducted at 700, 800, 900 and 1 000 ℃ in air for 16 h. The sample was suspended in a thermobalance with a Pt wire. The mass gain was recorded automatically. The phase composition of oxide layer was determined by X-ray diffractometer(XRD). The morphology of surface oxide was investigated using scanning electron microscope(SEM) equipped with energy dispersive spectroscope(EDS).

3 Results

3.1 Kinetics of oxidation

Fig.1(a) shows the kinetic curves of samples during the oxidation in air at 700-1 000 ℃ for 16 h. For the case of oxidation at 700 ℃, the mass gain was very slow and the total mass gain per unit area was 0.183 mg/cm², so the tested alloy exhibited good oxidation resistance at 700 ℃. However, when the temperature was higher than 900 ℃, the mass gain was very large and its oxidation resistance was poor. Fig.1(b) reveals the relationship between the square of mass gain per unit area and oxidation time. According to Fig.1(b), the oxidation kinetics of tested alloy at all temperatures approximately obeyed parabolic law.

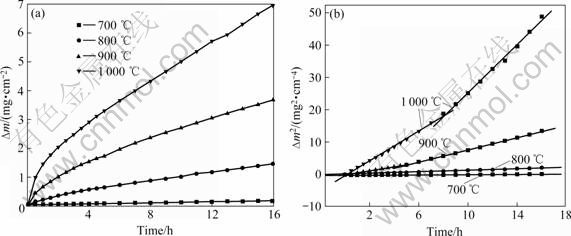

Fig.1 Oxidation kinetic curves of alloy during oxidation in air at 700-1 000 ℃ for 16 h: (a) Mass gain versus time; (b) Square of mass gain versus time

3.2 Phase composition and microstructure of oxide

Fig.2 shows the surface morphologies of specimens after oxidation for 16 h in air at 700-1 000 ℃. In the cases lower than 900 ℃, the oxide scale was compact and no crack and spallation were observed. Serious crack and spallation of oxide scale occurred at  1 000 ℃. Fig.2(d) shows the local magnification of non-spallation areas and many micro-cracks were found. The surface morphologies changed from the initial granular to transient flake-like and then to columnar in the end during oxidation from 700 ℃ to 1 000 ℃.

Fig.2 Surface morphologies of alloy after oxidation for 16 h at 700 ℃ (a), 800 ℃ (b), 900 ℃ (c), and 1 000 ℃ (d)

Fig.3 shows the cross-section morphologies of oxide layer after oxidation at 700-1 000 ℃ in air for 16 h. For the case of 1 000 ℃, serious spallation led to a great difference between the mass gain of oxide in oxidation kinetics and the corresponding thickness of the oxide layer.

Fig.3 Cross-section morphologies of oxide layer for alloy after oxidation for 16 h at different temperatures: (a) 700 ℃; (b) 800 ℃; (c) 900 ℃; (d) 1 000 ℃

Table 1 shows the EDS analysis results corresponding to different spots marked in Fig.3(c) and Fig.3(d). Fig.4 shows the XRD pattern of sample after oxidation for 16 h at 900 ℃ in air. XRD analysis revealed that the main crystalline phase was mixture oxide consisting of Al₂O₃ and TiO₂.

Table 1 EDS results for different spots marked in Fig.3(c) and Fig.3(d) (mass fraction, %)

Fig.4 XRD pattern of sample oxidized at 900 ℃ in air for 16 h

Values of the oxidation rate constant k_p under different oxidation temperatures are listed in Table 2.

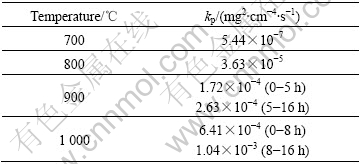

Table 2 Oxidation rate constant k_p of alloy at different tempera- tures

4 discussion

When characterizing the oxidation rate of alloy, it is usually suggested that oxidation behavior obeys simple oxidation law. The relationship between the mass gain and oxidation time can be expressed as

(?m)ⁿ=kt                                  (1)

where ?m is the mass gain per unit area; k is the oxidation rate constant; n is the exponent of oxidation rate; and t is the oxidation time.

As shown in Fig.1(b), the oxidation kinetics of the samples approximately obeys the parabolic law, so the oxidation process is dominant by diffusion process of ions. The oxidation rate can be described as (?m)²=k_pt, where the oxidation rate constant k_p is the function of oxidation temperature and k_p agrees with the Arrhenius relationship:

k_p=k₀exp[(-Q/RT)]                           (2)

where k₀ is a constant, Q is the activity energy and T is the absolute temperatur

The diffusion activation energy during oxidation procedure may be calculated according to slope of lines in lgk_p-1/T plots shown in Fig.5. The oxidation diffusion activity energy is 241.32 kJ/mol and it is similar to the value of 259 kJ/mol for Ti₃Al.

Fig.5 Arrhenius plot of k_p with oxidation temperature

Due to the significantly negative deviation between the activity of Al element and its real molar content, for intermetallics of Ti-Al system, bi-layered mixture oxide film consisting of TiO₂ and Al₂O₃ rather than a single protective Al₂O₃ oxide is usually produced[13], so their oxidation resistances are poor.

TiO₂ is non-stoichiometric and defects exist among lattice structure. The oxidation transporting process will be affected by the defects. As the dominant point defects in TiO₂ are vacancies of oxygen atom and interval titanium ions  or  the non-stoichiometry can be described as Ti_1+xO_2-y, and it is well accepted that the inward O^2- diffusion is dominant.

Table 3 lists the EDS results of oxide formed at    1 000 ℃ in air for 16 h. For the non-spallation area, the oxide was enriched with Ti and Al elements. On the contrary, for the spallation area, the Nb element was high and no Al element was detected. The growth of TiO₂ was dominant by inward diffusion of oxygen, so the growth of new oxide mainly occurred at alloy/oxide interface, rather than oxide/air interface. The fact that Al element appeared only in outer layer of oxide film showed that Al₂O₃ formed at initial oxidation stage, which was in agreement with the result revealed by XPS for the initial stages of oxidation of α₂-Ti₃Al and γ-TiAl intermetallic alloys[9]. And it could be deduced that a mixture of Al₂O₃ and TiO₂ formed at initial stage, but Al₂O₃ was non-continuous. Then, TiO₂ continued to form by the inward diffusion of oxygen ions through the non-continuous Al₂O₃ oxide. During this process, less part of Al₂O₃ oxide would be incorporated with TiO₂ and the most of Al₂O₃ would be kept in the outer layer. So, the quantity of Al element in the outer oxide layer was high.

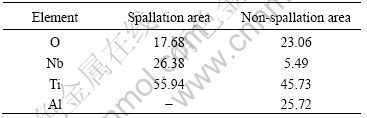

Table 3 EDS results of oxide formed at 1 000 ℃ in air for 16 h (mass fraction, %)

During the process of isothermal oxidation, growth stress in the oxide is dominant. For the Al₂O₃ film formed on MCrAlY system, the growth stress can be negligible[14]. However, growth stress in TiO₂ is significant[15]. Severe cracking and spallation occurred due to the combination of significant growth stress and thermal stress during the cooling process from 1 000 ℃ to room temperature.

Addition of alloying element such as Nb will increase the activity of Al element in Ti₃Al alloy and the critical Al concentration to produce Al₂O₃ is expected to decrease. So, Nb accelerates the selective oxidation of Ti₃Al. However, compared with the Arrhenius relationship curves for the Al₂O₃-forming kinetics[16], the oxidation kinetics agreed with the TiO₂-forming Arrhenius relation rather than the Al₂O₃-forming one. So, the oxidation process was dominated by the TiO₂- forming kinetics.

According to results of XRD and EDX, the oxide product contained Nb element. The possible existing state of Nb element in the oxide layer is either solid solution or other ways. As far as n-type semi-conductor was concerned, the growth of TiO₂ was dominant by the outward transportation of oxygen vacancy. Because the valence of Nb⁵⁺ is higher than Ti⁴⁺, according to the theory of electrical neutrality, the doping effect of Nb⁵⁺ will decrease the concentration of oxygen vacancy in oxide, so the transporting rate of oxygen vacancy becomes lower. The depressed oxygen transportation will lead to an enhancement of oxidation resistance.

The maximum solubility of Nb in TiO₂ is approximately 5% (molar fraction) at 1 400 ℃. It is concluded that solubility of Nb in TiO₂ at 700-1 000 ℃ is much lower than that at 1 400 ℃. During oxidation process, Nb will dissolve in TiO₂ up to its maximum solubility. As mentioned above, doping effects of Nb leads to a decrease of concentration of oxygen vacancy, so the addition of Nb element will improve the oxidation resistance.

5 conclusions

1) Ti-24Al-14Nb-3V-0.5Mo-0.3Si (molar fraction, %) exhibits good oxidation resistance at 700 ℃. However, when the temperature is higher than 900 ℃, its oxidation resistance becomes poor. The oxidation kinetics of alloy approximately obeys parabolic law. The oxidation diffusion activity energy of sample is about 241.32 kJ/mol. The oxidation process is dominated by the growth of TiO₂.

2) The oxide mixture consisting of TiO₂ and Al₂O₃ forms during oxidation process. The combination of significant growth stress and thermal stress leads to crack and spallation of oxide scale during cooling process.

3) An oxide scale mainly consisting of TiO₂ with non-continuous Al₂O₃ oxide forms during transient oxidation stage. During the subsequent oxidation procedure, TiO₂ grows by inward oxygen diffusion and Al₂O₃ mainly keeps in the outer oxide layer.

References

[1] CHEN Yun-feng, XIONG Hua-ping, MAO Wei. Improvement on high-temperature oxidation resistance of a Ti₃Al-based alloy by liquid-phase silicon-aluminizing [J]. Corrosion Science and Protection Technology (China), 2005, 17( 1): 39-42. (in Chinese)

[2] CHU M S, WU S K. Improvement in the oxidation resistance of α₂- Ti₃A1 by sputtering Al film and subsequent interdiffusion treatment [J]. Surface Coating Technology, 2004, 179(2/3): 257-264.

[3] KOO C H, YU T H. Pack cementation coatings on Ti₃A1-Nb alloys to modify the high-temperature oxidation properties [J]. Surface and Coatings Technology, 2000, 126(2/3): 171-180.

[4] XIONG Yu-ming, GUAN Chun-hong, ZHU Sheng-long, WANG Fu- hui. Effect of enamel coating on oxidation and hot corrosion behaviors of Ti-24Al-14Nb-3V alloy [J]. Journal of Materials Engineering and Performance, 2006, 15(5): 564-569. (in Chinese)

[5] LI Z, GAO W, YOSHIHARA M, HE Y. Improving oxidation resistance of Ti₃Al and TiAl intermetallic compounds with electro-spark deposit coatings [J]. Materials Science and Engineering A, 2003, 347(1/2): 243-252.

[6] XIONG H P, XIE Y H, MAO W, CHEN Y F, LI X H. Liquid-phase siliconizing and aluminizing at the surface of a Ti₃Al-based alloy and improvement in oxidation resistance [J]. Journal of Materials Research, 2004, 19(4): 1050-1057.

[7] JAZAYERI G A, BUCKLEY R A, DAVIES H A. Microstructure and oxidation resistance of rapidly solidified Ti₃Al-Si alloys [J]. Materials Science and Technology, 2002, 18(12): 1485-1493.

[8] LI Z W, GAO W, YING D Y, ZHANG D L. Improved oxidation resistance of Ti with a thermal sprayed Ti₃Al(O)-Al₂O₃ composite coating [J]. Scripta Materialia, 2003, 48(12): 1649-1653

[9] MAURICE V, DESPERT G, ZANNA S, JOSSO P, BACOS M P, MARCUS P. XPS study of the initial stages of oxidation of α₂-Ti₃Al and γ-TiAl intermetallic alloys [J]. Acta Materialia,2007, 55(10): 3315-3325.

[10] QIAN Yu-hai, LI Mei-shuan, ZHANG Ya-ming. Cyclic oxidation behaviors of Ti₃Al-based alloys at 700-850 ℃in air [J]. The Chinese Journal of Nonferrous Metals, 2004, 14(9): 1609-1614. (in Chinese)

[11] QIAN Yu-hai, LI Mei-shuan, ZHANG Ya-ming. Effect of external stress on the selective oxidation of Ti₃Al base alloy at 500-700 ℃ [J]. Acta Metallurgica Sinica, 2003, 39(9): 989-994. (in Chinese)

[12] REDDY R G. In-situ multi-layer formation in the oxidation of Ti₃Al-Nb [J]. Journal of the Minerals Metals and Materials Society, 2002, 54(2): 65-67.

[13] RAHMEL A, SPENCER P J. Thermodynamic aspects of TiAl and TiSi₂ oxidation: The Al-Ti-O and Si-Ti-O phase diagram [J]. Oxid Met, 1991, 35: 53-68.

[14] CHOQUET P, INDRIGO C, MEVREL R. Microstructure of oxide scales formed on cyclically oxidized M-Cr-Al-Y coating [J]. Mater Sci Eng A, 1987, 88: 97-101.

[15] BERTRAND G, JARRAYA K, CHAIX J M. Morphology of oxide scales formed on titanium [J]. Oxid Met, 1983, 21: 1-19.

[16] GIGGINS C S, PETTIT F S. Oxidation of Ni-Cr-Al alloys between 1 000 and 1 200 ℃ [J]. J Electrochem Soc, 1971, 118: 1782-1790.
