Trans. Nonferrous Met. Soc. China 22(2012) 1197-1202

First principles study of electronic structure, chemical bonding and elastic properties of BiOCuS

PAN Liu-xian¹, XIA Qing-lin², YE Shao-long³, DING Ning¹, LIU Zi-ran¹

1. School of Electrical and Information Engineering, Hunan International Economics University,Changsha 410205, China;

2. School of Physics and Electronics, Central South University, Changsha 410083, China;

3. School of Metallurgical Science and Engineering, Central South University, Changsha 410083, China

Received 17 January 2012; accepted 19 April 2012

Abstract: The electronic structures, chemical bonding and elastic properties of the tetragonal phase BiOCuS were investigated by using density-functional theory (DFT) within generalized gradient approximation (GGA). The calculated energy band structures show that the tetragonal phase BiOCuS is an indirect semiconductor with the calculated band gap of about 0.503 eV. The density of states (DOS) and the partial density of states (PDOS) calculations show that the DOS near the Fermi level is mainly from the Cu-3d state. Population analysis suggests that the chemical bonding in BiOCuS has predominantly ionic character with mixed covalent-ionic character. Basic physical properties, such as lattice constant, bulk modulus, shear modulus, elastic constants, were calculated. The elastic modulus and Poisson ratio were also predicted. The results show that tetragonal phase BiOCuS is mechanically stable and behaves in a ductile manner.

Key words: BiOCuS; first principles; electronic structures; chemical bonding; elastic properties

1 Introduction

Since the discovery of superconductivity in LaOFeP, LaNiOP and LaFeAsO(F) [1-3], the quaternary oxypnictides and oxysulfides layered compounds with the ZrCuSiAs-type structure (space group P4/nmm, Z=2) have received considerable attention because of their interesting electrical, optical and magnetic properties [4-8].

BiCuOS, which is isostructural to the layered rare-earth oxysulfides LnCuOS (Ln=La-Eu), is an indirect gap semiconductor with band gap of about 1.1 eV in experimental investigation [7] or about 0.48 eV in theoretical calculation [9]. KUSAINOVA et al [10] synthesized BiOCuS by a high-temperature reaction in evacuated sealed quartz ampoules. SHEETS et al [8] synthesized BiCuOS by a single-step hydrothermal reaction at low temperature (250 °C) and pressure (<2?10⁶ Pa). They studied the optical properties of BiCuOS with diffuse reflectance. The absorption spectrum of BiCuOS is high across the entire visible region (2-3 eV), indicating that the optical band gap of BiCuOS is much smaller (<1.5 eV). HIRAMATSU et al [7] prepared BiOCuS samples by solid-state reaction method, and estimated the band gap of BiCuOS (about 1.1 eV) by diffuse reflectance spectra method. SHEIN et al [9] investigated the electronic band structure, density of states and inter-atomic bonding picture for BiOCuS. The results showed that the BiOCuS phase behaves as an ionic semiconductor with the calculated indirect band gap of about 0.48 eV. Very recently, superconductivity below T_C=5.8 K was reported for the tetragonal Cu-deficient BiOCu_1-xS samples, which declared BiOCuS as a parent phase for novel layered superconductors [11-13].

To the best of our knowledge, there are no reports on the elastic properties of BiOCuS. However, it is important for fundamental physics and potential applications to study elastic properties of BiOCuS. Elastic properties provide information on interatomic potentials, interatomic bonding, equations of state, phonon spectra, specific heat capacity, thermal expansion, Debye temperature, etc [14]. In addition, elastic properties are essential for many practical applications related to the mechanical properties of solid: load deflection, internal strain, thermoelastic stress, sound velocities and fracture toughness [14].

In this study, the electronic structures, chemical bonding and elastic properties of the tetragonal phase of BiOCuS were studied using first-principles calculations based on DFT.

2 Calculation details

The first principles calculations described here were based on DFT using a plan-wave expansion of the wave function [15,16]. The exchange correlation energy was calculated by the GGA with the Perdew-Burke- Ernzerhof (PBE) function [17]. The ionic cores were represented by ultra-soft pseudopotentials for Bi, O, Cu and S atoms. The Bi 6s²6p³ electrons, O 2s²2p⁴ electrons, Cu 3d¹⁰4s¹ electrons, and S 3s²3p⁴ electrons were explicitly treated as valence electrons. The Monkhorst and Pack scheme of k-point sampling was used for integration over the first Brillouin zone [18]. The cutoff energy was chose to be 600 eV, and the Brillouin-zone sampling k-point set mesh parameters are 10×10×5. This set of parameters assured the total energy convergence of 5.0×10^-6 eV/atom, the maximum force of 0.01 eV/?, the maximum stress of 0.02 GPa and the maximum displacement of 5.0×10^-4 ?.

3 Results and discussion

3.1 Geometry and structure properties

The crystal structure of the tetragonal phase of BiOCuS belongs to the space group P4/nmm, Z=2 (ZrCuSiAs type), where blocks [BiO] are sandwiched with [CuS] blocks as depicted in Fig. 1. There are four inequivalent atomic positions: Bi at 2c site (1/4, 1/4, z_Bi), O at 2a site (3/4, 1/4, 0), Cu at 2b site (3/4, 1/4, 1/2), and S at 2c site (1/4, 1/4, z_S) [7], where z_Bi and z_S are the internal coordinates of Bi and S, respectively. The experimental lattice parameters are a=b=3.8691 ? and c=8.5602 ?, and the internal coordinates of Bi and S, were reported as z_Bi=0.14829 and z_S=0.6710 [7], respectively.

At the first stage, the full structural optimization of this phase was performed both over the lattice parameters and the atomic positions including the internal coordinate z_Bi and z_S. The calculated optimization lattice parameters a, c, V and atomic coordinates compared with available experimental data [7] for BiOCuS are summarized in Table 1, which shows that the calculated values of GGA calculation are in agreement with the experimental results. The differences between our values and the experimental data may be due to the use of an approximate DFT. It is well known that the GGA leads to volume slightly overestimated in relation to the experimental value.

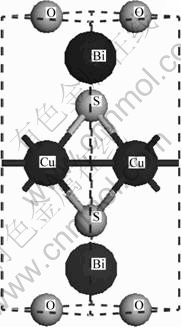

Fig. 1 Crystal structure of BiOCuS

Table 1 Calculated lattice parameters and atomic internal coordinate compared with available experimental data [7] for BiOCuS

3.2 Electronic and chemical bonding

The calculated energy band structure of BiOCuS along with the high-symmetry points of the Brillouin zone by GGA is shown in Fig. 2. The top of the valence band is taken as the zero of energy. This compound is found to have indirect band gap. The valence band maximum (VBM) is at the Z point and the conduction band minimum (CBM) is on the M-Γ line. The calculated band gap value is 0.503 eV by GGA, which is smaller than the experimental value of 1.1 eV [7] due to the well-known underestimation of conduction band state energies in DFT calculations.

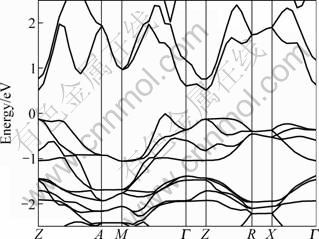

Fig. 2 GGA calculated band structure of BiOCuS along some high-symmetry lines in Brillouin zone

The total and partial densities of states (DOS) of BiOCuS calculated by GGA are shown in Fig. 3 and  Fig. 4. It is found that the lower valence bands (between -20.56 and -17.67 eV) are essentially dominated by O-2s states and show hybridization with Bi-6s and Bi-6p states. The structure situated in the range from -14.46 to -12.30 eV originates predominantly from S-3s, and the one in the range from -12.10 to -8.73 eV originates predominantly from Bi-6s states. The upper valence bands are composed mainly of Cu-3d character and show hybridization with S-3p state. The conduction bands are dominated by Bi-6p state and hybridized Cu-4p and S-3p states. The calculated results are in agreement with the previous results [9].

The Mulliken bond population is useful for evaluating the bonding character in a material. A high value of the bond population indicates a covalent bond, and a low value indicates an ionic bond. Positive and negative values indicate bonding and anti-bonding states, respectively [19,20]. The Mulliken atomic population of BiOCuS reported in Table 2 shows a significant charge transfer from [BiO] block to [CuS] blocks, indicating that the internal of [BiO] block and the [CuS] block is ionic character. The bond population reported in Table 3 shows that the intra-block of Bi-O and Cu-S is covalent character. The chemical bonding in BiOCuS has predominantly ionic character with mixed covalent-ionic character, which is in agreement with the results of   Ref. [12].

3.3 Elastic properties

Elastic properties are very important for materials because they provide information on the interatomic potentials and relate to various fundamental solid state phenomena, such as interatomic bonding, equations of state, phonon spectra as well as specific heat capacity, thermal expansion, Debye temperature [21,22].

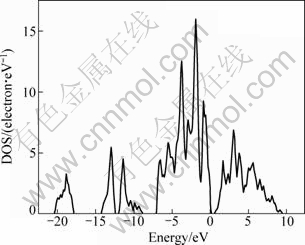

Fig. 3 Total DOS of BiOCuS (the zero of energy is at the Fermi level)

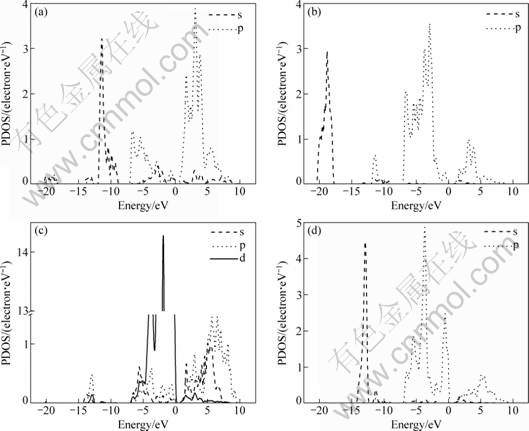

Fig. 4 PDOS of Bi (a), O (b), Cu (c) and S(d) of BiOCuS calculated by GGA

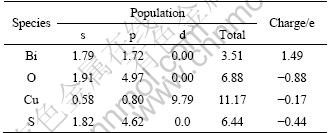

Table 2 Mulliken atomic population of BiOCuS

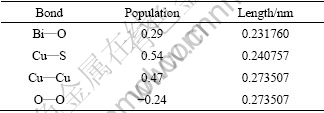

Table 3 Mulliken bond population of BiOCuS

Elastic constants are defined by means of a Taylor expansion of the total energy, namely the derivative of the energy as a function of a lattice strain [15,16]. The tetragonal phase BiOCuS crystal has six independent single crystal elastic constants C₁₁, C₃₃, C₄₄, C₆₆, C₁₂ and C₁₃ [23]. The GGA calculated C_ij are presented in Table 4. For the tetragonal crystal, its mechanical stability requires that its independent elastic constants should satisfy the Born’s stability criteria [23]:

                   (1)

Table 4 Calculated single crystal elastic constants C_ij, bulk modulus and compressibility coefficient β of BiOCuS

From Table 4, we can see that these criteria are all satisfied, which indicates that BiOCuS is mechanically stable. The single crystal bulk modulus B of BiOCuS is about 85 GPa, which is smaller than that of the ZrCuSiAs-type Fe-based superconductor parent compound LaFeAsO (98 GPa) and is close to that of YZnAsO/LaZnAsO (78/87 GPa), meaning that BiOCuS is relatively soft material [23-25]. The polycrystal bulk modulus, B, and shear modulus, G are estimated using the Voigt-Reuss-Hill approach in the following forms [23-25]:

               (2)

        (3)

                                (4)

(5)

                     (6)

                    (7)

                           (8)

                           (9)

Elastic modulus E and Poisson ratio v are estimated by

                          (10)

         (11)

All the calculated results are presented in Table 5. It can be seen that the value of B/G ratio for BiOCuS is 2.16, which is larger than the critical value (1.75) separating ductile and brittle materials [23-28], indicating that BiOCuS behaves in a ductile manner. For LaOFeAs and LaOFeP, the values of B/G ratio are 1.74 and 1.42, respectively [23,24]. From the point of application, BiOCuS is more readily machinable.

Table 5 Calculated polycrystalline elastic constants, elastic modulus E, Poisson ratio ν and B/G of BiOCuS

It is known that the values of the Poisson ratio (ν) are minimal for covalent materials (ν=0.1), and increase for ionic systems [29]. In our case, the calculated Poisson ratio is 0.2992, which means a sizable ionic contribution in intra-bonding.

3.4 Debye temperature

The Debye temperature (Θ_D) is a fundamental parameter of a material, which is linked to many physical properties, such as specific heat capacity, elastic constants, and melting point. At low temperatures, the vibration excitations arise solely from acoustic vibrations. Hence, at low temperatures, the Debye temperature calculated from elastic constants is the same as that determined from specific heat capacity measurements. It can be obtained from the average wave velocity by the following equation [29]:

     (12)

where h is the Planck constant; k the Boltzmann constant; N_A the Avogadro number; ρ the density; n the number of atoms per formula unit; M the relative molecular mass per formula unit; V₀ the volume of per formula unit; v_m is the average wave velocity and is approximately estimated by

                       (13)

where v_s and v_l are transverse and longitudinal elastic wave velocities, respectively, which can be determined by the shear modulus G and the bulk modulus B from Navier’s equation:

,              (14)

The calculated average, longitudinal and transverse elastic wave velocities and Debye temperature for BiOCuS are given in Table 6. However, no other theoretical or experimental data exist for comparison with the present values.

Table 6 Calculated Debye temperature Θ_D of BiOCuS

4 Conclusions

1) The GGA calculated structural parameters of the tetragonal phase BiOCuS are in agreement with the experimental data.

2) The electronic band structures present that BiOCuS has indirect band gap with 0.503 eV by GGA. The DOS and the PDOS calculations show that the DOS near the Fermi level is mainly from the Cu-3d state.

3) The chemical bonding was analyzed, which shows that BiOCuS has mainly ionic character with mixed covalent-ionic character.

4) The elastic constants were calculated and the bulks and shear modulus, elastic modulus, Poisson ratio were derived. All results show that BiOCuS is mechanically stable and behaves in a ductile manner.
