Sintering process as relevant parameter for Bi₂O₃ vaporization from ZnO-Bi₂O₃-based varistor ceramics

来源期刊：中国有色金属学报(英文版)2009年第6期

论文作者：徐东 CHENG Xiao-nong 严学华徐红星施利毅

文章页码：1526 - 1532

Key words：varistor; ZnO; vaporization; sintering process; microstructure

Abstract: The relationship between sintering process and vaporization of the Bi₂O₃ in ZnO-Bi₂O₃-based varistor ceramics was investigated. The phase and microstructure evolution during the sintering process were examined. The results show that the higher the sintering temperature or the longer the sintering time is, the more the Bi₂O₃ is volatilized. The heating rate has little effects on the Bi₂O₃ volatilized in ZnO-Bi₂O₃-based varistor ceramics. This is in accordance with the relative X-ray diffraction peak area ratio analysis. The results also show that the sintering temperature has the greatest impact on the vaporization of the Bi₂O₃, then followed by sintering time, and the effect of the heating rate is the minimum.

基金信息：Technical Innovation Team Program of Shanghai Science and Technology Committee of China

Sintering process as relevant parameter for Bi₂O₃ vaporization from ZnO-Bi₂O₃-based varistor ceramics

XU Dong(徐东)¹, CHENG Xiao-nong(程晓农)¹, YAN Xue-hua(严学华)¹,

XU Hong-xing(徐红星)¹, SHI Li-yi(施利毅)²

1. School of Materials Science and Engineering, Jiangsu University, Zhenjiang 212013, China;

2. School of Materials Science and Engineering, Shanghai University, Shanghai 200072, China

Received 10 August 2009; accepted 15 September 2009

Key words: varistor; ZnO; vaporization; sintering process; microstructure

1 Introduction

ZnO varistors show a highly nonlinear current-voltage characteristic with a highly resistive state in the prebreakdown region and large non-linearity coefficient[1-2]. Non-ohmic conduction in ZnO varistors is a grain-boundary phenomenon, which has often been explained by thermionic emission enhanced by barrier lowering at low fields with a combination of other mechanisms at high fields[3-4]. The method of sintering process is critical for producing good varistor materials. Commercial varistors are usually made by solid state of ZnO particles with doping agent oxides such as Bi₂O₃, Sb₂O₃, Co₂O₃, MnO₂ and Cr₂O₃, then the mixed powder is pressed and sintered at higher temperatures. A complex microstructure can be achieved, in which conducting ZnO grains, electrically insulating secondary spinel phase and Bi-rich inter-granular phase are found[5]. In other words, the microstructure of the ZnO varistors consists of highly conductive n-type ZnO grains and electrically insulating Schottky barriers of grain boundaries.

In the classical ZnO-based varistor, Bi₂O₃ is used as the varistor-former, thus it is essential for inducing the nonlinearity of the ZnO varistors[6-7]. Bi₂O₃ is particularly important since it provides the medium for liquid-phase sintering, enhances the growth of ZnO grains, and affects the stability of the nonlinear current-voltage characteristics of the material. The melting point of Bi₂O₃ is 825 ℃, and the eutectic temperature of ZnO-Bi₂O₃ is only 740 ℃, thus a liquid is formed in the ZnO-Bi₂O₃ specimens below 800 ℃. As soon as the eutectic liquid is formed, the mass loss starts to increase. This indicates that the vaporization of Bi₂O₃ starts immediately after the eutectic liquid has been formed[8].

RUBIA et al[9-10] used the X-ray fluorescence method to investigate the effect of the area-to-volume ratio on the vaporization of Bi in ZnO varistors. To reduce the loss of material, METZ et al[8] suggested using a new route, in which ceramics are produced by mixing pre-synthesized spinel and pyrochlore phases with other classical single-oxide additives. ONREABROY et al[11] have noted that the nonlinearity coefficient depended primarily on the sintering temperature, which significantly decreased at higher temperatures, probably due to the volatilization of Bi₂O₃. Mass loss by uncontrolled Bi₂O₃ vaporization is a crucial parameter in the manufacture of varistor ceramics[12].XU et al[4] investigated the effect of sintering method, such as open sintering, sintering inside a closed crucible, and sintering within a powder bed, on the vaporization of the Bi₂O₃ in ZnO-Bi₂O₃-based varistor ceramics. By using a sufficient amount of powder bed, the mass loss of Bi₂O₃ reduces from ＞95% to＜20%[13]. However, the effects of the different sintering processes on the vaporization of the Bi₂O₃ in varistor ceramics have seldom been reported.

In this work, attention is given to the relationship between sintering process and vaporization of the Bi₂O₃ in varistor ceramics. The phase and microstructure evolution during the sintering process are also investigated.

2 Experimental

Reagent-grade raw materials were used in proportions of 96.5% ZnO, 0.7% Bi₂O₃, 1.0% Sb₂O₃, 0.8% Co₂O₃, 0.5% Cr₂O₃ and 0.5% MnO₂ (molar fraction). After milling, the mixture was dried at 70 ℃ for 24 h, then the power was uniaxially pressed into discs of 12 mm in diameter and 2 mm in thickness. The pressed discs were sintered with three different sintering processes. First, some of the pressed discs were sintered at five fixed sintering temperature of 900, 1 000, 1 100, 1 200, and 1 300 ℃ in air for 2 h, labeled as FA1, FA2, FA3, FA4 and FA5, respectively, using a heating rate of 5 ℃/min and then cooled in the furnace. Second, some of the pressed discs were sintered in air at 1 100 ℃ for 2 h, using a heating rate of 1, 2, 5 and 10 ℃/min, and then all of the samples were cooled in the furnace, labeled as FB1, FB2, FB3 and FB4, respectively. Finally, the others of the pressed discs were sintered in air at 1 100 ℃ for 0 h, 0.5 h, 1 h, 2 h, 4 h and 6 h, labeled as FC1, FC2, FC3, FC4, FC5 and FC6, respectively, using a heating rate of 5 ℃/min and then cooled in the furnace. The sintered samples were all lapped and polished to 1.0 mm in thickness. The final samples were about 10 mm in diameter and 1.0 mm in thickness.

The bulk density of the samples was measured in terms of their mass and volume. For the characterization of DC current and voltage, the silver paste was coated on both faces of samples and the silver electrodes were formed by heating at 600 ℃ for 10 min. The electrodes were 5 mm in diameter. The voltage-current (V-I) characteristics were measured using a V-I source/ measure unit (CJP CJ1001). The nominal varistor voltages (V_N) at 0.1 mA and 1 mA were measured and the threshold voltage V_T(V/mm) (V_T=V_N( at 1 mA)/d, where d is the thickness of the sample, mm) and nonlinear coefficient α (α=1/lg[V_N(at 1 mA)/V_N(at 0.1 mA)]) were determined. The leakage current (I_L) was measured at 0.75V_N(at 1 mA). The crystalline phases were identified by an X-ray diffractometer (XRD, Rigaku D/max 2200, Japan) using a Cu K_α radiation. The surface microstructure was examined by a scanning electron microscope (SEM, FEI QUANTA 400). The Bi-concentration of sintered bodies was analyzed using an inductively coupled plasma atomic emission spectrometer (ICP-AES; Plasma-400).

3 Results and discussion

Fig.1 shows the XRD patterns of varistor ceramics sintered at different sintering temperatures for 2 h with 5 ℃/min heating rate. The samples consist typically of three phases: ZnO, spinel and Bi-rich phase. The XRD peak intensities of the spinel phase and the intergranular Bi-rich phase change with the sintering temperature. No Bi₂O₃ can be detected in the specimens sintered at 1 300 ℃. Bi₂O₃ can be found in the samples sintered at 900- 1 300 ℃, and the higher the sintering temperature is, the weaker the XRD peak intensities of Bi₂O₃ are. Table 1 presents the effect of the sintering temperature on the relative X-ray diffraction peak area ratio, which indicates the different phase amount in the varistor ceramics, such as ZnO, spinel and Bi-rich phase. As can be seen form Table 1, the higher the sintering temperature is, the less the amount of Bi₂O₃ is, which also shows that the higher the sintering temperature is, the more the Bi₂O₃ is volatilized. This result is in accordance with the ICP analysis. From ICP, the vaporization losses of the Bi₂O₃ in the samples FA1, FA2, FA3, FA4 and FA5 are 10.9%, 11.5%, 31.4%, 75.3%, and 94.6%, respectively.

Fig.1 XRD patterns of varistors sintered at different temperatures

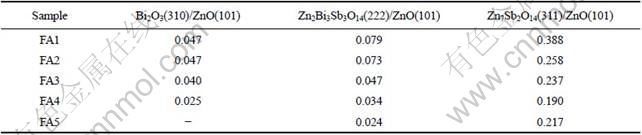

Table 1 Effect of sintering temperature on relative X-ray diffraction peak area ratio

Fig.2 shows the SEM images of varistor ceramics sintered at different sintering temperatures for 2 h with5 ℃/min heating rate. A similar microstructure of the samples is obtained in all cases with some differences coming from the average size of ZnO grains[14-15] due to the different sintering temperatures. Meanwhile, with increasing the sintering temperature, the differences of inter-granular phase in SEM become more and more obvious.

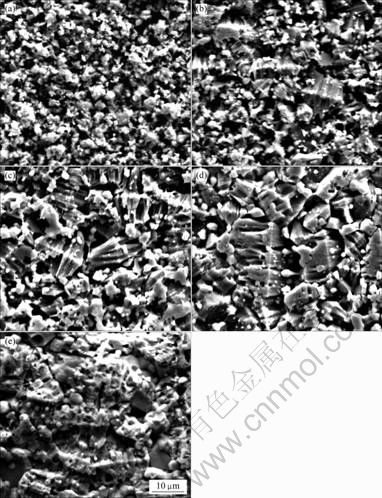

Fig.2 SEM images of varistors sintered at different sintering temperatures: (a) FA1; (b) FA2; (c) FA3; (d) FA4; (e) FA5

Differential thermal and high temperature X-ray analysis have recently suggested the following reactions for the microstructure development of ZnO varistor during reactive liquid phase sintering in the temperature range of 500-1 050 ℃[8, 16]:

Sb₂O₃(s)+O₂→Sb₂O₅(l), 527 ℃ (1)

Sb₂O₅(l)+ZnO(s)→ZnSb₂O₆(s), 700-800 ℃ (2)

ZnSb₂O₆(s)+6ZnO(s)→Zn₇Sb₂O₁₂(s), ＞800 ℃ (3)

3ZnSb₂O₆(s)+3Bi₂O₃(s)+ZnO(s)→

2Zn₂Bi₃Sb₃O₁₄(s), 700-900 ℃ (4)

2Zn₂Bi₃Sb₃O₁₄(s)+17ZnO(s)→3Zn₇Sb₂O₁₂(s)+3Bi₂O₃(l),

950-1 050 ℃ (5)

Zn₇Sb₂O₁₂(s)+Bi₂O₃(l)→Bi₂O₃(Sb, Zn)(l), 1 050 ℃ (6)

According to reactions (1)–(4), at the first stage of sintering, after the formation of spinel (ZnSb₂O₆, Zn₇Sb₂O₁₂) and pyrochlore (Zn₂Bi₃Sb₃O₁₄) phases, pyrochlore reacts with ZnO to lead to the appearance of a liquid bismuth oxide phase by reaction (5), and the formation of spinel is accompanied with the formation of Bi₂O₃ liquid simultaneously. In other words, this liquid oxide might dissolve adjacent to solid ZnO phases, generating an eutectic liquid rich in bismuth; and at the same time, the decrease of pyrochlore and the increase of spinel take place[8]. The generation of the Bi₂O₃-rich liquid induces the formation of capillary forces, which brings the second phase together to form cluster (see Fig.2(c)). As soon as the Bi₂O₃-rich liquid is formed, the vaporization starts. The mass loss of the varistor ceramics thus jumps as the temperature is raised above 1 000 ℃, just as the vaporization loss of the Bi₂O₃ from 11.5% at 1 000 ℃ to 31.4% at 1 100 ℃, confirming that the reaction (5) takes place at a temperature around 1 000 ℃[7]. When the sintering temperature is 1 300 ℃, the vaporization loss of the Bi₂O₃ is very serious[17], up to 94.6%, and the Bi-rich inter-granular phase almost disappears (see Fig.2(e)).

Fig.3 shows the XRD patterns of varistor ceramics sintered at 1 100 ℃ for 2 h with different heating rates. The samples also consist typically of three phases: ZnO, spinel and intergranular Bi-rich phase. Bi₂O₃ can be detected in every sample sintered at 1 100 ℃ for 2 h with different heating rates. Table 2 presents the effect of the heating rate on the relative X-ray diffraction peak area ratio, which indicates the different phase amount in the varistor ceramics, such as ZnO, spinel and Bi-rich phase. As can be seen form Table 2, regardless of the heating rate, the vaporization of the Bi₂O₃in every example is very similar. From ICP one also knows the vaporization losses of the Bi₂O₃ in the samples FB1, FB2, FB3 and FB4 are 34.7%, 31.7%, 31.4% and 31.1%, respectively. Fig.4 shows the SEM images of varistor ceramics sintered at 1 100 ℃ for 2 h with different heating rates. A similar microstructure of the samples is obtained in all cases with some differences coming from the average grain size. It is indicated the heating rate has little effect on the grain morphology of the varistor ceramics.

Fig.3 XRD patterns of varistor sintered with different heating rates

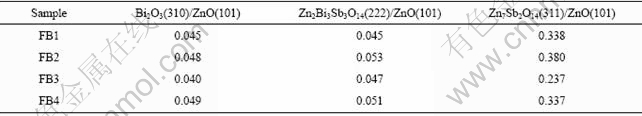

Table 2 Effect of heating rate on relative X-ray diffraction peak area ratio

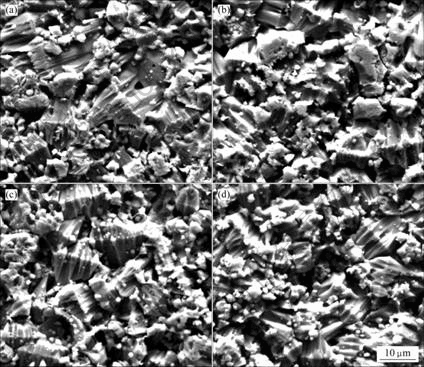

Fig.4 SEM images of varistor sintered with different heating rates: (a) FB1; (b) FB2; (c) FB3; (d) FB4

The sintering time has an important effect on the varistor ceramics[18-19]. Fig.5 shows the XRD patterns of varistor ceramics sintered at 1 100 ℃ for different sintering time with 5 ℃/min heating rate. The samples consist typically of three phases: ZnO, spinel and intergranular Bi-rich phase. The XRD peak intensities of the spinel phase and the intergranular Bi-rich phase vary with the sintering time. Bi₂O₃ can be found in the samples sintered at 1 100 ℃ for different sintering time, and the longer the sintering time is, the weaker the XRD peak intensities of Bi₂O₃ are. Table 3 presents the effect of the sintering time on the relative X-ray diffraction peak area ratio, which indicates the different phase amount in the varistor ceramics, such as ZnO, spinel and Bi-rich phase. As can be seen form Table 3, the longer the sintering time is, the less the amount of Bi₂O₃ is, and the more the Bi₂O₃ is volatilized. These results are in accordance with the ICP analysis. The ICP shows the vaporization losses of the Bi₂O₃ in the samples FC1, FC2, FC3, FC4, FC5 and FC6 are 5.2%, 21.0%, 26.4%, 31.4%, 40.0%, and 42.2%, respectively. The SEM images of varistor ceramics sintered at 1 100 ℃ for different sintering time with 5 ℃/min heating rate are presented in Fig.6. It is observed that the longer the sintering time is, the bigger the grains grow. At the same time, the microstructures are still very similar, and the grain morphology only has a little change.

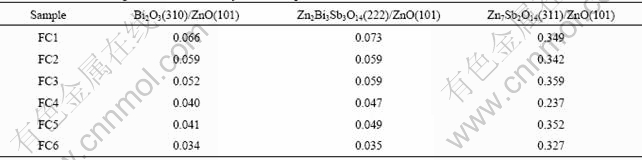

Table 3 Effect of sintering time on relative X-ray diffraction peak area ratio

Fig.5 XRD patterns of varistor sintered with different sintering time

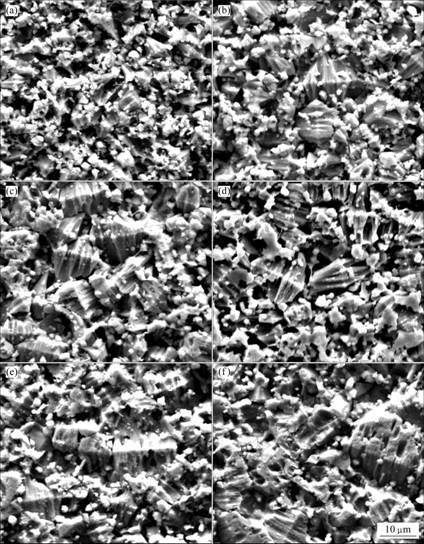

Fig.6 SEM images of varistor sintered with different sintering time: (a) FC1; (b) FC2; (c) FC3; (d) FC4; (e) FC5; (f) FC6

From the analyses of the SEM, XRD and ICP of the different sintering temperature, heating rate, holding time of the samples, we can see the sintering temperature has the greatest impact on the vaporization of the Bi₂O₃, followed by sintering time, and the effect of the heating rate is the minimum.

4 Conclusions

1) The higher the sintering temperature is or the longer the sintering time is, the more the Bi₂O₃ is volatilized.

2) The heating rate has little effects on the Bi₂O₃ volatilized in ZnO-Bi₂O₃-based varistor ceramics.

3) The sintering temperature has the greatest impact on the vaporization of the Bi₂O₃, then followed by sintering time, and the effect of the heating rate is the minimum.
