Comparative study on microstructure and electrochemical corrosion resistance of Al7075 alloy prepared by laser additive manufacturing and forging technology
来源期刊:中南大学学报(英文版)2021年第4期
论文作者:宋波 张金良 叶界梁 李瑞迪 史玉升
文章页码:1058 - 1067
Key words:Al7075 alloy; laser engineered net shaping; forging; electrochemical corrosion resistance
Abstract: Al7075 alloy is a typical aviation aluminum with good mechanical properties and anodic oxidation effect. Laser engineered net shaping technology has unique advantages in the integrated forming of high-performance large aircraft structural parts. The manufacturing of 7075 aluminum alloy structural parts by laser engineered net shaping technology has become an important development direction in the future aerospace field. Electrochemical corrosion resistance of aluminum alloys is of vital importance to improve reliability and life-span of lightweight components. A comparative study on microstructure and anti-corrosion performance of Al7075 alloy prepared by laser additive manufacturing and forging technology was conducted. There are hole defects in LENS-fabricated Al7075 alloy with uniformly distributed η phase. No defects are observed in Al7075 forgings. The large S phase particles and small ellipsoidal η phase particles are found in Al matrix. The corrosion mechanisms were revealed according to the analysis of polarization curves and corrosion morphology. It was found that compared with that prepared by forgings, the additive manufactured samples have lower corrosion tendency and higher corrosion rate. Corrosion occurred preferentially at the hole defects. The incomplete passivation film at the defects leads to the formation of a local cell composed of the internal Al, corrosion solution and the surrounding passive film, which further aggravates the corrosion.
Cite this article as: ZHANG Jin-liang, YE Jie-liang, SONG Bo, LI Rui-di, SHI Yu-sheng. Comparative study on microstructure and electrochemical corrosion resistance of Al7075 alloy prepared by laser additive manufacturing and forging technology [J]. Journal of Central South University, 2021, 28(4): 1058-1067. DOI: https://doi.org/10.1007/ s11771-021-4679-9.
J. Cent. South Univ. (2021) 28: 1058-1067
DOI: https://doi.org/10.1007/s11771-021-4679-9
ZHANG Jin-liang(张金良)1, YE Jie-liang(叶界梁)1, SONG Bo(宋波)1,LI Rui-di(李瑞迪)2, SHI Yu-sheng(史玉升)1
1. State Key Laboratory of Materials Processing and Die & Mould Technology, School of Materials Science and Engineering, Huazhong University of Science and Technology, Wuhan 430074, China;
2. State Key Laboratory of Powder Metallurgy, Central South University, Changsha 410083, China
Central South University Press and Springer-Verlag GmbH Germany, part of Springer Nature 2021
Abstract: Al7075 alloy is a typical aviation aluminum with good mechanical properties and anodic oxidation effect. Laser engineered net shaping technology has unique advantages in the integrated forming of high-performance large aircraft structural parts. The manufacturing of 7075 aluminum alloy structural parts by laser engineered net shaping technology has become an important development direction in the future aerospace field. Electrochemical corrosion resistance of aluminum alloys is of vital importance to improve reliability and life-span of lightweight components. A comparative study on microstructure and anti-corrosion performance of Al7075 alloy prepared by laser additive manufacturing and forging technology was conducted. There are hole defects in LENS-fabricated Al7075 alloy with uniformly distributed η phase. No defects are observed in Al7075 forgings. The large S phase particles and small ellipsoidal η phase particles are found in Al matrix. The corrosion mechanisms were revealed according to the analysis of polarization curves and corrosion morphology. It was found that compared with that prepared by forgings, the additive manufactured samples have lower corrosion tendency and higher corrosion rate. Corrosion occurred preferentially at the hole defects. The incomplete passivation film at the defects leads to the formation of a local cell composed of the internal Al, corrosion solution and the surrounding passive film, which further aggravates the corrosion.
Key words: Al7075 alloy; laser engineered net shaping; forging; electrochemical corrosion resistance
Cite this article as: ZHANG Jin-liang, YE Jie-liang, SONG Bo, LI Rui-di, SHI Yu-sheng. Comparative study on microstructure and electrochemical corrosion resistance of Al7075 alloy prepared by laser additive manufacturing and forging technology [J]. Journal of Central South University, 2021, 28(4): 1058-1067. DOI: https://doi.org/10.1007/ s11771-021-4679-9.
1 Introduction
It is well known that 7075 (Al-Zn-Mg-Cu) aluminum alloys have received great interest in lightweight applications due to their low density, high strength, high specific stiffness and excellent anti-corrosion resistance [1-4].
Integral structural parts are commonly inclined to be adopted in the high-end manufacturing industry. Compared with the traditional riveted structure, the integral structural parts can not only improve the overall strength and assembly accuracy, but also greatly reduce the weight and the use of connectors [5]. However, integral parts with complex structures have high processing difficulty and manufacturing requirements, which poses a great challenge to the manufacturing process [6]. At present, the manufacturing processes of aluminum components are composed of casting, forging, hot rolling and machining, which are complicated and high-cost [7]. In order to shorten the manufacturing cycle of components and meet the requirements of complex structure and high performance, additive manufacturing (AM) technology based on the laywise principle can be used. Laser engineered net shaping (LENS) based on synchronous powder feeding is one of the AM technologies for metal materials [8-10]. This technique uses high-energy laser beam to melt the synchronous feeding metal powder, and the molten material rapidly cools and solidifies layer by layer, eventually forming a three-dimensional component.
Aluminum alloy structural components are required to have not only good mechanical properties but also high anti-corrosion performance. Chloride ions, nitrate ions and sulfate ions commonly exist in humid environment. These ions adhere to the surface of components to form acid liquid film, which makes aluminum alloys easy to electrochemically corroded [11]. In particular, chloride ion has a very strong penetration ability and can cause the passivation film on the surface of aluminum alloys to break and pitting corrosion, which is the beginning of other types of corrosion (local corrosion or uniform corrosion) [12, 13]. Therefore, investigating the electrochemical corrosion mechanisms of 7075 aluminum alloys is a necessary step to establish a scientific anti-corrosion system and prolong the service life-span of components. Al7075 alloy powders with different particle sizes were sintered by TIAN et al [14]. It was found that compared with coarse grains, the intermetallic compounds in fine grains were distributed more intensively, which leads to the smaller potential difference and lower pitting growth rate. CABRINI et al [15] prepared AlSi10Mg alloy by selective laser melting. According to the test results of potentiodynamic polarization, it could be seen that the potential of Si particles is higher than that of Al matrix, leading to the selective dissolution of α-Al phase. This potential difference is more obvious at the edge of molten pool, which results in the preferential generation of pitting corrosion in these areas. GHARBI et al [16] compared the electrochemical corrosion resistance of 2024 aluminum alloy fabricated by selective laser melting and forging. The dissolution curve of electrochemical analysis showed that the corrosion rate of forgings is about 5 times that of SLM-fabricated samples. However, there are few studies on the anti-corrosion properties of LENS-fabricated Al7075 alloys.
In this study, the microstructure and electrochemical corrosion resistance of 7075 aluminum alloy manufactured by LENS and forging were compared. The electrochemical corrosion mechanisms were revealed according to the analysis of polarization curves and corrosion morphology.
2 Materials and methods
2.1 Raw material and LENS experiments
The chemical composition of 7075 aluminum alloy powder used in this experiment is shown in Table 1. The Al7075 alloy forgings with the same composition were provided by Shanxi Baoji Zhiyi Titanium Manufacturing Co., Ltd.
Table 1 Chemical composition of 7075 aluminum alloy (wt.%)
The technological parameters used in the LENS process are as follows: laser power is 1400 W; scanning speed is 800 mm/min; powder feed rate is 8.00 g/min; carrier gas flow rate is 6.00 L/min; shielding gas flow rate is 10 L/min; and layer thickness is 0.5 mm.
2.2 Microstructural characterization
The cubic samples were chemically etched by Keller reagent (2.5% HNO3+1.5% HCl+1% HF+95% H2O) after being ground and polished. Optical metallographic microscope (OM, Axiovert 200MAT, Carl Zeiss, Germany) and scanning electron microscope (SEM, JSM-7600F, JEOL, Japan) were used for microstructural characterization. Electron probe micro analyzer (EPMA-8050g, Shimadzu, Japan) equipped with wave dispersive spectroscopy was used to reveal the elemental distribution. A thin foil was prepared by focused ion beam (FIB, Quanta 3D FEG) for the further microstructural observation on a field-emission transmission electron microscope (FTEM, Tecnai G2 F30, FEI, Holland, 200 kV).
2.3 Electrochemical corrosion resistance tests
The potentiodynamic polarization (PP) was conducted in the 3.5 wt.% NaCl solution at 25 °C. The specimens were reduced potentiostatically at -1.0 V for 3 min initially to remove the air-formed oxides on the surface before the polarization. Then, the specimens were stabilized in the electrolyte, where the open-circuit potentials (OCP) were measured. The CPP test was performed at 0.5 mV/s from -1.2 V to 0.2 V (vs Ag/AgCl), and then the scan direction was reversed. After that, the Ecorr and icorr were calculated by extrapolating the Tafel line [17]. Each type of electrochemical measurement was repeated at least three times to ensure the reproducibility and consistency of the data. The diagram of three-electrode circuit is shown in Figure 1.
3 Results and discussion
3.1 Microstructure
Figure 2 shows the microstructure of Al7075 alloy prepared by LENS and forging technology, respectively. Pores are observed in the LENS-fabricated samples, and the average width of scanning tracks is about 300 μm. The precipitates exist both within the grains and along the grain boundaries. In contrast, the forging sample is fully dense with a uniform columnar microstructure.

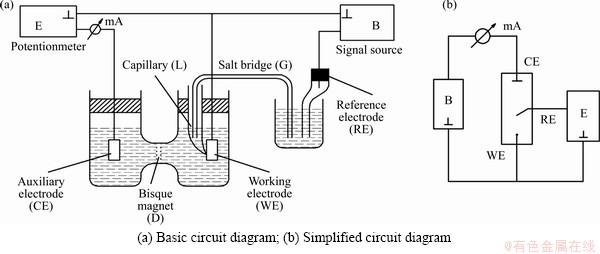

Figure 1 Diagram of three-electrode circuit:
Figure 2 Microstructures of Al7075 alloy:
Figure 3(a) shows the elemental distribution of LENS-fabricated samples obtained by EPMA spectrum analysis. It can be seen that Zn is evenly distributed in the Al matrix, and Cu is segregated at the grain boundaries. Part of Mg is dissolved in the Al matrix, and the rest of Mg is involved to form intermetallic compounds at the grain boundaries. The environment-sensitive embedding energy (ESE) of Cu and Mg is relatively low at the grain boundary, while that of Zn is lower within the grains [18]. The lower ESE usually indicates more stable dopant atoms [19]. Therefore, a large amount of Cu segregation occurs at the grain boundary, while Zn is less distributed at the grain boundary. In addition, the existence of Zn also improves the solubility of Cu in Al and combines with Mg to form MgZn2, which inhibits the diffusion of Mg atoms [20]. However, there is no significant enrichment of Zn in the spectrum analysis, which could be attributed to the low vapor pressure of Zn element. During the laser forming process, a considerable amount of Zn vaporizes, resulting in the burning loss of Zn content. The analysis accuracy of EPMA spectrum is difficult to identify residual Zn enrichment. Figure 3(b) shows the element distribution diagram of forgings. It can be observed that the content of Al, Mg, O and Zn is small in the coarse precipitates, and uniformly distributed in the surrounding Al matrix. Only Cu element enrichment is observed. Combined with element distribution, it can be inferred that the coarse precipitated phase may be θ phase (Al2Cu). According to the available literature [21-23], the fine second phase is preliminarily concluded as η phase (MgZn2) in forgings.
Figure 4 shows the TEM micrographs of LENS-fabricated samples. It can be observed that precipitate-free zone (PFZ) is formed at the grain boundaries. The Cu-enriched phases are seperated by the PFZs and form a discontinuous chain-like structure, which is closely related to the intergranular corrosion. The wide FPZ may make it difficult to sustain oxidation reaction at the grain boundary, which leads to low intergranular corrosion sensitivity [24]. The rod-like intermetallics particles are uniformly distributed within the grains. Figure 4(b) shows the element distribution of boxed area in Figure 4(a). The intermetallics particle is mainly composed of Mg and Zn, which is consistent with the element ratio of η phase (MgZn2). In addition, a small amount of Cu is also dissolved in the η phase, which is beneficial to reduce the potential difference between the η phase and α-Al matrix.
Figure 5 shows the TEM micrographs of forgings, and it is observed that high density of dislocations is accumulated and entangled at the intermetallics particles. The reason for the formation of dislocations is large plastic deformation occurring in the forging process, which may promote grain slipping and dislocation entanglement. When the temperature is low, the driving force of recrystallization is insufficient, and the motion ability of dislocations is low. As a result, most of dislocations are retained [25]. Figure 5(b) shows mainly two types of precipitates in the forging grains. Cu and Mg are enriched in large intermetallics particles, while Mg and Zn are enriched in small ellipsoidal intermetallics particles. According to the existing literature and element analysis results shown in Figure 5(c), it can be determined that the large particles are S phase (Al2CuMg) and small ellipsoidal particles are η phase [26]. The reason for the formation of this structure is that the absolute value of formation enthalpy of S phase is the highest among the main mesophases in Al7075 alloy such as Al2Cu, S phase and η phases [27]. Different from the LENS process, Al2CuMg in the forgings is retained, instead of being decomposed by high temperature. Mg atoms generally tend to form clusters with Zn atoms, so Zn atoms gather around S phase and combine with excessive Mg to form small granular η phase.
Figure 3 Elemental distribution of Al7075 alloy:
Figure 4 TEM micrographs of LENS-fabricated Al7075 alloy:
Figure 5 TEM micrographs of Al7075 alloy forgings:
3.2 Polarization curves and corrosion mechanism
The corrosion resistance performance can be compared by analyzing the parameters obtained from the potentiodynamic polarization curves, such as self-corrosion potential and self-corrosion current. The self-corrosion potential is used to characterize the difficulty of being corroded. Generally, under the same conditions, the electrochemical corrosion is more likely to occur when the Ecorr value is more negative. While the self-corrosion current is a kinetic parameter of corrosion, which is used to measure corrosion rate. The higher self-corrosion current value indicates higher corrosion rate. The potentiodynamic polarization curves of Al7075 alloys are shown in Figure 6. After reaching the self-corrosion potential, the corrosion current density increases rapidly, which indicates that the passivation film on the surface is broken or dissolved, and pitting corrosion occurs. During the potentiodynamic polarization process, the cathodic reaction is the reduction of O2 dissolved in NaCl solution (Eq. (1)), and the anodic reaction is the dissolution of Al from the alloy (Eq.(2)).
O2+2H2O+4e→4(OH)- (1)
Al→Al3++3e (2)
In the process of polarization, the rupture of passive film is mainly affected by Cl- ions, which have small radius and strong penetrability. The Cl- ions are easy to adsorb to the alloy surface and change the composition and properties of the passive film at the adsorption site. The uneven adsorption causes the uneven destruction of the passive film. After the passivation film breaks, Al is directly exposed to Cl- ions, thus accelerating the anodic dissolution.
Figure 6 Potentiodynamic polarization curves of Al7075 alloys fabricated by forging and LENS
In order to further characterize the corrosion resistance of Al7075 alloy, self-corrosion potential and self-corrosion current density were obtained by Tafel extrapolation method, as shown in Table 2. It can be seen that the self-corrosion potential of forgings is -0.7790 V, which is lower than-0.6817 V of LENS-fabricated samples. Therefore, the forgings are more prone to corrode in terms of the lower self-corrosion potential. However, the self-corrosion current density of the forging is 1.917×10-6 A/cm2, which is lower than that of the LENS-fabricated samples (2.221 μA/cm2), demonstrating that the forgings have lower corrosion rate.
Table 2 Self-corrosion current density (icorr) and potential (Ecorr) of Al7075 samples
Generally, the smaller precipitated phase leads to more uniform anodic dissolution. In the LENS-fabricated Al7075 alloys, the fine rod-shaped η phase is evenly distributed, thus showing better anti-corrosion performance. In addition, η phase usually has the priority to be dissolved. The polarization resistance of η phase is low, while the corrosion current density is high. Therefore, compared with the Al7075 alloy forgings, the corrosion rate of LENS-fabricated samples is higher.
Figure 7 shows the corrosion morphology of after potentiodynamic polarization tests. Severe pitting and intergranular corrosion occur on the surface of aluminum alloy. In addition, the corrosion is especially concentrated at the hole defects. The passivation film at the defects is not complete, and the internal Al directly contacts with the corrosion liquid and forms a local battery with the nearby intact passive films. The schematic diagram of electrochemical corrosion process is shown in Figure 8. The cathodic reaction (Eq. (1)) occurs to the passive films, and the anodic reaction (Eq. (2)) occurs to the Al matrix. The anodic reaction of Al matrix leads to the expansion of pores, and the increasing concentration of Al3+ at the pores promotes the diffusion of Cl- into the pores, which leads to the hydrolysis of Al3+ (Eq. (3)). The hydrolysis of Al3+ combines with OH- to increase the acidity of the solution at the pores, resulting in more serious corrosion. Moreover, the loose flocculent Al(OH)3 produced by hydrolysis forms a closed cell at the pores. The dissolved oxygen in the external solution is difficult to diffuse in, and the excessive Al3+ produced by internal dissolution is also difficult to diffuse outward. In order to maintain the neutral state, more Cl- is needed to move into the etched pores, which further accelerates the corrosion process.
Al3++3H2O→Al(OH)3+3H+ (3)
Figure 7 Corrosion morphology of Al7075 alloy after potentiodynamic polarization test:
Figure 9 shows the element distribution of Al7075 alloy after corrosion. It can be found that O and Cl elements are enriched in flocculent corrosion products, while Mg and Zn are reduced. The enrichment of O and Cl is attributed to the oxidation product Al(OH)3 and continuous diffusion of Cl- into the corrosion pit due to the formation of occluded cell. The decreased Mg and Zn are owing to the existence of η phase, whose corrosion potential is more negative than that of Al matrix [28]. The η phase preferentially acts as anode and is dissolved in the solution at the initial stage of corrosion, resulting in the decreased content of Mg and Zn in the corrosion products. Therefore, the corrosion process can be regarded as follows: the incomplete passivation film at the defect lead to the formation of a local cell composed of the internal Al, corrosion solution and the surrounding passive film. Al is dissolved and then hydrolyzed to produce Al(OH)3, and a large amount of Cl- migrates into the hole to maintain the electrical neutrality. While the deposition of Al(OH)3 in the hole leads to the formation of a blocked cell, which further aggravates the corrosion.

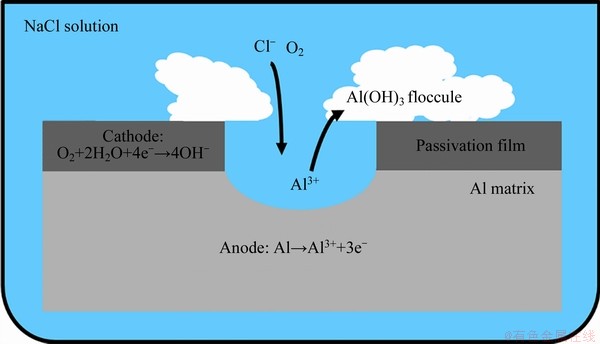

Figure 8 Schematic diagram of electrochemical corrosion process
4 Conclusions
1) There are hole defects in LENS-fabricated Al7075 alloy. The distribution of η phase is uniform, and the Cu-enriched phases are seperated by the PFZs and form a discontinuous chain-like structure. No defects are observed in Al7075 forgings. The large S phase particles and small ellipsoidal η phase particles are found in the Al matrix.
2) The self-corrosion potential of LENS-fabricated Al7075 alloy is -0.6817 V, and the self-corrosion current is 2.221×10-6 A/cm2. While the self-corrosion potential and the self-corrosion current of the Al7075 forging are -0.7790 V and 1.917 μA/cm2, respectively. Compared with the LENS-fabricated samples, the forgings are easier to corrode but have lower corrosion rate in terms of the more negative self-corrosion potential and lower self-corrosion current.
Figure 9 Elemental distribution of corrosion surface
3) The corrosion occurs preferentially at the hole defects. The corrosion process is regarded as follows: the incomplete passivation film at the defect lead to the formation of a local cell composed of the internal Al, corrosion solution and the surrounding passive film. Al is dissolved and then hydrolyzed to produce Al(OH)3, and a large amount of Cl- migrates into the hole to maintain the electrical neutrality. While the deposition of Al(OH)3 in the hole leads to the formation of a blocked cell, which further aggravates the corrosion.
Contributors
The overarching research goals were developed by SONG Bo, LI Rui-di, and SHI Yu-sheng. ZHANG Jin-liang and YE Jie-liang conducted the experiments, and analyzed the experimental data. The initial draft of the manuscript was written by ZHANG Jin-liang. All authors replied to reviewers’ comments and revised the final version.
Conflict of interest
ZHANG Jin-liang, YE Jie-liang, SONG Bo, LI Rui-di, and SHI Yu-sheng declare that they have no conflict of interest.
References
[1] ZHANG Jin-liang, GAO Jian-bao, SONG Bo, ZHANGLi-jun, HAN Chang-jun, CAI Chao, ZHOU Kun, SHI Yu-sheng. A novel crack-free Ti-modified Al-Cu-Mg alloy designed for selective laser melting [J]. Additive Manufacturing, 2021, 38: 101829. DOI: https://doi.org/10.1016/j.addma.2020.101829.
[2] CHEN Jing, PAN Qing-lin, YU Xue-hong, LIMeng-jia, ZOU Hao, XIANG Hao, HUANG Zhi-qi, HU Quan. Effect of annealing treatment on the microstructure and fatigue crack growth behavior of Al–Zn–Mg–Sc–Zr alloy [J]. Journal of Central South University, 2018, 25(5): 961-975. DOI: https://doi.org/10.1007/s11771-018-3797-5.
[3] ZHANG Jin-liang, SONG Bo, WEI Qing-song, BOURELLD, SHI Yu-sheng. A review of selective laser melting of aluminum alloys: Processing, microstructure, property and developing trends [J]. Journal of Materials Science & Technology, 2018, 35: 270-284. DOI: https://doi.org/10. 1016/j.jmst.2018.09.004.
[4] LI Rui-di, WANG Min-bo, YUAN Tie-chui, SONGBo, CHEN Chao, ZHOU Ke-chao, CAO Peng. Selective laser melting of a novel Sc and Zr modified Al-6.2Mg alloy: Processing, microstructure, and properties [J]. Powder Tenchnology, 2017, 319: 117-128. DOI: http://dx.doi.org/ 10.1016/j.powtec.2017.06.050.
[5] ZHANG Jin-liang, SONG Bo, YANG Lei, LIU Rui-jie, ZHANG Lei, SHI Yu-sheng. Microstructure evolution and mechanical properties of TiB/Ti6Al4V gradient-material lattice structure fabricated by laser powder bed fusion [J]. Composites Part B-Engineering, 2020, 202: 108419. DOI: https://doi.org/10.1016/ j.compositesb.2020.108417.
[6] YANG Xin, REN Yao-jia, LIU Shi-feng, WANG Qing-juan, SHI Ming-jun. Microstructure and tensile property of SLM 316L stainless steel manufactured with fine and coarse powder mixtures [J]. Journal of Central South University, 2020, 27(2): 334-343. DOI: https://doi.org/10.1007/s11771-020-4299-9.
[7] ZINDANI D, MAITY S R, BHOWMIK S. Decision making tools for optimal material selection: A review [J]. Journal of Central South University, 2020, 27(3): 629-673. DOI: https://doi.org/10.1007/s11771-020-4322-1.
[8] ZHAI Yu-wei, LADOS D A, BROWN E J,VIGILANTEG N. Understanding the microstructure and mechanical properties of Ti-6Al-4V and Inconel 718 alloys manufactured by laser engineered net shaping [J]. Additive Manufacturing, 2019, 27: 334-344. DOI: https://doi.org/10.1016/j.addma.2019. 02.017.
[9] SHI Wen-xiong, REN Zhang-yu, HE Wei, HOUJun-song, XIE Hui-min, LIU Sheng. A technique combining laser spot thermography and neural network for surface crack detection in laser engineered net shaping [J]. Optics and Lasers in Engineering, 2021, 138: 106431. DOI: https://doi.org/10. 1016/j.optlaseng.2020.106431.
[10] ZHAI Y, LADOS D A, LAGOY J L. Additive manufacturing: Making imagination the major limitation [J]. The Journal of the Minerals, Metals & Materials Society, 2014, 66: 808-816. DOI: https://link.springer.com/article/10.1007/s11837-014-0886-2.
[11] CHEN Hai-xiang, KONG De-jun. Comparison on electrochemical corrosion performances of arc and laser thermal sprayed Al–Ti–Ni coatings in marine environment [J]. Materials Chemistry & Physics, 2020, 251: 123200. DOI: https://doi.org/10.1016/j.matchemphys.2020.123200.
[12] ABIOLA O K, OTAIGBE J O E. Effect of common water contaminants on the corrosion of aluminium alloys in ethylene glycol-water solution [J]. Corrosion Science, 2008, 50: 242-247. DOI: doi:10.1016/j.corsci.2007.06.01
[13] ZHANG Yuan-jie, SONG Bo, MING Jun, YANQian, WANG Min, CAI Chao, ZHANG Cheng, SHI Yu-sheng. Corrosion mechanism of amorphous alloy strengthened stainless steel composite fabricated by selective laser melting [J]. Corrosion Science, 2020, 163: 108241. DOI: https://doi.org/10.1016/ j.corsci.2019.108241.
[14] TIAN Wen-ming, LI Song-mei, WANG Bo, LIU Jian-hua, YU Mei. Pitting corrosion of naturally aged AA 7075 aluminum alloys with bimodal grain size [J]. Corrosion Science, 2016, 113: 1-16. DOI: http://dx.doi.org/10.1016/j.corsci.2016. 09.013.
[15] CABRINI M, LORENZI S, PASTORE T, TESTA C, MANFREDI D, LORUSSO M, CALIGNANO F, PAVESE M, ANDREATTA F. Corrosion behavior of AlSi10Mg alloy produced by laser powder bed fusion under chloride exposure [J]. Corrosion Science, 2019, 152: 101-108. DOI: https:// doi.org/10.1016/j.corsci.2019. 03.010.
[16] GHARBI O, JIANG D, FEENSTRA D R, KAIRY S K, WU Y, HUTCHINSON C R, BIRBILIS N. On the corrosion of additively manufactured aluminium alloy AA2024 prepared by selective laser melting [J]. Corrosion Science, 2018, 1743: 93-106. DOI: https://doi.org/ 10.1016/j.corsci.2018.08.019.
[17] ZHANG Cheng, LIXu-min, LIUSi-qi,LIUHao, YU Long-jiang, LIU Lin. 3D printing of Zr-based bulk metallic glasses and components for potential biomedical applications [J]. Journal of Alloys & Compounds, 2019, 790: 963-973. DOI: https://doi.org/10.1016/j.jallcom.2019.03.275.
[18] LIU Gui-li, FANG Ge-liang. Grain-boundary segregation and corrosion mechanism of Al-Zn-Mg-Cu ultra high strength aluminum alloys [J]. Rare Metal Materials and Engineering, 2009, 28: 1598-1601. DOI: 10.3321/j.issn:1002-185X.2009. 09.021. (in Chinese)
[19] XIAO S, WANG C, CHEN T. The application of the discrete variational method in the density functional theory to chemistry and materials physics [M]. Beijing: Science Press, 1998. (in Chinese)
[20] TSURU T, YAMAGUCHI M, EBIHARA K, ITAKURAM, SHIIHARA Y, MATSUDA K, TODA H. First-principles study of hydrogen segregation at the MgZn2, precipitate in Al-Mg-Zn alloys [J]. Computational Materials Science, 2018, 148: 301-306. DOI: https://doi.org/10.1016/j.commatsci.2018. 03.009.
[21] ZOU Xiu-liang, YAN Hong, CHEN Xiao-hui. Evolution of second phases and mechanical properties of 7075 Al alloy processed by solution heat treatment [J]. Transactions of Nonferrous Metals Society of China, 2017, 27: 2146-2155. DOI: 10.1016/S1003-6326(17)60240-1
[22] JIANGFu-lin, ZUROB H S, PURDY G R, ZHANGHui. Characterizing precipitate evolution of an Al-Zn-Mg-Cu-based commercial alloy during artificial aging and non-isothermal heat treatments by in situ electrical resistivity monitoring [J]. Materials Characterization, 2016, 117: 47-56. DOI: http://dx.doi.org/10.1016/j.matchar.2016.04.014.
[23] YANG Wen-chao, JI Shou-xun, WANG Ming-pu, LI Zhou. Precipitation behaviour of Al-Zn-Mg-Cu alloy and diffraction analysis from η′ precipitates in four variants [J]. Journal of Alloys & Compounds, 2014, 610: 623-629. DOI: http://dx. doi.org/10.1016/j.jallcom.2014.05.061.
[24] ZHANG X, ZHOU X, NILSSON J O. Corrosion behaviour of AA6082 Al-Mg-Si alloy extrusion: The influence of quench cooling rate [J]. Corrosion Science, 2019, 150: 100-109. DOI: https://doi.org/10.1016/j.corsci.2019.01.030.
[25] SANTOS-GUEMES R, BELLON B, ESTEBAN-MANZANARES G,SEGURADOJ, CAPOLUNGO L, LLORCA J. Multiscale modelling of precipitation hardening in Al-Cu alloys: Dislocation dynamics simulations and experimental validation [J]. Acta Materialia, 2020, 1880: 475-485. DOI: https://doi.org/10.1016/j.actamat.2020.02. 019.
[26] GHIAASIAAN R, AMIRKHIZ B S, SHANKAR S. Quantitative metallography of precipitating and secondary phases after strengthening treatment of net shaped casting of Al-Zn-Mg-Cu (7000) alloys [J]. Materials Science & Engineering A, 2017, 698: 206-217. DOI: http://dx.doi.org/10.1016/j.msea.2017.05.047.
[27] LIAO Fei, FAN Shi-tong, DENG Yun-lai, et al. First-principle calculations of mechanical properties of Al2Cu, Al2CuMg and MgZn2 intermetallics in high strength aluminum alloys [J]. Journal of Aeronautical Materials, 2016, 36: 1-8. DOI: http://dx.chinadoi.cn/10.11868/j.issn.1005-5053.2016.6.001. (in Chinese)
[28] LI JF, ZHENG ZQ, LI SC,CHENW J, REN W D, ZHAO X S. Simulation study on function mechanism of some precipitates in localized corrosion of Al alloys [J]. Corrosion Science, 2007, 49: 2436-2449. DOI: DOI: 10.1016/j.corsci. 2006.12.00.
