Characteristic evaluation of Al₂O₃/CNTs hybrid materials for micro-electrical discharge machining

Hyun-Seok TAK¹, Chang-Seung HA², Ho-Jun LEE²,

Hyung-Woo LEE¹, Young-Keun JEONG¹, Myung-Chang KANG¹

1. National Core Research Center for Hybrid Materials Solution, Pusan National University,

Busan 609-735, Korea;

2. Department of Electrical Engineering, Pusan National University, Pusan 609-735, Korea

Received 21 April 2010; accepted 10 September 2010

Abstract: The characteristic evaluation of aluminum oxide (Al₂O₃)/carbon nanotubes (CNTs) hybrid composites for micro-electrical discharge machining (EDM) was described. Alumina matrix composites reinforced with CNTs were fabricated by a catalytic chemical vapor deposition method. Al₂O₃ composites with different CNT concentrations were synthesized. The electrical characteristic of Al₂O₃/CNTs composites was examined. These composites were machined by the EDM process according to the various EDM parameters, and the characteristics of machining were analyzed using field emission scanning electron microscope (FESEM). The electrical conductivity has a increasing tendency as the CNTs content is increased and has a critical point at 5% Al₂O₃ (volume fraction). In the machining accuracy, many tangles of CNT in Al₂O₃/CNTs composites cause violent spark. Thus, it causes the poor dimensional accuracy and circularity. The results show that conductivity of the materials and homogeneous distribution of CNTs in the matrix are important factors for micro-EDM of Al₂O₃/CNTs hybrid composites.

Key words: Al₂O₃/CNTs hybrid materials; micro-electrical discharge machining; micro-hole; electrical conductivity

1 Introduction

Alumina is one of the most popular ceramic materials due to its exceptional properties in hardness, strength, wear resistance, resistance to chemical degradation and low density. The alumina having excellent resistance to heat has been used for structural materials such as cylinder liner, bushing and bearing, but its application is significantly restricted by brittleness and fabrication difficulties[1]. Recently, carbon nanotubes (CNTs) in the alumina composites have been used as a reinforcing material to improve the fracture toughness[2].

Since carbon nanotubes are featured with outstanding mechanical, chemical, thermal, and electrical properties as well as nano-sized characteristics, they have received attention as a new advanced material in the great applicable potential areas such as electronic remission sources, composites, electronic wave screening materials, and fuel cells[3]. Because of their low density (about 2 g/cm³) and high elastic modulus (about 1.8 TPa), CNTs are mentioned as a promising reinforcing material in composites[4-6].

The electrical discharge machining (EDM) is known as one of the effective methods for micro-fabrication machining because EDM can shape hard metals and process complex-shaped holes by arc erosion in all kinds of conductive materials[7]. In addition, the EDM does not make a direct contact between the electrode and the workpiece. Thus, this process eliminates mechanical stresses, clatter and vibration problems during machining. In recent years, EDM of advanced engineering ceramics is increasingly being investigated[7-8].

In this study, alumina matrix composites reinforced with CNTs were fabricated through CNT purification, mixing, compaction and sintering processes. Four Al₂O₃/CNTs composites having various CNTs contents were synthesized. Electrical characteristic of hybrid Al₂O₃/CNTs composites was investigated for the micro-EDM process. From those results, micro-EDM based on the R-C discharged circuit was conducted to investigate the machining characteristics of Al₂O₃/CNTs hybrid composites by varying the voltage and condenser values. Optical characterization of machined holes was verified by field emission scanning electron microscope (FE-SEM). The characteristic evaluation of Al₂O₃/CNTs hybrid composites for micro-EDM was discussed by machined holes.

2 Experimental

2.1 Al₂O₃/CNTs hybrid composite

α-Al₂O₃ powders (Al₂O₃ 99.9%, mass fraction, Sumitomo Chemical, Osaka, Japan) containing about 0.1% MgO and muti-wall CNTs were used for making Al₂O₃/CNTs composites. CNTs supplied by Applied Carbon Nano Technology Co., Ltd., Pohang, Korea, were fabricated by a catalytic chemical vapor deposition (CCVD) method using ethylene (C₂H₄) and Fe₂O₃-MgO catalyst. As CNTs grow on the catalytic layer, it is necessary to eliminate catalyst elements from CNTs by the acid treatment[9]. To prevent the aggregation between CNTs each other and to improve distribution of CNTs in the solution, CNTs were processed under wet ball milling and ultrasonic dispersion in ethanol. The CNTs solution which is composed of 0.5-2.0 g CNT and 250 mL ethanol was ball-milled by using a planetary ball milling machine (FRITSCH, Germany) with 250 g ZrO₂ balls (diameter: 5-10 mm) for 5 h at 180 r/min. The ball- milled solution was sonicated by using Sonosmasher (model: ULH-700W, Young Wha Scientific Co., Ltd., Korea) for 1 h to achieve non-aggregated and homogeneously dispersed CNTs in ethanol. CNTs were dried at 80 °C in an oven, and were then mixed with alumina powders with the volume fraction of CNT 1%-10% to make Al₂O₃/CNTs mixtures. For homogeneous mixing of CNTs and alumina powders, Al₂O₃/CNTs mixtures, ethanol, and ZrO₂ balls (mass ratio of 1:2:5) were put into a cylindrical polyethylene container, and were ball- milled for 5 h at 250 r/min to fabricate Al₂O₃/CNTs mixture slurry. This slurry was dried at 80 °C in an oven to eliminate ethanol, and was meshed to obtain fine Al₂O₃/CNTs mixture powders (size: under 45 μm). The mixture powders were put in graphite mold and were sintered for 10 min at 1 380 °C and 40 MPa by Spark Plasma Sintering (model: SPS-3.20 MK-V, SPS Syntex, Japan) process.

Four Al₂O₃/CNTs composites with adding CNTs up to 10% (volume fraction) were fabricated. Fig.1 shows the schematic diagram of the fabrication procedures of the Al₂O₃/CNT composites. The electrical conductivity was measured by the hall effect measurements (model: HMS-3000, ECOPIA, USA).

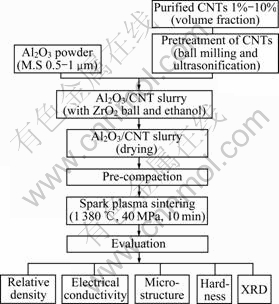

Fig.1 Schematic diagram of fabrication procedures Al₂O₃/CNT composites

2.2 Set up for micro-EDM

A multi-purpose miniature machine tool developed by Hybrid Precision Co., Pusan, Korea for high-precision micro-machining was used for conducting the micro-EDM experiments on hybrid Al₂O₃/CNTs composites. The maximum travel range of the machine is 260 mm (X)×10 mm (Y)×100 mm (Z) with the resolution of 0.1 μm in X, Y and Z directions.

The electrode was a 300 μm-diameter tungsten (W) rod. The electrode is rotated by the motor for improvement of machining accuracy. The dielectric fluid was commercially available EDM fluids having relatively high flash point, high auto-ignition temperature and high dielectric strength.

A series of experiments were carried out using RC-circuit to evaluate the characteristics of machined holes. The resistance was set at 1 kΩ, and then voltage and condenser were varied. 100, 150 and 200 V of voltages and 100, 1 000, 10 000 pF of capacitor were chosen, respectively.

3 Results and discussion

Fig.2 shows the electrical conductivity graph of Al₂O₃/CNTs composites. The electrical conductivity increases slightly as the CNT increases but at 5% (volume fraction) CNT content abruptly increases. It might be inferred from this result that CNT can be connected each other to flow the electron. So, in this study, 5% (volume fraction) CNT content is a critical point in the electrical conductivity.

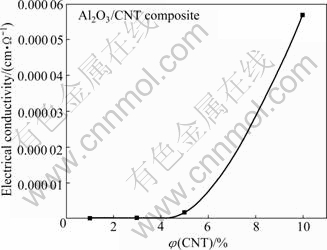

Fig.2 Electrical conductivity Al₂O₃/CNT composites after SPS process

The surface qualities of the micro holes by micro-EDM such as the dimensional accuracy and the circularity have been analyzed according to the various power conditions. Fig.3 shows the FE-SEM images of micro-holes machined by the EDM process. Due to the low electrical conductivity, 1% CNTs and 3% CNTs composites were not machinable by micro-EDM process.

Figs.3 (a) and (c) show the holes on the 5% CNTs composite and Figs.3(b) and (d) show the holes on the 10% CNTs composite. Then, the 300 μm-diameter tungsten rod was used as an electrode. The entrance diameter of the hole shown in Fig.3(a) was about 440 μm with 82 min of machining time under conditions of 200 V and 10 000 pF capacitance. Under the same power condition, the diameter of the hole shown in Fig.3(b) was 560 μm with 33 min of machining time. When the capacitance was increased up to 10 000 pF, it was found that the entrance diameter of the holes shown in Figs.3(c), (d) were about 500 μm and 621 μm with 63 min and 27 min of machining time, respectively.

Although a same diameter of the tool electrode was set up for Fig.3, the machined diameter of the hole in Fig.3(b) was larger than the hole in Fig.3(a) by approximately 100 μm-diameter due to the corner wear of the electrode in addition to linear wear. The micro- holes machined on 5% CNTs composite have good circularity. It can be seen from Fig.3 that, at almost all levels of discharge energy the micro-holes obtained were full of burrs and recast layers from high energy. Due to the poor electrical conductivity, Al₂O₃/CNT composite is not easy to be machined by EDM process. Thus, the high electrical energy for making micro-holes on the composite resulted in the poor surface quality.

The taper angle was measured to evaluate the dimensional accuracy of the micro-holes[10]. Fig.4 shows the taper angle of the micro-holes under the different machining conditions of the micro-EDM process. In the case of dimensional accuracy, 200 V and 1 000 pF capacitance on Al₂O₃/5% CNT caused the lowest taper angle. This indicates that a higher electrical conductivity causes the violent sparks resulting in a larger diameter. Furthermore, the machining time was reduced by 49 min since material remove rate (MRR) increased.

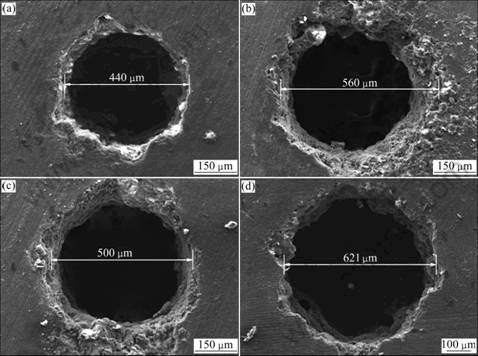

Fig.3 FE-SEM images of micro-hole machined by EDM process: (a) 200 V, 1 000 pF; (b) 200 V, 1 000 pF; (c) 200 V, 10 000 pF;   (d) 200 V, 10 000 pF

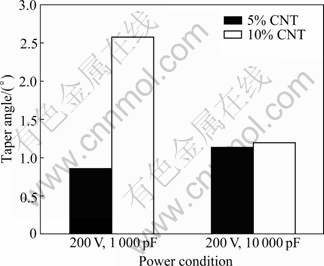

Fig.4 Comparison of taper angles under power conditions

The electrical conductivity of Al₂O₃/10% CNT is superior to other contents. However, in terms of machining characteristics, the electrical conductivity of Al₂O₃/5% CNT is better than that of others. These results are not easy to explain. But the above results were estimated from the optical method.

Fig.5 shows the optical microscope images of Al₂O₃/CNTs composites. The distributed CNTs are observed as black spot in the alumina matrix. As the CNTs content increased, increasing the amount of black spots was observed. But especially, many tangles of CNT are observed in Al₂O₃/10% CNT composites. This leads to better electrical conductivity but causes violent spark between the material and the electrode. Therefore, the circularity of the micro-holes on 5% CNTs composite has also been improved compared with 10% CNTs composite. The homogeneous distribution of CNTs in matrix results in better circularity of machined hole.

4 Conclusions

1) The electrical conductivity has a increasing tendency as the CNTs content is increased. The electrical conductivity has a critical point at Al₂O₃/5% CNT. So the machining time of Al₂O₃/CNTs composites for hole has increasing trend with an increase in CNT concentration.

2) Lots of tangled CNTs observed in Al₂O₃/10% CNT composites cause violent spark, leading to poor dimensional accuracy and circularity.

3) The dimensional accuracy and circularity of Al₂O₃/5% CNTs composites are superior to other ones due to homogeneous distribution of CNTs in matrix.

4) To achieve accuracy machining of Al₂O₃/CNTs composites by EDM, the conductivity of the materials and homogeneous distribution of CNTs in the matrix are important factors for micro-holes.

Fig.5 Optical micrographs of Al₂O₃/CNT composite sintered by SPS device: (a) Al₂O₃/1% CNTs; (b) Al₂O₃/3% CNTs; (c) Al₂O₃/5% CNTs; (d) Al₂O₃/10% CNTs

References

[1] AGRWAL S, RAO P V. Experimental investigation of surface/ subsurface damage formation and material removal mechanisms in SiC grinding [J]. International Journal of Machine Tools & Manufacture,2008, 48: 698-710.

[2] CURTIN W A, SHELDON B W. CNT-reinforced ceramics and metals [J]. Materials Today, 2004, 7(11): 44-49.

[3] BAUGHMAN R H, ZAKHIDOV A A, DEHEER W A. Carbon nanotubes the route toward applications [J]. Science, 2002, 297: 787-792.

[4] FALVO M R, CLARY G J, TAYLOR II R M, CHI V, BROOKS F P, JR, WASHBURN S, SUPERFINE R. Bending and buckling of carbon nanotubes under large strain [J]. Nature, 1997, 389: 582-584.

[5] ZHAN G D, MUKHERJEE A K. Carbon nanotube reinforced alumina-based ceramics with novel mechanical, electrical, and thermal properties [J]. International Journal of Applied Ceramic Technology, 2004, 1(2): 161-171.

[6] KIM S W, CHUNG W S, SOHN K S, SON C Y, LEE S H. Improvement of flexure strength and fracture toughness in alumina matrix composites reinforced with carbon nanotubes [J]. Materials Science and Engineering A, 2009, 517: 293-299.

[7] PUT S, VLEUGELS J, BIEST O V, TRUEMAN C, HUDDLESTON J. Die sink electrodischarge machining of zirconia based composites [J]. British Ceramic Transactions, 2001, 100(5): 207-213.

[8] LIU C C. Microstructure and tool electrode erosion in EDMed of TiN/Si₃N₄ composites [J]. Materials Science and Engineering A, 2003, 363: 221-227.

[9] ZHAO N, HE C, LI J, JIANG Z, LI Y. Study on purification and tip-opening of CNTs fabricated by CVD [J]. International Journal of Applied Ceramic Technology, 2006, 41: 2204-2209.

[10] TAK H S, HA C S, KIM D H, LEE H J, KANG M C. A comparative study on discharge conditions in micro-hole EDM of tungsten carbide (WC-Co) material [J]. Transactions of Nonferrous Metals Society of China, 2009, 19: 114-118.
