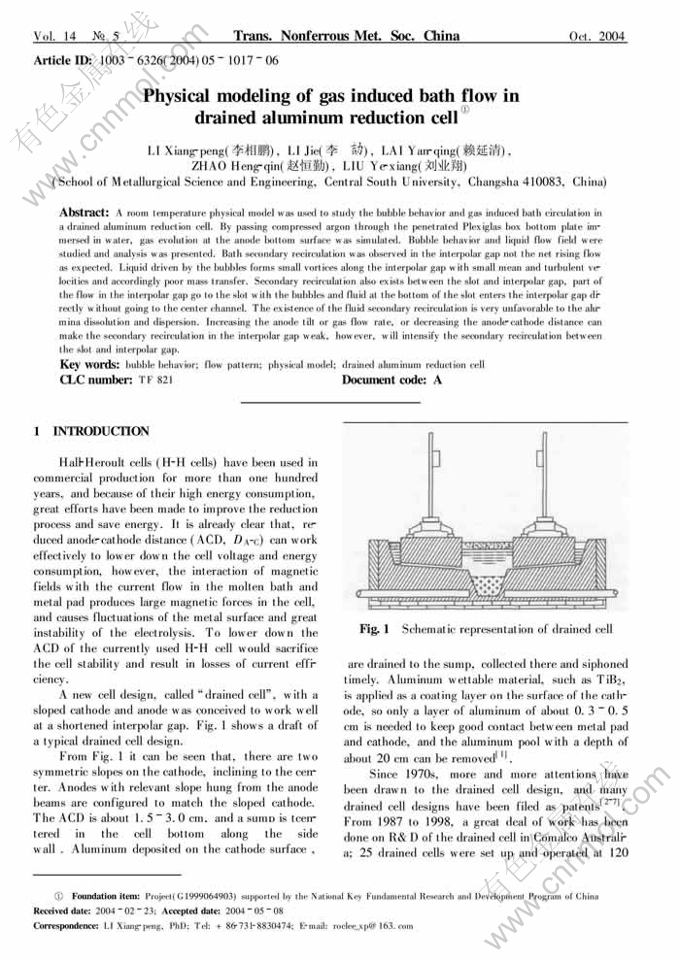

Physical modeling of gas induced bath flow in drained aluminum reduction cell

来源期刊：中国有色金属学报(英文版)2004年第5期

论文作者：李相鹏 李劼 赖延清 赵恒勤 刘业翔

文章页码：1017 - 1022

Key words：bubble behavior; flow pattern; physical model; drained aluminum reduction cell

Abstract: A room temperature physical model was used to study the bubble behavior and gas induced bath circulation in a drained aluminum reduction cell. By passing compressed argon through the penetrated Plexiglas box bottom plate immersed in water, gas evolution at the anode bottom surface was simulated. Bubble behavior and liquid flow field were studied and analysis was presented. Bath secondary recirculation was observed in the interpolar gap not the net rising flow as expected. Liquid driven by the bubbles forms small vortices along the interpolar gap with small mean and turbulent velocities and accordingly poor mass transfer. Secondary recirculation also exists between the slot and interpolar gap, part of the flow in the interpolar gap go to the slot with the bubbles and fluid at the bottom of the slot enters the interpolar gap directly without going to the center channel. The existence of the fluid secondary recirculation is very unfavorable to the alumina dissolution and dispersion. Increasing the anode tilt or gas flow rate, or decreasing the anode-cathode distance can make the secondary recirculation in the interpolar gap weak, however, will intensify the secondary recirculation between the slot and interpolar gap.

基金信息：the National Key Fundamental Research and Development Program of China
