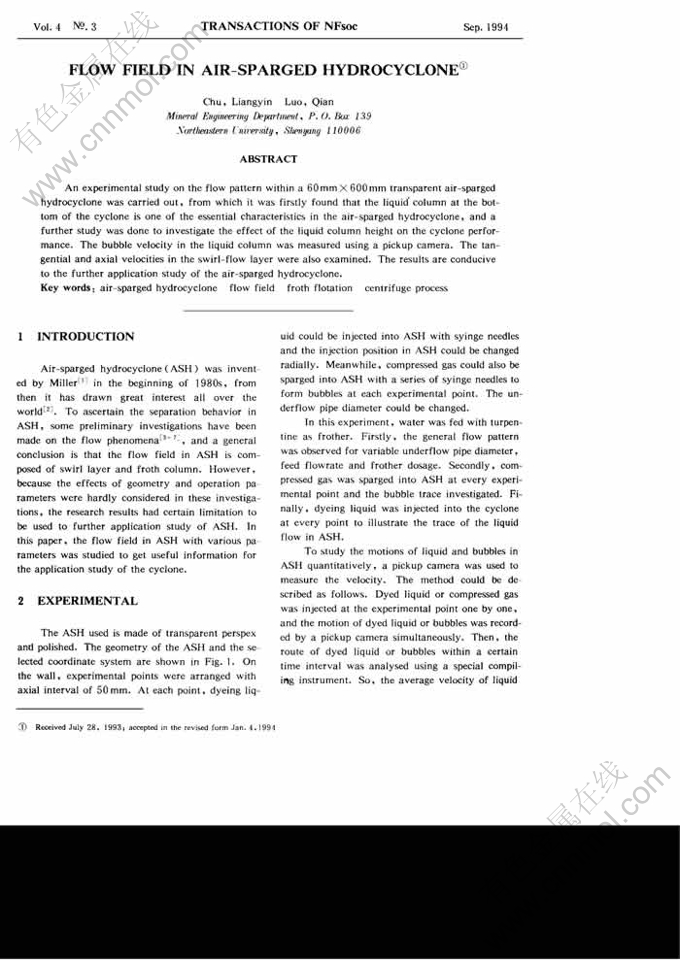

Flow field in air-sparged hydrocyclone

来源期刊：中国有色金属学报(英文版)1994年第3期

论文作者：Chu Liangyin Luo Qian

文章页码：30 - 35

Key words：air-sparged hydrocyclone; flow field froth; flotation ;centrifuge process

Abstract: An experimental study on the flow pattern within a 60 mm × 600 mm transparent air-sparged hydrocyclone was carried out , from which it was firstly found that the liquid column at the bot-tom of the cyclone is one of the essential characteristics in the air-sparged hydrocyclone, and a further study was done to investigate the effect of the liquid column height on the cyclone performance. The bubble velocity in the liquid column was measured using a pickup camera. The tangential and axial velocities in the swirl-flow layer were also examined. The results are conduciveto the further application study of the air-sparged hydrocyclone.
