Trans. Nonferrous Met. Soc. China 27(2017) 676-685

φ-pH diagram of As-N-Na-H₂O system for arsenic removal during alkaline pressure oxidation leaching of lead anode slime

Yun-long HE¹, Rui-dong XU^1,2, Shi-wei HE¹, Han-sen CHEN¹, Kuo LI¹, Yun ZHU¹, Qing-feng SHEN¹

1. Faculty of Metallurgical and Energy Engineering, Kunming University of Science and Technology, Kunming 650093, China;

2. State Key Laboratory of Complex Nonferrous Metal Resources Clean Utilization, Kunming University of Science and Technology, Kunming 650093, China

Received 29 February 2016; accepted 31 August 2016

Abstract: In order to illustrate the thermodynamic characteristics of arsenic during alkaline pressure oxidation leaching process of lead anode slime (NaNO₃ as oxidant; NaOH as alkaline reagent), the φ-pH diagrams of As-Na-H₂O, N-H₂O, As-N-Na-H₂O systems at ionic mass concentration of 0.1 mol/kg and temperatures of 298, 373, 423 and 473 K were established according to thermodynamic calculation. The results show that the existence forms of arsenic are associated with pH value, which mainly exists in the forms of H₃AsO₄, , ,  and As₂O₃ in lower pH region, while it mainly exists in the form of  when pH>11.14. High alkali concentration and high temperature are advantageous to the arsenic leaching. The alkaline pressure oxidation leaching experiments display that the tendency of arsenic leaching rate confirms the thermodynamic analysis results obtained from the φ-pH diagrams of As-N-Na-H₂O system, and the highest leaching rate of arsenic reaches 95.85% at 453 K.

Key words: φ-pH diagram; As-N-Na-H₂O system; lead anode slime; leaching; arsenic removal

1 Introduction

Lead anode slime is an important secondary product from the process of lead electrolytic refining, which is rich in valuable elements such as bismuth, antimony, arsenic, lead, gold and silver [1,2]. As we know, the environmental pollution, low quality of production and complicated process will be caused during the lead anode slime treatment because arsenic is a harmful element. Therefore, the arsenic removal is very essential in pyrometallurgical and hydrometallurgical processes in order to extract other valuable metals from lead anode slime [3]. At present, the treatment process of lead anode slime can be classified in the following two methods as pyrometallurgy and hydrometallurgy: the pyrometallurgy mainly includes reduction roasting [4], volatilization roasting or eliminating arsenic in vacuum [5], and the hydrometallurgy mainly includes oxidizing acid leaching [6], oxidation alkaline leaching [7] or chloridization leaching [8,9]. Pressure leaching is an effective method and widely used for metal extraction from different raw materials [10-13], and alkaline pressure oxidation leaching of lead anode slime is proposed in order to remove arsenic in this research.

The φ-pH diagram (potential-pH diagram) is an useful tool in thermodynamic characteristics analysis during the hydrometallurgy process [14,15]. A rapid and reliable method for intuitive assessment of thermodynamic equilibriums and reaction feasibility can be provided easily according to φ-pH diagram. In addition, it can also be widely used in many other fields such as corrosion and anticorrosion of metal, mineral geology [16-18]. The φ-pH diagram of As-H₂O system at different temperatures has been investigated [19], but the φ-pH diagrams of As-N-Na-H₂O system for pressure oxidation alkaline leaching of arsenic-rich lead anode slime have never been reported. This research has done some works in order to explain the thermodynamic characteristics of arsenic in the pressure oxidation leaching progress by means of the construction of the φ-pH diagrams of As-N-Na-H₂O system. Based on φ-pH diagrams of As-N-Na-H₂O system, an originally thermodynamic guidance can be obtained for the arsenic removal during alkaline pressure oxidation leaching of lead anode slime.

2 Thermodynamics

2.1 Thermodynamic calculation method

All the chemical reactions in the hydrometallurgical process can be presented simply as follows:

aA+nH⁺+ze=bB+cH₂O                        (1)

where a, n, b and c are the stoichiometric coefficients for species A, H⁺, B and H₂O in the electrochemical reaction, respectively, and z is the electron transfer number of the electrode reaction. The Gibbs free energy of Eq. (1) can be shown explicitly as

            (2)

Some interrelated equations about Gibbs free energy of Eq. (1) can be shown as follows:

        (3)

                             (4)

According to Eqs. (2)-(4), Nernst equation can be deduced as [20]

-zFφ_T = (5)

Equation (5) can be divided into the following three situations and the φ-pH equations in different situations can be shown as follows:

Only electron is involved in the reaction (z≠0, n=0):

                   (6)

Only H⁺ is involved in the reaction (n≠0, z=0):

                   (7)

Both electrons and H⁺ are involved in the reaction (n≠0, z≠0):

      (8)

where △_fG_T is the formation Gibbs free-energy of a certain specie at temperature T; △_rG_T and  are the free energy and standard free energy of reaction at temperature T, respectively; φ_T and are the electrochemical potential and standard electrochemical potential for the reaction at temperature T, respectively; F is the Faraday’s constant and R is the molar gas constant; a_A and a_B are the overall activities of species A and B, respectively. So, the φ-pH diagram based on the Eqs. (6)-(8) can be established in different situations as long as the φ_r or  or a_A and a_B at the certain temperature can be known.

2.2 Species and thermodynamic equilibrium

The leaching process of arsenic from lead anode slime is to make insoluble arsenic turn into dissolvable forms. NaOH and NaNO₃ were employed as leaching agents during the alkaline oxidation leaching, leading to the fact that nitrogen and sodium were involved in the system. Therefore, many elements and species must be involved [21]. The data of the thermodynamic calculation in this research are obtained from Ref. [22] except as otherwise indicated, and the thermodynamic data of the main substances in As-N-Na-H₂O system are listed in Table 1.

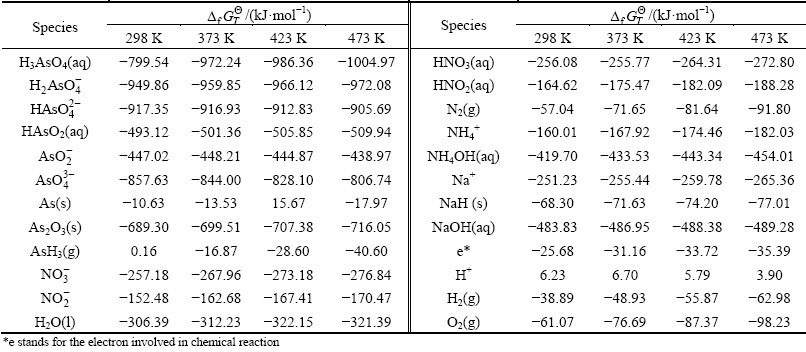

Table 1 Thermodynamic data of main substances in As-N-Na-H₂O system for lead anode slime leaching process

The arsenic leaching is available based on the chemical reactions among the species. Nernst equation can be used to illustrate the thermodynamic equilibrium. The φ-pH diagrams for the leaching progress can be established according to the Nernst equation. The relationship expressions between φ and pH value were calculated according to Eqs. (2)-(8). The considered chemical reactions and their φ-pH formulas are listed in Table 2.

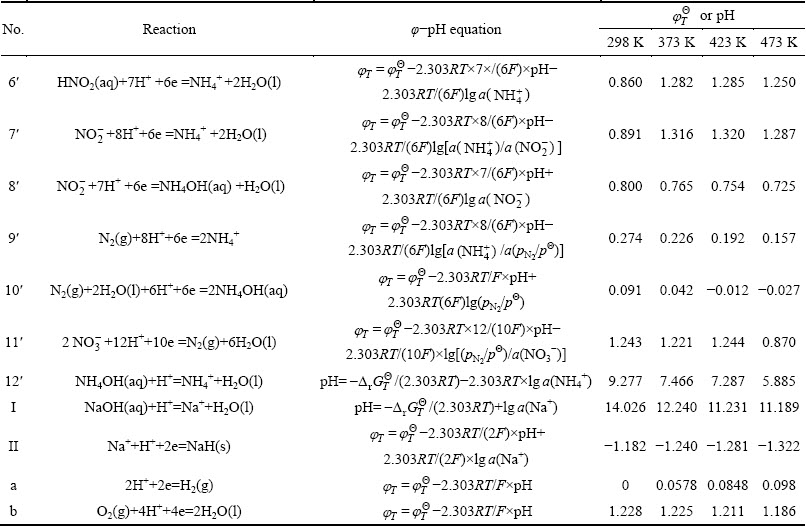

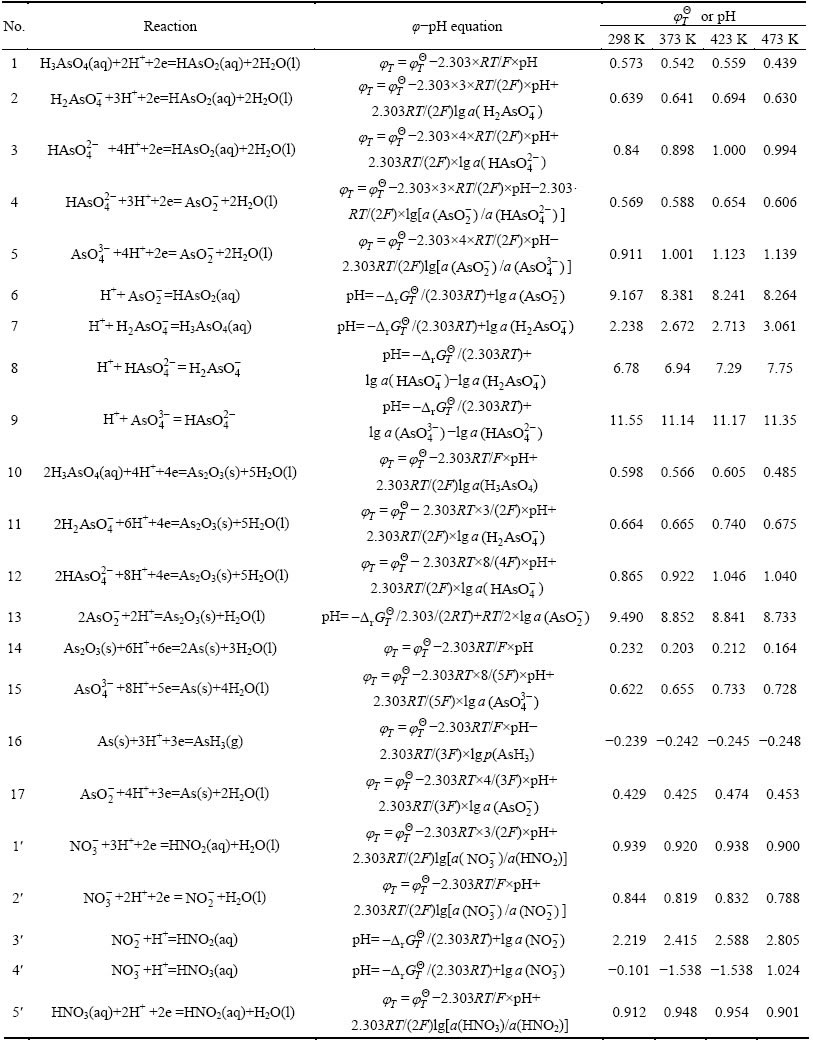

Table 2 Electrode reaction and standard potential value in As-N-Na-H₂O system for lead anode slime leaching process

to be continued

continued

2.3 φ-pH diagram of As-Na-H₂O system

The φ-pH diagrams of As-Na-H₂O system at different temperatures are constructed in Fig. 1 according to equilibrium equations listed in Table 2. The condition parameters are established as the molality of all the species is 0.1 mol/kg and temperatures range from 298 to 473 K.

Arsenic exists as acid radical in the system when φ is positive. H₃AsO₄(aq) and exist in the acid region. They exist in the forms of and HAsO₂ when pH values are between 7 and 11. is stable when pH value is higher than 11. The stable region of H₃AsO₄(aq), HAsO₂(aq), , As₂O₃(s),  and As(s) superimposes largely in the stable region of water, which approves the feasibility of acid or alkali leaching of arsenic in the arsenic-rich lead anode slime in water solution [23].

Based on the φ-pH diagrams of As-Na-H₂O system in Fig. 1, thermodynamics behaviors of arsenic in alkaline pressure oxidation leaching process were discussed. The soluble arsenic ions should be the main research object. The main features of the φ-pH diagrams of As-Na-H₂O system are summarized as follows.

1) The stability region of NaOH(aq) increases with increasing leaching temperature.

2) The stability region of  increases with the rise of temperature. More will change into  in the high pH region. Therefore, high leaching temperature and high pH value or high alkali concentration will be beneficial to the arsenic leaching. Consequently, high temperature and high alkali concentration are very essential at the beginning of the leaching.

3) There is a large area of As₂O₃(s) containing in the stability region of water. In these superimposed areas, there is a thermodynamic equilibrium region between water and As₂O₃(s). The chemical reaction can be written as As₂O₃(s)+H₂O(aq)=2HAsO₂(aq), so, As₂O₃(s) and HAsO₂(aq) will coexist in these regions [21].

2.4 φ-pH diagrams of N-H₂O system

Dissolved nitrate with several different valences can be involved in many reactions in the solution, and it can be transformed among various forms according to the situation. During the leaching process of arsenic from lead anode slime, NaNO₃ is employed as oxidant, nitrogen atom in  will get electron in the reaction and its valence will decrease. Most insoluble arsenic in the lead anode slime mainly exists as the lower valence state, while  plays an electron acceptor role in the electrochemical reaction, which promotes the dissolution of arsenic during the alkaline oxidation leaching, and solvable arsenic is usually at higher valence state in the solution.

In order to analyze the thermodynamic equilibriums of nitrogenous compounds in the solution, the φ-pH diagrams of N-H₂O system are established and shown in Fig. 2. The condition parameters are established when the molality of all the species is 0.1 mol/kg and temperatures range from 298 to 473 K.

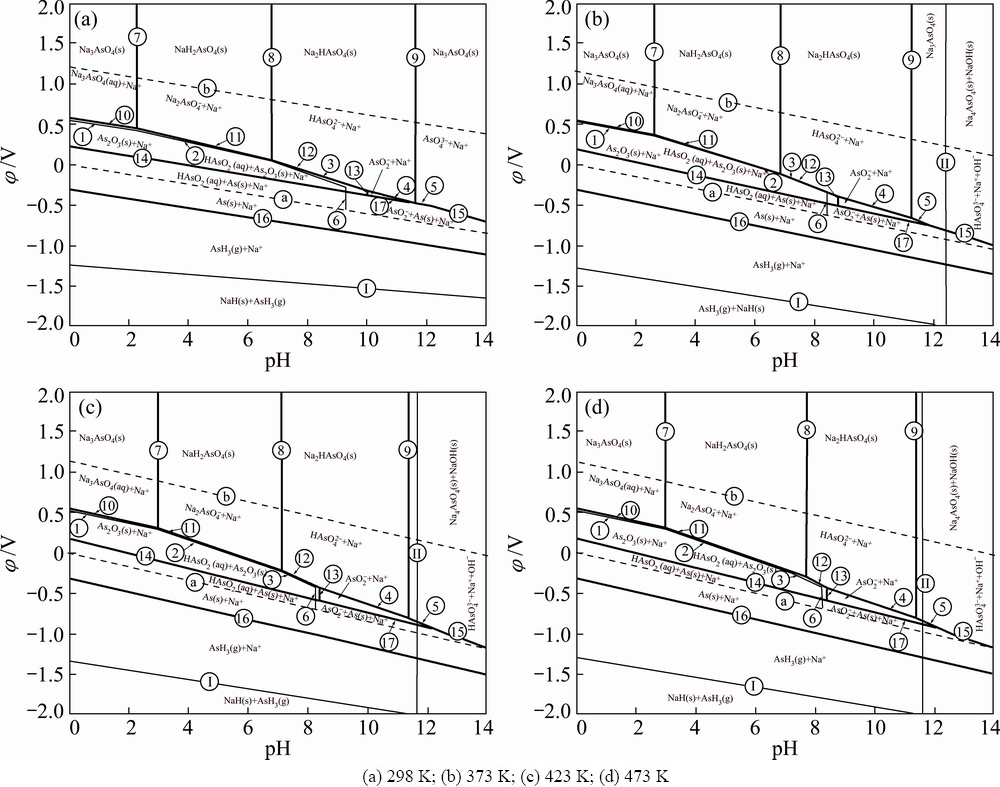

Fig. 1 φ-pH diagrams of As-Na-H₂O system at different temperatures

The thermodynamic characteristics of N-H₂O at different temperatures are summarized as follows.

1) The stable regions of NH₄OH(aq) and  increase apparently with increasing temperature.

2) The stable regions of ,  and N₂ superimpose with the stable region of water, which indicates the thermodynamic possibility of the redox reactions among nitrogenous compounds in the solution. So, it is reasonable and feasible to use NaNO₃ as the oxidant during the alkaline oxidation leaching of lead anode slime.

3) Large proportion of N₂ stable region superimposes with the stable region of water, which indicates the possibility of N₂ formation during the leaching process.

2.5 φ-pH diagram of As-N-Na-H₂O system

The φ-pH diagrams of As-N-Na-H₂O system are constructed at different temperatures for the leaching of arsenic from lead anode slime, and shown in Fig. 3. It can be seen from Fig. 3 that many stable regions of arsenic compounds and nitrate superimpose with the water stable region, therefore, the occurrence of various reactions among the considered species is possible in the solution.

The main thermodynamic features of As-N-Na- H₂O system can be summarized as follows.

1) Various forms of arsenic are associated with pH value. It mainly exists as H₃AsO₄(aq), , , H₂AsO₂(aq) and As₂O₃(s) in lower pH value regions, and it mainly exists as  when pH value is higher than 11.14.

2) In lower pH region, when φ is less than -0.137 V, As₂O₃ will transform into AsH₃ according to electrode reactions (Eqs. (14) and (16) listed in Table 2).

3) The stable areas of  and NaOH(aq) increase with the rise of temperature and pH value, which indicates that more  will generate when temperature and alkali concentration are high, meaning that more soluble trivalent arsenic will be oxidized into high valence states such as H₃AsO₄(aq), ,  or , this transversion complies with the following equations respectively.

HAsO₂(aq)+2H₂O(l)-2e=H₃AsO₄(aq)+2H⁺    (9)

HAsO₂(aq)+2H₂O(l)-2e=+3H⁺         (10)

+2H₂O(l)-2e=+4H⁺                   (11)

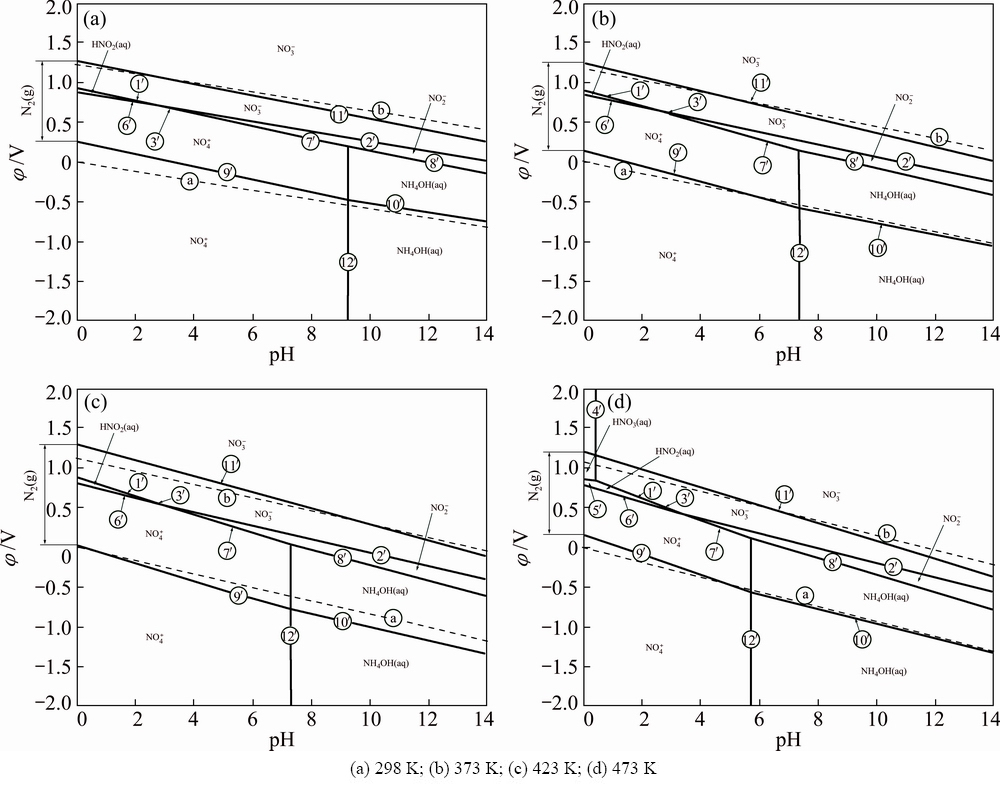

Fig. 2 φ-pH diagram of N-H₂O system at different temperatures

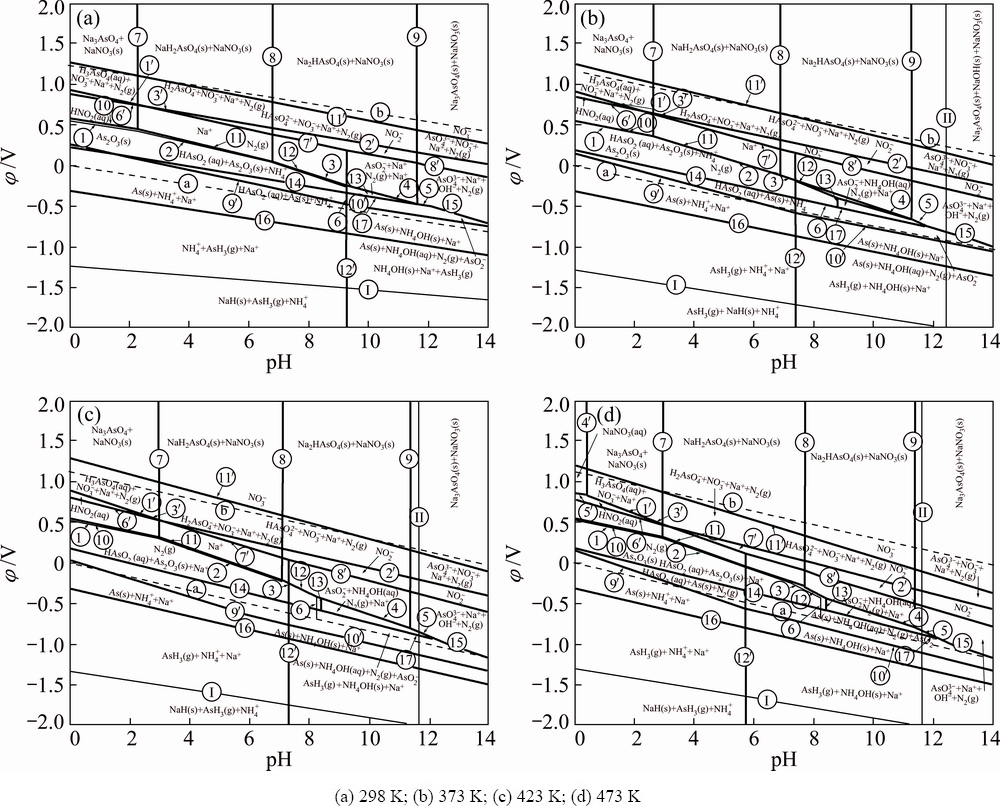

Fig. 3 φ-pH diagrams of As-N-Na-H₂O system at different temperatures

+2H₂O(l)-2e=+3H⁺              (12)

HAsO₂(aq)+2H₂O(l)-2e=+4H⁺          (13)

4) More As₂O₃(s) will dissolve with the rise of temperature and pH value. Main chemical reaction of trioxide arsenic dissolution in alkaline condition is shown as follows:

As₂O₃(s)+2OH^-=+H₂O(l)               (14)

There is a large amount of OH^- when pH value is high, and As₂O₃(s) can dissolve more efficiently in the alkaline condition according to the above equation.

5) During the alkaline oxidation leaching of lead anode slime, arsenic will be removed in the form of Na₃AsO₄. The formation reaction of  can be shown as follows:

+16OH^-+4=10+8H₂O(l)+N₂(g)  (15)

The transformation reaction between As₂O₃ (s) and Na₃AsO₄(aq) in the alkaline leaching system can be written as

5As₂O₃(s)+26NaOH(aq)+4NaNO₃(aq)=10Na₃AsO₄(aq)+13H₂O(l)+2N₂(g)           (16)

Based on the above description, more As₂O₃(s) will transform into when OH^- concentration is high. Consequently, alkaline pressure oxidation leaching is feasible to remove arsenic from lead anode slime because As₂O₃ (s) is the main phase. The usage of NaNO₃ (aq) and NaOH (aq) as oxidant and alkaline reagent respectively during the leaching process is reasonable because an advantageous condition for the arsenic leaching can be provided.

AsH₃ is a poisonous substance which is generated easily in the acid environment. It can be seen from Fig. 3 that there are large stable areas of AsH₃(g) in the low pH region, which demonstrates a high thermodynamic possibility of AsH₃ formation. Therefore, it is not commonly recommendable to remove arsenic by strong acid leaching process in order to avoid the formation of AsH₃(g).

3 Arsenic removal experiment during alkaline pressure oxidation leaching of lead anode slime

Lead anode slime containing arsenic was employed as the raw materials, and its chemical compositions are shown in Table 3. It can be seen that bismuth (Bi) is the highest content metal and its content is 45.25%, the contents of arsenic (As), antimony (Sb) and lead (Pb) are 10.68%, 11.8% and 11.43%, respectively, the contents of gold (Au) and silver (Ag) are 24.3 and 3408 g/t respectively. In addition, there are slight tin (Sn) and copper (Cu). Arsenic must be removed before extracting bismuth and enriching gold and silver from lead anode slime.

Table 3 Chemical composition of metallic element in lead anode slime (mass fraction, %)

The anode slime was ground to less than 250 μm and then put into the autoclave, the alkaline pressure oxidation leaching process of arsenic was carried out under the following conditions of pressure of 0.8 MPa, liquid to solid ratio of 7:1, leaching time of 180 min, stirring speed of 300 r/min, NaOH concentration of 200 g/L and NaNO₃ concentration of 15% (the mass ratio of NaNO₃ to lead anode slime is 15%). In addition, the temperatures of the alkaline pressure oxidation leaching were controlled from 313 to 493 K. The schematic diagram of the experimental apparatus is shown in Fig. 4.

The effect of temperature on leaching rate of arsenic from lead anode slime is shown in Fig. 5. The result indicates that the arsenic leaching rate increases from 13.86% to 95.55% when the temperature increases from 313 to 433 K, and it reaches the highest value of 95.85% at 453 K. Thereafter, the leaching rate begins to decrease.

The above leaching rate of arsenic confirms the thermodynamic analysis based on the φ-pH diagrams of As-N-Na-H₂O system at different temperatures. As shown in φ-pH diagrams of As-N-Na-H₂O from 298 to 473 K, the stabile region of  gradually increases with the increase of temperature, displaying that more As₂O₃(s) will transform into the soluble  in the high pH region, complying with Eqs. (14) and (17).

As₂O₃(s)+H₂O=2HAsO₂(aq)                   (17)

Therefore, high temperature and high pH value will be advantageous to the arsenic leaching, and higher leaching rate of arsenic can be obtained during the alkaline pressure oxidation leaching of lead anode slime.

Lixivium was cooled down and crystallized after finishing alkaline pressure oxidation leaching of lead anode slime, and the phase structures of crystals were measured by XRD and the result is shown in Fig. 6. It can be concluded from Fig. 6 that the phase compositions of the crystals obtained from lixivium are Na₃AsO₄.10H₂O. During the course of alkaline pressure oxidation leaching, As₂O₃ in lead anode slime is dissolved in the form of  according to Eq. (14). Thereafter,  will be oxidized to  according to Eq. (15) when NaNO₃ is used as oxidant in the alkaline conditions, leading to the fact that large amounts of  and Na⁺ exist in the system.

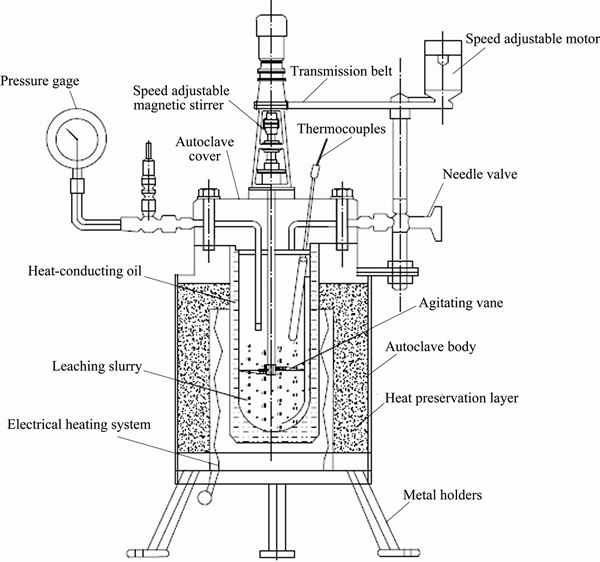

Fig. 4 Schematic diagram of experimental apparatus

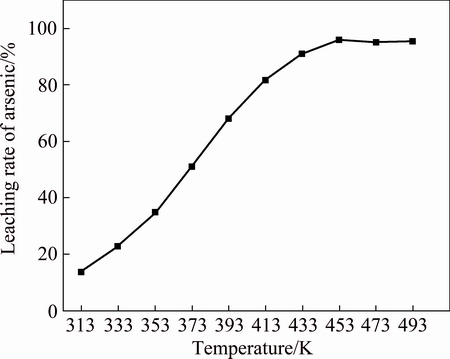

Fig. 5 Effect of temperature on leaching rate of arsenic from lead anode slime

Therefore, the main phase composition of arsenic is Na₃AsO₄(aq) in the lixivium. The transformation reaction between As₂O₃(s) and Na₃AsO₄ (aq) can be written as Eq. (16). The above research results agree well with the thermodynamic prediction according to φ-pH diagrams of As-N-Na-H₂O system.

In addition, under the following alkaline pressure oxidation leaching from lead anode slime as NaOH concentration of 200 g/L, NaNO₃ concentration of 15%, pressure of 0.8 MPa, liquid to solid ratio of 7:1, leaching time of 180 min, leaching temperature of 453 K and stirring speed of 300 r/min, the highest leaching rate of arsenic is obtained and it reaches 95.85%. In addition, the leaching rates of other elements in the lead anode slime are shown in Table 4. As shown in Table 4, the leaching rates of antimony and lead are 72.22% and 73.57%, respectively, and the leaching rate of bismuth is only 1.83%. The following metals as tin, copper, gold and silver all enter the leaching residue.

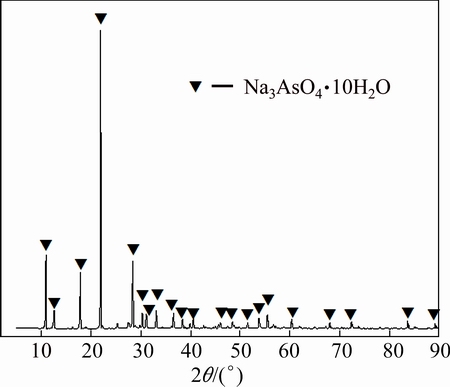

Fig. 6 XRD pattern of crystals from arsenic lixivium

Table 4 Leaching rates of other elements in lead anode slime (%)

Therefore, the removal of arsenic, antimony and lead by alkaline pressure oxidation leaching method provides the condition for the extracting bismuth and enriching gold and silver from lead anode slime.

4 Conclusions

1) The φ-pH diagrams of As-N-Na-H₂O systems at different temperatures were established to illustrate the thermodynamic characteristics of arsenic during alkaline oxidation leaching process of lead anode slime.

2) The existing forms of arsenic are associated with pH value. It mainly exists as H₃AsO₄(aq), , , H₂AsO₂(aq) and As₂O₃(s) in lower pH value region; whereas it mainly exists as  when pH value is higher than 11.14. High alkali concentration and high thermodynamic temperature are advantageous to the arsenic leaching.

3) The tendency of arsenic leaching rate confirms the thermodynamic analysis results obtained from the φ-pH diagrams of As-N-Na-H₂O system, and the highest leaching rate of arsenic reaches 95.85% at thermodynamic temperature of 453 K during the course of alkaline pressure oxidation leaching.
