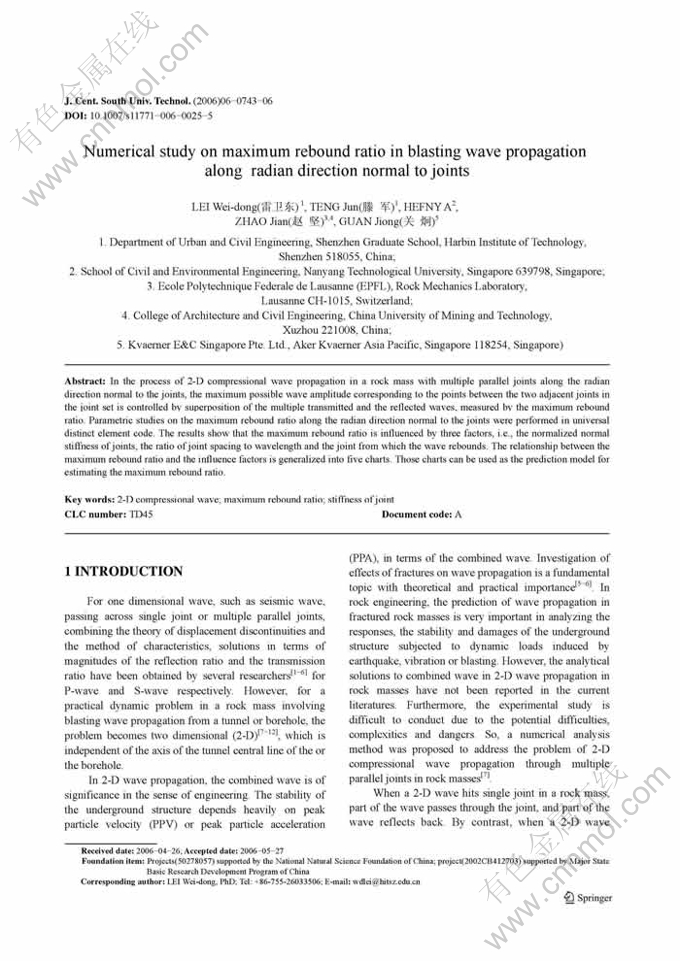

Numerical study on maximum rebound ratio in blasting wave propagation along radian direction normal to joints

来源期刊：中南大学学报(英文版)2006年第6期

论文作者：雷卫东 滕军 HEFNY A 赵坚 关炯

文章页码：743 - 748

Key words：2-D compressional wave;maximum rebound ratio;stiffness of joint

Abstract: In the process of 2-D compressional wave propagation in a rock mass with multiple parallel joints along the radian direction normal to the joints,the maximum possible wave amplitude corresponding to the points between th, e two adjacent joints in the joint set is controlled by superposition of the multiple transmitted and the reflected waves,measured by the maximum rebound ratio.Parametric studies on the maximum rebound ratio along the radian direction normal to the joints were performed in universal distinct element code.The results show that the maximum rebound ratio is influenced by three factors,i.e.,the normalized normal stiffness of joints,the ratio of joint spacing to wavelength and the joint from which the wave rebounds.The relationship between the maximum rebound ratio and the influence factors is generalized into five charts.Those charts can be used as the prediction model for estimating the maximum rebound ratio.
