Trans. Nonferrous Met. Soc. China 29(2019) 2615-2626
Omid SALMANI NURI1, Mehdi IRANNAJAD1 , Akbar MEHDILO1,2
1. Department of Mining and Metallurgical Engineering, Amirkabir University of Technology, Tehran, Iran;
2. Department of Engineering, University of Mohaghegh Ardabili, Ardabili, Iran
Received 9 December 2018; accepted 20 October 2019
Abstract: The effects of acid surface dissolution on the flotation kinetics of ilmenite (IL) and its common accompanied gangue minerals including olivine-pyroxene (Ol-Px), tremolite-clinochlore (Tr-Cch) and quartz were investigated. The results show that through the surface dissolution the adsorption rate constant for ilmenite increases from 5.272 to 8.441 mol/(g·min) while it decreases for Ol-Px, Tr-Cch and quartz from 6.332, 7.309 and 7.774 mol/(g·min) to 5.034, 6.223 and 7.371 mol/(g·min), respectively. Also, the flotation experiments on a binary mixture of minerals indicate that after surface dissolution the values of modified rate constant for ilmenite flotation from Ol-Px, Tr-Cch and quartz are enhanced from 36.15, 36.52 and 47.86 min-1 to 41.72, 45.78 and 56.24 min-1, respectively. This results in the improvement of kinetic selectivity index (SI) in the separation of treated ilmenite from gangue minerals. As evidenced by ICP-MS analysis, the decrease of kinetic parameters for gangue minerals can be due to the removal of Fe2+, Ca2+ and Mg2+ ions from their surfaces, which results in the lack of enough active sites to interact with collector species. As confirmed by contact angle measurements, this prevents the formation of a stable hydrophobic layer on the minerals surfaces for creating stable attachments between minerals and bubbles. Generally, the improvement of ilmenite flotation kinetics has a negative correlation with the iron content in its accompanied gangue minerals.
Key words: surface dissolution; flotation; kinetic parameters; modified rate constant; selectivity index; collector adsorption
1 Introduction
Flotation is an extensively used separation method in the mineral beneficiation processes which has been found based on the differences between the surface properties of valuable and gangue minerals. These differences are commonly caused by flotation reagents including collector, depressant and activator [1-5]. In addition of flotation agents, some surface modification methods such as microwave radiation, preheating technique and surface dissolution have been recently used for creating suitable differences on the surface properties of minerals, and improving the floatability of valuable minerals [6-10]. In this regard, ilmenite has been widely considered due to its poor floatability. In ilmenite flotation, the Ti4+ ions and titanate species are active sites in acidic pH ranges while the Fe2+ ion and its hydroxyls are the active species at the weak acidic and alkaline pHs for reacting with a collector. Thus, in each mentioned pH range, only half of the surface ions are active to react with the collector species. This leads to the poor floatability of ilmenite in comparison with rutile and magnetite minerals [11,12]. The acid surface dissolution pretreatment is one of the above mentioned methods which have been successfully utilized for modification of ilmenite surface properties and improvement of its flotation behavior [5,13,14]. The improvement of ilmenite floatability has been attributed to the conversion of Fe2+ ions to Fe3+ ones, which results in the formation of more stable ferric iron oleate in comparison with ferrous iron oleate on the surface of this mineral [13,14].
However, the effect of surface dissolution on the surface properties of ilmenite has been investigated in the previous works but the influence of this pretreatment method on the flotation kinetics significantly has not ever been considered. Thus, the present study is undertaken to investigate the effect of acid surface dissolution on the kinetics of collector adsorption and the flotation kinetics of ilmenite and its usual associated gangue minerals such as olivine, pyroxene, tremolite, clinochlore, and quartz. This was performed by carrying out the flotation experiments for floating ilmenite from binary mixtures of ilmenite and gangue minerals and applying various kinetic models before and after surface dissolution. Also, some analytical methods such as inductively coupled plasma mass spectroscopy (ICP-MS), UV-visible analysis and contact angle measurements were used for studying the surface properties of minerals before and after pretreatment.
2 Kinetic models in adsorption and flotation
Adsorption kinetics is an important factor which affects the capacity of adsorption by changing the contact time [15]. The pseudo-first and second order models were used for modeling the kinetic rates of collector adsorption on the minerals surfaces [16,17]. These models are expressed as follows:
(1)
(2)
where St refers to the amount of collector uptake capacity at a particular time t; Se is the uptake at equilibrium time; k1 and k2 are the rate constants for the pseudo-first-order and second-order models, respectively.
The essential aim of the flotation kinetics is considering and deducing the changes in ultimate recovery (R∞) and flotation rate constant (k). These factors are significant and can often be confusing [18]. Different kinetic models can be applied to analyzing the batch flotation results. It has already been shown that the flotation process follows the first-order kinetics [19-22]. Batch flotation test data in the literatures [23-26] support the first-order rate which can be reasonably used to determine the kinetic parameters. In this study, four different kinetic models, including classical model, Klimpel model (model with the rectangular distribution of floatability), modified Kelsall model (model with fast and slow-floating components), and fully mixed model have been used to evaluate the batch flotation results. These models are summarized in Table 1. The kinetic parameters (R∞ and k) have been determined by model fitting to the experimental data using mathematical software [27].

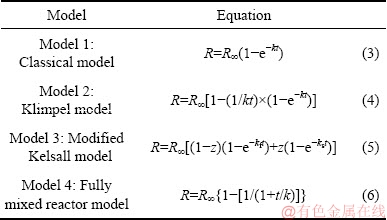

Table 1 Models applied and implemented in Mathematica software
In Table 1, R is the recovery of components at the time t; z denotes a fraction of flotation component with the slow rate constant; ks is a rate constant for slow floating component; kf is a rate constant for fast floating component.
3 Experimental
3.1 Materials
The purified samples of ilmenite (IL), olivine- pyroxene (Ol-Px), tremolite-clinochlore (Tr-Cch) and quartz (Q) were used to perform the experiments of flotation kinetics. The handpicked samples obtained from the Qara-Aghaj titanium deposit were ground to 100% less than 150 μm using laboratory crushing and milling stages. 150 μm is a size which has been determined as liberation degree of ilmenite [28]. The different stages of wet sieving, tabling, and low and high-intensity magnetic separation methods were used to prepare the purified samples. Due to the similarities of surface properties of olivine and pyroxene minerals with each other as well as the surface properties of tremolite and clinochlore, the binary mixture of these minerals was separated from each other [29]. Table 2 lists the chemical composition of purified samples which are determined using XRF. Sodium oleate and pine oil were consumed as the collector and frother agents, respectively. Sodium hydroxide and sulfuric acid were used as pH regulator reagents through the flotation tests. The oxalic acid was used as a surface dissolution medium. In some tests, it was also applied as a pH regulator agent.
Table 2 Chemical composition of purified samples (wt.%)
3.2 Methods
3.2.1 Batch flotation
The batch flotation tests were conducted on the purified samples using a Denver DR-12 flotation machine in a one-liter cell. In all flotation experiments conducted at a constant pH of (6.3±0.02) as an optimal pH determined in the previous works [30-33], the impeller speed and solid mass fraction were fixed at 1400 r/min and 30%, respectively. After mixing the pulp for 5 min, 1000 g/t of sodium oleate as a collector was added to the cell and conditioned for 5 min. After then 100 g/t of pine oil with 2 min of conditioning time was added to the pulp, and the air was opened and flowed inside the cell. Finally, the froth phase was collected at interval time of 0.5, 1, 1.5, 3, 5, 8, 12, and 15 min. The froth phase was scraped every 10 s. The taken samples of concentrate and tailing were filtered, dried, and assayed. In the flotation experiments on a binary mixture of IL+ Ol-Px, IL+Tr-Cch, and IL+Q before and after surface dissolution for studying the particle flotation rate and ultimate recovery, the mass ratio of ilmenite to gangue minerals was considered 20 wt.% to 80 wt.%.
3.2.2 Surface dissolution
The surface dissolution of the purified samples prior to the flotation tests was carried out by mechanical stirring in a 7.5 vol.% oxalic acid solution at a pH of 1 for 10 min. After then, the liquid phase was filtered, and the solid phase was washed for 5 min with double distilled water and was dried at room temperature.
3.2.3 Contact angle
Sessile drop method was used for contact angle measuring of the minerals before and after surface dissolution. A drop of distilled water was put on the polished section of mineral which is prepared at the desired condition. After then, an image was taken by a camera, and the contact angle was measured using Image J software.
3.2.4 ICP-mass analysis
The ICP-mass analysis was used to investigate the amount of transferred elements from the mineral surfaces into the acid solution [13]. The CETAC ADX-500 auto-diluter system was tested with ELAN v 2.1 software and the ELAN 6000 ICP-MS instrument to determine on-line automated dilution performance during the analysis of standard solutions. In order to prepare the samples to ICP analysis, 5 g of purified samples were placed in a beaker which was then filled with the oxalic acid solution. The suspension was agitated with a mechanical stirrer for 15 min. After filtration of the suspension, the remaining liquid phase was analyzed by ICP-MS.
3.2.5 UV-visible analysis
The adsorption amount of collector on the surface of minerals was measured using UV-visible spectro- photometer (UV-1601, Beijing Beifen-Ruili Analytical Instrument Co., Ltd.) at λ=192 nm [34]. In each test, 1 g of purified mineral sample with a size of 45 to 150 μm was added to the 50 mL of double deionized water. The solution was equilibrated at the flotation condition and then filtered. The equilibrium for the present study was attained at 100 min.
3.2.6 Calculations
The recovery of minerals in the flotation concentrate was calculated by Eq. (7), which is known as Wills and Napier-Munn equation:
(7)
where R is the recovery of ilmenite (%); C and T are the dry masses of concentrate and tailing, respectively; c and f are the ilmenite contents (wt.%) in the concentrate and feed, respectively.
The adsorption of the collector was calculated by
(8)
where C0 and Ct refer to the initial and final concentrations of sodium oleate in the solution (mol/L), respectively; V is the volume of solution (L); m is the mass of the mineral sample (g); qt is the adsorption density of collector (mol/g).
4 Results and discussion
4.1 Flotation experiments
4.1.1 Flotation of ilmenite from binary mixtures
Figure 1 shows the recovery of ilmenite flotation from the binary mixtures of different gangue minerals as a function of flotation time before and after pretreatment. For both states, two regions are observed in the recovery- time curves. Before surface dissolution (Fig. 1(a)), the first region shows that the flotation recovery occurs quickly in the first 3 min, and the second region represents the increase of recovery in the plateau region. After 15 min, the flotation recovery of untreated ilmenite varies from 72.2% to 80.6% in the presence of different gangue minerals. As shown in Fig. 1(b), after surface dissolution, the occurrence of fast-rising of flotation recovery in the first region takes about 5 min. The second region is similar to that of untreated one, but the flotation recovery of treated ilmenite is higher, and changes from 76.4% to 90.8%. This means that the surface dissolution increases the ultimate recovery of ilmenite flotation significantly. Also, the results show that the time of fast flotation stage (first region) enhances from 3 to 5 min after surface dissolution. This means that the rate constant of ilmenite flotation is increased after pretreatment.

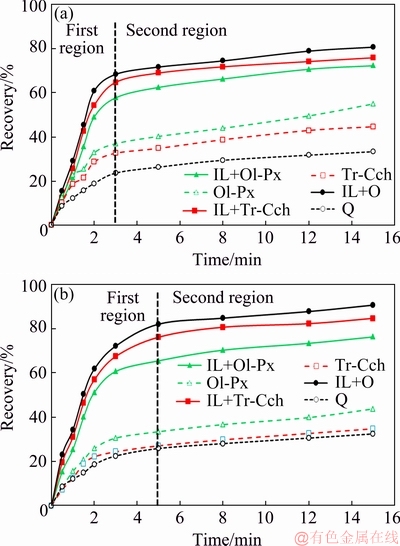

Fig. 1 Accumulated recovery of minerals versus flotation time before (a) and after (b) surface dissolution (pH: 6.3; solid fraction: 30%; collector dosage: 1000 g/t; pine oil dosage: 100 g/t)
The flotation recoveries of ilmenite from different binary mixtures of gangue minerals are as follows: IL+Q > IL+Tr-Cch > IL+Ol-Px.
On the other hand, the results show that the orders of gangue recoveries in the ilmenite concentrate are as follows: Ol-Px > Tr-Cch > Q.
The flotation recovery of gangue minerals has a positive correlation with their iron content. Thus, the selective flotation of ilmenite from Ol-Px containing a higher amount of Fe is more difficult than Tr-Cch and quartz phases. As shown in Fig. 1(b), the differences between ilmenite recovery and all the gangue minerals are increased after surface dissolution. This means that the surface dissolution not only increases the ilmenite floatability but also decreases the recovery of gangue minerals. The results are in good agreement with the previous works [13,14].
4.1.2 Flotation kinetic models
Figures 2(a-f) present the fitting of kinetic models for the cumulative recovery as a function of flotation time before and after surface dissolution. The results display that the classical model and Klimpel model have the best and the weakest fits for experimental recoveries, respectively. Also, the modified Kelsall model has a good fit to the experimental data.
The classical model with the best fit to the experimental data is used to determine and compare the kinetic parameters before and after surface dissolution. The results of estimated kinetic parameters by the classical model for binary mixtures of minerals are presented in Table 3. The results show that both k and R∞ are increased for the pretreated ilmenite in the presence of all gangue minerals. These kinetic parameters are decreased for the pretreated Ol-Px and Tr-Cch minerals, while they have not significant changes for the pretreated quartz. Also, the accuracy of the classical model for all minerals is well proved by the value of R2>0.99.
4.1.3 Modified rate constant (Km) and kinetic selectivity index (SI)
In many laboratory tests, the comparison of flotation kinetics data is difficult. Because the change in condition results in some changes in both ultimate recovery and rate constant. In this regard, the modified rate constant and the kinetic selectivity index (SI, IS) defined according to Eqs. (9) and (10) [19,35-38] can be used to compare the results.
Km=k·R∞ (9)
IS= (10)
where Km1 and Km2 are the modified rate constants of ilmenite and gangue minerals, respectively.
The results of the comparison between Km and IS values for the flotation of ilmenite from studied gangue minerals are shown in Figs. 3 and 4 before and after surface dissolution. Figure 3 indicates that after surface dissolution the Km values for ilmenite flotation in the presence of Ol-Px, Tr-Cch, and quartz are increased from 36.15, 36.52 and 47.86 min-1 to 41.72, 45.78 and 56.24 min-1, respectively. In the case of gangue minerals, while after surface dissolution the Km value for quartz keeps approximately constant, and it is significantly decreased for Ol-Px and Tr-Cch samples. As observed in Fig. 4, before pretreatment, the kinetic selectivity index for ilmenite flotation from quartz as an iron lacking mineral is greater than that of Ol-Px and Tr-Cch samples. The higher selectivity index represents a better separation of valuable minerals from gangues. Thus, the separation of of ilmenite from quartz using flotation process can be done more selectively than that from two other gangue phases. After surface dissolution, the kinetic selectivity index is increased for the treated ilmenite in the presence of various gangue minerals. This increase for treated Tr-Cch mineral phase is higher than that of treated Ol-Px and quartz minerals. In other words, the kinetic selectivity index for the flotation of treated ilmenite from treated Tr-Cch is very close to that of untreated quartz. Generally, these results show that the surface dissolution improves the selectivity of ilmenite separation from gangue minerals, especially from low iron content gangues.

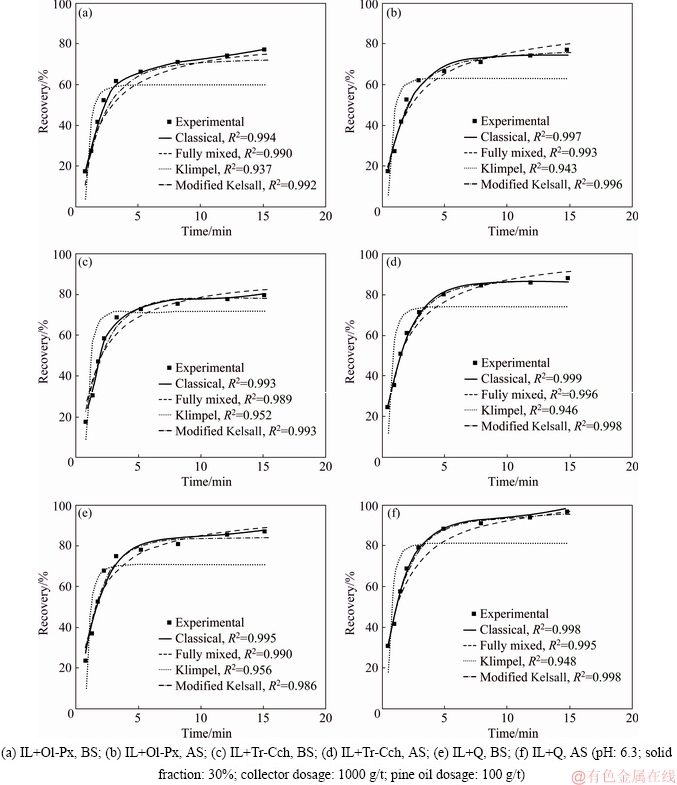

Fig. 2 Comparison of different first-order flotation kinetic models for experimental data before (BS) and after (AS) surface dissolution

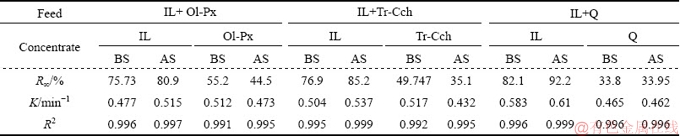

Table 3 Estimated kinetic parameters by classical model for ilmenite flotation from binary mixture of minerals
Fig. 3 Comparison of modified rate constant (Km) for flotation of gangue minerals and ilmenite from binary mixed minerals before and after surface dissolution

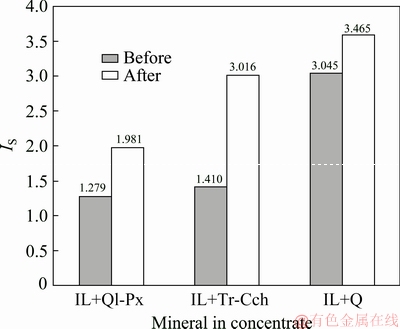

Fig. 4 Comparison of kinetic selectivity index (SI, IS) for flotation of ilmenite from binary mixed minerals before and after surface dissolution
4.1.4 Optimum time of flotation
In order to produce the eligible concentrate, the flotation of minerals should be completed at a specific time where the separation efficiency is maximized. At this time, the rate of recovery of valuable mineral equal to that of gangue mineral comes into the concentrate. Above this time, the rate of gangue minerals starts to be higher than that of valuable minerals [15,35]. The optimum time of flotation (topt) can be calculated by the following equation [39]:
(11)
where kv and kg are the rate constants for valuable and gangue minerals, respectively.
The results of kinetic parameters which were determined by the classic first-order kinetic model are used for calculating the optimum time of flotation (topt). Topt was calculated for the binary mixtures of minerals before and after surface dissolution. The results shown in Fig. 5 indicate that the surface dissolution increases the topt for IL+Ol-Px and IL+Tr-Cch mixtures, while it decreases that for IL+Q. It can be found that the more the modified rate constant and ultimate recovery, the more the topt.

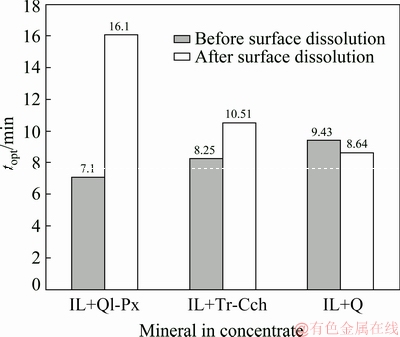

Fig. 5 Comparison of optimum flotation time (topt) for different binary mixed minerals before and after surface dissolution
4.2 ICP-MS analysis
The liquid phases produced by surface dissolution of purified minerals were analyzed by the ICP-mass method. The results presented in Table 4 show the amounts of Fe2+, Mg2+, Ca2+, Si4+ and Ti4+ ions releasing from the surface of those minerals. As observed, the dissolution amount of Fe2+, Mg2+ and Ca2+ ions from the surface of Ol-Px and Tr-Cch phases is much more than that of ilmenite and quartz minerals. By eliminating these metallic ions, the lack of the formation of hydroxyl complexes as the effective groups for interacting with oleate species [40] diminishes the floatability of minerals. Besides, the released ions may form some precipitates on the surface of minerals preventing the collector adsorption and hence their flotation. These events can also affect the kinetic parameters.
Table 4 Content of dissolved ions from ilmenite, Ol-Px, and Tr-Cch after surface dissolution determined by ICP-MS analysis (10-6)
4.3 Contact angle
The contact angle on the surface of studied minerals was measured as a function of time in the presence of 3.65×10-4 mol/L sodium oleate before and after surface dissolution. Figure 6 shows that the contact angle of ilmenite is more than that of accompanying gangue minerals in an extensive period. By rising the time, the measured contact angles for all minerals are decreased with a similar trend. After 3 min the flotation is fast in the first region (Section 3.1), where the contact angles for untreated minerals including ilmenite, Ol-Px, Tr-Cch, and quartz are obtained about 42°, 33°, 30° and 29.7°, respectively. Figure 7 displays that the measured contact angle for pretreated ilmenite is increased in a wide period of time, while it is decreased for all three gangue minerals. The contact angles for pretreated Ol-Px and Tr-Cch are also decreased and come close to that of quartz. This can be due to the removal of Ca2+, Mg2+ and Fe2+ ions as the surface active sites, interacting with the oleate ions and enhancing the surface hydrophobicity [7,9,40,41]. In other words, when the studied gangue minerals subjected to the surface dissolution, their surface properties are somewhat similar to that of quartz. In the fast flotation region, the contact angles for the treated ilmenite, Ol-Px, Tr-Cch, and quartz are achieved almost 42°, 18°, 16° and 22.4°, respectively after 5 min. It is clear that the results of the measured contact angle are in good agreement with the flotation results presented in Fig. 1.
Fig. 6 Measured contact angle for studied minerals as function of time before surface dissolution (pH=6.3; sodium oleate concentration: 3.65×10-4 mol/L)
Fig. 7 Measured contact angle for studied minerals as function of time after surface dissolution (pH=6.3; sodium oleate concentration: 3.65×10-4 mol/L; dissolution time: 10 min; acid concentration: 7.5 vol.%)
4.4 Scanning electron microscopy (SEM)
Morphology of ilmenite, olivine-pyroxene, and tremolite-clinochlore were investigated by the SEM analysis before and after surface dissolution. The results are shown in Figs. 8(a-f). After surface dissolution, ilmenite somewhat shows a smooth, uniform, and clean surface. In the case of treated gangue minerals, the surface pores and roughness are increased. This can be due to the removal of surface active ions like Fe2+, Ca2+, Mg2+ and Al3+ from their surfaces through the surface dissolution process. These results are in good accordance with the results of ICP-MS analysis.
4.5 Kinetics of collector adsorption
The kinetics of collector adsorption on ilmenite, olivine-pyroxene, tremolite-clinochlore, and quartz were determined using 3.65×10-4 mol/L sodium oleate as a collector in various time intervals at a pH of 6.3 before and after surface dissolution. Two models of the pseudo-first-order and pseudo-second-order were fitted to the experimental data. The results show that the linear form of the pseudo-second-order model which is based on the adsorption capacity of the solid phase (mineral) can well describe the experimental data for all minerals before and after surface dissolution (Fig. 9). This indicates that the chemisorption rate may be the controller step in the procedure [42]. Based on the pseudo-second-order model, the initial adsorption rate is determined by [43]
H=K2Se2 (12)
According to the results of kinetic parameters (Table 4), the constant rate of collector adsorption for ilmenite is less than that of all gangue minerals, and the initial adsorption rate of ilmenite is only higher than that of Tr-Cch.
After surface dissolution, the equilibrium capacity of collector adsorption (Se), rate constant (K2) and initial adsorption rate (H) for ilmenite are significantly increased while these parameters are decreased for all three gangue minerals. This can be due to the changes in the surface properties of minerals through the surface dissolution. Thus, the surface dissolution process changes the collector adsorption properties of minerals, including adsorption density and adsorption kinetics by changing the number of surface ions and their positions.

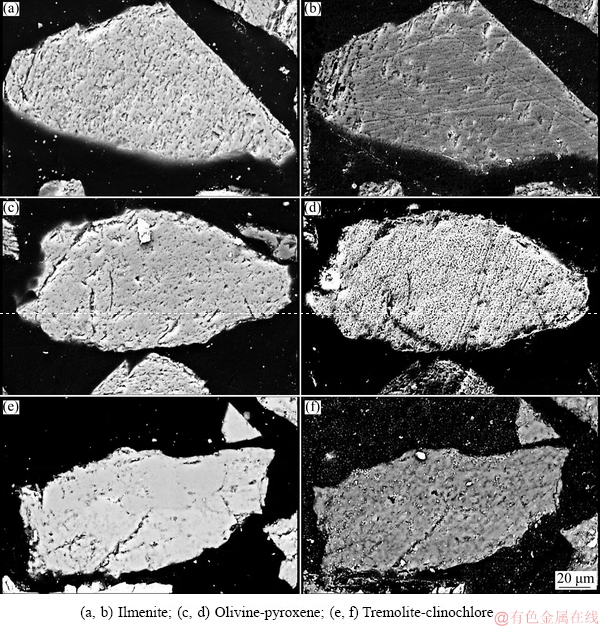

Fig. 8 SEM images of minerals before (a, c, e) and after (b, d, f) acid surface dissolution
It has been shown that the adsorption of reagent on the minerals depends on the surface properties of minerals, including morphology, mineralogy and surface charge [4,10,44,45] which all of them can be changed after the surface dissolution process.
5 Discussion
5.1 Collector adsorption
Collectors adsorb on the surface of minerals through the chemisorption and physisorption mechanisms. For studied minerals including ilmenite, Ol-Px, Tr-Cch and quartz having the iep (isoelectric point) values of 5.4, 3.8, 4.4 and 2.0, respectively [5,46], the adsorption of sodium oleate at a pH of 6.3 takes place dominantly by chemisorption mechanism. The adsorption density of oleate ions on the surface of quartz before and after pretreatment is negligible, which results in the lower flotation recovery of this mineral. This can be due to the lack of reaction of oleate species with Si ions as the only surface cations of quartz. In the case of ilmenite, olivine- pyroxene, and tremolite-clinochlore, the chemisorptions of oleate species on the surface of minerals are taken place according to Eqs. (13)-(22) [40].
These equations indicate that before surface dissolution Fe2+, Mg2+, Ca2+and their hydroxyl complexes are surface active sites for interacting with oleate species. After surface dissolution, by significant removal of these active sites from the surface of olivine, pyroxene, tremolite and clinochlore, the adsorption density and adsorption kinetics of collector are decreased dramatically for Ol-Px and Tr-Cch samples. In the case of pretreated ilmenite, the increase of collector adsorption density and kinetics can be attributed to the conversion of Fe2+ ions to Fe3+ ones which have higher tendency for reacting with oleate species [40].
Fe3++3RCOO-→Fe(RCOO)3, pH<7 (IL) (13)
FeOH2++2RCOO-→FeOH·(RCOO)2, pH<7 (IL) (14)
Fe2++2RCOO-→Fe(RCOO)2, pH=5-8 (IL and Ol-Px) (15)

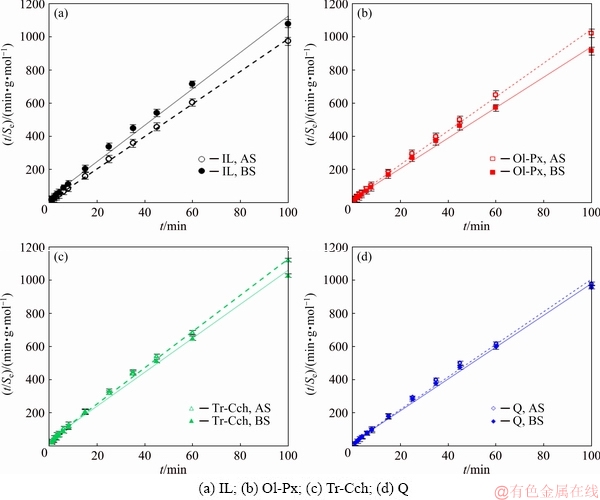

Fig. 9 Pseudo-second-order kinetic model for adsorption of sodium oleate on IL, Ol-Px, Tr-Cch, and quartz at 25 °C before and after surface dissolution

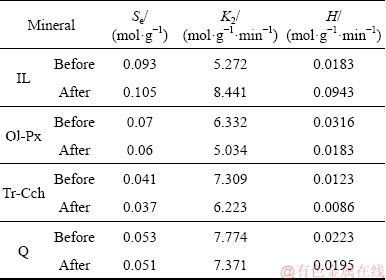

Table 5 Comparison of adsorption kinetics (pseudo-second- order) parameters for IL, Ol-Px, Tr-Cch, and Q at 25 °C before and after surface dissolution
FeOH++RCOO-→FeOH·RCOO,
pH=5-8 (IL and Ol-Px) (16)
Mg2++2RCOO-→Mg(RCOO)2
pH=8-12 (Tr-Cch and Ol-Px) (17)
Mg2++(RCOO)22-→Mg(RCOO)2
pH=8-12 (Tr-Cch and Ol-Px) (18)
MgOH++RCOO-→MgOH·RCOO
pH=8-12 (Tr-Cch and Ol-Px) (19)
Ca2++2RCOO-→Ca(RCOO)2
pH=8-12 (Tr-Cch and Ol-Px) (20)
Ca2++(RCOO) 22-→Ca(RCOO)2
pH=8-12 (Tr-Cch and Ol-Px) (21)
CaOH++RCOO-→CaOH·RCOO
pH=8-12 (Tr-Cch and Ol-Px) (22)
5.2 Flotation kinetics
The surface dissolution before the flotation changes the surface properties of minerals, controlling the vicinity of the particles and bubbles and changing the collision, attachment and detachment phenomena [3], which in turn changes ultimate recovery and kinetic rate constant of the minerals flotation.
The classical first-order kinetic model, which is named as the first-order with Dirac delta function, is the most applicable kinetic model to portray a flotation process [16,34]. The rate constant takes into account some parameters, including superficial gas velocity, bubble size, collision, and attachment efficiencies, which are shown by Eq. (23) [17,47]:
(23)
where Gfr is the gas flow rate, h is the height of the flotation cell, db is the diameter of the bubble, Vcell is the volume of the flotation cell; Ec and Ea are the efficiencies of the bubble-particle collision and attachment, respectively. The bubble-particle collection phenomenon is divided into three events, including collision, attachment, and detachment [48,49].
From flotation kinetics point of view, the particle-bubble collision and attachment are the rate controlling steps in a flotation process [47]. The interfacial properties of a bubble-particle control the phenomena of attachment and detachment. The bubble-particle collision is independent of contact angle, whereas attachment and detachment can be dependent on the contact angle [50-53]. In this regard, the attachment time [54] is defined as the time of a particle-bubble attachment, which is taken into account both hydrodynamic and surface chemistry of flotation. Kinetics of particle-bubble attachment is determined by attachment time [55,56]. KOWALCZUK et al [56] reported that the more hydrophobic the particles, the low attachment the time [56].
After surface dissolution, the conversion of Fe2+ ions to Fe3+ ones on the surface of ilmenite results in the formation of more insoluble ferric iron oleate (Ksp=1×10-29.7) in comparison with ferrous iron oleate (Ksp=1×10-15.5) [40]. This means that using sodium oleate as a collector, the hydrophobicity of treated ilmenite is more than that of the original one. This also has been confirmed by the results of contact angle measurements presented in Figs. 6 and 7. The more hydrophobic surface of treated ilmenite causes the decrease of bubble attachment time and the formation of more stable particle-bubble attachment during its climb to the froth phase in the flotation cell. Thus, these events enhance the flotation rate constant for treated ilmenite by increasing the efficiency of bubble-particle attachment (Ea) according to Eq. (23).
In the case of Ol-Px and Tr-Cch phases, by removing some active sites (Fe2+, Mg2+, and Ca2+ ions and their hydroxyl species) from the minerals surfaces via surface dissolution, the collector adsorption density is significantly decreased. The decrease of collector adsorption density can also be due to the formation of some precipitate components on the surface of minerals which prevent the interaction between oleate species and minerals active sites. Therefore, the less adsorption density of collector reduces the hydrophobicity (Figs. 6 and 7) of treated minerals including olivine, pyroxene, tremolite, and clinochlore. This affects the stability of bubble-particle attachment negatively and decreases the flotation rate constant for treated Ol-Px and Tr-Cch phases.
6 Conclusions
(1) Through the surface dissolution pretreatment the significant amount of Fe2+, Mg2+ and Ca2+ ions dissolved from the surface of gangue minerals such as olivine, pyroxene, tremolite, and clinochlore while the removal of ions from ilmenite surface is negligible.
(2) The removal of active cations from the surface of gangue phases makes great differences between the surface properties of ilmenite and gangue minerals.
(3) After surface modification, the flotation recovery of ilmenite is increased while it is decreased for gangue minerals, especially Ol-Px and Tr-Cch samples.
(4) The adsorption kinetics and initial adsorption rate of the collector is improved for pretreated ilmenite while those are reduced for gangue minerals after pretreatment.
(5) The surface dissolution improves the modified rate constant and kinetic selectivity indices of ilmenite in the presence of all gangue minerals.
(6) In a flotation circuit, the improvement of flotation kinetic parameters through the acid surface dissolution results in the production of high quality concentrate with lower volumes of equipments. This is very important from the economic point of view.
