Trans. Nonferrous Met. Soc. China 27(2017) 1558-1568

Oxidation behavior and mechanism of porous nickel-based alloy between 850 and 1000 °C

Yan WANG¹, Yong LIU², Hui-ping TANG³, Wei-jie LI⁴, Chao HAN⁴

1. School of Aeronautics and Astronautics, Central South University, Changsha 410083, China;

2. State Key Laboratory of Powder Metallurgy, Central South University, Changsha 410083, China;

3. State Key Laboratory of Porous Metals Materials, Northwest Institute for Nonferrous Metal Research, Xi’an 710016, China;

4. Institute for Superconducting and Electronic Materials, University of Wollongong, Wollongong, NSW 2522, Australia

Received 6 May 2016; accepted 23 November 2016

Abstract: The oxidation behavior and mechanism of a porous Ni-Cr-Al-Fe alloy in the temperature range from 850 to 1000 °C were investigated by optical microscopy, scanning electron microscopy (SEM) and energy dispersive spectroscopy (EDS), X-ray diffraction (XRD) analyses and X-ray photoelectron spectroscopy (XPS). The results show that the oxidation kinetics at 950 and 1000 °C of this porous alloy is pseudo-parabolic type. Complex layers composed of external Cr₂O₃/NiCr₂O₄ and internal α-Al₂O₃ are formed on the surface of the oxidized porous alloys. γ' phases favor the formation of NiO/Cr₂O₃/NiCr₂O₄ during the initial oxidation. Many fast diffusion paths contribute to the development of the oxide layers. The decrease of the open porosity and the permeability with exposure time extending and temperature increasing can be controlled within a certain range.

Key words: porous alloy; high temperature oxidation; kinetics; oxide layer; diffusion

1 Introduction

The porous metallic filters based on Fe₃Al alloys possess superior hot corrosion resistance properties, which have been used in the field of gas purification [1]. However, the poor room temperature ductility of the porous alloy and its insufficient strength above 600 °C make it difficult to withstand typical operating conditions. With the increasing requirements for energy crisis and environmental protection, more severe demands for filters are presented [2]. Nickel-based porous alloys exhibit good mechanical properties, excellent resistance to hot corrosion, low density, and high permeability, which are regarded as one of the candidate materials for filters applied to coal-fired power plants [3,4]. It has been demonstrated that alloys designed to develop surface layers of Al₂O₃ were more favorable than that of higher volatile Cr₂O₃ in oxygen-rich environments at high temperatures [5]. The oxidation behaviors of Ni-Cr-Al-based alloys have been reported since the last several decades [6-9]. The oxidation map for the Ni-Cr-Al alloys with normal grain size was also established [10].

Compared with bulk materials, larger surface area of porous alloys due to the presence of pores makes their applicability to filters enormously widening. However, the increasing mass gain per unit of the apparent surface implied that the real area of the alloy exposed to attack was dramatically increased [11]. The formation of less-protective oxides was also favored compared with that in the dense alloys under the same oxidation conditions [12]. Thus, the filter performance of the porous alloys would be significantly changed. In recent years, evaluations on the high-temperature oxidation properties of Ni-based [13-15] and Fe-based [16,17] porous materials have attracted more attention. PANG et al [13] synthesized the Ni-Cr-Fe alloy foams and compared the oxidation behavior of the foams with different compositions at temperatures of 800-1000 °C. CHOI et al [14] found that the decrease of pore size would result in lower high-temperature oxidation resistance of Ni-Fe-Cr-Al porous alloys. MICHAILIDIS et al [15] proposed that substrate composition and morphology had a significant influence on the grain size and oxide structure of high purity nickel and Inconel foams. BAUTISTA et al [16] characterized the oxides formed during high temperature oxidation of four Ni-based or Fe-based porous materials. Up to now, information about the oxidation behavior of porous Ni-Cr-Al-based alloys at elevated temperatures was still limited. As a basic system for developing more oxidation resistant materials used for the gas purification filters, systematically evaluations on its high-temperature oxidation properties are needed.

In this investigation, the oxidation behavior of a porous Ni-Cr-Al-Fe alloy at elevated temperatures was studied. The oxidation products and the structures of the oxide layers were systematically analyzed. Efforts were paid on discussing the differences of the oxidation mechanisms between the porous alloy and the dense alloy.

2 Experimental

Table 1 shows the nominal composition of the porous Ni-Cr-Al-Fe alloy used in this investigation. A conventional powder metallurgy process was employed to fabricate the porous alloys by using high purity water-atomized powders (99.99%). Oxidation tests were carried out on the porous alloys in a horizontal tube furnace with a nitrogen flow rate of 0.03 m³/h. After holding at temperatures of 850-1000 °C for 2-8 h, the specimens were air-cooled to room temperature, and then the mass changes were measured by an electronic balance with an accuracy of 0.1 mg. The specific surface area of the porous alloy was measured using Brunauer-Emmett-Teller (BET) method [18]. The porosities of the porous alloys before and after oxidation were obtained according to Archimedes method. The air permeation rates were determined using an FBP-3 testing system for porous materials.

Table 1 Composition of porous Ni-Cr-Al-Fe alloy (mass fraction, %)

The morphologies on the surface and the cross- section of the porous alloys were examined by a Reichert MeF3A optical microscope and a Nova Nanosem 230 field emission scanning electron microscope (FESEM), respectively. A relatively rough surface with bumps and hollows is exhibited on the porous alloys (Fig. 1(a)), and a few micro pores are found inside the porous strut (Fig. 1(b)). Morphologies and chemical compositions of the oxides formed on the surfaces of the oxidized specimens were also analyzed by the Nova Nanosem 230 microscope equipped with an energy dispersive X-ray spectroscope (EDS). X-ray diffraction (XRD) analysis (Rigaku D/max-2550VB) was carried out using a Cu K_α radiation to identify different phases presented in the oxidized scales. A K_α 1063 X-ray photoelectron spectroscopy (XPS) instrument was further performed on the surfaces of the specimens oxidized at 1000 °C for 2 and 8 h, respectively. Al K_α (1486.6 eV) and Ar beam were selected as the excitation source and spray beam, respectively. The binding energy ranging from 0 to 1300 eV was then systematically scanned with a step size of 0.5 eV. The XPS lines of various elements in the porous alloys were recorded, namely, O 1s, Ni 2p, Cr 2p and Al 2p.

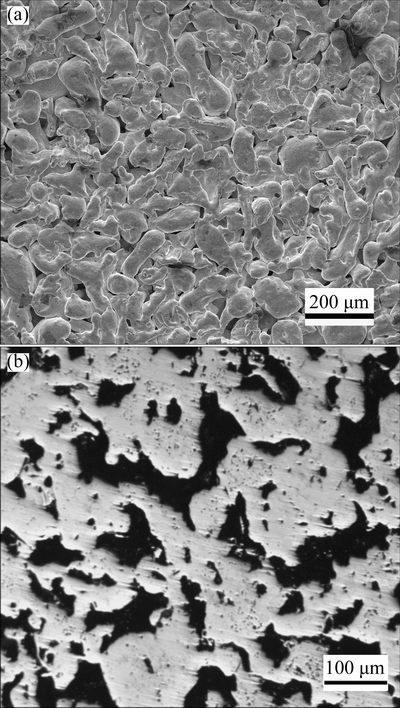

Fig. 1 Surface (a) and cross-section (b) morphologies of porous Ni-Cr-Al-Fe alloy

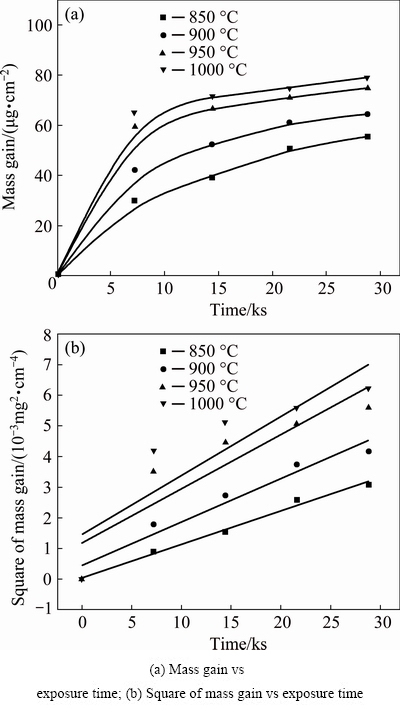

Fig. 2 Mass gain and kinetics analyses of porous Ni-Cr-Al-Fe alloys oxidized in air at different temperatures

3 Results

3.1 Oxidation kinetics

The isothermal oxidation curves of the tested porous Ni-Cr-Al-Fe alloys at different temperatures are plotted in Fig. 2. The mass gain is found to increase as the oxidation temperature increases or the exposure time extends. It may be noted that the porous alloys oxidized at higher temperatures show much faster growth rates of the oxide layers at the initial stage of oxidation (Fig. 2(a)). However, with the exposure time extending, the curves at higher temperatures are flatter than those at lower temperatures, implying that relatively stable oxides were favored with the temperature increasing. The oxidation kinetics of dense Ni-Cr-Al-based alloys was suggested to follow a parabolic rate law [7,10], with the oxidation rate constant k_p expressed as [19]:

(△W)²=k_pt                                   (1)

where ΔW is the mass gain per unit area, t is the exposure time at a certain temperature. Assuming the pore structures of the porous alloys remained relatively stable, the initial value of 0.027 m²/g based on the BET analysis was used as the mean specific surface area approximately during the oxidation. Figure 2(b) shows the linear fitting of the mass gain vs exposure time by the parabolic rate law. The random scatters are not significant at temperatures of 850 and 900 °C, but serious deviations of the experimental data from the regression-fitted lines are exhibited at temperatures of 950 and 1000 °C. The regression-fitted results obtained from the present experiments are listed in Table 2. The correlation coefficient (R) apparently decreases with the temperature increasing.

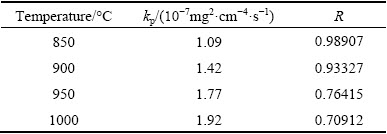

Table 2 Fitting results of oxidation rate constant k_p for porous Ni-Cr-Al-Fe alloys oxidized at different temperatures using parabolic rate law

The oxidation rate constant k_p and temperature can be correlated through the Arrhenius equation:

k_p=K₀exp[-Q/(RT)]                           (2)

where K₀ is the pre-exponential factor, Q is the activation energy, R is the mole gas constant and T is the temperature. The plot of ln k_p-1/T for the porous alloy oxidized at different temperatures is shown in Fig. 3. It may be noted that k_p values for the porous alloys oxidized at 850 and 900 °C are higher than that extrapolated from the other two points (950 and 1000 °C). By linear fitting, the activation energy Q of oxidation in the test temperature range was obtained to be 47 kJ/mol and the regression correlation coefficients (R) was 0.95205. It was reported that the activation energies of diffusion for Al ions through the Al₂O₃ lattice and along the grain boundaries were 450-750 and about 500 kJ/mol [20,21], respectively, whereas the activation energy for Cr ions in Cr₂O₃ ranged from 240 to 280 kJ/mol [22,23]. Thus, the activation energy of oxidation for the porous alloy was much lower than the relevant data. The change of the pore structure during oxidation can be regarded as one of the reasons for the variation of the calculated oxidation rate constant (k_p), especially at higher oxidation temperatures. Meanwhile, there were still many factors that would influence the oxidation kinetics of the porous alloy, such as micro pores, defects, cracking and scale adherence [24], leading to the lower value of activation energy.

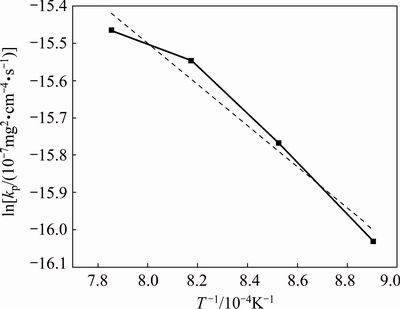

Fig. 3 Variation of ln k_p vs 1/T for porous Ni-Cr-Al-Fe alloys oxidized at temperatures of 850 to 1000 °C

3.2 Oxidation products

Figure 4 shows the XRD patterns of the surfaces of the tested porous Ni-Cr-Al-Fe alloys exposed at different temperatures for 8 h. The phase constitution of the porous alloys before oxidation is identified to be main γ phase accompanied by a certain amount of γ'-Ni₃Al phase. After being oxidized at different temperatures, oxides of Cr₂O₃, α-Al₂O₃ and NiCr₂O₄ are found on the surfaces of the porous alloys. The intensities of NiCr₂O₄ and Cr₂O₃ peaks apparently decrease with the increasing temperature. After being exposed at 1000 °C, the diffraction peaks of NiCr₂O₄ can be hardly detected, and those of Cr₂O₃ show weaker intensities (Fig. 4). α-Al₂O₃ phase is determined to be the main oxidation product, indicating that high temperature is beneficial to the formation of α-Al₂O₃ layer. γ-phase always exhibits stronger peaks in the XRD patterns, which implies the better oxidation resistance in the tested temperature range. The existence of a few γ'-Ni₃Al phases is also suggested to have a certain effect on the oxidation mechanisms of the porous alloy.

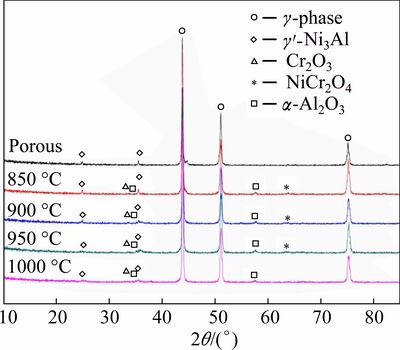

Fig. 4 XRD patterns of surfaces of porous Ni-Cr-Al-Fe alloys oxidized at different temperatures for 8 h

The compositions and the chemical states of elements on the surfaces of the porous alloys oxidized at 1000 °C were further examined using XPS. Ar⁺ ion beam sputtering was firstly operated, and then full range scanning at the binding energy between 0 and 1300 eV was performed. The XPS spectrum obtained from that oxidized for 8 h is shown in Fig. 5. The elements of Ni, Cr, Al, Fe, O and C are detected, and C is deduced to mainly come from the surface contamination [25].

Figure 6 shows the narrow spectra of Ni, Cr, Al and O on the surface of the porous alloy oxidized at 1000 °C for 8 h, respectively. It can be seen that the narrow spectrum of element Ni is mainly composed of 2p_3/2 and 2p_1/2 peaks (Fig. 6(a)). There are two Ni 2p_3/2 peaks exhibited after computer fitting, with the binding energies at 853.0 and 856.4 eV, respectively. The binding energy of standard Ni 2p_3/2 was reported to be 852.6 eV [26], while that of standard Ni(OH)₂ 2p_3/2 was between 855.9 and 856.3 eV. Thus, the chemical state of Ni is deduced to be Ni²⁺. It may be noted that the peaks of Cr 2p_3/2 in the spectrum of oxide scales are broader than that of the standard atlas (Fig. 6(b)). The binding energy of the detected Cr 2p_3/2 peak is determined to be 579.5 eV, which was inferred to belong to Cr₂O₃ and Cr₂O₄^2- [26]. The existing form of element Ni in the oxide scales is therefore suggested to be NiCr₂O₄. The peak of element Al in the spectrum of the oxide scales shows good symmetry, as seen from Fig. 6(c). The corresponding binding energy is in agreement with standard Al₂O₃ (Al 2p of 74.3 eV) [26]. Three peaks of O 1s appear in the narrow spectrum of element O (Fig. 6(d)). The corresponding binding energies from scan 1 to scan 3 are 531.7, 530.9 and 530.0 eV, respectively, which conform to that of standard Al₂O₃, O 1s (531.6 eV); Cr₂O₃, O 1s (530.9 eV); NiCr₂O₄, O 1s (529.9 eV) [26], respectively.

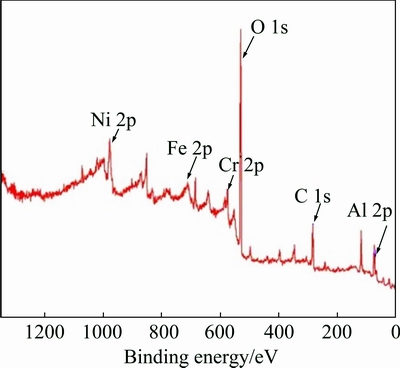

Fig. 5 XPS spectrum of surface of porous Ni-Cr-Al-Fe alloy oxidized at 1000 °C for 8 h

The XPS spectra of Ni 2p, Cr 2p, Al 2p and O 1s on the surfaces of the porous alloys as a function of exposure time at 1000 °C are shown in Fig. 7. The intensity of the Al 2p peak apparently increases with the exposure time increasing from 2 to 8 h (Fig. 7(c)). The rates of various oxidation products at different exposure time are given in Table 3. Cr₂O₃ and Al₂O₃ almost exhibit similar rate after being oxidized at 1000 °C for 2 h. When the exposure time increases to 8 h, Al₂O₃ is demonstrated to be the dominant product, and the contents of both Cr₂O₃ and NiCr₂O₄ decrease to different extents. Combining with the results above, a mixed oxide film consisted of Al₂O₃, Cr₂O₃ and NiCr₂O₄ was suggested to be formed on the surfaces of the porous alloys oxidized at different temperatures. High temperature and extending exposure time would contribute to the formation of single Al₂O₃ film.

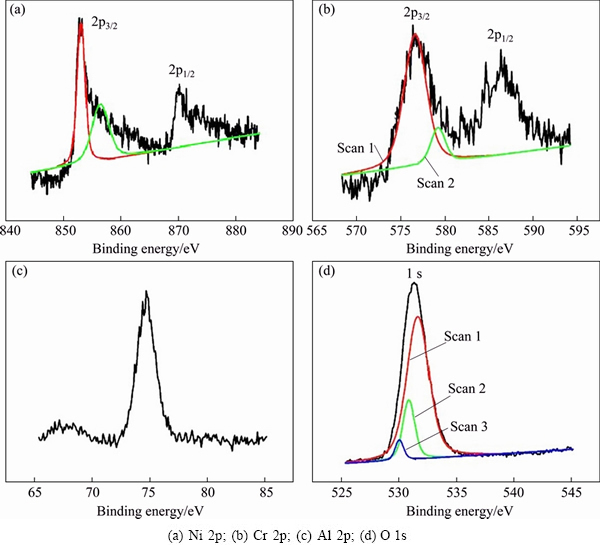

Fig. 6 XPS narrow spectra of surface of porous Ni-Cr-Al-Fe alloy oxidized at 1000 °C for 8 h

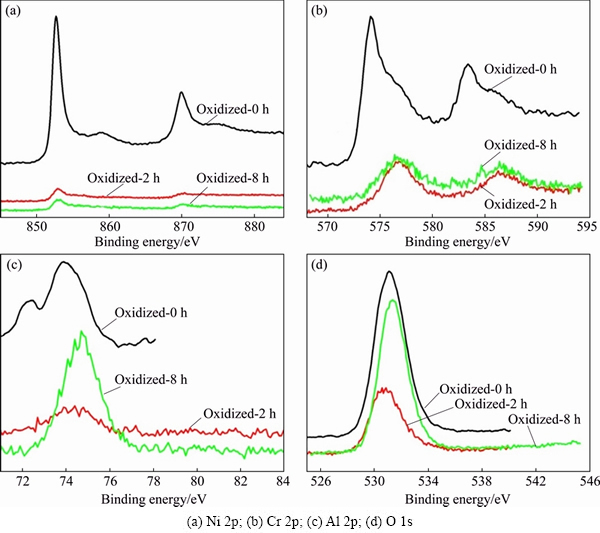

Fig. 7 XPS spectra of surfaces of porous Ni-Cr-Al-Fe alloys before and after oxidation at 1000 °C for different exposure time

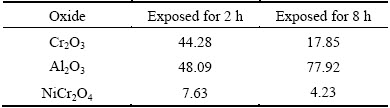

Table 3 Proportions of oxides on surfaces of porous Ni-Cr- Al-Fe alloys oxidized at 1000 °C for different exposure time (mass fraction, %)

3.3 Oxide morphologies

Figure 8 presents the SEM images on the surfaces of the porous Ni-Cr-Al-Fe alloys oxidized at temperatures of 850 and 1000 °C. After being oxidized at 850 °C for 2 h, a certain amount of oxides with short-needle shape or spherical shape appear on the surface of the porous alloy (Fig. 8(a)). EDS results suggest that the regions rich in either Al or Cr are formed at the initial stage of the oxidation. When the exposure time extends to beyond 4 h, oxide aggregation is observed and tortoise-shell shaped regions have been formed (Figs. 8(c) and (e)). With the oxidation temperature increasing to 1000 °C, there are a considerable amount of oxides covered on the surface of the porous alloy after exposure for 2 h, and different aggregated areas of oxides have already been formed (Fig. 8(b)). After being oxidized for 4 h, the aggregated areas are connected and an almost continuous film is exhibited on the surface of the porous alloy (Fig. 8(d)). Due to the continuous supply of Al from the porous substrate, the compact film composed mainly of Al₂O₃ is finally obtained after exposure for 8 h (Fig. 8(f)).

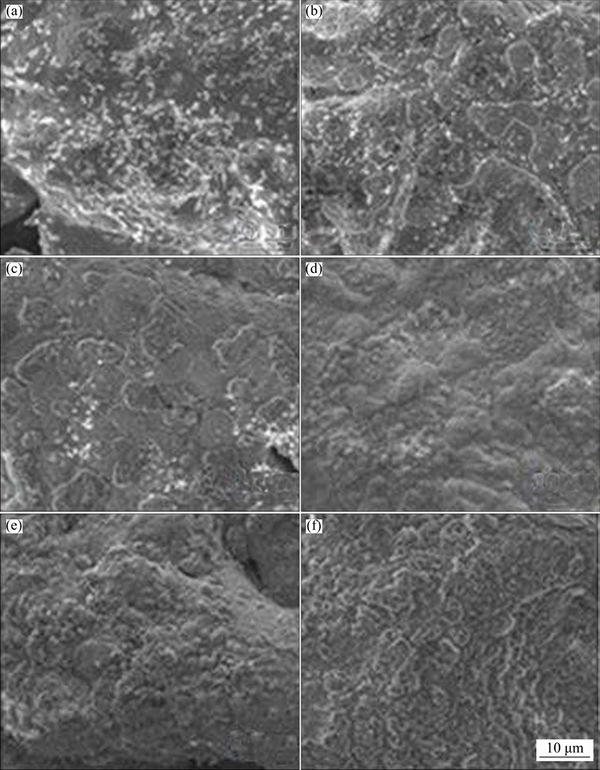

Fig. 8 SEM images on surfaces of porous Ni-Cr-Al-Fe alloys oxidized at 850 °C for 2 h (a), 4 h (c), 8 h (e), and at 1000 °C for 2 h (b), 4 h (d), 8 h (f)

3.4 Oxide film composition

The oxide scale as well as the substrate next to the scale was further confirmed by EDS line scanning analyses in order to clarify the high-temperature oxidation mechanism of the porous Ni-Cr-Al-Fe alloy. Figure 9 shows the line scanning maps on the cross-sections of the porous alloys oxidized at different temperatures. As seen from Fig. 9(a), two domains of oxide scales with different compositions are exhibited after exposure at 850 °C for 2 h. Aluminum oxide, chromium oxide and/or nickel-chromium oxide are identified in the external layer, while aluminum oxide becomes dominent in the internal layer. Similar oxide structures are obtained on that oxidized for 4 h (Fig. 9(b)), but the differences of the relative content of Cr in the oxide scale and the substrate become slighter. After exposure for 8 h, almost single aluminum oxide layer is formed on the surface of the substrate (Fig. 9(c)). Similar oxide structures are exhibited on those exposed at 900 and 950 °C for 8 h, respectively, as shown in Figs. 9(d) and (e). The oxide scale formed at 1000 °C for 2 h is also divided into two layers (Fig. 9(f)), i.e., external Al₂O₃/Cr₂O₃/NiCr₂O₄ and internal Al₂O₃. The relative content of element Al in the oxide scale is apparently higher than that in the substrate after exposure for beyond 4 h (Figs. 9(g) and (h)). No apparent enrichment of elements Cr or Ni was observed, which implied that the formation of the single Al₂O₃ was favored due to the increasing temperature. It was suggested that the transition of the oxide structures in the tested temperature range exhibited similar process with the exposure time extending, i.e., from the mixed oxide layer composed of external Al₂O₃/Cr₂O₃/NiCr₂O₄ and internal Al₂O₃ to almost single Al₂O₃ structure.

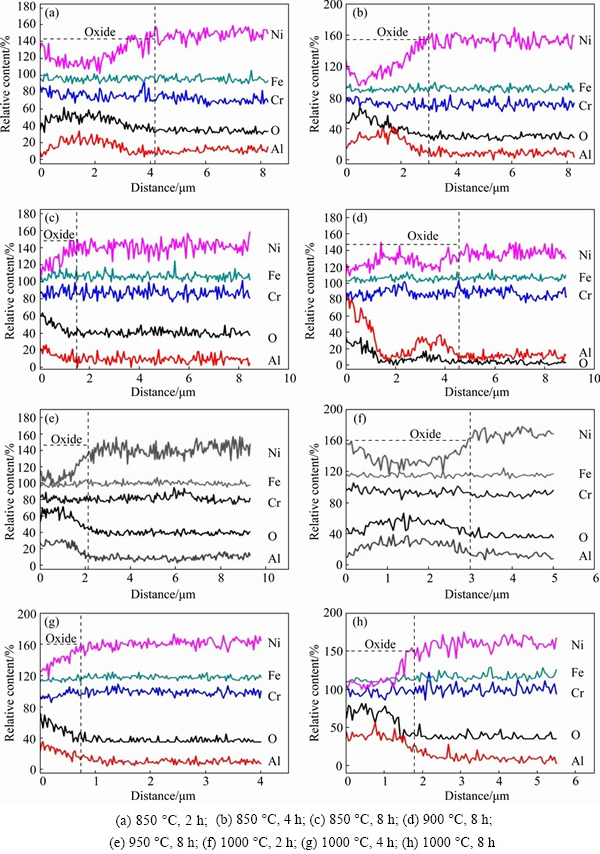

Fig. 9 Cross-sectional EDS line scanning maps of porous Ni-Cr-Al-Fe alloys oxidized under different conditions

3.5 Pore structure evolution

Figure 10 shows the variations of open porosity and permeability with exposure time for the porous Ni-Cr-Al-Fe alloys oxidized at different temperatures. Both the open porosity and the permeability show an approximately declining trend with the exposure time extending. However, the permeability is found to fluctuate to a certain degree at different temperatures. Table 4 summarizes the reduced rates of open porosity and permeability after exposure for 8 h. It can be seen that although the increase of temperature aggravates the decrease of open porosity and permeability, both the reduced rates are controlled within a certain range. The permeability coefficient of porous materials has been reported to be proportional to the square of the mean pore diameter [27]. Therefore, the variation of permeability with the exposure time can be attributed to the morphology transformation of the pore structures during the oxidation. It can be deduced that almost single stable Al₂O₃ film was gradually formed on the surfaces of the oxidized porous alloys with the exposure time extending, leading to a better filtration property even at high temperatures.

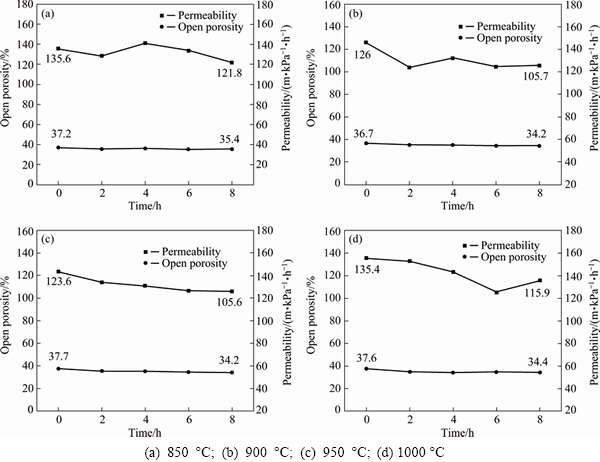

Fig. 10 Open porosity and permeability versus exposure time at different temperatures

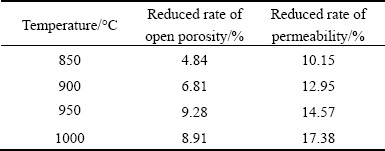

Table 4 Reduced rates of open porosity and permeability at different temperatures for 8 h

4 Discussion

The tested porous Ni-Cr-Al-Fe alloys at temperatures of 950 and 1000 °C exhibit oxidation kinetics curves of pseudo-parabolic types (Fig. 2 and Table 2), which was different from the common parabolic type kinetics of the bulk Ni-Cr-Al alloy [6]. The confusing oxidation kinetics was mainly due to the fact that the real area of the porous materials exposed to oxidation was very different from the apparent area that was used to normalize the mass gains, especially at high temperatures. Since the open or closed pores influenced the real area exposed to oxidation, the porous alloys would undergo greater mass gains per apparent surface unit than the dense materials [12]. Simultaneous formation of α-Al₂O₃ along with Cr₂O₃ and NiCr₂O₄ (Table 3 and Fig. 9) may be responsible for faster scaling rate during the transient period lasting up to 2 h (Fig. 2) [28]. Above the exposure time, the oxides gradually connected and covered almost the whole surface of the specimen (Fig. 8). The oxidation process was thus changed from a direct reaction between alloy surface and air, to a reaction which was dependent on the rate of outward diffusion of metal cations and inward diffusion of oxygen anions through the oxide scale [29].

A composition of Al₂O₃, Cr₂O₃ and NiCr₂O₄ is exhibited in the oxide layers at the tested temperatures (Fig. 4), which was in agreement with that of the typical oxide type for the bulk Ni-Cr-Al based alloys [30]. The variation of composition in the oxide scales of the porous alloy can also strongly affect its oxidation kinetics. XRD spectra confirm that with the increase of oxidation temperature, the amount and the intensity of Cr₂O₃ and NiCr₂O₄ decrease, and α-Al₂O₃ becomes the dominant oxide product with the extending exposure time (Fig. 4). Meanwhile, since the formation of oxides tends to block the small pores in the porous alloys, a complex change of surface morphology occurs and the real area exposed is dramatically decreased with the oxidation proceeding. The reduced rate of the open porosity shows a little change at higher temperatures (Fig. 10), which can be ascribed to the formation of relatively stable α-Al₂O₃, thus resulting in the slower growth rate of the scale (k_p) (Fig. 3).

According to the oxide map proposed by GIGGINS and PETTIT [10], the Ni-Cr-Al alloy at the temperatures of 850 to 1000 °C should develop a continuous single scale of Al₂O₃. However, external Al₂O₃/Cr₂O₃/NiCr₂O₄ and internal Al₂O₃ structures appear on the surface of the porous alloy oxidized at 850 °C at the initial stage of oxidation (Fig. 9(a)). Although an almost single Al₂O₃ layer is found after being oxidized for 8 h (Fig. 9(c)), a complicated oxide composition is eventually exhibited (Fig. 4). At 1000 °C, the content of Al₂O₃ occupies a great proportion among the oxide products, but Cr₂O₃ and NiCr₂O₄ are still detected (Table 3). The diffusion of Al was reported to be markedly reduced as the system became more ordered [31]. NUMAKURA et al [32] suggested that the diffusion of Al was 10 to 25 times slower in the Ni₃Al than that in the Ni-based γ-phase. Since the existence of the γ'-Ni₃Al precipitates is demonstrated in the porous alloys (Fig. 4), part of Al would be ordered and the diffusion of Al would be decreased to some extent. NiO and Cr₂O₃ were therefore formed at the initial stage of oxidation. The appearance of the NiCr₂O₄ spinel must result from the transient oxidation in which nickel and chromium aluminum reacted [33].

The diffusion courses involving in the oxidation mainly included lattice diffusion, grain boundary diffusion and probably short-circuit diffusion in pores and cracks. The localized protrusions or ridges on the surface of the tested porous alloys (Fig. 1) can result in some areas to be more active than others from a point of view of corrosion. Micro pores also played a significant role in the initial oxidation, which would generate easy path ways for inward diffusion of O and outward diffusion of Al or Cr [29]. Besides, accompanied by the non-uniform oxide scale thickening, the grain boundaries of local scales may as well act as diffusion channels for O [34], or for both O and Al or Cr [35]. Grain-boundary diffusion was reported to be much faster than lattice diffusion for both metals and oxygen [36], since more disordered structures at the boundaries would lead to the lower activation energy of the boundary process. In the participation of large number of short circuit paths, the diffusion distance across the porous substrate was greatly reduced, which would contribute to the decrease of the activation energy Q for oxidation. However, with gradual formation of the oxide scales, the easy potential diffusion paths for oxygen and/or metal ions decreased, and the oxygen activity beneath the oxide layer dropped, making it more favorable for the formation of most thermodynamically stable oxide, i.e., Al₂O₃.

Thanks to high content of Al in the tested porous alloys, Al₂O₃ is expected to form continuously, and the increase of Al₂O₃ content with the oxidation time extending is found at different temperatures (Table 3 and Fig. 9). Especially at higher temperature and longer oxidation time, the formation of almost single Al₂O₃ phases is greatly promoted. Some meaningful amounts of NiCr₂O₄ as well as complicated oxide layers implied that the performance of the porous alloys was not as good as initially foreseen. Even so, the gradual formation of relatively continuous and protective Al₂O₃ makes the pore structure better controlled (Fig. 10 and Table 4), which alleviated the deterioration of the filtration property at high temperatures.

5 Conclusions

1) The porous Ni-Cr-Al-Fe alloys exhibit oxidation kinetics curves of pseudo-parabolic types at temperatures of 950 and 1000 °C. The calculated oxidation rate constant deviates from the regression- fitted lines, and the value of calculated oxidation activation energy is low.

2) Cr₂O₃, α-Al₂O₃ and NiCr₂O₄ are formed on the surfaces of the porous Ni-Cr-Al-Fe alloys. The transition of oxide structures on the surfaces of the porous alloys with extending exposure time shows similar process, i.e., from the mixed oxide layer composed of external Al₂O₃/Cr₂O₃/NiCr₂O₄ and internal Al₂O₃ to almost single Al₂O₃ structure.

3) The formation of mixed oxides of NiO/Cr₂O₃/NiCr₂O₄ at the initial stage of oxidation is ascribed to the limited diffusion of Al due to the precipitation of γ'-phases in the porous alloys. More path ways for inward diffusion of oxygen and outward diffusion of aluminum or chromium are provided, contributing to the decrease of the activation energy for oxidation. Accompanied by the development of oxide scales, the formation of most thermodynamically stable Al₂O₃ is favored.

4) Both the open porosity and the permeability of the porous Ni-Cr-Al-Fe alloys show a declining trend with extending exposure time. The increase of oxidation temperature aggravates the decrease of open porosity and permeability, but the reduced rates are defined in a controllable range.

References

[1] PEUKERT W. High temperature filtration in the process industry [J]. Filtration & Separation, 1998, 35: 461-464.

[2] LUCKE T, FISSAN H. The prediction of filtration performance of high efficiency gas filter elements [J]. Chemical Engineering Science, 1996, 51: 1199-1208.

[3] LIU Pei-sheng, YU Bing, HU An-min, LIANG Kai-ming, GU Shou-ren. Development in applications of porous metals [J]. Transactions of Nonferrous Metals Society of China, 2001, 11: 629-638.

[4] LI Wei-jie, LIU Yong, WANG Yan, HAN Chao, TANG Hui-ping. A new preparation method for porous iron-based superalloy materials [J]. Materials Science and Engineering of Powder Metallurgy, 2012, 17: 371-376. (in Chinese)

[5] TIAN Su-gui, LU Xu-dong, SUN Zhen-dong. Internal oxidation and internal nitridation of Ni base alloy with high Cr contents during high temperature exposure [J]. The Chinese Journal of Nonferrous Metals, 2012, 22: 408-415. (in Chinese)

[6] YOUNG D J, CHYRKIN A, HE J, D, QUADAKKERS W J. Slow transition from protective to breakaway oxidation of Haynes 214 foil at high temperature [J]. Oxidation of Metals, 2013, 79: 405-427.

[7] JANG C H, KIM D J, KIM D H, SAH I J, RYU W S, YOO Y S. Oxidation behaviors of wrought nickel-based superalloys in various high temperature environments [J]. Transactions of Nonferrous Metals Society of China, 2011, 21: 1524-1531.

[8] LI Wei-jie, LIU Yong, WANG Yan, HAN Chao, TANG Hui-ping. High-temperature oxidation resistance behavior of Ni-Cr-Al-Fe based powders [J]. The Chinese Journal of Nonferrous Metals, 2010, 20: 2327-2335. (in Chinese)

[9] HAN Chao, LIU Yong, WANG Yan, LI Wei-jie, TANG Hui-ping. High-temperature oxidation behavior of as-cast Ni-Cr-Al-Fe based alloys [J]. Materials Science and Engineering of Powder Metallurgy, 2011, 16: 806-814. (in Chinese)

[10] GIGGINS C S, PETTIT F S. Oxidation of NiCrAl alloys between 1000 and 1200 °C [J]. Journal of the Electrochemical Society, 1971, 118: 1782-1790.

[11] BAUTISTA A, MORAL C, VELASCO F, SIMAL C,  S. Density-improved powder metallurgical ferritic stainless steels for high-temperature applications [J]. Journal of Materials Processing Technology, 2007, 189: 344-351.

[12] ZHENG Zhi, JIANG Yao, DONG Hong-xing, TANG Lie-min, HE Yue-hui, HUANG Bai-yun. Environmental corrosion resistance of porous TiAl intermetallic compounds [J]. Transactions of Nonferrous Metals Society of China, 2009, 19: 581-585.

[13] PANG Q, WU G H, XIU Z Y, JIANG L T, SUN D L. Microstructure, oxidation resistance and high-temperature strength of a new class of 3D open-cell nickel-based foams [J]. Materials Characterization, 2012, 70: 125-136.

[14] CHOI S H, KIM S Y, YUN J Y, KONG Y M, KIM B K, LEE K A. Effect of pore size on the high temperature oxidation of Ni-Fe-Cr-Al porous metal [J]. Metals and Materials International, 2011, 17: 301-307.

[15] MICHAILIDIS N, STERGIOUDI F, OMAR H, PAVLIDOU E, TSIPAS D N, ALBANAKIS C, MISSIRLIS D, GRANIER B. Microstructural characterization of oxide morphologies on Ni and Inconel foams exposed to concentrated solar radiation [J]. Journal of Alloys and Compounds, 2010, 496: 644-649.

[16] BAUTISTA A, ARAHUETES E, VELASCO F, MORAL C, R. Oxidation behavior of highly porous metallic components [J]. Oxidation of Metals, 2008, 70: 267-286.

[17] LEE J Y, KIM H G, CHOI M R, LEE C W, PARK M H, KIM K H, LIM S H. Microstructural evaluation of oxide layers formed on Fe-22Cr-6Al metallic foam by pre-oxidization [J]. Applied Surface Science, 2014, 293: 255-258.

[18] BRUNAUER S, DEMING L S, DEMING W E, TELLER E. On a theory of the van der Waals adsorption of gases [J]. Journal of the American Chemical Society, 1940, 62: 1723-1732.

[19] ZHENG Lei, ZHANG Mai-cang, DONG Jian-xin. Oxidation behavior and mechanism of powder metallurgy Rene95 nickel based superalloy between 800 and 1000 °C [J]. Applied Surface Science, 2010, 256: 7510-7515.

[20] DOMINGUEZ-RODRIGUEZ A, CASTAING J. Diffusion fluxes and creep of polycrystalline compounds: Application to alumina [J]. Scripta Metallurgica et Materialia, 1993, 28: 1207-1211.

[21] LIU Zhen-yu, GAO Wei, GONG Hao. Anisothermal oxidation of micro-crystalline Ni-20Cr-5Al alloy coating at 850-1280 °C [J]. ScriptaMaterialia, 1998, 38: 1057-1063.

[22] LOBNIG R E, SCHMIDT H P, HENNESEN K, GRABKE H J. Diffusion of cations in chromia layers grown on iron-base alloys [J]. Oxidationof Metals, 1992, 37: 81-93.

[23] AL-HATABA K A, AL-BUKHAITIA M A, KRUPP U. Cyclic oxidation kinetics and oxide scale morphologies developed on alloy 617 [J]. Applied Surface Science, 2014, 318: 275-279.

[24] BIRKS N, MEIER G H. Introduction to high temperature oxidation of metals [M]. London: Edward Arnold, 1988.

[25] WU C H, GAO W, HYLAND M, GONG H. Characterisation of high temperature corrosion products on FeAl intermetallics by XPS [J]. Corrosion Science, 2001, 43: 1891-1903.

[26] WAGNER C D, RIGGS W M, DAVIS L E, MOULDER J F, MUILENBERG G E. Handbook of X-ray photoelectron spectroscopy [M]. Eden Prairie: Perkin-Elmer Corporation, 1979.

[27] DONG H X, JIANG Y, HE Y H, ZOU J, XU N P, HUANG B Y, LIU C T, LIAW P K. Oxidation behavior of porous NiAl prepared through reactive synthesis [J]. Materials Chemistry and Physics, 2010, 122: 417-423.

[28] HINDAM H, WHITTLE D P. Microstructure, adhesion and growth kinetics of protective scales on metals and alloys [J]. Oxidation of Metals, 1982, 18: 245-284.

[29] ODUSOTE J K, CORNISH L A, CHOWN L H. Oxidation kinetics and mechanisms of growth of alumina scale on precipitation- hardened Pt-Al-Cr-Ru alloys [J]. Corrosion Science, 2012, 63: 119-128.

[30] YONG D J, CHYRKIN A, HE J, D, QUADAKKERS W J. Slow transition from protective to breakaway oxidation of Haynes 214 foil at high temperature [J]. Oxidation of Metals, 2013, 79: 405-427.

[31] CHEN Guo-feng, LOU Han-yi. Effect of γ' precipitation on oxide formation on the Ni-3Cr-20Al and Ni-10Cr-11Al-8Ti nanocrystalline coatings [J]. Corrosion Science, 2000, 42: 1185-1195.

[32] NUMAKURA H, IKEDA T, KOIWA M, ALMAZOUZI A. Self-diffusion mechanism in Ni-based L1₂ type intermetallic compounds [J]. Philosophical Magazine A, 1998, 77: 887-909.

[33] HU L, HOVIS D B, HEUER A H. Transient oxidation of a γ-Ni-28Cr-11Al alloy [J]. Oxidation of Metals, 2010, 73: 275-288.

[34] SMIALEK J L. Oxide morphology and spalling model for NiAl [J]. Metallurgical and Materials Transactions A, 1978, 9: 309-320.

[35] SHEASBY J S, JORY D B. Electrical properties of growing alumina scales [J]. Oxidation of Metals, 1978, 12: 527-539.

[36] LI Ming-wei, ZENG Gang, HE Fei, HE Xiao-dong. The isothermal oxidation behaviors of as-deposited and heat-treated Ni-11.5Cr- 4.5Co-0.5Al sheet by EB-PVD at 800 °C [J]. Journal of Alloys and Compounds, 2009, 488: L30-L34.
