J. Cent. South Univ. (2012) 19: 578-585
DOI: 10.1007/s11771-012-1042-1
ZHAO Yan-lin(赵延林)1, 2, 3, CAO Ping(曹平)3, WANG Wei-jun(王卫军)1, 2, WAN Wen(万文)1,2, CHEN Rui(陈锐)3
1. School of Energy and Safety Engineering, Hunan University of Science and Technology, Xiangtan 411201, China;
2. Hunan Provincial Key Laboratory of Safe Mining Techniques of Coal Mines,
Hunan University of Science and Technology, Xiangtan 411201, China;
3. School of Resources and Safety Engineering, Central South University, Changsha 410083, China
? Central South University Press and Springer-Verlag Berlin Heidelberg 2012
Abstract: By considering the effect of hydraulic pressure filled in wing crack and the connected part of main crack on the stress intensity factor at wing crack tip, a new wing crack model exerted by hydraulic pressure and far field stresses was proposed. By introducing the equivalent crack length leq of wing crack, two terms make up the stress intensity factor KI at wing crack tip: one is the component for a single isolated straight wing crack of length 2l subjected to hydraulic pressure in wing crack and far field stresses, and the other is the componentdue to the effective shear stress induced by the presence of the equivalent main crack. The FEM model of wing crack propagation subjected to hydraulic pressure and far field stresses was also established according to different side pressure coefficients and hydraulic pressures in crack. The result shows that a good agreement is found between theoretical model of wing crack proposed and finite element method (FEM). In theory, an unstable crack propagation is shown if there is high hydraulic pressure and lateral tension. The wing crack model proposed can provide references for studying on hydraulic fracturing in rock masses.
Key words: rock mechanics; wing crack; hydraulic pressure; numerical simulation
1 Introduction
The slippage, propagation and interaction of joint fissures in rock masses, under engineering load, have significant influence on the mechanical properties of rock masses, leading to final failure [1-3]. In the rock masses, slip-split failure generally occurs under uniaxial compression or low confining pressure [4]. As frictional force is overcome by shear stress induced by far-field stresses on the crack surface, the crack surface would slide over each other, causing stress concentration on tip of crack and leading to the initiation and splitting propagation of wing crack finally [5]. Different calculation models of wing crack propagation and stress intensity factor at the tip of wing crack have been proposed by HORII and NEMAT-NASSER [5-6], ASHBY and HALLAM [7], STEIF [8], BAUD et al [9], and WANG et al [10], based on different types of hypothesises in last several decades. Many factors, like the direction of main crack surface, orientation of the wing crack propagation, lateral stress and friction coefficient of the main crack surface, were taken into consideration in the wing crack models proposed comprehensively. However, hydraulic pressure in cracks is ignored in the mentioned wing crack models above. Rock masses strength can be greatly influenced by hydraulic load because of the complex geological environment. In the macroscopic view, effective normal stress on the crack surface is reduced by hydraulic pressure, causing the aggravation of the tendency that rock masses slide along the crack surface. In the microscopic view, the stress intensity factor of crack is enhanced and the splitting propagation is exacerbated by hydraulic pressure that penetrates into wing crack after wing crack propagates. Some efforts were conducted by scholars to study the hydraulic pressure effect on fracture mechanical properties of rock masses. The effects of hydrostatic pressure, hydrodynamic pressure and hydrochemistry damage on stress intensity factor of crack tip were studied by NAKASHIMA [11] and TANG et al [12]. The law of propagation of rock masses cracks in coupling process of hydraulic pressure and stress was studied by ZHUANG [13] by using PFC software. And a series of injection-induced slip experiments using pre-fractured granitic rock specimens to investigate the dynamic hydraulic responses of existing fractures during hydraulic stimulation were conducted by KATSUMI et al [14]. But, there is no reasonable model for evolution laws of stress intensity factor at wing crack tip subjected to hydraulic pressure and far field stresses [15-17]. New wing crack model subjected to hydraulic pressure and far field stresses was proposed by considering the effect of hydraulic pressure on the main crack and wing crack. And the numerical simulation of wing crack propagation was also made using ANSYS software. The theoretical model of wing crack was proposed to provide references for studying on hydraulic fracture in fractured rock masses, which allows extended numerical applications [18].
2 Wing crack model subjected to hydraulic pressure and far-field stresses
For the purpose of studying the laws of initiation and propagation of frictional crack, the following hypotheses have been proposed:
1) Connectivity rate of main crack is α, and the main crack is partially close. Accordingly, the effective hydraulic pressure of main crack changes to αp. And the distributed force F=αp is applied to main crack surface (as shown in Fig. 1);
2) When water enters into wing crack, wing crack propagating becomes a distributed force applied to wing crack surface (as shown in Fig. 1).
Fig. 1 Sketch illustrating hydraulic pressure applied to main crack and wing crack
2.1 Initiation of frictional main crack
The normal (σn,e) and shear (τn,e) stresses are derived on the crack plane:
where β is the angle between crack surface and direction of the maximum main stress σ1.
Effective shear stress (τeff) suggested by many studies [19-22] is the only stress component that leads to stress singularity at the tip of the frictional crack:
where μ is the friction coefficient of crack surface.
Model II factor KⅡ is the stress intensity factor which appears at main crack tip:
Wing crack propagates as effective shear stress (τeff) reaches the critical value, but not on its own plane. A wing crack propagates from the tip of initial crack in a direction θ at which the transformed mode I stress intensity factor KI(θ) is at a maximum and greater than the fracture toughness KIC of rock material, the critical stress intensity factor in mode I. The transformed stress intensity factor is given by [9]
We can obtain θ=70.5° by supposing that wing crack propagates along the maximum value of KI(θ), then
When KI≥KIC, frictional main crack initiates.
2.2 Wing crack model
When KI≥KIC, wing crack initiates then propagates at tip of the main crack. The stress intensity factor of wing crack varies with the propagation of wing crack. The propagation of wing crack terminates when stress intensity factor KI at wing crack tip is lower than KIC, namely KI
Stress intensify factor at tip of wing crack is presumed to be the sum of two terms as shown in Fig. 2.
1) A component for the two straight wing cracks, of common length l, regarded as a single isolated straight crack of length 2l, and subjected to hydraulic pressure in wing crack and far field stresses;
2) A component due to effective shear stress induced by the presence of the main crack subjected to hydraulic pressure in main crack and far field stresses.
Fig. 2 Superposition technique used to calculate KI at wing crack tip subjected to hydraulic pressure and far field stresses: (a) Approximate KI at wing crack tip; (b) for straight wing crack of common length 2l; (c) due to effective shear stress induced by presence of main crack
For the purpose of calculating , we replace the system ( main crack-wing crack pair) by an equivalent single straight crack of length 2b and the same orientation β as the initial main crack. Equivalent single straight crack of length 2b is assumed to be the sum of two terms: the first part, the main length 2a, and the second part, the equivalent wing crack length of 2leq, where leq is the function of wing crack length l, orientation θ and main crack length a.
Because the wing crack propagates in such a direction that small shear stress is applied to it, the equivalent wing crack length of 2leq should also be seen as free shear stress.
Stress intensify factor KⅠ at tip of wing crack can be expressed as
The term in Eq. , as shown in Fig. 2(b), is determined by the following equations:
The stress intensify factor of the equivalent straight crack induced by the effective shear stress is given by [9]
The transformed stress intensify factor of equivalent straight crack with orientation of θ can be obtained from Eq. :
Using Eqs. (9) and , KI can be expressed as
For the purpose of determining equivalent wing length leq, wing crack model proposed by HORRI and NEMAT-NASSER [6] is introduced:
Then, a parameter l*=0.27a is added to obtain proper behavior at little wing crack limit.
Taking hydraulic pressure applied to the main crack and wing crack into consideration, HORRI and NEMAT-NASSER model is modified as
Via comparing Eqs. and , Eq. can be obtained:
Considering the condition that the crack length is rather short l→0, from Eq. , we obtain the following equation:
By using Eqs. and , leq can be expressed as
Considering the condition that the crack length is extremely long l→∞, the following formula can be obtained by identifying Eq. :
By using Eqs. and , leq can be expressed as
For the purpose of satisfying Eqs. and , taking the limiting cases l→0 and l→∞ into account, with the factor e-l/a introduced, equivalent straight length of wing crack can be supposed as
In Eq., taking the limiting case l→0, Eq. becomes Eq. ; taking the limiting case l→∞, Eq. becomes Eq. . Equivalent straight length leq varies from Eq. to Eq. during the wing crack propagation.
Via introducing Eq. into Eq. , we obtain the expression for mode I stress intensity factor KI at the tip of wing crack subjected to hydraulic pressure and far field stresses:
The characteristics of wing crack model proposed are:
1) The effects of hydraulic pressure, in wing crack and in the connected part of main crack, on stress intensify factor at tip of wing crack are considered by the wing crack model proposed.
2) The whole range of variation of wing crack length from extremely short to very long can be simulated by the wing crack model proposed, and the model is definite in physical meaning.
3) In Eq. , if we make p=0, the model degenerates to general wing crack model.
3 Numerical analysis of wing crack propagation subjected to hydraulic pressure and far field stresses
3.1 Solution method for stress intensify factor KI at wing crack tip
ANSYS is used to solve wing crack problem in fracture mechanics domain. For the analysis of a linearly elastic fracture mechanics, the tip of the crack is the singular point. Singular element is used in ANSYS. And the first row elements surrounding wing crack tip are singular elements. KSCON command assigns element division sizes around a key point. This automatically generates singular elements around the crack tip. Contact element is used to simulate the sliding of the main crack and it can satisfy the Mohr-Coulomb criterion.
The analysis of stress intensify factor KI at tip of wing crack uses a fit of the nodal displacements in the vicinity of the crack. The actual displacements near a crack for linearly elastic materials are
where u and w are displacements in a local Cartesian coordinate system as shown in Fig. 3; r and θ are coordinates in a local cylindrical coordinate system as shown in Fig. 3; G is shear modulus; 0(r) presents the term of order r or higher; KI is mode I stress intensity factor at the wing crack tip; KII is mode II stress intensity
factor at the wing crack tip. With plane strain, k=3-4;
with plane stress, ; is Poisson ratio.
Fig. 3 Nodes used for approximate crack-tip displacements and coordinate systems
Evaluating Eq. at θ =±180.0° and dropping the higher order terms yield
Model II stress intensity factor KII at wing crack tip is very small, and can be disregarded, compared with model I stress intensity factor KI. For full-crack model (as shown in Fig. 3), the expression for model I stress intensity factor KI near the wing crack tip is
where ?w is the motion of one crack face with respect to the other, as shown in Fig. 3.
In Eq. , the final factor is , which needs to be evaluated based on the nodal displacements and locations. As shown in Fig. 3, a fit of points is available. In Eq. , if r→0, stress intensity factor KI at the tip of wing crack is obtained:
With the method of numerical simulation, stress intensify factor KI at the wing crack tip can be obtained. The procedure of analysis is as follows [23]:
1) Using ANSYS, a fit of the nodal displacements near wing crack tip can be obtained.
2) Using Eq. , stress intensity factors KI(r) of a fit of nodes near wing crack tip can be computed.
3) By linear fitting for stress intensity factor KI(r) of a fit of nodes, Eq. is obtained:
In Eq. , when r=0, approximate solution of stress intensity factor at the crack tip can be obtained by numerical analysis:
KI=A
3.2 Establishment of wing crack numerical model
As shown in Fig. 4(a), the length of main crack is cm, orientating an angle of 45° to the axial direction. The calculation range is set as 80 cm×160 cm and the crack is put in the middle of the model. 9 921 nodes and 3 247 elements are in the model. In the model, shear modulus G=8.3 GPa and Poisson ratio =0.2 are set [24].
The grids at the crack tip are refined. Uniform far field stress σ1 is applied on top of the model while lateral stress σ2=λσ1 is applied on both sides. Sliding support is set at the bottom. Hydraulic pressure αp and p are applied to inner surface of main crack and wing cracks, respectively. In order to study the evolution law of stress intensify factor at the tip of wing crack under different lateral stresses and hydraulic pressures, a certain axial compressive stress σ1=25 MPa, combined with different lateral stresses σ2=-2.5 MPa (λ=-0.1), 0 (λ=0), 2.5 MPa (λ=0.1) and different hydraulic pressures p= 0, 1, 3, 5 MPa are analyzed. Friction coefficient μ=0.3 of main crack surface and its connectivity rate α=0.6 are set. Suppose that wing crack propagates approximately at the direction parallel to the major applied compressive stress; accordingly, an fairly small angle between wing crack and axial stress of γ=π/25 is set in calculation. Wing crack numerical model and grids meshing considering the combined action of hydraulic pressure and far field stresses are shown in Fig. 4.

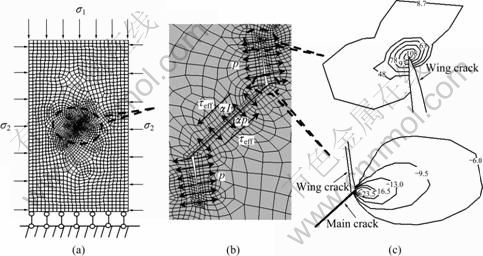

Fig. 4 Calculation model of wing crack subjected to hydraulic pressure and far field stresses: (a) Discretization of specimen for finite element analysis; (b) Sketch illustrating forces applied to main crack surface and wing crack surface; (c) Distributions of minimum principal stress σ3 at main crack tip and wing crack tip (Unit: MPa)
3.3 Analysis of finite element method on wing crack propagation
Based on the calculation of stress intensify factor KI at the tip of wing crack for different wing crack lengths, the procedure of wing crack propagation can be simulated subjected to hydraulic pressure and far field stresses [25].
Figure 5(a) presents the distribution of minimum principal stress around frictional crack before initiation when p=3 MPa and σ2=0. It can be seen that tensile stress concentration at the tip of main crack is significant, and the zone of compressive concentration also locates near the tip of crack. The vector distribution of principal stress around the tip of main crack before initiation is shown in Fig. 5(b). It can be seen that the state of tensile stress concentration at the tip of main crack gives rise to the initiation of wing crack; while the state of biaxial compressive stress concentration near main crack tip causes secondary shear crack.
Fig. 5 Stress state around frictional main crack before initial cracking: (a) Distribution of minimum principal stress σ3 around frictional main crack (Unit: MPa); (b) Distribution of principal stress vectors around frictional main crack
As shown in Fig. 6, a series of numerical experiments are carried out by changing the length l of wing crack when p=5 MPa and σ2=0. By comparing these results, it can be concluded that the tensile stress concentration zone at the tip of crack does not decrease with the propagation of crack under high hydraulic pressure (p=5 MPa). On the contrary, it increases with the wing crack propagation. And the longer the wing crack is, the faster the propagation of tensile stress zone. This is mainly due to the fact that the longer the wing crack in length, the larger the area that hydraulic pressure is applied to and the stronger the splitting effect of hydraulic pressure on rock. At the same time, compressive stress concentration zone remains at the tip of main crack and its domain also increases with the propagation of wing crack.

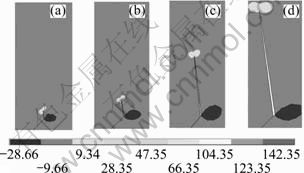

Fig. 6 Evolution of principal stress σ3 around wing crack when p=5 MPa and σ2=0 (Unit: MPa): (a) l=0.5 cm; (b) l=1.0 cm; (c) l=3.0 cm; (d) l=5.0 cm
For comparison, Fig. 7 shows the distributions of minimum principal stress around wing crack by changing the length l of wing crack when p=0 and σ2=0. It can be concluded that without hydraulic pressure, tensile stress concentration zone at the tip of wing crack decreases with the propagation of the crack. Also compressive stress concentration zone at the tip of main crack has a decreasing tendency. The absolute value of minimum principal stress decreases with the propagation of the wing crack.

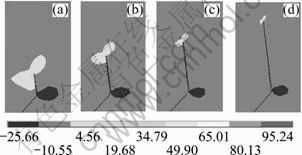

Fig. 7 Evolution of principal stress σ3 around wing crack when p=0 and σ2=0 (Unit: MPa): (a) l=0.5 cm; (b) l=1.0 cm; (c) l=1.5 cm; (d) l=2.0 cm
4 Evolution law of stress intensify factor KI at tip of wing crack and comparison of theoretical model with FEM analysis
4.1 Evolution law of stress intensify factor KI of wing crack subjected to hydraulic pressure and far field stresses
If we make L=l/a, the stress intensify factor KI at the tip of wing crack varies with equivalent crack length L(L=l/a). The variation curves of normalized stress intensify factor with equivalent crack length L are obtained under different side pressure coefficients λ and hydraulic pressures p using FEM. Comparison of the curves of normalized stress intensify factor with equivalent crack length L obtained by FEM with theoretical model (Eq. (19)) is shown in Fig.8. We suppose θ=π/4+π/25 in theoretical model (Eq. ) in order to comply with the direction in which wing crack propagates in FEM model. It can be concluded from Fig. 8 that the evolution laws of the stress intensify factor KI at the tip of wing cracks under the combined action of hydraulic pressure and far field stresses are as follows:
1) When side pressure coefficient λ and friction coefficient μ remain constant, with the increase of hydraulic pressure p, the wing crack tends to propagate unsteadily. When λ=-0.1 and μ=0.3, if p=0, wing crack propagates steadily (); if p=1, 3, and 5 MPa, respectively, wing crack propagates unsteadily, and there exists one stage of unsteady propagation in the case of .With the increase of hydraulic pressure p, the stress intensify factor KI of wing crack increases with the increment of equivalent length L. Figure 8 shows that, when hydraulic pressure p=5 MPa and side pressure coefficient λ=-0.1, 0 and 0.1, respectively, an unstable crack propagation takes place. This indicates that once frictional crack initiates, under high hydraulic pressure, wing crack will propagate fast.
2) In the case that crack distribution and hydraulic pressure are already decided but the larger side pressure coefficient λ is varied, if the stress intensify factor KI at the tip of wing crack attenuates fast, wing crack propagates steadily. Even a relatively small lateral tensile stress (λ is negative) can induce unsteady propagation of crack (a stage of propagation with).
3) The lateral tensile stress and high hydraulic pressure are the key factors that induce crack propagation unsteadily.
Fig. 8 Variations of normalized stress intensify factor KI at wing crack tip with equivalent crack propagation length: (a) λ=0.1, μ=0.3; (b) λ=0, μ=0.3; (c) λ=-0.1, μ=0.3
4.2 Comparison of theoretical model with FEM model
From Fig. 8, some errors can be found between the theoretical model of wing crack considering combined action of hydraulic pressure and far field stresses and the FEM results.
1) In general, the stress intensify factor of wing crack obtained from theoretical model is commonly lower than the result of FEM. Taking the case of p= 5 MPa and L=3.0 for example, when λ=-0.1, 0 and 0.1, the stress intensify factors KI at the wing crack tip obtained from theoretical model are 92.6%, 95.3% and 92.4% those from FEM approach, respectively.
2) A good agreement is found between theoretical model results and FEM approach without the consideration of hydraulic pressure.
3) In condition that the length of wing crack is very little, the results of theoretical model are commonly larger than those of FEM approach.
4) The hypothesis and the equivalent wing crack length of 2leq proposed in theoretical mode only approximatively reveal the mechanical mechanism of the propagation of wing subjected to hydraulic pressure and far field stresses. So, some errors exist between two approaches. The theoretical model of wing crack can supply theoretical references to study of hydraulic fracturing. The next step of our research is to apply theoretical model proposed to numerical research on coupling analysis of seepage damage fracture in fractured rock masses.
5 Conclusions
1) The new wing crack model proposed considers the combined action of hydraulic pressure and far field stresses, and takes the effect of the hydraulic pressure in wing crack and the connected part of main crack on the stress intensify factor at the tip of wing crack into consideration. The proposed model is definite in physical meaning and can simulate the whole range of variation of wing crack length from extremely short to very long.
2) With the propagation of wing crack, under high hydraulic pressure, the region of tensile stress concentration increases and the splitting effect becomes more evident.
3) The stable behavior is observed in biaxial loading when the lateral stress is compressive. In contrast, an unstable crack propagation takes place if there is high hydraulic pressure and lateral tension.
4) Though the stress intensify factor of wing crack obtained from theoretical model is commonly lower than that from FEM approach, except the case that wing crack is rather little in length, based on micromechanics, it can be deemed that good agreement is obtained between them. And the wing crack model proposed can supply theoretical references to study on hydraulic fracturing in rock masses.
