Modification of primary Mg2Si in Mg-5Si alloys with Y2O3

ZHENG Na(郑娜), WANG Hui-yuan(王慧远), ZHAO Feng(赵峰),

 GU Zhen-hua(顾振华), LI Dong(李栋), JIANG Qi-chuan(姜启川)

Key Laboratory of Automobile Materials of Ministry of Education,

Department of Materials Science and Engineering, Jilin University, Changchun 130025, China

Received 15 July 2007; accepted 10 September 2007

Abstract: The Y₂O₃ addition to Mg-5Si alloys has a good modification effect on the primary Mg₂Si. With 0.05% or 0.1% (mass fraction) Y₂O₃ additions, the primary Mg₂Si begins to change from coarse dendritic shape (about 100 mm) into small polyhedral shape and therefore the alloys exhibits sub-modified microstructure. With 0.2% Y₂O₃ addition, most of the primary Mg₂Si becomes polyhedral shape and its average size is only 25 mm or less. The Mg-5Si alloy exhibits modified microstructure. In addition, the experiments show that the reaction between Mg and Y₂O₃ cannot occur in the sintered Mg-6Y₂O₃ compact; however, the reaction among Mg, Si and Y₂O₃ can occur in the sintered Mg-5Si-6Y₂O₃ compact. Apart from the adsorption and poisoning manners, other mechanisms may exist in the modification of Y₂O₃ addition on the primary Mg₂Si.

Key words: microstructure; solidification; Mg₂Si; Y₂O₃; Mg-5Si alloy

1 Introduction

Magnesium alloys, the lightest commercial alloys developed so far, have great potential for high performance aerospace and automotive applications[1-3]. In recent years, Mg-Si alloys are more and more attractive since the Mg₂Si phase can impede grain boundary sliding at elevated temperature[4]. Furthermore, the intermetallic compound Mg₂Si exhibits many excellent properties such as high melting temperature, high hardness, and low thermal expansion coefficient [5-7]. However, under normal cast condition, the primary Mg₂Si phase exhibits coarse Chinese script or dendritic shape and the eutectic structures is very brittle, which results in the low ductility and strength of the alloys[5].

Modifying treatment is a very effective method to obtain fine microstructure and improve the mechanical properties of the alloys due to low production cost[8]. Therefore, it is very important to choose an appropriate modifier for the modification of the Mg₂Si phase in Mg-Si alloys. Recent studies[9] show that rare earth Y can be used to modify the Mg₂Si phase in Mg-high Si alloys. More recently, it has been reported[10] that rare earth Ce can be used for the modification of the primary and eutectic Mg₂Si in Al-Si-Mg-Cu alloys and a preferred microstructure can be obtained with 0.4% Ce addition. In addition, rare earth oxide like La₂O₃, also plays an important role in modifying the primary Si in the Al-20Si alloys[11]. Unfortunately, little work has been carried out on the modification of rare earth oxide in Mg-Si alloys.

In the present work, the modification of Y₂O₃ on the primary Mg₂Si in Mg-high Si alloys was investigated. The aim of the study is to develop a new modifier for the modification of the primary Mg₂Si in Mg-high Si alloy.

2 Experimental

Industrially pure Mg ingot (99.89%, mass fraction) and Si (99.95%, mass fraction) were used as starting materials to prepare Mg-5Si alloy. Detailed preparation of Mg-Si alloy was described in our previous study[5]. About 300 g of Mg-5Si alloy was remelted at 800 ℃ in a graphite crucible in an electric resistance furnace under the protection of a mixed gas atmosphere of SF₆ (1%, volume fraction) and CO₂ (balance). After holding for 10 min, Y₂O₃ was added to the melts to get the designed composition of Mg-5Si alloys with different Y₂O₃ contents of 0.05%, 0.1% and 0.2% (mass fraction), respectively. And the melts were manually stirred for about 3 min using a stainless steel impeller and held for 30 min at that temperature. After that the melts were poured into a steel mold preheated at 200 ℃ to produce tabulate samples of 12 mm×120 mm×180 mm. Metallographic samples were cut at the same position of the tabulate samples and were prepared in accordance with standard procedures used for metallographic preparation of metal samples. Then the samples were deeply etched with a mixture of HCl+HNO₃ (volume ratio 2?1) alcohol solution for about 6 h.

To investigate the possible reaction among the Mg, Si and Y₂O₃, the powder blenders of Mg (99.6% purity, about 106 μm), Si (99.5% purity, about 15 μm), and Y₂O₃ were used to sinter Mg-6Y₂O₃ and Mg-5Si-6Y₂O₃ (all in mass fraction, %). The powders were prepared by a ball milling with a ball-to-powder mass ratio of about 4?1 for 6 h, and then cold-isostatically pressed at 50 MPa to form cylindrical compact. Then the compacts were heated at 20 ℃/min to 800 ℃ and held for 30 min under the protection of high purity argon gas.

The microstructure and phase analyses were investigated with scanning electron microscope(SEM) (Model JSM-5310, Japan) equipped with energy- dispersive spectrometer(EDS) (Model Link-Isis, Britain) and X-ray diffraction(XRD) (Model D/Max 2500PC Rigaku, Japan).

3 Results and discussion

Figs.1 and 2 show the SEM micrographs and XRD patterns of the Mg-5Si alloys with 0, 0.05%, 0.1% and 0.2% Y₂O₃ additions. XRD results show the alloys only consist of Mg and Mg₂Si phases. No Y-containing products can be detected by the XRD due to the low content of Y₂O₃ addition in the alloys. Without Y₂O₃ addition, the primary Mg₂Si exhibits coarse dendrite shape with the size of about 100 μm (Fig.1(a)). With 0.05% or 0.1% Y₂O₃ additions, the primary Mg₂Si begins to change into small polyhedral shape (Figs.1(b) and (c)). Therefore, the alloys exhibit sub-modified microstructure. With 0.2% Y₂O₃ addition, most of the primary Mg₂Si becomes polyhedral shape and its average size is only 25 μm or less, as shown in Fig.1(d). Consequently, the Mg-5Si alloy exhibits modified microstructure. It can be concluded from Fig.1 that Y₂O₃ has a good modification effect on the primary Mg₂Si in Mg-5Si alloys.

In order to study the possible reaction among Mg, Si and Y₂O₃, the compacts of Mg-6Y₂O₃ and Mg-5Si-6Y₂O₃ were sintered at 800 ℃. The reason for that the Y₂O₃ content is chosen as 6% in the compacts is that the reaction products can be detected by XRD. Fig.3 shows the XRD patterns of the unsintered and sintered compacts. It can be seen from Figs.3(a) and (b) that there are only Mg and Y₂O₃ phase in both unsintered and sintered Mg-6Y₂O₃ compacts, indicating that Y₂O₃ cannot react with Mg in the sintered Mg-6Y₂O₃ compact. It is clear from Fig.3(c) that there are only Mg, Si and Y₂O₃ phases in the unsintered Mg-5Si-6Y₂O₃. However, compared with Fig.3(c), it is interesting to note that the amount of Y₂O₃ is reduced significantly and the unidentified phase is detected by XRD, which suggests that the reaction among Mg, Si and Y₂O₃ did occur in the sintered Mg-5Si-6Y₂O₃ compact. In addition, the Mg₂Si and MgO phases are also formed in the compact. It should be mentioned that the formation of MgO (Figs.3(b) and (d)) in the compacts is attributed to the poor protection atmosphere, which agrees with the result of our previous study[12].

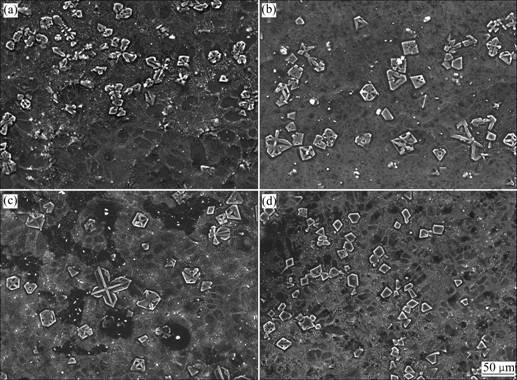

Fig.1 SEM micrographs of Mg-5Si alloys with 0 (a), 0.05% (b), 0.1% (c) and 0.2% (d) Y₂O₃ additions

Fig.2 XRD patterns of Mg-5Si alloys with 0 (a), 0.05% (b), 0.1% (c) and 0.2% (d) Y₂O₃ additions

Fig.3 XRD patterns of unsintered (a) and sintered Mg-6Y₂O₃ (b), and unsintered (c) and sintered Mg-5Si-6Y₂O₃ (d)

According to the sintering experiments, it is believed that Y may be present in the melts by the decomposition of Y₂O₃ when Y₂O₃ is added to the Mg-5Si alloys_. During the solidification, the Y atoms are adsorbed on the Mg₂Si crystal planes and change the surface energy of the Mg₂Si crystals[9], which may effectively poison the growth steps and suppress the preferred growth of the Mg₂Si crystals. With 0.05% or 0.1% Y₂O₃ additions, the Y atoms are insufficient and thus the poisoning effect of Y is not evident, which corresponds to the sub-modified microstructure (Figs.1(b) and (c)). With 0.2% Y₂O₃ addition, more Y atoms are provided for the adsorption and the poisoning effect. As a result, the primary Mg₂Si exhibits modified morphology as a fine polyhedral shape (about 25 μm or less) (Fig.1(d)). Furthermore, it should be noted that Y rare earth just can modify the size rather than the morphology of the primary Mg₂Si by the adsorption and poisoning manners; however, the addition of rare earth oxide Y₂O₃ can modify not only the size but also the morphology of the primary Mg₂Si. Therefore, it is possible that other mechanisms exist in the modification of Y₂O₃ addition on the primary Mg₂Si.

4 Conclusions

1)      The Y₂O₃ addition to Mg-5Si alloys has a good modification effect on the primary Mg₂Si. With 0.05% or 0.1% Y₂O₃ addition, the primary Mg₂Si begins to change from coarse dendritic shape (about 100 μm) into small polyhedral shape and therefore the alloys exhibits sub-modified microstructure. With 0.2% Y₂O₃ addition, most of the primary Mg₂Si becomes polyhedral shape and its average size is only 25 μm or less. The Mg-5Si alloy exhibits modified microstructure.

2)      The reaction between Mg and Y₂O₃ can not occur in the sintered Mg-6Y₂O₃ compact; however, the reaction among Mg, Si and Y₂O₃ can occur in the sintered Mg-5Si-6Y₂O₃ compact.

3)      Apart from the adsorption and poisoning manners, other mechanisms may exist in the modification of Y₂O₃ addition on the primary Mg₂Si.

References

[1] ZHANG J, WANG Y Q, ZHOU B L. Effects of Si content on the microstructure and tensile strength of an in situ Al/Mg₂Si composites [J]. J Mater Res, 1999, 14: 68-74.

[2] LIAO L H, ZHANG X Q, WANG H W, QIN X Y, LI X F, MA N H. Influence of Sb on damping capacity and mechanical properties of Mg₂Si/Mg-9Al composite materials [J]. J Alloys Compd, 2007, 430: 292-296.

[3] LU L, LAI M Q, HAO M L. Formation of nanocrystalline Mg₂Si and Mg₂Si dispersion strengthened Mg-Al alloy by mechanical alloying [J]. Nanostruct Mater, 1998, 10: 551-563.

[4] YUAN G Y, LIU M, DING W J, AKIHISA I. Microstructure and mechanical properties of Mg-Zn-Si-based alloys [J]. Mater Sci Eng A, 2003, 357: 314-320.

[5] WANG H Y, JIANG Q C, MA B X, WANG Y, WANG J G, LI J B. Modification of Mg₂Si in Mg-Si alloys with K₂TiF₆, KBF₄ and KBF₄+K₂TiF₆ [J]. J Alloys Compd, 2005, 387: 105-108.

[6] WANG L, QIN X Y. The effect of mechanical milling on the formation of nanocrystalline Mg₂Si through solid-state reaction [J]. Scripta Mater, 2003, 49: 243-248.

[7] ZHANG J, FAN Z, WANG Y Q, ZHOU B L. Microstructural development of Al-15%Mg₂Si in situ composite with mischmetal addition [J]. Mater Sci Eng A, 2000, 281: 104-112.

[8] PAN Y C, LIU X F, YANG H. Microstructural formation in a hypereutectic Mg-Si alloy [J]. Mater Charact, 2005, 55: 241-247.

[9] JIANG Q C, WANG H Y, WANG Y, MA B X, WANG J G. Modification of Mg₂Si in Mg-Si alloys with yttrium [J]. Mater Sci Eng A, 2005, 392: 130-135.

[10] QIN Q D, ZHAO Y G, CONG P J, LIANG Y H, ZHOU W. Functionally graded Mg₂Si/Al composite produced by an electric arc remelting process [J]. J Alloys Compd, 2006, 389: L1-L4.

[11] XU C L, WANG H Y, YANG Y F, WANG Y, JIANG Q C. Effect of La₂O₃ in the Al-P-Ti-TiC-La₂O₃ modifier on primary silicon in hypereutectic Al-Si alloys [J]. J Alloys Compd, 2006, 421: 128-132.

[12] ZHENG N, WANG H Y, WANG W, GU Z H, LI D, JIANG Q C. Invalidation of KBF₄ modification on the primary Mg₂Si in Mg-Si alloys by Al addition [EB/OL]. J Alloys Compd, 2007, doi:10.1016/j.jallcom.

Foundation item: Project(50501010) supported by the National Natural Science Foundation of China; Project supported by the 985-Automotive Engineering of Jilin University, China

Corresponding author: JIANG Qi-chuan; Tel/Fax: +86-431-85094699; E-mail: jiangqc@mail.jlu.edu.cn

(Edited by PENG Chao-qun)
