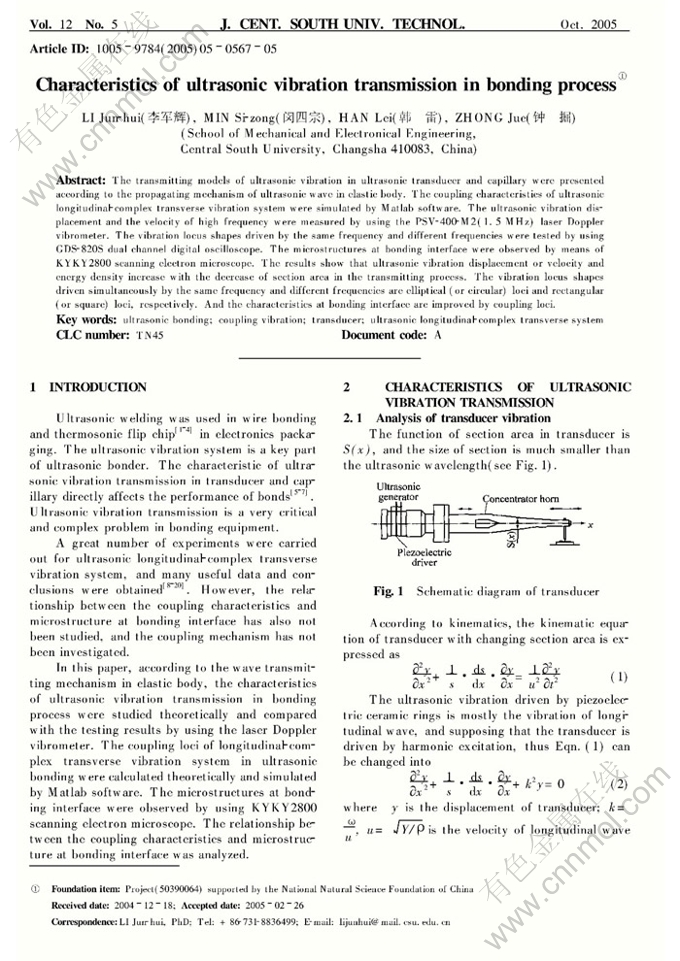

Characteristics of ultrasonic vibration transmission in bonding process^①

来源期刊：中南大学学报(英文版)2005年第5期

论文作者：李军辉 闵四宗 韩雷 钟掘

文章页码：567 - 571

Key words：ultrasonic bonding; coupling vibration; transducer; ultrasonic longitudinal-complex transverse system

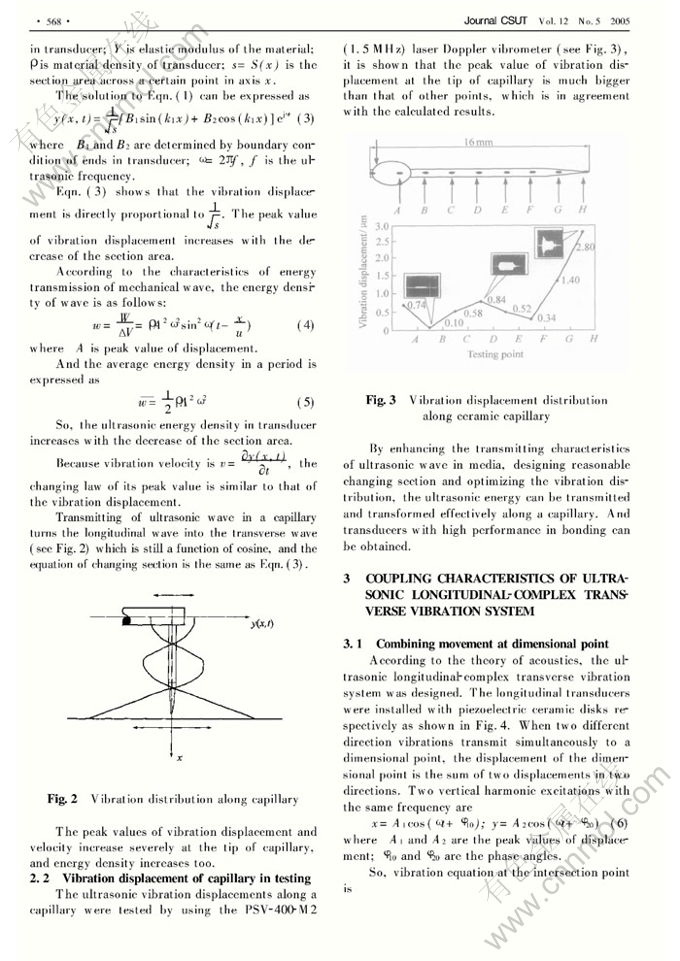

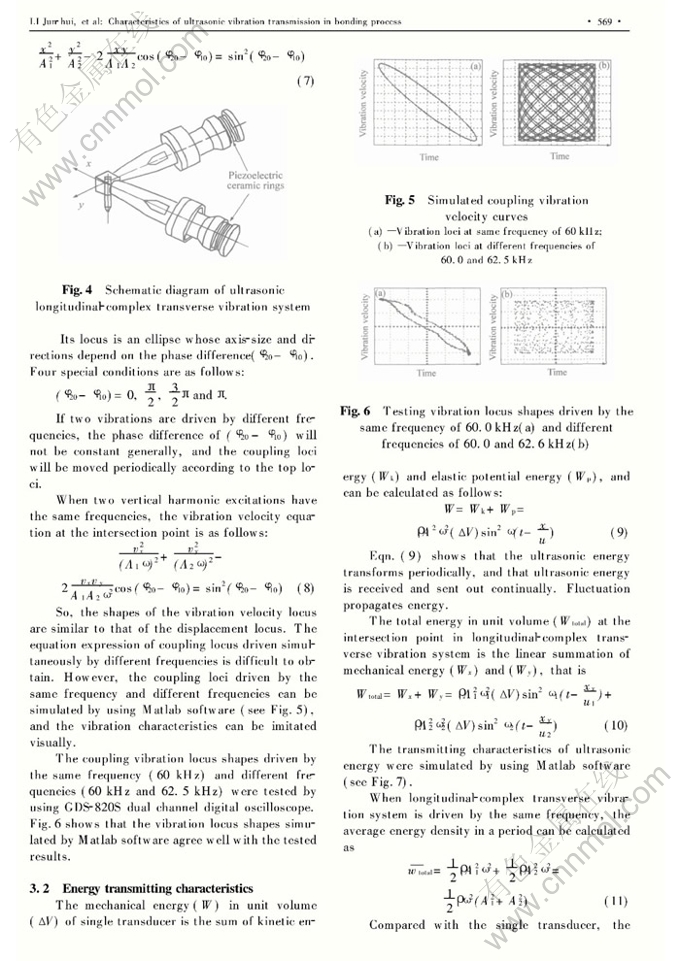

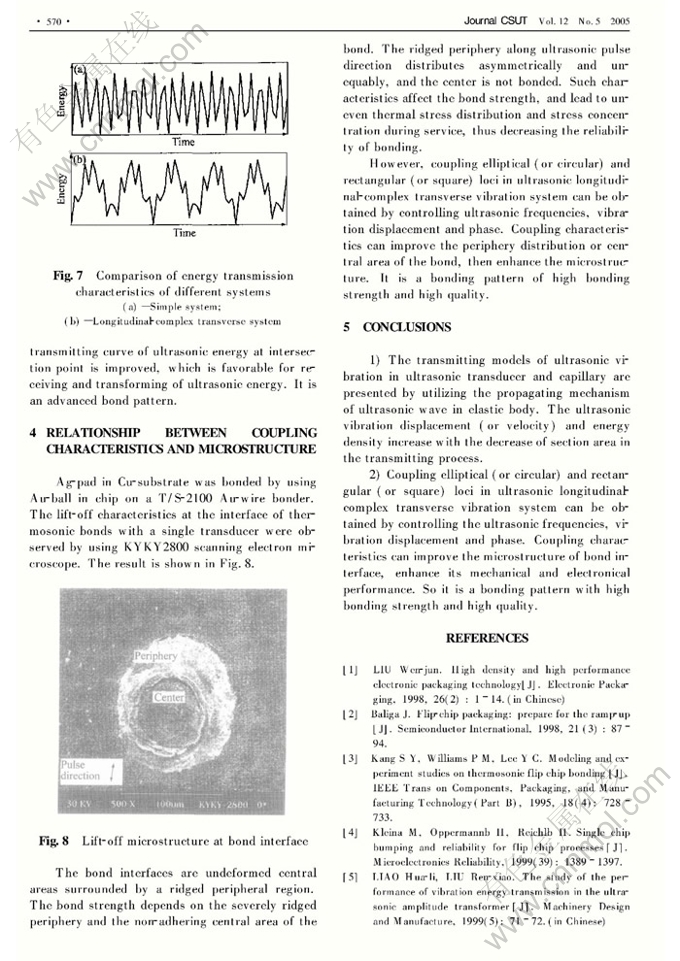

Abstract: The transmitting models of ultrasonic vibration in ultrasonic transducer and capillary were presented according to the propagating mechanism of ultrasonic wave in elastic body. The coupling characteristics of ultrasonic longitudinal-complex transverse vibration system were simulated by Matlab software. The ultrasonic vibration displacement and the velocity of high frequency were measured by using the PSV-400-M2(1.5 MHz) laser Doppler vibrometer. The vibration locus shapes driven by the same frequency and different frequencies were tested by using GDS-820S dual channel digital oscilloscope. The microstructures at bonding interface were observed by means of KYKY2800 scanning electron microscope. The results show that ultrasonic vibration displacement or velocity and energy density increase with the decrease of section area in the transmitting process. The vibration locus shapes driven simultaneously by the same frequency and different frequencies are elliptical (or circular) loci and rectangular (or square) loci, respectively. And the characteristics at bonding interface are improved by coupling loci.
