Trans. Nonferrous Met. Soc. China 26(2016) 1388-1395

Electrochemical performances of Mg₄₅M₅Co₅₀ (M=Pd, Zr) ternary hydrogen storage electrodes

Le-yu ZHAN¹, Yao ZHANG¹, Yun-feng ZHU², Xiang-yang ZHUANG¹, Neng WAN³,

Yi QU⁴, Xin-li GUO¹, Jian CHEN¹, Zeng-mei WANG¹, Li-quan LI²

1. School of Materials Science and Engineering, Southeast University, Nanjing 211189, China;

2. College of Materials Science and Engineering, Nanjing Tech University, Nanjing 210009, China;

3. School of Electronics Science and Engineering, Southeast University, Nanjing 210096, China;

4. Dalian Environmental Monitoring Center, Dalian 116023, China

Received 9 June 2015; accepted 3 December 2015

Abstract: In order to improve the discharge capacity and cyclic life of Mg-Co-based alloy, ternary Mg₄₅M₅Co₅₀ (M=Pd, Zr) alloys were synthesized via mechanical alloying. TEM analysis demonstrates that these alloys all possess body-centered cubic (BCC) phase in nano-crystalline. Electrochemical experiments show that Mg₄₅Zr₅Co₅₀ electrode exhibits the highest capacity (425 mA·h/g) among the Mg₄₅M₅Co₅₀ (M=Mg, Pd, Zr) alloys. And Mg₄₅Pd₅Co₅₀ electrode lifts not only the initial discharge capacity (379 mA·h/g), but also the discharge kinetics, e.g., exchange current density and hydrogen diffusion ability from that of Mg₅₀Co₅₀. It could be concluded that the electrochemical performances were enhanced by substituting Zr and Pd for Mg in Mg-Co-based alloy.

Key words: Mg-based electrode alloy; hydrogen storage; mechanical alloying; body-centered cubic structure; electrochemical performance; elemental substitution

1 Introduction

Mg-based hydrogen storage materials have attracted much attention during last decades due to their high capacity, relatively low cost and light mass [1,2]. They are also potential candidates for the anode materials of Ni-MH battery [3,4]. Series of Mg-based alloys, including Mg-Co-based alloys, have been developed in order to improve their properties in either gas-solid or electrochemical reaction systems [5-11].

Previous studies on Mg-Co alloys were mainly focused on their gaseous hydrogen storage performances. JEAN-LOUIS et al [12-14] achieved Mg₂Co alloy with face-centered cubic or amorphous phase, which absorbed maximum 4.5 atom hydrogen per formula unit to form MgH₂ and Mg₂CoH₅ (at 450 °C and 5 MPa for at least  1 h). Being inspired by Ti-V-based Laves related BCC alloy, the concept of Mg-based BCC alloy was first suggested about 10 years ago [15,16]. Their synthesized Mg-Tm-V (Tm=Ni, Co, Cu) alloys containing nano- crystalline grains with BCC structure. Under the conditions of 298 K and 3 MPa (H₂), their hydrogenation capacities attained 2.3%, 1.44% and 0.95%, respectively. After that, the Mg-Co-based BCC alloys were synthesized and investigated [8,9,17-19]. It was found that the single BCC structure can be obtained only within the Co mole fraction range of 37% to 80%. SHAO     et al [17] revealed that the Mg-Co-based BCC alloy with lattice parameter of 0.3068 nm could achieve an optimized hydrogenation performance.

In our recent work, Mg-Co BCC alloys were initially introduced into anode material of Ni-MH battery system. Pd-doped Mg₂Co BCC alloy exhibits large discharge capacity of 530 mA·h/g [10]. Co partially substituted by Pd in Mg₅₀Co₅₀ can improve both initial capacity and cycling stability [11]. In this work, we paid more attention to the Mg₄₅M₅Co₅₀ ternary alloys where Mg was partially substituted by Pd and Zr according to the enhancement of these elements in Mg-based    alloy [10,11,20,21]. Their structures and electrochemical performances  were  intensively  studied.  Some improvements in discharge capacities and cyclic stabilities were obtained.

2 Experimental

2.1 Material synthesis

The metal powders of Mg (99.99%, 75 μm), Co (99.99%, 10 μm), Pd (99.99%, 75 μm) and Zr (99.5%,  3 μm) were directly used without further treatment. Mg₄₅M₅Co₅₀ (M= Pd, Zr) alloys were synthesized by ball milling the mixtures of these powders. 2 g sample and stainless steel (1Cr18Ni9Ti) balls with a diameter of 10 mm were loaded into each mill pot in a mass ratio of 1:30. All handles were operated in a Mikrouna Super 1220/750 glove box filled with argon with high purity (99.9999%, w(H₂O)<0.1×10^-6, w(O₂)<0.1×10^-6). The ball milling was conducted on a QM-1SP2 ball mill, lasting for 120 h at a rate of 450 r/min.

2.2 Material characterization

Scanning electron microscopy (SEM, FEI Sirion) was employed to observe the surface morphology of Mg₄₅M₅Co₅₀ (M=Pd, Zr) alloys. Elemental distributions on surface of milled powder were identified by energy dispersive X-ray (EDS) analyses. Microstructures were investigated by transmission electron microscopy (TEM, FEI G2 20).

2.3 Electrochemical experiments

Each mixture of 100 mg sample powder with 400 mg nickel powders was pressed into a 10 mm- diameter tablet at 12 MPa and room temperature, which was sandwiched by foam nickel sheets and sealed by spot welding. The prepared anode would be measured on a three-electrode system where the counter electrode and the reference electrode were Ni(OH)₂/NiOOH and Hg/HgO, respectively.

Charge-discharge tests were carried out on a CT2001A LAND battery measurement system. The charge and discharge densities were 100 and 30 mA/g, respectively. The cutoff potential was -0.6 V (vs Hg/HgO).

Electrodes at 50% depth of discharge (DOD) were adopted to test the linear polarization and alternating current impedance performances on an electrochemical workstation (CHI660C, Chenghua, Shanghai, China). The scanning range was from -5 to 5 mV (vs open circuit potential) with a rate of 1 mV/s in linear polarization tests. Alternating current impedance measurements were operated at open circuit potential within the frequency range from 10 kHz to 5 mHz. Hydrogen diffusion activities were determined by potential step method with step difference of 0.5 V (vs open circuit potential) initially without DOD. To verify the anti-corrosion properties of alloys, the Tafel tests were carried out before charging and after 100% DOD.

3 Results and discussion

3.1 Structures and morphologies of Mg₄₅M₅Co₅₀ (M=Zr, Pd) alloys

As we cannot obtain the precise microstructures and morphologies of the alloys merely through the XRD patterns [10,11,17-19], TEM images and the selected area electron diffraction (SAED) (shown in Figs. 1(a),  (b) and Figs. 2(a), (b)) help to describe the morphologies of these alloys. The polycrystalline rings in TEM images for both samples were precisely investigated and summarized in Table 1. These radii’s squares coincide well with Eq. (1), which demonstrates that Mg₄₅M₅Co₅₀ (M=Zr, Pd) alloys contain single body-centered cubic (BCC) phase as that in Mg₅₀Co₅₀ [11].

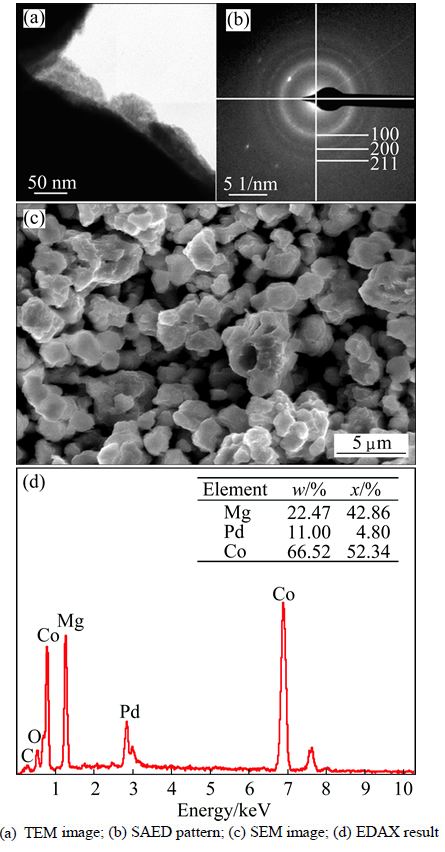

Fig. 1 Morphology analyses of Mg₄₅Pd₅Co₅₀ alloy

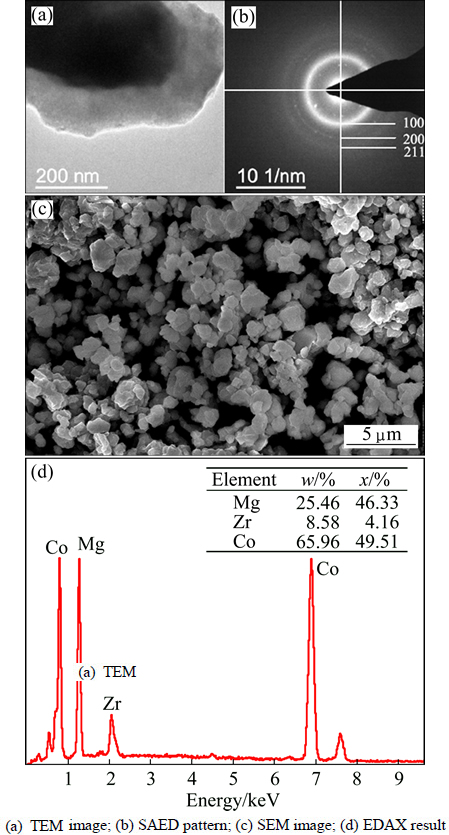

Fig. 2 Morphology analyses of Mg₄₅Zr₅Co₅₀ alloy

By calculating the radii of rings, we obtained lattice parameters of 0.2969 and 0.2981 nm for Mg₄₅Pd₅Co₅₀ and Mg₄₅Zr₅Co₅₀, respectively. Both are larger than that of Mg₅₀Co₅₀ alloy (0.2946 nm) [11]. To the best of our

knowledge, the atomic radii of Pd and Zr are 0.179 and 0.216 nm, respectively. It is reasonable for these alloys that their lattice parameters increase with substituting these elements. The parameters’ ascending order is as follows:

SEM analyses results (as shown in Figs. 1(c) and 2(c)) indicate that the sizes of particles range from 0.5 to 2 μm. The elements of the alloy are all homogenously distributed on the surfaces of alloys according to EDS analyses (Figs. 1(d) and 2(d)).

3.2 Charge and discharge capability

Figure 3 shows the charge and discharge curves of the BCC electrodes in initial cycle. Mg₄₅Zr₅Co₅₀ exhibit a plateau line at around -0.85 V (vs Hg/HgO). No significant plateau can be observed in the discharge curve of Mg₄₅Pd₅Co₅₀, however, it still possesses a superior discharge capacity over binary Mg₅₀Co₅₀. According to our previous study [10,11], all alloys usually attain their maximum capacity at the first cycle. In this case, their initial capacities can be queued in ascending order as follows.

This order coincides well with that of Eq. (2), suggesting that the lattice parameters of the Mg-Co- based BCC alloys could be a factor in discharge capacity. One can find that the substitution of Zr for Mg in Mg₅₀Co₅₀ possesses the highest discharge capacity.

Figure 4 reflects the dependence of the discharge capacities upon cycle number of the Mg₄₅M₅Co₅₀ (M= Mg, Pd, Zr). Their capacity retention rates at the 10th (C₁₀) and the 20th (C₂₀) cycles are summarized in Table 2. It is found that Mg₄₅Pd₅Co₅₀ preserves around 40% of the maximum capacity at the 20th cycle. From the 10th cycle, the drastic decrease of capacity is slowed down. This indicates that Pd additive facilitates the enhancement of cycling stability, which agrees well with the previous observation on Pd-doped Mg-Ni alloy [4]. Furthermore, the cycling stability of Mg₄₅Pd₅Co₅₀ electrode is more enhanced than our recently studied Mg₅₀Co₄₅Pd₅ electrode shown in Table 2, suggesting that the substitution of Pd in Mg site is superior to that in Co site in retaining the discharge capacities.

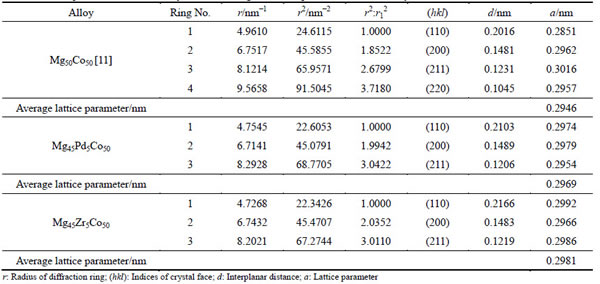

Table 1 Lattice parameters calculated by diffraction rings in SAED pattern of different alloys

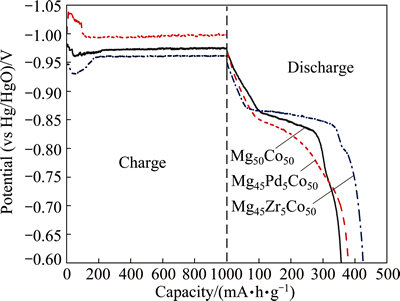

Fig. 3 Initial charge and discharge curves of Mg₄₅M₅Co₅₀ (M=Mg, Pd, Zr) electrodes

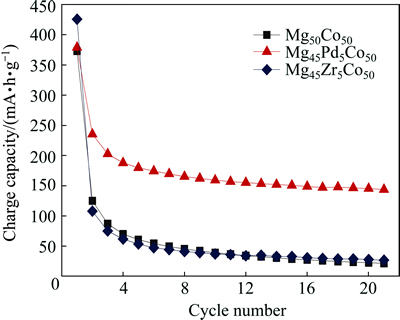

Fig. 4 Discharge capacities of Mg₄₅M₅Co₅₀ (M=Mg, Pd, Zr) electrodes varied with cycle number

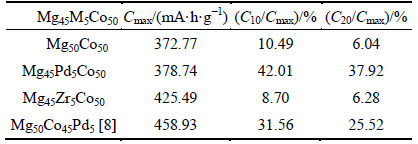

Table 2 Initial discharge capacities (C_max) and retention rates of Mg₄₅M₅Co₅₀ (M=Mg, Pd, Zr) and Mg₅₀Co₄₅Pd₅ electrodes

The high-rate discharge (HRD) ability (y) can be characterized by Eq. (4) [22], where C_x stands for the capacity at discharge current density of x mA/g and C₃₀ represents the residual capacity at current density of 30 mA/g.

Figure 5 shows that the y values of the electrodes generally decrease with the lift of discharge current density. With the introduction of Pd or Zr, the improvement in HRD ability can be easily observed from binary Mg₅₀Co₅₀ electrode.

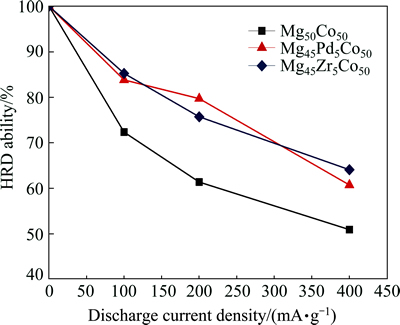

Fig. 5 HRD ability curves of Mg₄₅M₅Co₅₀ (M=Mg, Pd, Zr) electrodes

3.3 Electrode reaction kinetics

3.3.1 Linear polarization

In the present work, exchange current density (J₀) and polarization resistance (R_p) were employed for the purpose of describing the surface reaction kinetics of each electrode. According to the Butler-Volmer  equation [23], the polarized current density J should depend linearly on the overpotential η as shown in    Eq. (5), in which the overpotential was strictly limited in the linear polarization zone. Those scanning ranged from -5 to 5 mV (vs open circuit potential).

where η, J, R, T and F are overpotential, polarized current density, mole gas constant, temperature and Faraday constant, respectively.

Figure 6 displays J-η curves of the electrodes obtained by linear polarization. Table 3 lists the R_p and J₀ values determined by fitting curve. For additive Pd and Zr, the R_p resistances decrease with the increment of J₀ over surface, and represent significant improvement in surface reaction rates from binary Mg₅₀Co₅₀.

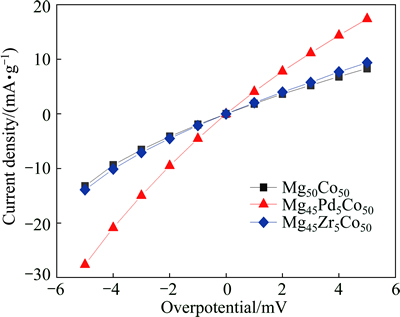

Fig. 6 Linear polarization curves of Mg₄₅M₅Co₅₀ (M=Mg, Pd, Zr) electrodes

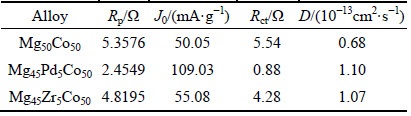

Table 3 Parameters of electrode reaction kinetics in Mg₄₅M₅Co₅₀ (M=Mg, Pd, Zr) alloys

3.3.2 Electrochemical impedance

Figure 7 shows the Nyquist plots of all the alloys being scanned in frequency from 10 kHz to 5 mHz. NOBUHIRO et al [24] suggested that there are normally four components including electrolyte resistance, two resistive components and a Warburg resistance component in equivalent circuit for metal hydride electrodes. In the present work, the absence of Warburg component in Mg₅₀Co₅₀ and Mg₄₅Zr₅Co₅₀ electrodes could be attributed to that the controlling step in the electrochemical reaction was charge transfer rather than diffusion over the surface. The semicircle in high-frequency range represents the contact impedance. The semicircle in middle-frequency range represents the charge-transfer process (R_ct), which is relevant with R_p in surface reaction. R_ct in charge-transfer process was determined by fitting the Nyquist plot of each alloy. Table 3 exhibits that the variation of R_p corresponds well with the R_ct (also shown in Table 4). The R_ct of Mg₄₅Pd₅Co₅₀ electrode is lower than that of Mg₄₅Zr₅Co₅₀ and Mg₅₀Co₅₀ electrodes, suggesting that the substitution of Pd plays a significant role in improving the electrode reaction kinetics.

3.3.3 Hydrogen diffusion capability

Hydrogen diffusion coefficient is usually identified by the constant potential step according to Eq. (6) introduced by ZHENG et al [25].

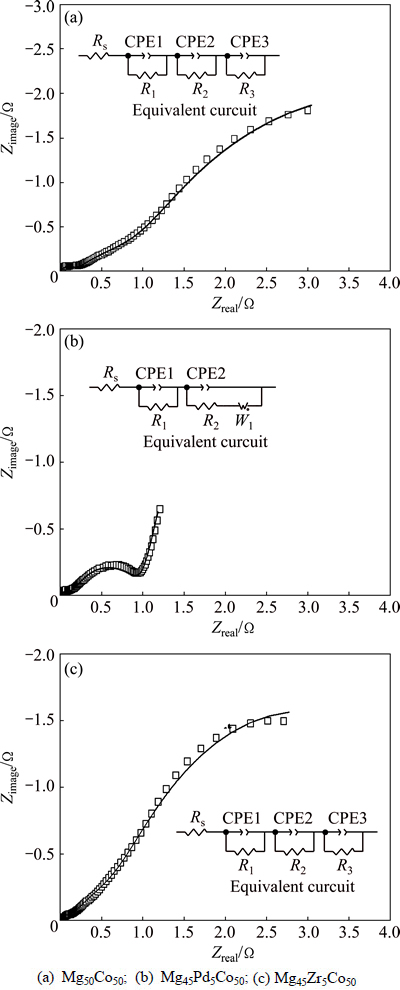

Fig. 7 Electrochemical impedance spectra of Mg₄₅M₅Co₅₀ (M=Mg, Pd, Zr) electrodes

Table 4 Fitting results of Nyquist plots of Mg₄₅M₅Co₅₀ (M=Mg, Pd, Zr) electrodes

where ρ, a, c_o, c_s, F, D and t represent density of the alloy, sphere radius, constant bulk concentration, constant surface concentration, Faraday’s constant, diffusion coefficient and time, respectively. Equation (6) is derived when t is large.

Figure 8 presents plots of lg J vs t, in which slopes (B) of the linear parts in curves can be calculated by linear fitting. By virtue of Eqs. (6) and (7), the value of D is available to evaluate the hydrogen diffusion capability. The values of sphere radii were approximately 6 μm, which was analyzed by SEM in Figs. 1 and 2.

The achieved values of D are listed in Table 3. Compared with the binary alloy Mg₅₀Co₅₀, we found that the substitution of both Zr and Pd promotes the values of D, suggesting that the additives Zr and Pd are helpful for improving the hydrogen diffusion kinetics in alloys. This could be relevant with the higher HRD properties in Mg₄₅Zr₅Co₅₀ and Mg₄₅Pd₅Co₅₀ because the controlling step was hydrogen diffusion process of the alloy in high current density discharge.

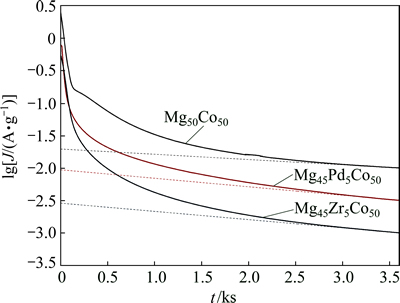

Fig. 8 lg J-t curves of Mg₄₅M₅Co₅₀ (M=Mg, Pd, Zr) electrodes obtained by potential step method

3.4 Corrosion performance

Tafel polarization curve could be available to describe the corrosion performance of alloys in alkaline electrolyte when the corrosion reaction dominates in electrochemical reaction. Tafel curves of alloys before charge and after initial discharge are demonstrated in Figs. 9(a) and (b), respectively, in which the electrodes became easier to be corroded after the first cycle. Meanwhile, the additive Pd or Zr shifts the corrosion potential φ_corr to more positive direction. And the corrosion current densities (Fig. 9(c)) of alloys determined by fitting Tafel curves also indicated that more enhanced corrosion-resistance abilities were achieved than that of binary alloy electrode. Therefore, the substitution of Pd exhibits the highest anti-corrosion ability in these alloys, which probably render the highest cycling stability of Mg₄₅Pd₅Co₅₀. This verifies again that Pd effectively inhibits the corrosion of the Mg-Co alloy in alkaline solution and improves the cyclic stability.

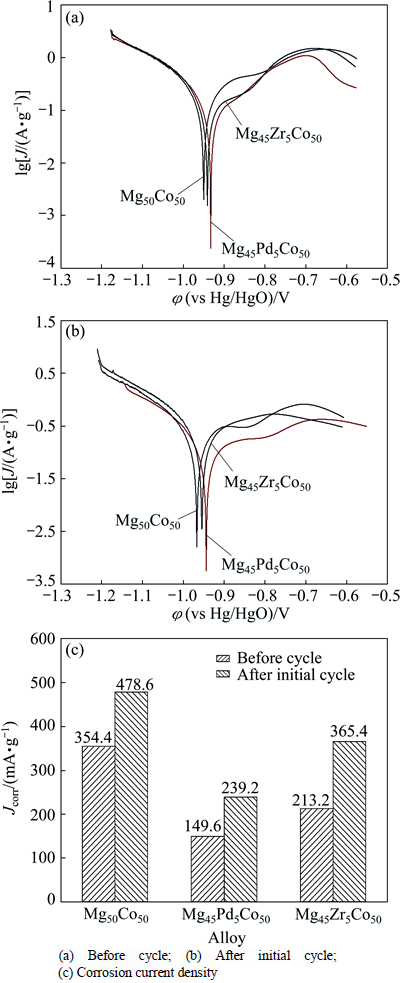

Fig. 9 Tafel polarization curves of Mg₄₅M₅Co₅₀ (M=Mg, Pd, Zr) electrodes

4 Conclusions

1) XRD and TEM analyses exhibit that the major phase of Mg₄₅Pd₅Co₅₀ and Mg₄₅Zr₅Co₅₀ ternary alloys is BCC phase with lattice parameters of 0.2969 nm and 0.2981 nm, respectively.

2) The maximum discharge capacities strictly increase with the increase of lattice parameters for the Mg-Co-based BCC alloys. The Mg₄₅Zr₅Co₅₀ electrode possesses the highest discharge capacity (425 mA·h/g) as well as the largest lattice parameter.

3) The ternary Mg₄₅Pd₅Co₅₀ alloy possesses the highest cyclic stability among the studied Mg-Co BCC electrodes.

4) In comparison with Mg₅₀Co₅₀ and Mg₄₅Zr₅Co₅₀ electrodes, Mg₄₅Pd₅Co₅₀ electrode promotes not only the electrode reaction kinetics, but also the corrosion resistance and cyclic stability.
