J. Cent. South Univ. (2012) 19: 1202-1205

DOI: 10.1007/s11771-012-1129-8

Low-temperature sintering and microwave dielectric properties of Li₂MgTi₃O₈ ceramics doped with BaCu(B₂O₅)

BAO Yan(包燕)¹, CHEN Guo-hua(陈国华)^{1, 2}, HOU Mei-zhen(侯美珍)¹, HAN Zuo-peng(韩作鹏)¹,

DENG Kai-neng(邓开能)¹,YANG Yun(杨云)¹, YUAN Chang-lai(袁昌来)^{1, 2},

ZHOU Chang-rong(周昌荣)^{1, 2}, LIU Xin-yu(刘心宇)^{1, 2}

1. School of Materials Science and Engineering, Guilin University of Electronic Technology, Guilin 541004, China;

2. Guangxi Key Laboratory of Information Materials,Guilin University of Electronic Technology, Guilin 541004, China

? Central South University Press and Springer-Verlag Berlin Heidelberg 2012

Abstract: The influences of BaCu(B₂O₅) (BCB) addition on sintering, microstructure and microwave dielectric properties of Li₂MgTi₃O₈ ceramics were investigated using X-ray diffractometry, scanning electron microscopy and microwave dielectric measurements. The experimental results show that a small amount of BaCu(B₂O₅) addition can effectively reduce the sintering temperature to 900 ℃, and induce only a limited degradation of the microwave dielectric properties. Typically, the best microwave dielectric properties of ε_r=24.5, Q×f =24 622 GHz, τ_f=4.2×10^{-6 ℃ -1} are obtained for 1.0% BCB-doped Li₂MgTi₃O₈ ceramics sintered at 900 ℃ for 3 h. The BCB-doped Li₂MgTi₃O₈ ceramics can be compatible with Ag electrode, which may be a strong candidate for low temperature co-fired ceramics applications.

Key words: ceramics; dielectrics; low-temperature co-fired ceramics; microwave dielectric properties

1 Introduction

To meet the demands of the miniaturization of microwave components for wireless communication, low-temperature co-fired ceramic (LTCC) technology becomes an important approach owing to its predominance in enabling the fabrication of three-dimensional ceramic modules with low dielectric loss and co-fired metal electrodes. As a metallic electrode, Ag has been widely used in LTCC technology because of its high conductivity and comparatively low cost. The melting temperature of Ag is low, about 961 ℃. Therefore, the microwave dielectric ceramics must have a low sintering temperature lower than 950 ℃ and chemical compatibility with Ag [1-2] in order to use the most common electrode.

Most of the known commercial dielectric materials for the high frequency applications have good microwave dielectric properties, but they cannot be co-fired with Ag electrode because of high sintering temperatures above 1 000 ℃ [3-5]. The addition of sintering aids, such as low-melting glasses and compounds, is the most often used method to lower the sintering temperatures [6-8]. Besides this, considerable attention has been paid to develope new microwave dielectrics with low cost of raw materials and low sintering temperature [9-11]. More recently, GEORGE and SEBASTIAN [12] reported that Li₂MgTi₃O₈ (LMT) ceramics exhibited good microwave dielectric properties (ε_r=27.2, Q×f=42 000 GHz, τ_f =3.2×10^{-6 ℃-1}) and low cost of raw materials. Unfortunately, the ceramics cannot be co-fired with Ag electrode due to high sintering temperatures (about 1 075 ℃). As far as we know, there are rarely reports focused on the low-sintered LMT ceramics [13]. In the present work, the microwave dielectric properties of Li₂MgTi₃O₈ with BaCu(B₂O₅) (BCB) were investigated. It is well known that BCB addition often makes it possible to decrease the sintering temperature of many materials [14-17]. Therefore, a small amount of BCB is added to the ceramic in order to lower the sintering temperature of LMT ceramic.

2 Experimental

Li₂MgTi₃O₈ (abbreviated as LMT) ceramic samples were prepared by the solid-state reaction method. High- purity Li₂CO₃, (MgCO₃)₄ Mg(OH)₂·5H₂O, and TiO₂ (>99.9%, mass fraction, Sigma Aldrich, Gillingham, UK) were used as the starting materials. Stoichiometric amounts of the powder samples were mixed and ball milled using zirconia balls in isopropan-2-ol medium for 24 h. The resultant slurry was then dried and calcined at 900 ℃ for 4 h. The calcined powders were ground to form fine powders. To synthesize BaCu(B₂O₅) (abbreviated as BCB) ceramic powder, BaCO₃, CuO and H₂BO₃ (>99.5%, mass fraction, Sigma Aldrich, Gillingham, UK) were milled for 4 h in a nylon jar with zirconia balls in isopropan-2-ol medium, then dried and calcined at 800 ℃ for 4 h. After subsequent ball-milling with 0.5%-4.5% (mass fraction) BCB, followed by drying, pellets, 10 mm in diameter and about 5 mm in thickness, were prepared by uniaxial pressure of about 100 MPa, and subsequently sintered for 3 h in air at  900 ℃.

The crystal structures of the samples were studied by X-ray diffraction technique using Cu K_α radiation (Philips PW1710) operating at 40 kV and 30 mA. The bulk densities of the sintered pellets were measured by the Archimedes method. The sintered samples were thermally etched for 60 min at a temperature of 90 % of the sintering temperature and the surface morphology was analyzed by using a scanning electron microscope (SEM, JEOL JSM-6400, Tokyo, Japan). The microwave dielectric property measurements were carried out using the transmission resonant cavity technique in an Au-coated brass cavity and a vector network analyzer (Advantest R3767CH, Tokyo, Japan). A Peltier device was used to heat up the cavity in order to measure the resonant frequency, f₀, between 25 ℃ and 75 ℃. A linear fit to the data was used to calculate the temperature coefficient of the resonant frequency (τ_f). To check the chemical compatibility of LMT ceramic with the silver powder, the homogenized mixture including 20% (mass fraction) powdered silver and the ceramic powder was pressed into pellet and sintered at 900 ℃ for 3 h. In addition to the XRD analysis, micro-structural study was carried out by scanning electron microscopy.

3 Results and discussion

Figure 1 shows the XRD patterns of LMT powder calcined at 900 ℃ for 4 h, and BCB doped-LMT ceramics sintered at 900 ℃ for 3 h. All the diffraction peaks of LMT powder calcined at 900 ℃ could be indexed as a cubic structure (P4332) Li₂MgTi₃O₈ (PDF 89-1308) without a second phase, which agrees well with the result reported by KAWAI et al [18]. It is indicated that reactions between Li₂CO₃, (MgCO₃)₄Mg(OH)₂·

5H₂O and TiO₂ are completed when the mixed powder is calcined at 900 ℃ for 4 h. It is also confirmed that the ceramics with a small amount of BCB (≤1.5%) show a single phase Li₂MgTi₃O₈, and no other crystal phase derived from the reaction between the LMT and the added BCB is found. However, a trace amount of unknown second phases occur when BCB content is 3%.

Fig. 1 XRD patterns of LMT powder calcined at 900 ℃ for 4 h (a) and LMT ceramics sintered at 900 ℃ for 3 h doped with 1.0% (b), 1.5% (c), 3.0% (d) BCB

Figure 2 shows the SEM micrographs of the polished surface of 0.5, 1.0, 1.5, and 3.0% BCB-doped LMT ceramics. It is evident that the porosity of the LMT ceramics decreases when the BCB content increases, while excessive BCB content (≥1.5%) tends to have more pores in its microstructure, which indicates the dependence of the porosity (or relative density) on BCB content. The average grain sizes for all samples are below 2 μm. At about 900 ℃, BCB improves the sintering of ceramics as a result of liquid phase sintering system (BCB has a low melting point of ~850 ℃). When BCB content increases, more liquid phase is formed during sintering. On one hand, it facilitates the array of granules as a step of sintering process and this is helpful for the sintering behavior of the samples. On the other hand, it inhibits the mass transfer during sintering because the high temperature liquid phase with more BCB has a larger viscosity and the formed liquid phase film at the grain boundary is thicker. This is not favorable for the sintering behavior of the samples. Because of the two opposite effects, there is an optimum value of the BCB content, i.e. the optimum BCB content should be 1% (mass fraction) in the present work. The 1%BCB-doped sample has more uniform and dense microstructure compared with other samples.

Figure 3 shows the dependence of BCB content on the relative density and ε_r values of the LMT ceramics sintered at 900 ℃ for 3 h. The theoretical density of LMT ceramic is 3.501 g/cm³ [12]. The relative density firstly increases and then decreases, which is in agreement with the variation in the microstructure. The relative permittivity versus BCB content of LMT ceramics has a trend similar to that of the relative density.

Fig. 2 SEM images of polished surface of LMT ceramics sintered at 900 ℃ for 4 h doped with different mass fractions of BCB:   (a) 0.5%; (b) 1%; (c) 1.5%; (d) 3%

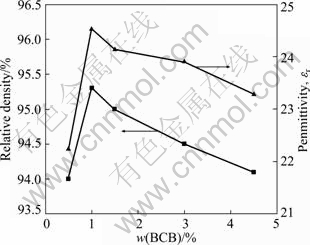

Fig. 3 Dependence of relative density and permittivity (ε_r) on BCB content of LMT ceramics sintered at 900 ℃ for 4 h

When BCB content is 1%, ε_r has a maximum value of 24.5. The first increase of ε_r might result from the increase of density of LMT ceramics. With further increase of BCB content, its low ε_r value is attributed to the decrease of overall ε_r value of ceramics, which indicates that the decrease of density, and the increase of BCB (low permittivity of 7.4 [14]) and secondary phase contents (see Fig. 1) result in the decrease of ε_r.

The dependence of Q×f and τ_f value on BCB content of LMT ceramics, sintered at 900 ℃ for 3 h is presented in Fig. 4. It is observed that the Q×f value of LMT ceramics firstly has a tendency to increase due to the increased density of the ceramics. A uniform and dense microstructure is in favor of improving Q×f value of LMT ceramics. Therefore, the maximum Q×f value of 24 622 GHz (at 7.3 GHz) can be obtained when BCB content is 1.0%. The Q×f value then slightly decreases when BCB content is 1.5%. It is worthy noting that Q×f value sharply decreases with the further increase of BCB content (≥3%), which may be due to the decrease of density and the formation of other secondary phases (see Fig. 3 and Fig. 1(d)). The τ_f values of the LMT ceramics slightly decreases with BCB content. Since BCB has negative τ_f value (about 32×10^{-6 ℃-1}) [14], the addition of BCB has effect on the change of the positive τ_f value of the LMT ceramics. On the whole, the τ_f values of LMT ceramics are in the range of (2.3-4.4)×10^{-6 ℃-1}. The XRD pattern together with SEM micrograph showing interface between Ag electrode and 1% BCB-doped LMT ceramic is presented in Fig. 5. It is seen that there are only diffraction peaks of Li₂MgTi₃O₈ phase and the cubic silver phase (PDF 4-783) in the co-fired ceramic (Fig. 5(a)). A good contact between the ceramic and Ag is observed, as shown in Fig. 5(b). This indicates that the ceramic phase does not react with Ag powders and no other phase is formed when they are co-fired at 900 ℃ for 3 h. This result is tolerable during LTCC procedures and BCB-doped LMT ceramic can be recognized as a promising dielectric material for LTCC application.

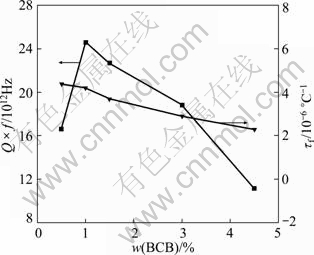

Fig. 4 Dependence of Q×f and τ_f values on BCB content of LMT ceramics sintered at 900℃for 4 h

Fig. 5 XRD pattern (a) and SEM micrograph showing interface between Ag electrode and 1% BCB-doped LMT ceramic (b)

4 Conclusions

1) The effects of BCB addition on structure, microstructure and microwave dielectric properties of the LMT ceramic were investigated. LMT ceramics with addition of BCB can be well sintered at 900 ℃.

2) The 1.0% (mass fraction) BCB-added LMT ceramic material sintered at 900 ℃ has good microwave dielectric properties of ε_r=24.5, Q×f=24 622 GHz (at 7.3 GHz) and τ_f = 4.2×10^{-6 ℃-1}.

3) The XRD analysis and SEM observation show that LMT ceramic can co-fire with the silver electrode at 900 ℃. The LMT-based ceramics may be promising candidates for LTCC applications at microwave frequencies.

References

[1] SebastianM T, Jantunen H. Low loss dielectric materials for LTCC applications: A review [J]. Int Mater Rev, 2008, 53(2): 57-90.

[2] Sebastian M T. Dielectric materials for wireless communications [M]. Oxford, UK: Elsevier Publishers, 2008: 445-448.

[3] Surendran K P, Sebastian M T. Low loss dielectrics in Ba[(Mg_1/3Ta_2/3)_1-xTi_x]O₃ and Ba[(Mg_1-xZn_x)_1/3Ta_2/3]O₃ systems [J]. J Mater Res, 2005, 20(11): 2919–2926.

[4] Hughes H, Iddles D M, Reaney I M. Niobate-based microwave dielectrics suitable for third generation mobile phone base stations [J]. Appl Phys Lett, 2001, 79(18): 2952-2954.

[5] Nenasheva E A, Mudroliubova L P, Kartenko N F. Microwave dielectric properties of ceramics based on CaTiO₃-LnMO₃ system (Ln–La, Nd; M–Al, Ga) [J]. J Eur Ceram Soc, 2003, 23 (14): 2443-2448.

[6] Zhang Q L, Yang H, Zou J L, Wang H P. Sintering and microwave dielectric properties of LTCC-zinc titanate multilayers [J]. Mater Lett, 2005, 59(8/9): 880-884.

[7] Li B, Yue Z X, Li L T, Zhou J, Gui Z L. Low-fired microwave dielectrics in ZnO-TiO₂ ceramics doped with CuO and B₂O₃ [J]. J Mater Sci: Mater Electron, 2002, 13(7): 415-418.

[8] Wee S H, Kim D W, Yoo S I. Microwave dielectric properties of low-fired ZnNb₂O₆ ceramics with BiVO4 addition [J]. J Am Ceram Soc, 2004, 87(5): 871-874.

[9] Pang L X, Zhou D. A low-firing microwave dielectric material in Li₂O–ZnO–Nb₂O₅ system [J]. Mater Lett, 2010, 64 (22): 2413-2415.

[10] Liang J, Lu W Z. Microwave dielectric properties of Li₂TiO₃ ceramics doped with ZnO–B₂O₃ Frit [J]. J Am Ceram Soc, 2009, 92 (4): 952-954.

[11] Feteira A, Sinclair D C. Microwave dielectric properties of low firing temperature Bi₂W₂O₉ ceramics [J]. J Am Ceram Soc, 2008, 91(4): 1338-1341.

[12] George S, Sebastian M T. Synthesis and microwave dielectric properties of novel temperature stable high Q, Li₂ATi₃O₈ (A=Mg, Zn) ceramics [J]. J Am Ceram Soc, 2010, 93(8): 2164-2166.

[13] George S, Sebastian M T. Low-temperature sintering and microwave dielectric properties of Li₂ATi₃O₈ (A=Mg, Zn) ceramics [J]. IntJApplCeramTechnol, 2010, 8(6): 1400-1407.

[14] Zhou H F, Wang H, Li K C, Yang H B, Zhang M H, Yao X. Microwave dielectric properties of ZnO-₂TiO₂-Nb₂O₅ ceramics with BaCu (B₂O₅) addition [J]. J Electron Mater, 2009, 38(5): 711-716.

[15] Kim M H, Lim J B, Kim J C, Nahm S. Synthesis of BaCu(B₂O₅) ceramics and their effect on the sintering temperature and microwave dielectric properties of Ba(Zn_1/3Nb_2/3)O₃ ceramics [J]. J Am Ceram Soc, 2006, 89 (10): 3124-3128.

[16] Zhou H F, Chen X L, Fang L, Hu C Z. Preparation and characterization of a new microwave dielectric ceramic Ba₄ZnTi₁₁O₂₇ [J]. J Am Ceram Soc, 2010, 93 (6): 1537-1539.

[17] Lim J B, Jeong Y H, Nguyen N H, Nahm S, Paik J H, Kim J H, Lee H J. Low temperature sintering of the Ba₂Ti₉O₂₀ ceramics using B₂O₃/CuO and BaCu(B₂O₅) additives [J]. J Eur Ceram Soc, 2007, 27(8/9): 2875-2879.

[18] Kawai H, Tabuchi M, Nagata M, Tukamoto H, West A R. Crystal chemistry and physical properties of complex lithium spinels Li₂MM₀₃O₈ (M=Mg, Co, Ni, Zn; M₀=Ti, Ge) [J]. J Mater Chem, 1998, 8: 1273-1280

(Edited by YANG Bing)

Foundation item: Project(2010GXNSFA013029) supported by the Natural Science Foundation of Guangxi Province, China; Project(101059529) supported by National Undergraduate Innovation Program of the Ministry of Education of China

Received date: 2011-03-21; Accepted date: 2011-06-15

Corresponding author: CHEN Guo-hua, Professor, PhD; Tel: +86-773-2291434; E-mail: cgh1682002@163.com, chengh@guet.edu.cn
