硅酸钠对硫酸盐溶液中电沉积锰的影响
来源期刊:中国有色金属学报(英文版)2016年第4期
论文作者:薛建荣 钟宏 王帅 李昌新 武芳芳
文章页码:1126 - 1137
关键词:电沉积;锰;硅酸钠;电沉积层结构;析氢反应
Key words:electrodeposition; manganese; sodium silicate; electrodeposit structure; hydrogen evolution reaction
摘 要:研究硅酸钠对硫酸盐溶液中锰电沉积的影响。锰电沉积实验结果表明,添加一定量的硅酸钠可以提高锰电沉积的阴极电流效率,且初始pH 7.0~8.0是获得较高阴极电流效率的pH优化值。扫描电子显微镜(SEM)和X射线衍射(XRD)分析结果表明,所得电沉积层呈致密、纳米晶结构。X射线光电子能谱(XPS)分析结果表明,电沉积层中含Mn、Si和O元素。硫酸盐溶液和硅酸钠溶液化学计算结果表明,在锰电沉积过程中,Mn2+、MnSO4、 Mn(SO4)2- 2、Mn2+、MnSiO3、Mn(NH3)2+、SiO2- 3和 HSiO- 3是主要的活性组分。Mn2+与含硅离子的反应趋势经热力学计算分析证实。此外,极化曲线测试结果表明,添加硅酸钠可以提高析氢过电位,从而间接提高了阴极电流效率。
Abstract: The influences of sodium silicate on manganese electrodeposition in sulfate solution were investigated. Manganese electrodeposition experiments indicate that a certain amount of sodium silicate can improve cathode current efficiency and initial pH 7.0-8.0 is the optimized pH for high cathode current efficiency. The analyses of scanning electron microscopy (SEM) and X-ray diffraction (XRD) indicate the compact morphology and nanocrystalline structure of electrodeposits. X-ray photoelectron spectrometry (XPS) analysis shows that the elements of Mn, Si and O exist in the deposit. The solution chemistry calculations of sulfate electrolyte and sodium silicate solution indicate that species of Mn2+, MnSO4, Mn(SO4)2- 2, Mn2+, MnSiO3, Mn(NH3)2+, SiO32- and HSiO3- are the main active species during the process of manganese electrodeposition. The reaction trend between Mn2+ and Si-containing ions is confirmed by the thermodynamic analysis. In addition, polarization curve tests confirm that sodium silicate can increase the overpotential of hydrogen evolution reaction, and then indirectly improve the cathode current efficiency.
Trans. Nonferrous Met. Soc. China 26(2016) 1126-1137
Jian-rong XUE1,2, Hong ZHONG1, Shuai WANG1, Chang-xin LI1, Fang-fang WU1
1. School of Chemistry and Chemical Engineering, Central South University, Changsha 410083, China;
2. College of Chemistry and Chemical Engineering, Hunan University of Science and Technology, Xiangtan 411201, China
Received 9 June 2015; accepted 6 January 2016
Abstract: The influences of sodium silicate on manganese electrodeposition in sulfate solution were investigated. Manganese electrodeposition experiments indicate that a certain amount of sodium silicate can improve cathode current efficiency and initial pH 7.0-8.0 is the optimized pH for high cathode current efficiency. The analyses of scanning electron microscopy (SEM) and X-ray diffraction (XRD) indicate the compact morphology and nanocrystalline structure of electrodeposits. X-ray photoelectron spectrometry (XPS) analysis shows that the elements of Mn, Si and O exist in the deposit. The solution chemistry calculations of sulfate electrolyte and sodium silicate solution indicate that species of Mn2+, MnSO4, Mn(SO4)2- 2, Mn2+, MnSiO3, Mn(NH3)2+, SiO32- and HSiO3- are the main active species during the process of manganese electrodeposition. The reaction trend between Mn2+ and Si-containing ions is confirmed by the thermodynamic analysis. In addition, polarization curve tests confirm that sodium silicate can increase the overpotential of hydrogen evolution reaction, and then indirectly improve the cathode current efficiency.
Key words: electrodeposition; manganese; sodium silicate; electrodeposit structure; hydrogen evolution reaction
1 Introduction
Manganese metal has been widely used in stainless steels and alloying with Ni, Zn and Sn [1-3]. Manganese is also the most electro-negative metal [4]. Metallic manganese is primarily electrodeposited from aqueous sulfate solutions. The electrolyte is composed of manganese sulfate and ammonium sulfate with trace Se-containing additive. Manganese sulfate is commonly obtained from leaching solution of manganese ores.
The rapid development of manganese industry has led to the decrease of manganese ore grade markedly. The conventional techniques used for ore beneficiation contain gravity separation, magnetic separation, froth flotation, pyrometallurgy and hydrometallurgy. The froth flotation, used as a selective processing method, is promising for ore beneficiation, as it has various advantages in terms of applicability, adaptability, operation, efficiency and economics. Sodium silicate, as depressant or dispersant, is widely used as regulating reagent in the flotation of minerals [5,6]. In iron ore flotation, sodium silicate is used to disperse the kaolinite in a wide range of pH value [7]. Regarding the flotation mechanism of sodium silicate, there are few publications available. The depression mechanism of sodium silicate is primarily the adsorption action of the hydrolysis products of sodium silicate, which produces a number of monomeric, polymeric and colloidal species. GONG et al [8] advocated that polymeric silicate species in concentrated solutions provided a depressing effect on iron oxide due to the strong adsorption of the polymeric silicate species onto the iron oxide surface, thus hindering it from collector adsorption. Sodium silicate was also widely used in the froth flotation of manganese minerals. PARRENT [9] found that the degree of selectivity of pyrolusite was fixed as sodium silicate was added in flotation of manganese oxide ores, regardless of dosages and particle sizes of sodium oleate and sodium silicate. In the study of ANDRADE et al [10], it was found that the inhibition effect of sodium silicate at pH9.0 was more efficient in depressing quartz than rhodonite, especially for lower concentrations of sodium silica, whereas the flotation response of rhodochrosite was only slightly influenced at both pH 9.0 and pH 11.0.
However, the adsorption of sodium silicate on manganese ore surface results in a certain amount of silicate species remaining in the floated manganese ores. These residual species at a certain level can exert some effects on the subsequent process of manganese electrodeposition.
However, manganese electrodeposition process is particularly sensitive to impurities, which significantly influence the current efficiency, morphology and crystal structure of electrodeposited manganese. This is attributed to that standard reduction potential for Mn2+/Mn is -1.18 V (vs SHE). Metallic impurities can decrease the overpotential of hydrogen evolution and hence lead to the decrease of cathode current efficiency [11,12]. And the deleterious influences of metallic impurities on the morphology of zinc electrodeposit have been analyzed [13]. Thus, the impurities in the electrolyte are strictly removed to gain high purity manganese during industrial production process of metallic manganese [14]. Furthermore, appropriate additives, such as SeO2 and SO2, should be added into electrolyte to improve cathode current efficiency and quality of electrodeposited manganese. However, few literatures are available regarding effects of organic impurities on manganese electrodeposition process. DING et al [15] confirmed the beneficial effects of N-based auxiliary additives on manganese electrodeposition. PADHY et al [12] found that quaternary amine additives improved the morphology and crystal structure of manganese electrodeposits. As for the influence of sodium silicate on electrodeposited metal, previous study [16] indicated that the addition of silicates into the electrolyte of zinc led to the formation of a physical barrier to hinder aggressive ions from penetrating. In addition, it was reported that metal coatings can be electrodeposited from Si-containing electrolyte to improve the morphology and anti-corrosion behavior [17,18]. However, information regarding the effect of silicate species on manganese electrodeposition is not available.
In this work, the influences of sodium silicate on manganese electrodeposition were investigated systematically, based on the analyses of manganese electrodeposition experiments, characterization of scanning electron microscopy (SEM), energy dispersive spectroscopy (EDS), X-ray diffraction (XRD) pattern, X-ray photoelectron spectrometry (XPS) analysis, solution chemistry calculations, thermodynamics and cathode polarization.
2 Experimental
2.1 Reagents and solutions
The catholyte contained analytical grade manganese sulfate, ammonium sulfate, selenium dioxide and sodium silicate. Ammonia and sulfuric acid were used to adjust the pH of the catholyte. Reagents of analytical grade are dissolved in deionized water. Unless otherwise specified, catholyte components were as follows: 0.55 mol/L Mn2+, 0.91 mol/L (NH4)2SO4, 3.6×10-4 mol/L SeO2, 8.2×10-4 mol/L Na2SiO3 and pH 7.0. The anolyte contained 0.91 mol/L (NH4)2SO4.
2.2 Electrodeposition experiment
The experiments of electrodepositing manganese were carried out in a divided plexiglass cell, which consisted of anode and cathode compartments (each effective volume of 100 mL) separated by a diaphragm, a cathode and an anode. The cathode was used with AISI 301 stainless steel sheet and polished with metallographic sandpaper, with a geometrical surface area of 27 mm×70 mm (single-side effective surface area of 1080 mm2), and a thin layer of epoxy resin was coated on the other surface. The cathode was rinsed with acetone and deionized water. Prior to electrodeposition experiment, the cathode was immersed in a 4% Na2SiO3 solution for 5 min. PbSn0.4Ag0. 014Sb0.014alloy was used as anode with a geometrical surface area of 20 mm× 70 mm (single-side effective surface area of 740 mm2), and a thin layer of epoxy resin was also applied on the other surface. The anode and cathode were placed at a constant distance of 12.0 mm from the diaphragm. The electrolyte temperature was controlled within (30±1) °C by a thermostatic control. The catholyte was mixed by magnetic stirring. The experiments of electrodepositing manganese were carried out subsequently. After electrolysis, the cathode was withdrawn, washed with deionized water thoroughly after the experiments of electrodepositing manganese. Subsequently, the passivation treatment with a 3% K2Cr2O7 solution for 1.0 min was carried out, washed thoroughly with deionized water, and dried in an oven. The electrodeposits were weighed and scraped carefully from the cathode surface. Based on mass gained by the cathode, cathode current efficiency (η) was calculated by [19]
(1)
where △mc/△t is the mass gain of the cathode over the time interval Δt (g/s); Ac is the effective cathode area (m2); Jc is the applied current density (A/m2); p is the purity of the electrodeposited manganese; EMn is the electrochemical equivalent of metallic manganese (1.025 g/(A·h)).
2.3 Characterization procedure
The manganese electrodeposits were analyzed by SEM-EDS characterization using a Sirion 200 type SEM (FEI Company, Holland) aided to an EDS. To identify the structure of manganese electrodeposits, XRD tests were performed on a D/Max 2500 spectroscope (Rigaku Corporation, Japan) with graphite monochromatized Cu Kα radiation (λ=1.5418 , 40 kV) in the 2θ range of 10° to 80° at a scan rate of 8.0 (°)/min. X-ray photo- electron spectrometry analysis (XPS, ESCALAB250Xi, Thermo Scientific monochromated Al Kα source, 1486.7 eV, 2 μm diameter beam), was used to determine the surface elemental distributions of electrodeposits.
2.4 Cathode polarization test
The cathode polarization tests were carried out by using a CHI760E electrochemical workstation in a conventional three-electrode glass cell with 100 mL electrolyte at (30±1) °C. A stainless-steel (AISI 301) working electrode was coated with epoxy resin, leaving an area of 0.25 cm2 for the cathode polarization test. The working electrode surface was finely polished with 1800, 2000 and 3500 grit metallographic sandpaper to a mirror finish and then rinsed with alcohol followed by deionized water. A platinum sheet (2.8 cm2) was used as a counter electrode, and the reference electrode was a saturated calomel electrode (SCE). All potentials were recorded vs SCE through a Luggin capillary. The cathode potential was scanned in the potential range from -0.5 to -1.7 V at a rate of 1 mV/s. High purity nitrogen was used to sparge out the dissolved oxygen and maintain an inert atmosphere throughout the polarization test.
3 Results and discussion
3.1 Manganese electrodeposition analysis
3.1.1 Effect of Na2SiO3 concentration on cathode current efficiency
In order to investigate the effect of Na2SiO3 concentration on cathode current efficiency, the experiments of manganese electrodeposition were performed with Na2SiO3 concentrations varying from 0 to 5.7×10-3 mol/L under previous optimized conditions: 0.55 mol/L Mn2+, 0.91 mol/L (NH4)2SO4, 3.6×10-4 mol/L SeO2, pH 7.0, stirring rate of 150 r/min, cathode current density of 400 A/m2, electrodeposition temperature of 30 °C and time of 60 min. Figure 1 shows that cathode current efficiency increases significantly from 76.31% to 92.75% when Na2SiO3 concentration increases from 0 to 8.2×10-4 mol/L in the catholyte, and cathode current efficiency remains constant nearly when Na2SiO3 concentration increases from 8.2×10-4 to 1.6×10-3 mol/L. The current efficiency decreases slowly when Na2SiO3 concentration exceeds 1.6×10-3 mol/L. The cathode current efficiency is influenced by the competitive reactions, i.e., manganese deposition and hydrogen evolution reaction on the cathode surface simultaneously. Cathode current efficiency depends on the relative rate of manganese electrodeposition compared with that of hydrogen evolution reaction. Within the silicate solubility (0.2 mol/L, 25 °C), silicate exists in the form of monomeric silicate species. Therefore, after the addition of Na2SiO3 inhibitor, the hydrolysis of Na2SiO3 at lower concentrations (5.7×10-3 mol/L) may produce a number of monomeric silicate species, such as SiO32- and HSiO3- anions. These silicate anions may adsorb on the electrode surface to block the active sites for hydrogen evolution reaction and manganese electrodeposition [20,21]. On the other hand, the formation of hydrophilic complexes between Mn2+ and Si-containing anions results in the decrease of Mn2+ ion concentration, which leads to the increase of concentration polarization on the cathode surface. Two effects lead to the increase of the overpotential of hydrogen evolution reaction. Thus, hydrogen evolution reaction is significantly inhibited, which can indirectly increase the relative rate of manganese electrodeposition and then improve the cathode current efficiency. However, with the increase of Na2SiO3 concentration, the products of Na2SiO3 hydrolysis, i.e., monomeric polymeric and colloidal species, also hinder manganese electrodeposition due to the impoverishment of Mn2+ ions on the cathode surface, which indirectly results in the decrease of the cathode current efficiency.

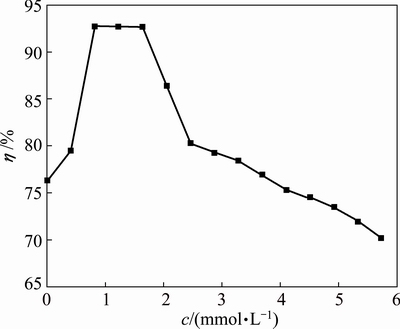

Fig. 1 Effect of Na2SiO3 concentration (c) on cathode current efficiency (η)
3.1.2 Effect of initial pH on cathode current efficiency
Manganese electrodeposition experiments were performed by varying the initial pH from 6.0 to 9.5 under previous conditions: 0.55 mol/L Mn2+, 0.91 mol/L (NH4)2SO4, 3.6×10-4 mol/L SeO2, 8.2×10-4 mol/L Na2SiO3, 400 A/m2, 150 r/min, 30 °C and 60 min. The results are plotted in Fig. 2. As indicated in Fig. 2, cathode current efficiency rises sharply from 71.9% at pH 6.0 to 81.87% at pH 7.0 and then stabilizes in the pH region of 7.0-8.5; it decreases from 81.45% at pH 8.5 to 72.34% at pH 9.5. Hydrogen evolution reaction on the electrode surface is obvious and cathode current efficiency decreases when the initial pH is less than 7.0. With manganese electrodeposition proceeding, H+ is depleted in the electrolyte near the cathode surface due to the hydrogen evolution reaction. Cathode current efficiency is influenced by the relative rate of manganese electrodeposition compared with that of hydrogen evolution reaction [22]. However, the rate of hydrogen evolution reaction declines as the pH increases continuously, which is conducive to manganese electrodeposition. Moreover, with continuous increase of the pH, a yellow precipitate of Mn(OH)2 is formed when the initial pH is higher than 7.8 [19]. This will lead to the consumption of manganese ions and the increase of the electronic transfer resistance on the electrode surface, which may result in the decrease of the cathode current efficiency. Hence, optimal pH 7.0-8.0 is determined to obtain higher cathode current efficiency.

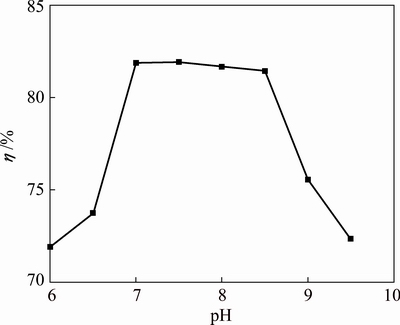

Fig. 2 Effect of initial pH on cathode current efficiency
3.2 Effect of Na2SiO3 concentration on structure of manganese electrodeposits
3.2.1 SEM-EDS analysis of manganese electrodeposits
To analyze the influence of Na2SiO3concentration on the morphology of manganese electrodeposits, SEM tests were carried out. The morphology of manganese electrodeposits is shown in Fig. 3. The SEM observation of manganese electrodeposits without Na2SiO3 (Fig. 3(a)) shows a rough morphology and presents zones of imperfections with the presence of cracks and pores. It was reported that the presence of cracks and pores would deteriorate the properties of metal electrodeposits, especially the corrosion resistance [16]. Whereas, SEM image (Fig. 3(b)) presents a gray, shining and covering most of the surface after the presence of 8.2×10-4 mol/L Na2SiO3 in electrolyte. Figure 3(b) also shows that most of cracks and pores disappear on electrodeposit surface. Moreover, the presence of silicate anions in electrolyte forms a barrier against the gas diffusion and slows down the spread of vacuum pores and imperfections during the process of manganese electrodeposition [17].

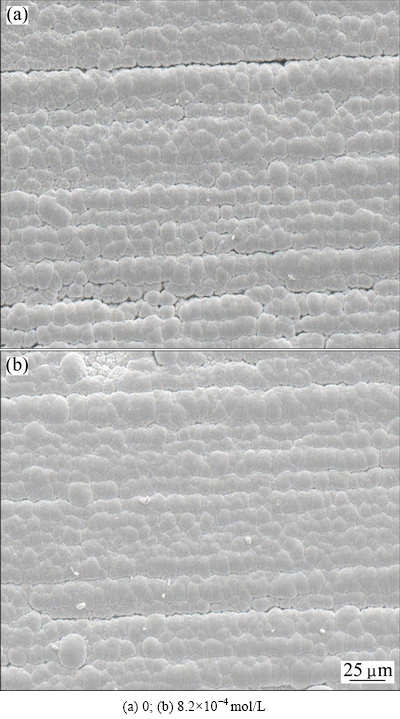

Fig. 3 SEM images of manganese electrodeposits at different Na2SiO3concentrations
Correspondingly, EDS analysis was carried out to investigate the chemical composition. The EDS patterns of the manganese electrodeposits before and after addition of Na2SiO3 are presented in Fig. 4. Electrodeposits obtained in absence of Na2SiO3 (Fig. 4(a)) were compared with those of Na2SiO3 addition into the electrolyte (Fig. 4(b)). Both electrodeposits contain 100% manganese nearly. Figure 4(b) indicates that silicon is absent in the manganese electrodeposit detected by EDS test although Na2SiO3 is added into the electrolyte.
3.2.2 XRD analysis of manganese electrodeposits
The crystal structures of manganese electrodeposits were studied by XRD. The results are shown in Fig. 5. Figure 5 shows the Bragg peaks of Fig. 5(a) are similar to those of Fig. 5(b). The addition of Na2SiO3into electrolyte results in a slight shift to right of the biggest peak in Fig. 5(b), which results from the influence of silicate on electrodeposition process. A similar result has been observed during Ni electroplating process in silicate solution elsewhere [22]. Moreover, the Bragg peaks of Fig. 5(b) are slightly broader and less intensive compared with those of Fig. 5(a). This may be due to nano- crystalline or amorphous or their mixed structure. Furthermore, it was reported that the presence of well-defined cauliflowers structure characterized that silicate anions were adsorbed on metal surface [23-25]. This result was further confirmed by the morphology as shown in Fig. 3(b).

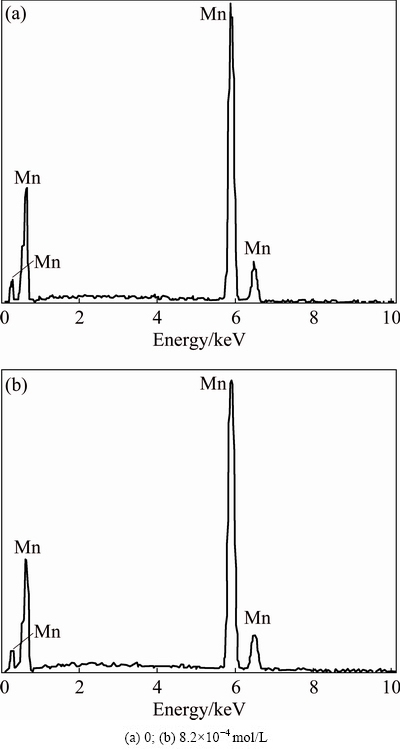

Fig. 4 EDS patterns of manganese electrodeposits at different Na2SiO3concentrations

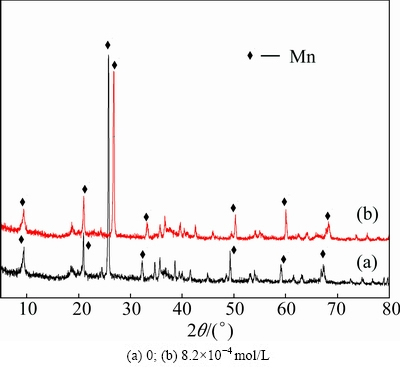

Fig. 5 XRD patterns of manganese electrodeposits at different Na2SiO3concentrations
3.2.3 XPS analysis of manganese electrodeposits
To further analyze the chemical compositions of manganese electrodeposits, XPS measurement was performed. In this section, the chemical states of manganese, silicon and oxygen on the surface of manganese electrodeposits are focused. The XPS spectra of Mn 2p are limited values due to difficulty in differentiating among the contributions of different valences for most solid Mn phases [26]. Hence, Mn 2p3/2 XPS spectra are currently used to investigate the chemical state of Mn element. Figure 6 shows Mn 2p XPS spectra concerning double peaks Mn 2p3/2 and Mn 2p1/2 of manganese electrodeposits obtained at different Na2SiO3 concentrations in the catholyte. The Mn 2p3/2 peaks appear at about 641.71 eV for the manganese electrodeposits, which is in the range of 640.9-642.5 eV for Mn 2p3/2 standard peak position in the manganese oxide [27]. The peak position of Mn 2p3/2 spectra suggests that the manganese electrodeposits are slightly oxidized. Moreover, Mn 2p3/2 spectra peaks are asymmetry, which also indicates that manganese elements may be in the presence of more than one chemical state. It is concluded from Fig. 6 that manganese atoms on electrodeposit surface are probably oxidized.

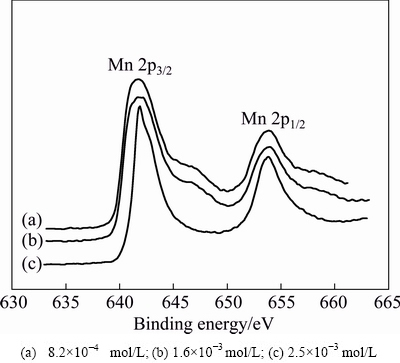

Fig. 6 XPS patterns of Mn 2p for manganese electrodeposits at different Na2SiO3 concentrations
The surfaces of manganese electrodeposits with or without addition of Na2SiO3 were characterized using a variety of XPS peak positions. However, Si 2p binding energy is the key peak to pivot primarily on the results [28]. The Si 2p energy can give specific information of chemical environment to characterize the surface. Figure 7 presents the Si 2p binding energies of manganese electrodeposits at different Na2SiO3 concentrations in catholyte. Figure 7 shows the large peak in the range from 101.6 to 102.4 eV, indicating that trace of silicate species have presumably been mixed into manganese electrodeposits surface [16,28].

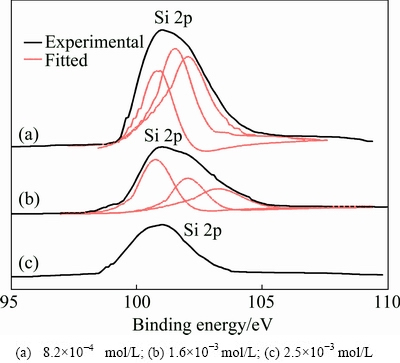

Fig. 7 Si 2p XPS patterns for manganese electrodeposits at different Na2SiO3concentrations
To further analyze the chemical state of oxygen atoms on the surface, XPS characterization was accordingly performed. The O 1s XPS patterns are often used to investigate chemical state of oxygen atom. Figure 8 shows O 1s XPS patterns for manganese electrodeposits of different concentration of Na2SiO3. The O 1s peaks appear in the range of 529.53-529.69 eV for manganese electrodeposits, which is in the range of 640.9-642.5 eV for O 1s standard peak position in metal oxide [26]. In addition, O 1s spectra peaks are also asymmetry, which also indicates that oxygen elements may be in the presence of more than one chemical state.

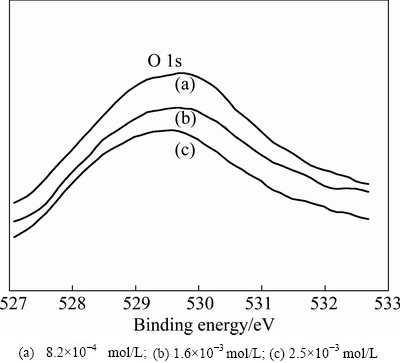

Fig. 8 O 1s XPS patterns for manganese electrodeposits at different Na2SiO3concentrations
3.3 Solution chemistry calculation
3.3.1 Solution chemistry calculation of sulfate electrolyte
In aqueous sulfate electrolyte solution (25 °C), the distributions of Mn species are influenced by several ions, including SO42-, NH4+ and OH-. Several chemical equilibria involving Mn2+ forms are present in aqueous sulfate electrolyte [29-31]. The equilibrium reactions are listed in Table 1.

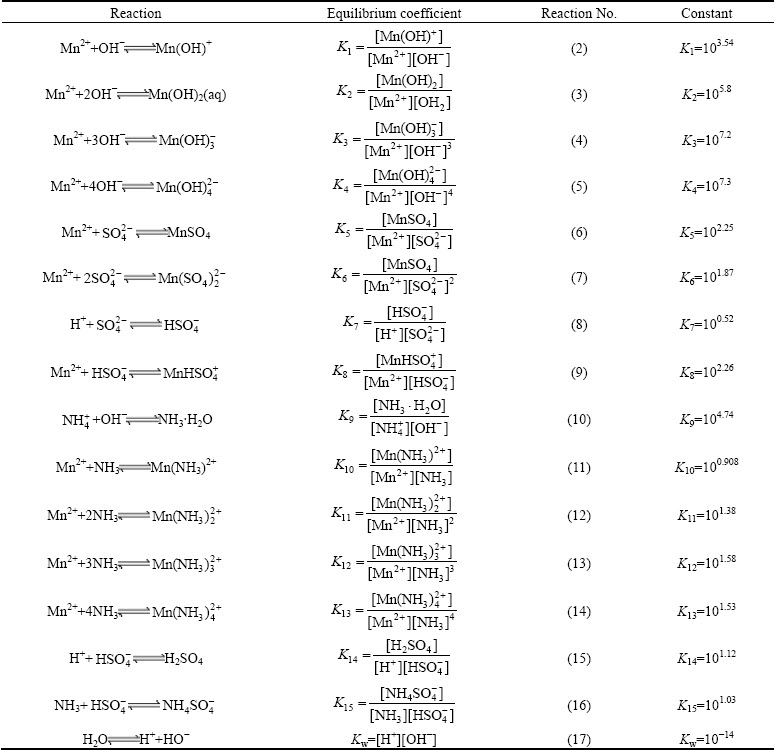

Table 1 Constants for equilibrium reactions of Mn species at 25 °C
According to equilibria and coefficients (Table 1), total concentration of Mn species ([Mn]T) can be expressed as follows:
(18)
then
(19)
So, the concentration of different Mn2+ species is calculated by introducing a side reaction coefficient:
(20)
Then, [Mn2+] of free Mn2+ is expressed by
(21)
Similarly, [SO2- 4] and [NH+ 4] of free SO2- 4and NH+ 4 ions are expressed by
(22)
with
(23)
and
(24)
with
(25)
According to Eqs. (2)-(25) and constants, distributions of the main species in sulfate electrolyte are shown in Fig. 9. Figure 9(a) shows Mn species of sulfate electrolyte, in the pH range of 7.0-7.5, primarily are MnSO4, Mn(SO4)2- 2, Mn2+ and Mn(NH3)2+. Moreover, other species of containing Mn2+ ions, such as Mn(OH)2-m m (m=1-4) and Mn(NH3)2+ n (n=1-4) are also present, but these species are only a small proportion of total Mn2+ concentration. Figure 9(b) presents that distributions of NH+ 4and SO2- 4are primary species of non-metallic ions in sulfate electrolyte.

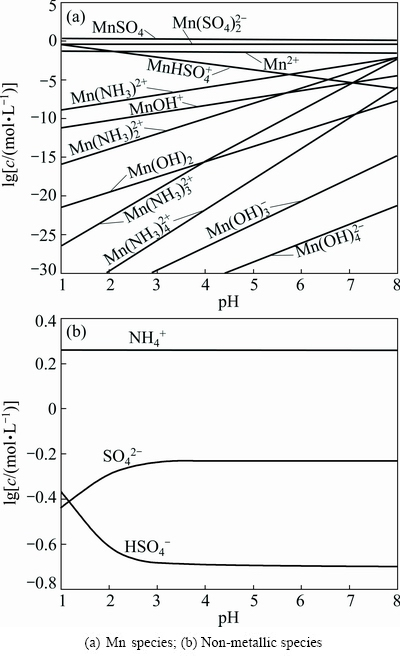

Fig. 9 Relationship between lg c and pH in sulfate electrolyte (0.55 mol/L MnSO4, 0.91 mol/L (NH4)2SO4)
3.3.2 Solution chemistry calculation of Na2SiO3
The hydrolysis is prone to occur in aqueous sodium silicate solution. So, there are little SiO2- 3anions, but lots of H2SiO2- 4and H3SiO- 4 are present in sodium silicate solution. Within its silicate solubility (0.2 mol/L, 25 °C), silicate exists in the form of monomeric silicate species. Polymerization of silicate occurs when the concentration surpasses its solubility in solution. The addition amount of Na2SiO3 is generally within its solubility when it is used in mineral processing as a flotation regulator. In this work, the ranges of 0-5.7×10-3 mol/L Na2SiO3 and pH 7.0-8.0 were applied for manganese electrodeposition process. Thus, if polymerization of silicic acid could not be taken into account, primary equilibrium relationship and corresponding constants are described in aqueous sodium silicate solution (25 °C) [29,32].
Na2SiO3+H2ONaHSiO3+NaOH (26)
H++,
(27)
+H+
H2SiO3,
(28)
where K H 1and K H 2 represent the protonation constants of silicate anions. From Eqs. (26)-(28), silicate species are formed in electrolyte, including H2SiO3, HSiO- 3 and SiO2- 3. The initial total concentration of sodium silicate (cT) can be evaluated through the following formula:
(29)
According to Eqs. (26)-(28), the relative parameters are replaced into Eq. (29), Eqs. (30)-(32) can be deduced:
(30)
(31)
(32)
Therefore, the relationships between distributions of silicate species with varying pH of different cT were calculated by Eqs. (28)-(30). The distributions of silicate species for a cT(8.2×10-4 mol/L ) are shown in Fig. 10.

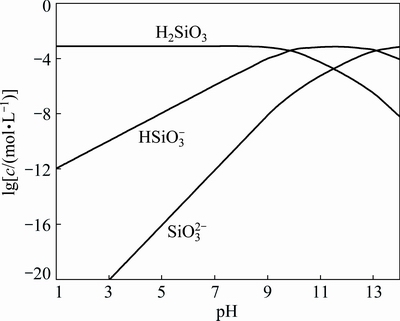

Fig. 10 Relationship between lg c of silicate species and pH of Na2SiO3solution (cT=8.2×10-4 mol/L)
Figure 10 indicates that there are three components in 8.2×10-4 mol/L Na2SiO3 solution, including H2SiO3(aq), HSiO- 3 and SiO2- 3. Figure 10 also shows that the concentrations of H2SiO3(aq) and HSiO- 3are higher compared with that of SiO2- 3in aqueous Na2SiO3 solution when the pH 7.0-8.0 is suitable for manganese electrodeposition. Meanwhile, the concentrations of HSiO- 3 and SiO2- 3anions increase as pH increases, which may lead to the increase of the negative charge near the electrode surface in the catholyte. If the pH is above 7.8, the precipitation of Mn(OH)2may occur [19]. Therefore, there may be two competitive reactions of Mn(OH)2 and MnSiO3 formation on cathode surface simultaneously. Further, MnSiO3 may inhibit the formation of Mn(OH)2on the cathode surface.
3.4 Thermodynamic analysis
Figure 10 shows that MnSiO3may form after the addition of Na2SiO3. Moreover, insoluble manganese (II) hydroxide is likely to form when pH of electrolyte is above 7.8 in the Mn-H2O system [19,29]. Thus, the following reactions of Mn2+ ions may occur:
Mn2++,
(33)
Mn2++2OH-Mn(OH)2(s),
(34)
Meanwhile, Fig. 10 also indicates that HSiO- 3 anions are the primary species in aqueous Na2SiO3solution as pH range is 7.0-8.0. The following reaction between Mn(OH)2(s) and HSiO- 3 may be deduced from Eqs. (17), (27), (33) and (34).
Mn(OH)2(s)+MnSiO3(s)+H2O+OH-,
K=1×101.5 (35)
The chemical equilibrium constant of Eq. (35) is large enough. Thus, it is inferred that Eq. (35) is relatively prone to occur.
Further, in order to determine whether MnSiO3forms in aqueous sulfate electrolyte solution, the analysis of electronic structure was carried out. The electronic configuration of manganese atom is 1s22s22p63s23p63d54s2. The electronic configuration of Mn2+ cation is 1s22s22p63s23p63d54s0. Therefore, Mn2+ cation has empty 4s orbit, which has the tendency of coordination reaction of dsp3 hybrid. So, Mn2+ cation can form complexes with oxygen anions, due to its unpaired electrons.
According to Eqs. (27) and (28), side reaction coefficient of SiO2- 3anions is expressed as
(36)
Thus, conditional solubility product of manganese silicate is supposed as follows:
(37)
In balanced system (25 °C), change in standard Gibbs free energy (△GΘ) can be used to estimate whether a reaction between Mn2+ and SiO2- 3 ions could occur [33]. △GΘ can be calculated by substituting into formula (37).
(38)
where R is the mole gas constant (8.314 J/(mol·K)); T is absolute temperature (K). According to Eqs. (20), (33), (36) and (38), the relationship between the calculated △GΘ of Mn2+ and SiO2- 3 ions and pH is presented in Fig. 11.
Figure 11 indicates that △GΘ gradually decreases as pH increases from 1.0 to 9.0. In the range of pH 7.0-8.0, △GΘ reaches a lower negative value. Therefore, coordination reaction between Mn2+ and SiO2- 3 ions can occur. Thus, the complexes between Mn2+ and SiO2- 3 ions can stabilize Mn2+ cations and remain the aquated form at suitably low concentration, facilitating the evenness of manganese electrodeposits, which indirectly facilitates manganese electrodeposition as shown in Fig. 1.

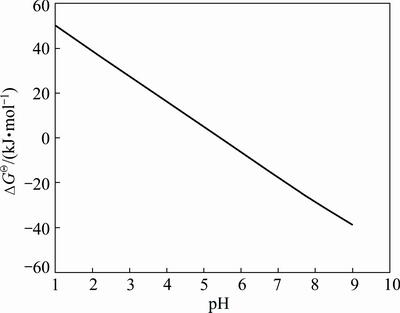

Fig. 11 Relationship between calculated △GΘ of Mn2+ and SiO2- 3 ions and pH
3.5 Cathode polarization analysis
3.5.1 Cathode polarization analysis of Na2SiO3 on hydrogen evolution
Figure 12 shows the polarization curves with varying Na2SiO3concentrations from 0 to 5.7×10-3 mol/L under the conditions: 0.91 mol/L (NH4)2SO4, 3.6×10-4 mol/L SeO2, pH 7.0 and 30 °C. The polarization curves shift sharply to negative direction as Na2SiO3 concentration in electrolyte increases. In the polarization test, it was observed that conspicuous hydrogen evolution started at about -1.0 V without Na2SiO3in the electrolyte. However, inconspicuous hydrogen evolution started at about -1.2 V with 5.7×10-3 mol/L Na2SiO3 in the electrolyte. Figure 12 also presents that, at the same hydrogen evolution potential, the current density of Figs. 12(b) and (c) is lower than that of Fig. 12(a), which indicates that Na2SiO3 can improve the hydrogen evolution potential and then inhibit the hydrogen evolution on the cathode surface [34,35]. This can be probably attributed to the blocking of the active sites for hydrogen evolution reaction by the adsorption of the Si-containing ions on the electrode surface [20]. The inhibition effect of the hydrogen evolution is indirectly conducive to manganese electrodeposition as shown in Fig. 1.

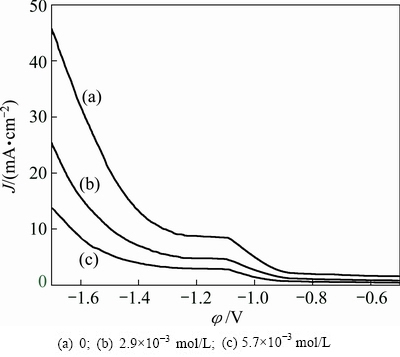

Fig. 12 Effect of Na2SiO3 concentration on cathode polarization curves of hydrogen evolution reaction under conditions of 0.91 mol/L (NH4)2SO4, pH 7.0 and 30 °C at different Na2SiO3 concentrations

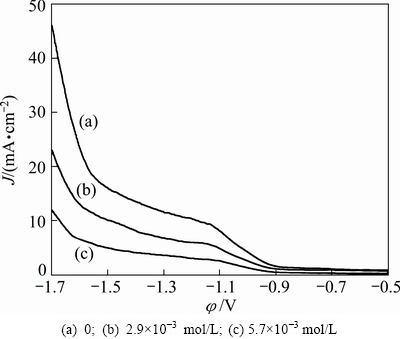

Fig. 13 Cathode polarization curves for manganese electrodeposition of manganese at different concentrations of Na2SiO3 (0.55 mol/L Mn2+, 0.91 mol/L (NH4)2SO4, 3.6×10-4mol/L SeO2, pH 7.0 and 30 °C)
3.5.2 Cathode polarization analysis of Na2SiO3 on manganese electrodeposition
To investigate influence of Na2SiO3on manganese electrodeposition, cathode polarization tests were performed by changing Na2SiO3 concentration from 0 to 5.7×10-3 mol/L under the optimized conditions: 0.55 mol/L Mn2+, 0.91 mol/L (NH4)2SO4, 3.6×10-4 mol/L SeO2, pH 7.0 and 30 °C. Figure 13 shows that the polarization curves shift to the negative direction evidently as Na2SiO3 concentration increases (Figs. 13(b) and (c)). That is, the deposition potentials decrease to more negative values with the increase of Na2SiO3 concentration. In cathode polarization tests, it is observed that, in the absence of Na2SiO3 (Fig. 13(a)), hydrogen evolution begins at around -1.1 V and the phenomenon of hydrogen evolution is obvious, and manganese electrodeposition is observed at about -1.3 V. However, in the presence of Na2SiO3 (Figs. 13(b) and (c)), hydrogen evolution reaction starts at about -1.2 V and the phenomenon of hydrogen evolution is inconspicuous, and manganese electrodeposition is observed at about -1.5 V. Hence, there are competitive reactions of hydrogen evolution reaction and manganese electrodeposition in the potential range of -1.2 to -1.5 V, and Na2SiO3 still has a significant inhibition effect on hydrogen evolution in the presence of Mn2+ ions. The process of manganese electrodeposition is observed in the potential range of -1.5 to -1.7 V. Moreover, the slope of Fig. 13(c) is slightly lower than that of Fig. 13(b) in the potential range of -1.5 to -1.7 V, which indicates that Na2SiO3 has a certain inhibition effect on manganese electrodeposition. This can be well responsible for the conclusions of Fig. 3. The inhibition effect of Na2SiO3 on manganese electrodeposition facilitates electro- depositing compact manganese metal. Moreover, it could be ascribed to the electrodeposition kinetic formula (Eq. (39)) [36].
R1=Aexp(-B/η12) (39)
where R1 is the number of nucleation; A and B are the overpotential-independent quantities; η1 is the overpotential. That is, the increase of polarization promotes nucleation probability and hence improves structure of electrodeposits.
4 Conclusions
1) A certain amount of sodium silicate increases the cathode current efficiency of manganese electrodeposition. High current efficiency is obtained in the range of Na2SiO3concentration from 8.2×10-4 to 1.6×10-3 mol/L and initial pH 7.0-8.0 under previous optimized condition.
2) SEM-EDS characterization demonstrates that sodium silicate can improve the imperfection surface of electrodeposited manganese. The nano-crystalline or amorphous structure is confirmed by XRD analysis. The chemical states of manganese, silicon and oxygen on the surface of manganese electrodeposits are determined by XPS analysis.
3) Solution chemistry calculations of manganese sulfate and sodium silicate indicate that Mn2+, MnSO4, Mn(SO4)2- 2, Mn2+, MnSiO3 and Mn(NH3)2+, SiO2- 3 and HSiO- 3 are the main active ions during the process of manganese electrodeposition. The reaction between silicate and Mn2+ ions is confirmed by thermodynamic analysis.
4) The cathode polarization tests indicate that sodium silicate can increase the overpotential of hydrogen evolution and manganese electrodeposition. The overpotential increase of hydrogen evolution facilitates the improvement of the cathode current efficiency.
