Preparation of titanium powders by

calciothermic reduction of titanium dioxide

WAN He-li(万贺利)^1,2,3,4, XU Bao-qiang(徐宝强)^1,2,3,4, DAI Yong-nian(戴永年)^1,2,3,4,

YANG Bin(杨斌)^1,2,3,4, LIU Da-chun(刘大春)^1,2,3,4, SEN Wei(森维)^1,2

1. National Engineering Laboratory for Vacuum Metallurgy

(Kunming University of Science and Technology), Kunming 650093, China;

2. State Key Laboratory of Breeding Base of Complex Nonferrous Metal Resources Clear Utilization in

Yunnan Province (Kunming University of Science and Technology), Kunming 650093, China;

3. Key Laboratory for Nonferrous Metals Vacuum Metallurgy of Yunnan Province

(Kunming University of Science and Technology), Kunming 650093, China;

4. Faculty of Metallurgy and Energy Engineering,Kunming University of Science and Technology, Kunming 650093, China

? Central South University Press and Springer-Verlag Berlin Heidelberg 2012

Abstract: To develop an effective process for titanium powders production, a calciothermic reduction process of pigment titanium dioxide (w(TiO₂)>98%), based on the preform reduction process (PRP), was investigated by means of XRD, SEM and EDS. In this process, the mixture of TiO₂ powder and CaCl₂ was pressed into pieces as feed preform and was reduced by calcium vapor. Titanium powders was recovered after leaching from the reduced preform with hydrochloric acid and deionized water. The results indicate when the mass ratio of CaCl₂ to TiO₂ is about 1:4 and at a constant temperature of 1 273 K for 6 h in vacuum furnace, titanium powders with 99.55% purity by EDS analysis and irregular shape (8-15 μm in particle size) are obtained.

Key words: titanium powders; titanium dioxide; calciothermic reduction; calcium chloride

1 Introduction

Titanium has attracted much attention because of its excellent performance such as high strength, light weight, high-temperature performance, excellent flexibility, extraordinary corrosion-resistance, and biocompatibility characteristics [1]. Its expanding application makes the demand for titanium increase constantly in the 21st century. Currently, the Kroll process [2] is widely used to produce titanium sponge [3-5]. But it has high production cost due to long production process, and slow and batch-type reduction process [6-7].

In order to find a better way to overcome the drawback of the Kroll process, many methods have been developed during past decades, especially the direct reduction processes of titanium oxide such as the FFC process [8-9], MHR process [10], OS process [11-12] and EMR process [13]. However, there are some problems needed to be solved before these processes can be commercialized. Specifically, a large amount of molten salt is required, and the reduction process is slow. Furthermore, the process lacks the flexibility to be scaled up, as they are based on electrochemical reduction. OKABE et al [14] and XU et al [15] investigated a new calcium vapor reduction process for producing fine titanium powders by means of PRP (preform reduction process) as shown in Fig. 1. In this method, the feed preform was fabricated from slurry, by mixing titanium dioxide (TiO₂) powder, flux (CaCl₂ or CaO) and a collodion solution, then it was placed on the stainless steel plate. The titanium sponge was also placed at the bottom of the vessel for gettering nitrogen gas in the closed system.

In this process, product purity and scalability are easy to control. The contamination from the reaction container or reductant in products can easily be avoided because the feed materials have no physical contact with them. Titanium powders with 99% purity were obtained by this way. Furthermore, the amount of CaCl₂ can be reduced, compared to the direct electrochemical reduction processes mentioned above.

In this work, based on the PRP process, a brief process was proposed to reduce TiO₂ to metallic Ti, using calcium as a reductant and CaCl₂ as the additive, without adding any binder and titanium sponge in the reactor. Reaction vessel was made of high purity graphite crucible instead of stainless steel crucible to ensure reactor working at a high enough temperature. The purpose of this work is to report the above concept in detail and to show some experimental verification.

Fig. 1 Schematic illustration of preform reduction process (PRP)

2 Experimental

The purity and form of the starting materials used in this work are listed in Table 1. CaCl₂ was employed as the additives [12, 14, 16]. The powder mixture of TiO₂ and CaCl₂ was manually pressed into small pieces at the pressure of 2 MPa (20 mm in diameter and 5.0-7.0 mm in thickness). The pieces were placed in a porous stainless steel vessel, and the calcium was placed at the bottom of a graphite crucible, as shown in Fig. 2. The graphite crucible was heated in the vacuum furnace. In order to reduce TiO₂ effectively, excessive calcium was put into the reaction container.

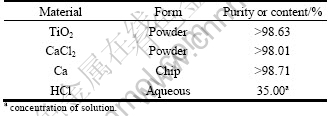

Table 1 Starting materials used in experiments

The experiment included four major steps as follows: 1) The mixed powder was heated at 353-393 K before making pieces in order to remove the water; 2) The mixed powders or preformed pieces of CaCl₂ and TiO₂ were heated to 1 273 K and held for hours, respectively; 3) The reduction product was dissolved by low content hydrochloric acid (3%-3.5%) and deionized water repeatedly for 4-6 h; 4) The product was dried in a vacuum oven at 373 K, then titanium powders were obtained.

The microstructure and the surface morphology of reduction product were characterized by scanning electron microscopy (SEM: XL30ESEM-TMP, Phillips, Holland). The elemental content of the product was measured by the energy dispersive X-ray analysis (EDS: EDAX, PHOENIXTM, USA) and the phase structure and composition of reduced products were identified by X-ray diffraction (XRD: Japan. D/max-3B).

Fig. 2 Schematic illustration of experimental apparatus

3 Results and discussion

3.1 Calcium chloride volatilization

The pieces with different mass ratios of CaCl₂ to TiO₂ at 1 000 °C for 6 h were sintered. The results can be seen in Table 2. Scanning electron microscope (SEM) was employed to observe the surface morphology and the size of pores are shown in Fig. 3. When the CaCl₂ is not added, the pores are not formed in the sintered products, as shown in Fig. 3(a). It can be seen that the pores are significantly different when proportions of the mixture change. As shown in Fig. 3(b), the smaller the amount of CaCl₂ is added (the mass ratios of CaCl₂ to TiO₂ is less than 1:6), the fewer the pores in volatilization product are, lending to the densification of internal structure. However, when the large amount of CaCl₂ is added (the mass ratio of CaCl₂ to TiO₂ is more than 1:1), the pores become less, which are not uniformly distributed, as shown in Fig. 3(d). When the mass ratio of CaCl₂ to TiO₂ is controlled at 1:2-1:1.5, more pores are obtained and distributed homogeneously, as shown in Fig. 3(c). The average diameter of pores is 25 μm, which would increase the contact surface area between calcium vapor and TiO₂ particles and help to improve gas-solid reduction process.

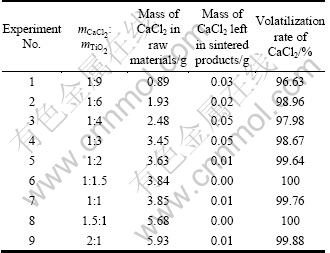

Table 2 Different proportions of CaCl₂ and TiO₂ used in experiments

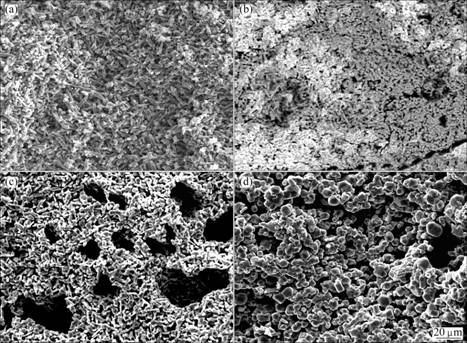

Fig. 3 SEM micrographs of surface with different mass ratios of CaCl₂ to TiO₂: (a) 0; (b) 1:6; (c) 1:1.5; (d) 1:1

3.2 Effects of additive of CaCl₂ on reaction products

Figure 4 shows XRD patterns of products after calciothermic reduction when TiO₂ powders, mixed powders of TiO₂-CaCl₂ and preform pieces of TiO₂-CaCl₂ are used as the feed materials, respectively. From Fig. 4(a), it can be seen when TiO₂ powder is used as the raw material, the product is composed of Ti₂O₃, TiO, Ti and CaO. It is indicated that TiO₂ powders are not completely reduced by calcium vapor because the exothermic reduction process of TiO₂ by metallic Ca makes the surface of TiO₂ powders sintered, the contact area of sintered TiO₂ powder with calcium vapor becomes small, and the oxygen of TiO₂ is not removed by calcium effectively.

A graph of the Gibbs free energy changes (ΔG_T) related to the temperature (T) is drawn to clarify these processes (Fig. 5). Because Ti₂O₃ and TiO exist in the products, TiO₂→Ti₃O₅, Ti₃O₅→Ti₂O₃, Ti₂O₃→TiO, and TiO→Ti are analyzed in these processes:

3TiO₂+Ca(g)=Ti₃O₅+CaO                     (1)

2Ti₃O₅+Ca(g)=3Ti₂O₃+CaO                   (2)

Ti₂O₃+Ca(g)=2TiO+CaO                      (3)

TiO+Ca(g)=Ti+CaO                         (4)

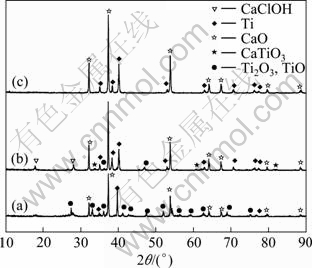

Fig. 4 XRD patterns of reduced products from different raw materials at 1 273 K for 6 h: (a) TiO₂ powder; (b) TiO₂ and CaCl₂ powder; (c) TiO₂ and CaCl₂ pieces

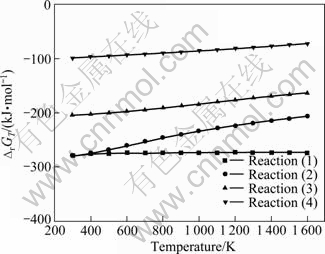

Fig. 5 Relationships between Gibbs free energy changes and temperature

As shown in Fig. 5, these reactions will happen. And it is not conducive to the reduction reaction when the temperature increases. TiO₂ would be reduced step by step, and Reaction (4) will be harder than others, which implies that it might be the rate-limiting step on the whole reduction process of titanium dioxide by calcium vapor. In addition, the kinetic conditions, such as reaction activation energy, grain distribution of TiO₂ solid, and contact area of reactants, will control this gas-solid reduction process [17].

Figure 4(b) shows XRD pattern of the mixture of powder sample reduced by calcium vapor at 1 273 K for 6 h. The product contains titanium, CaClOH and perovskite calcium titanate (CaTiO₃). CaClOH could be resulted from the hydrolysis of CaCl₂ after absorbing water as

CaCl₂·H₂O = CaClOH + HCl↑                   (5)

CaClOH = CaO + HCl↑                        (6)

CaO+TiO₂= CaTiO₃                          (7)

When the powder material is reduced, it has less contact area with calcium vapor than pieces materials, which is resulted from the sintering layer on the surface of powders and by-product of CaO on the powder surface preventing calcium vapor from reacting with TiO₂, and Ti₂O₃ and TiO are hardly reduced. Figure 4(c) shows the XRD pattern of the pieces of sample reduced by calcium vapor at 1 273 K for 6 h. The product is almost composed of Ti and CaO after reduction. So the pieces sample is chosen to reduce the effect of sintering in the experiment.

It is reported that by-product of CaO could be dissolved in large amount of molten CaCl₂ [18-20], which can improve reduction process. When the mixture of CaCl₂ and TiO₂ with different mass ratios is used as raw material, the morphology of reduction product is observed by scanning electron microscopy (SEM), as shown in Fig. 6. Seen from Fig. 6(a), the molten surface is formed and the pore in feed is not obvious because of melting of CaCl₂ [21]. When the amount of CaCl₂ decreases in the raw materials, the molting phenomenon on the surface of samples is relieved, as shown in Figs. 6(b-d). As shown in Fig. 6(e), without CaCl₂, accompanying the exothermic reducing reaction, raw materials on reaction surface are sintered seriously, which makes the sample surface more dense, the reaction between Ca and TiO₂ can not fully accomplish [1, 22], and the large amount of titanium dioxide exists in reduction products yet.

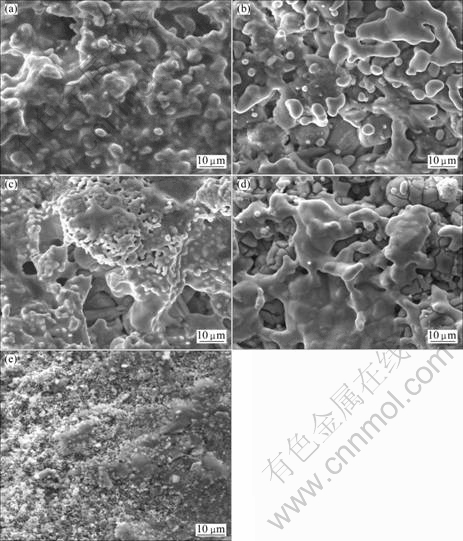

Fig. 6 SEM images of products obtained after reduction (m_Ca:m_TiO2=2:1; reduction temperature, T=1 273 K; reaction time, t=6 h): (a) m_CaCl2:m_TiO2=1:2; (b) m_CaCl2: m_TiO2=1:4; (c) m_CaCl2:m_TiO2=1:6; (d) m_CaCl2:m_TiO2=1:9; (e) m_CaCl2:m_TiO2=0

XRD patterns of the products obtained after reduction corresponding to different mass ratios of TiO₂ to CaCl₂ are shown in Fig. 7. Figure 7(a) shows that CaClOH and Ca(OH)₂ should be resulted from the hydrolysis of CaCl₂ after absorbing water. When CaCl₂ proportion decreases (m_CaCl2:m_TiO2=1:6), TiO₂ is not completely reduced to titanium, as shown in Fig. 7(c). When the mass ratio of CaCl₂ to TiO₂ is 1:4, as shown in Fig. 7(b), the product does not contain Ti₃O₅, which effectively improves the purity of the titanium powders.

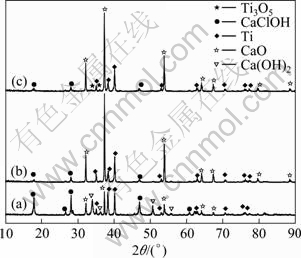

Fig. 7 XRD patterns of products obtained after reduction (m_Ca:m_TiO2=2:1; reduction temperature, T=1 273 K; reaction time, t=6 h): (a) m_CaCl2:m_TiO2=1:2; (b) m_CaCl2: m_TiO2=1:4; (c) m_CaCl2:m_TiO2=1:6

3.3 Effects of reaction time on products

Figure 8 shows XRD patterns of the products obtained after leaching process for different reduction time. In the leaching process, the large number of metal calcium exists in reduction products, and H₂ will be produced when calcium is dissolved in the dilute hydrochloric acid which causes the generation of TiH, as shown in Figs. 8(a-c). And CaTiO₃ is generated by sintering between CaO and TiO₂ [22], which is not dissolved in deionized water and hydrochloric acid. However, after reaction for 8 h, TiC is generated, as shown in Figs. 8(e-f), which should be resulted from the contact of product titanium and carbon graphite crucible.

Fig. 8 X-ray diffraction patterns of reduced samples at 1 273 K for different reduction time: (a) 1 h; (b) 2 h; (c) 4 h; (d) 6 h; (e) 8 h; (f) 10 h

When the reaction temperature is 1 273 K and the reaction time is 6 h, titanium powders are obtained, as shown in Fig. 9. The EDS analysis reveals that the compositions of the titanium powders obtained after leaching are 99.55% Ti, 0.17% Ca, and 0.28% Si (mass fraction). Figure 10 shows SEM image of the titanium powder, and an irregular shape is observed clearly. The size of the titanium particles is in the range of 10-15 μm.

Fig. 9 XRD pattern for titanium powder obtained after leaching

Fig. 10 SEM image of titanium powder obtained after leaching and drying

4 Conclusions

1) Calcium chloride added in feed can help to form a porous bed of raw material, which can increase the contact area of gas-solid reaction between Ca vapor and TiO₂ solid.

2) A novel process to prepare the titanium powder from TiO₂ is proposed. It is found that the preform of raw materials adding CaCl₂ can be more effectively reduced than the powders of raw materials, because it relieves the sintering on the feed surface.

3) The pieces of m_CaCl2:m_TiO2=1:4 are reduced by calcium vapor at 1 273 K for 6 h, and the pure titanium powders (more than 99.55% purity by EDS) are obtained after leaching with hydrochloric acid and deionized water and dried in vacuum. Titanium powders have an irregular shape and the particle size is 8-15 μm.
