Structural modulation of anthraquinone with different functional groups and its effect on electrochemical properties for lithium-ion batteries

QIAN Su-hui(钱素惠)¹, PAN Jun-xian(潘俊贤)¹, ZHU Zhao-sheng(朱肇昇)¹, YE Rui-tian(叶锐添)¹,

LIN Geng-zhong(林耿忠)¹, ZHU Xiao-xing(朱潇行)¹, XIONG Zhi-yong(熊志勇)²,

GANESH Venkatachalam³, ZENG Rong-hua(曾荣华)¹, LUO Yi-fan(罗一帆)¹

1. Key Laboratory of Theoretical Chemistry of Environment of Ministry of Education, School of Chemistry and Environment, South China Normal University, Guangzhou 510006, China;

2. School of Chemical Engineering and Materials Science, Beijing Institute of Technology Zhuhai,Zhuhai 519088, China;

3. Electrodics and Electrocatalysis (EEC) Division, CSIR – Central Electrochemical Research Institute (CSIR–CECRI), Karaikudi 630003, Tamilnadu, India

Central South University Press and Springer-Verlag GmbH Germany, part of Springer Nature 2019

Abstract: Organic electrode materials have high capacity, and environmentally friendly advantages for the next generation lithium-ion batteries (LIBs). However, organic electrode materials face many challenges, such as low reduction potential as cathode materials or high reduction potential as anode materials. Here, the influence of chemical functionalities that are capable of either electron donating or electron withdrawing groups on the reduction potential and charge-discharge performance of anthraquinone (AQ) based system is studied. The cyclic voltammetry results show that the introduction of two —OH groups, two —NO₂ groups and one —CH₃ group on anthraquinone structure has a little impact on the reduction potential, which is found to be 2.1 V. But when three or four —OH groups are intorduced on AQ structure, the reduction potential is increased to about 3.1 V. The charge-discharge tests show that these materials exhibit moderate cycling stability.

Key words: lithium-ion batteries; anthraquinone; electron groups; reduction potential

Cite this article as: QIAN Su-hui, PAN Jun-xian, ZHU Zhao-sheng, YE Rui-tian, LIN Geng-zhong, ZHU Xiao-xing, XIONG Zhi-yong, GANESH Venkatachalam, ZENG Rong-hua, LUO Yi-fan. Structural modulation of anthraquinone with different functional groups and its effect on electrochemical properties for lithium-ion batteries [J]. Journal of Central South University, 2019, 26(6): 1449-1457. DOI: https://doi.org/10.1007/s11771-019-4101-z.

1 Introduction

Secondary batteries as energy storage devices are widely used in portable electronics and electric vehicles [1-11]. The use of electrode materials for current LIBs mainly depends on depletable metal-based inorganic materials prepared from limited mineral resources. Therefore, it is an urgent demand to explore renewable electrode materials, such as organic materials, which are more abundant, low-cost, and require minimum energy consumption [12-14]. Quinone-based electrode materials (QEMs) have high theoretical capacity owing to multi-lithium ion insertion/deinsertion in quinone structure for lithium ion batteries (LIBs) [15]. Moreover, QEMs have advantages of structure diversity, flexibility, and processability as potential candidates for either cathodes or anodes in LIBs [16-18]. However, QEMs are very restricted in practical application due to high solution, low conductivity, and low discharge platform as cathode or high discharge platform as anode [19]. In particular, discharge platform is the key to improve power of LIBs. Some electron withdrawing groups can be introduced onto QEMs, such as —F, —Cl, —N, —S and —OH groups, which can improve the discharge potentials and cycle performance of quinone based electrodes. LEE et al [20] introduced —NH groups in poly (disulfide diphenylamine) (PDTDA), and the results indicated that the discharge platform of PDTDA reached about 3.0 V, the initial discharge capacity was only 94 mA·h/g and has been reduced to 71 mA·h/g after ten cycles. LI et al [21] prepared poly (disulfide-3-amino- xylene) with the addition of sulfur atoms on the polymer, and the results revealed the discharge platform exhibits about 2.6 V, and the first discharge capacity was 225 mA·h/g. NISHIDE et al [22] added methacrylate group on polymethacrylic acid (2,2,6,6-tetramethyl) piperidine-4-ester and the discharge platform of this electrode material increased to about 3.5 V. The initial discharge capacity was only 77 mA·h/g, which was 70% of the theoretical capacity, the discharge capacity did not decrease obviously after 1000 cycles, revealing the better cycle performance. For the influence of the introduction of S element onto QEMs, for instance, the synthesized dibenzo[b,i]thianthrene-5, 7,12,14-tetrone (SPT) electrode achieved the average reduction potential about 2.6 V, which had distinctly 0.4 V inhancement compared with 5,7,12,14- pentacenetetrone (PT) by the addition of S atoms [23]. XUE et al [24] replaced oxygen on carbonyl with sulfur on anthraquinone to synthesize anthrax [1`,9`,8`-b,c,d,e] [4`,10`,5`-b`,c`,d`,e`] bis- [1,6, 6a(6a-S^IV)-trithia] pentalene (ABTH), and the discharge platform reached 3.3 V. WAN et al [25] confirmed the influences of the SO₃Na^– groups on the reduction potential of the anthraquinone electrode, the average reduction potential increased with the increase of SO₃Na^– groups. Halogen as the strong electron withdrawing group is also used to enhance reduction potential of QEMs for LIBs. For instance, CHEN et al [26] demonstrated the effect of chlorine groups on hydroxyl p-benzoquinone,and the electrochemical performance test displayed that the discharge platform of this material was about 2.3 V, the average reversible capacity reached to about 200 mA·h/g. Also, the impact of fluoroalkyl groups as substituents on benzoquinone (BQ) was studied by YOKOJI et al [27]. The results showed that, compared with BQ, the average discharge platforms of 2,5-bis(trifluoromethyl)-1, 4-benzoquinone (CF₃-BQ), 2,5-bis(perfluorobutyl)- 1,4-benzoquinone (Rf₄-BQ) and 2,5- bis(perfluorohexyl)-3,6-dichloro-1,4-benzoquinone (Rf₆-Cl-BQ) increased apparently and raised to about 3.0 V through the addition of CF₃ (trifluoromethyl), Rf₄ (perfluorobutyl) and Rf₆ (perfluorohexyl) groups. BANDA et al [28] demonstrated the redox potential of perylene diimides (PDIs) was tuned by a simple and efficient approach as high discharge platform postive materials for sodium ion batteries (SIBs). With suitable functional groups (—Br, —CN, —S) as substituents on PDIs, the experiment shows the discharge platform has a remarkable tunability from 2.1 to 2.6 V. In addition, BACHMAN et al [15] investigated the influence of a variety of electron groups on redox potential of AQ in flow batteries by using density functional theory (DFT). The increase of methyl (electron donating groups) can decrease reduction potential of AQ. However, the C=O, carboxylic acid (COOH), and oxy-methyl dioxolane (electron withdrawing groups) can improve reduction potential of AQ. Other electron donating groups, such as tert-butyl, ethyl, phenyl, and alkoxy substituents, and electron withdrawing groups, such as alkoxy substituents, did not increase or reduce the reduction potentials.

Herein, we studied the influence of the different functional (to alter the electronic structure) groups (—OH, —NO₂ and —CH₃ groups) on the reduction potential of AQ based electrode materials in LIBs, and studied charge-discharge properties of those electrode materials.

2 Experimental

2.1 Physical characterizations

To make sure high purities, anthraquinone (AQ) and its derivatives, including anthraquinones (AQ), 1,5-dihydroxy anthraquinones (2OH-AQ), 1,2,7- trihydroxy-anthraquinone (3OH-AQ) and 1,2,5,8- tetrahy-droxy-anthraquinone (4OH-AQ), 1,5- dinitroanthraquinones (2NO₂-AQ), 2-methyl anthraquinones (CH₃-AQ), were obtained commercially and used directly as the electrode materials for LIBs.

The powder X-ray diffraction (XRD) data were collected through a Bruker AXS D8-Advanced diffractometer at 40 kV and 40 mA with Cu K_α N1 radiation (λ=1.5406 ) at a scanning speed of 0.02 °/s. The experimental XRD patterns were refined by using Accelrys Materials Studio. The morphology was observed by using scanning electron micros-cope (SEM, JEOL JSM6700F) at an accelerating voltage of 5 kV.

2.2 Electrochemical measurements

The six electrodes were fabricated by mixing 2NO₂-AQ, CH₃-AQ, etc, conductive carbon blacks (Super-P), polyvinylidene fluoride (PVDF) binder at a mass ratio of 60:30:10 in N-methyl-2- pyrrolidone. Individual slurries were pasted and compressed onto Al foil, and dried in a vacuum at 100 °C for 12 h. The loaded mass of electrodes with an area of 1 cm² was about 2 mg. The electrolyte was 1 mol/L LiPF₆ in EC and DMC (V_EC:V_DMC=1:1). The separator was a Celgard 2300 microporous membrane. Coin-type cells (size: 2025) were assembled coin-type in an Ar-filled glove box. The charge/discharge experiments were carried out at a constant current density of 100 mA/g by using LAND-CT2001A instrument. Cyclic voltammograms were performed at a scan rate of 50 μV/s by using Autolab instrument.

3 Results and discussion

3.1 Physical properties

Figure 1 presents the morphology of 2NO₂-AQ and CH₃-AQ. As can be seen from Figures 1(a) and (b), the morphology of 2NO₂-AQ shows irregular block, the diameters is in the range of 2-10 μm. However, the CH₃-AQ is composed of inhomogeneous particles, the particles are 0.5-2 μm in diameters (Figures 1(c) and (d)). The structures of 2NO₂-AQ and CH₃-AQ are further studied through XRD (Figures 2(a) and (b)). As can be seen from Figure 2(a), after experimental XRD pattern of 2NO₂-AQ was refined by using materials studio, the diffractions of 2NO₂-AQ are characteristic of monoclinic system and C_2c space group (lattice parameters: a=10.3279(6), b=11.2263(0), c=10.7906(9), β=94.5004(4)°). Also, CH₃-AQ sample is a monoclinic system and P_21/c space group (Figure 2(b),(PDF# 00-048-2443)), which are different from 2NO₂-AQ. However, the SEM images and XRD patterns of AQ, 2OH-AQ, 3OH-AQ and 4OH-AQ have been described and analyzed in our previous work [29].

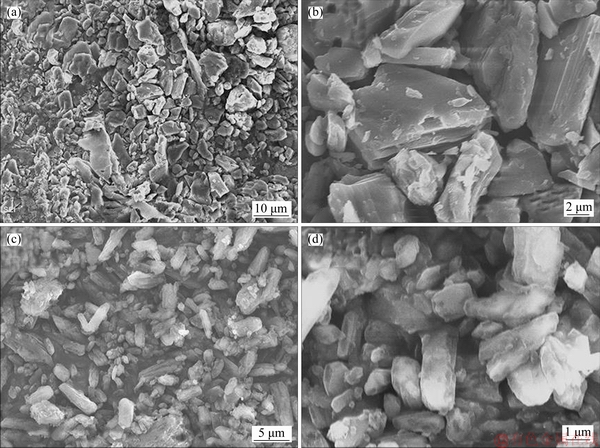

Figure 1 Low and high magnification SEM images of 2NO₂-AQ (a, b) and CH₃-AQ (c, d)

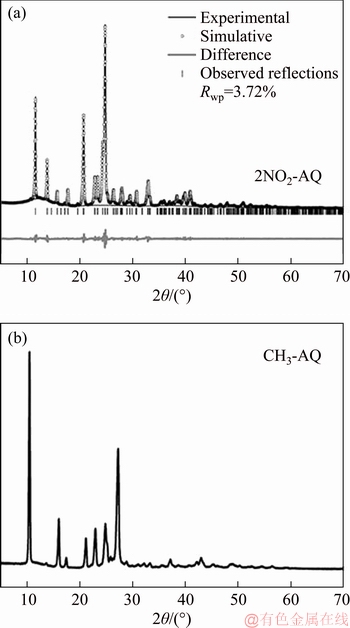

Figure 2 XRD patterns of 2NO₂-AQ (a) and CH₃-AQ (b)

3.2 Relation between reduction potentials and functional groups

To well comprehend the relation between the reduction potentials and functional electron groups, cyclic voltammetry (CV) testing for AQ, 2OH-AQ, 3OH-AQ, 4OH-AQ, 2NO₂-AQ and CH₃-AQ are performed. It should be noted that the CV results of AQ, 2OH-AQ, 3OH-AQ, 4OH-AQ have been studied by our previous work [29]. To investigate the relation between the reduction potentials and electron groups, we further analyze —OH groups in combination of —NO₂ and —CH₃ groups. As shown in Figures 3(a), (b), (e) and (f), during the negative sweeping, the two reduction peaks can be observed, which located at 2.1 and 2.0 V for AQ, 2.3 and 2.0 V for 2OH-AQ, 2.2 and 1.9 V for CH₃-AQ, respectively. However, only one reduction peak located at 2.1 V can be observed for NO₂-AQ. It is found that the reduction potential (about 2.1 V) almost not increase or decrease when two —OH groups, two —NO₂ groups and one —CH₃ group are added onto AQ structure. This means that either one or two electron groups, such as —CH₃, —OH and —NO₂ groups, do not show any effect on the reduction potential. However, when the —OH electron withdrawing groups are continued to introduce on 2OH-AQ structure, the first reduction potential is increased to about 3.0 V for 3OH-AQ and 4OH-AQ (Figures 3(c) and (d)) [29]. The sum charge is computed on O and H in AQ, 2OH-AQ, 3OH-AQ, 4OH-AQ by using NBO analyses in our previous work [29], the sum negative charge of 3OH-AQ and 4OH-AQ is much larger than that of AQ and 2OH-AQ, indicating the added negative charge promotes the insertion of lithium ion and results in the enhancement of reduction potential in 3OH-AQ and 4OH-AQ [29]. We will continue to add the —NO₂ and —CH₃ electron groups on 2NO₂-AQ and CH₃-AQ structure and study the relationship between the number of the electron groups and reduction potentials in the future research work.

Figure 4 shows the lithiation process of six electrode materials, and the two split reduction peaks of AQ, 2OH-AQ, 3OH-AQ, 4OH-AQ and CH₃-AQ imply the electrons transfer reaction occurs step by step in the carbonyl groups, hydroxyls and lithium ions, and produces either the lithium enolate or complexes. However, only one reduction peak can be observed in 2NO₂-AQ, showing two lithium ions inserted into 2NO₂-AQ structure simultaneously and generate the lithium enolate [30, 31]. During the positive sweeping, one or two oxidation peaks observed represent one or two steps oxidation reaction, which are ascribed to reoxidation of lithium enolate or complexes to produce the quinonyl group [32, 33]. The lithiation mechanisms in AQ, 2OH-AQ, 3OH-AQ, 4OH-AQ are also reported in detail [29].

3.3 Charge/discharge properties

Galvanostatic charge/discharge profiles were collected for the above mentioned six electrode materials in a potential range of 1.0 to 4.5 V at a current density of 100 mA/g. Figure 5 displays the charge/discharge profiles of 2NO₂-AQ and CH₃-AQ electrode materials. The initial discharge capacities of 2NO₂-AQ and CH₃-AQ reach 124 and 147 mA·h/g. After 30 cycles, the discharge capacities of NO₂-AQ and CH₃-AQ electrodes maintained at 93 and 96 mA·h/g with the capacities decay of 25% and 35%, respectively. The charge/discharge properties of AQ, 2OH-AQ, 3OH-AQ and 4OH-AQ were reported by us in previous work [29]. It is found the six electrode materials exhibit moderate cyclic stability, which may be attributed to the low electronic conductivity of these materials and the solution of these QEMs in organic electrolytes, leading to the sharp fading of the capacity [34]. In addition, the discharge platforms of AQ, 2OH-AQ, 2NO₂ -AQ and CH₃-AQ are all at about 2.1V, indicating that the introduction of two —OH groups, two —NO₂ groups and one —CH₃ group on AQ has little influence on the discharge platform, which are consistent with the cyclic voltammetry results.

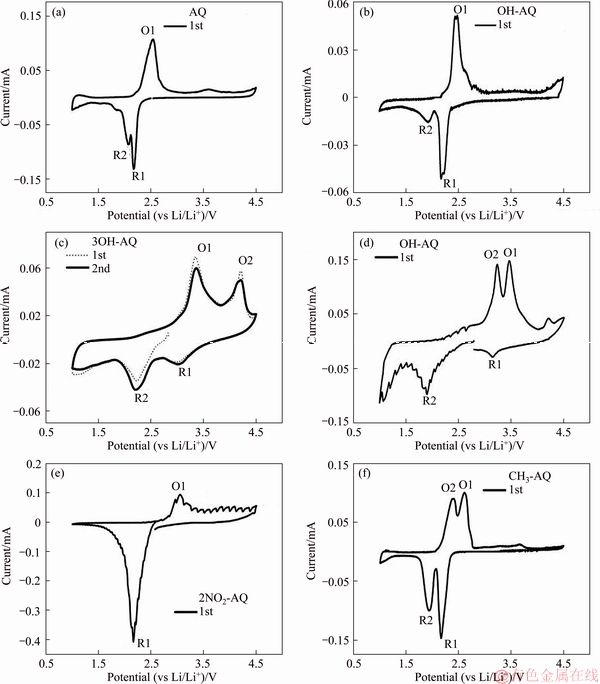

Figure 3 Cyclic voltammograms for initial cycle at 50 μV/s for AQ (a), 2OH-AQ (b), 3OH-AQ (c), 4OH-AQ (d), 2NO₂-AQ (e) and CH₃-AQ (f) [29]

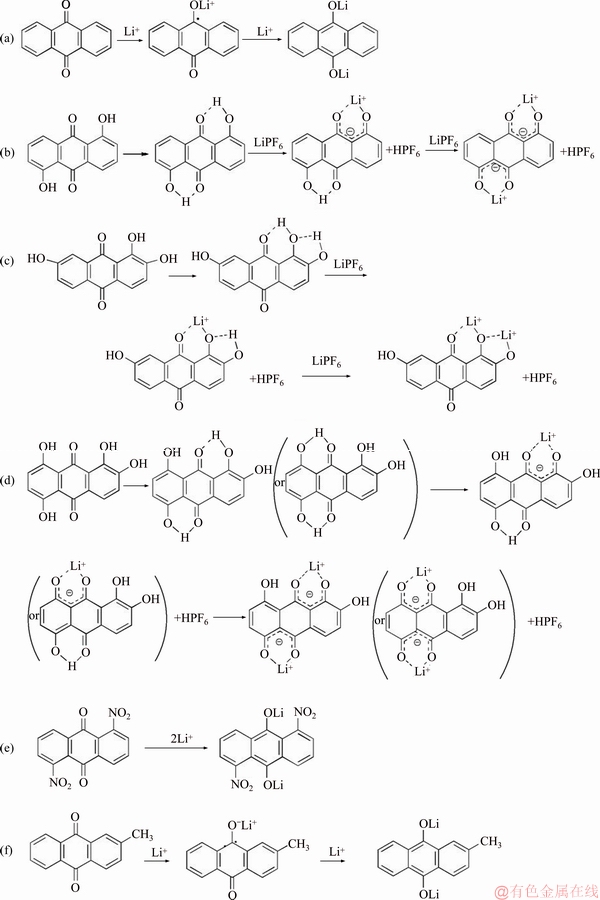

Figure 4 Schematic illustrations of lithiation mechanism in AQ (a), 2OH-AQ (b), 3OH-AQ (c), 4OH-AQ (d), 2NO₂-AQ (e) and CH₃-AQ (f) [29]

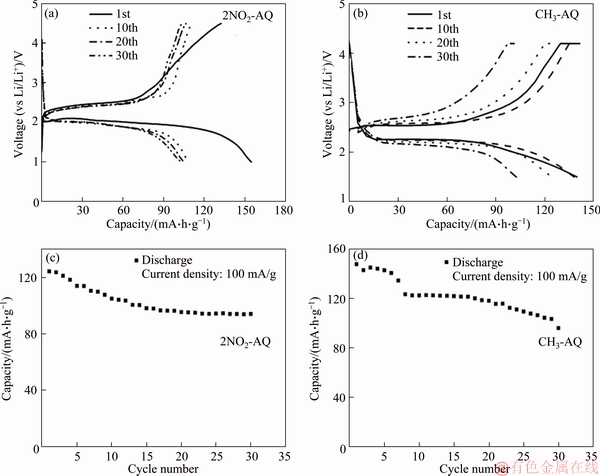

Figure 5 Discharge–charge curves for initial 30 cycles of 2NO₂-AQ (a), CH₃-AQ (b), cycling performance of 2NO₂-AQ (c), and CH₃-AQ (d)

4 Conclusions

In summary, the relationships between reduction potential and chemical functional groups that are either electron donating or withdrawing in AQ molecular structure have been studied for LIBs. The experimental results reveal that the reduction potentials of these materials have not been improved by the introduction of two —OH groups, two —NO₂ groups and one —CH₃ group, which is similar to the reduction potential of AQ with about 2.1 V. However, the reduction potentials of 3OH-AQ and 4OH-AQ can increase to about 3.1 V after the three or four groups are added on AQ structure. Meanwhile, the charge-discharge performances of these six electrode materials have also been studied. We will continue to increase the number of —NO₂ and —CH₃ groups and investigate the relation between reduction potential and electron groups in the future work.
