Trans. Nonferrous Met. Soc. China 26(2016) 1714-1720

Effects of electrolyte recycling on desulfurization from bauxite water slurry electrolysis

Ai-jing ^1,2, Yi-qi SHEN¹, Xu-zhong GONG¹, Zhi WANG¹, Yu-hua WANG¹, Ming-yong WANG¹

1. National Engineering Laboratory for Hydrometallurgical Cleaner Production Technology, Key Laboratory of Green Process and Engineering, Institute of Process Engineering, Chinese Academy of Sciences, Beijing 100190, China;

2. College of Environmental Science and Engineering, Liaoning Technical University, Fuxin 123000, China

Received 29 July 2015; accepted 11 January 2016

Abstract: To lower the cost of bauxite electrolysis desulfurization using NaOH solution as the supporting electrolyte, effects of electrolyte recycling on bauxite electrolysis desulfurization were investigated. The results indicate that electrode corrosion, cell voltage, the desulfurization rate and the pH value of the electrolyte have no obvious changes with the increase of cycle times. Additionally, there were some transitive valence S-containing ions in electrolyte after the electrolysis, such as , . However, most of the sulfur in bauxite was eventually oxidized into  into the electrolyte, and these S-containing ions did not affect the recycling utilization for electrolyte.

Key words: high sulfur bauxite; electrolysis; desulfurization; electrolyte; recycling

1 Introduction

During alumina production process, S-containing phase is transformed into sulfates (Na₂SO₄) [1], resulting in many problems, such as the decline of dissolution rate of Al₂O₃, the corrosion of equipment, the reduction of alumina production yield and quality [2]. Once the Na₂SO₄ scale is generated, the operation efficiency of the whole production system and heat transfer coefficient of the equipment will be lowered, and thus increasing the energy consumption [2]. At present, there are many methods for bauxite desulfurization, including calcination [3], flotation [3,4], wet desulfurization [5] and sintering desulfurization with adding reducing agent and so on [6]. But these methods have many limitations, such as low desulfurization rate, harsh reaction condition and complex process, especially for SO₂ emission due to the calcination.

Pyrite, the main S-containing phase in high sulfur bauxite [3], is the same as the S-containing phase in coal. The process of electrolysis desulfurization relies mainly on the electrochemical oxidation. Pyrite could be oxidized into sulfate by oxidant produced from water electrolysis on anode, achieving the desulfurization through solid-liquid separation. Electrolysis desulfuriza- tion has many advantages, including low temperature, normal pressure and high desulfurization ratio [7]. It is noted that electrolysis could also remove simultaneously both organic and inorganic sulfur in minerals, such as coal desulfurization [8]. Additionally, based on the previous results [9-12], the electrolysis desulfurization is more suitable to inorganic ore compared with coal water slurry (CWS) electrolysis [13-16], since anode is covered by organic products as organic ore is electrolyzed.

In our previous work, the feasibility of bauxite electrolysis desulfurization had been verified [17]. To lower the cost of bauxite electrolysis, electrolyte recycling was proposed in this work. However, the process of electrolysis desulfurization might be affected by electrolyte recycling. With the increase of the electrolyte cycle times, the S-containing anions in electrolyte are accumulated gradually. It might bring about bad effects to the desulfurization reaction, and finally affecting the desulfurization efficiency. However, if there are no effects of electrolyte recycling on electrolysis desulfurization, electrolyte recycling could be applied to the desulfurization of bauxite electrolysis, which not only could lower the cost of production, but also could lower the environmental pollutant risk. Thus, it is very essential to study the effects of electrolyte recycling on bauxite electrolysis desulfurization.

In this work, the optimal experiment was not done for the ore sample, and thus the best experimental conditions were not obtained. However, this research was focused on the feasibility of electrolyte recycling. It did not affect the experimental results. Grinded bauxite was prepared into slurry with NaOH solution, and the effects of electrolyte recycling on desulfurization from bauxite electrolysis were studied through a variety of characterization methods. Meanwhile, the desulfurization mechanism of bauxite electrolysis in NaOH solution and the conversion of sulfur state in the filtrate were examined by the analysis of the bauxite and the filtrate before and after electrolysis.

Table 1 Composition of bauxite sample (mass fraction, %)

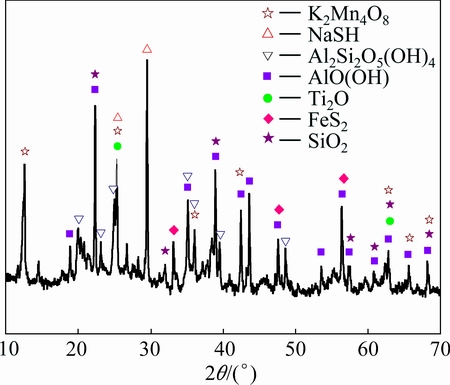

Fig. 1 XRD pattern of bauxite

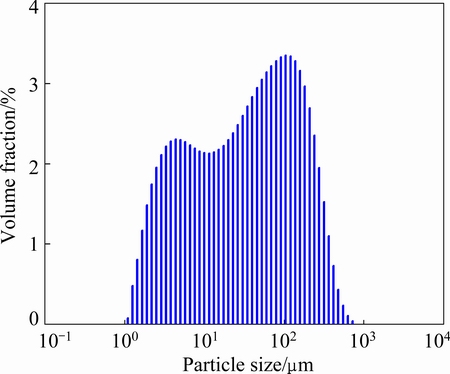

Fig. 2 Particle size distribution of bauxite

2 Experimental

2.1 Samples

A type of high sulfur bauxite from Guizhou province of China was selected as sample. Bauxite composition was analyzed by X-ray fluorescence (XRF, AXIOS, Holland), as listed in Table 1, and ore phase was characterized by X-ray diffraction (XRD, X’ Pert PRO MPD, Holland), as shown in Fig. 1. Figure 2 shows the particle distribution of bauxite. As can be seen from the data, the aluminum in bauxite mainly exists as the form of diaspore, and the sulfur mainly exists as the form of pyrite. Additionally, there are also potassium manganate and other impurities. The total sulfur content in bauxite is 3.95%.

All chemical compounds used in this work were listed as follows: NaOH solution (1.0 mol/L), dilute hydrochloric acid solution (1.0 mol/L, 3 mol/L), BaCl₂ solution (10%), Pb(Ac)₂ solution (1 mol/L), HNO₃ solution (2 mol/L), AgNO₃ solution (0.5 mol/L), ethanol (95%), Na₂CO₃ solution (100 g/L), ZnSO₄ solution ((ZnSO₄×7H₂O) 100 g/L), glacial acetic acid (1 + 10), iodine standard solution (0.1 mol/L), starch indicator (5 g/L) and deionized water.

2.2 Experiment

The experimental apparatus is shown in Fig. 3, including DC-3006 circulating water bath and WYK-3030S DC power supply. The active area of the nickel electrode was 4 cm × 4 cm. Electrolysis conditions were as follows: the current of 2.4 A, the electrolysis temperature of 90 °C, the electrolyte volume of 400 mL, the slurry concentration of 25 g/L, the stirring speed of 500 r/min, the concentration of NaOH of 1.0 mol/L and the electrolysis time of 4 h. After electrolysis, the filtrate was retained by suction filtration. 1.0 mol/L NaOH was added to the filtrate in each experiment until 400 mL, and then it was reused as the electrolyte. The filter residue was washed repeatedly until there is no white precipitate generated by adding the BaCl₂ solution acidified with hydrochloric acid, and then it was dried. Changes of the electrolysis voltage under the cycle constant current and the pH of the electrolyte before and after the reaction were recorded. Bauxite phase before and after electrolysis was analyzed by XRD, and the sulfur contents in bauxite before and after electrolysis were analyzed by C-S analyzer (LECO CS-344, USA). The sulfur states in the filtrate were tested by titration, and the crystal of the last filtrate was analyzed by XRD.

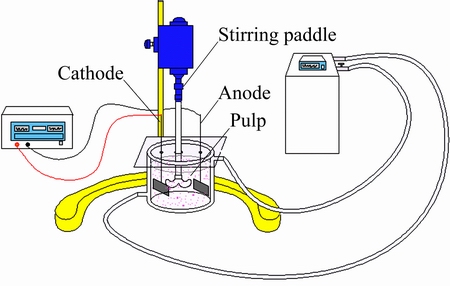

Fig. 3 Schematic diagram of electrolytic device

2.3 Desulfurization rate calculation

The method was focused on the sulfur content in the bauxite after electrolysis [17]. If considering the mass variation of bauxite, the desulfurization rate was high. Whereas the sulfur content in the bauxite after electrolysis was still high, thus the computing method was as follows:

                         (1)

where D is the desulfurization rate; w₁ and w₂ are the mass fractions of sulfur in bauxite before and after electrolysis, respectively.

3 Results and discussion

3.1 Effects of electrolyte recycling on corrosion and cell voltage

Figure 4 shows the effects of electrolyte recycling on electrode. From Fig. 4, certain amount of the dark matter is deposited on cathode, and there is a little change of electrode with the increase of cycle times. There is red matter on anode, but there is no obvious corrosion on anode. As far as the corrosion of the electrode is concerned, the electrolyte can be recycled. During the bauxite electrolysis process, the anode lost electrons, and the metal ions entered into electrolyte. Additionally, FeS₂ was oxidized into Fe³⁺ and  by oxidants on the surface of anode. Most of the Fe³⁺ was generated Fe(OH)₃, which would become Fe₂O₃ further, because of the instability of Fe(OH)₃ [18-20]. Then, the red oxidation film, Fe₂O₃, was generated covering on the surface of the anode. A small quantity of Fe³⁺ or Ni²⁺ was reduced on cathode, and forming metallic iron or nickel (alloy).

Figure 5 shows the changes in cell voltage with cycle times. The cell voltage has a fluctuation after the rapid decline, subsequently, being steady with time.

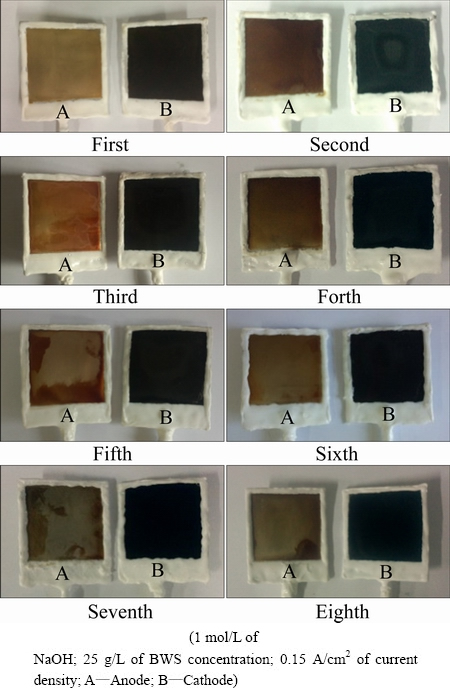

Fig. 4 Effects of electrolyte used times on electrode

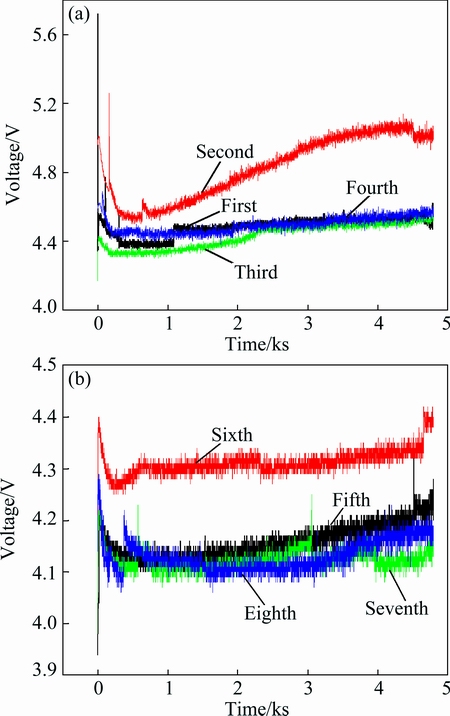

Fig. 5 Effects of electrolyte used times on cell voltage

In NaOH solution, the polarization process of nickel electrode resulted in rapid decrease in cell voltage [21]. From Fig. 5, with the increase of electrolyte cycle times, the cell voltage varies between 4 and 5 V, and there is no obvious increase or decrease. The change in the average voltage with electrolyte recycling is shown in Fig. 6. As can be seen from Fig. 6, the average voltage shows a slight downward trend with the increase of the electrolyte cycle times, resulting from the increase in ion concentration with electrolyte recycling, such as . The lower the voltage is, the smaller the power energy consumption is. Therefore, the electrolyte recycling is beneficial to saving power energy for bauxite electrolysis.

Fig. 6 Effects of electrolyte used times on average cell voltage

3.2 Changes of desulfurization rate and pH

Desulfurization rate is an important indicator for evaluating the effect of electrolyte recycling. The increase of electrolyte cycle times could effectively save the production cost under the premise of good desulfurization effects. From Fig. 7, the desulfurization rate has some changes with the increase of the electrolyte cycle times after it drops to 10% from 20% for the first time. The electrolyte recycling not only saves NaOH solution, but also lowers environmental pollutant. Because the electrolysis condition is not the best, the desulfurization rate is low. However, the above experimental conditions do not influence the research on electrolyte recycling.

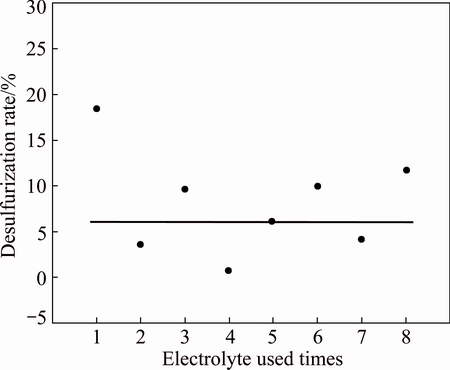

Fig. 7 Effects of electrolyte used times on desulfurization rate

Figure 8 shows the changes in the pH value with electrolyte cycle times. As we know, the pH value of 1.0 mol/L NaOH was 14. The pH value of electrolyte dropped to 13.21 after the first electrolysis, indicating that part of NaOH was consumed. The pH value of the electrolyte should be slightly less than 14, because 1.0 mol/L of NaOH was added into the electrolyte until 400 mL after each reaction. The change of pH value of the electrolyte after reaction is not obvious with the increase of the electrolyte cycle times. This indicates that part of NaOH solution has been consumed during bauxite electrolysis process. For NaOH system, FeS₂ was oxidized into Fe³⁺ and . But, there were not lots of Fe³⁺ in NaOH solution, thus OH^- in solution reacted with Fe³⁺, generating Fe(OH)₃ sediment, and resulting in the consumption of OH^-.

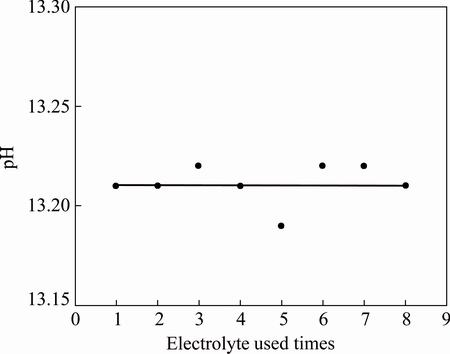

Fig. 8 Effects of electrolyte used times on pH

3.3 Phase change and sulfur form in electrolyte

Figure 9 shows the XRD patterns of bauxite after the first and the eighth electrolysis. From Fig. 9, there are mainly AlO(OH) peaks and impurities peaks containing SiO₂ and TiO₂ in bauxite after electrolysis. Moreover, there are Fe(OH)₃ peaks which are the product of the electrolysis oxidation process of FeS₂. The result indicates that the method of electrolysis oxidation could effectively remove S-containing phase in bauxite.

Figure 10 shows the XRD patterns of electrolyte crystal after the first and the eighth electrolysis. There are NaOH peaks in the electrolyte crystal after the first electrolysis. The main component of crystals is NaOH, but there is hydrate of NaOH peaks in the crystals due to the solid of NaOH absorbing water soon and becoming damp in the air. Meanwhile, there are sulfate peaks, such as K₂SO₄ and Na₂SO₄, also thiosulfate peaks, such as Na₂S₂O₃(H₂O)₅. This indicates that the oxidation process of FeS₂ underwent complex changes during bauxite electrolysis process. The conversion of FeS₂ was not directly converted from solid phase sulfur into liquid phase sulfur (). There are also NaOH peaks in electrolyte crystal after the eighth electrolysis, and the main component of crystals is still NaOH. The sulfate was found, such as K₂SO₄, in the electrolyte crystals, indicating that FeS₂ eventually could be oxidized into  for bauxite electrolysis.

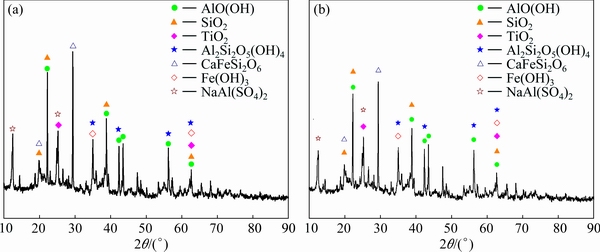

Fig. 9 XRD patterns of bauxite after the first (a) and the eighth (b) electrolysis

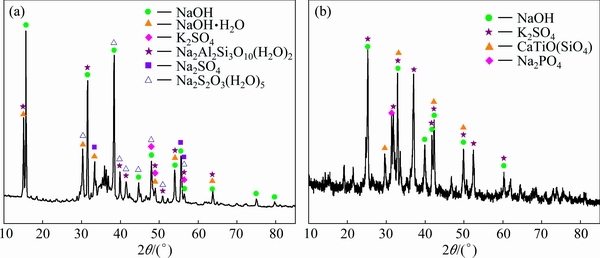

Fig. 10 XRD patterns of electrolyte crystal after the first (a) and eighth (b) electrolysis

The last (eighth) filtrate was tested by titration, and the results are shown in Table 2. The white precipitate was generated by adding the BaCl₂ solution acidified with hydrochloric acid. This proves that there was  in the electrolyte solution and FeS₂ eventually could be oxidized into  by oxidants generated from water electrolysis. There was little change after adding the Pb(Ac)₂ solution dropwise into the filtrate. There was no black precipitate generated, so there was no S^2- in the filtrate. There were no significant changes in the filtrate after adding the AgNO₃ solution nitrated dropwise, so there was no  in the filtrate. The  in the filtrate was titrated by GB 10500-2009 [22]. A drop of iodine standard solution was consumed until the test solution turned blue, indicating that there was almost no  in the filtrate.  would easily be oxidized to  by air, so it could not be detected from the filtrate.

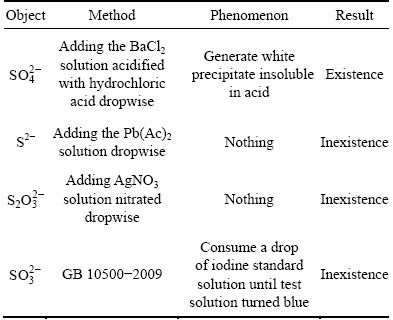

Table 2 Sulfur states in last electrolyte

GU et al [23] found that the oxidation reaction of pyrite was divided into two steps, including the oxidation of pyrite to S⁰ and the oxidation of S⁰ to . According to the results above, it can be inferred that the oxidation process from S^- of solid phase in bauxite to  of liquid phase is a chain reaction process [24,25]. There were some S-containing ions from S^- oxidation, such as S⁰,  and  [26]. Finally, they were oxidized into  further.  was easy to be oxidized into  or  by reacting with the elemental sulfur (S⁰) in the solution. In the initial stage, due to the high concentration of S^- in the solution, the speeds of  generated and consumed were both faster in the solution. The reactions could keep dynamic balance, and the concentration of  remained relatively unchanged. However, the concentration of S^- was continuously reduced in the later stage. The speed of  generated was reduced, so its concentration decreased with time. The concentration of  rapidly increased with time until reaching the maximum concentration, and then gradually decreased. But the production process of  was a fast reaction process, the  concentration remained at a high level. While the reaction process which was further oxidized into  was slow. Thus, the main product was  in the first filtrate after a long time reaction, followed , almost no . When the cycle times increased, the  was eventually oxidized into  through the complex changes after the eighth time.

AHLBERG et al [9] suggested that the pyrite oxidation mainly generated sulfate sulfur in alkaline solution. According to the study on the mineral phase evolution of BWS electrolysis [27] and the results above, the electrode reaction for BWS electrolysis in alkaline solution is shown in Fig. 11.

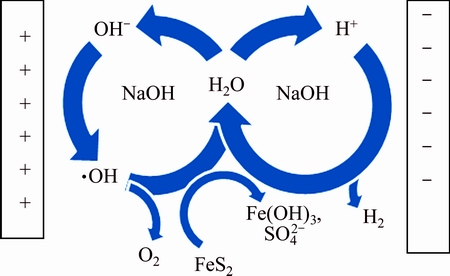

Fig. 11 Desulfurization mechanism from BWS electrolysis in alkaline solution

The main reactions of bauxite electrolysis desulfurization in alkaline solution are as follows:

Cathode: 4H₂O+4e→2H₂+4OH^-                    (2)

Anode: 4OH^-→O₂+4e+2H₂O                  (3)

Liquid:

4FeS₂+16OH^-+15O₂→4Fe(OH)₃+8+2H₂O    (4)

The conversion of sulfur in the liquid phase is as follows:

4S^-+O₂+2H₂O→4S+4OH^-                      (5)

S+O₂+2OH^-→+H₂O                    (6)

S+→                            (7)

+O₂→                            (8)

+2O₂+2OH^-→2+H₂O              (9)

Some researches suggested that electrochemical oxidation could produce hydroxyl radical (HO×) through Fenton reaction [28-30]. In the electrochemical reaction, some active intermediates could be generated on the surface of electrode, such as HO× and HO₂× [31]. These intermediates involved in oxidation reaction [32], espeically for hydroxyl radical (HO×) [33]. Thus, the reaction mechanism of desulfurization from bauxite electrolysis in alkaline solution could be speculated. In alkaline solution, a number of strong oxidants were generated on anode from water electrolysis [31], such as HO× and HO₂×. Some oxidants formed oxygen gas due to their reaction, and others reacted with pyrite producing Fe(OH)₃. Finally, most of the sulfur in bauxite was oxidized into  through the complicated change in valence.

4 Conclusions

1) There is no obvious corrosion on the surface of electrode with electrolyte recycling. The change in pH of the electrolyte is not obvious with the increase of the cycle times of the electrolyte.

2) The recycling of electrolyte hardly influences desulfurization from BWS electrolysis. However, the electrolyte should be supplemented after each cycle due to NaOH consumption.

3) There are transitive valence S-containing ions in the electrolyte after recycling. Finally, they are oxidized into .
