Article ID: 1003-6326(2005)05-1085-04

Maximum solid solubility of transition metals in vanadium solvent

ZHANG Jin-long(ÕŽðÁú)¹, FANG Shou-shi(·½ÊØʨ)¹, ZHOU Zi-qiang(ÖÜ×ÔÇ¿)¹,

LIN Gen-wen(ÁÖ¸ùÎÄ)¹, GE Jian-sheng(¸ð½¨Éú)¹, FENG Feng(·ë ·æ)²

(1. Institute of Hydrogen Storage Materials, Shanghai University, Shanghai 200072, China;

2. Department of Mechanical, Automotive and Materials Engineering, University of Windsor, Windsor, Ont., Canada N9B 3P4)

Abstract: Maximum solid solubility (C_max) of different transition metals in metal solvent can be described by a semi-empirical equation using function Z_f that contains electronegativity difference, atomic diameter and electron concentration. The relation between C_max and these parameters of transition metals in vanadium solvent was studied. It is shown that the relation of C_max and function Z_f can be expressed as lnC_max=Z_f=7.3165-2.7805(¦¤X)²-71.278¦Ä²-0.85556n^2/3. The factor of atomic size parameter has the largest effect on the C_max of the V binary alloy; followed by the factor of electronegativity difference; the electrons concentration has the smallest effect among the three bond parameters. Function Z_f is used for predicting the unknown C_max of the transition metals in vanadium solvent. The results are compared with Darken-Gurry theorem, which can be deduced by the obtained function Z_f in this work.

Key words: solid solubility; vanadium alloys; function Z_f; electronegativity difference; atomic size parameters; electron concentration CLC number: TG139.7

Document code: A

1 INTRODUCTION

Recently, alloys with a high density of hydrogen were enthusiastically studied not only for high-performance negative electrodes, but also for fuel cells or for other applications. Vanadium or V-based solid solution alloys with BCC structure are very attractive because of their high hydrogen absorption and desorption capacity at moderate pressure and temperature^{[1, 2]}. Another reason is that the diffusion rate of hydrogen in vanadium is extremely high. The hydrogenation properties of vanadium have been controlled and improved by alloying with other metals^[3-6].

The maximum solid solubility C_max of alloys is one of the basic issues of the theoretical research on phase formation. It is significant to understand the phase formation theory and improve the ability to predict extensive solid solutions, which restricts the possible adjustment range of components in vanadium alloys. It is also important for V-based solid solution alloys to apply for fuel cells and Ni-MH batteries. There are some theories to analyze the solid solubility such as Hume-Rothery¬ðs Rules, Pauling¬ðs Electronegativity Concept and Friedel¬ðs electronic theory, which respectively emphasize the effects of the electronegativity, atomic size and outer layer electron^[7]. Darken and Gurry^[8] proposed a method by considering both atomic diameter and electronegativity to predict the formation of solid solution alloys. However, there are some questions that can not be explained. Function Z_f has been successfully proposed to calculate the C_max of transition metals in Ti, Zr, Hf and Pd solvents in our previous work, which is convenient to know the relative contributions of atomic parameters^[9-14]. In this paper, we shall deal with C_max of transition metals in vanadium by function Z_f and determine which is the main atomic factor effect on C_max.

2 MATHEMATICAL MODEL FOR RELATION BETWEEN C_max AND FUNCTION Z_f

2.1 Mathematical model

According to our previous work^[9-14], there is a relation between the C_max of transition metals dissolved in a given solvent metal and the function Z_f.

lnC_max=Z_f(1)

and the function Z_f is defined as

Z_f=a₀+a₁(¦¤X)²+a₂¦Ä²+a₃n^2/3(2)

where ¦¤X=X₀-X, is the electronegativity difference between solute and solvent element (subscript 0 means solvent, it has the same meaning in D₀ and n₀ below); ¦Ä=1-D/D₀ is the atomic size difference between solute and solvent element; n=(n₀+n₁)/2 is the average out-layer electrons of solute and solvent element; a₁, a₂ and a₃ are the proportional coefficients and a₀ is a constant, which needs to be fixed.

2.2 Determining of coefficients in function Z_f of vanadium binary alloys

The coefficients in function Z_f of the binary alloys for a given solvent can be fixed using a regression analysis from the known data of C_max, X ,¦Ä and n. The C_max data of the binary alloys for a given solvent can be read from the equilibrium phase diagrams^[15] and the other data were read as that in Ref.[16].

For the vanadium binary alloys the data needed to determine the coefficients in function Z_f are listed in Table 1.

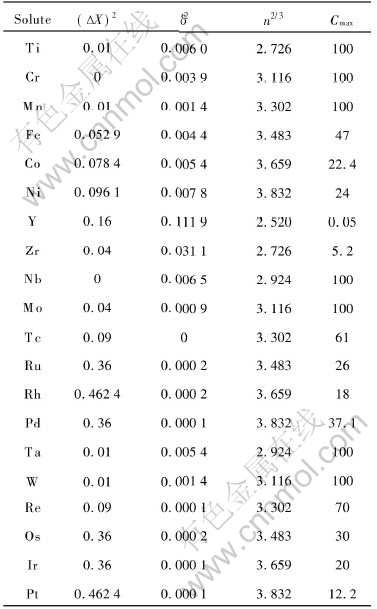

Table 1  Data of C_max, electronegativity difference ¦¤X, atomic size parameter ¦Ä and

electron concentration n for solvent V

3 RESULTS AND DISCUSSION

3.1 Function Z_f of vanadium binary alloys

Function Z_f of vanadium binary alloys is obtained by a regression analysis using the proposed model.

Z_f=lnC_max=7.3165-2.7805(¦¤X)²-

71.278¦Ä²-0.85556n^2/3(3)

[BJ(,,,][BJ)] Vol.15 ¡í.5    Maximum solid solubility of transition metals in vanadium solvent The correlation coefficient of Eqn.(3) is 0.98. Fig.1 shows a comparison between the calculated and experimental values of lnC_max for V alloys. It can be seen from Fig.1 that the values of lnC_max calculated from Eqn.(3) are in good agreement with the experimental data.

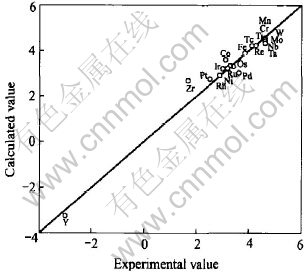

Fig.1  Comparison between calculated and experimental values of lnC_max

3.2 Application of function Z_f

Function Z_f can be easily used for dealing with the following questions of the C_max of transition metals in a given solvent.

C_max and function Z_f can be expressed as an equation of the three factors: electronegativity difference(¦¤X), atomic size parameter ¦Ä and electron concentration n on the basis of energetics of alloys. According to the theory of regression analysis, it can determine the relative contribution by comparing the statistic values F_i.

Table 2 lists the statistic F_i of items in the Eqn.(3) by regression analysis. It is well known according to the theory of regression analysis that the larger the statistic values of the F_i items, the larger the effect of the item is. Therefore, it can be deduced from Table 2 that the factor of atomic size parameter (¦Ä²) has the largest effect on the C_max of the V binary alloy, followed by the factor of electronegativity difference; the electrons concentration (n^2/3) has the smallest effect among the three bond parameters, yet it cannot be neglected.

The values of the unknown C_max of some transition metals solved in vanadium can be predicted by Eqn.(3). Table 3 lists the prediction values and the fiducial range of C_max of some transition metals solved in vanadium whose maximum solid solution limits are not sure from the phase diagram.

Function Z_f can explain the rules of D-G theo rem, which is proved to be the special examples of C_max equation by neglecting some certain items^[12]. According to the C_max equation, when C_max is set to C_max0, it is easy to get a Z-F ellipse equation:

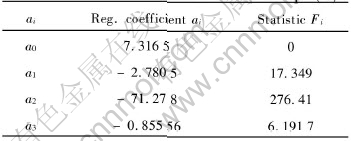

Table 2  Values of statistic items in Eqn.(3)

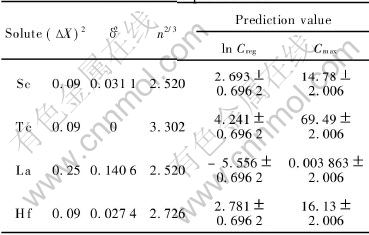

Table 3  Prediction values of C_max and their atomic parameters

Eqn.(5) is an ellipse when Z_f0-a₀-a₃n^2/3=k, that the central coordinate is point (X₀, D₀) and the long and short axis are  and respectively. We can obtain the D-G theorem just by letting =X¡À0.4 for abscissa and =D₀¡À15% for vertical coordinate, which is the conditions for D-G theorem coming into existence.

Thus, D-G ellipse of V binary alloys can be expressed as

The shape and size of the ellipse drawn by Eqn.(5) are influenced by the value of Z_f0-a₀-a₃n^2/3. The effects of n on the shape and size of Z-F ellipse equation of V binary alloys when C_max0=50% are expressed as Eqn.(7).

D-G theorem can be seen as a special example of Z-F ellipse equation in which omitting the effect of item n^2/3 is omitted by comparing Eqn.(6) with Eqn.(7).

D-G ellipse that the minor axis is D_v¡À15% (abscissa) and the major axis is X¡À0.4 (ordinate) is shown in Fig.2. The center of the ellipse is at (2.72, 1.6) that stands for the atomic diameter and electronegativity of vanadium respectively. C_max of most transition metals (Ta, W, Nb, Mo, Ti, Cr, Mn, Fe, Re, Tc) in vanadium in the ellipsoid are larger than 50%, which is in agreement with the D-G method. But C_max of other transition metals (Co, Ni) are less than 50%, which is not in agreement with D-G method. C_max out of the ellipsoid (La, Y, Sc, Hf, Zr, Os, Ru, Ir, Rh, Pt, Pd) are less than 50%, which is in agreement with D-G method. Thus the rules of variable C_max of most transition metals (not all solute) in vanadium can be judged according to D-G method. It mainly ascribes to the reason that all the d-group elements have the common metallic structures and have d-electrons, when one substitutes a d-group solute element into the d-group solvent there is no major distortion of the electronic bands and no large change in the total energy of the system^{[7, 8]}.

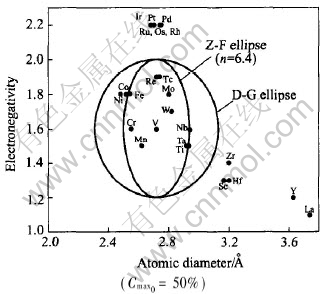

Fig.2  D-G ellipse and Z-F ellipse about solvent vanadium

   Z-F ellipse equation of V binary alloys when n=6.4 is expressed as Eqn.(8) and shown in Fig.2. It is clear that C_max of (Co, Ni) are in D-G ellipse, but outside Z-F ellipse. Function Z_f theory is in agreement with the experiment that C_max of all elements in Z-F ellipse are larger than 50% while it is smaller than 50% for the element outside the ellipse.

Function Z_f can also be applied to explain M-C theorem that Miedema -Chelikowsky estimated the value of solid solubility by a dimensional chart with parameters n^1/3 and ¦µ^* which is relative with electronegativity. Function Z_f can also be applied to explain the rule of electron concentration^[12].

4 CONCLUSIONS

1) The maximum solid solubility of transition metals in vanadium can be represented as function Z_f of electronegativity difference, atomic size parameter and electron concentration as follows: lnC_max=Z_f=a₀+a₁(¦¤X)²+a₂¦Ä²+a₃n^2/3.

2) The factor of atomic size parameter has the largest effect on the C_max of the V binary alloy, followed by the factor of electronegativity difference; the electrons concentration has the smallest effect among the three bond parameters.

3) Function Z_f can be applied to determine the main atomic factor effect on C_max and predict C_max of transition metals in vanadium solvent. Function Z_f can also be applied to explain D-G theorem.

REFERENCES

[1]Kim J H, Lee H, Lee P S, et al. A study on the improvement of the cyclic durability by Cr substitution in V-Ti alloy and surface modification by the ball-milling process [J]. J Alloys & Compounds, 2003, 348: 293-300.

[2]Uno M, Takahashi K, Maruyama T, et al. Hydrogen solubility of BCC titanium alloys [J]. J Alloys & Compounds, 2004, 366: 213-216.

[3]ZHU Y F, PAN H G, GAO M X, et al. Influence of annealing treatment on Laves phase compound containing a V-based BCC solid solution phase¡ªPart I: Crystal structures [J]. International Journal of Hydrogen Energy, 2003, 28: 389-394.

[4]LI R, PAN H G, GAO M X, et al. Structural and electrochemical properties of hydrogen storage alloys Ti_0.8Zr_0.2V_2.7Mn_0.5Cr_0.8Nix (x=1.50-2.25) [J]. J Alloys & Compounds, 2004, 373: 223-230.

[5]Avashima H, Takahashi F, Ebisawa T, et al. Correlation between hydrogen storage properties and homogeneity of TiVCr alloys [J]. J of Alloys & Compounds, 2003, 356-357: 405-428.

[6]CHAI Yu-jun, ZHAO Min-shou. Structure and electrochemical properties of Ti_0.25V_0.35Cr_0.40-xNix (x=0.05-0.40) [J]. International Journal of Hydrogen Energy, 2005, 30: 279-283.

[7]Gschneidner K A, Larry L S. Darken¬ðs contributions to the theory of alloy formation and where we are today [A]. Bennett L H. Theory of Alloy Phase Formation [C]. A Publication of the Metallurgical Society of AIME, 1980. 1-39.

[8]Darken L S, Gurry R W. Physical Chemistry of Metals [M]. New York: McGraw-Hill Co Inc, 1953. 74-92.

[9]ZHOU Zi-qing, FANG Shou-shi, FENG Feng. Rules for the maximum solid solubility of transition metals in Ti, Zr and Hf solvents [J]. Trans Nonferrous Met Soc China, 2003, 13(4): 864-868.

[10]FANG Shou-shi, LIN Gen-wen, ZHANG Jin-long, et al. The maximum solid solubility of the transition metals in palladium [J]. International Journal of Hydrogen Energy, 2002, 27: 329-332.

[11]ZHOU Zi-qing, ZHANG Jin-long, PING Xin-yi, et al. The maximum solid solubility of the transition metals in titanium alloys [A]. Advance in Energy Sources Materials, Intelligent Materials and Gradient Materials [C]. Beijing: Metallurgical Industry Press, 1998. 37-40. (in Chinese)

[12]ZHOU Zi-qing, FANG Shou-shi, FENG Feng. Comparison between methods for predicting maximum solid solubility of transition metals in solvent metal [J]. Trans Nonferrous Met Soc China, 2003, 13(5): 1185-1189.

[13]ZHOU Zi-qing, ZHANG Jin-long, GE Jian-sheng, et al. Effect of 3d transition-metal additive on the hydrogen storage properties of Mm_1-xMlxNi_5-yMy alloys [A]. Ohta T, Homma T. New Energy Systems and Conversions [C]. Universal Academy Press, 1993. 79.

[14]FANG Shou-shi, ZHOU Zi-qing, ZHANG Jin-long, et al. Two mathematical models for the hydrogen storage properties of AB2 type alloys [J]. J Alloys & Compounds, 1999, 293-295: 10-13.

[15]Massalski T B. Binary Alloy Phase Diagrams [M]. Ohio: ASM, Metals Park, 1996.

[16]XIAO Ji-mei. Energetics of Alloys [M]. Shanghai: Shanghai Science and Technology Press, 1985. 296.(in Chinese)

Foundation item: Project(045211019) supported by Shanghai Municipal Commission of Science and Technology

Received date: 2004-12-22; Accepted date: 2005-05-09

Correspondence: ZHOU Zi-qiang, Professor; Tel: +86-21-56651556; E-mail: zqzhou408@21cn.com

(Edited by YUAN Sai-qian)
