Key R&D activities for development of new types of wrought magnesium alloys in China

PAN Fu-sheng(潘复生)^{1, 2}, ZHANG Jing(张 静)^{1, 2}, WANG Jing-feng(王敬丰)^{1, 2},

YANG Ming-bo(杨明波)³, HAN En-hou(韩恩厚)⁴, CHEN Rong-shi(陈荣石)⁴

1. National Engineering Research Center for Magnesium Alloys, Chongqing University, Chongqing 400044, China;

2. College of Materials Science and Engineering, Chongqing University, Chongqing 400044, China;

3. College of Materials Science and Engineering, Chongqing University of Technology, Chongqing 400050, China;

4. Institute of Metal Research, Chinese Academy of Sciences, Shenyang 110016, China

Received 23 September 2009; accepted 30 January 2010

Abstract: Many researchers in China are actively engaged in the development of new types of wrought magnesium alloys with low cost or with high-performances and novel plastic processing technologies. The research activities are funded primarily through four government-supported programs: the Key Technologies R&D Program of China, the National Basic Research Program of China, the National High-tech R&D Program of China, and the National Natural Science Foundation of China. The key R&D activities for the development of new wrought magnesium alloys in China are reviewed, and typical properties of some new alloys are summarized. More attentions are paid to high-strength wrought magnesium alloys and high-plasticity wrought magnesium alloys. Some novel plastic processing technologies, emerging in recent years, which aim to control deformation texture and to improve plasticity and formability especially at room temperature, are also introduced.

Key words: wrought magnesium alloy; microstructure; properties; alloy designing; plastic deformation; research projects

1 Introduction

In the past years, the annual output of magnesium has increased remarkably in China, and magnesium alloys are being applied to motorcycles, automobiles, electric devices and so on. However, more extensive application has not yet commenced due to the high cost of sheets and profiles of wrought magnesium alloys and their unsatisfactory properties. Nowadays, the research and development (R&D) on high-performance wrought magnesium alloys and novel forming processes have received much more global attention than ever before, and many R&D projects have been supported by the central government and local government.

In China, the research on wrought magnesium alloys is mainly conducted in Chongqing University (CQU), Shanghai Jiao Tong University (SJU), Institute of Metal Research of Chinese Academy of Sciences (IMR), Changchun Institute of Applied Chemistry of Chinese Academy of Sciences (CIAC), Central South University (CSU), etc. Research funding primarily come from four government-supported programs, namely, the Key Technologies R&D Program, the National Basic Research Program of China, the National High-Tech R&D Program of China, and the National Natural Science Foundation of China. In the present work, the key R&D activities on wrought magnesium alloys in China, including arrangement of national research projects for wrought magnesium alloys and development of new types of wrought magnesium alloys and novel plastic processing technologies, are introduced and discussed.

2 R&D projects on wrought magnesium alloys in China

2.1 Projects under the National Key Technologies R&D Program

The Key Technologies R&D Program is the first national science and technology (S&T) program in China. It aims to address major S&T issues on national economic construction and social development. Initiated in 1982 and implemented through 4 Five-year Plans, the program has made remarkable contributions to the technical renovation and upgrading of traditional industries and the formation of new industries.

At the beginning of this century, Chinese government has started two rounds of (two Five-year Plans from 2000-2010) R&D projects for magnesium and its applications (shown in Table 1) under the Key Technologies R&D Program of China. With the guidance of the Ministry of Science and Technology (MOST), Chinese magnesium industry made rapid progress through these projects. A complete industrial production chain, including primary magnesium and its alloy making, die-casting, extruding, rolling, welding, surface protection was set up. The annual output of Chinese primary magnesium increased stably step by step and reached 627 300 t in 2007, about 70% of the world output. The amount of various magnesium alloy products used in automobiles, motorcycles, bicycles, and 3C electronics increased rapidly, and the application field of magnesium expanded quickly as well. It can be seen from Table 1 that most of the sub-projects under this programme are related to development and application of processing technologies of wrought magnesium alloys.

2.2 Projects under the National Basic Research Program

In 2007, the National Basic Research Program of magnesium alloys titled “Key Basic Problems during Preparation and Processing of High Performance Magnesium Alloys” organized by Chongqing University was approved, and the total fund is 31 million RMB Yuan. Many universities and institutes in China have joined this project. This project is closely related to great national strategic demand, and aims to solve the key technological bottleneck of preparation and processing of high-performance wrought magnesium alloys. The key scientific problems, research sub-subjects as well as general objectives can be seen in Table 2.

Some important innovative research results related to the basic problems by this project have been obtained in the past two years, including:

1) new purification flux and electromagnetic semi- continuous casting technique;

2) influence of initial grain and temperature on deformation behavior;

3) mechanism of the competition between dislocation slip and twinning;

4)  grain refinement;

5) law of second phase strengthening and toughening;

6) optimized combination of strength and damping capacity.

These obtained results provide direct technological support for extrusion of the profiles with large cross section and processing technique of large-dimension sheets. Through these projects, about 130 papers have been published and 53 patents have been applied.

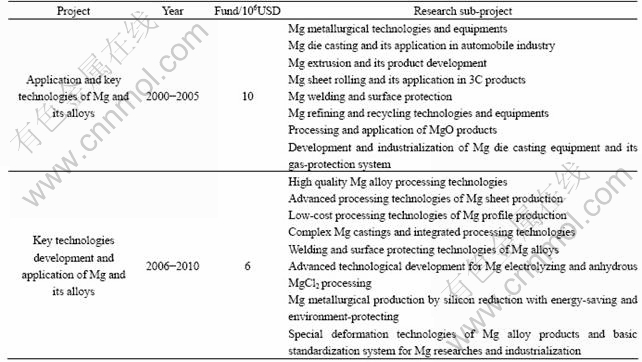

Table 1 Projects on Mg and its alloys supported by the National Key Technologies R&D Program

Table 2 National Basic Research Program for wrought magnesium alloys

2.3 Other projects supported by Central Government

The other programs, which support the R&D activities for wrought magnesium alloys, mainly include the National Natural Science Foundation of China (NSFC), the National High-tech R&D Program (863 Program), the R&D Infrastructure and Facility Development Program and the International Collaboration Program.

In recent eight years, the National Natural Science Foundation of China (NSFC) has supported 99 projects in the field of magnesium and its alloys, and about 60% of these projects are focused on wrought magnesium alloys.  Among them, forming technology is always a comparatively active research field. These projects were carried out mainly by Chongqing University, Institute of Metal Research of Chinese Academy of Sciences, and Shanghai Jiao Tong University. The research contents on welding, forming, casting and solidification for wrought magnesium alloys supported by NSFC are shown in Table 3.

The National High-tech R&D Program (863 Program) was set up in 1986 to meet the global challenges of new technology revolution and competition. The main projects on wrought magnesium alloys during 2000-2009 under the National High-tech R&D Program included “Development and Application of High- performance Wrought Magnesium Alloys”, “Twin Roll Casting of Wrought Magnesium Alloys” and “Fabrication Technologies for Mg sheets”, which were carried out by Chongqing University and Shanghai Jiao Tong University.

Under the R&D Infrastructure and Facility Development Program, the National Engineering Research Center for Magnesium Alloys (CCMg) (led by PAN Fu-sheng) had been approved and was set up in Chongqing University in 2007. So far, no State Key Laboratories for magnesium and its alloys have been set

Table 3 Main research contents of projects funded by NSFC

up yet. CCMg has a creative research group of strong academic and engineering background. There are more than 160 researchers in the center, including 25 professors and about 120 research students. More than 60% of the professors and lecturers have the experiences of studying and working in West Europe and North America. In 2008, the National Joint Research Center for International Collaboration of Magnesium Alloys and Microsystems was set up in Chongqing University, which is also the only one of magnesium and its alloys in China.

There are two important international cooperation projects being carried out. One is “Canada-China-USA Collaborative Project on Magnesium Front End Research and Development” (organized by SHI Wen-fang, China Nonferrous Metals Industry Association), and the other is “China-German and China-Russia Collaborative Project on Wrought Magnesium Alloys” (organized by PAN Fu-sheng, Chongqing University).

3 Development of new wrought magnesium alloys in China

In Chongqing University, the researches on new types of wrought magnesium alloys mainly focus on the Mg-Gd-Y-Mn, Mg-Zn-Zr-RE, Mg-Zn-Mn-RE, Mg-Al- Zn-Sr and Mg-Li systems[1-9]. The mechanical properties of some of these alloys are shown in Table 4. The phase diagram investigation related to the development of new types of wrought alloys has being carried out, and the thermodynamic database in the Mg-Al-Zn-Y-Ce system has been developed[10].

In Shanghai Jiao Tong University, the researches on new types of wrought magnesium alloys mainly focus on the Mg-Gd-Dy-Nd-Zr, Mg-Gd-Nd-Zr, Mg-Gd-Y-Zr, Mg-Y-Sm-Zr and Mg-Zn-Nd-Zr alloys[10-21]. The mechanical properties of some of these alloys are shown in Table 5. It is seen from Table 5 that the Mg-12Gd-3Y-0.5Zr alloy exhibits relatively high mechanical properties.

In the Institute of Metal Research of Chinese Academy of Sciences, the researches on new types of wrought magnesium alloys mainly focus on the Mg-Gd-Y-Zr, Mg-Zn-Y-Zr, Mg-Y-Nd，Mg-Zn-Gd alloys and the super light Mg-Li-Zn-Y alloys[22-37]. The mechanical properties of some of these alloys are shown in Table 6. It is seen from Table 6 that the Mg-10Gd-3Y-1Zn-0.5Zr alloy exhibits relatively high mechanical properties, Mg-Li-Zn-Y alloy exhibits the best specific strength and Mg-2Zn-1Gd alloy exhibits good ductility at room temperature.

Table 4 Mechanical properties of some of new types of wrought magnesium alloys developed in Chongqing University[1-9]

Table 5 Mechanical properties of some of new types of wrought magnesium alloys developed in Shanghai Jiao Tong University[10-21]

In Changchun Institute of Applied Chemistry of Chinese Academy of Sciences, the researches on new types of wrought magnesium alloys mainly focus on the Mg-Gd-Er-Zr, Mg-Gd-Ho-Zr, Mg-Gd-Y-Nd, Mg-Zn- Y-Al and Mg-Gd-Dy-Zr alloys[38-44]. Table 7 lists the mechanical properties of some of these alloys. It can be seen that the tensile strength of these alloys is normally between 200 MPa and 300 MPa.

In Central South University (CSU), the researches on new types of wrought magnesium alloys mainly focus on the Mg-Zn-Y-Zr,  Mg-Yb-Zr, Mg-Zn-Nd-Y-Zr and Mg-Gd-Y-Zr(Mn) alloys[45-51]. Table 8 lists the mechanical properties of some of these alloys.

In other universities and institutes of China, such as Beijing General Research Institute for Nonferrous Metals and Xi’an Technological University of China, the researches on new types of wrought magnesium alloys mainly focus on the Mg-Gd-Y-Zn-Zr[52-53], Mg-Gd-Y-Nd-Zr[54], Mg-Y-Nd-Zr[55] alloys. Table 9 lists the mechanical properties of some of these alloys. It can be seen from Table 9 that the Mg-12Gd-4Y-1Zn-0.5Zr alloy exhibits relatively high mechanical properties.

Table 6 Mechanical properties of some of new types of wrought magnesium alloys developed in the Institute of Metal Research of Chinese academy of sciences[22-37]

Table 7 Mechanical properties of some of new types of wrought magnesium alloys developed in Changchun Institute of Applied Chemistry of Chinese academy of sciences[38-44]

Table 8 Mechanical properties of some of new types of wrought magnesium alloys developed in Central South University[45-51]

Table 9 Mechanical properties of some of new types of wrought magnesium alloys developed in other universities and institutes of China[52-55]

4 Development of novel plastic processing technologies for wrought magnesium alloys

Since there are only two independent slip systems available, magnesium exhibits limited formability near room temperature. Furthermore, strong deformation texture, {0001} basal texture, readily exists in rolled or extruded products, which is detrimental to post-processing performances and service behaviors as well. Recently, great efforts have been put on the improvement of plasticity and formability of wrought magnesium alloys, through both alloy modification/ design and development of novel plastic processing technologies.

Twin-roll strip casting (TRC), which combines casting and hot rolling into a single step and provides much faster solidification rates than conventional casting, has still been receiving much concern. Besides the reduced degree of dendritic segregation and more homogeneous microstructure, TRC offers much fine grains. In fine-grained alloy, grain boundary sliding can act as an additional slip system, thus providing alloy an excellent ductility[56]. A lot of works are being carried out on both vertical and horizontal twin roll casting.

In Chongqing University, a new vertical twin roll casting device using refractory material has recently been built[57], as shown in Fig.1. Compared with conventional vertical casting, this new device can get more stable casting process and effectively improve the surface quality of magnesium alloy thin strip, as shown in Fig.2.

While the vertical TRC is still being developed in labs, a mass production line of horizontal TRC for magnesium alloys has been established in China. This line can produce thin strips of 200-600 mm in width and 2-8 mm in thickness. To further improve the microstructure of the strip, online large-reduction hot-rolling (Fig.3), immediately following the twin roll

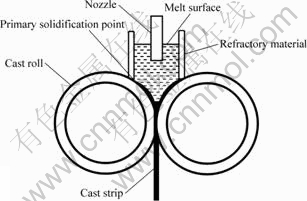

Fig.1 Schematic diagram of new vertical twin roll casting device developed in Chongqing University, China

Fig.2 Surfaces of AZ31 thin strips prepared by vertical twin roll casting without (a) and with (b) refractory material

Fig.3 Mass production line of horizontal twin roll casting and subsequent online hot rolling of magnesium alloy strips

casting, was developed and put into practice in Yinguang Mg Group of China, which can also make full use of the remaining heat and cut down the production cost. Through this online hot rolling, fine and uniform microstructure with less than 3 mm in thickness can be obtained. Subsequent online coiling of the strips can also be realized, as shown in Fig.4.

However, TRC suffers a strong basal texture. Recently, a combined new technology of TRC with the so-called differential speed rolling (DSR) was developed in South China University of Technology and Chongqing University. Preliminary results showed an effective plasticity enhancement due to the weakening of basal texture[58].

Fig.4 Online coiling of Mg strip

LIU et al[59] from Xi’an University of Architecture and Technology have tried a method called continuously changed section cyclic extrusion, as schematically shown in Fig.5, in which cylinder billet is subjected to repeated extrusion and forging, with 180? reversal of direction. Grain size is remarkably decreased through this severe plastic deformation (SPD). After 6-cycle processing for AZ31 alloy at 350 ?C, the grain size was refined to 4 μm. In recent years, many kinds of new techniques based on SPD turn up, such as changed channel angular extrusion

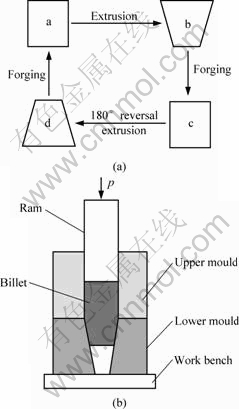

Fig.5 Schematic diagram of processing route (a) and device of continuously changed section cyclic extrusion (b)

(CCAE) and double direction extrusion (DDE) developed in Chongqing University[60-61]. Take the DDE for example, grain size could be reduced from  400 μm in the as-cast state to 6 μm after extrusion.

Recently, a new method called Repeated Unidirectional Bending (RUB) has been developed in Chongqing University[62-63], which has shown great potential in the improvement of plasticity and stamping formability of commercial AZ31B magnesium alloy sheets at room temperature. Fig.6 illustrates the apparatus for RUB. It is found that in the sheets that have undergone RUB, the c-axis tended to become inclined from the normal direction (ND) towards the rolling direction (RD), and the {102} extension twinning was activated during bending. As a result, the texture components became more dispersed along the RD in the as-annealed sheets, leading to a considerably improved ductility at room temperature. The elongation to fracture and Erichsen value were increased to 38% and 67%, respectively. By using the RUB sheets of AZ31B magnesium alloy, cell phone houses have been successfully stamped in crank press at room temperature. This method provided an alternative to the electronic industry in the application of magnesium alloys.

Fig.6 Schematic illustration of apparatus for repeated unidirectional bending (RUB)

5 Summary

Because wrought magnesium alloys are so potential, researchers in China has begun to pay more attention to the development and application of wrought magnesium alloys and their processing technologies recently. A lot of R&D projects on wrought magnesium alloys have been funded mainly by the Ministry of Science & Technology of China and the National Natural Science Foundation of China. Many universities and institutes, such as Chongqing University, Shanghai Jiao Tong University, the Institute of Metals of Chinese Academy of Sciences, and Beijing General Research Institute for Nonferrous Metals, have joined these projects. A lot of new types of wrought magnesium alloys with additions of Gd, Y, Nd or Sr have been developed, and some novel processing technologies for wrought magnesium alloys are being investigated, some of which are very potential.

References

[1] TANG Ai-tao, PAN Fu-sheng, YANG Ming-bo, CHEN Ren-ju. Mechanical properties and microstructure of magnesium-aluminum based alloys containing strontium [J]. Materials Transactions, 2008, 49: 1203-1211.

[2] PAN Fu-sheng, HAN En-hou. High-performance magnesium alloys and their processing technologies [M]. Beijing: Science Press, 2007: 59-78. (in Chinese)

[3] YANG Ming-bo, PAN Fu-sheng, CHEN Ren-ju, TANG Ai-tao. Effects of solutionized Al-10Sr master alloys on grain refinement of AZ31 magnesium alloy [J]. Journal of Alloys and Compounds, 2008, 461: 298-303.

[4] ZHANG Jing, ZUO Ru-lin, CHEN You-xing, PAN Fu-sheng, LUO Xiao-dong. Microstructure evolution during homogenization of a τ-type Mg-Zn-Al alloy [J]. Journal of Alloys and Compounds, 2008, 448: 316-320.

[5] YANG Ming-bo, PAN Fu-sheng, CHEN Ren-ju, TANG Ai-tao. Effect of Mg-10Sr master alloy on grain refinement of AZ31 magnesium alloy [J]. Materials Science and Engineering A, 2008, 491: 440-445.

[6] CHEN Ren-ju, PAN Fu-sheng, YANG Ming-bo, TANG Ai-tao. Effect of Sr on the grain refinement of ZK60 magnesium alloy [J]. Journal of University of Science and Technology Beijing, 2008, 30: 1397-1401. (in Chinese)

[7] SHEN Jia, YANG Ming-bo, PAN Fu-sheng, CHEN Ren-ju. Comparison of as-cast microstructures and mechanical properties for Mg-Ce-Mn-Sc and Mg-Ce-Mn-Zn magnesium alloys [J]. Materials Science Forum, 2009, 610/613: 746-749.

[8] ZHANG Jing, ZHANG Xu-feng, PAN Fu-sheng, LIU Chuan-pu, HE Qu-bo. Microstructure and mechanical properties of an Mg-Zn-Zr alloy modified by rare earth of erbium [J]. Materials Science Forum, 2009, 610/613: 810-814.

[9] TANG Ai-tao, LIU Bin, ZHANG Jing, PENG Jian, WANG Jing-feng. An improved neural network model for prediction of mechanical properties of magnesium alloys [J]. Science in China Series E: Technological Sciences, 2009, 52: 155-160.

[10] LIU Xin-jun, WANG Cui-ping, WEN Ming-zhong, CHEN Xing, PAN Fu-sheng. Thermodynamic database of the phase diagrams in the Mg-Al-Zn-Y-Ce system [J]. Rare Metals, 2006, 25: 441-447.

[11] LI De-hui, DONG Jie, ZENG Xiao-qin, LU Chen, DING Wen-jiang. Age hardening characteristics and mechanical properties of Mg-3.5Dy-4.0Gd-3.1Nd-0.4Zr alloy [J]. Transactions of Nonferrous Metals Society of China, 2006,16: s1694-s1697.

[12] ZHENG Kai-yun, DONG Jie, ZENG Xiao-qin, DING Wen-jiang. Effect of pre-deformation on aging characteristics and mechanical properties of Mg-Gd-Nd-Zr alloy [J]. Transactions of Nonferrous Metals Society of China, 2007, 17: 1164-1168.

[13] SUN Ming, WU Guo-hua, WANG Wei, DING Wen-jiang. Effect of Zr on the microstructure, mechanical properties and corrosion resistance of Mg-10Gd-3Y magnesium alloy [J]. Materials Science and Engineering A, 2009, 523: 145-151.

[14] WANG Wei, HUANG Yu-guang, WU Guo-hua, WANG Qu-dong, SUN Ming, DING Wen-jiang. Influence of flux containing YCl₃ additions on purifying effectiveness and properties of Mg-10Gd-3Y- 0.5Zr alloy [J]. Journal of Alloys and Compounds, 2009, 480: 386-391.

[15] LIN Jin-bao, PENG Li-ming, WANG Qu-dong, ZHOU Yang, DING Wen-jiang. Influence of solidification conditions on mechanical properties of Mg-10Gd-3Y-0.5Zr magnesium alloy [J]. Transactions of Nonferrous Metals Society of China, 2007, 17: s368-s371.

[16] CHANG Jian-wei, GUO Xing-wu, HE Shang-ming, FU Peng-huai, PENG Li-ming, DING Wen-jiang. Investigation of the corrosion for Mg-xGd-3Y-0.4Zr (x=6, 8, 10, 12%) alloys in a peak-aged condition [J]. Corrosion Science, 2008, 50: 166-177.

[17] ZHANG P, DING W J, LINDEMANN J, LEYENS C. Mechanical properties of the hot-rolled Mg-12Gd-3Y magnesium alloy [J]. Materials Chemistry and Physics, 2009, 118(2/3): 457-458.

[18] LI Da-quan, WANG Qu-dong, DING Wen-jiang. Effects of heat treatments on Microstructure and mechanical properties of Mg-4Y-4Sm-0.5Zr alloy [J]. Materials Science and Engineering A, 2007, 448: 165-170.

[19] LI Da-quan, WANG Qu-dong, DING Wen-jiang. Precipitate phases in the Mg-4Y-4Sm-0.5Zr alloy [J]. Journal of Alloys and Compounds, 2008, 465: 119-126.

[20] DING Wen-jiang, LI Da-quan, WANG Qu-dong, LI Qiang. Microstructure and mechanical properties of hot-rolled Mg-Zn-Nd-Zr alloys [J]. Materials Science and Engineering A, 2008, 483/484: 228-230.

[21] LI Qiang, WANG Qu-dong, ZHOU Hai-tao, ZENG Xiao-qing, ZHANG Ya, DING Wen-jiang. High strength extruded Mg-5Zn-2Nd-1.5Y-0.6Zr-0.4Ca alloy produced by electromagnetic casting [J]. Materials Letters, 2005, 59: 2549-2554.

[22] LIU X B, CHEN R S, HAN E H. Effects of ageing treatment on microstructures and properties of Mg-Gd-Y-Zr alloys with and without Zn additions [J]. Journal of Alloys and Compounds, 2008, 465: 232-238.

[23] GAO L, CHEN R S, HAN E H. Effects of rare-earth elements Gd and Y on the solid solution strengthening of Mg alloys [J]. Journal of Alloys and Compounds, 2009, 481: 379-384.

[24] YAN Hong, CHEN Rong-shi, HAN En-hou. Microstructure and mechanical properties of hot-rolled Mg-Zn-Y-Zr magnesium alloy [J]. Transactions of Nonferrous Metals Society of China, 2006, 16: s1766-s1769.

[25] XU D K, LIU L, XU Y B, HAN E H. The influence of element Y on the mechanical properties of the as-extruded Mg-Zn-Y-Zr alloys [J]. Journal of Alloys and Compounds, 2006, 426: 155-161.

[26] XU D K, LIU L, XU Y B, HAN E H. Effect of microstructure and texture on the mechanical properties of the as-extruded Mg-Zn-Y-Zr alloys [J]. Materials Science and Engineering A, 2007, 443: 248-256.

[27] XU D K, TANG W N, LIU L, XU Y B, HAN E H. Effect of W-phase on the mechanical properties of as-cast Mg-Zn-Y-Zr alloys [J]. Journal of Alloys and Compounds, 2008, 461: 248-252.

[28] XU D K, TANG W N, LIU L, XU Y B, HAN E H. Effect of Y concentration on the microstructure and mechanical properties of as-cast Mg-Zn-Y-Zr alloys [J]. Journal of Alloys and Compounds, 2007, 432: 129-134.

[29] XU D K, LIU L, XU Y B, HAN E H. The crack initiation mechanism of the forged Mg-Zn-Y-Zr alloy in the super-long fatigue life regime [J]. Scripta Materialia, 2007, 56: 1-4.

[30] XU D K, LIU L, XU Y B, HAN E H. The effect of precipitates on the mechanical properties of ZK60-Y alloy [J]. Materials Science and Engineering A, 2006, 420: 322-332.

[31] XU D K, LIU L, XU Y B, HAN E H. The fatigue behavior of I-phase containing as-cast Mg-Zn-Y-Zr alloy [J]. Acta Materialia, 2008, 56: 985-994.

[32] LIU Xi-bo, CHEN Rong-shi, HAN En-hou. High temperature deformations of Mg-Y-Nd alloys fabricated by different routes [J]. Materials Science and Engineering A, 2008, 497: 326-332.

[33] TANG W N, CHEN R S, ZHOU J, HAN E H. Effects of ECAE temperature and billet orientation on the microstructure, texture evolution and mechanical properties of a Mg-Zn-Y-Zr alloy [J]. Materials Science and Engineering A, 2009, 499: 404-410.

[34] XU D K, LIU L, XU Y B, HAN E H. The strengthening effect of icosahedral phase on as-extruded Mg-Li alloys [J]. Scripta Materialia, 2007, 57: 285-288.

[35] XU Dao-kui. Mechanical behavior investigation and microstructure characterization of Mg-Zn-Y-Zr Mg alloy [D]. Shenyang: Institute of Metal Research, Chinese Academy of Sciences, 2008. (in Chinese)

[36] LIU Xi-bo. Investigation on the microstructure, mechanical property and high temperature deformation of high-performance Mg-RE alloys and laminated composites [D]. Shenyang: Institute of Metal Research, Chinese Academy of Sciences, 2008. (in Chinese)

[37] YAN H, CHEN R S, HAN E H. Room-temperature ductility and anisotropy of rolled Mg-Zn-Gd alloys[J]. Materials Science and Engineering A, 527(5): 3317-3322.

[38] PENG Qiu-ming, DONG Han-wu, WU Yao-ming, WANG Li-min. Age hardening and mechanical properties of Mg-Gd-Er alloy [J]. Journal of Alloys and Compounds, 2008, 456: 395-399.

[39] PENG Qiu-ming, DONG Han-wu, WANG Li-dong, WU Yao-ming, WANG Li-min. Aging behavior and mechanical properties of Mg-Gd-Ho alloys [J]. Materials Characterization, 2008, 59: 983-986.

[40] PENG Qiu-ming, HOU Xiu-li, WANG Li-dong, WU Yao-ming, CAO Zhan-yi, WANG Li-min. Microstructure and mechanical properties of high performance Mg-Gd based alloys [J]. Materials and Design, 2009, 30: 292-296.

[41] PENG Qiu-ming, WANG Jian-li, WU Yao-ming, WANG Li-min. Microstructures and tensile properties of Mg-8Gd-0.6Zr-xNd-yY (x+y=3, mass%) alloys [J]. Materials Science and Engineering A, 2006, 433: 133-138.

[42] XIAO Wen-long, WANG Jun, YANG Jie, JIA Shu-sheng, WANG Li-min. Microstructure and mechanical properties of Mg-12.3Zn- 5.8Y-1.4Al alloy [J]. Materials Science and Engineering A, 2008, 485: 55-60.

[43] PENG Qiu-ming, DONG Han-wu, WANG Li-dong, WU Yao-ming, WANG Li-min. Microstructure and mechanical property of Mg-8.31Gd-1.12Dy-0.38Zr alloy [J]. Materials Science and Engineering A, 2008, 477: 193-197.

[44] PENG Qiu-ming, WANG Li-dong, WU Yao-ming, WANG Li-min. Structure stability and strengthening mechanism of die-cast Mg-Gd-Dy based alloy [J]. Journal of Alloys and Compounds, 2009, 469: 587-592.

[45] WANG Bin, YI Dan-qing, LUO Wen-hai, FANG Xi-ya, LIU Hui-qun, WU Chun-ping. Microstructure and mechanical properties of Mg-4.9Zn-0.9Y-0.7Zr alloy [J]. Journal of Aeronautical Materials, 2009, 24(2): 1-7. (in Chinese)

[46] YU Wen-bin, LIU Zhi-yi, CHENG Nan-pu, HE Hong, LI Xue-lian. Microstructures and mechanical properties of Mg-5Yb-0.5Zr wrought magnesium alloy [J]. Journal of Materials Science & Engineering, 2008, 26(3): 406-410. (in Chinese)

[47] WU An-ru, XIA Chang-qing, DONG Li-jun, QIN Bo. Study on aging strengthening behavior of Mg-6.0%Zn-0.5%Zr- 2.0%Nd-1.0%Y alloy [J]. Transactions of Materials and Heat Treatment, 2008, 29(1): 66-70. (in Chinese)

[48] ZHANG Zhen-dong, LIU Chu-ming, CHANG Ya-zhe, LI Hui-zhong, WANG Rong, ZHOU Hai-tao. Effect of number of extrusion times on microstructure and properties of Mg-Zn-Zr-Re alloys [J]. Journal of Central South University (Science and Technology), 2008, 39(2): 228-233. (in Chinese)

[49] FANG Xi-ya, YI Dan-qing, WANG Bin, LUO Wen-hai, ZHANG Hong. Microstructure and mechanical properties of Mg-Gd-Y-Mn alloy during extrusion and aging process [J]. Transactions of Materials and Heat Treatment, 2008, 29(3): 108-112. (in Chinese)

[50] ZHANG Xin-ming, CHEN Jian-mei, DENG Yun-lai, XIAO Yang, JIANG Hao, DENG Zhen-zhen. Microstructures and mechanical properties of Mg-Gd-Y-(Mn, Zr) magnesium alloys [J]. The Chinese Journal of Nonferrous Metals, 2006, 16(2): 219-227. (in Chinese)

[51] ZHANG Xin-ming, XIAO Yang, CHEN Jian-mei, JIANG Hao. Influence of extrusion temperature on microstructures and mechanical properties of Mg-9Gd-4Y-0.6Zr alloy [J]. The Chinese Journal of Nonferrous Metals, 2006, 16(3): 518-523. (in Chinese)

[52] GUO Yong-chun, LIU Tao, LI Jian-ping, YANG Zhong, LIANG Min-xian, XIA Feng. Microstructures and mechanical properties of Mg-12Gd-4Y-1Zn-0.5Zr alloy [J]. Journal of XI’an Technological University, 2007, 27(3): 242-246. (in Chinese)

[53] ZHAO Juan, LI Jian-ping, GUO Yong-chun, YANG Zhong, YANG Jue-ming, LIANG Min-xian. Application of Calphad to neotype deforming Mg-9Gd-3Y-0.6Zn-0.5Zr heat-treat process design [J]. Foundry Technology, 2007, 28(4): 531-534. (in Chinese)

[54] ZHANG Kui, LI Xing-gang, LI Yong-jun, MA Ming-long. Effect of Gd content on microstructure and mechanical properties of Mg-Y-RE-Zr alloys [J]. Transactions of Nonferrous Metals Society of China, 2008,18: s12-s16.

[55] MA Zhi-xin, LI De-fu, LI Yan-li. Processing Technology and structure evolution of Mg-Y-Nd-Zr alloy [J]. The Chinese Journal of Rare Metals, 2006, 30(6): 719-723. (in Chinese)

[56] KOIKE J, KOBAYASHI T, MUKAI T, WATANABE H, SUZUKI M, MARUYAMA K, HIGASHI K. The activity of non-basal slip systems and dynamic recovery at room temperature in fine-grained AZ31B magnesium alloys [J]. Acta Materialia, 2003, 51: 2055-2065.

[57] WANG Jian, JIANG Bin, DING Pei-dao, HUANG Guang-jie, PAN Fu-sheng. Research on the rolling of AZ31 strip prepared by twin roll casting [J]. Materials Science Forum, 2009, 610/611/612/613: 844-847.

[58] GONG Xi-bing, KANG S B, LI Sai-yi, CHO J H. Enhanced plasticity of twin-roll cast ZK60 magnesium alloy through differential speed rolling [J]. Materials and Design, 2009, 30: 3345-3350.

[59] LIU Chang-rui, WANG Bo-jian, WANG Qing-juan. Method and device of the continuously changed section cyclic extrusion: China, 200610041960.8 [P]. 2006-03-32. (in Chinese)

[60] LIU Tian-mo, ZHANG Yu, ZHANG Li. Processing method of extrusion of magnesium alloys and corresponding mould: China, 200710092779.4 [P]. 2007-09-28. (in Chinese)

[61] LIU Tian-mo, LU Li-wei, PENG Jian. Mould for double direction extrusion: China, 200720124969.5 [P]. 2007-08-14. (in Chinese)

[62] WANG Ling-yun, HUANG Guang-jie, CHEN Lin, HUANG Guang-sheng, LI Wei, PAN Fu-sheng. Research on rolling technology of magnesium alloy sheets [J]. Rare Metal Materials and Engineering, 2007, 36: 910-914. (in Chinese)

[63] HUANG Guang-sheng, LI Wei, HUANG Guang-jie, LI Hong-cheng, PAN Fu-sheng. New method for improving formability of AZ31B magnesium alloy sheets [J]. Materials Science Forum, 2009, 610/611/612/613: 737-741.

(Edited by YANG Bing)

Foundation item: Project(50725413) supported by the National Natural Science Foundation of China; Project(2007CB613704) supported by the National Basic Research Program of China; Project(2008DFR50040) supported by the International Cooperation Program of Ministry of Science and Technology of China

Corresponding author: PAN Fu-sheng; Tel: +86-23-65112635; E-mail: fspan@cqu.edu.cn

DOI: 10.1016/S1003-6326(09)60287-9
