J. Cent. South Univ. (2016) 23: 1709-1718

DOI: 10.1007/s11771-016-3225-7

A novel weighed cooperative bandwidth spectrum sensing for spectrum occupancy of cognitive radio network

LIU Xin(刘鑫)^{1, 2}, CHEN Kun-qi(陈琨奇)², YAN Jun-hua(闫钧华)²

1. School of Information and Communication Engineering, Dalian University of Technology, Dalian 116024, China;

2. College of Astronautics, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China

Central South University Press and Springer-Verlag Berlin Heidelberg 2016

Abstract: In cognitive radio network (CRN), a secondary user (SU) may utilize the spectrum resource of the primary user (PU) and avoid causing harmful interference to the primary network (PN) via spectrum sensing. In the traditional time spectrum sensing, the SU cannot detect the PU’s presence during its transmission, thus increasing interference to the PN. In this work, a novel weighed cooperative bandwidth spectrum sensing method is proposed, which allows multiple SUs to use part of the bandwidth to perform cooperative spectrum sensing throughout the whole frame in order to detect the PU’s reappearance in time. The SU’s spectrum efficiency is maximized by jointly optimizing sensing bandwidth proportion, number of cooperative SUs and detection probability, subject to the constraints on the SU’s interference and the false alarm probability. Simulation results show significant decrease on the interference and improvement on the spectrum efficiency using the proposed weighed cooperative bandwidth spectrum sensing method.

Key words: cognitive radio; spectrum sensing; spectrum efficiency; interference

1 Introduction

Cognitive radio network (CRN) is an intelligent wireless communication network based on cognitive technology. It can improve current spectrum utilization greatly through allowing the secondary user (SU) to use the frequency bands licensed to the primary user (PU) by the government, providing that the communication quality of the primary network (PN) must be firstly guaranteed [1]. That is, the CRN can only use the channel in which the PU is absent at a specific time. To avoid causing severe interference to the PN, the SU has to identify the idle spectrum unused by the PU through performing spectrum sensing before any transmissions [2], but if the presence of the PU is detected, the SU has to vacate this spectrum.

Since SU cannot obtain any information about PU, energy detection has been widely used as a single-user spectrum sensing method, which can be implemented easily without needing any prior information of the PU’s signal [3]. However, if the PU is shadowed (or in severe fading), the energy detection performance could decrease because of receiving lower energy from the PU. Thus, cooperative spectrum sensing is proposed to cope with energy attenuation through the collaborative detection of multiple SUs locating in different areas [4-5].

Currently, the time spectrum sensing is often adopted in CRN, i.e., the SU senses the PU at the beginning of a frame and then transmits data in the left time if the absence of the PU is detected [6]. In Ref. [7], the authors propose a sensing-before-transmit media access control protocol, where a SU may access vacant licensed frequency bands without causing any harmful interference to the PU through performing spectrum sensing before transmission. In Ref. [8], a wideband spectrum sensing model is proposed, where the SU may scan multiple channels to acquire an idle channel before transmission. In Ref. [9], the authors propose a cooperative spectrum sensing subject to the constraint of the PN outage, where the SU senses the PU’s signal in the observation phase and then sends its observation information to a fusion center in the reporting phase, and the final decision on the occupancy of the PU channel is made at the fusion center. In Ref. [10], a listen-before- transmit spectrum-opportunity detection method is proposed for spectrum overlay of SU, which has been shown that the geographic distribution and the traffic pattern of the PU have a significant impact on the detection performance besides noise and fading. In Refs. [11-12], a sensing-throughput tradeoff scheme is proposed to improve the CRN’s throughput through reasonably allocating sensing and transmission time. In Ref. [13], a joint optimization of cooperative sensing time and SU selection is proposed to maximize the CRN’s spectrum efficiency subject to the constraints of the SU’s false alarm and detection probabilities, cooperative overhead and sensing period. In time spectrum sensing from Refs. [7-13], if the PU reappears in the channel during CRN’s transmission, the SU cannot detect the PU’s presence and thus may cause severe interference to the PN. In this work, a weighed cooperative bandwidth spectrum sensing is proposed to improve the sensing performance and decrease the interference to the PN throughout the whole transmission frame of the CRN. Through jointly optimizing sensing bandwidth, number of cooperative SUs and detection probability, the CRN’s spectrum efficiency can be maximized.

2 Cooperative spectrum sensing and PU state model

2.1 Weighed cooperative spectrum sensing

Cooperative spectrum sensing is proposed to improve the SU’s detection performance when the PU isshadowed or in severe multipath fading. As shown in Fig. 1, a PN including D PUs and one base station is considered, and a CRN consisting of N SUs that act as the sensing relays to cooperatively detect the PU’s state (presence/absence) and one fusion center that acts as a base station to manage these SUs and process sensing information. The SU1’s detection performance is inaccurate because of the shadowed PU, but with the aids of SU2-SUN, SU1 can make an accurate decision through sharing the sensing information from other SUs. In cooperative spectrum sensing, each SU detects the PU’s transmission signal by energy detection independently and then reports its local detection result to the fusion center [14]. The fusion center will make a final decision on the PU’s state through combining all the received detection results and then broadcast its decision to all the SUs.

Energy detection is often used in the local single- user detection of cooperative spectrum sensing because of its reliable spectrum detection performance, as shown in Fig. 2. The SUi’s received signal y_i for i=1, 2, …, N is given as a binary hypothesis as follows:

    (1)

where s(m) is the PU’s signal with power n(m) is the Gaussian noise with power h_i is the channel gain between the PU and SUi; hypotheses Ω₀ and Ω₁ denote the absence and presence of the PU, respectively; and M is the number of the received signal samples.

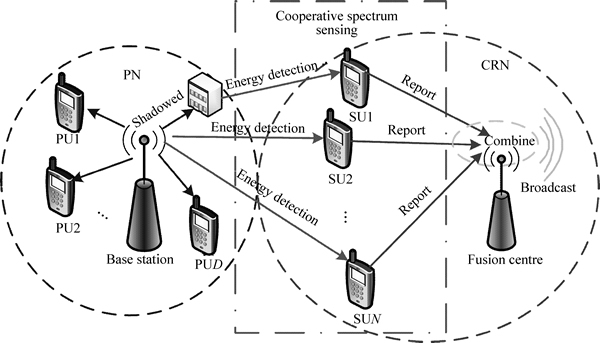

Fig. 1 Cooperative spectrum sensing model

Fig. 2 Energy detection principle

If the sensing bandwidth of the PU’s signal is w, according to the Nyquist Theorem, the sampling frequency f_s≥2w. Thus the minimal sampling number is calculated as follows:

                                (2)

where t is the detection time. The energy statistic of the received signal is given as follows:

                           (3)

According to the Centre Limit Theory, z_i approximately obeys a Gaussian distribution with large M, whose means and variances at Ω₀ and Ω₁ are given as follows:

                  (4)

where z_i is reported to the fusion center by SUi as the local detection result, and the aggregate energy statistic Z is obtained by summing z_i with the corresponding weight ω_i for i=1, 2, …, N, as follows:

                                 (5)

where Z also obeys a Gaussian distribution, which is the weighed sum of a series of Gaussian-distributed functions. From Eq. (4), the means and variances of Z Ω₀ and Ω₁ are given as follows:

          (6)

In the fusion center, comparing Z to a specific threshold λ, Ω₀ is decided with Z<λ while Ω₁ is determined with Z≥λ. Noting the false alarm probability P_f and the detection probability P_d of the weighed cooperative spectrum sensing are given as follows:

    (7)

where and the function var(x) denotes the variance of x. From Eq. (7), with a given P_d, P_f is related to P_d as follows:

 (8)

Suppose h_min=min(h₁, h₂, …, h_N). Noting and according to the Cauchy Theory, it is obtained that

  (9)

Since Q(x) is a monotonously decreasing function, substituting Eq. (9) into Eq. (8), an upper bound of P_f is given as follows:

      (10)

We minimize the upper bound of P_f instead of minimizing P_f through optimizing ω_i for i=1, 2, …, N. Minimizing P_f is equal to maximizing as follows:

               (11)

where the equation is obtained when

Since the SU with better channel gain will achieve more accurate sensing information, the weighed cooperative spectrum sensing can improve the global sensing performance through increasing the combined proportion of the accurate sensing information at the fusion center, thus decreasing the false alarm probability. Substituting Eq. (11) into Eq. (10), the minimal P_f is given as follows:

     (12)

2.2 PU occupancy model

The PU occupancy model can be built as an ON-OFF Markov random process, where ON denotes the PU’s presence Ω₁ and OFF indicates the PU’s absence Ω₀ [15-18]. Such a model captures the OFF time in which the channel can be utilized by the SU without causing any harmful interference to the PU. Once an OFF time is discovered, the SU can utilize any portion of the remaining OFF time for its own transmission. We assume that the persistent time of Ω₀, follows the probability density function and the persistent time of Ω₁, follows the probability density function As shown in Fig. 3, supposing that u₀ and u₁ denote the transfer rates from Ω₀ to Ω₁ and Ω₁ to Ω₀, respectively,and obey the exponential distributions as follows:

                            (13)

where we get the means and Thus, the absent and present probabilities of the PU are given as follows:

              (14)

During the frame time T, the persistent time of Ω₀ is

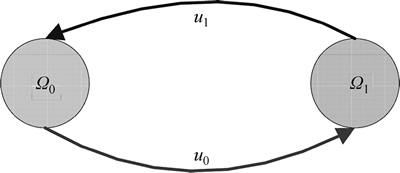

Fig. 3 PU occupancy model given as follows:

       (15)

while the persistent time of Ω₁ is given by

        (16)

3 Cooperative bandwidth spectrum sensing

3.1 Spectrum sensing model

It is supposed that multiple SUs transmit data through time division multiple access (TDMA), and there is only one SU to communicate in one frame. In the traditional cooperative time spectrum sensing from Refs. [11-13], before transmission, cooperative spectrum sensing is firstly performed by multiple SUs at the beginning of a frame, wherein each SU’s local sensing result is reported to the fusion center in a single time slot in order to avoid transmission conflict, as shown in Fig. 4. If the PU’s absence is decided by the fusion center, the SU can transmit data in the PU’s channel, however, if the PU’s presence is determined, the SU has to shift to another idle channel [19].

Hence, cooperative time spectrum sensing denotes that the SUs perform cooperative spectrum sensing and data transmission in different time slots. The SU forwards data in the transmission slot only if the absence of the PU is detected in the sensing slot. The disadvantage of cooperative time spectrum sensing is that the SU cannot sense the PU during the transmission slot, thus causing severer interference to the PU if the PU reappears suddenly.

The proposed cooperative bandwidth spectrum sensing is shown in Fig. 5, wherein one of the N SUs uses the channel allocated to the PU, providing that the PU is absent in the spectrum. N-1 sensing SUs (eliminating the communicating SU) use part of the channel bandwidth to perform cooperative spectrum sensing and the communicating SU uses the remaining channel bandwidth to transmit data. To avoid transmission conflict, each sensing SU reports its sensing result to the fusion center in a single subband after local sensing, and the fusion center broadcasts the final decision to N SUs using another subband. The sensing SUs need immediately report their sensing information to the fusion center as relays instead of making a local decision, and the fusion center charges to process the received sensing information for obtaining a detection result. Often the fusion center acts as a base station with high-speed operations and thus may get the spectrum sensing result in real time. Once the sensing SUs have received the PU’s signal, they may relay the sensing information to the fusion center at any time of one frame, which is very different from the traditional time spectrum sensing. That is, the SUs may only report their sensing information at the beginning of one frame in time spectrum sensing, however, to obtain a real-time detection result, the SUs can report their sensing information at any time in the proposed bandwidth spectrum sensing.

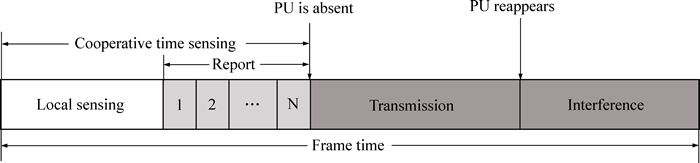

Fig. 4 Cooperative time spectrum sensing model

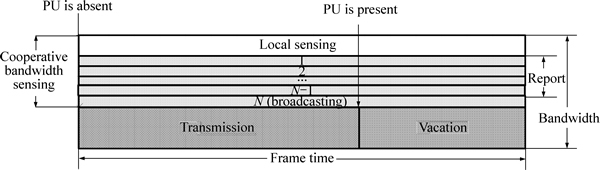

Fig. 5 Cooperative bandwidth spectrum sensing model

Hence, cooperative bandwidth spectrum sensing denotes that the SUs perform cooperative spectrum sensing and data transmission in different frequency subbands synchronously. The advantage of cooperative bandwidth spectrum sensing is that the SU may detect the PU’s state momentarily throughout the whole frame. Hence, once the PU’s presence is found, to avoid causing any interference to the PU, the SU can cease the transmission and vacate the PU’s channel immediately.

As shown in Fig. 5, it is supposed that the local sensing bandwidth is αW, where W is the PU channel bandwidth and 0≤α≤1 is the sensing bandwidth proportion, and both the reporting bandwidth and broadcasting bandwidth are △W. Thus the transmission bandwidth of the communicating SU is given as follows

           (17)

where η=△W/W. Supposing that the SUN is the communicating SU, the received signal at the fusion center can be given as follows

    (18)

where X(t) is the data signal of the communicating SU, and g_i is the channel gain between SUi and fusion center.

At the beginning of the bandwidth spectrum sensing, an initial cooperative spectrum sensing is performed to determine the absence or presence of the PU by the fusion center. If one channel is detected to be idle, the SU is allowed to access this channel to transmit data during a frame. To determine the action of the PU at the current time, the communicating SU’s receiver decodes the data signal X(t) from the transmitter, and the fusion center strips X(t) away from R(t) to obtain the remaining sensing signals z_i(t) for i=1, …, N-1, which are then combined to get a final decision in real time, as shown in Fig. 6.

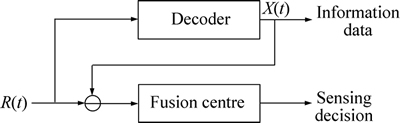

Fig. 6 SU receiver structure

In cooperative time spectrum sensing, the interference to the PU includes the interference due to the SU’s miss detection and the interference generated by the reappearance of the PU during the SU’s transmission. Supposing that the sensing time is much less than the frame time, the SU’s interference probability is given as follows:

            (19)

In cooperative bandwidth spectrum sensing, the SU can detect the PU’s state in real time, thus causing the interference to the PU only by the SU’s miss detection. Hence, the SU’s interference probability is given by

                             (20)

3.2 CRN’s spectrum efficiency

The SU’s transmission includes two cases: 1) SU transmits data with rate r₀ if the PU’s absence is detected accurately; 2) SU transmits data with rate r₁ if the PU’s presence is not detected [20-21]. r₀ and r₁ are given as follows

                     (21)

where p is the SU’s transmission power. Thus the CRN’s spectrum efficiency is given as follows:

           (22)

To improve the spectrum efficiency, we set Substituting Eqs. (12) and (17) into Eq. (22) and letting t=T and w=αW, C is a function of α, N and P_d as follows:

 (23)

where the false alarm probability P_f is denoted with P_d as follows:

     (24)

Obviously, P_f increases as α decreases, thus reducing the sensing performance, while the transmission bandwidth increases with α, yielding to improve the communication rate. Hence, there is a tradeoff between sensing performance and transmission bandwidth. Thus, to obtain this tradeoff, we seek to maximize the CRN’s throughput through optimizing α as follows.

4 Joint optimization algorithm

Our goal is to maximize the CRN’s spectrum efficiency by jointly optimizing sensing bandwidth proportion, number of cooperative SUs and detection probability, subject to the constraints of the SU’s interference probability and false alarm probability. The optimization problem is described as follows

                        (25)

where β and ε are the upper bounds of the interference and false alarm probabilities, respectively,is the total number of the SUs. To guarantee enough spectrum utilization, we often let ε≤0.5. From Eq. (20), with P_I≤β we have P_d≥v where We firstly present Proposition 1.

Proposition 1: Only when P_d=v, C can obtain the maximal value.

Proof: See Appendix A.

Substituting P_d=v, Eqs. (23) and (24) into Eq. (25), the optimization problem of α and N is obtained as follows:

         (26)

where and To solve Eq. (26), Proposition 2 is presented in the following.

Proposition 2: With a given N, Eq. (26) is a convex optimization problem of α, i.e., there is to maximize

Proof: See Appendix B.

α₀(N) can be obtained using the binary searching method described in Algorithm 1, where is the first-order partial derivative of C(α, N) in α, and the symbol function sign(x)=1 with x≥0 while sign(x)=-1 with x<0.

Algorithm 1: Binary searching method with given N

1) With given N, set α_min=0, α_max=φ(N) and the estimation error △=10^-3;

2）Set α＝(α_min+α_max)/2;

3) If let α_min=α;

4) Otherwise, if let α_max=α;

5) Repeat steps 2) to 4) until

6) Set

With we get α≥ψ(N) where

          (27)

Thus with given N, the optimal to maximize Eq. (26) is obtained as follows:

                  (28)

Especially, if ε is given as follows:

                     (29)

we have α*(N)=α₀(N).

Since N is an integer, it is not computationally expensive to search through N from 1 to K, as shown in Algorithm 2. The SUs with higher channel gains from PU are preferentially chosen to perform cooperative spectrum sensing, which may yield better detection performance. As the time complexity of Algorithm 1 is O(lgn) where n=φ(N)/△, the total time complexity of Algorithm 2 is given as follows

                      (30)

From Eq. (23), the SU’s maximal spectrum efficiency is obtained as C(α*, N*, v).

Algorithm 2: Exhaustive searching of N

1) Array K SUs in descending order of their channel gains h_i for i=1, 2, …, K;

2）For N=1, 2, …, K, calculate H(N) with the front N SUs’ channel gains;

3) With given N and H(N), calculate α*(N) by Algorithm 1 and Eq. (28);

4) Search and set α*=α*(N*).

5 Simulation and discussion

In simulations, we assume that the frame time T=5 s, the channel bandwidth W=1 MHz, the reporting bandwidth △W=0.05 MHz, the sampling frequency f_s= 2W=2 MHz, the transfer rates u₀=u₁=0.5, the channel gains from PU to SU and SU to fusion center obey the Rayleigh distributions with means -20 dB and -10 dB, respectively, the PU’s power 10 dB·mW, the noise powerthe SU’s transmission power p=10 dB·mW, the total number of the SUs K=10, and the upper bound of false alarm probability ε=0.5.

Figure 7 indicates the detection probability P_d by the unweighed and weighed cooperative sensing methods, with various false alarm probabilities P_f. As can be seen from Fig. 7, P_d improves as P_f increases, because P_d and P_f have the same monotony in λ; P_d of weighed cooperative sensing is larger than that of unweighed cooperative sensing, which demonstrates the predominance of our proposed method. Figure 8 shows the interference probability P_I by cooperative time and bandwidth sensing methods, with various P_f. It is observed that P_I decreases as P_f increases, which denotes that the interference to the PU decreases as the SU’s spectrum utilization reduces. From Fig. 8, P_I ofcooperative bandwidth sensing is lower than that of cooperative time sensing, because cooperative bandwidth sensing can detect the PU’s presence throughout the whole frame.

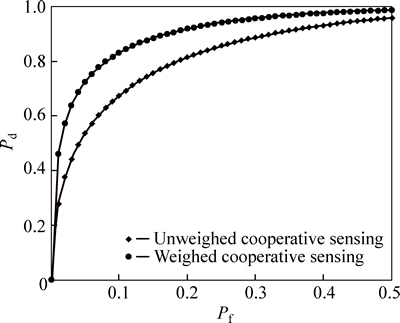

Fig. 7 Detection probability by unweighed and weighed cooperative sensing methods

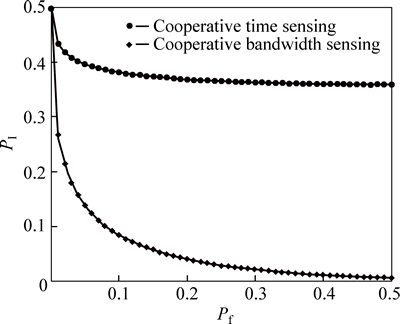

Fig. 8 Interference probability by cooperative time and bandwidth sensing methods

Figure 9 plots the SU’s spectrum efficiency C with various sensing bandwidth proportion α and number of cooperative SUs N. It is seen that there exist optimal α and N to maximize C, which obtains the maximal spectrum efficiency 2.34 bit/(s·Hz) at α=0.24 and N=5. Figure 10 shows C versus N={1, 3, 5, 8, 10} with various α. From Fig. 10, the spectrum efficiencies with N=1 and 10 are both lower, because the cooperative sensing performance reduces with small N, while the report bandwidth increases (i.e. transmission bandwidth decreases) with large N.

Figure 11 plots C versus α={0.05, 0.1, 0.24, 0.3, 0.5} with various N. It is observed that, both the spectrum efficiencies with α=0.05 and 0.5 are lower, as the local sensing performance decreases with small α, while the local sensing bandwidth increases (i.e. transmission bandwidth decreases) with large α. Figure 12 indicates the SU’s spectrum efficiency versus cooperative timespectrum sensing [11] and the proposed cooperative bandwidth spectrum sensing, with various received SNRs. As can be seen from Fig. 12, cooperative bandwidth sensing can achive higher spectrum efficiency, because cooperative bandwidth sensing may result in lower false alarm probability subject to the specific interference constraints. Spectrum efficiency improveswith increasing SNR, because better cooperative sensing performance may be achieved with larger received SNRs.

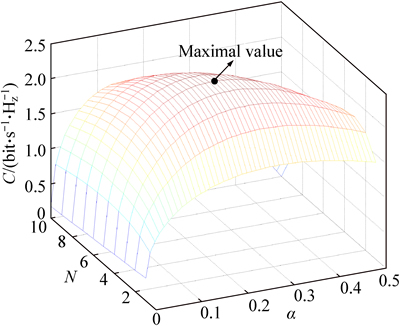

Fig. 9 Spectrum efficiency with various sensing bandwidth proportion and number of cooperative SUs

Fig. 10 Spectrum efficiency at different number of cooperative SUs

Fig. 11 Spectrum efficiency with different sensing bandwidth proportions

Another widely used cooperative spectrum sensing methods are OR-rule cooperative sensing and AND-rule cooperative sensing [22]. Figures 13 and 14 show false alarm probability and spectrum efficiency versus cooperative bandwidth sensing, OR-rule cooperative sensing and AND-rule cooperative sensing, respectively. It is seen that the proposed cooperative bandwidth sensing can decrease false alarm probability and improve throughput effectively, because through joint optimization algorithm, we have chosen optimal cooperative sensing parameters such as sensing bandwidth and number of cooperative SUs.

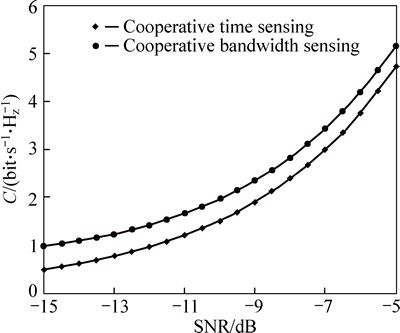

Fig. 12 Spectrum efficiency by cooperative time and bandwidth sensing methods

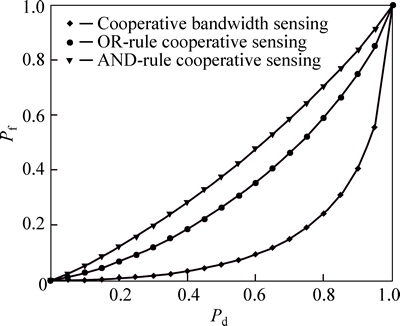

Fig. 13 False alarm probability by different cooperative sensing methods

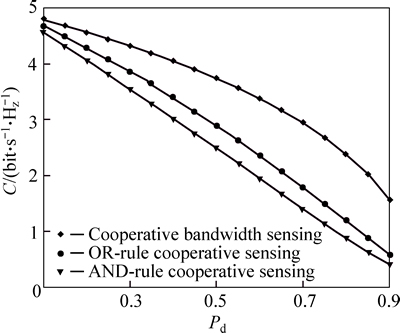

Fig. 14 Spectrum efficiency by different cooperative sensing methods

6 Conclusions

A weighed cooperative bandwidth spectrum sensing method is proposed to detect the PU’s presence throughout the whole frame time. The proposed sensing model is formulated as an optimization problem that aims to maximize the CRN’s spectrum efficiency by jointly optimizing sensing bandwidth proportion and number of cooperative SUs, while detection probability achieves its lower bound. Searching through the number of cooperative SUs from 1 to K, it is proven that the optimization problem relating to the sensing bandwidth proportion is convex, the optimal solution of which can be obtained through binary searching algorithm. Simulation results are shown to demonstrate that compared with the traditional cooperative time spectrum sensing, both the notable decrease on the interference and improvement on the spectrum efficiency can be obtained by the weighed cooperative bandwidth spectrum sensing.

Appendix A: Proof of Proposition 1

Since Q(x) is a monotonically decreasing function, from Eq. (23), if α and N are both given, C(α, N, P_d) decreases monotonically with P_d. That is, with P_d≥v, we have C(α, N, P_d)≤C(α, N, v). Thus, only when P_d=v, C is maximized.

Appendix B: Proof of Proposition 2

Take the first-order and secondary-order partial derivatives of the objective function of Eq. (26) as shown in Eqs. (B1) and (B2), respectively.

        (B1)

         (B2)

Since A₁>0, A₂>0, A₃>0 and 0≤Q(x)≤1, from Eq. (B1) we have

        (B3)

which indicates that there is to make namely, α₀(N) is an extremum point of C(α, N). Then we will prove that α₀(N) is also a maximal point. From

             (B4)

we have and thus from Eq. (B2) we havewhich indicates that C(α, N) is a convex function. Thus α₀(N) is the maximal point of C(α, N).

References

[1] Haykin S. Cognitive radio: Brain-empowered wireless communications [J]. IEEE Journal on Selected Areas in Communications, 2005, 23(2): 201-220.

[2] Ghasemi A, Sousa E S. Spectrum sensing in cognitive radio networks: Requirements, challenges and design trade-offs [J]. IEEE Communications Magazine, 2008, 46(4): 32-39.

[3] Mariani A, Giorgetti A, Chiani M. Effects of noise power estimation on energy detection for cognitive radio applications [J]. IEEE Transactions on Communications, 2011, 59(12): 3410-3420.

[4] Liu Xin, Tan Xue-zhi. Optimization for weighed cooperative spectrum sensing in cognitive radio network [J]. Applied Computational Electromagnetics Society Journal, 2011, 26(10): 800-814.

[5] Han W, Li J, Li Z, Shi J, Zhang Y. Efficient soft decision fusion rule in cooperative spectrum sensing [J]. IEEE Transactions on Signal Processing, 2013, 61(8): 1931-1943.

[6] LEE S, KIM S L. Optimization of time-domain spectrum sensing for cognitive radio systems [J]. IEEE Transactions on Vehicular Technology, 2011, 60(4): 1937-1943.

[7] Marinho J, Monteiro E. Cooperative sensing-before-transmit in Ad-hoc multi-hop cognitive radio scenarios [C]// International Conference on Wired Wireless Internet Communications. Santorini: Springer, 2012: 186-197.

[8] Liu Xin, Bi Guo-an, Guan Yong-liang, Lu Wei-dang, Yan Jun-hua, Zhong Wei-zhi. Joint optimisation algorithm of cooperative spectrum sensing with cooperative overhead and sub-band transmission power for wideband cognitive radio network [J]. Transactions on Emerging Telecommunications Technologies, 2015, 26(4): 586-597.

[9] Jamali V, Ahmadian M, Safavi S H, Ardebilipour M. Cooperative spectrum sensing in cognitive radio networks under primary outage constraint [C]// Iranian Conference on Electrical Engineering. Tehran: IEEE, 2012: 1368-1372.

[10] Zhao Qing, Ren Wei, Swami A. Spectrum opportunity detection: how good is listen-before-talk [C]// Asilomar Conference on Signals, Systems and Computers. Pacific Grove: IEEE, 2007: 767-771.

[11] Edward C Y P, Liang Ying-chang, Guan Yong-liang. Optimization of cooperative sensing in cognitive radio networks: a sensing-throughput tradeoff view [J]. IEEE Transactions on Vehicular Technology, 2009, 58(9): 5294-5299.

[12] Yu Huo-gen, Tang Wan-bin, Li Shao-qian. Optimization of cooperative spectrum sensing with sensing user selection in cognitive radio networks [J]. EURASIP Journal on Wireless Communications and Networking, 2011, 208: 1-8.

[13] Liu Xin, Tan Xue-zhi. Optimization algorithm of periodical cooperative spectrum sensing in cognitive radio [J]. International Journal of Communication Systems, 2014, 27(5): 705-720.

[14] Maleki S, ChepurI S P, Leus G. Optimization of hard fusion based spectrum sensing for energy-constrained cognitive radio networks [J]. Physical Communication, 2013, 9(12): 193-198.

[15] Sung K W, Kim S L, Zander J. Temporal spectrum sharing based on primary user activity prediction [J]. IEEE Transactions on Wireless Communications, 2010, 9(12): 3848-3855.

[16] Kim H, Shin K G. Efficient discovery of spectrum opportunities with MAC-layer sensing in cognitive radio networks [J]. IEEE Transactions on Mobile Computing, 2008, 7(5): 533-545.

[17] LIU Xin, ZHONG Wei-zhi, CHEN Kun-qi. Optimization of sensing time and cooperative user allocation for or-rule cooperative spectrum sensing in cognitive radio network [J]. Journal of Central South University, 2015, 22(7): 2646-2654.

[18] YUAN Fu, ZHENG Lin-hua, YUAN Ji-bing, WANG Zi-bin. Resource allocation for relay assisted cognitive radio network [J]. Journal of Central South University, 2013, 20(4): 969-976.

[19] Liu Xin, Jing Qing-feng, Jia Yun, Zhong Wei-zhi, Guan Yong-liang. Sensing-throughput tradeoff for cooperative multiple- input single-output cognitive radio [J]. International Journal of Communication Systems, 2015, 28(5): 848-860.

[20] Liu Xin, Jia Min, Gu Xue-mai. Joint optimal sensing threshold and subcarrier power allocation in wideband cognitive radio for minimising interference to primary user [J]. China Communications, 2013, 10(11): 70-80.

[21] Liu Xin, Bi Guo-an, Jia Min, Guan Yong-liang, Zhong Wei-zhi, Lin Rui. Joint optimization of sensing threshold and transmission power in wideband cognitive radio with energy detection [J]. Radio Science, 2013, 48(4): 359-370.

[22] Umebayashi K, Lehtomaki J J, Yazawa T, Suzuki Y. Efficient decision fusion for cooperative spectrum sensing based on OR-rule [J]. IEEE Transactions on Wireless Communications, 2012, 11(7): 2585-2595.
