Trans. Nonferrous Met. Soc. China 22(2012) 404-410
Effect of configuration on magnetic field in cold crucible using for continuous melting and directional solidification
CHEN Rui-run, YANG Jie-ren, DING Hong-sheng, HUANG Feng, SU Yan-qing, GUO Jing-jie, FU Heng-zhi
School of Materials Science and Engineering, Harbin Institute of Technology, Harbin 150001, China
Received 10 October 2011; accepted 12 December 2011
Abstract: To improve the power efficiency and optimize the configuration of cold crucible using for continuous melting and directional solidification (DS), based on experimental verification, 3D finite element (FE) models with various configuration-elements were developed to investigate the magnetic field in cold crucible. Magnetic flux density (B) was measured and calculated under different configuration parameters. These parameters include the inner diameter (D2), the slit width (d), the thickness of crucible wall, the section shape of the slit and the shield ring. The results show that the magnetic flux density in z direction (Bz) both at the slit and at the midpoint of segment will increase with the decrease of D2 or with the increase of the width of the slit and the section area of wedge slit or removing the shield ring. In addition, there is a worst wall thickness that can induce the minimum Bz for a cold crucible with a certain outer diameter.
Key words: cold crucible; magnetic flux density; configuration design; directional solidification
1 Introduction
Electromagnetic cold crucible (EMCC) designed for continuous melting and directional solidification (DS) is an advanced technology for preparing refectory and reactive materials [1, 2]. One of its advantages is free or low contamination. EMCC is composed of a segmented copper crucible and an induction coil. In the process of continuous melting and directional solidification, the metal in cold crucible is heated to the liquid by an induction coil, and the new solidified ingot at the bottom continuously immerges into Ga-In liquid alloys for cooling, thus a high temperature gradient in perpendicular direction forms, which meets the requirement of DS.
In continuous melting and DS with EMCC, due to nonuniform distribution of electromagnetic force on the melt, the solid/liquid (S/L) interface is always curved [3], and thus the grain growth will be disturbed. Moreover, a low power efficiency of EMCC often results in an insufficient superheat degree of the melt, which will deteriorate the continuous growth of the grains. For these reasons, the main aims in designing the EMCC are to improve the distribution of the magnetic field and improve the power efficiency. Numerical method is exclusively applied to the EM simulation of cold crucible, and pervious investigations showed that the electromagnetic transparency and the power efficiency are determined by the cold crucible configuration [4-12]. However, the distribution of magnetic field in EMCC has not been fully comprehended, especially the magnetic flux density (B) at different positions at the same height. In addition, the 2D numerical model was adopted to calculate the magnetic flux density [13, 14]. However, there are some differences for the calculating results and experimental results. This shows that 2D numerical model is not ideal to investigate the effect of the configuration of cold crucible on the magnetic field. Therefore, in this study, based on experimental verification, a series of 3D FE models were systematically developed to calculate B to explore the effect of the configuration of cold crucible on the magnetic field. The commercial ANSYS program (distributed by ANSYS HIT) and self-developed FEM codes were applied.
2 Numerical tools and research method
2.1 FE model of cold crucible
The EMCC used for continuous melting and DS is cylindrical, with the height of 150 mm and 8 segments,which was designed and fabricated by our group, as presented in Figs. 1(a) and (b). Based on this EMCC, the configuration parameters were changed, such as the inner diameter (D2), the slit shape, the existence of shield ring (h1, h3), to calculate magnetic flux density in z direction (Bz) in EMCC using a 3D nodal-based method. The FE model of EMCC and its FE grids generation are shown in Fig. 2.
2.2 Governing equations in electromagnetic field
The cold crucible and the induction coil in EMCC system are considered the conductor, the eddy current mainly distributes in the skin layer, and the permeability of all materials is 1.0. Therefore, in the time-varying EM field under a lower frequency, Maxwell’s equations are given as follows:
(1)
(2)
(3)
where H is the magnetic field intensity; E is the electric field intensity; B is the magnetic flux density; A is the magnetic vector potential [15]. The magnetic field is a curl field, therefore the function of scalar potential cannot be used. However, no current exists in the free space (air), so H can be stated as a gradient of a scalar quantity:
(4)
The magnetic scalar potential Фm has been adopted to save calculating memory and time. To solve A and Фm, the Alembert equation with dynamic potential function can be written as follows:

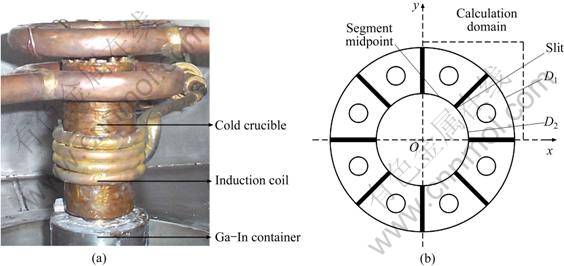

Fig.1 Bottomless type cold crucible (a) and its section (b)

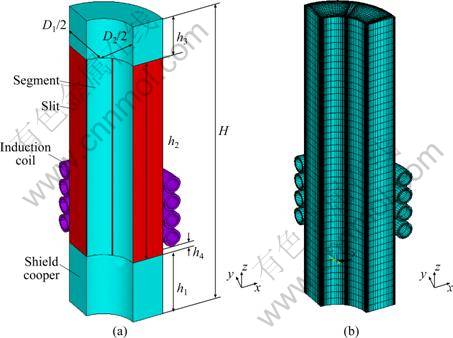

Fig. 2 Calculation model: (a) FE model; (b) FE grid
(5)
(6)
where ε is the permittivity. When the field sources J and ρ are given, A and Фm can be solved and then substituting the solution into equations (2) and (3), B and E can be consequently solved [16].
2.3 Parameters of models
A standard crucible model is set and its geometry dimension is listed in Table 1, which includes the height of the nether and the upper shield rings (h1 and h3), the length of the slit (h2), the height of the cold crucible (H), the outer and inner diameters of the cold crucible (D1 and D2), the induction coil position (h1+h4), the width (d) of the rectangular slit and the power parameters. In this study, each configuration element is individually changed, which is shown in Table 2, and the physical properties of the materials calculated in FE models are shown in Table 3.
Table 1 Dimensions and power parameters in standard crucible model

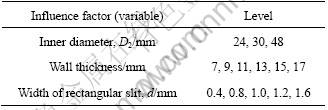

Table 2 Different levels of influence factors on magnetic field
Table 3 Physical properties of materials used in FE models
During induction heating process, the induced current on the metal mainly distributes in the skin layer due to skin effect, thus the magnetic field in EMCC which can be effectively utilized is near the crucible inner wall. For this reason, Bz at the slit and the midpoint of the segment on the inner wall are selected to explore the magnetic field distribution, which are noted in Fig. 1.
3 Results and discussion
3.1 Comparison between measured and calculated results
Considering the simplicity and the accuracy of experimental measurement, Bz at the cold crucible centre was measured in experiment and was calculated with 2D and 3D models respectively, the results are shown in Fig. 3 [17]. From this figure, the Bz calculated using a 2D model is slightly higher than that measured because the slit configuration and the shielding effect of the copper segment are omitted in this model. Whereas, the Bz calculated using a 3D model is in good agreement with the measured result. Therefore, the 3D numerical model can produce more accuracy result to reveal the distribution of the magnetic field in cold crucible. Bz under different configuration elements was calculated with 3D FE models.

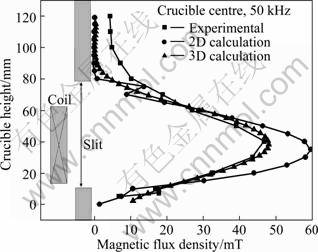

Fig. 3 Measured and calculated Bz at crucible center
3.2 Effect of configuration elements
3.2.1 Inner diameter of cold crucible
The inner diameter (D2) of the crucible varies from 24 to 48 mm, and the thickness of the crucible wall keeps constant (15 mm). The results calculated under different D2 are shown in Fig. 4. It can be seen from Fig. 4 that Bz increases with the decrease of D2 in the height range of induction coil. This means that the reduced inner space of EMCC can increase the density of magnetic lines. Whereas, the results in Ref. [5] indicated that there is an optimal diameter with the maximum power efficiency. Therefore, undersized D2 may cause lower energy utilization. By comparing Bz at the slit (Fig. 4(a)) with that at the segment midpoint (Fig. 4(b)) at the same height, Bz at slit is obviously higher than that at the segment midpoint, because the EM penetration is the strongest at the slit. The maximum of Bz appears near the half height of the induction coil. In addition, Bz will dramatically decrease when the position is out of the coil region.

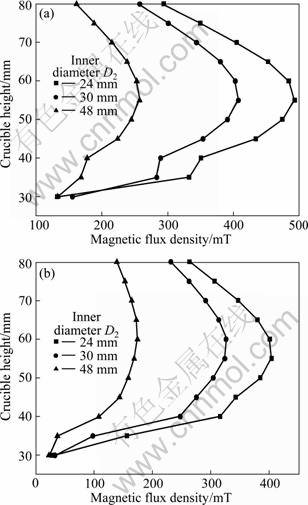

Fig. 4 Bz distribution under different D2: (a) At slit; (b) At segment midpoint
3.2.2 Thickness of crucible wall
To investigate the effect of the wall thickness on Bz, the outer diameter D1 (60 mm) keeps constant while the inner diameter D2 is changed, the calculation results of Bz distribution at the slit and at the segment midpoint are shown in Figs. 5(a) and (b) and the maximum Bz at the slit and the segment midpoint are shown in Fig. 5(c).
When the wall thickness is changed from 7 to 17 mm, the maximum Bz both at the slit and the segment midpoint decreases initially till reaching the minimum value, and then increases, which are clearly presented in Fig. 5(c). A thinner copper wall can reduce the shielding effect caused by the crucible wall, which results in a higher Bz in EMCC, thus Bz decreases due to the slightly thickening of the crucible wall. Further, the crucible inner space reduces with the thickening of the crucible wall. As a consequence, the slit density on the crucible inner wall increases, therefore, Bz at the slit and at the segment will increase.
3.2.3 Width of rectangular slit
Bz was calculated when the slit width varied from 0.4 to 1.6 mm, the results are shown in Figs. 6(a) and (b) and the maximum values of them are shown in Fig. 6(c). It can be obviously seen from Figs. 6(a) and (b) that Bz increases with the extending of the slit width. Bz reaches the maximum value when the crucible height is about 55 mm, the maximum Bz and the slit width have a near linear relation, as shown in Fig. 6(c). Moreover, the extending of the slit width would improve the EM transparency, especially at the slit. Therefore, with the extending of the rectangular slit, the gap between the maximum Bz at the slit and that at the segment midpoint presents an expanding tendency.

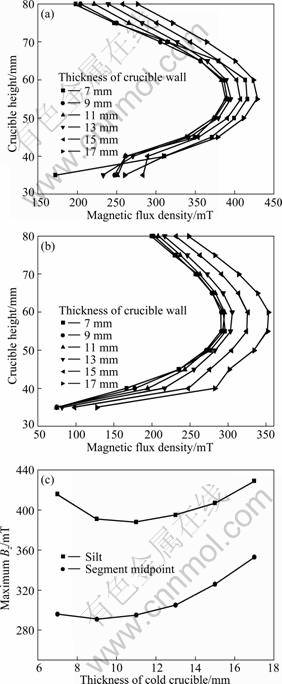

Fig. 5 Bz distribution (a, b) and the maximum Bz (c) under different thicknesses of crucible wall: (a) At slit; (b) At segment midpoint; (c) Maximum Bz

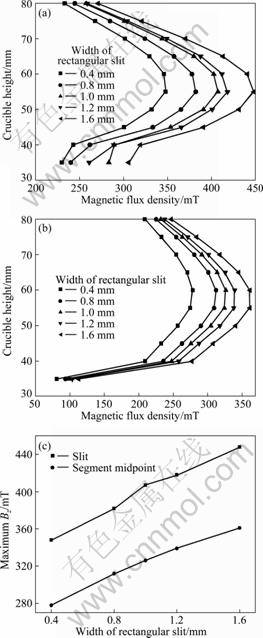

Fig. 6 Bz distribution (a, b) and the maximum Bz (c) under different d: (a) At slit; (b) At segment midpoint; (c) Maximum Bz
3.2.4 Section shape of wedgy slit
The section shape and the geometry dimension of the wedge slit are presented in Fig. 7(a), where W is the variable. With the widening of W from 1 to 15 mm, Bz both at the slit and at the segment midpoint increase; the maximum Bz increases over 25%, which varies from 407 to 532 mT at the slit and from 326 to 406 mT at the segment midpoint, respectively, as illustrated in Figs. 7(b) and (c). FELIACHI et al [14] indicated that the segment with a triangle section shape possesses the best EM transparency, which coincides with the results in this investigation. The curves in Fig. 7(d) show that the climbing tendency of the maximum Bz gradually slows down with the increase of W. On one hand, the extending section area of the slit improves the crucible transparency. On the other hand, the sharp section shape of the segment is not beneficial to increase of the induced current on the segment regardless of the extending section area of the slit.

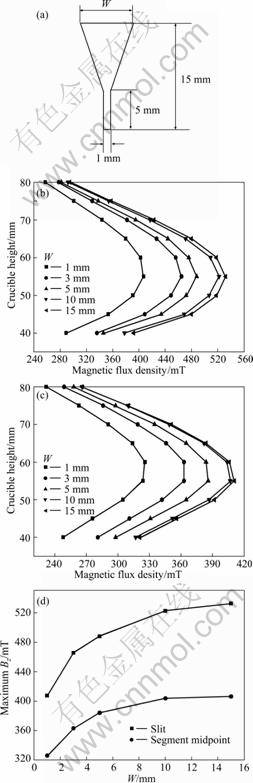

Fig. 7 Bz at different positions under different W: (a) Shape of slit; (b) At slit; (c) At segment midpoint; (d) Maximum Bz
Further, the dimension of L is treated as a variable to calculate the magnetic field, as shown in Fig. 8(a). Calculated results reveal that a shorter L is beneficial to enhancing Bz at the slit (Fig. 8(b)) and at the segment midpoint (Fig. 8(c)). Increasing L from 1 to 9 mm will cause the maximum Bz to reduce (Fig. 8(d)), which indicates that a larger area of the slit section can obviously improve the EM transparency. In addition, from the comparison of the curves in Fig. 7(d) and Fig. 8(d), broadening W is a more effective way to improve the EM transparency comparing with shortening L.

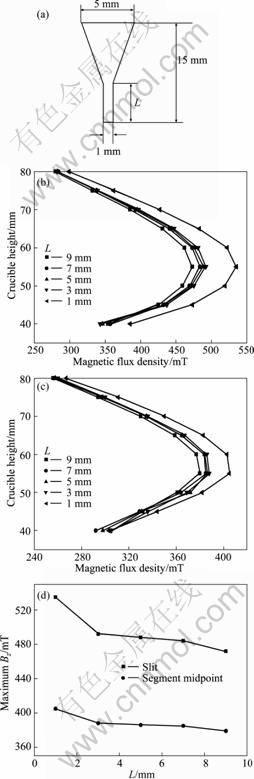

Fig. 8 Bz distribution under different L: (a) Shape of slit; (b) At slit; (c) At segment midpoint; (d) Maximum Bz
3.2.5 Shielding cooper ring
The effects of h1, h2 and h3 are evaluated to explore the influence of the shield ring on the Bz at segment midpoint. The results are shown in Fig. 9. It can be clearly seen form Fig. 9 that the shield ring can strongly impair the Bz, and the Bz will sharply decrease when there is a shield ring close to the induction coil, which can be partly explained by the shielding effect caused by shield ring. Due to a far gap between the induction coil and the upper shield ring, the Bz hardly reduces in the region of the coil.

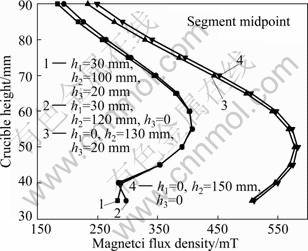

Fig. 9 Effect of shield ring on Bz at segment midpoint
4 Conclusions
1) Bz increases with the decrease of inner diameter and the extending of the slit width in the height range of the induction coil. Under the same height, Bz at the slit is obviously higher than that at the segment midpoint.
2) The maximum Bz decreases initially till reaching the minimum value, and then increases with the increase of the wall thickness.
3) For the wedge slit, broadening W is a more effectively way to improve Bz comparing with shortening L.
4) A shield ring close to the induction coil will strongly decrease Bz in the cold crucible.
Appendix
B
—
Magnetic flux density (T);
Bz
—
Magnetic flux density in z direction (T);
m
—
Permeability (H/m);
—
Hamiltonian operator;
H
—
Magnetic field strength (A/m);
J
—
Current density (A/m2);
E
—
Electric field strength (V/m);
t
—
Time (s);
A
—
Magnetic vector potential (Wb/m);
Ф
—
Scalar potential (V);
Фm
—
Magnetic scalar potential (A);
ε
—
Permittivity (F/m);
ρ
—
Charge density (C/m3).
References
[1] DING Hong-sheng, CHEN Rui-run, GUO Jing-jie, BI Wei-sheng, XU Da-ming, FU Heng-zhi. Directional solidification of titanium alloys by electromagnetic confinement in cold crucible [J]. Materials Letters, 2005, 59(7): 741-745.
[2] FU Heng-zhi, DING Hong-sheng, CHEN Rui-run, BI Wei-sheng, WANG Yan-li, BAI Yun-feng, XU Da-ming, SU Yan-qing, GUO Jing-jie. Directional solidification technology based on electromagnetic cold crucible to prepare TiAl intermetallics [J]. Rare Metal Materials and Engineering, 2008, 37(4): 565-570. (in Chinese)
[3] CHEN Rui-run, DING Hong-sheng, GUO Jing-jie, BI Wei-sheng, FU Heng-zhi. Continuous and directional solidification technology of titanium alloys with cold crucible [J]. Transactions of Nonferrous Metals Society of China, 2006, 16(s): s154-s159.
[4] DENG Kang, ZHOU Yue-ming, REN Zhong-ming, GONG Tao, JIANG Guo-chang. Electromagnetic characteristics of levitation melting with cold crucible [J]. Transactions of Nonferrous Metals Society of China. 1999, 9(2): 387-392.
[5] WESTPHAL E, MUIZNIEKS A, MUHLBAUER A. Electromagnetic field distribution in an induction furnace with cold crucible [J]. IEEE Transactions on Magnetics, 1996, 32(3): 1601-1604.
[6] GROSS C, ASSMUS W, MUIZNIEKS A, RAMING G, MUKGKBAYER A, STENZEL C. Power consumption of skull melting, part I: Analytical aspects and experiments [J]. Crystal Research and Technology, 1999, 34(3): 319-328.
[7] KAWASE Y, YOSHIDA T. 3-D finite element analysis of molten metal shape in rectangular cold crucible system [J]. IEEE Transactions on Magnetics, 1999, 35(3): 1889-1892.
[8] ZHANG Hai-tao, CUI Jian-zhong. Production of super-high strength aluminum alloy billets by low frequency electromagnetic casting [J]. Transactions of Nonferrous Metals Society of China, 2011, 21(10): 2134-2139.
[9] TANG Meng-ou, XU Jun, ZHANG Zhi-feng, BAI Yue-long. Effects of annulus gap on flow and temperature field in electromagnetic direct chill casting process [J]. Transactions of Nonferrous Metals Society of China, 2011, 21(5): 1123-1129.
[10] CHA P R, HWANG Y S, OH Y J, CHUNG S H, YOON J K. Numerical analysis on cold crucible using 3D H-phi method and finite volume method with non-staggered BFC grid system [J]. ISIJ International, 1996, 36(9): 1157-1165.
[11] CHO Y W, OH Y J, YI K W, CHUNGS H, SHIM J D. Numerical analysis of molten metal shape in cold crucibles by 3D FEM [J]. Modelling and Simulation in Materials Science and Engineering, 1996, 4(1): 11-22.
[12] CHA P R, HWANG Y S, NAM H S, CHUNG S H, YOON J K. 3D numerical analysis on electromagnetic and fluid dynamic phenomena in a soft contact electromagnetic slab caster [J]. ISIJ International, 1998, 38(5): 403-410.
[13] WESTPHAL E, MUIZNIEKS A, MUHLBAUER A. Electromagnetic field distribution in an induction furnace with cold crucible [J]. IEEE Transactions on Magnetics, 1996, 32(3): 1601-1604.
[14] FELIACHI M, BENZERGA D, LOUAI F Z M, DEVELEY G. On the 2D or 3D coupled analytical and finite element analysis of eddy current and thermal problems in plasma devices [J]. IEEE Transactions on Magnetics, 1996, 32(3): 1613-1616.
[15] JIAO Qi-xiang. Electromagnetic field and electromagnetic wave [M]. Beijing: Science Press, 2010: 200-209. (in Chinese)
[16] XIE De-xin, YANG Shi-you. Analysis and synthesis of engineering electromagnetic field [M]. Beijing: China Machine Press, 2009: 56. (in Chinese)
[17] CHEN Rui-run, YANG Jie-ren, DING Hong-sheng, HUANG Feng, SU Yan-qing, GUO Jing-jie, FU Heng-zhi. Effect of power parameter and induction coil on the magnetic field in cold crucible during continous melting and directional solidification [J].China Foundry, 2012, 1: 15-19.
