Effect of melt superheat on microstructure of Al4Fe2Mn1.5 Monel alloy

WANG Fu(王 富), ZOU Jun-tao(邹军涛), WANG Xian-hui(王献辉), FAN Zhi-kang(范志康)

Shaanxi Key Laboratory for Electrical Materials and Infiltration Technology,

Xi’an University of Technology, Xi’an 710048, China

Received 7 January 2008; accepted 31 March 2008

Abstract: The effect of melt superheat on microstructure of Al4Fe2Mn1.5 Monel alloy made by vacuum melting method was studied. The results show that the alloy consists of dendritic γ matrix and γ′ phase, wherein γ′ phase has two morphologies at different melt superheat. One is divorced eutectic γ′ which distributes in the interdendritic area, the other distributes dispersedly in single particle on the dendritic arm and exists in the petalform shape in the transition area between dendritic arm and interdendritic area. With the increase of superheat, the dendrite becomes finer, the primary dendritic arm is melted off and the secondary dendritic arm spacing decreases. The size of γ′ phase distributed on the dendritic arm becomes smaller and the divorced eutectic γ′ phase increases.

Key words: Al4Fe2Mn1.5 Monel alloy; melt superheat; microstructure

1 Introduction

Monel alloy is a nickel based Ni-Cu alloy with 70% Ni and 30% Cu (mass fraction)[1]. Al addition into Ni-Cu alloy can improve its strength and corrosion resistance[2]. The Monel alloy containing Al is widely used as structural parts[3-5] in the circumstances of sea water, acid, alkali and salt due to its excellent corrosion resistance and high strength. For example, it is often used as pumping rods and oil-well instruments in the petroleum and gas industry and the important components of pipeline used in ship in the shipbuilding industry[6-7]. Besides, it is also used as the scalpel in surgical operations and electron components in electronic industry[8].

Recently, most investigations of Monel alloy with Al addition are focused on the heat treatment[6, 9-13]. Few are studied on the effect of melting process on microstructure of this alloy. Both the size of dendrite and the percentage of precipitated γ′ phase intensively depend on melting process and solidification process. In fact, the melting temperature represents melt superheat, which has a great effect on liquid structure, as-cast microstructure and combination of properties of the alloy. In the present investigation, the effect of melt superheat on the microstructure of Al4Fe2Mn1.5 alloy is studied and the goal is to improve as-cast microstructure and properties of the alloy by adjusting the melt superheat.

2 Experimental

The composition of Al4Fe2Mn1.5 Monel alloy is listed in Table 1. The NiCu60Mn3Fe4Al8 was used as the master alloy in the experiment. The four kinds of alloys were prepared in the ZRS-18Q computer controlled vacuum sintering furnace. After the raw material was melted, it was held for 60 min with different superheating of 50, 100, 150 and 200 ℃, and then cooled in the furnace. The samples were cut from the four cast ingots on the same location. The etching agent was 20 g CuSO₄ + 100 mL HCl + 5 mL H₂SO₄ + 80 mL H₂O. The microstructure was analyzed by OLYMPUS vertical optical microscope, JEM-3010 transmission electron microscope, XRD-7000S X-ray diffraction instrument, JSM-6700F scanning electron microscope and Oxford INCA energy spectrometer.

Table 1 Nominal chemical composition of Al4Fe2Mn1.5 Monel alloy (mass fraction, %)

3 Results

3.1 Microstructure of Al4Fe2Mn1.5 Monel alloy

The test samples made with different superheat were studied by OM, SEM, EDS, XRD and TEM. The results show that Al4Fe2Mn1.5 Monel alloy consists of γ matrix and γ′ phase. Fig.1 shows XRD pattern of Al4Fe2Mn1.5 Monel alloy with melt superheat of 200 ℃.

Fig.1 XRD pattern of Al4Fe2Mn1.5 Monel alloy with melt superheat of 200 ℃

The γ matrix is Ni-Cu solid solution which contains some fractions of Mn, Fe and Al elements (as listed in Table 2). In the as-cast state, the morphology of γ matrix exists in dendrite, as seen in Fig.2.

From the diffraction pattern (as shown in Fig.3 and Fig.4), the calculated results show that γ′ phase is Ni₃Al

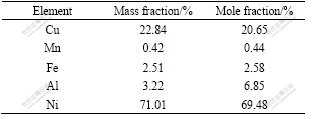

Table 2 EDS results of dendritic γ matrix

Fig.2 Microstructure of γ phase

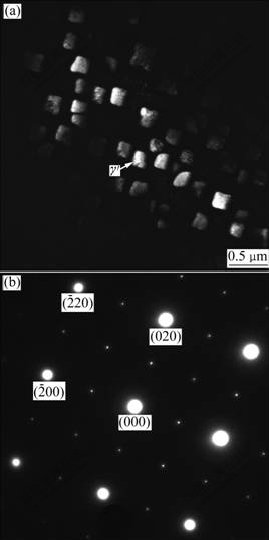

Fig.3 TEM image and diffraction pattern of zone axis [001] of γ′ on dendritic arm and in transition area between dendritic arm and interdendritic area

intermetallic compound, which has two morphologies. One distributes dispersedly as single particle on dendritic arms and in petalform shape in the transition areas between dendritic arms and interdendritic areas (as indicated in zone B and C in Fig.5 and Fig.3). From the diffraction pattern shown in Fig.3, γ′ phase has superlattice structure. It is the diffraction pattern of [001] zone axis and the diffraction pattern is stack of γ′ phase and γ solid solution. In addition, the relationship between γ′ phase and γ matrix is in absolute coherence. The other is divorced plateform eutectic γ′ which distributes in the interdendritic areas (as shown in zone A in Fig.5 and Fig.4). Fig.4 shows the diffraction pattern of [012] zone axis of γ′ phase. Besides, the molar ratio of Ni to Al is approximately 3 (as listed in Table 3). It is further verified that the phase is confirmed to be γ′ phase. The phase exists in the plateform and there is no coexistence between two phases. It is indicated that during the solidification, as there is more primary γ phase and fewer liquid, the γ phase in the eutectic is combined with primary γ phase and pushes γ′ phase to the interdendritic area, thus forming divorced eutectic completely.

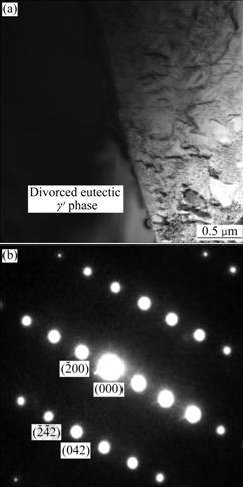

Fig.4 TEM image and diffraction pattern of zone axis [012] of divorced eutectic γ′ in interdendritic area

Fig.5 SEM micrograph of Al4Fe2Mn1.5 Monel alloy with melt superheat of 200 ℃

Table 3 EDS results of devoiced eutectic γ′ in interdendritic area

3.2 Effect of melt superheat on microstructure of Al4Fe2Mn1.5 Monel alloy

Fig.6 shows the dendritic morphologies of γ matrix at different melt superheat. When the melt superheat is 50 ℃, the dendrite is coarse. As the melt superheat increases, it becomes finer and the primary dendrite arms are melted off gradually. The secondary dendrite arm spacing(SDAS) at different melt superheat is shown in Fig.7. It can be seen that the SDAS becomes finer with increasing melt superheat.

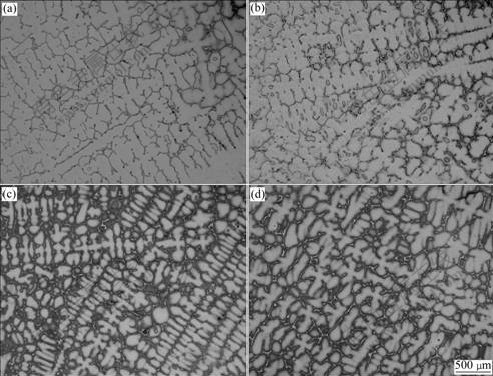

Fig.6 Dendritic morphologies of Al4Fe2Mn1.5 Monel alloy at different melt superheat: (a) 50 ℃; (b) 100 ℃; (c) 150 ℃; (d) 200 ℃

Fig.8 shows the morphologies of eutectic γ′ phase at different melt superheat. The area ratios of eutectic γ′ phase at corresponding melt superheat that were calculated by Digital Micrograph software are shown in Fig.9. From these two figures, it can be got that with the increase of melt superheat, the fraction of divorced eutectic γ′ phase increases.

Fig.10 and Fig.11 show the morphologies and average diameters of γ′ phase at different melt superheat, respectively. It can be seen that the average diameter of γ′phase gradually becomes finer with the increase of melt superheat.

Fig.7 Secondary dendrite arm spacing of Al4Fe2Mn1.5 Monel alloy at different melt superheat

4 Discussion

Diffusion coefficient is one of the important physical properties in liquid metal and alloy, which has an obvious effect on the distribution of elements, crystal growth rate and segregation in solidification process. The factors influencing the diffusion coefficient are temperature and composition. In the present investigation, the main factor is temperature[14] due to a constant composition. The relationship between diffusion coefficient and temperature can be expressed as exponential law by many theoretical studies and experiments:

   (1)

Where     —Self-diffusion coefficient is the  Constant;E_D is the Diffusion activation energy

From the formula, it can be deduced that self-diffusion coefficient increases with increasing melt superheat. In the experiments, Al atom exists as a big irreversible Ni₃Al-like intermediate ordered atom cluster with low melt superheat[15]. At the same time the diffusion coefficient of Al is small, which restricts diffusion rate of Al atom in the melt. When the alloy solidifies, the impelling velocity of solid/liquid interface is larger than the diffusion velocity of Al atom, and Al atom cluster can be trapped by solid/liquid interface. Thereby it restricts diffusion of Al atom into interdendritic area. However, Al is the important element to form eutectic γ′ phase. Subsequently, the volume fraction of eutectic γ′ phase is less in the fully solidified structure at low melt superheat. However, with increasing melt superheat, the cluster will decrease and disappear. Meanwhile, the alloy becomes uniform. Al atom has larger diffusion coefficient and velocity in the liquid. During solidification, the diffusion velocity of Al atom is faster than the moving velocity of solid/liquid surface, and makes the Al atom migrate to the interdendritic area, leading to the increase of the fraction of eutectic γ′ phase in the interdendritic area (as shown in Fig.8 and Fig9).

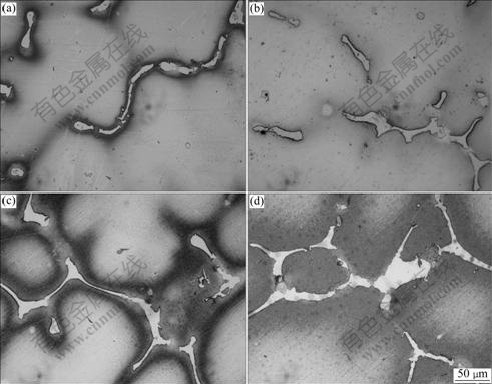

Fig.8 Morphologies of γ′ phase in divorced eutectic of Al4Fe2Mn1.5 Monel alloy at different melt superheat: (a) 50 ℃; (b) 100 ℃;  (c) 150 ℃; (d) 200 ℃


Fig.9 Area ratios of divorced eutectic γ′ phase at different melt superheat

On the other hand, undercooling increases with increasing melt temperature[16], i.e, the irreversible atom cluster and the average size of atom group in the alloy become smaller, and even disappear with increasing temperature, thus decreasing the number of inhomogeneous nucleation sites and increasing the nucleation undercooling .

  (2)

Where      △ —Change of volume free energy; △G_s is the Change of area free energy; and σis the  Specific area free energy.

And XIAO7 pointed out ：

                                                (3)

Where  is the undercooling.

From the relationship of these equations, the increase of undercooling leads to the increase of     with increasing melt superheat. Furthermore, the critical nucleating energy will decrease if other parameters are not changed. Besides, nucleating rate can be expresses as

^*               (4)

Where I is the nucleation rate;K—proportional constant; is the nucleation energy;Q is the diffusion activation energy;k is the diffusion activation energy; ksi the BBoltzmann constantand; and is the thermodynamics temperature.

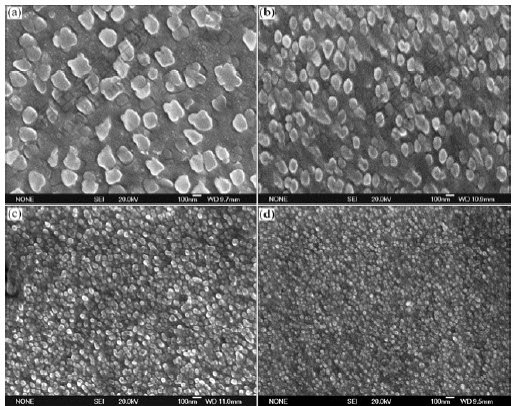

Fig.10 Morphologies of γ′ phase in dendrite arm at different melt superheats: (a) 50 ℃; (b) 100 ℃; (c) 150 ℃; (d) 200 ℃


Fig.11 Diameters of γ′ phase in dendritic arm at different melt superheats

According to formula (4-4), nucleation rate is sensitive to undercooling and it increases with the increase of undercooling . At the same time, critical nucleation radius can be expressed as the formula (4-5)： as

(5)

Where  is the Specific surface energy; is the melting point; is the fusion heat; is the undercooling.

From formula (4-5), the critical nucleation radius  decreases with increasing undercooling. i.e., the atom cluster which was less than critical nucleation radius can become stable nucleation site with increasing undercooling. Obviously, whatever the nucleation rate I increases or the critical nucleation radius decreases can refine grains under the large supercooling, thus lead to the refinement of grains. So γ dendrite becomes finer with the increase of melt superheat (as shown in Fig.6 and Fig.7).

For γ′ phase distributed on the dendrite arm, the critical nucleating energy can also be expressed in the form of

(6)

Where   and    represent the changes of chemical free enthalpy and strain energy per unit volume precipitation of γ′ phase, respectively.   is the interface free energy of γ′→γ per unit phase.

Meanwhile, from literature^[17]：

   (7)

Where   is the supersaturation of solute in γ solid solution.and  — undercooling of solute in γ solid solution.

According to equatio (4-6), decreases with the decrease of   and increase of  .Thus has high nucleation rate of γ′ phase. γ′ phase is the diffuse phase transformation product of γ solid solution. This process needs a certain incubation period. In this period, the lean solute area and rich solute area form in the supersaturation γ solid solution, which is beneficial to the precipitation of γ′ phase from γ solid solution. The microstructure of the alloy becomes uniform and dendritic segregation decreases with increasing melt superheat. The diffusion distance of elements in solid phase transformation becomes large, which causes the difficulty to form two areas, and lowers formation temperature of γ′ phase and increases undercooling. It can be seen from equatio (4-7), the increase of undercooling   leads to the increase   of    .Therefore, nucleation rate of γ′ precipitation phase increases with increasing the undercooling. In addition, the growth time of γ′ phase reduces with the increase of melt superheat. So the size of γ′ precipitation phase decreases when the melt superheat increases (as shown in Fig.10 and Fig.11).

As discussed above, Al4Fe2Mn1.5 Monel alloy has larger nucleation rate and less critical nucleation radius with the increase of melt superheat. Meanwhile, the primary dendrite arm of γ matrix is gradually melted off and SDAS gradually becomes smaller (as shown in Fig.6 and Fig.7). The eutectic γ′ phase in the interdendritic area becomes larger (as shown in Fig.8 and Fig9) and the average diameter of γ′ phase distributed on the dendritic arm also becomes smaller (as shown in Fig.10 and Fig.11).

5 Conclusions

The microstructure of Al4Fe2Mn1.5 Monel alloy consists of dendritic γ matrix and γ′ phase(Ni₃Al) which has two morphologies. One distributes dispersedly on the dendritic arm and in the transition area between dendritic arm and interdendritic area, which has separated particle form and petalform, respectively. The other is divorced eutectic γ′ which distributes in the interdendritic area at different melt superheat.

With the increase of melt superheat, dendritic γ matrix becomes finer, and the primary dendritic arm is gradually melted off. At the same time, the secondary dendritic arm spacing decreases. The fraction of divorced eutectic γ′ also becomes larger in the interdendritic area. The size of γ′ on the dendritic arm gradually becomes smaller. When the melt superheat is 200℃, dendritic γ matrix is finer, the fraction of eutectic γ′ is larger, and the diameter of γ′ phase distributed on the dendritic arm is smaller compared with those at other melt superheats.
