R-phase transformation of aged Ti-Ni shape memory alloy
GONG Chang-wei(宫长伟), WANG Yi-nong(王轶农),
YANG Da-zhi(杨大智), LIU Xiao-peng(刘晓鹏)
(Department of Materials Engineering, Dalian University of Technology,
Dalian 116024, China)
Abstract: Ti-50.6Ni(molar fraction, %) shape memory alloy solution treated at 850℃ for 1h followed by ageing treatment at 450℃ for 3h was studied with differential scanning calorimetry(DSC), X-ray diffractometry(XRD) and transmission electron microscopy(TEM). DSC measurement reveals two separate transformation peaks. XRD and TEM demonstrate that a three-stage transformation occurs. The Ti3Ni4 precipitates are coherent with the R-phase. The crystal structure of R-phase was analyzed by two diffraction patterns method. The diffraction patterns of R-phase were obtained in detail from the same region.
Key words: Ti-Ni shape memory alloys; R-phase transformation; Ti3Ni4 precipitates CLC
number: TG139.6 Document code: A
1 INTRODUCTION
The B2-R transformation in Ti-Ni shape memory alloy has attracted much attention in past decades since its small lattice distortion and temperature hysteresis. The small lattice distortion implies less damage to the microstructure and lower sensitivity to structure modifications, hence resulting in higher reversibility and stability. The small hysteresis implies high response rate and high reversibility. Owing to these unique characteristics, the R-phase transformation is of particular importance for many applications, such as actuators and sensors.
For the crystal structure of R-phase, it is still a controversial issue. Goo and Sinclair[1] studied the space group of the R phase using convergent beam electron diffraction. They reported the P3[TX-]1m space group, but the structure was not determined. Wu and Wayman[2] proposed a trigonal distortion of the cubic structure, which could appear by condensation of modes at the (1/3, 1/3, 1/3) reciprocal-lattice point. The phase transformation was described using an elongation of the cube along the body diagonal. The crystal structure of the R phase was analyzed by combined use of electron-diffraction and powder X-ray diffraction methods[3]. The R-phase belongs to the trigonal space group P3. But recently, Schryver and Potapov[4] proposed that the R-phase is trigonal space group P3[TX-] refined using the software package MSLS.
Because the pre-shaped treatment is usually used for various applications, the B2-R trans-formation occurs due to the aging treatment in Ni-rich Ti-Ni alloys (x(Ni)>50.5%)[5-12]. Ti3Ni4 precipitates induce inhomogeneity of the matrix, both in terms of composition and internal stress fields, which favors the formation of R-phase prior to B19′[12-16]. For the mechanism of B2-R transformation, most work were based on the DSC measurements, and further experiments of microstructure observation are needed. In the present work, the R phase transformation was studied by DSC, XRD and TEM in detail in an aged Ti-50.6%Ni(molar fraction) alloy.
2 EXPERIMENTAL
Ti-50.6%Ni(molar fraction) alloy was solution treated at 850℃ for 1h followed by quenching into water. Then it was aged at 450℃ for 3h. To eliminate the effect of the oxide layer produced during heat treatment, the samples were chemically etched with an 1mL HF+4mL HNO3+5mL H2O solution to remove the surface oxides, and mechanically polished using SiC paper in successive grades prior to DSC and XRD analysis.
The phase transformation characteristics of the aged samples were analyzed and determined with a Mettler DSC822e instrument and a XRD-6000 X-ray diffractometer. A temperature range from -60 to 150℃ was scanned at a rate of 10℃/min during cooling and heating. X-ray diffraction measurement was used to identify phase composition of specimens at room temperature. Specimens for the electron microscopy were prepared by jet electronpolishing with a solution of 25%HNO3+75%CH3OH(volume fraction) at around -30℃. For High-resolution image observation, the specimens high were finally argon ion polished to clear the surface contamination. TEM observations were carried out in a Philips Tecnai G2 electron microscope operated at 200kV, using FEI double-tilt specimen stage. The images were recorded using the GATAN CCD slow-scanning camera and then analyzed by the Digital Micrograph Software.
3 RESULTS AND DISCUSSION
3.1 Characteristics of R-phase transformation
[BJ(,,,][BJ)] Vol.15 №.6 R-phase transformation of aged Ti-Ni shape memory alloy The DSC result of the sample aged at 450℃ for 3h is shown in Fig.1. Two distinct peaks at cooling and two coterminous peaks upon heating are observed. To identify the transformation, XRD measurement is carried out at room temperature, as shown in Fig.2. From the XRD measurement, we find that B2-phase and R-phase coexist at room temperature. This indicates a three-step phase transformation. The transformation temperatures in cooling are determined: Rs=46℃, Rf=28℃, Ms=-3℃, Mf=-43℃. The transformation temperatures in heating are determined: R′s=18℃, R′f=28℃, As=34℃, Af=48℃. The R, M, R′ and A denote the transformation of B2→R, R→B19′ (and B2→B19′), B19′→R and R→B2 (and B19′→B2), respectively. The subscript “s” denotes the temperature at which the phase transformation starts, and “f” denotes the temperature at which the phase transformation finishes.

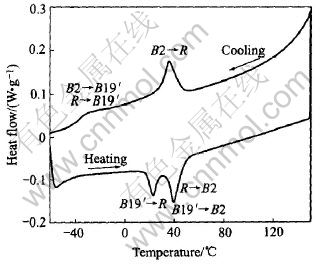

Fig.1 DSC curves of Ti-50.6%Ni alloy aged at 450℃ for 3h

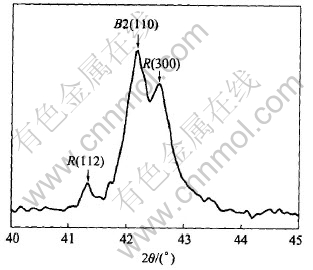

Fig.2 XRD pattern of alloy at room temperature after ageing at 450℃ for 3h

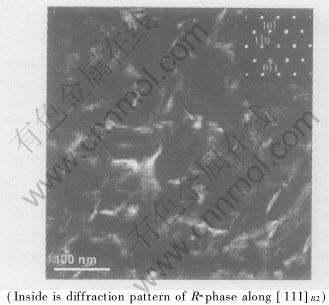

Fig.3 Bright-field image of specimen at room temperature
A bright field image taken at room temperature, in which Ti3Ni4 precipitates can be clearly observed, is shown in Fig.3. The corresponding diffraction pattern along [111]B2 shown in Fig.3 indicates that the region is in the R-phase. From Fig.3, one can see that the Ti3Ni4 precipitates are nearly along
directions. The Ti3Ni4 precipitates can introduce internal tensile stress resulted from different density between the Ti3Ni4 and matrix(B2) and the misfit strain[5]. The stress state created by the presence of these precipitates decreases the barrier to R-phase transformation and the martensitic transformation that follows. The restriction of the Ti3Ni4 precipitates on the growth of the R-phase is indicated in Fig.3, which confirms the suggestion that the high density of Ti3Ni4 precipitates in the matrix of the aged Ni-rich NiTi shape memory alloys is related to the smaller R-phase domain[2].
High resolution observations of the Ti3Ni4 precipitates and the R-phase are made in [111]B2 zone, as shown in Fig.4. In Fig.4, the average Ti3Ni4 precipitate size is about 10nm. The Ti3Ni4 precipitate is coherent with the R matrix. At the same time, B2 phase can also be observed in some grain interior in this study. Fig.5 shows high-resolution image of B2 matrix on (110) plane. The co-existence of B2 phase and R-phase in the aged Ti-Ni alloy agrees with the result of XRD measurement. In Ti-50.6%Ni alloy, the Ti3Ni4 preferentially precipitates near grain boundary, causing essentially precipitate-free zone at grain interior. This makes Ni content near grain boundary lower than that in the grain interior and the stress fields exit mainly near the boundary. The Ti3Ni4 precipitation induces the inhomogeneity of the matrix, both in composition and internal stress fields. Thus grain boundary portion undergoes two-stage B2-R-B19′ transformation while the grain interior undergoes a direct B2-B19′ transformation. This agrees with the low Ni supersaturation mode proposed in Ref.[15].
Fig.4 HREM micrograph of Ti3Ni4 precipitates and R-phase along [111]B2
Fig.5 HREM micrograph showing (110) plane of B2 matrix
3.2 Crystal structure of R-phase

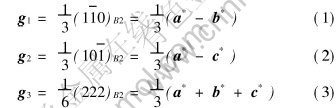

In order to analyze the structure of R-phase, we take selected area diffraction patterns(SADPs) along [111]B2 and [12[TX-]1]B2 which are perpendicular to each other. The results are shown in Fig.6. In Fig.6, three vector g1, g2, g3 can be expressed as
where a*, b* and c* are the basic vectors of B2 reciprocal space cell.

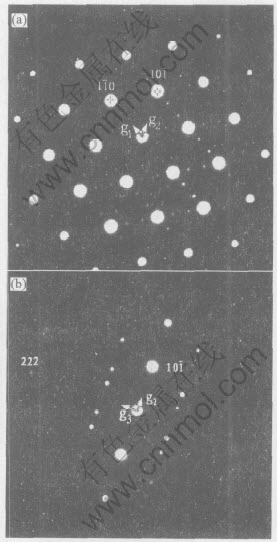

Fig.6 Two SADPs along [111]B2(a) and
B2(b) perpendicular to each other from same region shown in Fig.3
Thus the basic vectors of reciprocal space cell of super-structure, a*s, b*s, c*s can be determined:
According to the relationship between the real space and reciprocal space, then
where as, bs, cs are the basic vectors of real space cell of super-structure; a, b, c are the basic vectors of B2 real space cell. Thus the transformation matrix can be expressed as
Because the B2 matrix is of cubic structure, the R-phase super-structure is of hexagonal structure. The transformation matrix in Eqn.(6) is consistent with the result of variant A[1, 5, 12]. Similarly, other three transformation matrixes also can be acquired, which correspond to the results of variant B, C, and D.
According to Eqn.(6), (010)B2-(110)B2-(111)B2 stereographic triangle corresponds to
R-(012)R-(001)R stereographic triangle. Fig.7 shows the results of SADPs from the same region in bright field image shown in Fig.3. In Fig.7, there are 12 Laue index zones along or within the R-(012)R-(001)R stereographic triangle. They are consistent with the results in Ref.[2]. From Fig.7, one can observe sharp high-intensity
-reflections with no surrounding streaking or diffuse-scattering. When we analyze the result of electron diffractions, we find that the extra-spot situates at the 〈111〉B2 and 〈110〉B2 positions. Because of the difference between P3 and
, from the electron diffractions we cant determine the space group of R-phase. Thus we compare them from the first calculation. The result indicates that the P3 gives the lower ground energy and is more stable than . Thus the R-phase belongs to the trigonal space group P3.

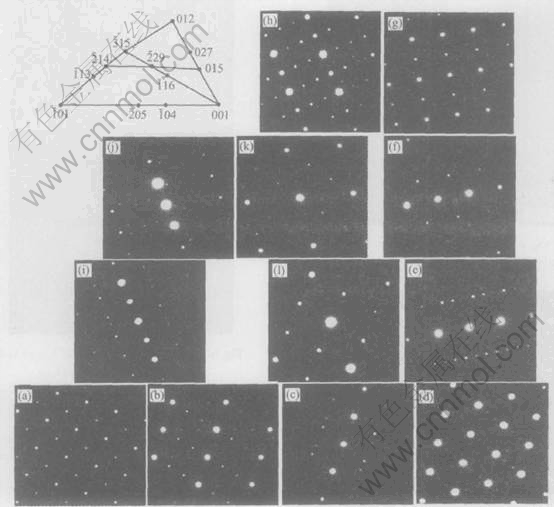

Fig.7 SADPs of Fig.3 main Laue index zones along or inside
R-[012]R-[001]R triangle
4 CONCLUSIONS
1) It is found that a three-stage transformation occurs in the aged Ti-Ni shape memory alloy. It is contributed to Ti3Ni4 precipitation-induced inhomogeneity of the matrix, both in composition and internal stress fields. The Ti3Ni4 precipitates are coherent with the R-phase.
2) The B2→R transformation matrix was obtained. The R-phase belongs to the trigonal space group P3.
