Flow and natural convection heat transfer characteristics of non-Newtonian nanofluid flow bounded by two infinite vertical flat plates in presence of magnetic field and thermal radiation using Galerkin method
Peyman MAGHSOUDI1, Gholamreza SHAHRIARI2, Hamed RASAM2, Sadegh SADEGHI2
1. School of Engineering, University of Tehran, Tehran 1417466191, Iran;
2. School of Engineering, Iran University of Science and Technology, Tehran 1684613114, Iran
Central South University Press and Springer-Verlag GmbH Germany, part of Springer Nature 2019
Abstract: The main goal of this paper is to investigate natural convective heat transfer and flow characteristics of non-Newtonian nanofluid streaming between two infinite vertical flat plates in the presence of magnetic field and thermal radiation. Initially, a similarity transformation is used to convert momentum and energy conservation equations in partial differential forms into non-linear ordinary differential equations (ODE) applying meaningful boundary conditions. In order to obtain the non-linear ODEs analytically, Galerkin method (GM) is employed. Subsequently, the ODEs are also solved by a reliable numerical solution. In order to test the accuracy, precision and reliability of the analytical method, results of the analytical analysis are compared with the numerical results. With respect to the comparisons, fairly good compatibilities with insignificant errors are observed. Eventually, the impacts of effective parameters including magnetic and radiation parameters and nanofluid volume fraction on the velocity, skin friction coefficient and Nusselt number distributions are comprehensively described. Based on the results, it is revealed that with increasing the role of magnetic force, velocity profile, skin friction coefficient and thermal performance descend. Radiation parameter has insignificant influence on velocity profile while it obviously has augmentative and decreasing effects on skin friction and Nusselt number, respectively.
Key words: non-Newtonian flow; nanofluid flow; Galerkin method; magnetic field; radiation
Cite this article as: Peyman MAGHSOUDI, Gholamreza SHAHRIARI, Hamed RASAM, Sadegh SADEGHI. Flow and natural convection heat transfer characteristics of non-Newtonian nanofluid flow bounded by two infinite vertical flat plates in presence of magnetic field and thermal radiation using Galerkin method [J]. Journal of Central South University, 2019, 26(5): 1294–1305. DOI: https://doi.org/10.1007/s11771-019-4088-5.
1 Introduction
Analysis of heat transfer characteristics of different fluid flows can greatly be beneficial for performance improvement of industrial systems [1–8]. Natural convection can highly be significant especially when moving fluid is minimally influenced by forced convection heat transfer [9]. Natural convection has attracted a great deal of attention among researchers due to its occurrence in many engineering applications such as geothermal systems and heat exchangers. In the aforementioned systems, convection is apparently observed upon creation of microstructures for cooling of molten metals and fluid flows near heat-dissipation fins. Free cooling of solar collectors and small-scale devices, i.e. computer chips, is one of the conventional application of natural convection [9, 10]. Analysis of natural convection is often difficult particularly when a non-Newtonian fluid is flowing in a system. By now, different flows of Newtonian and non-Newtonian fluids bounded by two infinite parallel vertical plates have been investigated by numerous scholars analytically, numerically and experimentally. As expressed earlier, due to variation of density by position, heat can naturally be transported from the vertical plates to the fluid flowing between the plates. It should be noted that different models have so far been developed by many scholars to apply partial differential equations and/or ordinary differential equations for description of flow and heat transfer characteristics of these problems.
Nowadays, much attention is being paid to the application of nanofluids for cooling purposes [10–13]. Nanoparticles can considerably enhance the thermal conductivity of base fluids by changing the thermophysical properties of the base fluids leading to heat transfer enhancement [14–17].
CHAMKHA [18] developed a mathematical model for a steady two-phase non-Newtonian fluid flow over an infinite porous flat plate considering continuum equations. ELLAHI et al [19] used series solutions to analyze the heat transfer characteristics of a fully-developed incompressible non-Newtonian fluid flow in coaxial cylinders considering Reynolds and Vogel models. BRUCE et al [20] examined a natural convection problem to test the performance of several non-Newtonian fluids flowing between vertical flat plates. MAHMOUD [21] numerically investigated the influences of heat generation and surface slip on the flow and heat transfer characteristics of a non-Newtonian fluid streaming on a moving surface using Runge-Kutta method. Their results show that local Nusselt number will decrease as the slip parameter or the heat generation parameter increases. JOHNSTON [22] proposed a solution method to describe the heat transfer characteristics of a non-Newtonian fluid under Dirichlet and Neumann boundary conditions utilizing Sturm- Liouville integral transformation operators. Their results demonstrate that Nusselt number decrease as axial distance rises. CHEN [23] studied a free convection flow influencing a non-Newtonian fluid flow through a porous medium along an isothermal vertical flat plate applying Runge-Kutta method. RAJAKOPAL et al [24] examined natural convection heat transfer in a homogeneous incompressible non-Newtonian fluid which flows between two infinite parallel vertical plates taking into account the friction skin parameter. They showed that Prandtl number decrease will decrease the velocity profile. DOMAIRRY et al [25] analytically studied the natural convection of a non-Newtonian nanofluid flow between two infinite parallel vertical flat plates employing differential transformation method. They showed that as the nanoparticle volume fraction increases, the momentum boundary layer thickness increases, whereas the thermal boundary layer thickness decreases. PITTMAN et al [26] experimentally investigated the natural convection heat transfer of a non-Newtonian fluid moving on an electrically- heated vertical plate under constant surface heat flux conditions and their results show that with increasing the distance, the temperature difference will grow. HATAMI et al [27] utilized analytical and numerical means to investigate the natural convection of a non-Newtonian nanofluid flow between two vertical flat plates. TERNIK et al [28] numerically analyzed the natural convection of non-Newtonian nanofluids in a square differentially heated cavity using Boussinesq approximation.
In the above-reviewed research studies, scholars have mainly investigated the flow and natural convection heat transfer of different kinds of cooling fluids, i.e. nanofluids, streaming between two infinite plates. However, the effects of magnetic field and thermal radiation on the behavior of nanofluids flow between flat plates have not yet been studied. Moreover, reliability of Galerkin method, an efficient and well-known analytical method for solution of ODEs, has not so far been tested to predict the flow and heat transfer characteristics of nanofluid flow between flat plates.
The main aim of this paper is to predict the performance of natural convection through a non-Newtonian nanofluid streaming between two vertical plates by Galerkin method. To carry out a detailed investigation, the effects of magnetic field and thermal radiation are included, for the first time, in the governing equations. Besides, the impact of skin friction coefficient is considered in the current analysis. At the initial stage of this research, a similarity transformation is applied to present the PDF forms of momentum and energy conservation equations in non-linear ordinary differential forms using accurate boundary conditions. Afterwards, Galerkin method is employed to solve the ODEs. Eventually, the effects of magnetic and radiation parameters on the velocity and Nusselt number distributions are comprehensively explained.
2 Governing equations
In this study, as drawn in Figure 1, a non-Newtonian nanofluid flow between two parallel vertical flat plates is considered. The distance between the plates is assumed to be 2b. Walls are sited at x=b and x=-b and held at constant temperatures T2 and T1 (T1>T2), respectively. This temperature difference pushes the fluid near the walls located at x=-b and x=b upward and downward, respectively.
Figure 1 Schematic diagram of flow considered in this study
Steady-state, incompressibility and absence of chemical reaction are the main assumptions considered for analysis of this problem. In addition, it is presumed that solid nanoparticles and the base fluid are in thermal equilibrium and no slip occurs between the materials. Table 1 lists the properties of the base fluid (water) and the nanoparticle used in this study.
Table 1 Thermo-physical properties of water and nanoparticle [29]
A viscous fluid is conventionally governed by continuity and Navier–Stokes equations. As an incompressible nanofluid flow is considered, conservation equations of momentum and energy are described as below [24, 30]:
(1)
(2)
To consider the effect of magnetic field, following formula is used [30]:
(3)
Stress in a third-grade non-Newtonian fluid (T*) can be formulated as below [24]:
(4)
where β3, α1 and α2 are the material modules which are functions of temperature; –pI represents the spherical stress corresponding to the restraint of incompressibility and kinematical tensors A1, A2 presented in Ref. [30].
Heat flux is obtained by aggregation of conduction and radiation terms as presented below:
(5)
where radiative heat flux qrad can be calculated by using Rosseland approximation as below [31]:
(6)
where σ* and K* are Stephan–Boltzmann constant and mean absorption coefficient, respectively. It is assumed that the temperature differences existing in the flow vary by forth power of T which can be expressed by a linear function of temperature. This can be implemented by expansion of T4 based on Taylor series as follows [31]:
(7)
By neglecting higher-order terms of temperature in Eq. (7) against the first-degree term, following expression is achieved [31]:
(8)
Subsequently, by substituting Eq. (8) into Eq. (6), radiative heat flux is rewritten as below [31]:
(9)
Conductive heat flux is calculated by the following equation:
(10)
Effective density (ρnf), heat capacity ((ρCp)nf), dynamic viscosity(μnf), thermal conductivity (knf) and electrical conductivity (σnf) of the fluid are defined as below [27,32,33]:
(11)
(12)
(13)
(14)
(15)
In order to solve the governing equations, following similarity parameters are used [24]:
(16)
Considering the aforementioned parameters, the Navier–Stokes and energy equations are transformed into the following ODEs:
(17)
(18)
where A, B, Prandtl number (Pr), Eckert number (Ec), normalized non-Newtonian viscosity (δ), radiation dimensionless parameter (N) and Hartman number (Ha represents the effect of magnetic field) are defined as below:
,
,
(19)
The boundary conditions considered in this study are presented as below:
(20)
(21)
Now to solve the coupled non-linear ODEs presented in Eqs. (17) and (18), Galerkin method is employed. It should be mentioned that Galerkin method is an analytical approach operating based on weighted residuals methods (WRMs). In this method, initially, a trial function is approximated. With respect to the approximated function, an error function will subsequently be defined. Finally, the integral of the error function is minimized over the considered domain [34].
In order to scrutinize the thermal performance of the system, Nusselt number and skin friction coefficient are formulated as below [35]:
(22)
(23)
(24)
(25)
3 Results and discussion
As previously mentioned, the governing equations are solved by Galerkin method. Current calculations and solution of the equations are implemented in Matlab software. Regarding the aforementioned boundary conditions, following approximated functions are used to non- dimensionalize the flow velocity and temperature, respectively:
(26)
(27)
It is notable that above equations are obtained by try-and-error approach. Unknown parameters including c1, c2, c3 and c4 are calculated using Galerkin method. For validation purposes, results of this study are compared with results obtained by a numerical method, results of a reliable previous study and results calculated by several other analytical methods. For the first case, performance of the method has been compared with results of numerical analysis in which Ec, Hartman number, N and δ are assumed to be unity and φ and Pr are equal to 0.01, 6.2, respectively. By considering the above conditions and applying the Galerkin method, following functions are yielded for the flow velocity and temperature:
(28)
(29)
Results of the present numerical and analytical solutions are plotted in Figures 2 and 3, respectively. As it can be observed in these figures, the result of the analytical solution is appropriately compatible with those of the numerical solution obtained from the momentum and energy equations. According to Figures 2 and 3, mean values of error for non-dimensionalized functions of velocity and temperature are found to be 0.081% and 0.0029%, respectively.

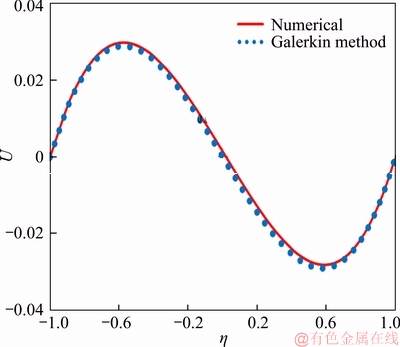

Figure 2 Comparison of velocity profiles obtained from current analytical and numerical solutions for Ec=δ=Ha=N=1, φ=0.01, Pr=6.2

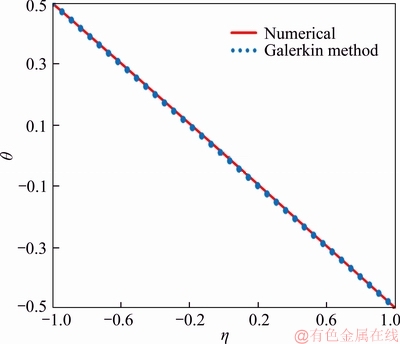

Figure 3 Comparison of temperature profiles obtained from current analytical and numerical results for Ec=δ=Ha=N=1, φ=0.01, Pr=6.2
For the second case, temperature and velocity obtained from this analysis are compared with results of a previous work carried out by HATAMI et al [36] when δ, Pr, Ec and φ are equal to 1, 1, 1 and 0.01, respectively. Results of the comparison are depicted in Figures 4 and 5. As it can be seen from the figures, a fairly good agreement exists between the results extracted from the momentum and energy equations.
For the third case, the governing equations are solved by two other analytical methods, namely least square method and collocation method for validation purpose. Table 2 compares the velocity and temperature distributions obtained by the methods when Ec=δ=1, Pr=6.2, φ=0.01, Ha=3 and N=2. As can be observed in Table 2, mean relative error obtained from Galerkin method is less than the errors yielded by the others. Additionally, CPU processing time of the Galerkin and collocation methods is significantly less than that of the least square method.
Figure 4 Comparison of velocity profiles obtained from current analytical analysis and previous work for Ec=δ=Pr=1, φ=0.01
Figure 5 Comparison of temperature profiles obtained from current analytical analysis and previous work for Ec=δ=Pr=1, φ=0.01
Figures 6–8 illustrate the effects of Hartman number (Ha) on the non-dimensionalized velocity, skin friction coefficient and Nusselt number when δ, Pr, Ec, φ and radiation parameter are constant and assumed to be 1, 6.2, 1, 0.01 and 1, respectively. Regarding Figure 6, with an increase in the value of Hartman number, the value of velocity reduces. It is worth mentioning that for the values of Hartman number greater than 20, velocity is approximately equal to zero. In other words, with increasing the value of Hartman number, Lorentz force related to the magnetic field enhances, leading to further resistance against the flow and consequently a reduction in the value of velocity. Figure 7 shows the influence of Ha on skin friction coefficient. As can be observed in Figure 7, with growing Ha, cf declines. Before Ha=10, cf drastically declines and after Ha=50, the cf is almost constant and found to be zero. Variation of Nusselt number with Hartman number is described in Figure 8.
Table 2 Comparison of results obtained by analytical methods

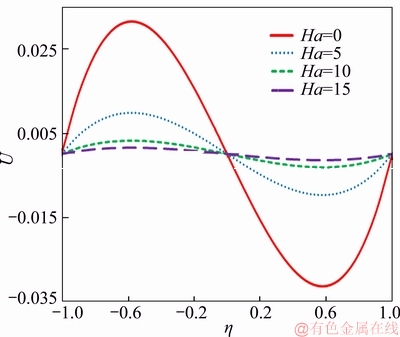

Figure 6 Variation of non-dimensionalized flow velocity with position for several values of Hartman number

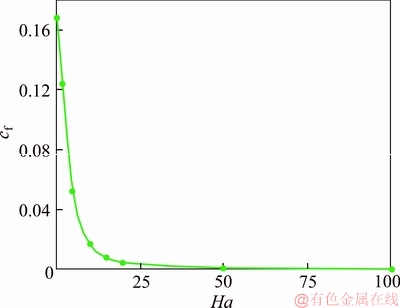

Figure 7 Variation of skin fiction coefficient with Hartman number
Figure 8 Variation of flow Nusselt Number with Hartman number
With respect to Figure 8, flow Nusselt number decreases as Hartman number increases, resulting in decrease of velocity. According to this figure, Nusselt number intensively reduces when Hartman number is lower than 20. However, for greater values of Hartman number, flow Nusselt number lessens smoothly.
The effects of non-dimensionalized radiation parameter on the velocity, skin friction coefficient and Nusselt number are delineated in Figures 9–11 when δ, Pr, Ec, φ and Hartman number are constant and considered to be 1, 6.2, 1, 0.01 and 1, respectively. As seen in Figure 9, radiation parameter has negligible effects on the velocity profile. According to Figure 10, cf drastically grows in the beginning of the considered interval until about N=20 and then the slope of the curve becomes smooth. It can be justified by the fact that radiation parameter has augmentation effect on cf before N=20 while its impact on cf is insignificant for the values greater than N=20. As suggested in Figure 11, with enhancing radiation parameter, flow Nusselt number decreases. For radiation parameter values less than 20, variation of flow Nusselt number is intensive while for the values larger than N=20, changes are apparently smooth. Based on Figure 11, Nusselt numbers change slightly over the domain which is related to the flow temperature distribution. As previously explained, the radiation term is obtained by multiplying the dimensionless radiation parameter (N) and second derivative of temperature function (Eq. (9)). According to Figures 3 and 5, temperature profile is almost linear without any curvature. Accordingly, the temperature profile is of small second derivative. Hence, increasing the radiation parameter causes a small reduction in the flow Nusselt number.

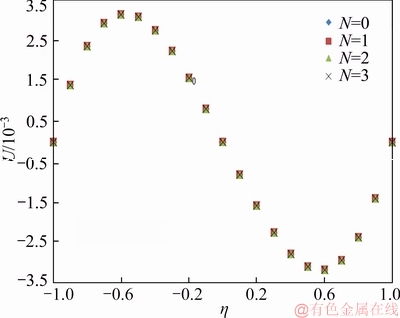

Figure 9 Variation of flow non-dimensionalized velocity with position for several values of radiation parameter

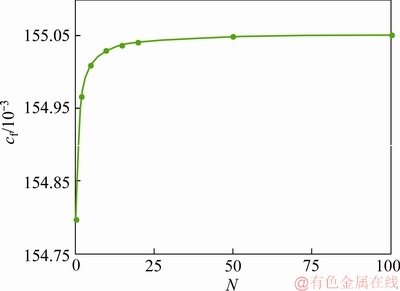

Figure 10 Variation of skin friction coefficient with radiation parameter

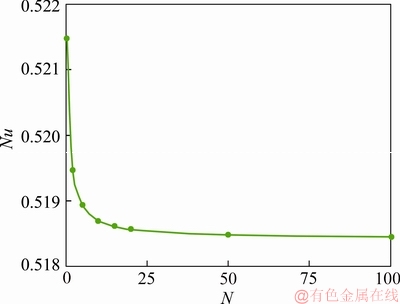

Figure 11 Variation of Nusselt number with radiation parameter
Figures 12 and 13 show the effects of nanofluid volume fraction (φ) on skin friction coefficient cf and Nusselt number when δ, Pr, Ec, Hartman number and radiation parameter are constant and assumed to be 1, 6.2, 1, 1 and 1, respectively. Regarding Figure 12, with an increase in the volume fraction, the cf grows. This growth can be justified by increase of viscosity. As fluid viscosity increases (increase of nanoparticles additives), the skin friction rises. Further, according to Figure 13, with a rise in the nanofluid volume fraction, thermal performance improves, which is due to the increment in thermal conductivity.
Figure 12 Variation of skin friction coefficient with nanofluid volume fraction

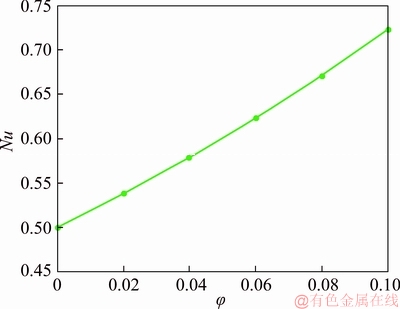

Figure 13 Variation of Nusselt number with nanofluid volume fraction
In Figures 14 and 15, the effect of δ on skin friction coefficient cf and Nusselt number are shown. As seen in Figure 14, increase of δ leads to decline in skin friction. With regard to definition of dimensionless non-Newtonian viscosity in Eq. (19), δ has reverse effect on nanofluid viscosity. With an increment in δ, the viscosity descends and eventually the skin friction decreases. Regarding Figure 15, Nusselt number has an inverse proportionality relationship with dimensionless non-Newtonian viscosity. At the beginning of the considered interval, Nusselt number severely reduces and after δ=20 smoothly goes up to Nu=0.59.
Figures 16 and 17 show the effect of Eckert number on skin friction coefficient and Nusselt number, respectively. With respect to Figure 16,Eckert number increases, leading to a decrement with constant negative slope in skin friction coefficient. According to Figure 17, increment of Eckert number increases the Nusselt number and heat viscous dissipation, leading to a rise in temperature gradient and improvement in thermal performance of the system.

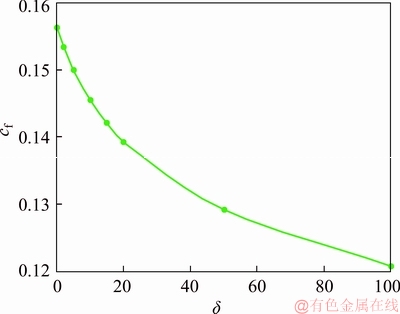

Figure 14 Variation of skin friction coefficient with dimensionless non-Newtonian viscosity

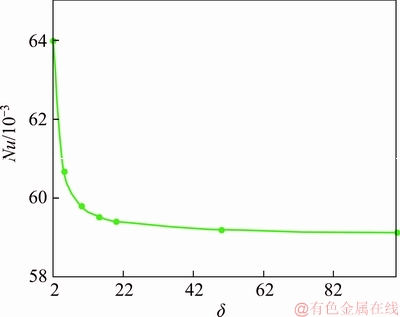

Figure 15 Variation of Nusselt number with dimensionless non-Newtonian viscosity
Figure 16 Variation of skin friction coefficient with Eckert number

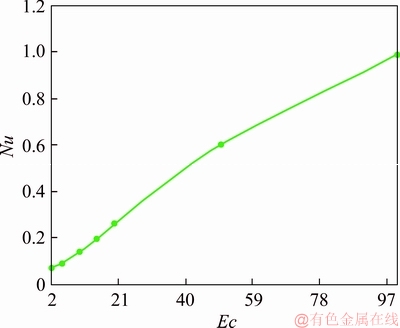

Figure 17 Variation of Nusselt number with Eckert number
4 Conclusions
In this research, flow and heat transfer characteristics of non-Newtonian nanofluid flowing between two infinite vertical flat plates in the presence of magnetic field and thermal radiation effect were investigated. Initially, a similarity transformation was applied to convert the governing momentum and energy equations into non-linear ordinary differential equations using reliable and accurate boundary conditions. These ODEs were solved analytically by Galerkin Method. Afterwards, to assess the accuracy and precision of the analytical results, the equations were also solved using least square, collocation methods and a numerical approach. The results were compared with the analytical data obtained by Galerkin method. Fairly good agreements with minute error rates were observed in the validation comparisons. Finally, the effects of magnetic field and radiation parameters and nanofluid volume fraction on the velocity, skin friction coefficient and Nusselt number distributions were examined. According to the results, it is concluded that the magnetic parameter has a reverse relationship with velocity profile, skin friction coefficient and Nusselt number. The impact of thermal radiation parameter on velocity is negligible while flow Nusselt number decreases and skin friction coefficient rises with increasing the radiation parameter. Furthermore, nanofluid volume fraction has a direct relationship with flow Nusselt number and skin friction coefficient. In addition, dimensionless non- Newtonian viscosity has reverse effects on both Nusselt number and skin friction coefficient. Similarly, Eckert number has reverse influence on skin friction coefficient and direct effect on flow Nusselt number.
Nomenclature
x, y
Coordinate directions, m
u
Velocity in y direction, m/s
U
Dimensionless velocity
N
Radiation dimensionless parameter
Ha
Hartman number
Pr
Prandtl number
b
Half of distance between plates, m
q
Heat flux, W/m2
c
Specific heat of the fluid, W/(kg·K)
cf
Skin friction coefficient
k
Thermal conductivity, W/(m·K)
Ec
Eckert number
g
Gravity, m/s2
Pr
Prandtl number
T
Temperature, K
T1, T2
Wall temperature, K
Tm
Mean temperature, K
u0
Inlet velocity, m/s
K*
Mean absorption coefficient, m–1
B
Magnetic field, kg/(s2·A)
Nu
Nusselt number
Greek symbols
δ
Dimensionless viscosity of
non-Newtonian flow
η
Dimensionless form of distance
μ
Dynamic viscosity, kg/(m·s)
θ
Dimensionless temperature
ρf
Fluid density, kg/m3
βT
Thermal expansion coefficient, K–1
σ
Electrical conductivity, S3·A2/(kg·m3)
σ*
Stephan–Boltzmann constant, W·K4/m2
Subscripts
rad
Radiation
con
Conduction
f
Fluid
nf
Nanofluid
s
Solid
References
[1] XIANG Jian-hua, ZHANG Chun-liang, ZHOU Chao, LIU Gui-yun, ZHOU Wei. Heat transfer performance testing of a new type of phase change heat sink for high power light emitting diode [J]. Journal of Central South University, 2018, 25(7): 1708– 1716.
[2] WANG W H, CHENG D L, LIU T, LIU Y H. Performance comparison for oil-water heat transfer of circumferential overlap trisection helical baffle heat exchanger [J]. Journal of Central South University, 2016, 23(10): 2720–2727.
[3] MAGHSOUDI P, SIAVASHI M. Application of nanofluid and optimization of pore size arrangement of heterogeneous porous media to enhance mixed convection inside a two-sided lid-driven cavity [J]. Journal of Thermal Analysis and Calorimetry, 2019, 135(2): 947–961. DOI: https://doi. org/10.1007/s10973- 018-7335-3.
[4] MOSAYEBIDORCHEH S, RAHIMI-GORJI M, GANJI D D, MOAYEBIDORCHEH T, POURMEHRAN O, BIGLARIAN M. Transient thermal behavior of radial fins of rectangular, triangular and hyperbolic profiles with temperature-dependent properties using DTM-FDM [J]. Journal of Central South University, 2017, 24(3): 675-682. DOI: 10.1007/s11771-017-3468-y.
[5] XIE Nan, JIANG Chang-wei, HE Yi-hai, YAO Ming. Lattice Boltzmann method for thermomagnetic convection of paramagnetic fluid in square cavity under a magnetic quadrupole field [J]. Journal of Central South University, 2017, 24(5): 1174-1182. DOI: 10.1007/s11771-017-3520-y.
[6] SHEIKHOLESLAMI M. CuO-water nanofluid flow due to magnetic field inside a porous media considering Brownian motion [J]. Journal of Molecular Liquids, 2018, 249: 921–929.
[7] SHEIKHOLESLAMI M, JAFARYAR M, SALEEM S, LI Z, SHAFEE A, JIANG Y. Nanofluid heat transfer augmentation and exergy loss inside a pipe equipped with innovative turbulators [J]. International Journal of Heat and Mass Transfer, 2018, 126: 156–163.
[8] FENG Jun-sheng, DONG Hui, GAO Jian-ye, LIU Jing-yu, LIANG Kai. Theoretical and experimental investigation on vertical tank technology for sinter waste heat recovery [J]. Journal of Central South University, 2017, 24(10): 2281– 2287. DOI: https://doi.org/10.1007/s11771-017-3639-x.
[9] MCCABE W L, SMITH J C, HARRIOTT P. Unit operations of chemical engineering [M]. New York: McGraw-hill, 1993.
[10] AHMED A, NADEEM S. Biomathematical study of time dependent flow of a Carreau nanofluid through inclined catheterized arteries with overlapping stenosis [J]. Journal of Central South University, 2017, 24(11): 2725–2744. DOI: https://doi.org/10.1007/s11771-017-3685-4.
[11] SHEIKHOLESLAMI M. Influence of magnetic field on Al2O3-H2O nanofluid forced convection heat transfer in a porous lid driven cavity with hot sphere obstacle by means of LBM [J]. Journal of Molecular Liquids, 2018, 263: 472–488. DOI: https://doi.org/10.1016/j.molliq.2018.04.111.
[12] SHEIKHOLESLAMI M, ROKNI H B. Numerical modeling of nanofluid natural convection in a semi annulus in existence of Lorentz force [J]. Computer Methods in Applied Mechanics and Engineering, 2017, 317: 419–430.
[13] SHEIKHOLESLAMI M, VAJRAVELU K. Nanofluid flow and heat transfer in a cavity with variable magnetic field [J]. Applied Mathematics and Computation, 2017, 298: 272–282.
[14] MAJID S, MOHAMMAD J. Optimal selection of annulus radius ratio to enhance heat transfer with minimum entropy generation in developing laminar forced convection of water-Al2O3 nanofluid flow [J]. Journal of Central South University, 2017, 24(8): 1850-1865. DOI: https://doi.org/ 10.1007/s11771-017-3593-7.
[15] DOGONCHI A S, DIVSALAR K, GANJI D D. Flow and heat transfer of MHD nanofluid between parallel plates in the presence of thermal radiation [J]. Computer Methods in Applied Mechanics and Engineering, 2016, 310: 58–76.
[16] DOGONCHI A S, GANJI D D. Thermal radiation effect on the nano-fluid buoyancy flow and heat transfer over a stretching sheet considering Brownian motion [J]. Journal of Molecular Liquids, 2016, 223: 521–527.
[17] DOGONCHI A S, GANJI D D. Impact of Cattaneo–Christov heat flux on MHD nanofluid flow and heat transfer between parallel plates considering thermal radiation effect [J]. Journal of the Taiwan Institute of Chemical Engineers, 2017, 80: 52–63.
[18] CHAMKHA A J. Flow of non-Newtonian particulate suspension with a compressible particle phase [J]. Mechanics Research Communications, 1994, 21(6): 645–654.
[19] ELLAHI R, RAZA M, VAFAI K. Series solutions of non-Newtonian nanofluids with Reynolds’ model and Vogel’s model by means of the homotopy analysis method [J]. Mathematical and Computer Modelling, 2012, 55(7, 8): 1876–1891.
[20] BRUCE R W, NA T Y. Natural convection flow of Powell-Eyring fluids between two vertical flat plates [M]. ASME, 1967.
[21] MAHMOUD M A. Slip velocity effect on a non-Newtonian power-law fluid over a moving permeable surface with heat generation [J]. Mathematical and Computer Modelling, 2011, 54(5, 6): 1228–1237.
[22] JOHNSTON P R. A solution method for the Graetz problem for non-Newtonian fluids with Dirichlet and Neumann boundary conditions [J]. Mathematical and Computer Modelling, 1994, 19(2): 1–9.
[23] CHEN H T. Free convection flow of non-Newtonian fluids along a vertical plate embedded in a porous medium [J]. Journal of Heat Transfer (Transactions of the ASME, American Society of Mechanical Engineers United States), Series C, 1988, 110(1): 257–260.
[24] RAJAGOPAL K R, NA T Y. Natural convection flow of a non-Newtonian fluid between two vertical flat plates [J]. Acta Mechanica, 1985, 54(3, 4): 239–246.
[25] DOMAIRRY D, SHEIKHOLESLAMI M, ASHORYNEJAD H R, GORLA R S, KHANI M. Natural convection flow of a non-Newtonian nanofluid between two vertical flat plates [J]. Proceedings of the Institution of Mechanical Engineers, Part N: Journal of Nanoengineering and Nanosystems, 2011, 225(3): 115–122.
[26] PITTMAN J F, RICHARDSON J F, SHERRARD C P. An experimental study of heat transfer by laminar natural convection between an electrically-heated vertical plate and both Newtonian and non-Newtonian fluids [J]. International Journal of Heat and Mass Transfer, 1999, 42(4): 657–671.
[27] HATAMI M, GANJI D D. Natural convection of sodium alginate (SA) non-Newtonian nanofluid flow between two vertical flat plates by analytical and numerical methods [J]. Case Studies in Thermal Engineering, 2014, 2: 14–22.
[28] TERNIK P, RUDOLF R. Laminar natural convection of non-Newtonian nanofluids in a square enclosure with differentially heated side walls [J]. International Journal of Simulation Modelling, 2013, 12(1): 5–16.
[29] SHEIKHOLESLAMI M, NIMAFAR M, GANJI D D. Nanofluid heat transfer between two pipes considering Brownian motion using AGM [J]. Alexandria Engineering Journal, 2017, 56(2): 277–283.
[30] HATAMI M, HATAMI J, GANJI D D. Computer simulation of MHD blood conveying gold nanoparticles as a third grade non-Newtonian nanofluid in a hollow porous vessel [J]. Computer Methods and Programs in Biomedicine, 2014, 113(2): 632–641.
[31] RAPTIS A. Radiation and free convection flow through a porous medium [J]. International Communications in Heat and Mass Transfer, 1998, 25(2): 289–295.
[32] SIAVASHI M, RASAM H, IZADI A. Similarity solution of air and nanofluid impingement cooling of a cylindrical porous heat sink [J]. Journal of Thermal Analysis and Calorimetry, 2019, 138(2): 1399–1415. DOI: https://doi.org/10.1007/ s10973-018-7540-0.
[33] SARI M R, KEZZAR M, ADJABI R. Heat transfer of copper/water nanofluid flow through converging-diverging channel [J]. Journal of Central South University, 2016, 23(2): 484–496.
[34] HATAMI M, SHEIKHOLESLAMI M, GANJI D D. Nanofluid flow and heat transfer in an asymmetric porous channel with expanding or contracting wall [J]. Journal of Molecular Liquids, 2014, 195: 230–239.
[35] DOGONCHI A S, ISMAEL M A, CHAMKHA A J, GANJI D D. Numerical analysis of natural convection of Cu–water nanofluid filling triangular cavity with semicircular bottom wall [J]. Journal of Thermal Analysis and Calorimetry, 2018, 135(6): 3485–3497. DOI: https://doi.org/10.1007/s10973- 018-7520-4.
[36] HATAMI M, GANJI D D. Natural convection of sodium alginate (SA) non-Newtonian nanofluid flow between two vertical flat plates by analytical and numerical methods [J]. Case Studies in Thermal Engineering, 2014, 2: 14–22.
