precipitation processes and luminescence properties of ZnO: La³⁺, Li⁺ nanoparticles

GU Ying-ying(古映莹), LI Lu-ke(李陆柯), ZHANG Wen-wen(张稳稳), LIU Ying(刘英), LU Zhou-guang(卢周广)

1. College of Chemistry and Chemical Engineering, Central South University, Changsha 410083, China;

2. Key Laboratory of Resources Chemistry of Nonferrous Metals, Central South University, Changsha 410083, China

Central South University Press and Springer-Verlag Berlin Heidelberg 2013

Abstract: ZnO:La³⁺,Li⁺ nanoparticles were successfully prepared by co-precipitation, citric acid-assisted co-precipitation, co-precipitation combined solid-state reaction and thermal decomposition method. X-ray diffraction (XRD), scanning electron microscopy (SEM) and luminescence spectrophotometry were employed to characterize the crystal phases, particle sizes and luminescence properties of the as-prepared nanopowders. The results indicate that all the prepared samples crystallize in a hexagonal wurtzite structure. The ZnO:La³⁺,Li⁺ prepared by citric acid-assisted co-precipitation method has a particle size of about 80 nm, which is the smallest among all the samples. Fluorescence (FL) spectra of all samples exhibit three typical emissions: a violet one centered at around 400 nm, blue around 450 nm and 466 nm, and weak green near 520 nm. But the samples prepared by co-precipitation method show a strong and wide green light emission located at about 500 nm. The ZnO:La³⁺,Li⁺ nanoparticles synthesized by the co-precipitation method demonstrate relatively the strongest emission intensity.

Key words: ZnO:La³⁺,Li⁺nanoparticles; doping; co-precipitation method; luminescence properties

1 Introduction

Recently, semiconductor materials doped with metal ions have received increasing attention due to their much improved light, electrical and other properties. A lot of doping systems of semiconductor materials have appeared, such as ZnS [1], SnO₂ [2], In₂O₃ [3], and ZnO [4–5] doping systems. Especially, industry departments attach great importance to the research and development of nano ZnO, because it owns the advantage of both semiconductor oxide and nanometer materials. At present, scientific researchers have taken more interest in optical and electrical research of nano ZnO. In order to realize the applications of ZnO in light-emitting devices, more effort should be put on solving the problems of luminous efficiency and color purity. Many experimental results have already demonstrated that adding new elements and making the sample nanorization are the two effective ways to solve the above problems. La³⁺ and Li⁺ were chosen as the doping elements in this work. ZnO is an oxide semiconductor material with a wide band gap (3.37 eV at 300 K), which has been widely applied to the surface acoustic equipment, gas sensor, piezoelectric, flat panel display, transparent electrodes and solar battery window due to its excellent photoelectric, piezoelectric, gas-sensitive features [6–8].^. Rare earth elements have special 4f layer electronic structure, which can produce a lot of absorption and fluorescence information when electrons jump in f–f or f–d shells. These special magnetic and fluorescence information can lead to special physical and chemical properties of rare earth elements, providing important guarantees in synthesis of new materials with special functions [9].

ZnO:Li⁺ thin film has been fabricated by Zhu et al [10] by frequency magnetron sputtering method and La³⁺ doped ZnO nanopowders have been reported quite recently [11–13]. But there are no reports on the synthesis of La³⁺,Li⁺ co-doped ZnO. The transmission of energy between La³⁺ and ZnO is weak because the ionic radius of La³⁺ (106 pm) is much larger than that of Zn²⁺ (74 pm). While the radius of Li⁺ is 68 pm, which makes it a good sensitization agent [10–14]. Furthermore, it can also function as charge compensator. So it was extraordinarily useful and constructive, not just for the preparation of the La³⁺,Li⁺ co-doped ZnO nanopowders, but for studying the structure and optical properties. In this work, ZnO:La³⁺,Li⁺ nanopowders were prepared by different routes, including co-precipitation, citric acid-assisted co-precipitation, co-precipitation combined solid-state reaction and thermal decomposition method. Moreover, the structure and optical properties of the samples prepared by different methods are also discussed in details.

2 Experimental

2.1 Chemicals

Chemical reagents, Zn(NO₃)₂·6H₂O (Sinopharm Chemical Reagent Co. Ltd), La(NO₃)₃·nH₂O (Sinopharm Chemical Reagent Co. Ltd), Na₂CO₃(Chemical Co. Ltd, Taishan), C₆H₅Na₃O₇·2H₂O (Sinopharm Chemical Reagent Co. Ltd), CH₃CH₂OH (Organic Reagents Factory, Changsha), LiNO₃ (Chemical Plant, Nanhui Peng)_, Li₂CO₃ (Chemical Plant, Taishan, Guangdong), NaOH (Chemical Co. Ltd, Xilong) etc. reagents were of analytical grade and used without further purification.

2.2 Synthesis

2.2.1 Co-precipitation method

1% La(NO₃)₃ and 4% LiNO₃ were dissolved into 50 mL 0.5 mol/L Zn(NO₃)₂ solution. after fully dissolved, 60 mL 0.5 mol/L Na₂CO₃ solution was slowly dropped into the above mixture solution under vigorous stirring. After dropping completely, the mixture was continued stirring for 1 h, and then aged for 2 h. White precipitate was filtered, washed with deionized water and alcohol for three times, and dried at 80°C for 3 h. ZnO:La³⁺,Li⁺ nanopowders were obtained after calcining the precursors in muffle furnace at 650°C for 3 h.

2.2.2 Citric acid-assisted co-precipitation method

0.025 mol C₆H₅Na₃O₇·2H₂O, 1% La(NO₃)₃, 4% LiNO₃ (mass fraction) were dissolved in 50 mL 0.5mol/L Zn(NO₃)₂ solution. after fully dissolved, 60 mL 0.5 mol/L Na₂CO₃ solution was slowly dropped into the above mixture solution, then using the same treat method as section 2.2.1, ZnO:La³⁺,Li⁺ nanopowders were obtained.

2.2.3 Co-precipitation combined solid-state reaction method

2% Li₂CO₃ was added into the precursors of ZnO: La³⁺ prepared in section 2.2.1, and ground in agate mortar for 0.5 h, ZnO:La³⁺,Li⁺ nanopowders were obtained after calcining in muffle furnace.

2.2.4 Thermal decomposition method

A certain molar fractions of Zn(NO₃)_2, La(NO₃)₂, LiNO₃ (1:0.01:0.04) were dissolved in 30 mL solution with the liquid composed of water and ethanol by volume ratio of 1:2. Hydrolytic precursors were obtained after hydrolyzing at 105°C for 2 h. ZnO:La³⁺,Li⁺ nanopowders were obtained after calcining the precursors in muffle furnace.

2.3 Characterization

The phase structures of the samples prepared in this work were analyzed by X-ray diffraction, using D/Max 2500 diffractometer with a Cu K_α radiation source (l=0.154 06 nm), voltage of 40 kV, current of 250 mA, and a scanning rate of 8.0 (°)/min in 2 θ ranging from 10° to 85°. Morphology was tested by scanning electron microscope, using hitachi X650 with the voltage of 20 kV. The doping amounts of La³⁺ and Li⁺ were detected by ICP, using Perkin Elemer 5300DV. The optical properties were tested by F-4500 fluorescence photometric with the following parameters: scanning speed 1 200 nm/min, delay time 0 s, arouse unit slit 5.0 nm, transmission unit slit 5.0 nm, phototubes load voltage 700 V, and response speed 0.01 s.

3 Results and discussion

3.1 XRD analysis

Figure 1 shows the XRD patterns of ZnO: La³⁺,Li⁺ samples prepared by different methods. All samples were calcined at 650°C for 3 h. The structures of four samples all belonged to hexagonal wurtzite phase. Reflections due to La (OH)₃ were also detected in Fig. 2 (d). During the process of heating and evaporating, Zn²⁺, La³⁺ and Li⁺ were hydrolyzed into Zn(OH)₂, La(OH)₃ and LiOH, respectively. Decomposing temperature of La(OH)₃ is 750°C, but it can reduce when the mixture of Zn(OH)₂, La(OH)₃ and LiOH are calcined together with LiOH as cosolvent. So some La(OH)₃ was decomposed into La³⁺, and some existed in the form of La(OH)₃ when calcinated at 650°C, which is consistent with the result reported by YAO et al [15]. The diffraction peaks of La₂O₃ were detected in Figs. 1(b) and (c) and no diffraction peaks of impurity phase were detected. The particle size of sample prepared by citric acid-assisted co-precipitation method is the smallest due to its relatively wider half-peak.

Fig. 1 XRD patterns of ZnO:La³⁺,Li⁺ prepared by different methods:

Figure 2 shows the XRD patterns of ZnO: La³⁺,Li⁺ prepared by co-precipitation and solid-stated method and calcined at different calcination temperatures for 3 h. All the reflections can be indexed to hexagonal wurtzite phase. Secondary phase of La₂O₃ appears in the 950 ^oC sample. The intensity of diffraction peaks increases first and then decreases with the calcination temperature increasing.

Fig. 2 XRD patterns of samples prepared by co-precipitation and solid-state method at different calcination temperatures:

The intensity of peaks reaches the maximum when calcination temperature is 750°C. The intensities of Figs. 2(c) and (d) are almost the same, which indicates that there is almost no effect on crystal formation when the temperature attains to a certain value, so the calcining temperature was chosen as 750°C.

3.2 SEM analysis

SEM images of ZnO: La³⁺,Li⁺ prepared by different methods are shown in Fig. 3. The particle size (about 90 nm) of the sample prepared by citric acid-assisted co-precipitation method is the smallest compared with the other three methods, which is consistent with the analysis result of Fig. 2, but it appears to be agglomerated to a certain degree. The distribution of ZnO:La³⁺,Li⁺ particle prepared by thermal decomposition- solid-state method is nonuniform and the diameter (about 600 nm) is comparatively bigger.

3.3 Luminescence analysis

3.3.1 Excitation spectrum

Figure 4 presents the excitation spectra of ZnO: La³⁺,Li⁺ prepared by co-precipitation, citric acid-assisted co-precipitation, co-precipitation combined solid-state reaction and thermal decomposition-solid-state processes. As we can see, the sample from the citric acid-assisted co-precipitation method has the highest intensity of excitation wavelength, while the weakest is from thermal decomposition-solid-state process, and the most important of all is the intensity of excitation wave-length of all the samples reach maximum at 326 nm. So excitation wavelength was chosen at 326 nm all through the experiment processes.

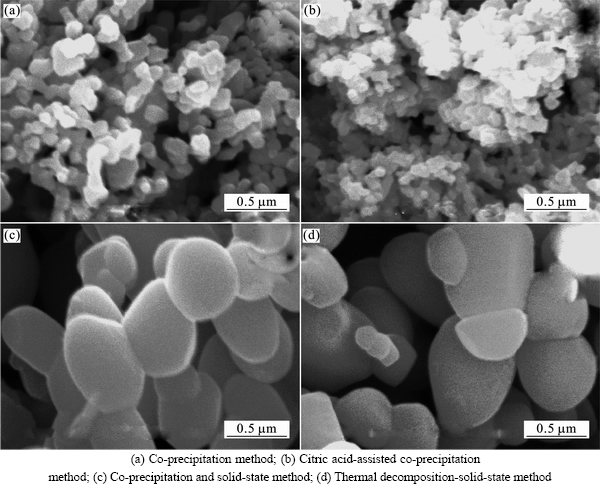

Fig. 3 SEM images of samples prepared by different methods:

Fig. 4 Room-temperature excitation spectra of ZnO: La³⁺, Li⁺ prepared by different methods:

3.3.2 Emission spectra of ZnO:La³⁺,Li⁺ prepared by different methods

In order to compare with emission spectra of ZnO: La³⁺,Li⁺ prepared by different methods, the samples were all prepared in the following conditions: the calcination temperature was 650°C, calcining time was 3 h, the doping amounts of La³⁺ and Li⁺ were 1% and 4%, respectively. The fluorescence (FL) properties of four samples were tested under 326 nm as excitation peak. The results are shown in Fig. 5.

Fig. 5 Luminescence emission spectra of samples derived from different methods:

The results in Fig. 5 show that the emission peak shapes of ZnO: La³⁺,Li⁺ prepared by thermal decomposition- solid-state, citric acid-assisted co-precipitation method, co-precipitation method and co-precipitation and solid-state method are almost the same, and all samples mainly have three emission peaks: a violet one centered at around 400 nm, blue around 450 nm and 466 nm, and weak green near 520 nm. While the emission peak shape of the sample prepared by co-precipitation and solid-state method is different from the others. It has three main emission peaks: a violet one centered at around 400 nm, blue one around 466 nm, and weak green near 520 nm.

The mechanism of violet emission peak is from excitons recombination formed by electrons in the conduction band and holes in valence band [16–18], and blue emission peaks near the center of 450 and 466 nm are from the transition between shallow donor level formed by V₀ and top Valence band level [19]. The green light emission is related to the concentration of V₀ [20].

The existence of La(OH)₃ in ZnO:La³⁺,Li⁺ prepared by thermal decomposition-solid-state method may be the cause of the weakest intensity of emission peak in visible area. The intensity of emission peak in visible area of ZnO:La³⁺,Li⁺ prepared by citric acid-assisted co-precipitation method is weaker than that of the samples prepared by co-precipitation method. The particle size of ZnO:La³⁺,Li⁺ prepared by citric acid-assisted co-precipitation method was the smallest compared with the other samples prepared by the other three methods. So the surface area is relatively greater, which leads to the farther distance of transition, that is, the transition probability is correspondingly less and the intensity of emission peak in visible area of the ZnO: La³⁺,Li⁺ decreases.

3.3.3 Emission spectra of ZnO:La³⁺,Li⁺ samples prepared by co-precipitation and solid-state method under different calcination temperatures

The samples calcined at different temperatures (650°C, 750°C, 850°C, 950°C) were prepared by co-precipitation and solid-state method, considering that the intensity of visible light emission peak was comparatively stronger. The emission spectra of the samples are shown in Fig. 6.

The results in Fig. 6 show that the emission peaks of the samples prepared by different calcination temperatures are almost the same. The intensity of blue light centered at around 466 nm and green light about 500 nm presents the trend of first increasing and then decreasing with the rising temperatures. The sample shows the relatively most intense emission peaks when the calcination temperature is 750°C. Meanwhile, in combination with Fig. 3, the better the crystal morphology, the stronger the emission intensity is presented.

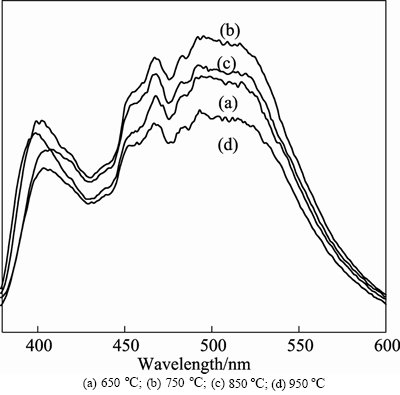

Fig. 6 Photoluminescence emission spectra of samples prepared by co-precipitation and solid-state method with different calcination temperatures:

4 Conclusions

1) The structures of ZnO:La³⁺,Li⁺ prepared by co-precipitation method, citric acid-assisted co- precipitation method, co-precipitation and solid-state method and thermal decomposition-solid-state method, all belonged to hexagonal wurtzite phase, and the particle size of the sample prepared by citric acid-assisted co-precipitation method is the smallest in the four methods.

2) All samples mainly have three emission peaks, a violet one centered at around 400 nm, blue around 450 nm and 466 nm, and weak green near 520 nm, except the samples prepared by co-precipitation and solid-state method, which appears a strong and wide green light emission peak locating at about 500 nm, but the blue light emission near 450 nm disappears.

3) The as-prepared ZnO:La³⁺,Li⁺ nanoparticles demonstrate the most intensive FL emission intensity at 402.4 nm, 467.2 nm and 494.6 nm，when using the method of co-precipitation and solid-state. The doping amounts of La³⁺and Li⁺ are approaching 1% and 4% separately with the heat treatment of these precursors at 750°C for 3 h.
