Trans. Nonferrous Met. Soc. China 30(2020) 1904-1915

Enhancement of lithium storage capacity and rate performance of Se-modified MnO/Mn₃O₄ hybrid anode material via pseudocapacitive behavior

Lie-wu LI¹, Li-ping WANG^1,2, Ming-yu ZHANG¹, Qi-zhong HUANG¹, Ke-jian HE³, Fei-xiang WU⁴

1. State Key Laboratory of Powder Metallurgy, Central South University, Changsha 410083, China;

2. College of Biological and Environmental Engineering, Changsha University, Changsha 410022, China;

3. Advanced Research Center, Central South University, Changsha 410083, China;

4. School of Metallurgy and Environment, Central South University, Changsha 410083, China

Received 3 October 2019; accepted 28 May 2020

Abstract: To improve rate and cycling performance of manganese oxide anode material, a precipitation method was combined with thermal annealing to prepare the MnO/Mn₃O₄/SeO_x (x=0, 2) hybrid anode by controlling the reaction temperature of Mn₂O₃ and Se powders. At 3 A/g, the synthesized MnO/Mn₃O₄/SeO_x anode delivers a discharge capacity of 1007 mA·h/g after 560 cycles. A cyclic voltammetry quantitative analysis reveals that 89.5% pseudocapacitive contribution is gained at a scanning rate of 2.0 mV/s, and the test results show that there is a significant synergistic effect between MnO and Mn₃O₄ phases.

Key words: lithium-ion battery; manganese oxide; anode material; pseudocapacitive behavior; synergistic effect

1 Introduction

The development of the high-performance lithium-ion batteries (LIBs) is driving the progress of portable and ubiquitous electronics [1,2]. The realization of high-performance LIBs requires the electrode materials of high energy and power density, for which the conventional graphite anode material can no longer meet the urgent demands due to its low theoretical capacity (372 mA·h/g) and poor rate capability [3]. By designing nanostructures and combining metal oxide (MO) with carbon materials, both the specific capacity and rate capability of these MO-modified anode materials can be improved significantly [4]. However, the intrinsically poor Li⁺ diffusion kinetics in metal oxide anode materials degrades the electrochemical activity. In the process of pseudocapacitance lithium storage, the redox reactions take place reversibly and rapidly at or near the surface of electrode [5], so as to achieve high power density [6].

This kind of pseudocapacitance lithium storage behavior has been reported recently in a number of transition metal oxides (TMOs) anode materials [7,8]. The enhancement of the pseudo- capacitive contribution is considered as one of the most effective ways to improve the rate capability of the TMO anode materials. Of these TMOs, the manganese oxide anode materials have a high pseudocapacitive contribution through reasonable structural design [9,10]. In addition, the manganese oxide anode materials have the advantages of high theoretical lithium storage capacity, low platform voltage, high abundance in natural world, environmental benignity, low price, etc [4]. A previous work found that the phase boundaries are generally rich in lattice defects, distortions, and dislocations, exerting a significant influence on the charge distribution. Benefiting from the abundant phase boundaries, CoSe₂/ZnSe exerts a low Na⁺ adsorption energy and fast diffusion kinetics for sodium-ion batteries [11]. Selenium (Se) has also been widely considered due to its high electronic conductivity (1×10^–1 S/cm) and good lithium storage performance [12,13]. Moreover, manganese oxide can be reduced by Se under certain temperature conditions based on thermodynamic calculation. Thus, we can obtain high energy density by means of phase regulation of manganese oxides, and then improve their cycling performance at high current density through stimulating a high pseudocapacitive contribution by surface and internal microstructure evolution. However, no attempts have been made so far to prepare any multi-phase manganese oxide anode materials for LIBs and explore their synergistic effects from these phases.

Herein, we proposed a scalable approach to fabricate the novel Se-modified MnO/Mn₃O₄ hybrid (MnO/Mn₃O₄/SeO_x (x=0, 2)) by thermal annealing of Mn₂O₃ powder with Se powder in order to produce LIBs anode with excellent performance. The residual amount of Se in the hybrid and the good interparticle adhesion are beneficial to the electronic transfer, thus improving the conversion reaction rate and efficiency, whereas the increasing phase boundaries between MnO and Mn₃O₄ can improve the Li⁺ storage among the particles, thus accelerating Li⁺ diffusion kinetics. In addition, the manganese oxides are transformed from a crystalline state to an amorphous one during the charge/discharge cycles, and this amorphous state can increase the void space in the hybrid for lithium storage. Furthermore, the cyclic voltammetry (CV) tests reveal a high pseudocapacitive contribution for lithium storage.

2 Experimental

2.1 Preparation of MnO/Mn₃O₄/SeO_x hybrid

The Mn₂O₃ powder was prepared according to our previous report [14]. The MnO/Mn₃O₄/SeO_x hybrid was prepared by the method of thermal annealing under a negative pressure. Firstly, 0.5 g Mn₂O₃ and 1 g Se powders were placed at the two ends of a crucible, respectively, which was covered by another crucible. Secondly, the crucibles containing samples were placed in a tube furnace, and the pressure in the tube furnace was controlled to keep a negative pressure by a vacuum pump. Thirdly, the vacuum pump was shut off and then the tube furnace was heated at a heating rate of 5 °C/min up to 650 °C, kept at the temperature of 650 °C for 2 h, and then cooled down to room temperature. Finally, the MnO/Mn₃O₄/SeO_x hybrid was obtained. For comparison, the Mn₂O₃/Mn₃O₄/ SeO_x and Mn₃O₄/SeO_x hybrids were also prepared by thermal annealing of the Mn₂O₃ powder with the Se powder under a negative pressure at 500 and 800 °C, respectively.

2.2 Material characterization

X-ray diffraction (XRD) patterns of the samples were measured on Rigaku Dmax/2550VB+ 18 kW instrument to identify the phases in the prepared hybrids. Scanning electron microscope (SEM, FEI Nova Nano SEM230) was adopted to reveal the morphology and to do energy dispersive X-ray (EDX) elemental mapping. Transmission electron microscope (TEM, JEOL JEM-2010) was used to characterize the microstructure. The BET surface areas and pore size distribution were tested on a JW–BK100C instrument. X-ray photo- electronic spectroscopy (XPS) data were obtained by Thermo ESCALAB 250XI instrument using Al K_α radiation.

2.3 Electrochemical testing

A 2032-type coin cell was fabricated using lithium metal as the counter electrode and Celgard 2500 as the separator, and using LiPF₆ (1 mol/L) in a mixture of ethylene carbonate (EC) and dimethyl carbonate (DMC) with a volume ratio of 1:1. The working electrodes were prepared by mixing active material, carbon black, and polyvinylidene fluoride (PVDF) in a mass ratio of 7:2:1. The well-mixed slurry was coated on Cu foil, and then dried in a vacuum oven. The mass loading of active materials was 0.8-1.0 mg/cm² on circular discs (d=12 mm) of Cu foil. CV analysis was conducted at 0.1-2.0 mV/s within the range of 0.01-3.0 V (vs Li/Li⁺) on a CHI760E electrochemical workstation. Cycle life and rate capability of the cells were tested within a voltage window of 0.01-3.0 V (vs Li/Li⁺) by LAND CT2001A analyzer at 25 °C. EIS experiments were carried out using a CHI760E electrochemical workstation in the frequency range of 0.01 Hz-100 kHz.

3 Results and discussion

The synthesis procedure of MnO/Mn₃O₄/SeO_x hybrid involves precipitating, aging, calcining and thermal annealing with Se powder under negative pressure (Fig. 1(a)). Firstly, NaOH and Na₂CO₃ mixed solution was dropwise added into the MnCl₂ solution, and a uniform suspension containing Mn(OH)₂ and MnCO₃ was obtained. After aging, Mn(OH)₂ was transformed to MnO(OH)₂. Through post-thermal calcination, the Mn₂O₃ powder was obtained [14]. The porous structure was well formed because of the release of CO₂ gas during thermal treatment (MnO(OH)₂+MnCO₃=Mn₂O₃+ H₂O(g)+CO₂(g)) [15]. Finally, the MnO/Mn₃O₄/ SeO_x hybrid was produced by thermal annealing of the Mn₂O₃ with Se powder under a negative pressure (Fig. 1(b)). It is the first time that Se was utilized to control the phase of manganese oxides (2Mn₂O₃+Se(g)=4MnO+SeO₂(g), 6Mn₂O₃+Se(g)= 4Mn₃O₄+SeO₂(g)). The MnO/Mn₃O₄/SeO_x hybrid shows a claybank color, indicating that the main phase of the surface layer of the hybrid should be Mn₃O₄ (Fig. 1(c)).

The SEM images of the MnO/Mn₃O₄/SeO_x hybrid show a distinct feature that the submicron particles are adhered tightly to each other, which is beneficial to reducing the interfacial resistance (Figs. 2(a) and (b)). The elemental mapping images in Figs. 2(c), (d) and (e) demonstrate a uniform distribution of Mn and O. Figure 2(f) shows the EDX analysis results of the surface for the MnO/Mn₃O₄/SeO_x hybrid in Fig. 2(b), which indicate that the mole fraction of Se in the MnO/Mn₃O₄/SeO_x hybrid is 4.34%. The content of Se element is relatively low, so the morphological features of Fig. 2(b) cannot be seen in Fig. 2(e). It is worthy to note that the residual amount of Se in the MnO/Mn₃O₄/SeO_x hybrid can improve its electronic conductivity [16].

The XRD patterns in Fig. 3 reveal that the MnO/Mn₃O₄/SeO_x hybrid is composed of a cubic MnO phase (JCPDS No. 07-0230) and a tetragonal Mn₃O₄ phase (JCPDS No. 24-0734). According to the crystal parameters in the XRD pattern, the microcrystal size of the sample can be calculated by the Debye-Scherrer formula, from which the microcrystalline sizes of the MnO and Mn₃O₄ in the MnO/Mn₃O₄/SeO_x hybrid are 24.0 and 21.8 nm, respectively. The microcrystalline sizes of MnO and Mn₃O₄ are so small that much more grain boundaries can be formed. And these abundant grain boundaries are conducive to increasing the diffusion channels for Li⁺. The process of materials preparation was performed in a negative pressure airtight environment, resulting in a trace of Se and SeO₂ still remaining in the MnO/Mn₃O₄ composite material, thus the contents of both Se and SeO₂ are below the detection limit of XRD. The XRD patterns of the comparison hybrids (Mn₂O₃, Mn₂O₃/Mn₃O₄/SeO_x and Mn₃O₄/SeO_x) are also shown in Fig. 3.

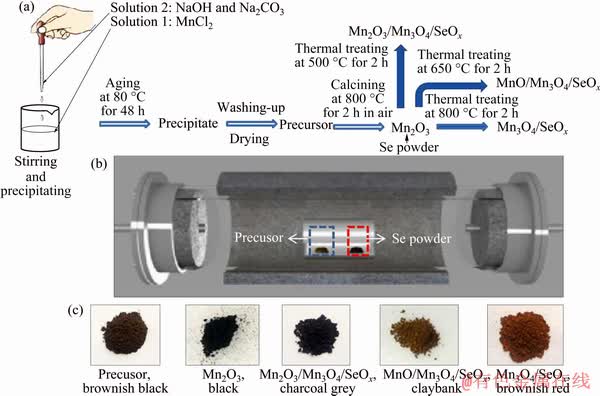

Fig. 1 Schematic illustration of synthesis route for preparing Mn/Se oxide hybrids (a), schematic diagram of equipment for preparing Mn/Se oxide hybrids (b) and photos of obtained hybrids (c)

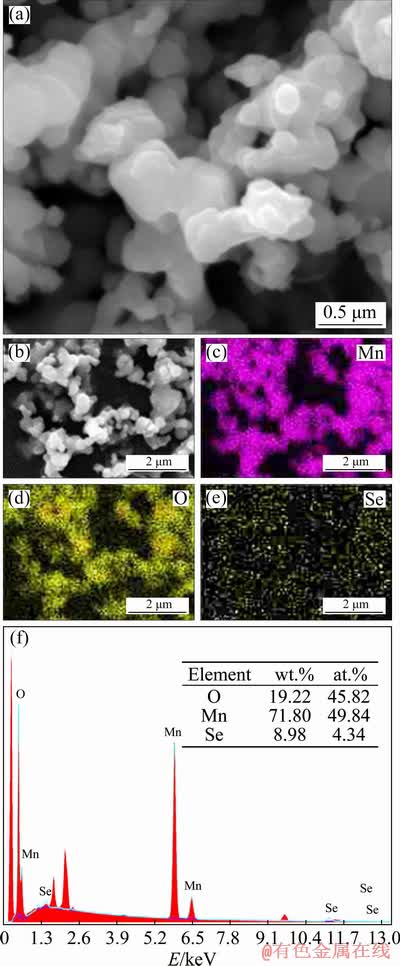

Fig. 2 SEM image of MnO/Mn₃O₄/SeO_x hybrid (a), low magnification image of (a) (b), Corresponding EDX mapping images of (b) for Mn (c), O (d) and Se (e) and corresponding EDX analysis results of Mn, O and Se (f)

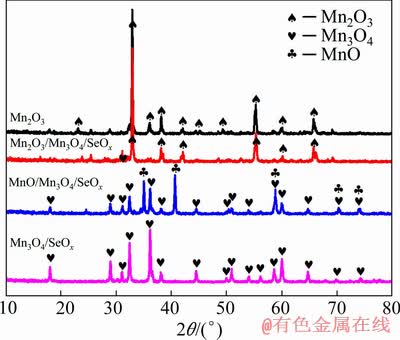

Fig. 3 XRD patterns of different samples

TEM examination was performed to further understand the fine microstructure and crystallinity of MnO/Mn₃O₄/SeO_x hybrid. Figures 4(a) and (b) clearly illustrate the microstructural feature that the submicron particles are adhered tightly to each other. It can also be clearly observed from the high- resolution TEM image in Fig. 4(c) that there are two phases in the MnO/Mn₃O₄/SeO_x hybrid, which is consistent with the XRD results. Furthermore, there is an obvious phase boundary between MnO and Mn₃O₄, which is beneficial to the acceleration of Li⁺ diffusion [17]. Figure 4(c) also shows that the main phase in the outer layer (10-15 nm) of the hybrid is Mn₃O₄, confirming the speculation in Fig. 1(c). The electronic conductivity of Mn₃O₄ is 10^–5-10^–6 S/m and that of MnO is 10^–7 S/m, therefore, the Mn₃O₄ on the surface of the MnO/Mn₃O₄/SeO_x hybrid is conducive to the electron transfer [18].

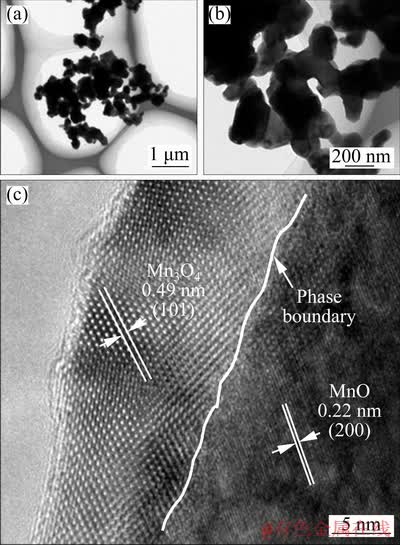

Fig. 4 TEM image of MnO/Mn₃O₄/SeO_x hybrid (a), high- magnification image of (a) (b) and high-resolution image of (b) (c)

X-ray photoelectron spectroscopy (XPS) spectra of the Mn₂O₃, Mn₂O₃/Mn₃O₄/SeO_x, MnO/ Mn₃O₄/SeO_x and Mn₃O₄/SeO_x hybrids (the surface detection depth is about 10 nm) are shown in Fig. 5. Figure 5(a) shows that the full survey spectra for the hybrids all contain the characteristic peaks of Mn 2p, Mn 3s, Mn 3p and O 1s. Moreover, the Mn₂O₃/Mn₃O₄/SeO_x hybrid contains the characteristic peak of Se. Figure 5(b) shows the close inspection of Fig. 5(a), indicating that for Mn₂O₃/Mn₃O₄/SeO_x hybrid the characteristic peaks of Se 3s, Se 3p and Se 3d are observed [19]. Figure 5(c) shows the high-resolution XPS spectrum of Se 3d for the Mn₂O₃/Mn₃O₄/SeO_x hybrid, the two notable peaks at 59.4 and 58.6 eV are corresponding to Se⁴⁺ [20]. The high-resolution XPS spectrum of Mn 2p for the MnO/Mn₃O₄/SeO_x hybrid in Fig. 5(d) shows two distinct peaks at 653.6 and 642.2 eV, respectively, which are in good agreement with the reported results of Mn₃O₄ [4]. All these results indicate that the main phase in the surface for the MnO/Mn₃O₄/SeO_x hybrid is Mn₃O₄, which is consistent with the TEM results. Figure 5(e) shows the high-resolution XPS spectrum of O 1s for the MnO/Mn₃O₄/SeO_x hybrid, in which the distinct peaks at 531.1 and 530.0 eV can be ascribed to Mn—O—Mn and Mn—O bonds, respectively [16]. The specific surface area of the MnO/Mn₃O₄/SeO_x hybrid is found to be 6.18 m²/g (Fig. 5(f)). The pore size distribution (the inset in Fig. 5(f)) calculated from the DFT method shows an average pore size of 3.18 nm, and the total pore volume is calculated to be 0.011 cm³/g. The mesoporous structure is favorable for electrolyte penetration in the MnO/Mn₃O₄/SeO_x hybrid.

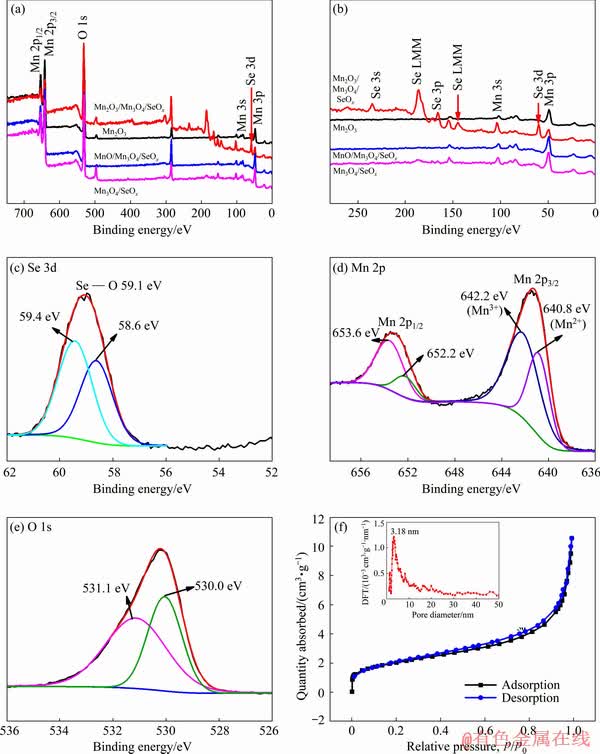

Fig. 5 XPS spectra of Mn₂O₃, Mn₂O₃/Mn₃O₄/SeO_x, MnO/Mn₃O₄/SeO_x and Mn₃O₄/SeO_x hybrids (a), close inspection of (a) (b), high-resolution XPS spectrum of Mn₂O₃/Mn₃O₄/SeO_x hybrid for Se 3d (c), high-resolution XPS spectrum of MnO/Mn₃O₄/SeO_x hybrid for Mn 2p (d), high-resolution XPS spectrum of MnO/Mn₃O₄/SeO_x hybrid for O 1s (e) and BET isotherm plots and corresponding pore size distributions (inset) of MnO/Mn₃O₄/SeO_x hybrid (f)

Figure 6(a) shows the cyclic voltammetry (CV) curves of the MnO/Mn₃O₄/SeO_x electrode for the initial five cycles at a scan rate of 0.1 mV/s. As shown in the insert of Fig. 6(a), in the initial cathodic process, there is a wide reduction peak at around 0.75 V due to the formation of a solid– electrolyte interface (SEI) film. Furthermore, two main lithiation peaks centered at around 0.28 and below 0.20 V can be attributed to the reduction of Mn³⁺ to Mn²⁺ and Mn⁰, respectively (Mn₃O₄+ 2Li⁺+2e→3MnO+Li₂O, MnO+2Li⁺+2eMn+ Li₂O) [21]. Due to the improved reaction kinetics after the first lithiation, the reduction peak shifted to higher potentials of around 0.82 and 0.46 V for the second and following cycles, respectively. The broad oxidation peak located at around 1.25 V in the reverse sweep during the anodic process is ascribed to the reoxidation of metallic Mn [21]. The charge/discharge profiles at different current densities are displayed in Fig. 6(b). The distinct plateaus in the discharge/charge profiles are in accordance with the CV curves. The first discharge and charge capacities are 1287 and 941 mA·h/g, respectively. The initial irreversible capacity loss (~27.1%) can be ascribed to the formation of the SEI layer and the incomplete conversion reaction [22].

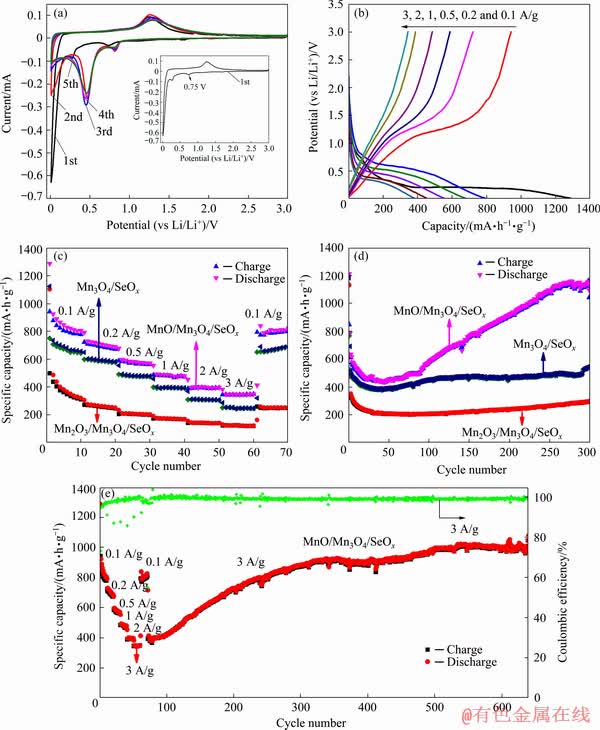

Fig. 6 Cyclic voltammetry curves of MnO/Mn₃O₄/SeO_x electrode (inset shows the first cyclic voltammetry curve) (a), charge/discharge curves of MnO/Mn₃O₄/SeO_x electrode (b), rate performance of Mn₂O₃/Mn₃O₄/SeO_x, MnO/Mn₃O₄/ SeO_x and Mn₃O₄/SeO_x electrodes (c), cycling performance of Mn₂O₃/Mn₃O₄/SeO_x, MnO/Mn₃O₄/SeO_x and Mn₃O₄/SeO_x electrodes at 1 A/g (d) and cycling performance and coulombic efficiency of MnO/Mn₃O₄/SeO_x electrode at current densities of 0.1-3 A/g (e)

The rate performance of the prepared electrodes was evaluated in the current density range from 0.1 to 3 A/g (Fig. 6(c)). For the MnO/Mn₃O₄/SeO_x electrode, the average reversible discharge capacities are found to be 828, 716, 589, 490, 402 and 350 mA·h/g as the current densities are increased from 0.1, 0.2, 0.5, 1, 2 and 3 A/g, respectively. Moreover, when the current density is restored to 0.1 A/g, the capacity also recovers to 793 mA·h/g, which indicates an excellent reversibility of the electrode. The rate performance of the MnO/Mn₃O₄/SeO_x electrode is obviously higher than that of the Mn₂O₃/Mn₃O₄/SeO_x (127 mA·h/g at 3 A/g) and Mn₃O₄/SeO_x (24 mA·h/g at 3 A/g) electrodes. The results imply that there are significant synergistic effects between the MnO and Mn₃O₄ in the MnO/Mn₃O₄/SeO_x hybrid. The excellent rate capability benefits from the residual amount of Se in the hybrid and the good interparticle adhesion that can facilitate the electronic transfer. In addition, the grain boundaries formed by MnO and Mn₃O₄ can accelerate the reaction kinetics [17].

To understand the capacity and stability of the prepared electrodes, the test was carried out at a current density of 1 A/g for 300 cycles (Fig. 6(d)). The discharge capacities of the Mn₂O₃/Mn₃O₄/SeO_x, MnO/Mn₃O₄/SeO_x and Mn₃O₄/SeO_x electrodes are 300, 1122 and 544 mA·h/g at the 300th cycle, respectively. The discharge capacity of the MnO/ Mn₃O₄/SeO_x electrode rapidly drops over the first 45 cycles and decreases to 437 mA·h/g, then gradually increases to 1103 mA·h/g at the 253rd cycle, still reaches as high as 1122 mA·h/g at the 300th cycle. The cycling performance of the MnO/Mn₃O₄/SeO_x electrode has been improved significantly, mainly attributing to the pseudo- capacitance lithium storage behavior, which is excited by the microstructural transformation induced by charge/discharge cycles. After charge/discharge cycles, the capacity of manganese oxides electrodes decreases rapidly, for which the main reason is that all generated Mn⁰ has not been reversibly converted to MnO_x [23]. The rising trend of capacity between the 45th and 253rd cycles of the MnO/Mn₃O₄/SeO_x electrode can be reasonably explained by the enhancement of electrochemical activation of active materials [24]. In addition, MnO and Mn₃O₄ phases are changed from a crystal state to an amorphous one during the charge/ discharge cycles, and this amorphous structure can increase the void space inside the hybrid and thus enhance the pseudocapacitance effect [25].

In order to explore the cycling stability at high current densities of the MnO/Mn₃O₄/SeO_x electrode, it was firstly tested for 70 cycles at the current densities of 0.1, 0.2, 0.5, 1, 2, 3 and 0.1 A/g, and then tested continuously at a current density of 3 A/g, and the results are shown in Fig. 6(e). The discharge specific capacity decreases to 378 mA·h/g after 78 cycles, and then increases rapidly. The MnO/Mn₃O₄/SeO_x electrode still shows 1007 mA·h/g after 630 cycles, which is higher than the theoretical capacity of MnO (756 mA·h/g) and even that of Mn₃O₄ (936 mA·h/g). All these results show that the MnO/Mn₃O₄/SeO_x electrode also possesses an excellent long-term cycling stability at high current density. To the best of our knowledge, this is the best cycling stability at high current density ever reported for transition metal oxide anode in LIBs. A comparison of the cycling stability and rate capability of the MnO/Mn₃O₄/ SeO_x anode with those of the previously reported transition metal oxide anode for LIBs is given in Table 1. At a current density of 3 A/g, the coulombic efficiency of the MnO/Mn₃O₄/SeO_x electrode increases to 97.8% for the third charge/discharge cycle, and then exceeds 98.5% until the end of the charge/discharge cycles, indicating an excellent stability of the generated SEI film [22].

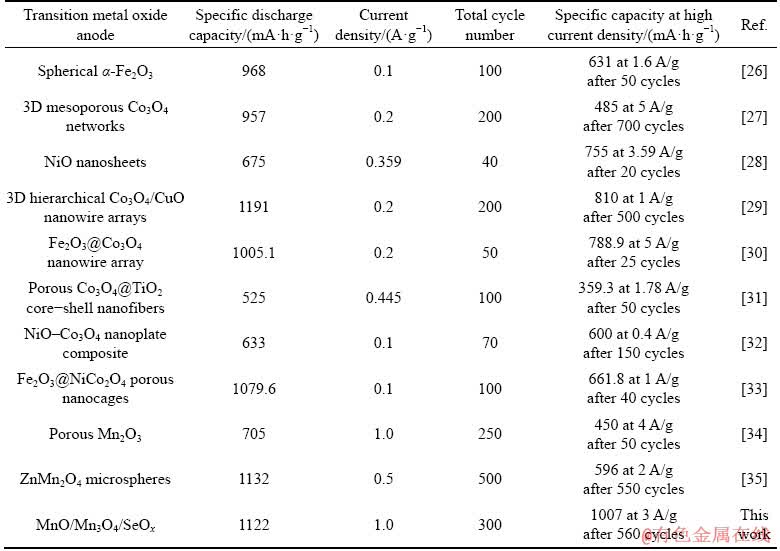

Table 1 Comparison of cycling stability and rate capability of MnO/Mn₃O₄/SeO_x anodes with previously reported transition metal oxide anodes for LIBs

Figure 7 displays the Nyquist plots of the Mn₂O₃, Mn₂O₃/Mn₃O₄/SeO_x, MnO/Mn₃O₄/SeO_x and Mn₃O₄/SeO_x electrodes. The equivalent circuit for EIS fitting is presented by the inset in Fig. 7, where R_Ω is the ohmic resistance, R_ct corresponds to the charge–transfer resistance, Z_W is the Warburg impedance, and C_d is the double-layer capacitance [36]. The semicircle from high to medium frequencies is associated with the R_ct, as can be seen from Fig. 7, the R_ct of the electrode decreases significantly for the hybrids prepared after thermal annealing with Se. The fitting analysis of the test results was carried out for the Mn₂O₃, Mn₂O₃/Mn₃O₄/SeO_x, MnO/Mn₃O₄/SeO_x and Mn₃O₄/SeO_x electrodes, yielding corresponding R_ct values of 52.4, 28.9, 25.3 and 18.5 Ω, respectively; and R_Ω values of 1.94, 1.73, 1.85 and 1.79 Ω, respectively. These results show that the R_ct values of the electrodes containing Se decrease significantly, which is mainly attributed to the fact that the residual Se in the hybrids could improve the interfacial conductivity [16]. The electronic conductivity of Mn₃O₄ is higher than that of MnO, so the charge-transfer resistance of the Mn₃O₄/SeO_x electrode is much smaller than that of the MnO/Mn₃O₄/SeO_x electrode [18]. However, the rate capability and cycling stability of MnO/Mn₃O₄/ SeO_x electrode are superior to those of the Mn₃O₄/SeO_x electrode, because the phase boundaries between MnO and Mn₃O₄ are beneficial to the acceleration of Li⁺ diffusion [17].

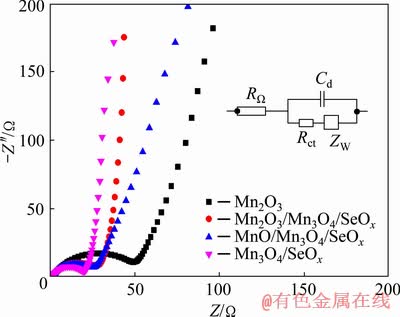

Fig. 7 Nyquist plots of Mn₂O₃, Mn₂O₃/Mn₃O₄/SeO_x, MnO/Mn₃O₄/SeO_x and Mn₃O₄/SeO_x electrodes

TEM was utilized to characterize the microstructure of the MnO/Mn₃O₄/SeO_x hybrid after 1000 cycles at 3 A/g, and the results are shown in Fig. 8. Figures 8(a) and (b) clearly illustrate the microstructural feature showing the submicron particles adhered tightly to each other, which is in good agreement with the TEM images in Figs. 4(a) and (b). However, the particle size is reduced obviously (i.e. reduced from more than 200 nm to less than 100 nm), indicating that particle pulverization occurs after charge/discharge cycles. With the decrease of particle size, much larger surface area can be formed, and the smaller particles and the formation of defects in the electrode improve the reaction kinetics, resulting in a lower overpotential of Mn²⁺ to Mn³⁺. It can also be clearly observed from the high-resolution TEM image in Fig. 8(c) that most of the areas show an amorphous feature, and a few numbers of small grains exist (the areas within the four white dotted circles). The surface and internal structures of amorphous manganese oxides are changed due to the disordered distribution of both manganese atoms and oxygen atoms in the hybrid, and the disordered structure can increase the void space in the hybrid to accelerate the reaction kinetics [37].

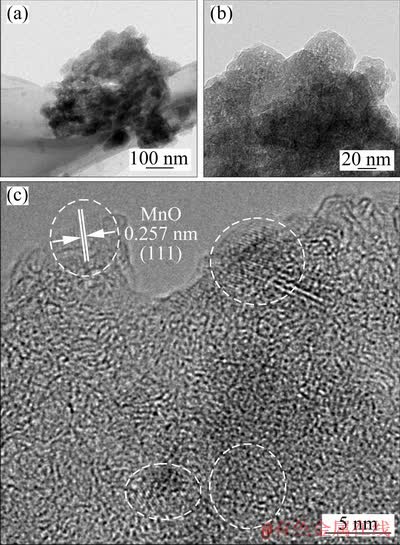

Fig. 8 TEM image of MnO/Mn₃O₄/SeO_x hybrid after 1000 cycles at 3 A/g (a), high-magnification image of (a) (b) and high-resolution image of (b) (c)

According to previous reports, larger surface area can be formed with the decrease of particle size for the MnO/Mn₃O₄/SeO_x hybrid during the cycling process, so that these ample interfaces could possibly result in an increase of pseudo- capacitive capacity. Thus, we further analyzed the kinetics of the MnO/Mn₃O₄/SeO_x electrode by CV. Figure 9(a) shows the CV curves of a fresh MnO/Mn₃O₄/SeO_x electrode at various scan rates from 0.1 to 2.0 mV/s. The pseudocapacitive contribution can be qualitatively analyzed according to the power-law formula (Eq. (1)). The relationship between peak current (I_p) and scan rate (v) can be calculated by Eq. (2):

I_p=av^b (1)

lg I_p=blg v+lg a (2)

where a and b are adjustable constants [10]. The values of b can be calculated based on the slope of the linear plots of lg I_p versus lg v. Generally, a value of b close to 0.5 indicates a diffusion- controlled behavior, while a value of b approaching 1.0 infers a capacitive process. From Fig. 9(b), the b values for the cathodic (Peak 1) and anodic (Peak 2) peaks are determined to be 0.81 and 0.75, respectively, indicating that the electrochemical reactions of the MnO/Mn₃O₄/SeO_x electrode are mainly controlled by the pseudocapacitive behavior. The pseudocapacitive contribution can further be calculated according to Eq. (3) or (4)) [10]

I(V)=k₁v+k₂v^1/2 (3)

I(V)/v^1/2=k₁v^1/2+k₂ (4)

where k₁ and k₂ are constants for a given potential, and k₁v and k₂v^1/2 represent the corresponding current response I at a given fixed potential V originated from the pseudocapacitive effectsand the diffusion-controlled Li⁺-insertion reactions, respectively. As shown in Fig. 9(c), the fresh MnO/Mn₃O₄/SeO_x electrode displays a 61.5% for the pseudocapacitive contribution at a scan rate of 0.1 mV/s, and gradually improves to 89.5% at 2.0 mV/s. The high pseudocapacitance contribution is mainly attributed to the amorphous state of manganese oxides [9].

Fig. 9 Cyclic voltammetry curves of MnO/Mn₃O₄/SeO_x electrode at various scan rates (a), lg I_p versus lg v plots of different cathodic/anodic peaks (b), normalized contribution ratios of capacitive and diffusion-controlled capacities at different scan rates (c), and relationship between I_p and v^1/2 for MnO/Mn₃O₄/SeO_x electrode (d)

According to a series of CV test results at various scan rates, the kinetics of Li⁺ diffusion inside the MnO/Mn₃O₄/SeO_x electrode was also investigated, and the results are shown in Fig. 9(d). The Li⁺ diffusion coefficient is calculated based on the Randles–Sevcik equation ((Eq. (5)) [38]:

I_p=2.69×10⁵n^3/2AD^1/2C₀v^1/2 (5)

where I_p is the peak current (A), n is the electron transfer number (Li⁺, n=1), A is the electrode area (1.13 cm² in this work), D is Li⁺ diffusion coefficient (D_Li⁺, cm²/s), C₀ is the Li⁺ concentration in electrolyte (mol/L), and v is scan rate (V/s). According to linear fitting results of I_p and v^1/2 and Eq. (5), D_Li⁺ in the MnO/Mn₃O₄/SeO_x electrode is estimated to be 6.2×10^–8 cm²/s, which is five orders of magnitude higher than that of manganese oxide nanowire [39].

4 Conclusions

(1) A MnO/Mn₃O₄/SeO_x hybrid anode material was prepared by a method of precipitation combined with thermal annealing.

(2) The residual amount of Se in the hybrid and the strong interparticle adhesion are beneficial to the electron transfer, which improve the conversion reaction rate and efficiency.

(3) The MnO/Mn₃O₄/SeO_x electrode delivered an excellent cycling performance (1007 mA·h/g at 3 A/g after 560 cycles).

(4) The manganese oxides were gradually transformed from a crystalline state to an amorphous form during the charge/discharge cycles, thus forming much more interfaces and void spaces in the hybrid, which resulted in an increase of pseudocapacitance capacity to 89.5% at 2.0 mV/s.
