As-cast microstructure and Sr-containing phases of
AZ31 magnesium alloys with high Sr contents
WU Lu1, PAN Fu-sheng1, YANG Ming-bo2, WU Ju-ying1, LIU Ting-ting1
1. National Engineering Research Center for Magnesium Alloys, Chongqing University, Chongqing 400044, China;
2. College of Materials Science and Engineering, Chongqing University of Technology, Chongqing 400050, China
Received 25 September 2010; accepted 20 December 2010
Abstract:
The as-cast microstructure and Sr-containing phases in the AZ31 magnesium alloys with different Sr contents (0%, 0.3%, 2.5% and 5.0%, mass fraction) were investigated. The results indicate that after adding Sr to the AZ31 magnesium alloy, the dendrite/grain size is decreased, and with the Sr content increasing from 0 to 5.0%, the dendrite becomes finer, the dendrite morphology becomes more passive and the distribution of alloying phases at dendrite/grain boundary is dispersed. Furthermore, the morphology of the β-Mg17Al12 phase in the alloy with addition of 0.3%Sr changes from continuously irregular strip-like shape to discontinuously irregular strip-like shape and/or fine granule-like shape. At the same time, some lamella-like eutectic phases are found in the alloys with additions of 2.5% Sr and 5.0% Sr, and the lamella spacing in the alloy with addition of 5.0% Sr is finer. Adding high Sr content to the AZ31 alloy can bring the new ternary eutectic and/or divorced eutectic phase of Mg11Al5Zn4 in the alloy, and the Mg17Sr2 and Mg2Sr phases are formed in the alloys with additions of 2.5% Sr and 5.0% Sr.
Key words:
magnesium alloy; AZ31 magnesium alloy; Sr-containing phase; Sr;
1 Introduction
In recent years, the annual output of magnesium has increased remarkably in China, and magnesium alloys are being applied to motorcycles, automobiles, electric devices and so on[1]. As one significant member of the big family, the Mg-Al-Zn system magnesium alloys have been widely applied in industrial production. But their mechanical properties and processing performances still could not meet the needs of some important parts in vehicles and other application fields[2-6]. Therefore, many methods are being investigated in the world in order to improve mechanical properties and processing performances of Mg-Al-Zn system alloys. It has been reported that the Sr addition to the Mg-Al-Zn system alloys can refine the microstructures, improve the strength and creep resistance. ALIRAVCI et al[7-8] and NUSSBAUM et al[9] found that adding minor Sr to the Mg-9Al-1Zn alloy can decrease the grain size and improve the shrinkage micro-porosity. In addition, YANG et al[10-11] reported that different Sr-containing master alloys such as Mg-9Sr and Al-10Sr, have different grain refining efficiencies to the Mg-3Al-1Zn alloy. In spite of the above works, the previous investigations mainly focus on the effect of minor Sr on the grain refinement and mechanical properties of the Mg-Al-Zn system alloys. The effect of Sr addition on the alloying phases of the Mg-Al-Zn system alloys is very scarce in the literature, especially the effect of high Sr content. Since the alloying phases are very important to the mechanical properties of the engineering alloys, it is very necessary to investigate the effect of Sr addition on the alloying phase in the Mg-Al-Zn system alloys, especially the effect on the Sr-containing alloying phases. Based on the above reasons, the as-cast microstructure and the Sr-containing phases in the AZ31 magnesium alloys with different Sr contents (0, 0.3%, 2.5% and 5.0%, mass fraction) were investigated in this work.
2 Experimental
The experimental alloys were prepared from pure Mg, Al and Zn (≥99.9%), Mg-4.6%Mn and Mg-38.89%Sr master alloys. The pure Mg was first melted in an electrical resistance furnace using a graphite crucible and protected by a flux addition. When the melt temperature reached 730 °C approximately, the pure Al, pure Zn and the master alloys were added to the melt. After being held for 40 min at 700 °C, the melt was poured into a permanent mould in order to obtain a casting. Table 1 lists the chemical compositions of the experimental alloys.
Table 1 Chemical compositions of experimental alloys (mass fraction, %)
The samples of the experimental alloys were etched with a 8% nitric acid distilled water solution, and then examined by an Olymous optical microscope and TESCAN VEGA Ⅱ LMU type scanning electron microscope (SEM) equipped with an Oxford energy dispersive spectrometer (EDS). The phases in the experimental alloys were analyzed by Rigaku D/MAX-2500PC type X-ray diffractometer (XRD) with Co Kα.
3 Results and discussion
3.1 Microstructure of alloys
Figure 1 shows the optical images of the AZ31 alloy
with different Sr contents (0, 0.3%, 2.5% and 5.0%). It is found that the microstructure of the AZ31 alloy without Sr is mainly composed of the primary α-Mg and β-Mg17Al12 phases which precipitate along interdendritic; the dendritic arm spacing and grain size of the AZ31 alloy without Sr (Fig.1(a)) are obviously bigger than those of the other alloys (Figs.1(b))-(d)). The above results indicate that Sr added to the AZ31 alloy can refine the grains of the alloy. The difference is that the dendrite in the alloy with addition of 0.3% Sr just only gets slender, but the dendrite is finer and dendritic arm spacing is obviously decreased in the alloy with addition of 5.0% Sr. In addition, with additions of 2.5% and 5.0% Sr the curvatures of dendrite tips are found to become smaller and the dendrite becomes more passive in the alloys (Figs.1(c) and (d)).
In general, the grain refinement in industrial applications usually involves adding nucleant and solute elements，and the effect of a solute element on grain refinement is explained in terms of the growth restriction factor (GRF) (Eq.(1))[7, 12-13]. At the same time, according to the research results obtained by LEE et al[12] and ALIRAVCI et al[7], the solid solubility of Sr in magnesium is relatively limited. The solidification process belongs to non-equilibrium freezing because of the high solidification rates. During the solidification process, the primary α-Mg crystals first formed and grew, and the remaining Sr solute atoms in the melts diffused to the liquid/solid interface, restricting the grain growth. Therefore, the Sr element addition contributes to the significant grain refinement in the AZ31 alloy, as illustrated in Fig.1. And the mechanism of grain refinement of Sr in magnesium alloys is mainly believed to be the GRF mechanism. The larger the GRF value, the higher the refinement efficiency of Sr in magnesium alloys.
(1)
where mi is the slope of the liquidus line; c0i is the initial concentration of element i; ki is the partition coefficient. Under the experimental condition of this work, i is Al, Zn and Sr elements, respectively.
Fig.1 As-cast microstructures of AZ31 magnesium alloys with different Sr contents: (a) Without Sr; (b) 0.3% Sr; (c) 2.5% Sr; (d) 5.0% Sr
According Eq.(1), the GRF value will be increased with increasing the c0Sr, which is due to adding much more amount of Sr element. Thus the dendrite/grain size of the AZ31 alloy decreases with increasing the Sr content from 0 to 5.0% based on the GRF mechanism which tallys with Fig.1 by and large.
3.2 Morphology and distribution of alloying phases
Figure 2 shows the SEM images of the AZ31 alloys with Sr showing of morphology and distribution of alloying phases. It is found from Fig.2 that with the addition of more than 2.5% Sr, the volume fraction of alloying phases at the dendrite/grain boundary is quite more than AZ31 alloy without Sr, and the alloying phases in the alloy with the addition of 5.0% Sr are more uniform and dispersed than those in the alloy with the addition of 2.5% Sr. And the similar phenomena can be found in Figs.2(b) and (a).
Figure 3 shows SEM images of the AZ31 alloy with Sr showing the morphology of alloying phases. It is found from Fig.3 that the morphology of the β-Mg17Al12 phase in the alloy with addition of 0.3% Sr changes from continuously irregular strip-like shape to discontinuously irregular strip-like shape and/or fine granule-like shape. At the same time, some lamella-like eutectic phases are found in the alloys with 2.5% Sr and 5.0% Sr, and the lamella spacing in the alloy with 5.0% Sr is finer. The energy dispersive spectrometry (EDS) results of the lamella-like shape phases, which are shown in Table 2, indicate that the mole ratios of Mg to Al to Zn and to Sr are about 67:24:6:3 and 67:26:4:3 at points A and B (Fig.3(c)) and (d)), respectively.
Fig.2 SEM images of AZ31 magnesium alloys with different Sr contents: (a) Without Sr; (b) 0.3% Sr; (c) 2.5% Sr; (d) 5.0% Sr

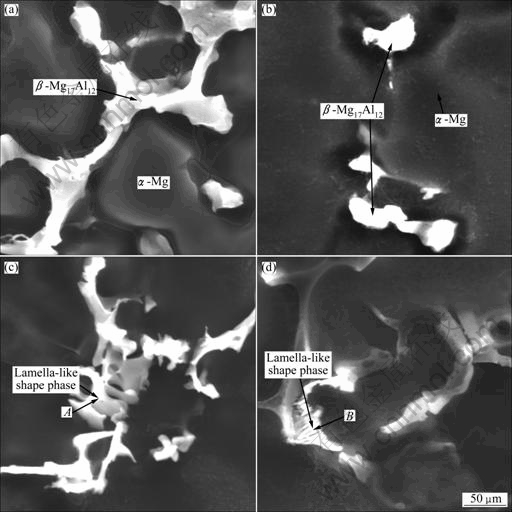

Fig.3 SEM images of alloying phases of AZ31 magnesium alloys with different Sr contents: (a) Without Sr; (b) 0.3% Sr; (c) 2.5% Sr; (d) 5.0% Sr
Table 2 Chemical compositions of lamella shape phases in Fig.3 (mole fraction, %)
Figure 4 shows the X-ray diffraction (XRD) patterns of AZ31 alloy with different Sr contents (0, 0.3%, 2.5% and 5.0%). It is shown in Fig.4 that without or with the addition of 0.3% Sr in AZ31 magnesium alloy, there are primary α-Mg and β-Mg17Al12 divorced eutectic phases, furthermore a few of new Al4Sr phases form in the microstructure with the addition of 0.3% Sr. Compared with them, β-Mg17Al12 divorced eutectic phase cannot be found in the alloys with 2.5% Sr and 5.0% Sr. In addition, combined with the EDS results, it is indicated that adding high Sr content to the AZ31 alloy can bring the new ternary eutectic and/or divorced eutectic phase of Mg11Al5Zn4 in the alloy just like the lamella-like shape phase appears in Figs.3(c) and (d), and the Mg17Sr2 and Mg2Sr phases are found in the alloys with 2.5% Sr and 5.0% Sr.
Fig.4 XRD patterns of AZ31 magnesium alloy with different contents of Sr: (a) Without Sr; (b) 0.3% Sr; (c) 2.5% Sr; (d) 5.0% Sr
According to the Mg-Sr phase diagram, the main phases in the as-cast Mg-38.89Sr are α-Mg and Mg2Sr phases at the rapid solidification rate. And because of the large difference in crystal structure of Mg2Sr phase and α-Mg phase, Mg2Sr cannot be the core of heterogeneous nucleation. Unless free state Sr atoms are isolated and then new alloying phases are formed at the grain/detrite boundary to limit α-Mg dendrite to grow up, and to affect the microstructure of magnesium alloy further. It is reported that the electron negativities of Mg, Al, Zn and Sr are 1.31, 1.61, 1.65 and 0.95, respectively[14]. On the basis of the electron negativity theory[15] that the larger the difference between two elements in electron negativity is, the easier it is to form a compound. Thus Zn is the easiest to form a compound with Sr, Al, and Mg followed in turn. But for the limited amount and large solid solubility, most of the Zn atoms in AZ31 magnesium alloy become to be solute atoms, and solid-soluted into matrix. So they are hard to combine with the Sr atoms. Compared with Zn atoms, Al atoms are easy to combine with Sr for the high concentration to form stable Al4Sr phase (Fig.4(b)) in minor Sr content alloy or metastable Al9Sr5 phase (Figs.4 (c) and d)) when adding much more Sr (>2.5%); otherwise, the surplus Sr atoms combine with Mg atoms to finally form Mg17Sr2 phase (Fig.4 (c)). And some Mg2Sr phases left because of the high content of Sr addition (5.0%, Fig.4(d)). Combining with the Al atom, Sr element has reduced the Al atom concentration, and then causes the new ternary phase Mg11Al5Zn4 phase formed when adding high Sr (>2.5%) to AZ31 magnesium alloy.
4 Conclusions
1) Adding Sr to the AZ31 magnesium alloy causes the dendrite/grain size to decrease, and with increasing the Sr content from 0 to 5.0%, the dendrite becomes finer, the dendrite morphology becomes more passive and the distribution of alloying phases at dendrite/grain boundary is dispersed. Furthermore, the morphology of the β-Mg17Al12 phase in the alloy with addition of 0.3%Sr changes from continuously irregular strip-like shape to discontinuously irregular strip-like shape and/or fine granule-like shape. At the same time, some lamella-like eutectic phases are found in the alloys with additions of 2.5% Sr and 5.0% Sr, and the lamella spacing in the alloy with addition of 5.0% Sr is finer.
2) Adding high Sr content to the AZ31 alloy can bring the new ternary eutectic and/or divorced eutectic phase of Mg11Al5Zn4 in the alloy, and the Mg17Sr2 and Mg2Sr phases occur in the alloys with additions of 2.5% Sr and 5.0% Sr.
References
[1] PAN Fu-sheng, ZHANG Jing, WANG Jing-feng, YANG Ming-bo, HAN En-hou, CHEN Rong-shi. Key R&D activities for development of new types of wrought magnesium alloys in China [J]. Transaction of Nonferrous Metals Society of China, 2010, 20: 1249-1258.
[2] PAN Fu-sheng, HAN En-hou. High-performance magnesium alloys and their processing technologies [M]. Bejing: Science Press, 2007: 59-70. (in Chinese)
[3] WANG Jing-tao, YIN De-liang, LIU Jin-qiang, TAO Jun, SU Yan-ling, ZHAO Xiang. Effect of grain size on mechanical property of Mg-3Al-1Zn alloy [J]. Scripta Materialia, 2008, 59: 63-66.
[4] TANG Ai-tao, PAN Fu-sheng, YANG Ming-bo, CHEN Ren-ju. Mechanical properties and microstructure of magnesium-aluminum based alloys containing strotium [J]. Materials Transactions, 2008, 49: 1203-1211.
[5] HORT B N, HUANG Yuan-ding, KAINER K U. Intermetallics in magnesium alloys [J]. Advanced Engineering Materials, 2006, 4: 235-240.
[6] ALJARRAH M, PARVEZ M A, LI Jian, ESSADIQI E, MEDRAJ M. Microstructural characterization of Mg-Al-Sr alloys [J]. Science and Technology of Advanced Materials, 2007, 8: 237-248.
[7] ALIRAVCI C A, GRUZLESKI J E, DIMAYUGA F C. Effect of strontium on the shrinkage microporosity in magnesium sand castings [J]. AFS Transactions, 1992, 100: 353-362.
[8] GRUZLESKI J E, ALIRAVCI C A. Low porosity, fine grain sized strontium-treated magnesium alloy casting: US 5143564 [P]. 1992.
[9] NUSSBAUM G, BRIDOT P, WARNER T J, REGAZZONI G, CHARBONNIER J. New Mg-Al based alloys with improved casting and corrosion properties[C]//MORDIKE B L, HEHMANN F. Magnesium Alloys and their Application 1992. Garmisch- Partenkirchen, Germany: DGM Informationsgesellschalft mbH. 1992: 351-358.
[10] YANG Ming-bo, PAN Fu-sheng, CHENG Ren-ju, TANG Ai-tao. Effects of Al-10Sr master alloys on grain refinement of AZ31 magnesium alloy [J]. Transaction of Nonferrous Metals Society of China, 2008, 18: 52-58.
[11] YANG Ming-bo, CHEN Ren-ju, PAN Fu-sheng, TANG Ai-tao. Microstructure of Mg-9Sr master alloys and its effects on microstructure refinement of AZ31 magnesium alloy [J]. Rare Metal Materials and Engineering, 2008, 37(3): 413-416.
[12] LEE S, LEE S H, KIM D H. Effect of Y, Sr and Nd addition in the microstructure and microfracture mechanism of squeeze-cast AZ91x magnesium alloys [J]. Metall Mater Trans A, 1998, 29: 1221-1235.
[13] ZENG Xiao-qin, WANG Ying-xin, DING Wen-jiang, LUO A A, SACHDEV A K. Effect of strontium on the microstructure, mechanical properties, and fracture behavior of AZ31 magnesium alloys [J]. Metall Mater Trans A, 2006, 37(4): 1333-1341.
[14] YU Yong-ning. Principles of metallography [M]. Beijing: Metallurgy Industry Press, 2000: 75-78. (in Chinese)
[15] ZHANG Jing, ZHANG Zhong-he. Magnesium alloys and applications [M]. Beijing: Chemical Industry Press, 2004: 39-40. (in Chinese)
高锶含量AZ31镁合金的铸态组织及含锶相
吴 璐1, 潘复生1, 杨明波2, 吴菊英1, 刘婷婷1
1. 重庆大学 国家镁合金工程技术研究中心，重庆 400044；
2. 重庆理工大学 材料科学与工程学院，重庆 400050
摘 要：研究不同Sr含量(0, 0.3%，2.5%和5.0%，质量分数)的AZ31镁合金的铸态组织及含锶相。结果表明：在AZ31镁合金中添加Sr后，枝晶/晶粒尺寸变小，并且在0~5.0%的范围内，随着Sr含量的增加，枝晶细化且形态出现钝化现象，位于晶界/枝晶界的合金相分布更加弥散。添加0.3%Sr后，β-Mg17Al12相从未添加Sr的AZ31合金中的连续、不规则条状转变为不连续、不规则条状和/或细小颗粒状。在添加2.5%Sr和5.0%Sr的合金中发现了一些层片状共晶相，且后者的层片间距更加小。较高含量的Sr添加到AZ31镁合金中可以形成一种新的共晶和/或 离异共晶三元Mg11Al5Zn4相，在添加2.5%Sr和5.0%Sr的合金中发现了Mg17Sr2相和Mg2Sr相。
关键词：镁合金；AZ31镁合金；含锶相；锶
(Edited by LI Xiang-qun)
Foundation item: Project (50725413) supported by the National Natural Science Foundation of China; Project (2007CB613704) supported by the National Basic Research Program of China; Project (2010CSTC-BJLKR) supported by Chongqing Science and Technology Commission, China; Project(CDJZR11130024) supported by the Fundamental Research Funds for the Central Universities, China
Corresponding author: PAN Fu-sheng; Tel: +86-23-65112635; E-mail: fspan@cqu.edu.cn
DOI: 10.1016/S1003-6326(11)60781-4
