Dissolution rate determination of alumina in

molten cryolite-based aluminum electrolyte

KAN Hong-min(阚洪敏), ZHANG Ning(张宁), WANG Xiao-yang(王晓阳)

Key Laboratory of Advanced Materials Technology of Liaoning Province, Shenyang University,Shenyang 110044, China

? Central South University Press and Springer-Verlag Berlin Heidelberg 2012

Abstract: Determination of dissolution rate of alumina is one of the classical problems in aluminum electrolysis. A novel method which can measure the dissolution rate of alumina was presented. Effect of factors on dissolution rate of alumina was studied intuitively and roundly using transparent quartz electrobath and image analysis techniques. Images about dissolution process of alumina were taken at an interval of fixed time from transparent quartz electrobath of double rooms. Gabor wavelet transforms were used for extracting and describing the texture features of each image. After subsampling several times, the dissolution rate of alumina was computed using these texture features in local neighborhood of samples. Regression equation of the dissolution rate of alumina was obtained using these dissolution rates. Experiments show that the regression equation of the dissolution rate of alumina is y=-0.000 5x³+0.024 0x²-0.287 3x+ 1.276 7 for Na₃AlF₆-AlF₃-Al₂O₃-CaF₂-LiF- MgF₂ system at 920 °C.

Key words: aluminum electrolyte; dissolution rate; image analysis; alumina; Gabor wavelet transform

1 Introduction

It is important for aluminum production to know the dissolution performance and dissolution rate of alumina. When temperature of aluminum electrolysis is lowered, low alumina solubility and dissolution rate occur. Alumina can not be completely dissolved or quickly dissolved in molten cryolite. Alumina will deposit on the bottom, thus the physical and chemical processes and heat balance of the electrolysis cell are severely affected. It is one of the key issues for low temperature aluminum electrolysis to improve the dissolution performance of alumina and know the dissolution rate of alumina.

Many previous measurements of alumina solubility and dissolution performance of alumina have been conducted and significant progress has been made [1-3]. The solubility of alumina in molten Na₃AlF₆ containing various amounts of AlF₃, CaF₂, and LiF was determined by measuring the mass loss of a rotating sintered corundum disc. The empirical expression was given by SKYBAKMOEN et al [4]. GERLACH et al [5] studied the dissolution of alumina in cryolite melts. Al₂O₃ samples pressed to tablets were dissolved in cryolite melts. They discovered that the dissolution rate changed at an Al₂O₃ content of 5%-6% (mass fraction) in the cryolite melts and the alteration of the rate law may be explained by structural changes in the melts. WELCH and GERDA [6] studied crust and alumina powder dissolution in aluminum smelting electrolytes. ZHANG et al [7] measured the solubility of Al₂O₃ in basic cryolite melts experimentally for 3≤r(cryolite ratio)≤12.5 at    1 300 K. QIU et al developed transparent quartz electro- bath in 1985. Dissolution behavior of alumina can be observed more intuitively and roundly by transparent quartz electrobath. In recent years, research groups took the whole process of dissolution of alumina from transparent quartz electrobath and studied the dissolution behavior of alumina in molten cryolite. It is found that the dissolution process of alumina is divided into two stages: rapid dissolution and peeling off dissolution of alumina crusted with electrolyte. Besides, research groups analyzed the effect of factors on dissolution rate of alumina using transparent quartz electrobath and image analysis techniques, and co-occurrence matrix method was used to compute the texture features [8-13].

In this work, a novel method that can measure the dissolution rate of alumina is presented. The transparent quartz electrobath of double rooms and image analysis are used for aluminum electrolysis. The image sequence is obtained by taking from the transparent quartz electrobath of double rooms. Image analysis techniques are used to compute the change of alumina dissolution rate. Images about dissolution process of alumina are taken at an interval of fixed time from transparent quartz electrobath of double rooms. Gabor wavelet transforms are used for extracting and describing texture features of each image. After subsampling several times, the dissolution rate of alumina is computed using these texture features in local neighborhood of samples. Regression equation of the dissolution rate of alumina is obtained using the dissolution rate. The use of the transparent quartz electrobath can provide corresponding parameters for aluminum electrolysis industry, which will guide industrial production.

2 Computing dissolution rate of Al₂O₃ based on image sequence analysis

2.1 Factors and constraints

Here, the transparent quartz electrobath of double rooms is used for a container. Alumina powder is added into the transparent quartz electrobath. Factors of dissolution rate of Al₂O₃ are considered. Then, constraints used by the following algorithm are set. These factors are temperature of the transparent quartz electrobath, quality of Al₂O₃, rate at which Al₂O₃ is added, stirring, additives used and composition of additives. Although capacity of the transparent quartz electrobath does not affect the shape of dissolution rate varying curve of Al₂O₃, it affects the critical value of dissolution rate varying curve of Al₂O₃. Suppose that V_t denotes the capacity of the transparent quartz electrobath, T_t denotes the temperature of the transparent quartz electrobath, Q_al denotes the quality of Al₂O₃, V_al denotes the rate at which Al₂O₃ is added, t_s denotes the time of stirring, V_s denotes the speed of stirring, V_ad denotes the additives used, and P_ad denotes the composition ratio of additives, then the factor set affecting dissolution rate of Al₂O₃ S_dis can be denoted as

S_dis={V_t, T_t, Q_a, V_a, t_s, V_s, V_ad, P_ad}                (1)

In this work, the method that computes the dissolution rate of Al₂O₃ is proposed based on image sequence analysis. Each element is set in the factor set S_dis. Image analysis and understanding are used for image sequence of Al₂O₃ which is taken from the transparent quartz electrobath. The dissolution rate varying curve of Al₂O₃ is developed. Then, the dissolution rate varying equation of Al₂O₃ is devloped. Here, the constraints for S_dis are set as follows. Suppose V_t=a, T_t=b, Q_al=c, V_al=d, t_s=e, V_s=f, V_ad=g, P_ad=h, then the dissolution rate of Al₂O₃ D_al can be denoted as

D_al=D(a×b×c×d×e×f×g×h)                          (2)

where D denotes the dissolution rate function, operator “×” denotes dependence relation among constraints.

It should be noticed that the factor set S_dis can be extended dynamically and parameter value can be changed dynamically. This makes it possible that constraints can be changed by application.

2.2 Algorithm computing dissolution rate of Al₂O₃

Here, the image sequence of Al₂O₃ dissolution is taken from the transparent quartz electrobath. It can be found that each image contains a large amount of texture information. Our idea is as follows: First, the image sequence of Al₂O₃ dissolution is taken at a specific time interval. The image sequence is regarded as a point set where each point corresponds to an image at a specific time. Texture features of each image are used to characterize a point. Then, the similarity between neighboring points is used to describe dissolution rate variation of Al₂O₃, so that the dissolution rate varying curve of Al₂O₃ can be drawn. Then, approximation and interpolation techniques are used to establish the dissolution rate varying equation of Al₂O₃. Finally, dissolution rate of Al₂O₃ can be computed by the equation. The flowchart by which dissolution rate of Al₂O₃ can be computed based on image sequence analysis can refer to Fig. 1. The error of the method is caused mainly by sampling time and time interval of sampling.

2.2.1 Computing information region in Al₂O₃ dissolution image

Here, image sequence of Al₂O₃ dissolution is taken from the transparent quartz electrobath at a fixed time interval. Then, information region is computed in each image. It can be found in Fig. 2 that Al₂O₃ dissolution image contains three regions: information region (Al₂O₃ dissolution region, Fig. 2(a)), interference region (Transparent quartz electrobath region, Fig. 2(b)) and background region (Black region, Fig. 2(c)). As far as computation of Al₂O₃ dissolution rate is concerned, the information region is most important. Here, rectangle window, such as A and B, is used to compute the information region.

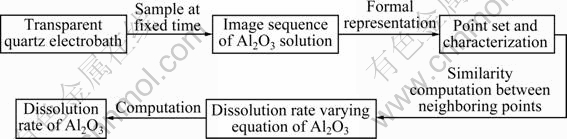

Fig. 1 Flowchart for computing dissolution rate of Al₂O₃ based on image sequence analysis

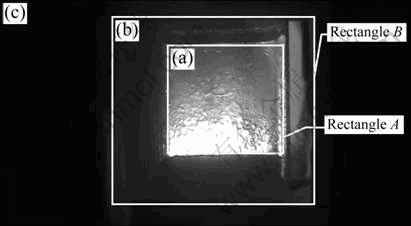

Fig. 2 Al₂O₃ dissolution image: (a) Information region; (b) Interference region; (c) Background region

When Al₂O₃ dissolution images are taken, the position of camera and distance from camera to the transparent quartz electrobath are relatively fixed. This means that the position and scale of a rectangle window can be decided in advance. Here, the point at the upper left corner is selected as a reference point. The scale of rectangle window A is A1 ? A2 and the position is (P1, P2). The scale of rectangle window B is B1 ? B2 and the position is (P3, P4).

Suppose that f(x, y) denotes an Al₂O₃ dissolution image of size M ? N. Equation (3) can be used to decide whether a point (x, y) is in information region:

P1≤ x≤P1+A1 and P2≤y≤P2+A2                 (3)

Here, x=P1 and x=P1+A1 are left boundary and right boundary of the information region, respectively; y=P2 and y=P2+A2 are upper boundary and bottom boundary, respectively.

2.2.2 Extracting texture features from information region of Al₂O₃ dissolution image

It can be found in Fig. 2(a) that the information region of the Al₂O₃ dissolution image contains a large amount of texture. Here, texture features are used to characterize an image, and Gabor wavelet transform method [14-15] is used to compute the texture features.

First, image sequence is taken through the transparent quartz electrobath. Then, color images are transformed into gray images by gray-scale transformation. Suppose that f(x, y) denotes a gray image of Al₂O₃ dissolution of size M?N. The 2D discrete Gabor wavelet transform of f(x, y) can be denoted as

           (4)

where the parameters s and t are mask size variables of filter; the parameters x and y point out the position of a pixel in f(x, y); the parameters p and q are scale and orientation of wavelet transform, respectively, p=[0, 4] and q=[0, 5]; j*_pq denotes complex conjugate of j_pq. j_pq is Gabor wavelet transform function and can be denoted as

j_pq(x, y)=a^-pj (x′, y′)                          (5)

where the parameter a is scale factor, and a>1. The parameters x′ and y′ can be respectively denoted as

x′=a^-p(xcosq+ysinq) and y′=a^-p(-xsinq+ycosq)      (6)

where θ=qπ/6.

Suppose that Gabor function is used as mother wavelet, then j(x, y) can be denoted as

(7)

where the parameter W denotes the frequency bandwidth of Gabor wavelet. It was found from neurophysiological research results that Gabor wavelet where W=0.5 is consistent with human vision system approximately. The parameters σ_x and σ_y denote constants of Gaussian envelope along x axis and y axis, respectively.

Energy can be computed according to the results of 2D discrete Gabor wavelet transform. Suppose that   E(p, q) denotes energy of scale p and orientation q, then E(p, q) can be denoted as

                     (8)

Energy can describe texture features effectively, but energy can also lead to classification error easily. So, mean and standard deviation are usually used as texture features. Suppose that μ(p, q) denotes mean and δ(p, q) denotes standard deviation, then μ(p, q) and δ(p, q) can be respectively denoted as

                            (9)

         (10)

Suppose that T denotes a texture feature vector of f(x, y), then T can be denoted as

T=[m₀₀, s₀₀, m₀₁, s₀₁, …, m_{P-1, Q-1}, s_{P-1, Q-1}]        (11)

2.2.3 Determination of dissolution rate equation of Al₂O₃

Here, the dissolution rate equation of Al₂O₃ will be computed. After image sequence of Al₂O₃ dissolution is drawn from the transparent quartz electrobath at a fixed time interval, the images can be regarded as an ordered point set. Furthermore, texture feature vectors can be used to characterize a point, as shown in Fig. 3.

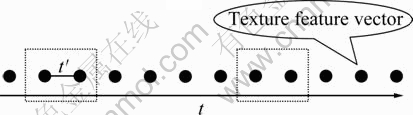

Fig. 3 Image sequence of Al₂O₃ dissolution

In Fig. 3, t′ denotes time interval between points in the ordered point set. If t′ is sufficiently small, then it can be thought that dissolution rate of Al₂O₃ can be changed at a fixed rate at t′ time interval.

Our idea is to use the similarity between texture feature vectors of two image points to describe dissolution rate variation of Al₂O₃. If t′ is sufficiently small, then dissolution rate of Al₂O₃ can be denoted as quotient between similarity and t′.

Suppose that Euclidean distance is used as similarity measure, then similarity between texture feature vectors of two image points can be denoted as

            (12)

where T_t1 and T_t2 denote the texture feature vectors of two image points at t′ time interval in the ordered point set, respectively. The dissolution rate of Al₂O₃, D_al, can be denoted as

D_al=S(T_t1, T_t2)/t′                             (13)

Suppose that image point set of Al₂O₃ dissolution consists of n elements. The k resampling is carried out for image sequence of Al₂O₃ dissolution in Fig. 3. The information can be regarded as a sample in the dashed box. Then, Eqs. (12) and (13) are used to compute dissolution rate of Al₂O₃, so that the dissolution rate varying point set of Al₂O₃ can be drawn. The polynomial approximation is used for the point set to compute dissolution rate varying equation of Al₂O₃. Finally, the dissolution rate of any time can be computed by initial value of dissolution rate and dissolution rate varying equation of Al₂O₃.

3 Experiments and analyses

3.1 Image sampling

In this work, dissolution rate of alumina is studied. The electrolyte system is Na₃AlF₆-AlF₃-Al₂O₃-CaF₂-LiF- MgF₂. The liquidus temperature is about 920 °C. The dissolution of alumina is observed in the system by the transparent quartz electrobath of double rooms. An image about the dissolution of alumina is shown in   Fig. 4 [16]. The behavior about the dissolution of alumina is as follows in the electrolyte: the agglomeration of alumina is formed and floats on the top of the electrolyte; then the agglomeration of alumina sinks in the electrolyte after wetting and is dissolved at the bottom of the electrobath; finally, the agglomeration is dissolved completely.

3.2 Establishing equation about dissolution rate of alumina

To compute the varying curves of dissolution rate about alumina in cryolite molten salt, a prototype system is designed by the above approach and compiled by Java.

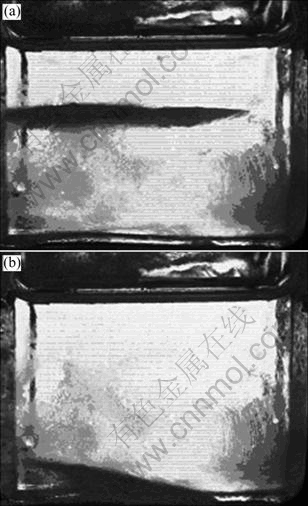

Fig. 4 Dissolution images of alumina: (a) Initial stage; (b) Final stage

The configuration of the computer for test is  Intel(R) Celeron(R) mainboard, 1.60 GHz CPU main frequency and 256 MB memory. Test result for alumina is shown in Fig. 5.

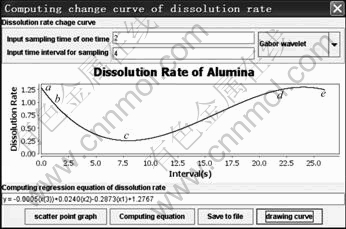

Fig. 5 Dissolution rate varying curve of alumina

The value in the first textbox is sampling time, and described by the number of image points in sampling. The result computed by the value minus 1 and multiply sampling time of image sequence is t′ in Fig. 3. The value in the second textbox is time interval of sampling which refers to time interval between two sampling, and described by the number of image points.

Here, the dissolution of alumina is sampled at a fixed time interval of 4 s.

When the value is 2 in the first textbox and the value is 4 in the second textbox, the dissolution rate varying curve is shown in Fig. 5 for alumina.

The equation about the dissolution rate of alumina is

y=-0.000 5x³+0.024 0x²-0.287 3x+1.276 7        (14)

where x denotes the time of subsamples, y is the dissolution rate of alumina at x which is computed by the method.

Figure 5 shows that the first dissolution rate of alumina is very fast (a-b). It gradually slows down and becomes stable (b-c). The dissolution rate of alumina increases gradually (c-d). After a period of stable dissolution rate of alumina, it begins to decline (d-e). This shows that alumina approaches to saturation in the aluminum electrolytic cell at this time. This process is fully in line with the phenomenon from a transparent quartz electrobath.

3.3 Analysis about dissolution rate variation of alumina

First, the dissolution rate of alumina is very fast (a-b). When the alumina is added into electrobath, a chemical reaction occurs between alumina and the component of the molten. Intermediate activator is formed. Then, alumina crystals dissolve.

The dissolution rate of alumina gradually slows down and becomes stable (b-c). When the cool alumina is added into the high temperature electrobath, molten cryolite particles will penetrate the pores of Al₂O₃.  Then, heat exchanges between alumina and the molten rapidly. The temperature of the electrolyte around alumina drops. Condensate electrolyte and Al₂O₃ are bonded together and form a mass of alumina and electrolyte. This decreases contact area between Al₂O₃ and electrolyte, so that the erosion chance of Al₂O₃ crystals by fluoride ion is reduced.

Dissolution rate of alumina increases gradually (c-d). Agglomeration disappears after the temperature balance. At this moment, Al₂O₃ continues to be eroded by fluoride ion and the chemical reaction occurs between alumina and the component of the molten. So, the dissolution rate of alumina increases.

After a period of stable dissolution rate of alumina, it begins to decline (d-e). This shows that alumina approaches to saturation in the aluminum electrolytic cell at this time.

The above analysis shows that, in order to improve the dissolution rate of alumina, the opportunities of the agglomeration formation of alumina and electrolyte should be reduced and the specific surface area of alumina should be increased. Effective measures are as follows:

1) Stirring alumina to dissolve, rather than settling on the bottom.

2) Slowly adding alumina to prevent significant temperature changes in electrolyte and to form high concentration fluoride ion around alumina crystals.

3) Preheating alumina to avoid the agglomeration formation of alumina and electrolyte.

4) Using of additives to increase the concentration of fluoride ion.

5) Improving the quality of alumina to increase the specific surface area of alumina.

4 Conclusions

1) A novel method that can measure dissolution rate of alumina is proposed. The method can analyze the effect of factors on dissolution rate of alumina intuitively and roundly by transparent quartz electrobath and image analysis techniques. Image analysis techniques are used to compute the dissolution rate of alumina. The dissolution rate equation of alumina is established based on the above method:

y=-0.000 5x³+0.024 0x²-0.287 3x+1.276 7

2) The dissolution rate equation of alumina is susceptible to stirring rate, preheating temperature of alumina and kind of alumina.
