Synthesis, characterization and antibacterial property of Ag/mesoporous CeO₂ nanocomposite material

LU Xiao-wang^1,2, QIAN Jun-chao³, CHEN Feng³, LI Xia-zhang¹, CHEN Zhi-gang⁴

1. School of Materials Science and Engineering, Changzhou University, Changzhou 213164, China;

2. Key laboratory of Advanced Metallic Materials of Changzhou City, Changzhou 213164, China;

3. School of Materials Science and Engineering, Jiangsu University, Zhenjiang 212013, China;

4. School of Chemistry and Bioengineering, Suzhou University of Science and Technology, Suzhou 215011, China

Received 13 June 2011; accepted 30 September 2011

Abstract: Mesoporous CeO₂ with high specific surface area was synthesized using a modified evaporation-induced self-assembly (EISA) method, and a series of different amounts of Ag were loaded to this mesoporous CeO₂ by a modified ethylene glycol reduction route. The samples were characterized by powder X-ray diffraction (XRD), transmission electron microscopy (TEM), energy-dispersive spectrometry (EDS), nitrogen adsorption-desorption, Brunauer–Emmett–Teller (BET) and Barrett–Joyner– Halenda (BJH) methods. The mesoporous CeO₂ structure with different proportions of silver nanoparticles and its antibacterial activity were adequately studied, confirming that obtained novel materials show a good antibacterial effect.

Key words: CeO₂; mesoporous; silver nanoparticle; antibacterial activity

1 Introduction

CeO₂ is an important rare earth oxide and has potential applications in areas including catalysis sorption [1,2], polishing agents [3,4], photonic and electronic devices [5-7], gas sensing [8] and solid oxide fuel cells (SOFC) [9,10]. Many metallic and non-metallic elements have been tried, in the past, to be implanted into ceria to improve its catalytic activity [11,12], but few papers concerned with the antibacterial property of nanoparticles implanted in the ceria. Generally, the properties of ceria could be improved from two aspects, structural modification and element decoration.

To achieve higher specific surface area desirable for better applications, several efforts have been made to fabricate mesoporous CeO₂. Mesoporous CeO₂ is of extremely high surface activity and well oxygen storage capacity due to its porous structure, which can adsorb various ions easily in its pores and on its surfaces. Recently, CORMA et al [13] have synthesized mesostructured CeO₂ materials using CeO₂ nanoparticles as starting materials and a EO₂₀PO₇₀EO₂₀ triblock copolymer as the soft template. ROSSINYOL et al [14] have recently applied SBA-15 and KIT-6 mesoporous silica as the hard template to synthesizing mesoporous ceria.

In order to further improve the properties of CeO₂, various metal nanoparticles on CeO₂ support were used, such as Pt, Rh, Ru, Au and Ag [15-20]. Silver is known to have a wide antibacterial spectrum and relatively high safety. When silver was supported onto inorganic carrier and released from the surface slowly by design, it acted as inorganic disinfectant, which is superior in terms of safety, durability and heat resistance [21,22]. Herein, the synthesis of mesoporous CeO₂ using CH₃(CH₂)₁₅N(CH₃)₃Br as a soft temple to support the different amounts of Ag on them was reported, the antibacterial activity of the samples was investigated.

2 Experimental

2.1 Preparation of mesoporous CeO₂

Typically, 0.005 mol of cetyltrimethylammonium bromide (CH₃(CH₂)₁₅N(CH₃)₃Br, referred as CTAB, SCRC) was first dissolved in a solution of 15 mL ethanol, then 0.01 mol of cerium acetate hydrate(Sigma-Aldrich) and 0.001 mol citric acid monohydrate(C₆H₈O₇·H₂O, SCRC) dissolved in 5 mL deionized water were added. The mixture was stirred for 2 h to ensure thorough mixing, and subsequently dispersed with a micropipette onto Petri dishes (100 mm in diameter), and was then placed in an oven to form a gel at 40 ℃. After 48 h aging, the gel was dried at 80 ℃ for 24 h. Calcination was carried out by slowly increasing temperature from room temperature to 400 ℃ at 2 ℃/min ramping rate and kept at 400 ℃ for 5 h.

2.2 Preparation of silver-supported mesoporous CeO₂

Silver-supported mesoporous CeO₂ material was prepared by a modified ethylene glycol(EG) reduction route. 0.5 g mesoporous CeO₂ was dispersed in 100 mL of EG to form a mixture in a three-necked flask. Then a given amount of PVP (Sigma-Aldrich, M_r=29000) and Ag(NO)₃ (the molar ratio of  PVP to Ag⁺ was 5:1) were added. The flask was sealed and then pure N₂ was insufflated to replace the air. Subsequently, such a mixture was stirred and maintained at a refluxing temperature of 80 ℃ for 10 h in the dark. After cooling to room temperature, the mixture was filtrated, washed copiously with water and ethanol and dried under vacuum at 60 ℃ for 12 h then calcined at 300 ℃ for 5 h.

2.3 Antibacterial property measurement

To make a suspension, sterilized CeO₂ (500 mg) powder was added into 100 mL sterile water with mild sonication, and sterilized pure mesoporous CeO₂,    1% Ag/CeO₂, 3% Ag/CeO₂, 5% Ag/CeO₂ powders (500 mg) were separately added into 100 mL steriled water with mild sonication. The standard gram-negative bacteria E. coli (ATCC 25922) was inoculated into lactose broth (LB) and cultured aerobically at 37 ℃ for 24 h. Then 1mL aliquots of bacterial inocula were added into four 12 cm-diameter LB agar Petri-dishes, followed by the addition of four kinds of 3 mL CeO₂ powder suspension prepared hereinbefore to four Petri-dishes. The mixed suspension was put horizontally in the dish and cultured at 37 ℃ for 48 h. The growth of the bacterium on the dishes was observed by counting the number of colony.

2.4 Material characterization

The crystal structures of the samples were determined by a powder X-ray diffraction on a Rigaku D/max-RB diffractometer using Cu K_α radiation (λ=0.15406 nm). The XRD data were recorded for 2θ values between 10° and 80° with a 0.02° step size. Transmission electron microscopy (TEM) and energy- dispersive spectrometry (EDS) were taken for morphology and chemical composition by JEOL JEM-2010 transmission electron microscope, which was operated at 200 kV. The textural properties and porosity of samples were studied by adsorption of nitrogen at 77 K with a Micromeritics ASAP-2010C instrument. Surface areas were calculated by the BET method and pore size distribution was analyzed using the BJH method.

3 Results and discussion

The XRD patterns of mesoporous CeO₂ and silver- supported mesoporous CeO₂ are illustrated in Fig. 1. The diffraction peaks at 2θ=28.5°, 33.0°, 47.4° and 56.4° can be indexed to a cubic structure (space group Fm3m, JCPD NO43—1002)with lattice space α=0.541 nm. The XRD patterns of 1%, 3%, 5% Ag-supported mesoporous CeO₂, show only discernable diffraction peaks at  2θ=38.1°, 44.3°, which could be assigned to the metal silver(JCPD NO65—2871). The EDS spectrum in Fig. 2 shows 3% Ag-supported mesoporous CeO₂, suggesting that only Ce, O and Ag are detected.

Figures 3(a), (b) show the TEM images of 3% Ag- supported mesoporous CeO₂. The figures reveal that the sample is not organized [14] as well as that in the case of CeO₂ and consists of porous with diameter of 5-10 nm. The Ag nanoparticles are encapsulated by CeO₂ meso-structure and randomly distributed throughout the entire mesoporous CeO₂ framework. The CeO₂ meso-structure avoids a severe breakdown throughout the Ag nanoparticles supporting step. In Fig. 3(b), many different lattice fringes can be found which allows for identification of the crystallographic spacings of CeO₂ and Ag. The fringes of d0.317 nm match the (111) crystallographic planes of CeO₂, while the fringes of d0.245 nm match the (111) planes of the metal Ag.

Fig. 1 XRD patterns of mesoporous CeO₂ and silver-supported mesoporous CeO₂

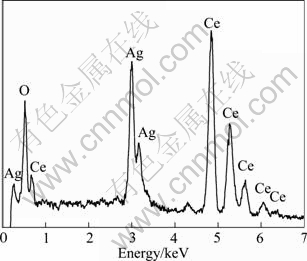

Fig. 2 EDS patterns of 3% Ag-supported mesoporous CeO₂

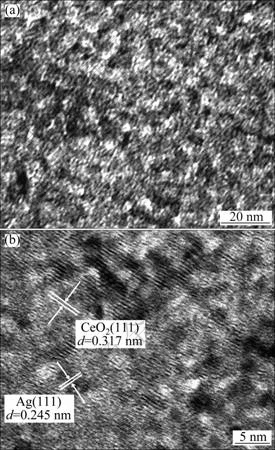

Fig. 3 TEM images of 3% Ag-supported mesoporous CeO₂

With CTAB as a surfactant and citric acid as a complexing agent, the mesostructure of CeO₂ was fabricated by the evaporation-induced self-assembly (EISA) process. After Ag(NO)₃ and PVP were added to the mesoporous CeO₂ ethylene glycol solution, on the pore of mesoporous CeO₂, Ag⁺ precursors were reduced with ethylene glycol to form silver atoms, then these silver atoms nucleated and grew into silver nanostructures. The whole reaction can be described by the following equations:

CH₂OH—CH₂OH→CH₃CHO + H₂O            (1)

CH₃CHO+2Ag⁺+2OH^-→CH₃COOH+2Ag+H₂O   (2)

Figure 4 shows the nitrogen adsorption-desorption isotherms of the mesoporous CeO₂ and Ag-supported mesoporous CeO₂. According to IUPAC classification, the similar nitrogen adsorption-desorption isotherms of all samples can be classified as a type IV isotherm, and each hysteresis loop is H₂ type, typical of a mesoporous material. The nitrogen adsorption-desorption measurements of the mesoporous CeO₂ and Ag- supported mesoporous CeO₂ show a similar isotherm with a jump at a relative pressure of 0.3-0.5 that corresponds to the capillary condensation of the mesoporous and another jump at a relative pressure of 0.8-0.9, reflecting the textural pores between the particles. The pore size distributions are shown in Fig. 5, and the pore size of the samples is 5-7 nm. The BET specific surface area of the sample is summarized in Table 1. With the silver loaded amount increasing, the pore size and the BET specific surface area all decrease. This means that the Ag nanoparticles have incorporated into the pores of the mesoporous CeO₂.

Fig. 4 Nitrogen adsorption-desorption isotherms of mesoporous CeO₂ and Ag-supported mesoporous CeO₂

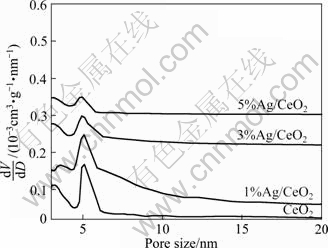

Fig. 5 Pore size distribution of mesoporous CeO₂ and Ag- supported mesoporous CeO₂

Table 1 BET specific surface area of mesoporous CeO₂ and Ag-supported mesoporous CeO₂

4 Antibacterial activity

The mixed suspension was put horizontally in the dish and cultured at 37 ℃ for 48 h. The growth of the bacterium on the dishes was observed by counting the number of colony. The antimicrobial efficiency of the samples was tested against gram negative bacterium E. coli. Figure 6 shows four culture dishes with and without antibacterial agents after antibacterial test. In Fig. 6, no antibacterial activity was detected in the culture plate with pure mesoporous CeO₂ powder. After 24 h of the antibacterial test, the E. coli colonies number reached over 500. 48 h later, thick white lawn appeared on or around the dish. 1% Ag/CeO₂ shows little antibacterial activity because Ag⁺ ions leading to inhibition of bacterium do not operate at such a low level of concentration.

Figure 6 shows that the antibacterial propriety of the suspension scattered on the dish is strong. The CeO₂ powders loaded with the silver nanoparticles significantly retard the bacteria growth. Ag nanoparticles have an appreciable effect on bacteria killing, as shown in Fig. 6 (3% Ag/CeO₂), and the E. coli colony number does not exceed 50 after 24 h. This exhibits that Ag nanoparticles can endow CeO₂ powders with excellent antibacterial properties. Yet, the proportion of Ag doped in the materials is still inadequate. Therefore, a few colonies appear on the dishes. Figure 6 (5% Ag/CeO₂) shows that the antibacterial propriety of the suspension scattered on the dish is strong. The CeO₂ powders loaded with the silver nanoparticles (5%Ag/CeO₂) entirely retard bacteria growth.

Fig. 6 Antibacterial properties of pure mesoporous CeO₂ and Ag-supported mesoporous CeO₂ against E. coli

This good antibacterial activity is possibly due to Ag ions eluted from Ag-loaded mesoporous CeO₂ surface, which could be absorbed onto the surface of bacteria cells with damaging the cell membrane and solidifying structure of proteins structure. It will lead to a distortion of E. coli cell shape and give rise to leakage of the intracellular constituents, resulting in the death of the bacteria. The oxygen species released from the decomposition of Ag₂O participated in the oxidation of hydroxide ion, and the reoxidation of Ag to Ag₂O would be achieved via the oxygen species from mesoporous CeO₂. Mesoporous CeO₂, which possesses high surface area and well oxygen storage capacity, will interact with the oxygen molecules in the reaction stream through the cycle of Ce⁴⁺/Ce³⁺ [23], maintaining the recycling of the oxidative state of the silver, as shown in Fig. 7. This excellent interface is thought to promote the formation of the reactive Ag ions. Based on this study it is possible to use this sort of powder as a promising bioactive antibacterial material.

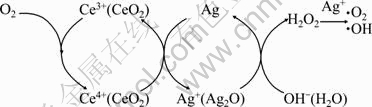

Fig. 7 Schematic illustration of oxygen transfer mechanism

5 Conclusions

1) Mesoporous CeO₂ was synthesized using a modified evaporation-induced self-assembly method, different amounts of Ag were loaded on this mesoporous CeO₂ by a modified ethylene glycolreduction route. The obtained materials have a high surface area and uniform pore size.

2) When 5% Ag was loaded on the mesoporous CeO₂, the antibacterial property shows that the sample has a considerable bactericidal activity, due to the synergistic effect between the silver nanoparticles and mesoporous CeO₂.
