Effects of yttrium on microstructures and properties of Ti-17Al-27Nb alloy

CHEN Yu-yong(陈玉勇)¹, SI Yu-feng(司玉锋)¹, KONG Fan-tao(孔凡涛)¹,

 LIU Zhi-guang(刘志光)¹, LI Jun-wen(李军文)²

1. School of Materials Science and Engineering, Harbin Institute of Technology, Harbin 150001, China;

2. Department of Materials and Chemistry, Liaoning Institute of Technology, Jinzhou 121001, China

Received 3 June 2005; accepted 30 November 2005

Abstract: The effects of rare earth yttrium on the microstructures and mechanical properties of Ti-17Al-27Nb alloy were studied. The as-cast microstructures of Ti-17Al-27Nb alloy with 0.85%Y(mole fraction) addition were refined and the tensile elongation also increased. Yttrium in the alloy exists as Y₂Al according to the EPMA, XRD analysis and electronegativity differences. Y₂Al distributes mainly on the grain boundary. Yttrium is found to improve the tensile strength of Ti-17Al-27Nb alloy due to the grain boundary strengthening. Furthermore, Y₂Al distributing in the grain boundary leads to grain refinement by pinning grain growth. This fracture mode has been changed from intergranular fracture for Ti-17Al-27Nb alloy to a mixture of intergranular fracture and transgranular fracture for Ti-17Al-27Nb-0.85Y alloy. The dimples were observed distinctly. Therefore, this yttrium containing alloy shows an excellent plasticity.

Key words: Ti-17Al-27Nb alloy; yttrium; intergranular fracture; trangranular fracture; microstructure; mechanical properties

1 Introduction

With the rapid development in aerospace technology, the aero engine components have to endure larger force and higher temperature due to speed increase of aero-craft. Therefore, more requisitions have to be presented when selecting materials for high-temperature applications in aero engines. Ti₃Al intermetallic compound has received more attentions as a candidate material for aerospace applications due to its low density, high specific elasticity modulus, high fracture toughness properties, and excellent oxidation resistance at elevated temperatures[1-4]. Nowadays, Ti₃Al based alloys were successfully applied in components of turbine for aerospace, astronautical turbine shell parts，satellite wave board and position engine parts[5, 6]. However, the room temperature plasticity and high-temperature properties of Ti₃Al based alloys are still unsatisfying. The β-stabilizing elements such as niobium has been added to Ti₃Al alloys to improve the room temperature plasticity and oxidation resistance at high temperature[7, 8]. In recent years, rare earth elements have been used in microalloying or alloying the metallic material, applying a pronounced effect on metallic microstructure. For example, rare earth elements may inhibit grain growth, hence, significantly refining the microstructure[9], which can significantly refine the microstructure of some metal materials such as Ti alloys and TiAl intermetallics[10]. At present, the references about rare earth elements effect microstructure of Ti₃Al based intermetallics are few. Therefore, in the present work, the effects of rare earth yttrium on microstructures and mechanical properties of Ti-17Al-27Nb alloy were studied to obtain new model and light high temperature resistant materials.

2 Experimental

The experiments were performed with two different alloys, Ti-17Al-27Nb alloy and Ti-17Al-27Nb-0.85Y alloy. The two different alloys were prepared by induction skull melting(ISM), starting with pure titanium (Purity ＞99.7%) and commercial Ti-Al-Nb master alloy, Nb-Al master alloy, Y-Al master alloy. Burning loss of aluminum was calculated in accordance with 30%(mass fraction) of aluminum content in material[11].

The microstructures and mechanical properties test specimens were cut from cast ingots using electrical discharge machining(EDM). The compositions of the cast ingots were analyzed using X-ray fluorescence (XRF). Microstructures and phases composing were analyzed using optical microscope(OM), X-ray diffraction(XRD), scanning electron microscope(SEM), and electro-probe microanalyses(EPMA). The metallographic samples were polished with Cr₂O₃ water solution, followed by etching in the Kroll reagent(V(HF): V(HNO₃):V(H₂O)=1:3:10).

Room tensile tests were conducted on an Instron-5569 universal electron tension tester with a crosshead speed of 0.01 mm/min (strain rate: 1.0×10^－3  s^－1). The fracture surfaces were observed by scanning electron microscope(SEM) after tensile tests.

3 Results and discussion

3.1 Analysis of X-ray fluorescence(XRF)

The actual compositions of the cast ingots were examined by XRF, and the results of XRF are summarized in Table 1.

Table 1 Chemical compositions of experimental alloys after ISM (mole fraction, %)

It is found that the measured compositions of the cast alloys are very close to the nominal compositions. In this paper, the measured, instead of nominal yttrium composition was employed to study its effect on the microstructures and mechanical properties of Ti-17Al-27Nb alloy. Therefore, the chemical compo- sitions of two alloys are Ti-17Al-27Nb and Ti-17Al- 27Nb-0.85Y.

3.2 Microstructures of alloys and phases analysis

The influence of yttrium on microstructure of Ti-17Al-27Nb alloy and Ti-17Al-27Nb-0.85Y alloy is shown in Fig.1. It is revealed that the morphologies of both alloys are equiaxed structure. However, it is shown that the addition of yttium refines the equiaxed grains. SEM images of both Ti-17Al-27Nb alloy and Ti-17Al-27Nb-0.85Y alloy are shown in Fig.2. From Fig.2, it is found that the precipitates along grain boundaries decrease greatly.

Niobium is a β-stabilizing element, which improves the room temperature plasticity of Ti₃Al alloys. Martensite transformation takes place in both binary alloys and ternary alloys when rapid cooling from β-phase. However, the martensite transformation is restrained with increasing niobium content, β-phase or B₂-phase can retain to room temperature[12]. The aluminum atoms in the B₂-phase play an important role in ordering during disorder(β-phase)-order(B₂-phase) transformation. An aluminum content greater than 12% is premise to the formation of an ordered B₂-phase[13].

Fig.1 Optical microstructures of Ti-17Al-27Nb alloy(a) and Ti-17Al-27Nb-0.85Y alloy(b)

Fig.2 SEM images of Ti-17Al-27Nb alloy(a) and Ti-17Al-27Nb-0.85Y alloy(b)

The forming tendency of disordered α-phase in the Ti₃Al base alloys is less. When rapid cooling from high-temperature and the martensite transformation is hindered, only α-phase can form. Once ageing is completed, the ordered α₂ phase forms. The XRD results of both alloys are given in Fig.3. It is shown that the main phases are B₂ and α₂. According to Fig.2, the matrix is B₂-phase with equiaxed grains, α₂ phase precipitates along the grain boundaries. But Ti-17Al-27Nb-0.85Y alloy shows a three-phases (B₂+α₂+Y₂Al) microstructure. Similarly, the matrix is B₂-phase with equiaxed grains, α₂-phase precipitated on the grain boundary. Fig.4 shows the backscattered electron (BSE) images and the distribution of yttrium element (white parts in Fig.4) in the Ti-17Al-27Nb-0.85Y alloy. Y₂Al phase is found to distribute mainly on grain boundaries.

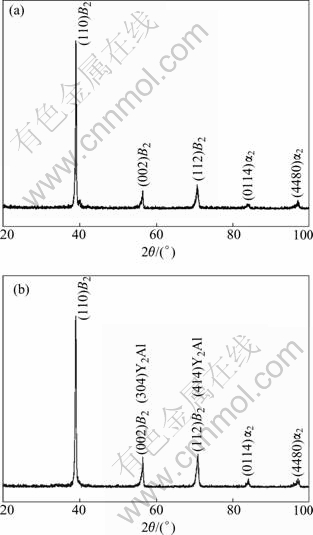

Fig.3 X-ray diffraction patterns of Ti-17Al-27Nb alloy(a) and Ti-17Al-27Nb-0.85Y alloy(b)

Fig.5 and Table 2 show that energy dispersive spectrum(EDS) analysis and the measured compositions of yttrium-rich phases for Ti-17Al-27Nb-0.85Y alloy, respectively. The EDS spectrum clearly shows the existence of Y element. The mole ratio of Y and Al elements is measured to be about 2:1 in the alloys, which proves that the yttrium-rich phases are Y₂Al.

Fig.4 EPMA images showing distributions of yttrium element for Ti-17Al-27Nb-0.85Y alloy: (a) Backscattered electron (BSE); (b) Facial distribution of yttrium element

Fig.5 SEM image(a) and corresponding EDS analysis of yttrium-rich phases for Ti-17Al-27Nb-0.85Y alloy(b)

Table 2 Compositions of yttrium-rich phases for Ti-17Al- 27Nb-0.85Y alloy

Generally, the rare earth elements can react with many elements to form compound due to their active chemical properties. In the present research, the reactivity of yttrium with titanium, aluminum, and niobium can be judged according to electronegativity. The binding force between atoms increases with increasing electronegativity difference.

The data of electronegativity of yttrium and electronegativity differences with other elements in the alloy are given in Table 3. Table 3 shows that the electronegativity difference of aluminum with yttrium is the largest, which indicates that they are the easiest to form compound. Combined with the analytical results of X-ray diffraction (XRD) and electro-probe microanalyses(EPMA), the formations mechanism of yttrium-rich phases can be shown as

2Y+Al→Y₂Al                                (1)

Table 3 Electrnegativity and electronegativity differences with Y of elements in alloy[14]

Fig.4 shows the backscattered electron(BSE) images and distribution of yttrium in Ti-17Al-27Nb- 0.85Y alloy. It is seen that a lot of Y₂Al phases distributed on grain boundaries. The Y₂Al phase plays an important pinning role in grain boundary migration, thus the grain growth tendency is restrained. At the same time, α₂-phase precipitating on the grain boundary is also restrained. Therefore, fairly fine equiaxed grains are formed and α₂-phase precipitating on grain boundary decreases greatly with the addition of yttrium.

3.3 Effect of rare earth yttrium on properties of alloys

Boehlert[15] has ever studied the mechanical property of single B₂-phase, β-phase and O+B₂-phase in Ti-Al-Nb system. Ti-12Al-38Nb alloy, which shows β-phase for lower Al and higher Nb, reveals a higher room temperature elongation and workability than Ti₂AlNb with an O+B₂-phase microstructure. The Ti₂AlNb alloy with O+B₂-phase has better combined properties. On the other hand, Ti₂AlNb alloy with pure B₂-phase shows a higher strength than the Ti-12Al-38Nb alloy with pure β-phase. However, its tensile elongation is very low. So the coarse-grained single B₂-phase alloy has a fairly high brittleness.

In this study, the as-cast Ti-17Al-27Nb alloy shows a B₂-phase matrix with coarse equiaxed grains. The mechanical properties results of the as-cast Ti-17Al-27Nb and Ti-17Al-27Nb-0.85Y alloys are listed in Table 4.

Table 4 Mechanical properties of as cast alloys

It can be seen from Table 4 that the strength and plasticity of alloys are enhanced with the addition of yttrium. Analysis show that equiaxed grains refining which results in grain boundaries strengthening arouses the strength increasing of the alloy. In addition, the decreasing precipitates on grain boundary and equiaxed grains refining with the addition of Y are believed to be the reasons of plasticity improving of the alloy.

The tensile fractographies of alloys are shown in Fig.6. It is found that Ti-17Al-27Nb alloy fails along grain boundaries that reveals its brittleness. In contrast, Ti-17Al-27Nb-0.85Y alloy with the addition of yttrium shows both cracks along grain boundaries and transgranular cracking. Moreover, the dimples are clearly distinguished. Therefore, this alloy shows better plasticity.

Fig.6 Tensile fracture surface of Ti-17Al-27Nb alloy(a) and Ti-17Al-27Nb-0.85Y alloy(b)

4 Conclusions

1) Compared with the as-cast Ti-17Al-27Nb alloy, the Ti-17Al-27Nb alloy with addition of 0.85%Y yttrium shows a refined equiaxed grain microstructure, and the precipitates on grain boundaries are less.

2) Y is found to exist as Y₂Al phases in the Ti-17Al-27Nb-0.85Y alloy. Y₂Al phases distribute mainly on the grain boundaries, which results in grain boundaries strengthening and arouses the strength increasing of the alloy. In addition, Y₂Al phases distribute mainly on grain boundaries preventing grain growth is also the dominant reason of equiaxed grains refining.

3) The tensile elongation increases with addition of yttrium that causes finer microstructure. The addition of yttrium also changes the fracture mode from intergranular fracture for the Ti-17Al-27Nb alloy to a mixture of intergranular fracture and transgranular fracture.

References

[1] Koizumi Y, Nakano T, Umakoshi Y. Dislocation dipoles in cyclically deformed Ti₃Al single crystals[J]. Intermetallics, 2000, 8: 179-186.

[2] Breuer J, Wilger T, Friesel M, Herzig C. Interstitial and substitutional diffusion of metallic solutes in Ti₃Al[J]. Intermetallics, 1999, 7: 381-388.

[3] Imayev R, Gabdullin N, Salishchev G. Effect of grain size on superplasticity of an intermetallic Ti₃Al compound[J]. Intermetallics, 1997, 5: 229-236.

[4] WU Ying, YANG De-zhuang. The effects of needleshaped α₂ phases on tension fracture of Ti-24Al-14Nb-3V-0.5Mo alloy[J]. The Chinese Journal of Nonferrous Metals, 1998, 8(Suppl.2): 189-193.(in Chinese)

[5] CAO Jing-xia, SUN Fu-sheng, CAO Chun-xiao, GAO Yang. High cycle fatigue properties and fracture features of Ti-25Al-10Nb- 3V-1Mo alloy[J]. Journal of Materials Engineering, 1997, 5: 12-14.

[6] ZHANG Yong-gang, HAN Ya-fang, CHEN Guo-liang, GUO Jian-ting, WAN Xiao-jiang, FENG Di. Structural Intermetallics[M]. Beijing: National Defence Industry Press, 2001. 789-797.

[7] Froes F H, Suryanarayana C, ELI EZER D. Synthesis properties and applications of titanium aluminides[J]. J Mater Sci, 1992, 27: 5113.

[8] XU Dong-sheng, LI Dogn, HU Zhuang-qi. The effects of Nb on electron structures and toughness of Ti₃Al[J]. Acta Metallurgica Sinica, 1993, 21A(8): 349-353.

[9] DU Ting. Physical-chemistry effect of rare earth elements on metallic materials[J]. Acta Metallurgica Sinica, 1997, 33(1): 69-77.

[10] KONG Fan-tao, CHEN Yu-yong, TIAN Jing. Effect of yttrium on microstructure and mechanical properties of Ti-43Al-9V alloy[J]. Chinese Journal of Rare Metals, 2004, 28(1): 75-77.(in Chinese)

[11] SI Yu-feng, CHEN Zi-yong, CHEN Zi-yong, HAN Jie-cai. Composition control in ISM of Ti-22Al-25Nb alloy[J]. Foundry Technology, 2004, 11(25): 834-836.

[12] WU Ying. Microstructure and Tensile Deformation-Fracture Behavior of Ti₃Al-Nb Alloy[D]. Harbin: Harbin Institute of Technology, 1997. 5.

[13] Boehlert C J. Microstructure, creep, and tensile behavior of a Ti-12Al-38Nb(at%) beta+orthorhombic alloy[J]. Mater Sci Eng A, 1999, A267: 82-98.

[14] Gokcen N A. Statistical Thermodynamics of Alloys[M]. New York: Plenum Press, 255.

[15] Boehlert C J. The effects of forging and rolling on microstructure in O+BCC Ti-Al-Nb alloys[J]. Mater Sci Eng A, 2000, A279: 118-129.

Foundation item: Project(50274035) supported by the National Natural Science Foundation of China

Corresponding author: CHEN Yu-yong; Tel: +86-451-86418802; E-mail: yychen@hit.edu.cn

(Edited by LONG Huai-zhong)
