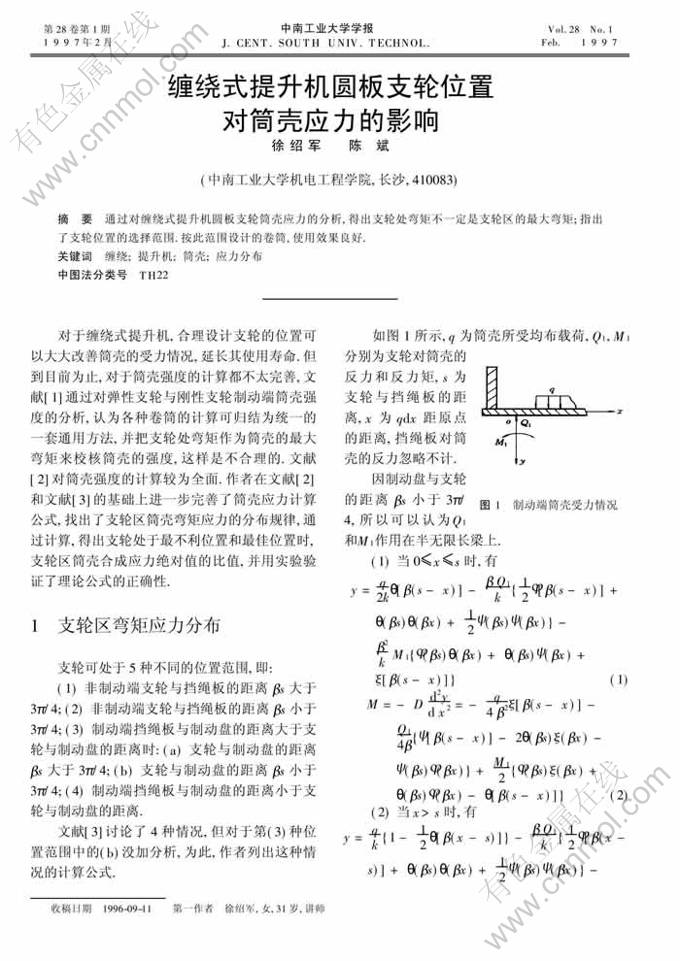

缠绕式提升机圆板支轮位置对筒壳应力的影响

来源期刊：中南大学学报(自然科学版)1997年第1期

论文作者：徐绍军 陈斌

文章页码：74 - 77

关键词：缠绕;提升机;筒壳;应力分布

Key words：wind;hoist;shell;distribution of stresses

摘    要：通过对缠绕式提升机圆板支轮筒壳应力的分析，得出支轮处弯矩不一定是支轮区的最大弯矩；指出了支轮位置的选择范围.按此范围设计的卷筒，使用效果良好.

Abstract: By analysing the round board of a winding drum hoist and the drum shell stresses, the paper obtains a result that the carved stress of a bearing wheel is unlikely to be the maximum of a bearing wheel part, points out the influence of the position of a bearing wheel on drum shell stress, and gives the selective limit on the suitable position of a bearing wheel and effect of the designed sheel according to the limits is excellent.Besides,it proves successful after experiment.
