Enhanced photocatalytic activity of TiO₂ nanoparticles using WS₂/g-C₃N₄ hybrid as co-catalyst

Li-li ZHENG, Xin-yan XIAO, Yang LI, Wei-ping ZHANG

School of Chemistry and Chemical Engineering, South China University of Technology, Guangzhou 510640, China

Received 14 March 2016; accepted 30 September 2016

Abstract: TiO₂/WS₂/g-C₃N₄ composite photocatalysts were synthesized by a liquid-exfoliation-solvothermal method. In this process, the WS₂/g-C₃N₄ nano-sheets were prepared by liquid-exfoliation method from the bulk WS₂ and C₃N₄ in the alcohol system, and then the TiO₂ nanoparticles (NPs) grew on the WS₂/g-C₃N₄ nano-sheets by in-situ synthesized technique. The photocatalytic activity of the as-prepared samples was evaluated by photocatalytic degradation of methyl orange (MO). The results showed that the as-prepared samples exhibited higher photocatalytic activities as compared to the pure TiO₂, g-C₃N₄ and TiO₂/g-C₃N₄ composite. The enhanced photocatalytic activities of TiO₂/WS₂/g-C₃N₄ photocatalysts could be attributed to the synergistic effect of heterostructure between TiO₂ NPs and WS₂/g-C₃N₄ nano-sheets, which could efficiently improve the separation of photogenerated electron/hole pairs and utilization efficiency of photons. The quenching tests of radicals indicated that  had crucial effect on degradation of MO, which demonstrated that  was the main active radical in photocatalytic reaction process.

Key words: g-C₃N₄; TiO₂; WS₂; photocatalysis; liquid-exfoliation; solvothermal method

1 Introduction

TiO₂ has been extensively and deeply investigated to decompose organic pollutants in environment purification for its high photocatalytic activity, excellent chemical stability and inexpensive property. However, pure TiO₂ has low efficiency in utilization of solar energy and high recombination rate of photogenerated carriers. Currently, numerous methods have been attempted to enhance the photocatalytic activity of TiO₂. Among these methods, TiO₂ coupling with layered semiconductors, such as MoS₂, WS₂, and SnS₂, has been attracted much attention to obtain the formation of heterostructure junction and novel TiO₂-based photocatalysts with high photocatalytic activity for its simple preparation process. LENG et al [1] reported a TiO₂-pristine-graphene hybrid via a continuous supercritical solvothermal technique that facilitated the complete degradation of methyl orange under UV light for 180 min. BASSAID et al [2] reported a simple sol-gel method to fabricate WS₂/TiO₂ composite photocatalyst and achieve intimate contact between TiO₂ and WS₂, which enhanced photocatalytic activity of WS₂/TiO₂ to decompose orange II under UV light. MIRANDA et al [3] reported a simple impregnation method to obtain g-C₃N₄/TiO₂ composite, which can efficiently promote the separation of photogenerated electron-hole pairs and improve the photocatalytic activity of TiO₂. The synergetic effect between catalysts significantly enhanced the photocatalytic performance in degrading phenol under UV irradiation.

Graphitic carbon nitride material (g-C₃N₄) has been studied a lot for the unique properties in heat endurance and chemical resistance, as well as the layered structure similar to those of graphene. It is also considered as the most stable allotrope of C-N composite for its primary building block of tri-s-triazine [4]. Since the researches about using bulk g-C₃N₄ as photocatalyst for water splitting were reported, massive efforts have been taken to study the combining bulk g-C₃N₄ with various semiconductors to obtain composite photocatalysts with excellent photocatalytic activity, such as g-C₃N₄-CdS [5,6], g-C₃N₄/Ag₃PO₄ [7], CuO@TiO₂ [8], g-C₃N₄/SnO₂ [9] and TiO₂/g-C₃N₄ [10]. The combination of TiO₂ and g-C₃N₄ has been attracted much more attention for their nontoxic resource and outstanding photocatalytic activity. FU et al [11] adopted a solid-state approach to synthesize TiO₂/g-C₃N₄ nano-composites. The heterostructure formed between g-C₃N₄ and TiO₂ could enhance the photocatalytic activity for degradation of methyl blue. et al [12] reported g-C₃N₄ modified TiO₂-based photocatalysts to disintegrate toluene under UV and visible light irradiation. In order to obtain photocatalysts with high separation rate of photoinduced carriers, some researchers employed nonmetal-doping and g-C₃N₄ to co-modify TiO₂. YANG et al [13] reported a N-doped TiO₂/g-C₃N₄ composite, which was synthesized by heating the mixture of hydrolysis product of TiCl₄ and C₃N₄, leading to decrease the recombination rate of photogenerated electron-hole pairs. PANY et al [14] reported a nano-composite of N, S-TiO₂/g-C₃N₄ prepared via in situ thermal induced polymerization method. The synergistic effect of crystallite size, the crystalline anatase phase, enlarged specific surface area was closely related to enhancement of visible-light absorption property and optimization of photocatalytic hydrogen evolution under visible-light irradiation.

In this study, a liquid-exfoliation-solvothermal method was employed to prepare TiO₂/WS₂/g-C₃N₄ composite photocatalyst for enhancing photocatalytic activity. In the first step, bulk g-C₃N₄ and WS₂ were treated by mixture solution of hydrochloric acid and ethanol to obtain WS₂/g-C₃N₄ composite with rough surface and uniform pore structure. Then, TiO₂ NPs grew on the surface of WS₂/g-C₃N₄ hybrid, which increased the specific surface area and achieved intimate contact among TiO₂, WS₂ and g-C₃N₄. The photocatalytic activities of as-prepared photocatalysts were evaluated using degradation of MO under simulated sunlight irradiation. The photocatalytic degradation mechanism was also tentatively analyzed.

2 Experimental

2.1 Materials

All reagents used in the experiments were analytically pure and purchased from the company without further purification. Among these, thiourea and titanium tetrachloride were obtained from Fuchen Chemical Reagent Corporation in China. Dicyandiamide, tertbutyl alcohol (TBA) and disodium ethylene diamine tetraacetate (EDTA-2Na) were purchased from Shanghai Lingfeng Chemical Reagent Corporation in China. Besides, tungsten disulfide (WS₂) and terephthalic acid (PTA) were purchased from Aladdin Reagent Corporation. Benzoquinone (BQ) was obtained from Sinopharm Chemical Reagent Corporation in China. Methyl orange (MO) was purchased from Nanhua Chemical Reagent Corporation in China.

2.2 Preparation and protonation of bulk g-C₃N₄

Bulk g-C₃N₄ was prepared by simple calcination [15] and protonation method [4]. Typically, 2.5 g thiourea and 2.5 g dicyandiamide were placed in a mortar and ground into a uniform powdered mixture. Then, the mixture was calcined at 500 °C for 1 h and further thermally treated at 550 °C for 2 h. And the bulk g-C₃N₄ was ground into powder at the room temperature. Finally, g-C₃N₄ was treated with 8% hydrochloric acid ethanol solution for 48 h to improve its dispersibility and surface activity, then washed with deionized water and anhydrous ethanol, and collected after drying at 80 °C over 3 h.

2.3 Preparation of TiO₂/WS₂/g-C₃N₄ composite photocatalysts

TiO₂/WS₂/g-C₃N₄ composite photocatalysts were prepared via a two-step solvothermal method. In the first step, 0.5 g bulk g-C₃N₄ and 0.02 g bulk WS₂ were dispersed in 18 mL mixed solution of hydrochloric acid and anhydrous ethanol under ultrasonic treatment for 1 h. The obtained dispersion liquid was transferred to a 25 mL teflon-lined stainless steel autoclave and heated at 80 °C for 10 h. After the autoclave was naturally cooled down to room temperature, the samples were separated by centrifuge, washed with anhydrous ethanol and dried at 60 °C over 3 h to obtain WS₂/g-C₃N₄ composite.

In the following step, the deposition of TiO₂ NPs on WS₂/g-C₃N₄ composite was carried out by solvothermal method similar to the previous report [16]. Firstly, 4 mL TiCl₄ ethanol solution (2 mol/L) and certain amount of WS₂/g-C₃N₄ composite were dispersed in 16 mL anhydrous ethanol under ultrasonic treatment for 1 h. Then, 5.6 mL mixed solution of sodium hexameta- phosphate, ethanol and deionized water was slowly dropped into mixture to promote the hydrolysis of TiCl₄. Thirdly, the obtained TiO₂/WS₂/g-C₃N₄ precursor was transferred into a 25 mL Teflon-lined stainless steel autoclave and treated at 140 °C for 3 h. Finally, TiO₂/WS₂/g-C₃N₄ composite photocatalyst was received after being centrifugalized, washed with anhydrous ethanol and dried at 80 °C.

In order to simply signify the prepared samples, WS₂/g-C₃N₄ composite was denoted as WG. Also, TiO₂/WS₂/g-C₃N₄ composite photocatalysts were marked as TiO₂/WG-x, where x represented the mass fraction of WG composite to TiO₂ NPs and was controlled to be 3%, 5%, 7% and 9%. Besides, for comparison, TiO₂/g-C₃N₄ composite photocatalyst was also prepared via the similar two-step solvothermal process without the addition of WS₂.

2.4 Characterization

FT-IR spectra of TiO₂/WS₂/g-C₃N₄ composite photocatalyst were recorded on Bruker Tensor-27. XRD analysis was carried out to determine the crystalline structure of samples at room temperature with a Bruker D8 Advance X-diffractometer using Cu K_a radiation (λ=1.5406 ), operated at 40 kV and 40 mA, and a scanning speed of 5 (°)/min in the 2θ range from 5° to 80°. The specific surface area was performed at the temperature of liquid nitrogen using a Beishide 3H-2000PS1 analyzer. The images of surface morphologies were taken with Merlin scanning electron microscope (SEM). The composition and chemical state of the sample were analyzed by the ULVAC-PHI PHI X-tool X-ray photoelectron spectrometer, using Al K_a as X-ray source. Ultraviolet-visible diffraction spectra (UV-vis DRS) were carried out on a Hitachi U-3010 spectrophotometer with wavelength range from 800 to 200 nm, using BaSO₄ as a reflectance standard. UV-vis patterns were recorded on a Shimadzu UV-2450 spectrophotometer. Photoluminescence (PL) spectra were collected on a JASCO FP-6500 type fluorescence spectrophotometer with 321 nm excitation source over a wavelength range from 300 to 800 nm. Additionally, the photocatalytic degradation of MO was carried out in a SGY-I multifunction photo-reactor apparatus (Nanjing Sidongke Co., China), using a 500 W xenon lamp as light source.

2.5 Evaluation of photocatalytic activity

Photocatalytic activity of TiO₂/WS₂/g-C₃N₄ composite photocatalysts was estimated by photocatalytic degradation of MO under the light irradiation in a photoreaction apparatus. In the experiments, a 500 W xenon lamp was employed as the light source to provide visible light. In a typical experiment, 50 mg photocatalyst was dispersed in 250 mL of 20 mg/L MO aqueous solution. Firstly, the suspension was magnetically stirred in the dark for 30 min to achieve adsorption–desorption equilibrium of MO on the surface of photocatalyst. Then, the suspension was exposed to simulated sunlight irradiation and 4 mL of sample was collected with each irradiation time interval of 10 min. After 60 min of irradiation, the collected samples were centrifugalized to remove photocatalyst and monitored using an UV-vis spectrophotometer at 464 nm with deionized water as a reference sample. The concentration of MO was directly calculated by its characteristic absorption peak at 464 nm. And the degradation rate (η) of MO under simulated sunlight was calculated by the following equation: η=C_t /C₀×100%, where C_t and C₀ are the concentrations of MO in solution at each given time and initial one.

3 Results and discussion

3.1 Characterization of TiO₂/WS₂/g-C₃N₄

X-ray diffraction patterns of TiO₂/WG photo- catalysts, as well as TiO₂/g-C₃N₄, WS₂/g-C₃N₄ and pure g-C₃N₄ samples are shown in Fig. 1. All recognizable peaks of TiO₂ corresponded to anatase TiO₂ (JCPDS card No. 21-1272) [17-19]. Consistent with the previous report [11], the g-C₃N₄ sample had two characteristic diffraction peaks at 13.1° and 27.4°, respectively. The intense reflection peak at 27.4° indicated the existence of interlayer stacking of aromatic systems, corresponding to the (002) plane diffraction. The low-angle diffraction peak at 13.1° corresponded to the (100) crystal plane of g-C₃N₄. As for WS₂/g-C₃N₄ composite, it can be observed that the characteristic diffraction peaks of WS₂ (JCPDS card No. 08-0237) and g-C₃N₄ appeared in the spectra, illustrating that g-C₃N₄ and WS₂ coexisted in the composite. Besides, the addition of WS₂/g-C₃N₄ and g-C₃N₄ decreased the average grain size of TiO₂ NPs, but had no obvious influence on the crystalline structure, suggesting that WS₂/g-C₃N₄ and g-C₃N₄ suppressed the growth of TiO₂ NPs to some extent. As shown in Table 1, the average size of TiO₂ NPs in composites was less than 10 nm, which indicated that the size of TiO₂ NPs was under control when coupled with WS₂/g-C₃N₄ hybrid.

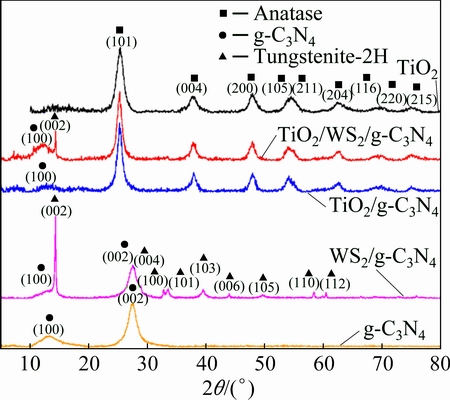

Fig. 1 XRD patterns of as-prepared TiO₂/WS₂/g-C₃N₄, TiO₂/g-C₃N₄, TiO₂, WS₂/g-C₃N₄ and g-C₃N₄

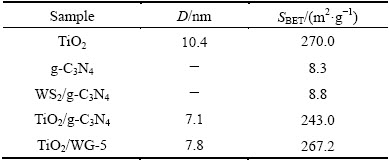

Table 1 Surface morphological properties of prepared samples

In order to analyze the interactions among TiO₂, WS₂ and g-C₃N₄, FT-IR spectrometer was employed to characterize TiO₂/WS₂/g-C₃N₄, TiO₂/g-C₃N₄, TiO₂, WS₂/g-C₃N₄ and g-C₃N₄, and the results are shown in Fig. 2. For the pure g-C₃N₄, three main absorption bands were observed around 3200 cm^-1, 1200-1700 cm^-1 and 808 cm^-1, respectively. The broad band at 3200 cm^-1 was attributed to the stretching vibration modes of N—H and O—H groups. The intense absorption region at 1200- 1700 cm^-1 was composed of peaks at 1640, 1573, 1413, 1318 and 1240 cm^-1, which were associated with the stretching modes of CN heterocycles. Additionally, the peak at 808 cm^-1 can be ascribed to out of plane bending modes of tri-s-triazine ring which has been wildly accepted as the primary building block of g-C₃N₄ [20]. Due to the small amount of WS₂ in composite, there was no obvious difference in FT-IR spectra between WS₂/g-C₃N₄ composite and g-C₃N₄. In terms of TiO₂, the broad peak at 400-700 cm^-1 was characteristic of Ti—O stretching and Ti—O—Ti bridging stretching modes. And peaks observed at 3430 and 1630 cm^-1 were attributed to the absorption of O—H stretching vibration and O—H bending mode, respectively [21]. Compared with TiO₂, it is noted that major characteristic peaks of TiO₂ existing in the TiO₂/WG-5 and TiO₂/g-C₃N₄ composite photocatalysts. Besides, it can be noted that there was an apparent redshift of the absorption of O—H stretching vibration at about 3300 cm^-1, indicating the strong interaction between TiO₂ and WS₂/g-C₃N₄ composite. The interaction was conductive to the intimate contact among TiO₂, WS₂ and g-C₃N₄ and facilitated the separation of photogenerated electron/hole pairs.

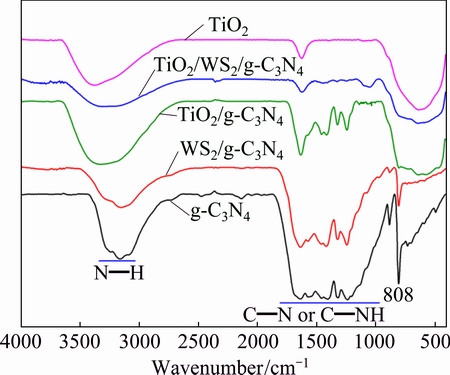

Fig. 2 FT-IR spectra of TiO₂/WS₂/g-C₃N₄, TiO₂/g-C₃N₄, TiO₂, WS₂/g-C₃N₄ and g-C₃N₄ samples

SEM images of bulk WS₂, bulk g-C₃N₄, WS₂/g-C₃N₄ hybrid and TiO₂/WS₂/g-C₃N₄ composite photocatalyst are shown in Fig. 3. From Figs. 3(a) and (b), it can be observed that bulk WS₂ displayed a lamellar structure with a lamellar thickness of about 200 nm while g-C₃N₄ showed the destruction of the surface layered structure after g-C₃N₄ was treated by protonation, which were consistent with the previous research [4]. In terms of WS₂/g-C₃N₄ composite (Fig. 3(c)), the surface morphology showed a breaking up of both laminated and stacking structure, as well as the development of pore structure among single layers. Besides, the formation of nanoparticles on the surface of the composite was in favor of the preparation of heterostructure between TiO₂ and WS₂/g-C₃N₄ hybrid. In TiO₂/WS₂/g-C₃N₄ photocatalyst (Fig. 3(d)), TiO₂ NPs uniformly aggregated covering WS₂/g-C₃N₄ composite to achieve a rough surface with large specific surface area (S_BET) which was beneficial to improve the absorption of degradation products (Table 1) [3].

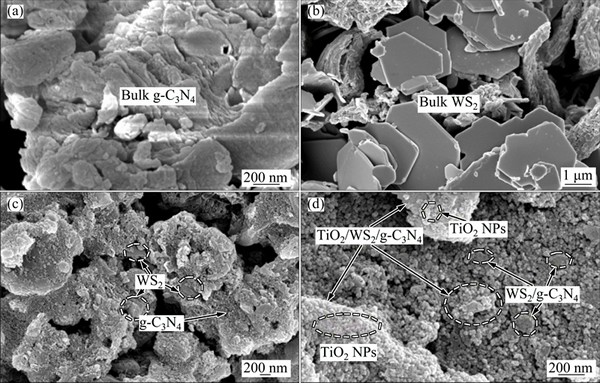

Fig. 3 SEM images of bulk g-C₃N₄ (a), bulk WS₂ (b), WS₂/g-C₃N₄ hybrid (c), and TiO₂/WG-5 composite photocatalyst (d)

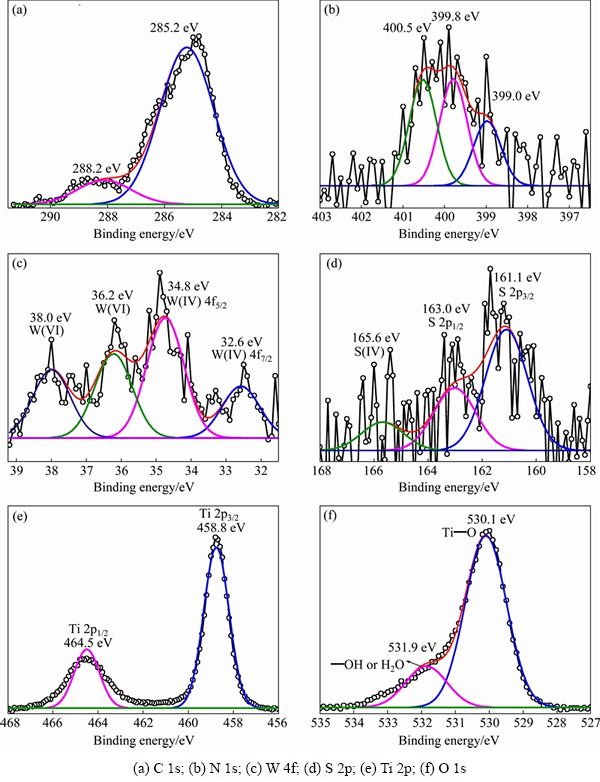

Fig. 4 XPS spectra of TiO₂/WG-5 composite photocatalyst

In order to further investigate the components and chemical state of elements in TiO₂/WG-5 composite photocatalyst, XPS was conducted to characterize the prepared photocatalyst and the results are shown in Fig. 4. C 1s (284.5 eV) peak was referred to the standard of all binding energies in XPS analysis. Two XPS signals can be observed at the binding energies of 285.2 and 288.2 eV (Fig. 4(a)), which were assigned to defect- containing sp²-hybridized carbon atoms present in graphitic domains and sp₃-bonded C of N—C=N₂, respectively [22]. The peak of N 1s was decomposed into three peaks at 399.0, 399.8 and 400.5 eV (Fig. 4(b)), which were ascribed to the groups of N (C=N—C), (N—(C)₃ and C—N—H), respectively [3,23]. From Fig. 4(c), the peaks at the binding energies of 32.6 and 34.8 eV were observed, which were assigned to W 4f_7/2 and W 4f_5/2 of W⁴⁺, respectively [24]. The binding energies of 36.2 and 38.0 eV were ascribed to the peak of W⁶⁺, which was attributed to the oxidation of WS₂ [25,26]. As shown in Fig. 4(d), the S 2p binding energies at 161.1 and 163.0 eV were observed, which indicated that the S^2- existed in the composite photocatalyst [24]. It can be observed two XPS signals at the binding energies of 458.8 eV and 464.5 eV in Fig. 4(e), indicating the existence of Ti⁴⁺ in photocatalyst [27]. The O1s peaks were identified at around 530.1 and 531.9 eV in Fig. 4(f), which were attributed to the Ti—O in TiO₂ and H—OH groups, respectively [28]. These results demonstrated that the prepared TiO₂/WS₂/g-C₃N₄ composite did not transform to other materials except a small amount of WS₂ dissolved by hydrochloric acid solution.

3.2 Photocatalytic performance of TiO₂/WS₂/g-C₃N₄

UV-vis diffuse reflection spectra of as-prepared TiO₂/g-C₃N₄ and TiO₂/WG-5 composite photocatalysts, as well as TiO₂, g-C₃N₄ and WS₂/g-C₃N₄ composite are shown in Fig. 5. It can be observed that g-C₃N₄ exhibited intense optical absorption in the region of wavelength less than 450 nm while had little absorption in the region of wavelength more than 450 nm, which was attributed to its narrow band gap of 2.7 eV [5]. Bulk WS₂ had excellent absorption capacity in ultraviolet and visible light region for its indirect band gap of around 1.4 eV and a direct band gap of 2.01 eV [29], as well as 1.72 eV of nano WS₂ [2]. Accordingly, WS₂/g-C₃N₄ composite achieved stronger visible-light absorption than pure g-C₃N₄. Afterwards, compared with pure TiO₂, TiO₂/WS₂/g-C₃N₄ photocatalyst had stronger absorption in visible-light region with its absorption band edge red shift. Therefore, the results indicated that the prepared TiO₂/WS₂/g-C₃N₄ composite photocatalyst had excellent optical absorption in the ultraviolet and visible regions.

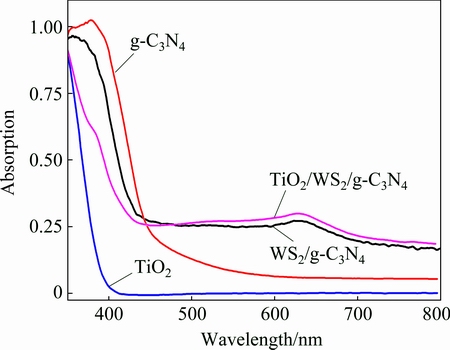

Fig. 5 UV-vis diffuse reflection spectra of TiO₂, g-C₃N₄, WS₂/g-C₃N₄ composite and TiO₂/WS₂/g-C₃N₄ composite photocatalysts

The photocatalytic activity of the prepared samples was evaluated by degradation of MO under simulated sunlight irradiation and the results are shown in Fig. 6. In the absence of photocatalyst, there was no noticeable curve descending of C_t/C₀ in MO solution, ruling out the direct photodegradation of MO under illumination. For comparison, pure TiO₂ was conducted to photocatalytic degradation of MO under the same conditions, showing lower photocatalytic activity. Because the heterostructure junction was produced between TiO₂ NPs and bulk g-C₃N₄ [11,12,30], TiO₂/g-C₃N₄ photocatalyst achieved enhanced the photocatalytic performance. As for the prepared TiO₂/WG-x (x=3, 5, 7 and 9, respectively) composite photocatalysts, all of them exhibited excellent photocatalytic degradation with MO degradation rate of 84.7%, 95.8%, 94.8% and 81.2% under simulated- sunlight irradiation for 60 min, respectively. And the optimum mass ratio of WG to TiO₂ was 0.05:1, which showed the best photocatalytic behavior. Additionally, the physical mixtures of TiO₂-WS₂ and TiO₂-g-C₃N₄ were prepared by blending TiO₂/WS₂-0.2 and TiO₂/g-C₃N₄-4.8 according to the mass ratio of 1:24. The photocatalytic performance of the prepared mixture was obviously inferior to that of TiO₂/WG composite photocatalysts, illustrating that a unique heterostructure was formed among TiO₂ NPs, bulk WS₂ and bulk g-C₃N₄. In other words, the synergistic effect of bulk WS₂ and g-C₃N₄ promoted the separation of photogenerated hole-electron pairs in TiO₂/WG composite photocatalysts and improved their photocatalytic activity [31].

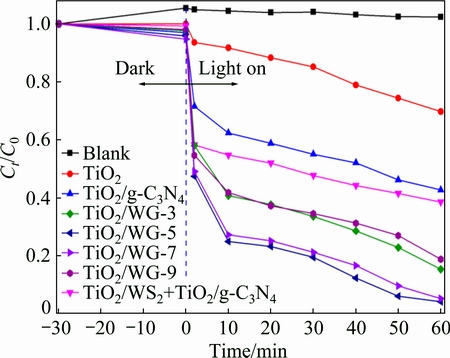

Fig. 6 Photocatalytic activities of TiO₂, TiO₂/g-C₃N₄, TiO₂/WS₂+TiO₂/g-C₃N₄ and TiO₂/WG-x (x=3, 5, 7 and 9) photocatalysts for MO degradation under simulated sunlight

3.3 Photocatalytic mechanism of TiO₂/WS₂/g-C₃N₄

Fluorescence technique was an important method to evaluate the migration, transfer and recombination of photogenerated hole/electron pairs in photocatalysts [5]. Figure 7 showed the fluorescence spectra of pure TiO₂, WS₂/g-C₃N₄, TiO₂/g-C₃N₄ and TiO₂/WS₂/g-C₃N₄ samples with excitation wavelength of 321 nm. It can be observed that pure g-C₃N₄ had a strong fluorescence emission peak at about 441 nm due to its high recombination rate of photoinduced holes and electrons. In terms of WS₂/g-C₃N₄, TiO₂/g-C₃N₄ and TiO₂/WS₂/g- C₃N₄ photocatalysts, the PL intensities significantly decreased due to the hetero-structures, reducing the recombination of photoexcited electron/hole pairs. Moreover, 398 nm was the quenching of intrinsic fluorescence of TiO₂, and the PL intensities of TiO₂/g-C₃N₄ and ternary TiO₂/WS₂/g-C₃N₄ composites  at 398 nm are lower than that of pure TiO₂, suggesting a lower recombination of photo-generated e/h⁺ pairs [32].

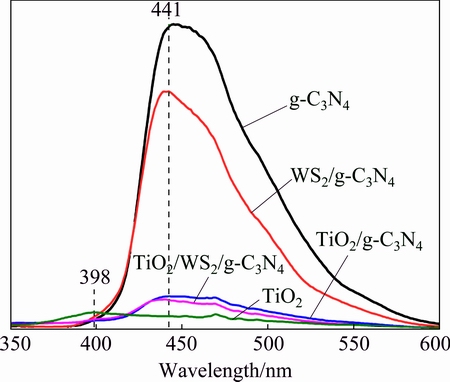

Fig. 7 PL spectra of pure TiO₂, WS₂/g-C₃N₄, TiO₂/g-C₃N₄ and TiO₂/WS₂/g-C₃N₄ samples

During the photocatalytic degradation process, it was known that main reactive species were generated to oxidize organic pollutants [33,34]. To elucidate the photocatalytic reaction mechanism of TiO₂/WG photocatalyst, TBA, EDTA-2Na and BQ were considered as scavengers of hydroxyl radicals (·OH), holes (h⁺) and superoxide radical ions () [35], respectively. Figure 8 showed that the photocatalytic degradation efficiency of MO decreased significantly in the presence of TBA and BQ compared with that of TiO₂/WG-5 photocatalytic degradation system without addition of capture agent. On the other hand, the appearance of EDTA-2Na in photocatalysts system promoted the photocatalytic degradation of MO. Therefore, it was concluded that ·OH and played an important role in the photocatalytic degradation of MO while h⁺ recombining with e led to low efficiency in photocatalytic degradation of MO.

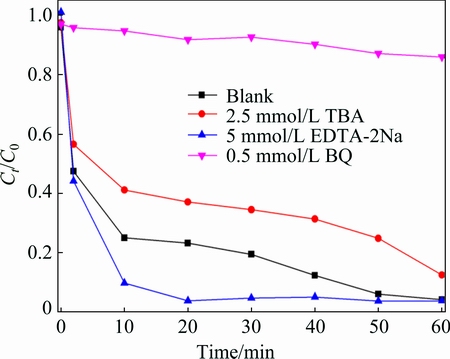

Fig. 8 Photocatalytic degradation of MO over TiO₂/WG-5 in the presence of TBA, EDTA-2Na and BQ as capture agent

To further investigate the photocatalytic reaction mechanism, hydroxyl radicals (·OH) were detected in the TiO₂/WG-5 photocatalytic system under simulated sunlight irradiation by fluorescence technique. Terephthalic acid (PTA) was employed as probe molecule to react with hydroxyl radicals on the surface of photocatalyst and produce hydroxyl terephthalic acid (PTAOH). Figure 9 showed that the fluorescence spectra excited at 321 nm in the TiO₂/WG-5 photocatalyst system with the addition of different capture agents. Compared with TiO₂/WG-5 photocatalytic system without addition of capture agents, the presence of TBA could slightly reduce the fluorescence intensity of hydroxyl radicals while BQ suppressed the formation of hydroxyl radicals severely. According to the entrapping experimental, removing the h⁺ could obviously enhance the photocatalytic activity of composite photocatalyst, thus, the PTA could be degraded by the photocatalyst when adding the EDTA-2Na into the reaction system, leading to the decrease of PL intensity.

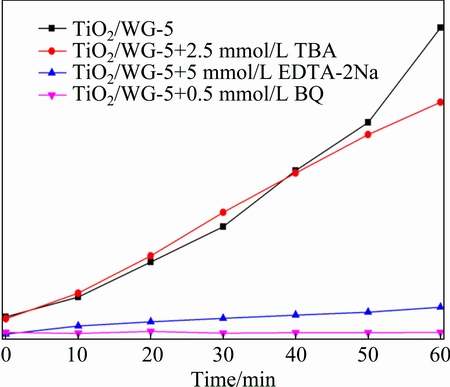

Fig. 9 Fluorescence intensity at 450 nm against irradiation time in TiO₂/WG-5 photocatalyst system with different capture agents

According to the results of carrier trapping experiments and fluorescence spectra, the ·OH was mainly produced by the transform of . It was universally accepted that hydroxyl radicals (·OH) in photocatalytic system were mainly generated by following processes (Eqs. (1) and (2)): reactive electrons reduced oxygen absorbed on the surface of photocatalyst to superoxide radical ions (), then the formed  combined with an electron to finally produce ·OH [33,35]. Meanwhile, g-C₃N₄, as well as TiO₂ exhibited adequate reduction potential to achieve the formation of ·OH via a two-electron reduction reaction process [36]. At the same time, EDTA-2Na reacting with h⁺ improved the separation rate of photoinduced carriers and promoted the photocatalytic degradation of MO. The separated electrons reduced oxygen to  and then the formed  degraded MO under irradiation, which corresponded to the results of carrier trapping experiments. Therefore, we can draw a conclusion from the analysis above.  intermediate species mainly took the responsibility to degrade the MO while ·OH played the minor role in degradation of MO in photocatalytic system under simulated sunlight.

                                (1)

                       (2)

A probable reaction mechanism of photocatalytic degradation of MO was proposed in Fig. 10. When the photocatalytic system of TiO₂/WG-5 was exposed to the illumination, the electrons on the valence band of TiO₂, g-C₃N₄ and WS₂ were excited to their conduction bands and generated electron-hole pairs (Eq. (3)). On one hand, because the position of conduction band of g-C₃N₄ and WS₂ were lower than that of TiO₂, photoexcited electrons were transformed from conduction band of g-C₃N₄ and WS₂ to that of TiO₂ simultaneously. The h⁺ on the valence band of g-C₃N₄ and WS₂ cannot oxidize H₂O into ·OH owing to the lower oxidation potential. Moreover, the aggregated electrons on the conduction band of TiO₂ moved to the surface of photocatalyst and reduced absorbed O₂ to  (Eq. (4)). Certain amount of  further reacted with electrons to form ·OH (Eq. (5)). On the other hand, some of photoinduced holes in the valance band of TiO₂ directly oxidized H₂O to ·OH while others injected into that of g-C₃N₄ and WS₂ as a result of electric potential of valence band of TiO₂ superior to others. Finally, these formed actives species (, ·OH) completely degraded MO under irradiation (Eq. (6)). Thus, the synergetic effect of g-C₃N₄ and WS₂, enlargement of the specific surface area and high separation of photoinduced carriers, significantly improved the photocatalytic activity of as-prepared photocatalysts.

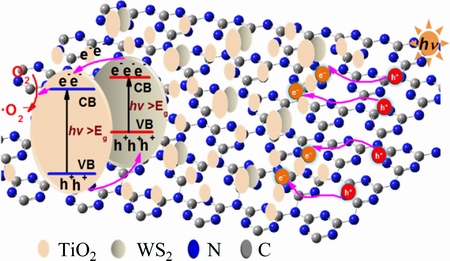

Fig. 10 Photocatalytic mechanism for MO degradation in TiO₂/WG photocatalytic system under simulated sunlight

   (3)

                        (4)

                     (5)

           (6)

4 Conclusions

TiO₂/WS₂/g-C₃N₄ composite photocatalysts were successfully synthesized by a two-step solvothermal treatment method. In the first step, solvothermal treatment, WS₂/g-C₃N₄ composite was prepared with rough surface and uniform pore structure. In the following process, the prepared WS₂/g-C₃N₄ composite was successfully coated by TiO₂ nanoparticle, which achieved the intimate contact among TiO₂, bulk WS₂ and g-C₃N₄. The characterization results indicated that as-prepared photocatalysts had good optical absorption property in ultraviolet and visible light regions and low recombination rate of photogenerated electron-hole pairs compared with pure TiO₂ and TiO₂/g-C₃N₄ photocatalysts. Moreover, TiO₂/WS₂/g-C₃N₄ composite photocatalysts exhibited excellent photocatalytic activity for degradation of MO with degradation rate of more than 95% under irradiation for 60 min. The results of carrier trapping experiments and fluorescence spectra illustrated that  rather than ·OH and h⁺ played the key role in photocatalytic degradation of MO.

References

[1] LENG Yuan-peng, GAO Ya-hui, WANG Wu-cong, ZHAO Ya-ping. Continuous supercritical solvothermal synthesis of TiO₂ pristine- graphene hybrid as the enhanced photocatalyst [J]. The Journal of Supercritical Fluids, 2015, 103: 115-121.

[2] BASSAID S, BEllAL B, TRARI M. Photocatalytic degradation of orange II on the novel hetero-system WS₂/TiO₂ under UV light [J]. Reaction Kinetics, Mechanisms and Catalysis, 2015, 115: 389-400.

[3] MIRANDA C, MANSILLA H,  J,  G. Improved photocatalytic activity of g-C₃N₄/TiO₂ composites prepared by a simple impregnation method [J]. Journal of Photochemistry and Photobiology A: Chemistry, 2013, 253: 16-21.

[4] ZHANG Yuan-jian, THOMAS A, ANTONIETTI M, WANG Xin-chen. Activation of carbon nitride solids by protonation: Morphology changes, enhanced ionic conductivity, and photoconduction experiments [J]. Journal of the American Chemical Society, 2009, 131: 50-51.

[5] ZHANG Ji-ye, WANG Yong-hao, JIN jian, ZHANG Jun, LIN Zhang, HUANG Feng, YU Jia-guo. Efficient visible-light photocatalytic hydrogen evolution and enhanced photostability of core/shell CdS/g-C₃N₄ nanowires [J]. ACS Applied Materials and Interfaces, 2013, 5: 10317-10324.

[6] JIANG Fang, YAN Ting-ting, CHEN Huan, SUN Ai-wu, XU Chen-min, WANG Xin. A g-C₃N₄-CdS composite catalyst with high visible-light-driven catalytic activity and photostability for methylene blue degradation [J]. Applied Surface Science, 2014, 295: 164-172.

[7] ZHANG Feng-jun, XIE Fa-zhi, ZHU Shao-feng, LIU Jin, ZHANG Jun, MEI Sheng-fu, ZAHO Wei. A novel photofunctional g-C₃N₄/Ag₃PO₄ bulk heterojunction for decolorization of Rh.B [J]. Chemical Engineering Journal, 2013, 228: 435-441.

[8] ZHANG Shuai, CAO Xue-bo, WU Jun, ZHU Lian-wen, GU Li. Preparation of hierarchical CuO@TiO₂ nanowire film and its application in photoelectrochemical water splitting [J]. Transactions of Nonferrous Metals Society of China, 2016, 26: 2094-2101.

[9] ZANG Yi-peng, LI Li-ping, LI Xiao-guo, LIN Rui, LI Guang-she. Synergistic collaboration of g-C₃N₄/SnO₂ composites for enhanced visible-light photocatalytic activity [J]. Chemical Engineering Journal, 2014, 246: 277-286.

[10] YAN Hong-jian, YANG Hao-xin. TiO₂-g-C₃N₄ composite materials for photocatalytic H₂ evolution under visible light irradiation [J]. Journal of Alloys and Compounds, 2011, 509: L26-L29.

[11] FU Min, PI Jun-min, DONG Fan, DUAN Qiu-yan, GUO Huan. A cost-effective solid-state approach to synthesize g-C₃N₄ coated TiO₂ nanocomposites with enhanced visible light photocatalytic activity [J]. International Journal of Photoenergy, 2013, 9: 10196-10202.

[12]  M. Effect of g-C₃N₄ loading on TiO₂-based photocatalysts: UV and visible degradation of toluene [J]. Catalysis Science and Technology, 2014, 4: 2006-2015.

[13] YANG N, LI G Q, WANG W L, ZHANG W F. Photophysical and enhanced daylight photocatalytic properties of N-doped TiO₂/g-C₃N₄ composites [J]. Journal of Physics and Chemistry of Solids, 2011, 72: 1319-1324.

[14] PANY S, PARIDA K M. A facile in situ approach to fabricate N, S-TiO₂/g-C₃N₄ nanocomposite with excellent activity for visible light induced water splitting for hydrogen evolution [J]. Physical Chemistry Chemical Physics, 2015, 17: 8070-8077.

[15] MARTIN D J, QIU K P, SHEVLIN A S, HANDOKO A D, CHEN X W, GUO Z X, TANG J W. Highly efficient photocatalytic H₂ evolution from water using visible light and structure-controlled graphitic carbon nitride [J]. Angewandte Chemie International Edition, 2014, 53: 9240-9245.

[16] THOMAS A, FISCHER A, GOETTMANN F, ANTONIETTI M, R. Graphitic carbon nitride materials: Variation of structure and morphology and their use as metal-free catalysts [J]. Journal of Materials Chemistry, 2008, 18: 4893-4908.

[17] YANG Xi-jia, WANG Shu, SUN Hai-ming, WANG Xiao-bing, LIAN Jian-she. Preparation and photocatalytic performance of Cu-doped TiO₂ nanoparticles [J]. Transactions of Nonferrous Metals Society of China, 2015, 25: 504-509.

[18] CAO Guo-jian, CUI Bo, WANG Wen-qi, TANG Guang-ze, FENG Yi-cheng, WANG Li-ping. Fabrication and photodegradation properties of TiO₂ nanotubes on porous Ti by anodization [J]. Transactions of Nonferrous Metals Society of China, 2014, 24: 2581-2587.

[19] ZHANG Wei-ping, XIAO Xin-yan, ZHENG Li-li, WAN Cai-xia. Fabrication of TiO₂/MoS₂ composite photocatalyst and its photocatalytic mechanism for degradation of methyl orange under visible light [J]. The Canadian Journal of Chemical Engineering, 2015, 93: 1594-1602.

[20] YU Jia-guo, WANG Shu-han, LOW Jingxiang, XIAO Wei. Enhanced photocatalytic performance of direct Z-scheme g-C₃N₄-TiO₂ photocatalysts for the decomposition of formaldehyde in air [J]. Physical Chemistry Chemical Physics, 2013, 15: 16883-16890.

[21] SUWARNKAR M B, DHABBE R S, KADAM A N, GARADKAR K M. Enhanced photocatalytic activity of Ag doped TiO₂ nanoparticles synthesized by a microwave assisted method [J]. Ceramics International, 2014, 40: 5489-5496.

[22] LI Yi-bing, ZHANG Hai-min, LIU Po-run, WANG Dan, LI Ying, ZHAO Hui-jun. Cross-linked g-C₃N₄/rGO nanocomposites with tunable band structure and enhanced visible light photocatalytic activity [J]. Small, 2013, 9: 3336-3344.

[23] JI Huan-huan, CHANG Fei, HU Xue-feng, QIN Wei, SHEN Jiao-wen. Photocatalytic degradation of 2,4,6-trichlorophenol over g-C₃N₄ under visible light irradiation [J]. Chemical Engineering Journal, 2013, 218: 183-190.

[24] ZOU Jian-ping, MA Jun, LUO Jin-ming, YU Jian, HE Jun-kai, MENG Yong-tao, LUO Zhu, BAO Shao-kui, LIU Hui-long, LUO Sheng-lian, LUO Xu-biao, CHEN Tong-cai, SUIB S L. Fabrication of novel heterostructured few layered WS₂-Bi₂WO₆/ Bi_3.84W_0.16O_6.24 composites with enhanced photocatalytic performance [J]. Applied Catalysis B: Environmental, 2015, 179: 220-228.

[25] MENG Xiang-chao, ZHANG Zi-sheng. Facial synthesis of BiOBr/Bi₂WO₆ heterojunction semiconductors with high visible-light-driven photocatalytic activity [J]. Journal of Photochemistry and Photobiology A: Chemistry, 2015, 310: 33-44.

[26] HOU Yi-dong, ZHU Yong-sheng, XU Yan, WANG Xin-chen. Photocatalytic hydrogen production over carbon nitride loaded with WS₂ as cocatalyst under visible light [J]. Applied Catalysis B: Environmental, 2014, 156: 122-127.

[27] LU Ying, ZHAO Kun, ZHAO Ya-hui, ZHU Sui-yi, YUAN Xing, HUO Ming-xin, QIU Yue. Bi₂WO₆/TiO₂/Pt nanojunction system: A UV–vis light responsive photocatalyst with high photocatalytic performance [J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2015, 481: 252-260.

[28] LI Wei, WU Di, YU Yan-long, ZHANG Peng, YUAN Jing, CAO Ya-an, XU Jing-jun. Investigation on a novel ZnO/TiO₂-B photocatalyst with enhanced visible photocatalytic activity [J]. Physica E: Low-dimensional Systems and Nanostructures, 2014, 58: 118-123.

[29]  BERKEDMIR A, LV R, FENG S, LONG A D, HAYASHI T, KIM Y A, ENDO M, GUTIERREZ H R, BALICAS L, MALLOUK T E,  F, TERRONES H, TERRONES M. Controlled synthesis and transfer of large-area WS₂ sheets: From single layer to few layers [J]. ACS Nano, 2013, 7: 5235-5242.

[30] TONG Zhen-wei, YANG Dong, XIAO Tian-xiong, TIAN Yao, JIANG Zhong-yi. Biomimetic fabrication of g-C₃N₄/TiO₂ nanosheets with enhanced photocatalytic activity toward organic pollutant degradation [J]. Chemical Engineering Journal, 2015, 260: 117-125.

[31] XIANG Q J, YU J G, JARONIEC M. Synergetic effect of MoS₂ and graphene as cocatalysts for enhanced photocatalytic H₂ production activity of TiO₂ nanoparticles [J]. Journal of the American Chemical Society, 2012, 134: 6575-6578.

[32] ZHANG Wei-ping, XIAO Xin-yan, LI Yang, ZENG Xing-ye, ZHENG Li-li, WAN Cai-xia. Liquid-exfoliation of layered MoS₂ for enhancing photocatalytic activity of TiO₂/g-C₃N₄ photocatalyst and DFT study [J]. Applied Surface Science, 2016, 389: 496-506.

[33] CAO Jing, LUO Bang-de, LIN Hai-li, XU Ben-yan, CHEN Shi-fu. Visible light photocatalytic activity enhancement and mechanism of AgBr/Ag₃PO₄ hybrids for degradation of methyl orange [J]. Journal of Hazardous Materials, 2012, 217: 107-115.

[34] LI Li, ZHANG Xiu-li, ZHANG Wen-zhi, GAO Yu. Microwave- assisted synthesis of nanocomposite Ag/ZnO-TiO₂ and photocatalytic degradation Rhodamine B with different modes [J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2014, 457: 134-141.

[35] LI Wen-juan, LI Dan-zhen, XIAN Jiang-jun, CHEN Wei, HU Yin, SHAO Yu, FU Xian-zhi. Specific analyses of the active species on Zn_0.28Cd_0.72S and TiO₂ photocatalysts in the degradation of methyl orange [J]. The Journal of Physical Chemistry C, 2010, 114: 21482-21492.

[36] SUN Meng, LI Dan-zheng, LI Wen-juan, CHEN Yi-bin, CHEN Zhi-xin, HE Yun-hui, FU Xian-zhi. New photocatalyst Sb₂S₃ for degradation of methyl orange under visible-light [J]. The Journal of Physical Chemistry C, 2008,112: 18076-18081.
