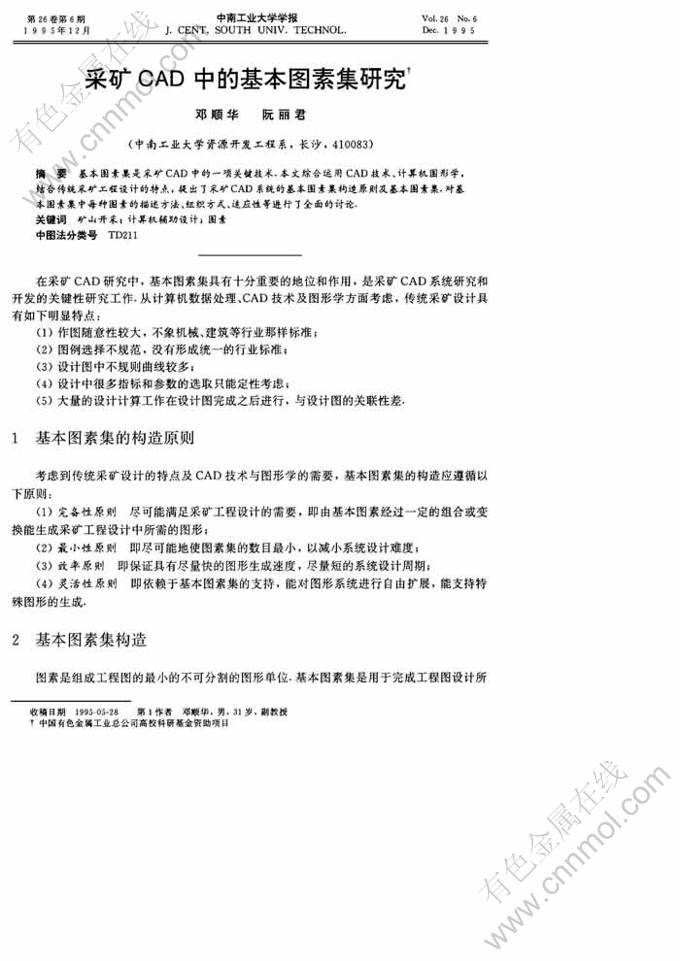

采矿CAD中的基本图素集研究

来源期刊：中南大学学报(自然科学版)1995年第6期

论文作者：邓顺华 阮丽君

文章页码：724 - 729

关键词：矿山开采; 计算机辅助设计; 因素

Key words：mining; computer aided design; graph element

摘    要：基本图素集是采矿CAD中的一项关键技术。本文综合运用CAD技术、计算机图形学,结合传统采矿工程设计的特点,提出了采矿CAD系统的基本图素集构造原则及基本因素集。对基本图素集中每种因素的描述方法、组织方式、适应性等进行了全面的讨论。

Abstract: The basic graph element set is a key technology in mining CAD system,Based on com-prehensive utilization of CAD technology,computer graphics and speciality characteristics ofmining design,the basic graph element set is raised after discussing its construction principlein mining CAD system. And then, the description method,organization way, suitability,etc. of every graph element in the basic graph element set are discussed in great detail。
