快速冷冲对Al-Cu-Mg合金长片状S′相破断行为的影响
来源期刊:中国有色金属学报(英文版)2020年第10期
论文作者:范才河 欧玲 胡泽艺 王舒 王俊红
文章页码:2590 - 2598
关键词:Al-Cu-Mg合金;快速冷冲;纳米析出相;破断行为;破断机制
Key words:Al-Cu-Mg alloy; rapid cold stamping; nanoprecipitate; fracture behavior; breaking mechanism
摘 要:采用高角度环形暗场(HAADF)扫描透射电子显微镜(STEM)和选区电子衍射(SAED)技术,研究快速冷冲强变形对挤压态Al-Cu-Mg合金长片状纳米析出相破断行为的影响机理。实验结果表明:挤压态Al-Cu-Mg合金中长片状S′相与铝基体界面平整,在快速冷冲强变形过程中发生明显破断,其破断机制主要为扭曲、脆断、回溶和缩颈。长片状S′相的破断,增加了S′相与铝基体的接触面,提高了界面畸变能,从而导致S′相的自由能高于基体自由能,为溶质原子回溶至铝基体的扩散创造条件。脆性S′相在快速冷冲强变形过程中产生“回溶台阶”,进一步加速溶质原子的扩散,促进S′相的回溶,造成S′相缩颈而导致各部分的分离,从而使挤压态长片状S′相“碎化”成短而细的S′相。
Abstract: High-angle annular dark-field scanning transmission electron microscopy and selected area electron diffraction techniques were used to study the mechanism that underlies the influence of rapid cold-stamping deformation on the fracture behavior of the elongated nanoprecipitated phase in extruded Al-Cu-Mg alloy. Results show that the interface between the long strip-shaped S′ phase and the aluminum matrix in the extruded Al-Cu-Mg alloy is flat and breaks during rapid cold-stamping deformation. The breaking mechanisms are distortion and brittle failure, redissolution, and necking. The breakage of the long strip S′ phase increases the contact surface between the S′ phase and the aluminum matrix and improves the interfacial distortion energy. This effect accounts for the higher free energy of the S′ phase than that of the matrix and creates conditions for the redissolution of solute atoms back into the aluminum matrix. The brittle S′ phase produces a resolved step during rapid cold-stamping deformation. This step further accelerates the diffusion of solute atoms and promotes the redissolution of the S′ phase. Thus, the S′ phase necks and separates, and the long strip-shaped S′ phase in the extruded Al-Cu-Mg alloy is broken into a short and thin S′ phase.
Trans. Nonferrous Met. Soc. China 30(2020) 2590-2598
Cai-he FAN1,2, Ling OU1,2, Ze-yi HU1, Shu WANG3, Jun-hong WANG3
1. College of Metallurgy and Material Engineering, Hunan University of Technology, Zhuzhou 412007, China;
2. Anhui Jianye Science and Technology Co., Ltd., Huaibei 235000, China;
3. 208 Research Institute of China Ordnance Industries, Beijing 102202, China
Received 6 January 2020; accepted 16 July 2020
Abstract: High-angle annular dark-field scanning transmission electron microscopy and selected area electron diffraction techniques were used to study the mechanism that underlies the influence of rapid cold-stamping deformation on the fracture behavior of the elongated nanoprecipitated phase in extruded Al-Cu-Mg alloy. Results show that the interface between the long strip-shaped S′ phase and the aluminum matrix in the extruded Al-Cu-Mg alloy is flat and breaks during rapid cold-stamping deformation. The breaking mechanisms are distortion and brittle failure, redissolution, and necking. The breakage of the long strip S′ phase increases the contact surface between the S′ phase and the aluminum matrix and improves the interfacial distortion energy. This effect accounts for the higher free energy of the S′ phase than that of the matrix and creates conditions for the redissolution of solute atoms back into the aluminum matrix. The brittle S′ phase produces a resolved step during rapid cold-stamping deformation. This step further accelerates the diffusion of solute atoms and promotes the redissolution of the S′ phase. Thus, the S′ phase necks and separates, and the long strip-shaped S′ phase in the extruded Al-Cu-Mg alloy is broken into a short and thin S′ phase.
Key words: Al-Cu-Mg alloy; rapid cold stamping; nanoprecipitate; fracture behavior; breaking mechanism
1 Introduction
A heterogeneous microstructure that consists of hardened precipitates and dispersoids is the primary strengthening source of Al-Cu-Mg alloys [1,2]. The S′ phase is a key strengthening precipitate in high-strength Al-Cu-Mg alloys and exhibits an orthorhombic structure with space group CMCM [3-6]. Strong plastic deformation can improve the precipitation phase characteristics, such as the morphology, size, distribution, and orientation relationship with the matrix, of aluminum alloy, improve its microstructure, and obtain microscale or even nanoscale fine-grained structures [6-11]. STYLES et al [12] studied the relationship between the resolution sequence of a supersaturated solid solution and the formation phase of the equilibrium S phase in Al-Cu-Mg alloy. The formation time of the S phase at high temperature is considerably shorter than that at low temperature. YANG et al [13] studied the effects of applied stress on the aging kinetics and precipitated phase morphology of Al-Cu-Mg alloy and found that applied stress promotes the precipitation of the S′ phase by changing the force contrast between the S′ phase and the θ′ phase in competitive precipitation. NOURBAKHSH and NUTTING [14] found that the flaky θ′ phase is severely bent and broken after the large reduction cold-rolling of A1-4%Cu alloy. MURAYAMA et al [15] observed a needle-like θ′ transition phase in the equal-diameter extrusion deformation of A1-Cu alloy, which gradually decomposed into short-chain particles during several equal-angle extrusion processes until it redissolved into the matrix. HUANG et al [16] used cold rolling to change the dislocation cell structure in Al-Cu-Mg alloy with a low Cu/Mg mass ratio and obtained a high-density dispersed fine S′′ phase. ZHAO et al [17] found that the S phase continuously converts to the Ω phase with an increase in cold deformation degree in the cold rolling deformation of 2024 aluminum alloy. ZHANG et al [18,19] studied the effect of multidirectional compressive deformation on the precipitation phase of Al-Cu alloy and found that the precipitation sequence of the supersaturated solid solution formed by the redissolution of the precipitates under strong plastic deformation is related to heating temperature, deformation, and postdeformation grain size.
It can be seen that the existing literature is mainly to study the characteristics of the precipitated phase and the re-dissolution phenomenon under the conditions of conventional plastic deformation. There is still a lack of rapid cold punching as the method of plastic deformation, and the impact of the nano-precipitated phase on the microstructure of the alloy is discussed. In order to study the mechanism that underlies the influence of rapid cold-stamping deformation on the fracture behavior of the elongated nanoprecipitated phase in extruded Al-Cu-Mg alloy, this experiment is based on the rapid solidification of fine-grained Al-Cu-Mg alloy billet prepared via spray forming. The fracture behavior of the long strip S′ phase in Al-Cu-Mg alloy during rapid cold stamping is also studied. The analysis of the breaking mechanism of the S′ phase lays a theoretical foundation for the systematic study of the evolutionary law and strengthening mechanism of the long-shaped S′ phase.
2 Experimental
A rapidly solidified fine-grained Al–Cu–Mg alloy cylindrical ingot was prepared on a self-developed SD380 large-scale injection molding apparatus. Table 1 provides the chemical composition of the alloy. The cylindrical ingot was extruded into a d30 mm round bar on a 1250 T extruder at 450 °C with an extrusion ratio of 15:1. The round bar was cut into a small cylinder with dimensions of d30 mm × 20 mm and rapidly cold-stamped for four passes at 25 °C. The sketch maps of rapid cold stamping are presented in Fig. 1. The small cylindrical sample was first placed in the mold, and the first small punch was used to rapidly cold-stamp along the center of the sample to complete the first pass of rapid cold forming. Then, a large-diameter punch was used for cold-stamping along the first pass forming hole, and four passes of rapid cold-stamping were completed in sequence. The parameters of rapid cold stamping are listed in Table 2.
Table 1 Composition of alloy studied (wt.%)
The samples for microstructure observation were obtained from the center wall of the cylinder fabricated through rapid cold forming. The morphology, size, and distribution of the nanoprecipitated phase of the sample were analyzed through JEM-F200 transmission electron microscopy (TEM). The transmission samples were mechanically prethinned to approximately 80 μm and then subjected to twin-jet electropolishing. The electrolytes were nitric acid and methanol (volume ratio of 1:3) at a temperature of less than -25 °C. The electron microscopy parameters of the high-angle annular dark-field scanning transmission electron microscope (HAADF–STEM) were as follows: acceleration voltage of 200 keV, electron beam half convergence angle of 10 mrad, and beam spot diameter of 0.20 nm.

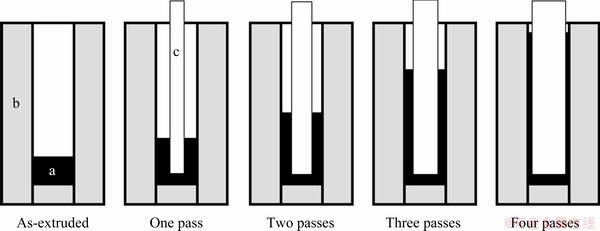

Fig. 1 Sketch maps of rapid cold punching (a—Sample; b—Drawing die; c—Punch)

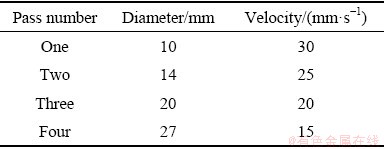

Table 2 Technological parameters of rapid cold punching
3 Results
3.1 As-extruded sample
Figure 2 shows a HAADF-STEM images of the as-extruded Al-Cu-Mg alloy. The elongated S′ phase in the as-extruded alloy is regularly distributed in the aluminum matrix; the lengthwise dimension of the elongated S′ phase is less than 300 nm, and a number of dislocations are distributed around the precipitated phases (Fig. 2(a)). Figure 2(b) shows the interface between the elongated S′ phase and the aluminum matrix observed along the [001]Al direction. The shape of the S′ phase is regular, and the interface with the aluminum matrix along the length direction of the S′ phase is flat.
3.2 Rapid cold punching sample
Figure 3 depicts a HAADF-STEM image of the extruded Al-Cu-Mg alloy after two passes of rapid cold-stamping deformation. The number of S′ phases increases drastically, and the S′ phases are irregularly distributed in the aluminum matrix. The length of the S′ phase after two passes of rapid cold-stamping deformation is the same as that of the extruded sample (Fig. 3(a)). The morphology of most S′ phases has changed, and the interface between the S′ phase and the aluminum matrix is not flat. The S′ phase distorts and breaks during rapid cold-stamping deformation (Fig. 3(b)). The high-magnification field TEM image shows that the long S′ phase is broken, the broken interface is visible, and one S′ phase is broken into several parts (A, B, C, and D). Each part undergoes drastic twisting, B is rotated by the α1 angle with respect to A, C is rotated by the α2 angle with respect to B, and D is rotated by the α3 angle with respect to C (Fig. 3(c)).

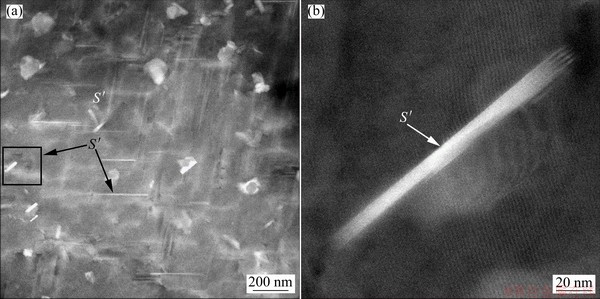

Fig. 2 HAADF-STEM images of S′ precipitates in as-extruded Al-Cu-Mg alloy viewed along [001]Al direction
Fig. 3 HAADF-STEM images of S′ precipitates in Al-Cu-Mg alloy undergoing two passes viewed along [001]Al direction
Figure 4 shows a HAADF–STEM image of the extruded Al–Cu–Mg alloy after three passes of rapid cold-stamping deformation. As shown in the figure, the number of S′ phases in the alloy is reduced significantly compared with those in the specimens after two passes of rapid cold-stamping deformation. However, a large number of short rod- shaped S′ phases are observed, and the S′ phases remain irregularly distributed in the aluminum matrix (Fig. 4(a)). As the degree of the deformation increases, the morphology of the S′ phase changes, the degree of distortion is aggravated, and the broken part of the S′ phase begins to separate from the base metal (Fig. 4(b)). The high-magnification TEM image shows that the region of the long strip- shaped S′ phase is necked, and L1 is considerably larger than L2. The ends of necked region tend to separate as the value of L1/L2 increases (Fig. 4(c)).

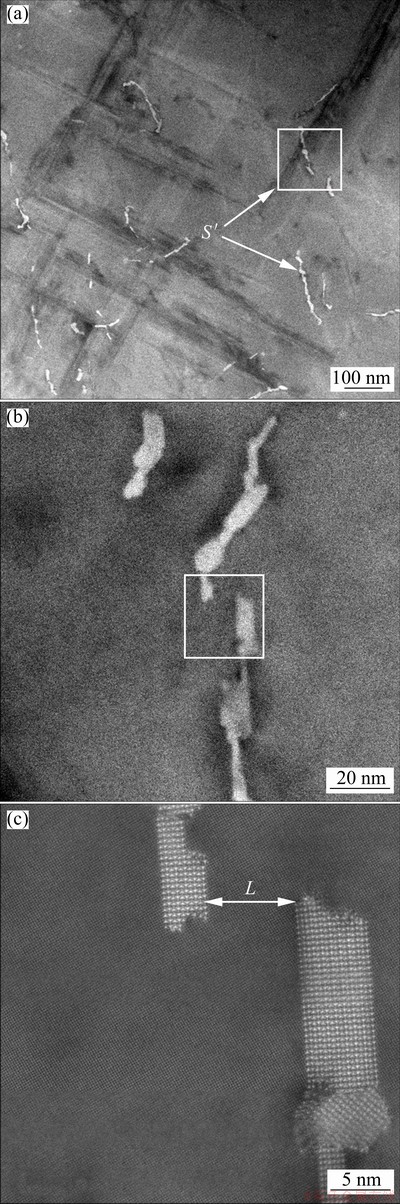

Fig. 4 HAADF-STEM images of S′ precipitates in Al-Cu-Mg alloy undergoing three passes viewed along [001]Al direction
Figure 5 shows a HAADF-STEM image of the extruded Al-Cu-Mg alloy after four passes of rapid cold-stamping deformation. This figure shows that the number of S′ phases in this sample has increased compared with those in the sample after three passes of rapid cold-stamping deformation.

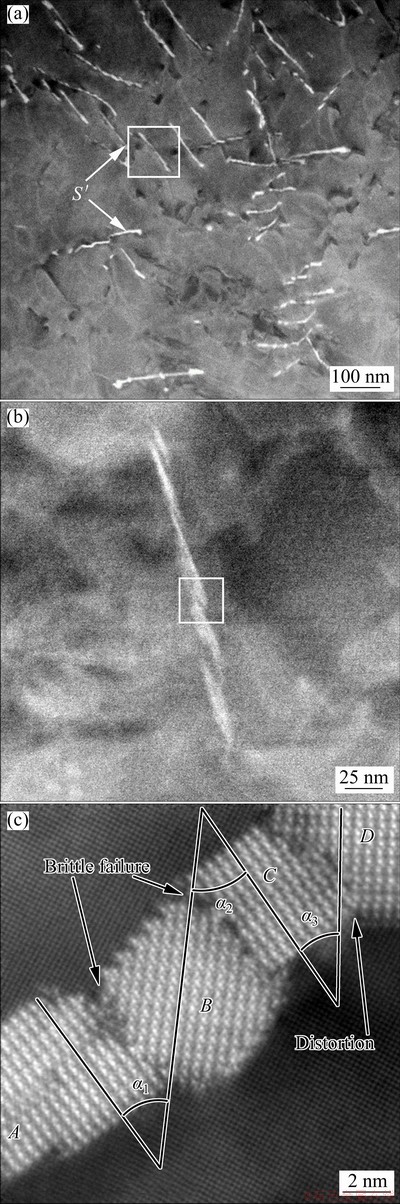

Fig. 5 HAADF-STEM images of S′ precipitates in Al-Cu-Mg alloy undergoing four passes viewed along [001]Al direction
The S′ phase is short and thin, and remains irregularly distributed in the aluminum matrix (Fig. 5(a)). After four passes of rapid cold-stamping deformation, the long strip-shaped S′ phases in the extruded sample are nearly broken into short rods, resulting in a considerable reduction in the size of the S′ phase in the aluminum matrix (Fig. 5(b)). The high-magnification field TEM image shows that the necked component of the long strip-shaped S′ phase has disappeared. The ends of the necked region have separated, and the distance between the two parts is L. The S′ phase has broken into several independent parts (Fig. 5(c)).
4 Analysis and discussion
4.1 Breaking mechanism of nano-precipitated phase during rapid cold stamping
In this experiment, rapid cold stamping deformation has three major characteristics: low deformation temperature (25 °C), large strain, and high strain rate. In accordance with the general criteria of PUGH and related research, the Al2CuMg phase is a typical brittle phase [20,21]. Therefore, combined with the results of this experiment, the breaking mechanisms of the long strip-shaped S′ phase in the extruded Al-Cu-Mg alloy induced by rapid cold-stamping deformation are as follows.
(1) Distortion and brittle fracture
The long strip-shaped S′ phase acts as the major strengthening phase of the extruded Al-Cu-Mg alloy and is regularly distributed in the aluminum matrix, and the S′ phase is flat with the aluminum matrix (Fig. 2). During rapid cold stamping deformation, the soft aluminum matrix is subject to severe shear deformation, which causes the hard S′ phase to distort under the strong shear deformation force. The torsion angle between parts C and D is α3. When the deformation force reaches a certain level, i.e., when the torsion angle reaches a certain value (e.g. α1 or α2), brittle S′ phase fractures and interfaces are formed between A and B or B and C (Fig. 3(c)). With the distortion and brittle fracture of the long strip-shaped S′ phase, the drastic increase in brittle interfaces considerably increases the contact surface between the precipitated phase and the aluminum matrix. The interfacial distortion energy between the precipitated phase and the aluminum matrix is improved, and diffusion conditions for the solute atoms are created. The redissolution of the S′ phase during rapid cold-stamping deformation accelerates. The distortion and brittle fracture model of the long strip-shaped S′ phase is shown in Fig. 6.
(2) Resolving and necking
Figure 7 presents a HAADF–STEM image showing the resolved step of the S′ phase and a model of redissolution and necking in the sample subjected to three passes of rapid cold stamping. The resolved step is clearly observable in the S′ phase, and the arrows in the figure are the resolving direction. The resolved step is the product of the twisting and brittle fracture of the S′ phase during strong plastic deformation. Given that the distortion and breakage of the long S′ phase considerably improve the interfacial distortion energy between the S′ phase and the aluminum matrix, the solute atoms located at the region of the S′ phase with high distortion energy are highly likely to be redissolved. The local accelerated redissolution of the S′ phase results in a significant reduction in the size of the S′ phase in this region, i.e., the formation of a neck (Fig. 4(c)), which further increases the interfacial distortion between the precipitated phase and the aluminum matrix and can accelerate redissolution at the necked position. Necking disappears when the value of L1/L2 is infinite, and the disappearance of the neck causes the separation of the two parts of the precipitated phase (Fig. 5(c)).

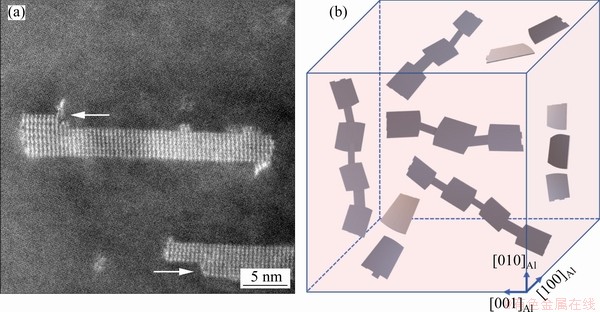

Fig. 6 Distortion and brittle fracture model of long strip-shaped S′ phase

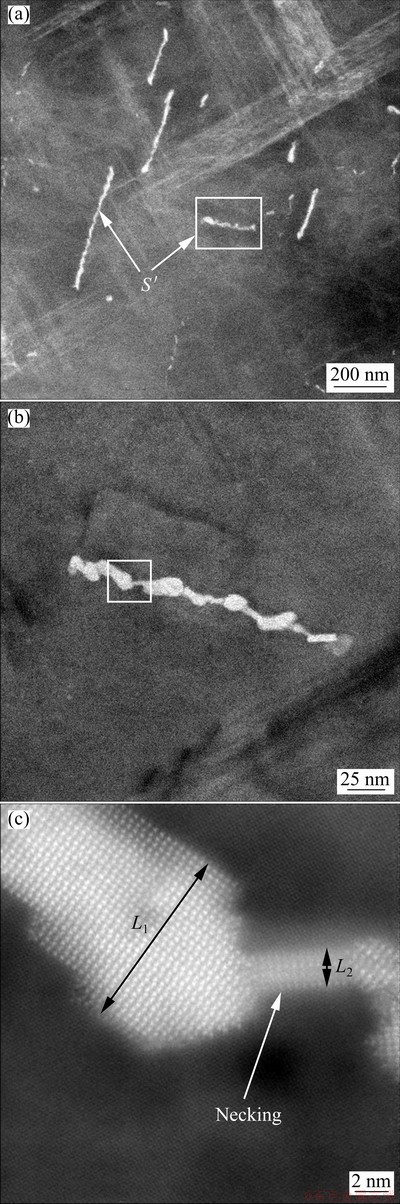

Fig. 7 HAADF-STEM image (a) and necking model (b) of precipitated phase in Al-Cu-Mg alloy undergoing three passes
The presence of high numbers of resolved steps in the S′ phase is associated with the large contact surface of the broken particles within the aluminum matrix. The diffusion of solute atoms is facilitated. In accordance with the classical thermodynamic view [22], a certain equilibrium vacancy concentration in the crystal exists at any temperature and changes positions continuously. The existence and movement of vacancies create conditions for atomic diffusion. The dislocation density increases significantly during rapid cold deformation. Dislocations will generate a large number of vacancies in the matrix during delivery and movement, and each time, a rapid cold shear deformation will produce a large number of new vacancies. Simultaneously, the long strip-shaped S′ phase is constantly twisted and broken during rapid cold-stamping deformation, and the contact interfaces between S′ phase and aluminum matrix increase and are accompanied by a large number of vacancies. The number of vacancies undergoing strong deformation increases sharply [19,23], the diffusion rate of solute atoms can be increased by five orders of magnitude, and volume diffusion can be increased by eight orders of magnitude. The alloy was prepared through spray-forming rapid solidification technology and had fine grains and uniform structure. The average grain size was approximately 5 μm. During rapid cold-stamping deformation, the grains are further refined into nanoscale, and thus, the grain boundary area increases. It also provides an atomic diffusion channel for the redissolution of the precipitated phase, and this channel considerably promotes the redissolution of the precipitated phase.
4.2 Fracture mechanism of nano-precipitated phase during rapid cold stamping
Under the condition of rapid cold-stamping deformation, the long strip-shaped S′ phase in the extruded Al-Cu-Mg alloy undergoes intense distortion, brittle fracture, redissolution, necking, and separation (Figs. 3-5). Consequently, the long strips of S′ phases transform into short rods or even redissolve and disappear. In contrast with that of the extruded sample, the brittle fracture of the long strip S′ phase remarkably increases the contact surface of the S′ phase and the matrix, and interface distortion can be drastically improved. This phenomenon results in the free energy of the S′ phase being higher than that of the matrix. The disturbance of the energy balance between the reprecipitated phase and the matrix creates conditions for the redissolution of the solute atoms into the matrix. The binding energy (Ecoh) and the formation enthalpy of △H [20,21] between the Al2Cu and Al2CuMg phases are calculated using the first principle equations:
(1)
(2)
where is the average energy per atom of each intermetallic compound; and are the energy of free atoms A and B, respectively; and are the average energy per atom in stable elemental A and B, respectively; xA represents the mole fraction of atom A in the compound.
VASILS et al [24] believed that two types of processes will occur when precipitates are completely dissolved into the matrix. The first process is lattice transformation, wherein the lattice of the precipitated phase changes into the matrix lattice. The second process is the diffusion of the redissolved solute atoms in the matrix; this phenomenon increases the uniformity of the supersaturated solid solution. The results show that the S′ phase in the as-extruded alloy redissolves into the aluminum matrix after three passes of rapid cold-stamping deformation and becomes refined. The rapid cold-stamping deformation temperature of the alloy in this test is low, and if solute atoms uniformly disperse into the matrix by diffusion to redissolve the precipitate phase, the redissolution rate must be extremely slow.
In accordance with the solid-state phase transition theory [22], the critical size of the nucleus (rc) is expressed as follows:
(3)
where σ is the surface free enthalpy, △G is the difference in volume free enthalpy between the parent phase and the precipitated phase, and U is the strain energy produced by the two phases. With the fragmentation of the precipitated phase, σ, △G, and U change significantly, resulting in an increase in the critical size (rc) of the precipitated phase. The redissolution amount and rate of the precipitated phase increase.
In summary, the redissolution of nano- precipitates during strong plastic deformation plays an important role in structural evolution. The distortion and brittle fracture of the S′ phase during rapid cold-stamping deformation results in a resolved step, which accelerates the redissolution of the S′ phase. The partial redissolution of the phase promotes the further necking of the S′ phase and results in the separation of various parts of the S′ phase, resulting in the fragmentation of the elongated S′ phase in the extruded alloy and its transformation into a short and thin S′ phase.
5 Conclusions
(1) The interface between the strip-shaped S′ phase and the aluminum matrix in the extruded Al-Cu-Mg alloy is flat and breaks during rapid cold-stamping deformation. The fracture mechanisms are distortion, brittle fracture, redissolution, and necking.
(2) The brittle fracture of the long S′ phase increases the contact surface between the S′ phase and the aluminum matrix, improves the interfacial distortion energy, and accounts for the higher free energy of the S′ phase than that of the matrix. The disturbance of the energy balance between the S′ phase and the matrix creates diffusion conditions for the redissolution of the solute atoms into the matrix.
(3) The redissolution of nanoprecipitates during strong plastic deformation plays an important role in structural evolution. The break of the local S′ phase accelerates its redissolution, resulting in the fragmentation of long S′ phase into short and thin S′ phase.
