Trans. Nonferrous Met. Soc. China 26(2016) 1843-1851
Seyyed Salman SEYYED AFGHAHI1, Mojtaba JAFARIAN2, Moslem PAIDAR3, Morteza JAFARIAN2
1. Department of Engineering, Faculty of Materials Science and Engineering, Imam Hossein University, Tehran 15816-18711, Iran;
2. Young Researchers and Elite Club, Science and Research Branch, Islamic Azad University, Tehran 14515775, Iran;
3. Department of Material Engineering, South Tehran Branch, Islamic Azad University, Tehran 1459853849, Iran
Received 7 August 2015; accepted 26 January 2016
Abstract: Al 7075 and Mg AZ31 alloys were joined by diffusion bonding method. Joining process was performed in pressure range of 10-35 MPa at temperatures of 430-450 °C for 60 min under a vacuum of 13.3 MPa. The microstructure evaluation, phase analysis and distribution of elements at the interface were done using scanning electron microscopy (SEM), energy-dispersive X-ray spectroscopy (EDS) and X-ray diffraction (XRD). The pressure of 25 MPa was determined as the optimum pressure in which the minimum amount of plastic deformation takes place at the joint. Different reaction layers containing intermetallic compounds, such as Al12Mg17, Al3Mg2 and α(Al) solid solution, were observed, in interfacial transition zone (ITZ). Thickness of layers was increased with increasing the operating temperature. According to the results, diffusion of aluminum atoms into magnesium alloy was more and the interface movement towards the Al alloy was observed. The maximum bond strength of 38 MPa was achieved at the temperature of 440 °C and pressure of 25 MPa. Fractography studies indicated that the brittle fracture originated from Al3Mg2 phase.
Key words: Al 7075 alloy; Mg AZ31 alloy; diffusion bonding; intermetallic compounds; interfacial transition zone; microstructure; mechanical properties
1 Introduction
Aluminum and its alloys are widely used in automotive, military and aerospace industries. They have high specific strength and corrosion resistance. On the other hand, magnesium alloys are the lightest structural alloys that are used in various industries [1-4]. Magnesium alloys have high specific strength and high damping capacity with easy recyclability. These properties have made magnesium alloys an ideal choice for diverse applications including portable electronic equipment and automotive parts [4]. According to the widespread use of these alloys in aerospace, automotive, electrical and chemical industries, in many cases the joining of Al and Mg is inevitable [5-7]. For example, a complex compound of Mg-Al was used in the engine and components of the space shuttles [8]. Joining of such dissimilar materials by conventional welding methods has become a challenge due to their diversities in physical properties such as melting temperature and thermal expansion coefficients. So, for bonding process of Al and Mg alloys, controlling of heating and melting, on both sides of the joint area, is critical [9]. Otherwise, the joining may lead to a weld zone without sufficient mechanical strength. In particular, the bonding of Al and Mg alloys is not possible by classical welding methods because of unexpected phase formation in the joint area. However, by the use of diffusion bonding methods, it is possible to join materials whose chemical and metallurgical properties are different [10]. In fact, diffusion bonding facilitates the joining of aforementioned materials. The quality of a joint is determined by its strength. To obtain the maximum strength, it is essential to control the relevant process parameters completely [11,12]. Among solid-state welding techniques for joining such alloys, the following processes could be cited: friction welding [13], explosive welding [14], transient liquid phase bonding [15] and diffusion bonding [16,17]. The formation of hard and brittle intermetallic compounds is a critical problem during the joining of Mg and Al. By using the vacuum diffusion bonding and controlling the time and temperature, the development of solidification cracks and high distortion stresses could be eliminated [18]. In this technique, parameters such as bonding temperature, pressure, holding time and surface roughness play an important role in determining the joint strength. For achieving the maximum strength, the formation and growth of intermetallic phases must be accurately controlled. A few literatures have focused on dissimilar joining of Mg and Al alloys via diffusion bonding [18-21]. LIU et al [18] developed the kinetic equations related to the growth of intermetallic phases for diffusion bonding of the Mg and Al 1060 alloys. MAHENDRAN et al [19] constructed the reference maps for selecting suitable parameters to achieve excellent quality bonds between Mg AZ31B and Al 2024 alloys [19]. JOSEPH-FERNANDUS et al [20] depicted the temperature–time and pressure–time diagrams for selecting appropriate parameters of Mg AZ80 and Al 6061 alloys diffusion bonding [20]. Furthermore, the maximization of strength in Al 6061 and Mg AZ31B diffusion joints was investigated by JOSEPH-FERNANDUS et al [21].
However, the diffusion bonding between Mg AZ31 and Al 7075 alloys is rarely addressed in the literature [22]. One of the most important challenges is achieving a joint with the maximum shear strength and the minimum deformation in base metals. Therefore, the aim of the present study is diffusion bonding of Mg AZ31 and Al 7075 alloys to achieve the optimum properties of the joint including the maximum bond strength and the minimum plastic deformation.
2 Experimental
The used materials for diffusion bonding were Al 7075 and Mg AZ31 alloys with corresponding chemical compositions that are summarized in Table 1.
Base metals with dimensions of 13 mm × 13 mm × 5 mm were cut from Mg AZ31 and Al 7075 slabs. Then, the faying surfaces were polished by grinding to achieve the suitable quality for bonding process. Figure 1 illustrates the AFM micrographs of prepared samples. As observed, the average surface roughnesses for Al and Mg alloys decreased to 25.5 nm and 64.8 nm, respectively. Afterwards, the surfaces were ultrasonically cleaned in acetone bath for 15 min followed by subsequent drying. Diffusion bonding process was conducted at various pressures (10, 15, 20, 25, 30, 35 MPa) and temperatures (430, 440, 450 °C) for 60 min under the vacuum of 13.3 MPa. The heating rate was adjusted to 5 °C/min. To avoid any thermal shock, the samples were cooled down gently to the room temperature in the furnace. Figure 2 shows the apparatus which was used for the bonding process. Table 2 lists the process parameters for each sample.
Table 1 Chemical compositions of Mg AZ31 and Al 7075 alloys (mass fraction, %)
The samples were sectioned perpendicularly to the bond line. Then, the resulting surfaces were prepared by grinding and polishing for microstructure and phase analyses. The microstructure of the joints was studied with scanning electron microscope (SEM). To determine the element distribution across the joint area, the elemental studies were done using an energy dispersive spectroscopy (EDS) detector that was attached to the SEM. The concentration profiles of the main elements were evaluated by linescan and elemental mapping. The micro-hardness tests were done at different points, in the joint regions using a 50 g Vickers micro-hardness tester.

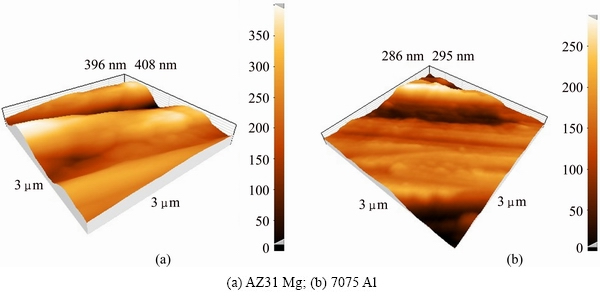

Fig. 1 AFM topography images of pre-bonding surfaces

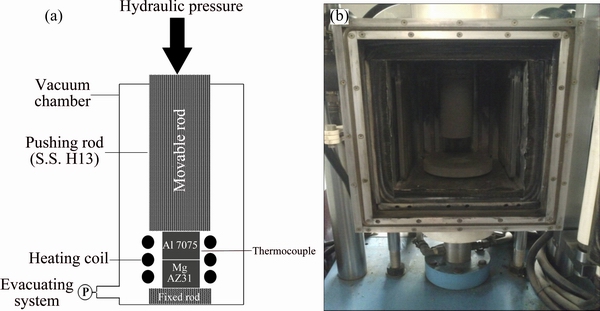

Fig. 2 Schematic diagram (a) and actual image (b) of bonding apparatus

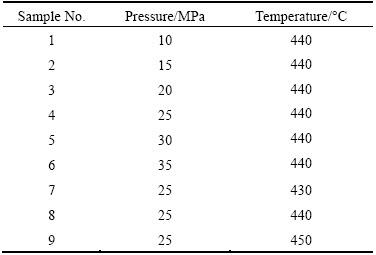

Table 2 Samples bonded at different pressures and temperatures
To evaluate the mechanical properties of the joints, uniaxial tensile tests were conducted according to ASTM standard No. D1002-10. The fractured surfaces were studied using SEM. Finally, the phase constitution on the fractured surfaces was analyzed by means of X-ray diffraction (XRD).
3 Results and discussion
3.1 Determining optimum bonding conditions
Figure 3 shows the samples after the diffusion bonding under various pressures from 10 to 35 MPa at 440 °C for 60 min. The results showed that under pressures of 10, 15 and 20 MPa, the bonds were not strong enough and specimens were seperated by imposing a weak force. At lower bonding pressure, when surfaces are brought together, they contacted only at the limited protrusion points. Due to the slight contact regions, the strength of resulted joints was weak and so the surfaces deattached easily. Under the pressures of 30 and 35 MPa, an extreme deformation happened in Mg alloys, while under the pressure of 25 MPa the joints have the least amount of deformation. Figure 4 illustrates the obtained joints under pressure of 25 MPa at temperatures of 430, 440 and 450 °C for 60 min. As it can be seen, although the temperature increases from 430 to 450 °C, the Mg plastic deformation is negligible and its thickness decreases a little. Before the diffusion of atoms which is caused by temperature, the pressure led to the plastic deformation of surface and therefore the contact area increased by applying mechanical force. At first, voids were created through material protuberances and at surface contacts by mechanical pressure. After that, due to the lower strength of the Mg alloy than Al alloy, with increasing temperature, plastic deformation occurred on the rough surface of Mg via either conventional creep or super plasticity which led to filling of the voids [3,5]. During the bonding process, the mass transfer occurred along the curved surfaces to change the inequality condition to a stable state. The driving force of diffusion arises from the difference between surface free energies. Finally, by applying the pressure and temperature simultaneously, atomic motion accelerated and contact surface between two plates increased [3,5]. Following conclusions were obtained from the experimental observations on the basis of interface examinations.
1) When temperature of the bonding was lower than 430 °C (p=25 MPa and t=60 min), no bonding was achived between Al and Mg alloys due to insufficient temperature for atomic motion.
2) When the process temperature was greater than 450 °C (p=25 MPa and t=60 min), the bonding pressure automatically decreased after few minutes. This was due to the Mg alloy deformation at higher temperatures.
3) When pressure of the bonding was lower than 25 MPa (T=440 °C and t=60 min), no bonding occurred because of few contact points (between surface asperities).
4) When pressure of the bonding was greater than 25 MPa (T=440 °C and t=60 min), the plates were plastically deformed, leading to thickness reduction and outer edges bulging.
5) When the holding time was less than 60 min (p=25 MPa and T=440 °C), no bonding happened due to the insufficient time for atomic diffusion.
6) When the holding time was higher than 60 min (p=25 MPa and T=440 °C), deformation of Mg alloy was observed.
3.2 Evolution of interfacial transition zone
Figure 5 shows the SEM-BSE images of joints heated at 430, 440 and 450 °C for 60 min. A full bonding has been created between two alloys due to the atomic interdiffusion. As it can be seen, joints do not have any defects such as impurities, micro-voids and incomplete fusion. There are three distinguishable layers between the two base alloys including Mg transition zone, middle diffusion zone and the Al transition zone which are totally called interfacial transition zone (ITZ). Figure 6 shows the effect of temperature on the thickness of ITZ. The average thickness of this zone increases with temperature from 17 to 30 μm (-76%). It is seen that the ITZ thickness chiefly depends on bonding temperature and therefore atomic diffusion. The formation of intermetallic compounds at joint interface, that are marked by A, B and C in Fig. 5, has been determined by comparing the concentration of alloying elements through EDS analysis with the equilibrium phase diagrams [23] (Fig. 7). The obtained results are presented in Table 3.

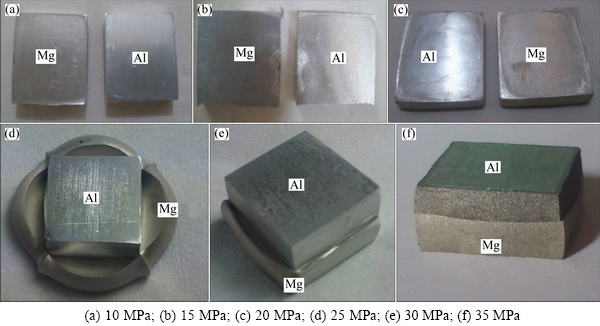

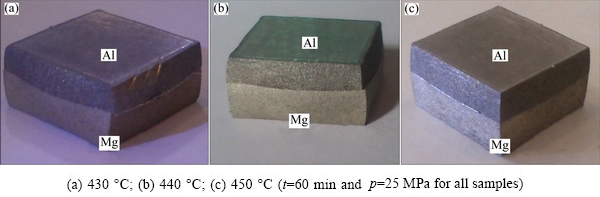

Fig. 3 Illustration of joints heated at 440 °C for 60 min under various pressures
Fig. 4 Apparent features of Al/Mg alloys bonds heated at various temperatures

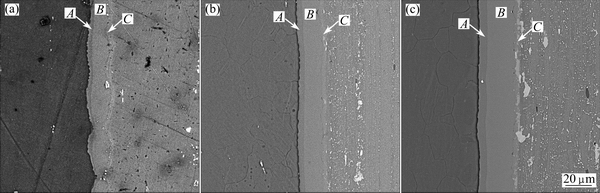

Fig. 5 SEM-BSE images of joints heated at 430 °C (a), 440 °C (b) and 450 °C (c)

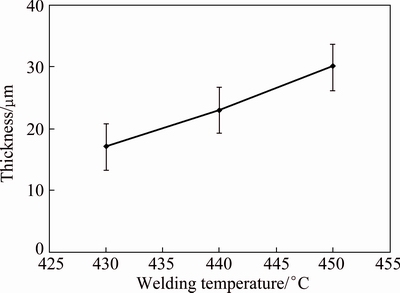

Fig. 6 Diffusion layer thickness as function of welding temperature (t=60 min)

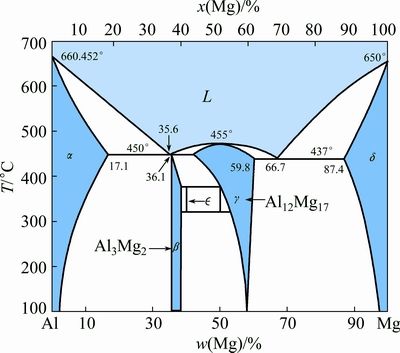

Fig. 7 Binary phase diagram of Al-Mg [21]

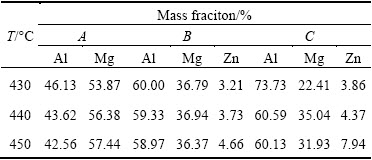

Table 3 EDS results of Regions A, B and C in Fig. 5
According to the Al-Mg binary phase diagram (Fig. 7), the existence of Al12Mg17 (γ), mixture of γ and β (Al3Mg2) and mixture of α(Al) solid solution and β are predicted in A, B and C layers, respectively. Assuming that the growth of each layer in ITZ, follows a parabolic kinetic process, the growth of layers can be expressed by the following equations [24-26]:
(1)
(2)
where x is the thickness of reaction layers (m), t is the time of joining process (s), T is the joining temperature (K), D is the growth velocity of the reacting layer (m2/s), D0 is the growth constant (m2/s), Q is the activation energy (kJ/mol) and R is the mole gas constant (8.314 J/(mol·K)). In this case, according to the ln X versus 1/T curve, the valuesof Q and D0 could be calculated. Q and D0 values of the reaction layers including A, B and C are given in Table 4.

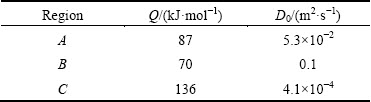

Table 4 Q and D0 values of reaction layers formed in ITZ

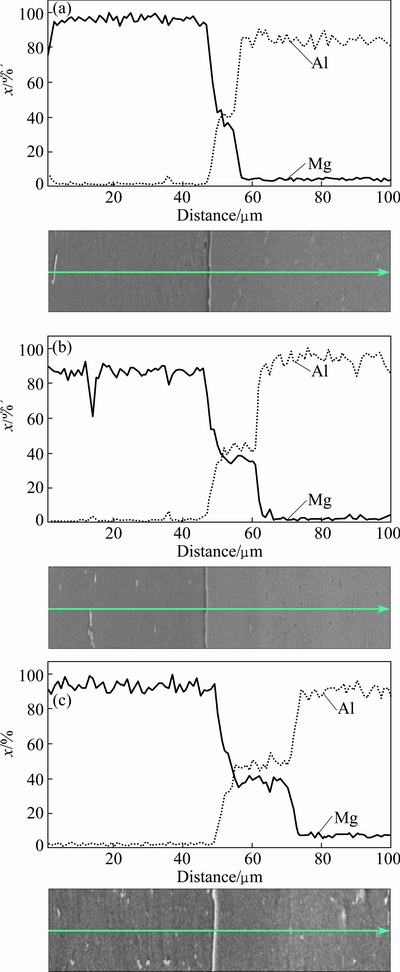

Fig. 8 Line scan analysis of joints at various temperatures of 430 °C (a), 440 °C (b) and 450 °C (c)
As it can be seen, the growth rate of the Layer B, is more than that of other layers. The interdiffusion of Al and Mg elements, at 430, 440 and 450 °C for 60 min, is illustrated in Fig. 8, by line scan analysis (with length of 100 μm). The ITZ is the region at the both sides of the interface, where the concentration of solute atoms is over than 5% [24]. The size of this region can be determined from the concentration profiles. The result of line scan analysis at 430 °C indicates moderate diffusion across the interface (Fig. 8(a)). As temperature increases the concentration gradient reduces and the thickness of transition region increases. But in different situations, it was observed that the rate of diffusion of Al atoms into Mg alloy is more than that of Mg atoms into Al alloy. Since the atomic radius of Al (1/43 ) is lower than that of Mg (1/6 ), the mass fraction of Al in ITZ is more than that of Mg [16,17,19,20]. The activation energy for diffusion of smaller atoms is less and so, the smaller atoms have more diffusion rate. Therefore, the rate and the depth of diffusion for Al atoms are more than those of Mg atoms. The elemental map analysis was used to investigate the distribution of Al and Mg elements during diffusion bonding at different temperatures. Figure 9 indicates the elemental map of Mg and Al in the joints at various temperatures. Mg and Al elements are indicated by red and blue colors respectively. With increase of temperature, no change has happened in the initial position of Mg alloy, but the joint interface moves towards the Al alloy. Although the melting point of Mg alloy is less than Al alloy, but it is observed here that with increase of temperature, the diffusion of Al atoms is greater than that of Mg. Furthermore, it is shown that at first, the interface line is rough but as the temperature increases, this line becomes smoother and diffusion of atoms gets more uniform. In Derby’s theoretical model [27-30], possible diffusion bonding mechanisms were identified as: 1) plastic deformation of surface asperities; 2) power-law creep deformation of the surface; 3) diffusion of matter from interfacial void surfaces to growing necks, and 4) diffusion of matter from bonded regions at the interface to growing necks. According to the results, the formation process of different layers in the joint area could be predicted, as shown in Fig. 10.

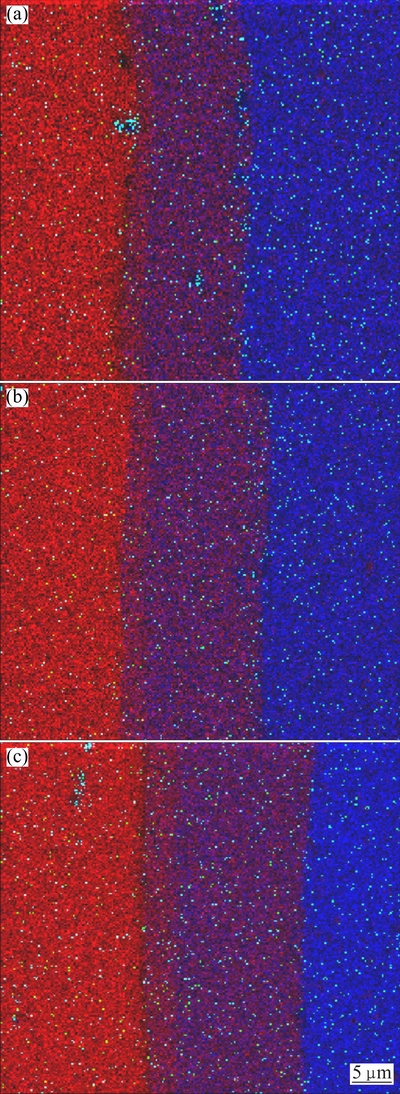

Fig. 9 Elemental map analysis of Mg and Al in joint area at temperatures of 430 °C (a), 440 °C (b) and 450 °C (c) (Red: Mg; Blue: Al)

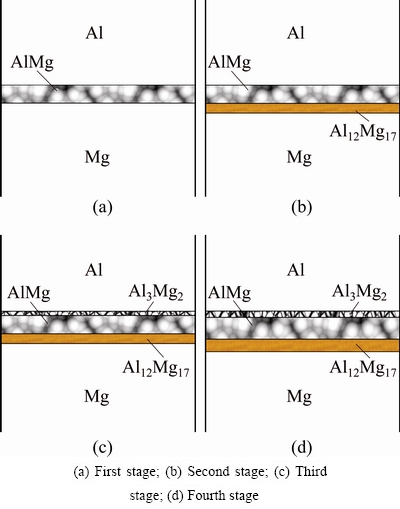

Fig. 10 Schematic illustration of diffusion bonding process of Al and Mg alloys
1) Primarily, because of the concentration gradient, Al and Mg atoms of base metals diffuse into irregular interface with micro-voids. When their concentration reaches a critical value, a reaction occurs between Al and Mg elements and a layer containing Al-Mg will form (Fig. 10(a)).
2) Then, due to the greater diffusion of Al atoms into the Mg alloy, the aggregation of Al atoms, at the interface layer and Mg region, will take place and the Al12Mg17 intermetallic compound would be formed (Fig. 10(b)).
3) At the same time, the diffusion of Mg atoms into Al alloy occurs and with increasing of Mg concentration at the interface and Al region, leading to formation of a layer containing Al3Mg2 phase (Fig. 10(c)).
4) Finally, according to the holding time, continuous diffusion of Al and Mg atoms occurs in ITZ, and the thickness of reaction layer increases with increasing time (Fig. 10(d)).
3.3 Evaluation of mechanical properties
The mechanical properties of the joints, are summarized in Table 5.
Table 5 Mechanical properties of joints at different temperatures
The results indicate that the value of microhardness is the highest in diffusion zone and changes uniformly across the joint area. The value of the microhardness in ITZ increases with increasing of bonding temperature. This fact is related to the formation and volume increment of intermetallic compounds. Moreover, according to the results, the maximum amount of shear strength (38 MPa) was obtained at 440 °C. Increase of temperature leads to an increase in the initial plastic deformation of surfaces by reducing the strength and causes the contact between faying surfaces. As a result, with increasing of deformation via creep process, enhancement of bond strength by displacement and removing of the primary interface, happen (440 °C). But, with further increasing of temperature, the volume of interfacial solid solutions and compounds, that are generally brittle intermetallic phases, increases and leads to reduction of the joint strength. In other work that was carried out on diffusion bonding of Al 6061 and Mg AZ31 alloys, higher values of shear strength than the peresent study, were obtained at lower temperature (430 °C), which is due to the lower thickness of ITZ [30].
Figure 11 shows the SEM images of the fracture surface of joints at 440 °C, after uniaxial tensile tests. Basically, due to the formation of intermetallic brittle compounds, ductility of bond area was lower than that of base metals. Figure 11(a) shows the image of fracture surface of Mg AZ31 sample. The river pattern can be seen clearly on the surface which shows the brittle and cleavage aspects of the fracture. In addition, the presence of micro-cracks is observable on the surface. According to the results of EDS analysis from specified points in Fig. 11(a), Point A contains 57.63% Mg (mole fraction) and 42.37% Al (mole fraction), which proves the presence of Al12Mg17 brittle phase, in this zone. Point B contains 40.93% Mg and 59.07% Al, which indicates the presence of Al3Mg2 phase. Precipitates at Point C contain 7.1% Mg, 71.15% Al, 5.89% Zn, 13.86% Fe, 0.66% Cu and 1.34% Cr. These Al-rich precipitates originate from Al base alloy. The Area D containing 40.82% Mg and 59.18% Al which show the presence of Al3Mg2 brittle phase, is confirmed. This shows that the fracture has occurred between Al3Mg2 and Al12Mg17 layers. Figure 11(b) shows SEM images of fracture surface of the Al 7075 alloy. In this case, the river pattern is observable, which suggests also a brittle fracture. EDS analysis of marked points in Fig. 11(b), shows that Point A contains 40.9% Mg and 59.1% Al corresponding to Al3Mg2. Point B contains 58.21% Mg and 43.39% Al, which represents Al12Mg17 phase. Precipitates derived from Al alloy are also determined by Point C which contains 10.96% Mg, 27.96% Al, 3.75% Zn, 14.69% Fe, 0.5% Cu and 0.83% Cr. As it can be seen that, there are many micro-cracks on the fracture surface due to the presence of Al3Mg2, on the surface of Al alloy. This reflects that cracks have originated from this phase.

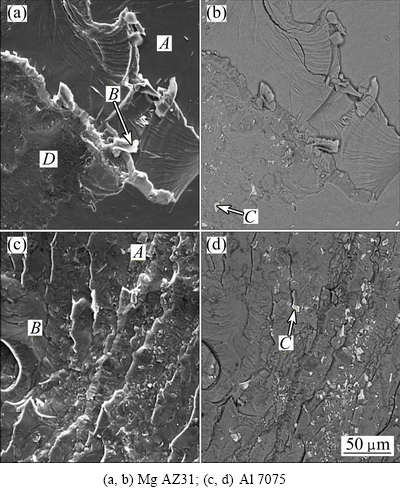

Fig. 11 SEM images of fracture surface
3.4 XRD studies
Figure 12 shows the XRD patterns of the joint at 440 °C after tensile tests from both sides of the fracture surface. According to the XRD results, the phases on the fracture surface of Al alloy, include Al3Mg2 and Al12Mg17 and the phases on the Mg fracture surface are Al12Mg17, Al3Mg2 and Mg. As it can be seen, at the temperature of 440 °C, a large amount of Al3Mg2 forms on the Al side.

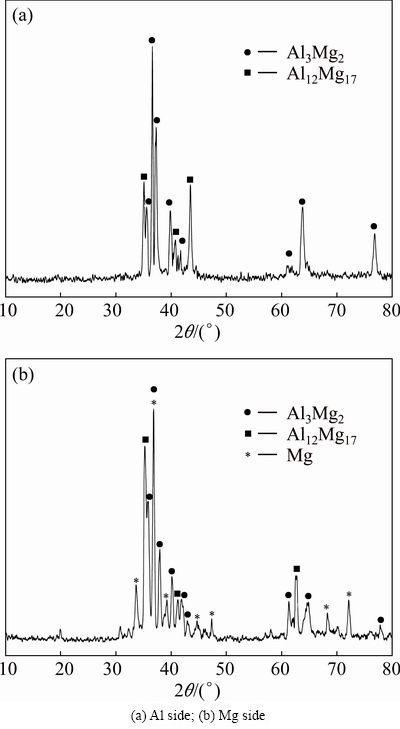

Fig. 12 XRD patterns of joint heated at 440 °C after tensile test
4 Conclusions
1) At 440 °C, under uniaxial pressure of 25 MPa for 60 min, the deformation in the joint is the lowest among all samples and micro-voids were not observed at the interface.
2) The experimental results show that the α(Al) solid solution, Al12Mg17 and Al3Mg2 phases form at the diffusion interface. The distribution of these phases is less at lower processing temperatures and increases with process temperature due to the enhancement of interdiffusion coefficients.
3) According to experimental observations, a four- stage formation process for different layers at the joint area was proposed.
4) Optimum joining conditions achieved at 440 °C and 25 MPa exhibit the maximum shear strength of 38 MPa.
5) Fracture surface study indicates brittle and cleavage fracture type. The cracks initiate and propagate from Al3Mg2 brittle phase.
6) XRD results of fracture surfaces confirm the presence of the intermetallic phases such as Al3Mg2 and Al12Mg17 on the surface of Al and Mg.
