Controlling limiting length of tunnels on Al foil electroetched in

HCl-H2SO4 solution

BAN Chao-lei(班朝磊), HE Ye-dong(何业东)

Beijing Key Laboratory for Corrosion, Erosion and Surface Technology,

University of Science and Technology Beijing, Beijing 100083, China

Received 23 September 2008; accepted 17 January 2009

Abstract: The limiting length of tunnels, l_lim, of Al foil electro-etched in HCl-H₂SO₄ solution and the corresponding anodic polarization curves in the same solution were measured. It is found that there is a dependence of l_lim on the potential difference, ?φ, between the pitting potential, φ_pit, and the corrosion potential, φ_corr, of Al foil, when the temperature and H₂SO₄ concentration of HCl-H₂SO₄ electrolyte are changed. The dynamic equation on the tunnel growing and the linear equation between l_lim and ?φ were deduced by analyzing the relationship among the over-potential on Al foil surface, the transport over-potential in tunnel solution and the over-potential at tunnel tip during the electro-etching. The results show that the growing velocity of tunnels decreases with their extending in length and the changing trend of l_lim can be judged by measuring ?φ, which supplies a convenient access to explore new kinds of etchants.

Key words: electrolytic capacitor; aluminum foil; electro-etching; anodic polarization; pitting

Electrochemical etching of aluminum foil can enlarge its surface area and is a key technology to manufacture Al electrolytic capacitor of high special capacitance. The etched foil for high voltage Al electrolytic capacitor is fabricated by d.c. electrochemical etching in concentrated chloride solutions to produce crystallographic tunnels along <100> direction on high purity and high cubicity Al foil surface[1]. Their surface density is of the order of 10⁵-10⁷ /cm². The tunnel etching of Al foil is a typical progress of pitting corrosion. It not only depends on properties of raw foil[2-5], but also involves the initiation and growth of pits and tunnels, mass transportation in tunnels, dissolution and passivation of Al, chemical equilibrium and self-catalysis in tunnels, etc [6-8]. In 1984, ALWITT et al[9] first reported the dynamics of tunnel growth for Al foil in 1 mol/L HCl at 70-97 ℃. They found that tunnel initially increased at a constant rate and developed slowly later in length, eventually reached a limiting length where they no longer grew under given etching conditions. Subsequently, the conception of tunnel limiting length, l_lim, was defined by HEBERT and ALKIRE[10]. Their research showed that l_lim decreased with increasing concentrations of AlCl₃, HCl or temperature when Al foil was d.c. electro-etched in HCl solution. They thought that the resistance to transport of Al⁺³ from tunnel tip to outer bulk solution increased with increasing tunnel length and diffusion became the controlling step for tunnel growing. When tunnel became saturated with AlCl₃ at its tip, the tunnel tip would passivate and stop growing, leading to a limiting tunnel length. ATSUSHI[11] studied the influence of H₂SO₄ concentration in 1 mol/L HCl at 90 ℃ on l_lim. He found that l_lim trended to decrease with increasing H₂SO₄ concentration. It was suggested that Al₂(SO₄)₃ could reach a saturated state earlier than AlCl₃ at tunnel tips because the solubility of Al₂(SO₄)₃ was less than that of AlCl₃, resulting in the inhibitation of the growth of tunnels. In 1996, a local chemical process during tunnel etching Al foil was analyzed by NEWMAN[12]. In China, WANG et al[13] and WANG et al[14] have also studied the factors influencing l_lim. They proposed that the passivation of H₂SO₄ and mass transport process in the boundary layer on the Al foil surface had an important effect on l_lim.

In this work, the dependence of l_lim on the potential difference, ?φ, between the pitting potential and the corrosion potential of Al foil during electro-etching in HCl+H₂SO₄ solution was studied. Through experiments and theoretical analysis, the relation of this dependence with the mechanism of controlling l_lim was revealed.

2 Experimental

Aluminum capacitor grade foil (Showa) of 99.99% in purity, 115 μm in thickness and above 99% in cubicity for high voltage usage was adopted as specimen.

Al foil specimens were rinsed with deionized water and mounted in a holder, leaving a single exposed surface area of 5 cm×9 cm. A potentio/galvanostat(WYK-3050) supplied the d.c. current for anodic etching. The current density and surface density of charge were 150 mA/cm² and 20 C/cm², respectively. Anodic etching was carried out in  1 mol/L HCl+x mol/L H₂SO₄ solutions (x=0.5, 1, 1.5, 2 and 2.5) in a temperature range from 70 ℃ to 90 ℃.

After anodic etching, Al foils were rinsed with deionized water, and then anodized in a ammonium adipate bath at 90 ℃ under a voltage of 100 V. A anodic film was thus formed. The foils were then immersed in an iodine/methanol solution at 40 ℃ for 10 h, in which the Al matrix was dissolved away, leaving the oxide replica of tunnels for SEM observation. After rinsing and drying, the specimens were fixed and coated with thin carbon film. The morphology of tunnels and l_lim were observed and measured directly by FE-SEM (SUPRA55).

The anodic polarization curves of Al foil in above etching solutions were measured by a Potentiosat-168. The test cell was a three-electrode system consisting of the anodized aluminum, a platinum sheet and a saturated calomel electrode(SCE) assembled as working electrode, counter electrode and reference electrode, respectively. The reference electrode employed a salt bridge with a Luggin probe adjacent to the working electrode. The period of adopting data was 500 ms. Specimens were anodizedly polarized at a sweep rate of 10 mV/s.

3 Results and discussion

3.1 Effect of H₂SO₄ concentration on l_lim and anodic polarization curves

Fig.1 shows the morphologies of oxide replica of tunnels etched in 1 mol/L HCl+x mol/L H₂SO₄ with different H₂SO₄ concentrations at 85 ℃. It is demonstrated that l_lim decreases with increasing H₂SO₄ concentration. Fig.2 shows the anodic polarization curves of Al foil specimens in the corresponding solutions and ?φ. By comparing Fig.1 with Fig.2, it can be seen that both l_lim and ?φ decrease with increasing H₂SO₄ concentration.

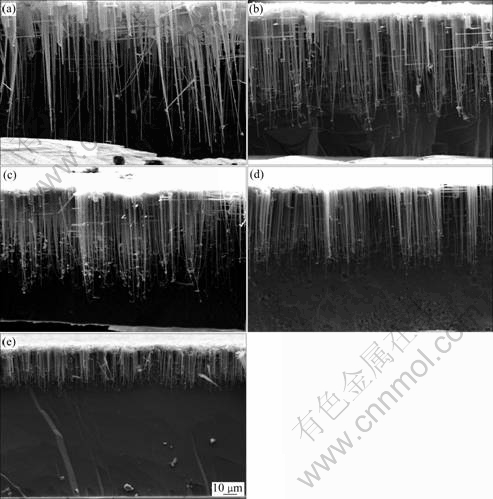

Fig.1 Morphologies of oxide replica of tunnels etched in 1 mol/L HCl+x mol/L H₂SO₄ solution: (a) x=0.5; (b) x=1.0; (c) x= 1.5; (d) x=2.0; (e) x=2.5

Fig.2 Anodic polarization curves of Al foil in 1 mol/L HCl+   x mol/L H₂SO₄ solution

3.2 Effect of temperature on l_lim and anodic polariza- tion curves

Fig.3 and Fig.4 show the tunnel morphologies and anodic polarization curves obtained in 1 mol/L HCl+1.5 mol/L H₂SO₄ at different temperatures, respectively. It can be seen that both l_lim and ?φ decrease with increasing solution temperature.

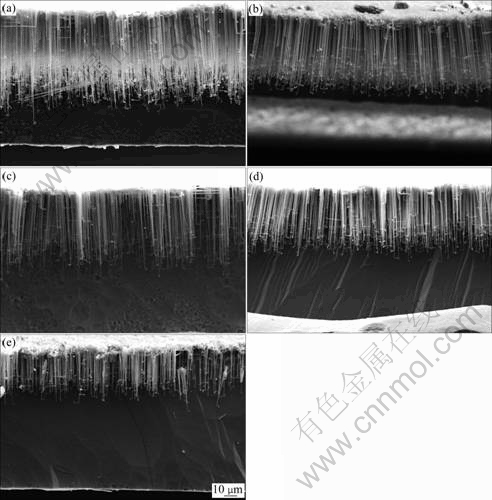

Fig.3 Morphologies of tunnels formed in   1 mol/L HCl+1.5 mol/L H₂SO₄ solution at different temperatures: (a) 70 ℃; (b) 75 ℃; (c) 80 ℃; (d) 85 ℃; (e) 90 ℃

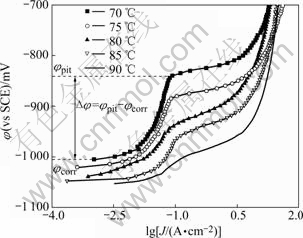

Fig.4 Anodic polarization curves of Al foil in 1 mol/L HCl+1.5 mol/L H₂SO₄ solution at different temperatures

From above experimental results, two relation curves of l_lim with ?φ can be drawn, as shown in Fig.5, when changing H₂SO₄ concentration or temperature of  1 mol/L HCl+x mol/L H₂SO₄ solution. Fig.5 shows that l_lim is approximately linear with ?φ. The nobler the ?φ, the larger the l_lim. However, the influence of temperature or H₂SO₄ concentration on the slopes of l_lim—?φ curves is different. The slope of curve for the effect of temperature is steeper than that of curve for the effect of H₂SO₄ concentration.

Fig.5 Influences of temperature and H₂SO₄ concentration of   1 mol/L HCl+x mol/L H₂SO₄ on relation between potential difference (?φ) and tunnel limiting length (l_lim)

The tunnel etching of Al foil is a unique form of pitting corrosion. Generally, the value of ?φ reflects the trend for pitting corrosion to occur. With the increase of H₂SO₄ concentration or temperature of solution, ?φ decreases, indicating that the pitting corrosion of Al foil occurs more easily. Moreover, as shown in Fig.5, there is a dependence of l_lim on ?φ when H₂SO₄ concentration or temperature of solution changes. If this dependence is inherent in etching process, the changing trend of l_lim can be judged through measuring ?φ, which provides a convenient way to explore new kinds of etchants for controlling l_lim. Therefore, it is very significant to study the inherent mechanism of l_lim—?φ dependence.

During tunnel growing, the electrochemical behavior in tunnel is different at the exterior surface of Al foil. Both the tunnel walls and the Al foil exterior surface between tunnels are under passivation, and only the tunnel tip could be dissolved. The anodic polarization curves show the potential variation at the mouth of tunnel and Al foil exterior surface with the apparent current density. The potential at the tunnel mouth is always equal to that at Al foil exterior surface. However, the true current densities at both locations are different. As a tunnel grows, the true current density at the tunnel mouth is always larger than that at the Al foil exterior surface until the tunnel stops growing. Since both the tunnel mouth and the Al foil exterior surface are under an isopotential state and the electrochemical behaviors at both locations have a parallel connection, the following relation exists:

φ_s=φ_tip+φ_sol                                  (1)

where φ_s and φ_tip are the polarization over-potentials at the Al foil exterior surface and at the tunnel tip, respectively; and φ_sol is the mass transport over-potential in the tunnel solution.

There are

φ_sol=J_pit?s_pit?R_sol                               (2)

                                (3)

where J_pit is the current density in the tunnel; s_pit is the cross section area of the tunnel; R_sol is the solution resistance in the tunnel; κ is the solution conductivity in the tunnel and l_pit is the tunnel length. Eq.(1) can be expressed as

                          (4)

From Eq.(4), J_pit can be drawn as

                          (5)

When the current density at tunnel tip drops to a critical value, J_c, the tunnel tip becomes passivated and the tunnel reaches l_lim. The following equation can be obtained:

                          (6)

Eqs.(5) and (6) indicate that the driving force for tunnel growth is (φ_s-φ_tip). The more the passivity of the Al foil exterior surface, the more the value of (φ_s-φ_tip). The dynamics of the tunnel growing can be changed through the passivation ability of Al foil surface. Eqs.(5) and (6) also suggest that J_pit is inversely proportional to the tunnel length if (φ_s-φ_tip) keeps constant. This is in agreement with the fact that the J_pit tends to decrease with the increase of the tunnel length, as reported in the Refs.[9, 12, 15]. Eqs.(5) and (6) describe the growth dynamics of one tunnel. During electro-etching, many tunnels are formed closely following others. The applied current density can only change the number of tunnels formed, rather than the dynamics and limiting length of each tunnel.

Owing to the occlusion cell effect in tunnel, the solution at tunnel tips is characterized by special concentrations of H⁺, Al³⁺ and Clˉ, which are higher than those in the bulk solution. When the metal dissolution rate of tunnel tip is not high, φ_tip can be neglected, compared with φ_sol. Therefore, Eq.(6) can be reduced as

                                 (7)

Since φ_s consists of ?φ and ?φ₁, the potential difference between the foil exterior surface potential and the pitting potential, namely φ_s=?φ+?φ₁, Eq.(7) can be further expressed as

                          (8)

It can be found from Fig.2 and Fig.4 that the influences of both H₂SO₄ concentration and solution temperature on ?φ₁ are small. In addition, because the composition of solution in tunnel is little influenced by bulk solution due to the occlusion cell effect, κ can be regarded as a constant at certain temperature. Therefore, as shown in Eq.(8), l_lim is linear with ?φ at certain temperature, which is confirmed by the experiment results in Fig.5. When the solution temperature increases, ?φ decreases as shown in Fig.4 with κ increasing in theory. So, as the solution temperature increases, the relationship between l_lim and ?φ will be deflected from that at constant temperature. As demonstrated in Fig.5, the slope of l_lim—?φ curve influenced by solution temperature is steeper than that influenced by H₂SO₄ concentration. Therefore, enhancing solution temperature can apparently decrease the tunnel limiting length.

4 Conclusions

1) When Al foil for high voltage is electro-etched in HCl-H₂SO₄ solution, there is a linear relationship between l_lim and ?φ with changing of H₂SO₄ concentration and temperature of the solution.

2) The dynamic equation on tunnel growing can be drawn as J_pit=κ(φ_s-φ_tip)/l_pit, which demonstrates that J_pit is in inverse proportion to tunnel length, l_pit.

3) When the tunnel tip is under critical passivation current density, J_c, the tunnel will reach a limiting length, l_lim, which can be expressed as l_lim=κ(φ_s-φ_tip)/J_c, leading to a approximate linear relationship between l_lim and ?φ for a given experimental conditions, which is confirmed by the experiment results.

4) The changing trend of l_lim can be judged through measuring ?φ, which supplies a convenient way to explore new kinds of etchants for controlling the tunnel limiting length.
