Trans. Nonferrous Met. Soc. China 28(2018) 1582-1592

Evaluation of LaAlO₃ as top coat material for thermal barrier coatings

N. VOURDAS¹, E. MARATHONITI¹, P. K. PANDIS¹, Chr. ARGIRUSIS², G. SOURKOUNI³, C. LEGROS⁴, S. MIRZA⁵, V. N. STATHOPOULOS¹

1. Laboratory of Chemistry and Materials Technology, School of Technological Applications, Technological Educational Institute of Sterea Ellada, 34400 Psachna Campus, Evia, Greece;

2. School of Chemical Engineering, National Technical University of Athens, I. Polytechneiou 9, 15780 Zografou, Athens, Greece;

3. Inst. f. Metallurgie, Technische Universitat Clausthal, Robert-Koch-Str. 42, 38678 Clausthal-Zellerfeld, Germany;

4. Institut de Chimie Moléculaire et des Materiaux d’Orsay, Université Paris Sud, Bat 410, 91405 Orsay Cedex, France;

5. ELEMENT S.A., Hitchin SG4 0TW, UK

Received 8 May 2017; accepted 4 August 2017

Abstract: Perovskite is a versatile group of oxide materials allowing their properties to be tailored by composition towards specific requirements. LaAlO₃ was prepared to study and report its properties in the context of its potential in thermal barrier coatings (TBCs) technology. A citric acid method was used for synthesis and the perovskite structure was confirmed using XRD and FT-IR. Viscosity of the solution precursor was checked as well as the particle size by laser particle size analysis. Densification behavior of the material was followed by conventional sintering and by spark plasma sintering. Apparent porosity by the Archimedes method, thermal conductivity and thermal expansion coefficient were studied. Mechanical and fracture properties were measured at elevated temperatures up to 1300 °C. For samples sintered at 1200-1400 °C, coefficient of thermal expansion ranged from 5.5×10^-6 to 6.5×10^-6 K^-1 and thermal conductivity ranged between 2.2 and 3.4 W/(m·K). Elastic modulus and ultimate stress were measured at 1000-1300 °C, while by micro-indentation, fracture toughness was found to be 3 MPa·m^1/2. As the sintering temperature increased from 1200 to 1500 °C, significant densification from 3.21 to 5.81 g/cm³ was found, indicating that material annealing should be made at least at 1400 °C. Under this condition, negligible dimensional change in phase transition temperature of LaAlO₃ from the rhombohedral (R3c) to the ideal cubic (Pm3m) is found. Data reported in this work can be useful for comparing the mechanical and fracture behaviours of different TBCs developed involving LaAlO₃ as well as input for numerical simulations.

Key words: perovskite; lanthanum aluminate; thermal barrier coating (TBC)

1 Introduction

Thermal barrier coatings (TBCs) are used to insulate and protect the metallic gas turbine engine components from the hot gas stream, against high temperature corrosion, and subsequent damage. Improvement in this field will facilitate higher combustion temperatures and thus improved engine efficiency, not only in power generation but also in aerospace and marine propulsion [1-6]. In general, a typical TBC consists of two deposited layers, the bondcoat (BC) and the topcoat (TC), and one that is evolved during processing and operation, the thermal grown oxide (TGO).

The state of the art TC material is the Y₂O₃- stabilized zirconia (7% Y₂O₃ in ZrO₂, YSZ). This particular Y₂O₃ percentage was selected based on thermal cycling measurements [5]. Its comparably higher thermal cycling performance is leveraged by a combination of suitable properties, i.e., high melting point 2680 °C, high coefficient of thermal expansion (CTE) 11.5×10^-6 K^-1 at 1000 °C, low thermal conductivity (K) 2.12 W/(m·K) at 1000 °C and high fracture toughness 1-2 MPa·m^1/2 of the coating [6,7]. YSZ performance is affected by a variety of interconnected parameters, such as the compatibility with the BC material, the BC/TC interface state, the microstructure and the deposition method. However, YSZ operation temperature is limited at ~1200 °C, above which the phase transformation to the monoclinic phase becomes favourable. This transformation introduces fatal volume changes that degrade the integrity upon thermal cycling, thus inseminating the necessity for studies of novel TC materials operating at temperatures above 1200 °C [1,8-15].

Materials exhibiting perovskite structure, in particular, have attracted much attention as YSZ replacements mainly due to their high melting point, high CTE and relatively low thermal conductivity. The drawback of materials exhibiting simple perovskite structure is mainly their inferior fracture-related mechanical properties. SrZrO₃ is one of the few exceptions with comparable to YSZ fracture toughness and has been studied as single layer TC [16,17] or as double layer on top of YSZ [18], with or without Gd₂O₃ or Yb₂O₃ doping to lower the thermal conductivity and improve the phase stability. Other simple perovskite structured zirconates such as BaZrO₃ [16] and CaZrO₃ [19] and LaYbO₃ [20] have been also evaluated, but their poor thermo-chemical stability and low melting point, respectively, prevail their application as YSZ replacements. MgZrO₃ has been used as a buffer layer between YSZ and BC to enhance the damage resistance of the TBC [21]. Nanocomposite materials such as LaAlO₃-La₂Zr₂O₇, LaAlO₃-LaCuAl₁₁O₁₉ have been studied as overlayers on YSZ and exhibited improved thermal cycling performance [22]. Simple perovskite structured aluminates have attracted less attention.

An important aspect of perovskites, however, is that they may accommodate substitution in both A- and B-  site, thus allowing their properties to be tailored towards specific requirements as for example in catalysis [23-28]. Under the concept of compositional control of  properties, and based on the structures previously synthesized for various applications, complex substituted structures have been studied as YSZ replacements; Ba(Mg_1/3Ta_2/3)O₃ (BMT) with CTE=10.9×10^-6 K^-1 and k=2.71 W/(m·K) and La(Al_1/4Mg_1/2Ta_1/4)O₃ (LAMT) with CTE=9.7×10^-6 K^-1 and k=1.82 W/(m·K) [29] (CTE values within the range of 30-1000 °C, and k at 1000 °C) have been synthesized and evaluated as one layer TC or as double layer TC on YSZ [11]. Even though their fracture toughness is lower compared with YSZ, and their performance at operating temperatures of 1400 °C is characterized as encouraging. However, the presence of Mg introduces implications upon spraying [30] due to relatively high vapor pressure of MgO (order of 133.3×10^-4 Pa at 1300 °C), compared Ta₂O₅ (order of 133.3×10^-4 Pa at 1920 °C), to Al₂O₃ (order of 133.3×10^-4 Pa at 1550 °C) and to La₂O₃ (133.3×10^-4 Pa at 1400 °C).

Even though LaAlO₃ is claimed as a potential YSZ replacement [31,32], no pertaining study has been published so far to our knowledge, contrary to the respective substituted lanthanum aluminates exhibiting the hexaaluminate structure [33,34]. Even in hexa- aluminates, as well as in lanthanum zirconates [35,36], LaAlO₃ gradually evolves with thermal aging [34], due to the reaction of La with Al from the evolved TGO. More interestingly, La oxide seems to stabilize the sintering and hence the creep resistance of Al oxide [37]. Therefore, its evaluation as material incorporated in the TC of a TBC, is of crucial importance not only as stand-alone TC layer, but also for various La-containing YSZ replacements including nanocomposites [22].

Simple LaAlO₃ structure demonstrates poor mechanical properties [38], which has a relatively low melting point (ca. 2100 °C), and exhibits a phase transition from the rhombohedral (R3c) to the ideal cubic (Pm3m) at ca. 810-840 °C, accompanied with a CTE discontinuity. The extent of this discontinuity is however debatable, from prohibitively large [39,40] to undistinguishable [41]. On the other hand, LaAlO₃ is also susceptible for doping in both A- and B-site [39,41-43], thus enabling the formation of stabilized structures up to more than 1600 °C, with lower thermal conductivity [44], and improved the mechanical properties [45].

In this study, we evaluate LaAlO₃, as the first member in LA-based series of perovskite based materials with tailored TC properties, against standardized testing for TC materials.

2 Experimental

2.1 Preparation of LaAlO₃

LaAlO₃ (LA) powder was synthesized based on a citrate-precursor technique described in Ref. [46]. La(NO₃)₃.6H₂O and Al(NO₃)₃.9H₂O from Sigma Aldrich were used as La and Al sources. An aqueous solution of 0.407 mol/L in La(NO₃)₃.6H₂O and 0.407 mol/L in Al(NO₃)₃·6H₂O was formed and citric acid was added to a molar ratio of La:Al:citric acid =1:1:4.5. Then, NH₄OH was added to 9 Pellets were formed by means of uniaxial pressing the LA powder under 74 MPa. Green pellet diameter was 13.0 mm, height was 3.5 mm unless specified differently, and the bulk density was 3.05 g/cm³. Pellets were sintered at various temperatures in the range of 1200-1500 °C for 2 h.

YSZ (5%, mole fraction) by LTC Ltd, Korea, was also used for shaping specimens for mechanical properties comparison testing.

2.2 Material characterization

Phase formation was confirmed using a Siemens D600 XRD system employing Cu K_α radiation. The particle size was checked by laser particle size analysis using a Malvern 2000 Mastersizer. Viscosity of the solution precursor was measured using the Brookfield, DV-II-Pro viscometer at temperatures of (21.0±0.5) °C. Apparent porosity was measured utilizing the Archimedes method and following the respective standard method [47]. Bulk density of pellets was calculated as the mass of the dry pellet over the apparent volume of the pellet, based on the geometrical characteristics of the pellet.

IR spectra of samples were recorded by IR Fourier spectrometer BRUKER ALPHA equipped with diamond ATR accessory using single-beam optical scheme. Spectra were obtained within the range of 400-800 cm^-1 with resolution of 4 cm^-1.

2.3 Thermal conductivity measurements

Thermal conductivity measurements were performed by means of the flash laser method, using a Netzsch LFA 457 MicroFlash instrument and samples as pellets with 8 mm in diameter and 3-4 mm in thickness. The temperatures were 25 and 750 °C in Ar atmosphere. The Nd-laser had pulse duration of 0.3 ms and a maximum energy of 18 J. The result of the measurement is the thermal diffusivity (D_th in mm²/s) which has to be transformed to the thermal conductivity (λ in W/(m·K)) using the following equation:

λ(T)=D_th(T)·ρ·c_p                                             (1)

where ρ is the sample density in g/cm³ and c_p is the specific heat capacity in J/(g·K).

For the LaAlO₃ samples, ρ=5.54 g/cm³ and c_p= 0.427 J/(g·K) were used.

2.4 Mechanical testing

Basic mechanical and fracture properties of LA were measured using a high temperature mechanical test facility and indentation method, respectively. These data are required for the qualitative comparison of the LA properties with other top coat materials as well as input to numerical modelling of thermal barrier coatings to simulate the behaviour under service loading conditions and predicting life of the coatings.

Modulus, the stress-strain response and the ultimate strength of the LA samples in compression mode as a function of temperature were measured.

The high temperature mechanical test facility consists of a furnace that splits vertically along its center line and has a maximum continuous operating temperature of 1300 °C. The furnace has a relatively large internal void of 200 mm × 200 mm × 200 mm. A constant temperature within the furnace is achieved through a three-zone heating using six silicon carbide heating elements, each with independent control system to maintain the target temperature.

For the mechanical testing the furnace was mounted on a DARTEC 100 kN servohydraulic test machine. Water cooled aluminum loading bar fixtures are used at the top and bottom furnace entry points to ensure thermal isolation of the 99.7% alumina loading rods (L=400 mm; d=46 mm) from the test machine and the load cell. A self-aligning rotary ball joint fixture is included in the load line to ensure accurate fixture alignment.

Test specimens in the form of pellets are placed centrally between the parallel ends of the alumina loading rods before conditioning at test temperature prior to mechanical loading. The load and crosshead displacement are monitored during the test, with machine stiffness being compensated during post test data analysis.

Tests were performed in sintered pellets (see section 2.1) with diameter of 10 mm and height of 12 mm.

It must be noted that the sintering process produces samples with high level of consolidation and low levels of porosity compared with the top coats on the TBC are deposited using different spraying techniques which in generally results in lower level of consolidation and higher porosity.

The fracture toughness data from the cylindrical top coat LA samples were measured using the indentation method. There are several equations available in Refs. [48-50] for calculating the fracture toughness (K_IC) from micro-hardness tests. In this work, a variant of Lawn’s equation [51] has been employed using the Vickers hardness indenter using the following equation:

                   (2)

where a is the half length of the indentation diagonal; c is the half length of the crack generated by indentation; H_V is Vickers hardness; K_IC is fracture toughness.

2.5 Spark plasma sintering

Spark plasma sintering (SPS) experiments were carried out on the Dr Sinter 515S Syntex apparatus. The powders were poured into a carbon die with 8 mm in diameter, the internal face of which was covered with a thin graphite foil (papayex@), to avoid direct contact between the powder and the graphite die. The die was closed by carbon punches at both sides that are used as current contacts, as well as to apply uniaxial pressure. DC pulses were delivered to the die by the punches allowing the temperature of the die to rise rapidly. Graphite felt around the die was also used to reduce the heat loss by radiation. Sintering temperature was measured by an optical pyrometer focused on a small hole in the graphite die. For the maximum  reproducibility, the sintering temperature and pressure were controlled by automatic controller units. The samples were heated by applying pulsed direct current which passes through punch and die system. The pulse time was set as 3.3 ms, a pulse pattern consisted of 12 pulses each followed by a period of 6.6 ms during which no current was used. All experiments were conducted in vacuum of about 0.1 Pa.

In all cases, the temperature was first raised to 600 °C within 1 min and a dwell time of 6 min was set to let time to monitor and regulate the temperature using the IR pyrometer. As soon as the temperature of 600 °C was reached, a constant uniaxial pressure of 100 MPa was applied to the die. Different experimental conditions were tested to optimize the sintering of LA. Samples were heated to a holding temperature (T) within 1 min; consequently, various heating rates of 500, 600, 700 and 800 (°)/min respectively for 1100, 1200, 1300 and 1400 °C have been applied. The sample was maintained at this temperature for 15 min. A rapid cooling, during which the pressure was decreased, ended the sintering cycle. In order to evaluate the sintering behavior of LaAlO₃ powder, a dilatometric study was performed using the SPS apparatus.

3 Results and discussion

3.1 Powder structural characterization

The particle size distribution of the LA powder after 60 h of ball milling is shown in Fig. 1(b). The powder exhibits a D_0.5 equal to 1.2 μm.

Figure 2 shows the XRD patterns of the powder received after different annealing temperatures, from 700 to 1100 °C. Single phase perovskite structure was confirmed at 1100 °C.

The ATR-IR spectra of the as-prepared powder are presented in Fig. 3. The dominating band is asymmetric and located at ca. 650 cm^-1. Based on previous studies regarding the optical properties of LA [52], this is the result from two primary peaks at 692 cm^-1 and 652 cm^-1. A smaller band at ca. 556 cm^-1 is also recorded. These, namely, three bands, correspond to the formation of AlO₆ octahedra [46,53]. One small band at ca. 495 cm^-1 is also expected [52], whereas we record another at 406 cm^-1.

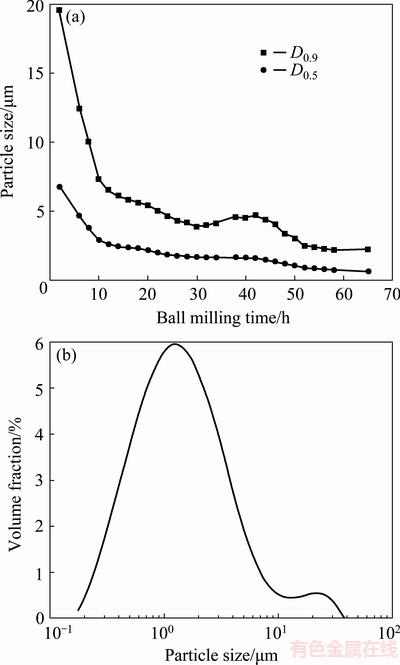

Fig. 1 Variation of D_0.5 and D_0.9 against ball milling time (a) and particle size distribution of LA powder after 60 h of ball milling (b)

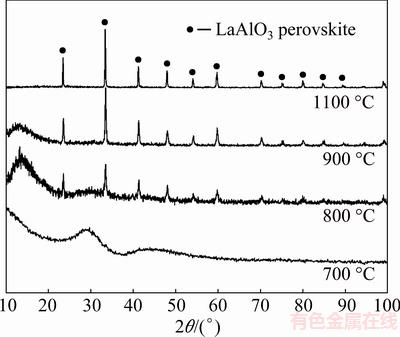

Fig. 2 XRD patterns of LA powder at different annealing temperatures

The deconvolution of the spectrum is also shown in Fig. 3. Four Lorentz oscillators were used and fitted to the measured spectrum. The fitted parameters, i.e., peak center (x_c), peak width (w) and peak area (A) are also presented in Fig. 3 [54,55]. The positions of  the Lorentz oscillators, as well as the comparably larger width of the oscillator at 691 cm^-1, are in accordance to pertaining the tabulated values [52].

3.2 Porosity and sintering

Porosity properties of the LA samples are summarized in Table 1.

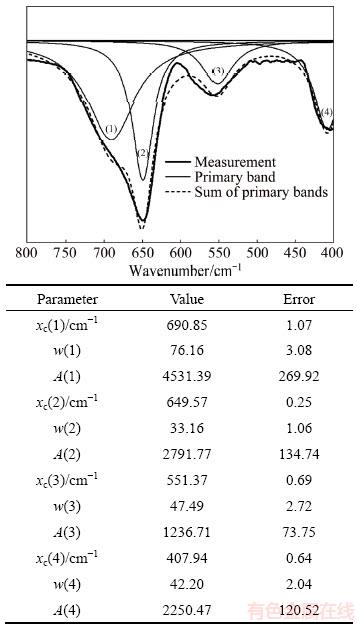

Fig. 3 Deconvolution of ATR-IR spectra of LaAlO₃ powder after firing solution precursor at 350 °C and then annealed at 1100 °C (as prepared)

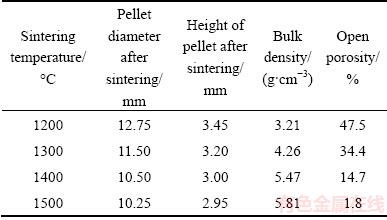

Table 1 Effect of conventional sintering temperature on pellet diameter, height, bulk density and porosity

The XRD patterns of the pellets sintered at 1200 °C and 1500 °C are presented in Figs. 4(b) and (c) respectively, for comparison to the respective pattern of the as-prepared powder. No changes are recorded compared with the starting powder, thus indicating a phase stability of the LaAlO₃ structures at these temperatures for the time studied.

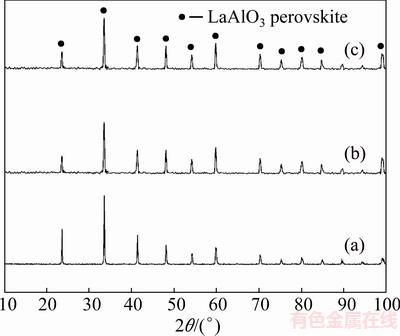

Fig. 4 XRD patterns of LA powder annealed at 1100 °C (as- prepared) (a), LA pellet sintered at 1200 °C for 2 h (b) and sintered at 1500 °C for 2 h (c)

Even though the LaAlO₃ structure is stable within these sintering conditions, a substantial sintering is recorded. Open porosity is reduced from 47.5% to virtually zero, and bulk density is increased from 3.21 to 5.81 g/cm³ as the sintering temperature increases from 1200 to 1500 °C. Single crystal R3c LA specimens exhibit density of 6.51 g/cm³.

Additional densification experiments have been performed by means of SPS. For producing fully dense LA ceramics, four sintering processes were tested. The temperature and pressure profiles are presented in Fig. 5.

Fig. 5 SPS sintering temperature and sintering pressure profiles versus sintering time

Typical curves of sintering displacement rate z vs time corresponding to the inverse of the shrinkage curves vs time and the displacement (dz/dt versus time) curves for four different holding temperatures are presented in Figs. 6(a) and (b), respectively. These curves illustrate the densification and densification rate of the four samples. These curves have been plotted from 400 to 1800 s to ensure that the observed shrinkage is not due to the application of a higher pressure (below 400 s) and assuming that during sample cooling (up to 1700 s) sintering no longer takes place and therefore the cooling shrinkage is only dependent on the thermal dilatation. The dilatometric curves are very similar. Up to 400 s, i.e. 600 °C, the displacement is first of all constant and at a certain time, corresponding to a given temperature, the displacement increases indicating that the sintering process begins and the material starts to shrink. As long as the temperature increases the thermal dilatation continues as well. During the dwell time at the sintering temperature, the thermal dilatation is stopped, but shrinkage caused by the sintering process continues until the end of the plateau excepted for 1400 °C where the shrinkage remains constant after a holding time of 15 s. Figure 6(b) indicates that the total shrinkage Δz increases linearly with the holding temperature or heating rate as can be seen in Fig. 7, where Δz versus dwelling temperatures and heating rates are plotted.

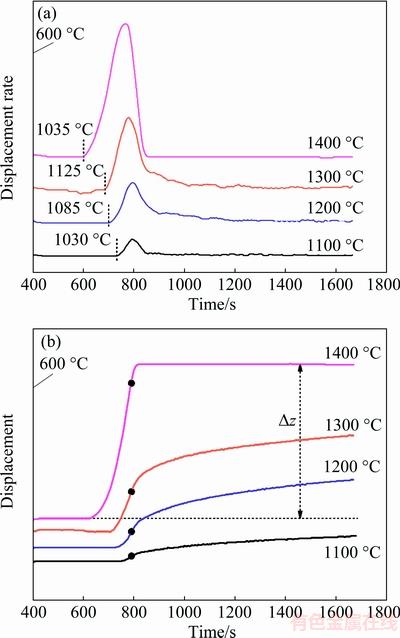

Fig. 6 SPS sintering displacement rate (a) and SPS sintering displacement versus sintering time at different holding temperatures (b) (The black points correspond to the displacement at the scheduled holding temperature)

Moreover, it can be observed on the densification rate vs time curves that the higher the holding temperature, the earlier the densification starts. By using the same mass for each sample, and the same heating rate to reach the scheduled holding temperature, for a same powder, the densification normally starts at the same temperature. It is not the case here due to the different heating rates used to reach the desired temperature of the plateau as can be seen in Fig. 6(b).

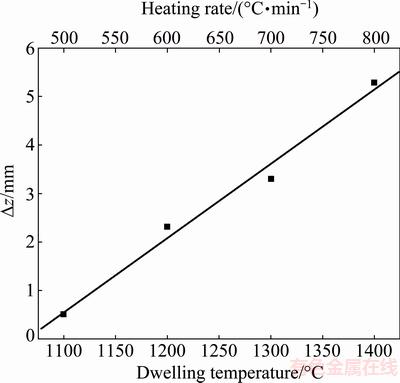

Fig. 7 Plot of Δz versus dwelling temperature and heating rate

To get fully dense samples by SPS, a plateau at 1400 °C for 15 s is enough. Results are in good agreement with conventional sintering approach (Table 1). Heating the samples longer or at higher temperature would lead to modification of their microstructure, e.g., grain growth.

In a typical dilatometry curve of LA pellet sintered at 1500 °C at 550-600 °C, a change in the slope is recorded, as illustrated by the straight red line (Fig. 8). This change in the dilatation variation is related to the phase transition temperature of LA, from the rhombohedral (R3c) to the ideal cubic (Pm3m) [38].

This change in the coefficient of thermal expansion (CTE) is however small. As depicted in Fig. 8(a), the linear model follows fairly well the experimental data (R²=0.99946) from ΔT=200 °C to ΔT=1350 °C, and yields a CTE of (5.480±0.002)×10^-6 K^-1. In Fig. 8(b) two different linear models were applied; the first from 200 to 600 °C and the second from 900 to 1350 °C. Based on the regression analysis the CTE for temperatures up to 600 °C is 5.69×10^-6 K^-1, while for temperatures higher than 900 °C the CTE is 5.68×10^-6 K^-1, thus illustrating the negligibility of the CTE change upon phase transformation.

In dilatometric results of LA pellets sintered at a lower temperature of 1200 °C, a similar but more intense change in the ΔL/L₀ vs ΔT slope is observed (L₀ is original length, ΔL is length change of specimen). CTE is calculated for the two segments of the dilatometric measurement. At 200-500 °C, the CTE is calculated to be 5.43×10^-6 K^-1 while for temperatures higher than 650 °C and up to 1050 °C the CTE is 4.81×10^-6 K^-1, which corresponds to a decrease of ca. 11%. This change in CTE is gradually decreased after the second treatment to 1200 °C and the CTE varies from 5.76×10^-6 K^-1 to 5.30×10^-6 K^-1, corresponding to a change of ca. 8%.

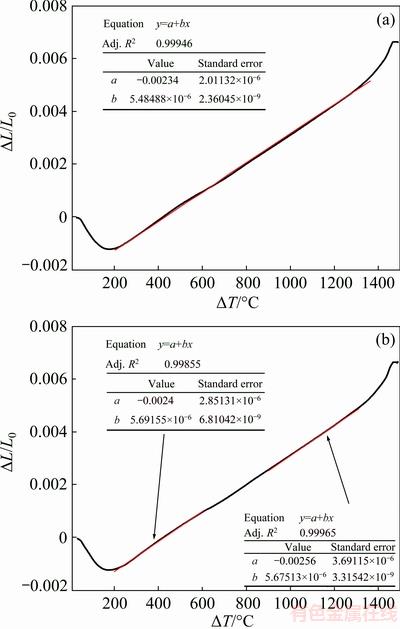

Fig. 8 Typical calculations of CTE for LaAlO₃ pellet sintered at 1500 °C using one linear model throughout measured ΔΤ (a), and using two different linear models below and above phase transition temperature (b)

The dilatometric measurements of the pellet sintered at 1200 °C and heated up to 1200 °C for two, three and four time are also calculated and given in Tables 2 and 3. All changes in CTE below 500 °C and above 650 °C are shown in Table 2. The calculated values of CTE are 5.21×10^-6, 5.20×10^-6 and 5.25×10^-6 K^-1, respectively, with the linear model fitting being fairly well in all cases (Table 3).

In the case of a pellet sintered at 1200 °C and undergone the thermal process described before (4 times heated up to 1200 °C) when during measurement was heated up to 1500 °C, the CTE within the same temperature range as before is calculated to be  5.25×10^-6 K^-1, with the linear model fitting well (R²=0.99954). All the calculated CTE values (Table 3), illustrate a stability in CTE for temperatures up to 1200 °C. For ΔΤ higher than 1200 °C, which corresponds to ~1300 °C, the pellet undergoes significant shrinkage. This is shown in Fig. 9 and is discussed hereafter.

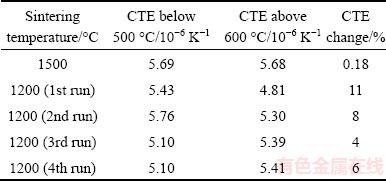

Table 2 Change of CTE below 500 °C and above 650 °C

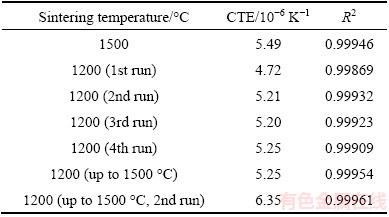

Table 3 Calculated CTE of pellets, using one linear model through dilatometric data

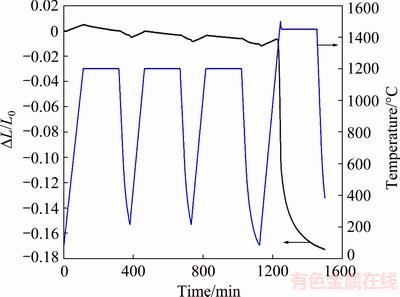

Fig. 9 Thermal process and dilatometric profiles of LaAlO₃ pellet sintered at 1200 °C for 2 h

However, the pellet undergoes shrinkage during thermal treatment up to 1200 °C. As shown in Fig. 9 at the end of the third thermal cycle which is located at ~1125 min, ΔL/L₀ is -0.011 compared with the initial value. For this particular sample, L₀ was 11.293 mm, therefore the absolute shrinkage was ΔL=-0.124 mm. For temperatures higher than 1300 °C, the shrinkage increases.

3.3 Thermal stability

Pellets prepared according to the procedure described before were treated for 300 h at 1300 °C to assess the thermal stability of the synthesized material. XRD patterns were identical, thus indicating increased structural thermal stability.

3.4 Thermal conductivity

Thermal conductivity increases with increasing sintering temperature as seen in Fig. 10 and Table 4. Increasing the sintering temperature results in porosity decrease; the density of the samples is increasing and with it, its ability to conduct thermal energy. This indicates that a specific material processing will be necessary in order to achieve a controllable, but also persistent at elevated temperatures porosity of the applied layers and so to reduce the thermal conductivity. For example, functionally graded design of LA- containing composites can lead to controllable porosity and reduce the thermal conductivity [19].

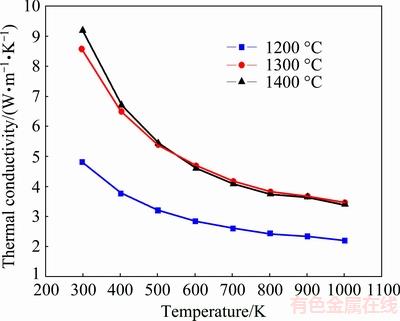

Fig. 10 Thermal conductivity of LA sintered at 1200, 1300 and 1400 °C

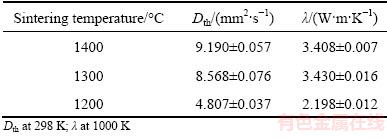

Table 4 Thermal conductivity (λ) of LA sintered at different temperatures

3.5 Mechanical properties

Results in terms of the measured engineering stress-strain curves obtained from the compression tests performed at 1000, 1200 and 1300 °C on pellets of LA samples are shown in Fig. 11.

The measured elastic moduli and ultimate stresses as a function of temperatures are shown in Fig. 12, along with the results obtained from the YSZ samples for comparison.

Elastic modulus of LA decreases from 63 GPa to  25 GPa, when the temperature increases from 1000 to 1300 °C. Similar behavior is recorded also for YSZ samples prepared by similar conditions using LTC Ltd. powder.

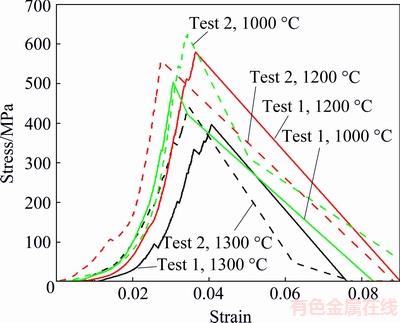

Fig. 11 Measured strain-stress curves for LA sintered at different temperatures

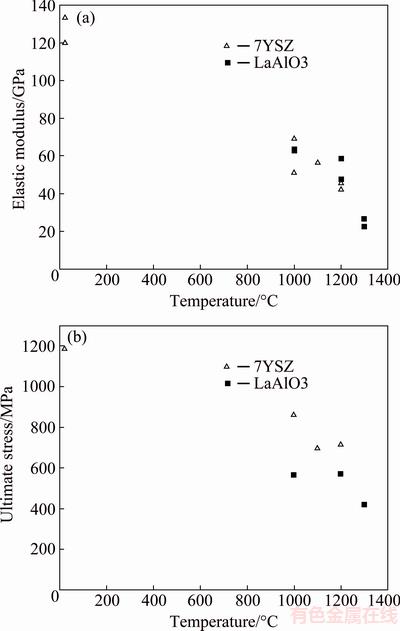

Fig. 12 Elastic modulus and ultimate stress of LaAlO₃ sintered at different temperatures

The ultimate stress of LA is 590 MPa, which remains virtually unaffected with temperature in the range of 1000-1200 °C and decreases to 430 MPa, at 1300 °C. In the range of 1000-1200 °C YSZ ultimate stress is decreased from 850 to 700 MPa.

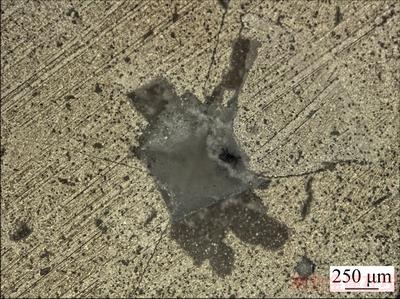

Typical cracks obtained from the indentation tests on cylinders are shown in Fig. 13. The calculated K_IC values for LA are given in Table 5. Respective measurements were also performed on YSZ cylindrical samples which are given in Table 5 for comparison.

Fig. 13 Typical cracks from indentation tests

Table 5 K_IC measurements for LaAlO₃

4 Conclusions

1) We evaluated the properties of basic perovskite compound LaAlO₃ in the context of YSZ replacement in TBCs. LaAlO₃ properties as in all perovskites can be tailored via A- or B- site substitution by a vast number of periodic table elements. The LaAlO₃ perovskite structure was confirmed by means of XRD and ATR-IR. SPS and conventional sintering studies from 1200 to 1500 °C revealed a significant densification from 3.21 to 5.81 g/cm³ indicating that material annealing should be made at least at 1400 °C. Under this condition CTE studies showed negligible dimensional change in phase transition temperature of LA, from the rhombohedral (R3c) to the ideal cubic (Pm3m). As the thermal conductivity increases with increasing sintering temperature and thus higher densities, one has to pay attention to avoid dense LA layers in order to improve its ability to act as a functional thermal barrier coating.

2) Experimentally measured material properties in terms of both the static strength and the fracture toughness of the LA and the YSZ were reported. The experimental setup developed as part of this work has successfully been used to measure the ultimate stress and the elastic modulus at elevated temperatures of up to 1300 °C.

3) The elastic moduli were measured to be 63.07, 52.98 and 24.70 GPa at 1000, 1200 and 1300 °C, respectively. The mechanical properties of the LA are very similar to the YSZ. However, the average fracture toughness value for LaAlO₃ is found to be 3.15 MPa·m^1/2 which is lower than the corresponding average value for the YSZ of 5.59 MPa·m^1/2.

4) The data reported here are very important not only for comparing the mechanical and fracture behaviour of different TBCs developed involving LaAlO₃ but are also essential for input into numerical simulations using finite element techniques for predicting the response and the life of the TBCs under service conditions. Despite how useful such properties can be it is expected that material features and performance will be greatly affected by microstructural effects introduced in the thermal spraying coating fabrication process.

Acknowledgements

Financial support by THEBARCODE- Development of Multifunctional Thermal Barrier Coatings and Modeling Tools for High Temperature Power Generation with Improved Efficiency FP7-NMP- 2012-SMALL-6, Collaborative project and by MATENERGY project of Technological Educational Institute of Sterea Ellada.

References

[1] VASSEN R, JARLIGO M, STEINKE T, MACK D, STVER D. Overview on advanced thermal barrier coatings [J]. Surface and Coatings Technology, 2010, 205: 938-942.

[2] PADTURE N, GELL M, JORDAN E. Thermal barrier coatings for gas-turbine engine applications [J]. Science, 2002, 296: 280-284.

[3] CLARKE D, OECHSNER M, PADTURE N. Thermal-barrier coatings for more efficient gas-turbine engines [J]. MRS Bulletin, 2012, 37: 891-898.

[4] XU H, GUO H. Thermal barrier coatings [M]. 1st ed. Cambridge: Elsevier Science, 2011.

[5] DAROONPARVAR M, YAJID M A M, YUSOF N M, FARAHANY S, HUSSAIN M S, BAKHSHESHI-RAD H R, VALEFI Z, ABDOLAHI A. Improvement of thermally grown oxide layer in thermal barrier coating systems with nano alumina as third layer [J]. Transactions of Nonferrous Metals Society of China 2013, 23: 1322-1333.

[6] LU Z, KIM M S, MYOUNG S W, LEE J H, JUNG Y G, KIM I S, JO C Y. Thermal stability and mechanical properties of thick thermal barrier coatings with vertical type cracks [J]. Transactions of Nonferrous Metals Society of China 2014, 24: 29-35.

[7] STECURA S. Effects of compositional changes on the performance of a thermal barrier coating system [C]//Third Annual Conference on Composites and Advanced Materials. Florida, Cleveland Ohio, 1979: E9751-E9775

[8] CHEVALIER J, GREMILLARD L, VIRKAR A, CLARKE D. The tetragonal-monoclinic transformation in zirconia: Lessons learned and future trends [J]. Journal of the American Ceramic Society, 2009, 92: 1901-1920.

[9] MERCER C, WILLIAMS J, CLARKE D, EVANS A. On a ferroelastic mechanism governing the toughness of metastable tetragonal-prime (t′) yttria-stabilized zirconia [J]. Proceedings of the Royal Society A: Mathematical, Physical and Engineering Sciences, 2007, 463: 1393-1408.

[10] CLARKE D, LEVI C. Materials design for the next generation thermal barrier coatings [J]. Annual Review of Materials Research, 2003, 33: 383-417.

[11] MAUER G, JARLIGO M, MACK D, VASSEN R. Plasma-sprayed thermal barrier coatings: New materials, processing issues, and solutions [J]. Journal of Thermal Spray Technology, 2013, 22: 646-658.

[12] QU Z, CHENG X, WU J, HE R, PEI Y, FANG D. An investigation on erosion behavior of nanostructured 7YSZ coatings at elevated temperature [J]. Surface and Coatings Technology, 2016, 299: 129-134.

[13] RAMACHANDRAN C, BALASUBRAMANIAN V, ANANTHAPADMANABHAN P, VISWABASKARAN V. Influence of the intermixed interfacial layers on the thermal cycling behaviour of atmospheric plasma sprayed lanthanum zirconate based coatings [J]. Ceramics International, 2012, 38: 4081-4096.

[14] DI GIROLAMO G, MARRA F, BLASI C, SCHIOPPA M, PULCI G, SERRA E, VALENTE T. High-temperature mechanical behavior of plasma sprayed lanthanum zirconate coatings [J]. Ceramics International, 2014, 40: 11433-11436.

[15] ZHOU H, LI F, HE B, WANG J, SUN B D. Nanostructured yttria stabilized zirconia coatings deposited by air plasma spraying [J]. Transactions of Nonferrous Metals Society of China 2007, 17: 389-393.

[16] VASSEN R, CAO X, TIETZ F, BASU D, STOVER D. Zirconates as new materials for thermal barrier coatings [J]. Journal of American Ceramic Society, 2000, 83: 2023-2028.

[17] MA W, MACK D, VASSEN R, STVER D. Perovskite-type strontium zirconate as a new material for thermal barrier coatings [J]. Journal of the American Ceramic Society, 2008, 91: 2630-2635.

[18] MA W, JARLIGO M, MACK D, PITZER D, MALZBENDER J, VASSEN R, STVER D. New generation perovskite thermal barrier coating materials [J]. Journal of Thermal Spray Technology, 2008, 17: 831-837.

[19] GARCIA E, CANO C, COYLE T, OSENDI M, MIRANZO P. Thermally sprayed CaZrO₃ coatings [J]. Journal of Thermal Spray Technology, 2008, 17: 865-871.

[20] VASSEN R, DOERING J, DIETRICH M, LEHMANN H, STOEVER D. Recent developments in the field of plasma-sprayed thermal barrier coatings [C]//Proceedings of the International Gas Turbine Congress. Tokyo, TS-129, 2003: 1-9.

[21] KWON J, JUNG S, LEE S, LEE P, LEE J, JUNG Y, PAIK U, CHO H, CHANG J. Interfacial stability and contact damage resistance by incorporating buffer layer in thermal barrier coatings [J]. Progress in Organic Coatings, 2010, 68: 135-141.

[22] STATHOPOULOS V, SADYKOV V, PAVLOVA S, BESPALKO Y, FEDOROVA Y, BOBROVA L, SALANOV A, ISHCHENKO A, STOYANOVSKY V, LARINA T, ULIANITSKY V, VINOKUROV Z, KRIVENTSOV V. Design of functionally graded multilayer thermal barrier coatings for gas turbine application [J]. Surface and Coatings Technology, 2016, 295: 20-28.

[23] COSTA C, STATHOPOULOS V, BELESSI V, EFSTATHIOU A. An investigation of the NO/H₂/O₂ (Lean-deNOx) reaction on a highly active and selective Pt/La_0.5Ce_0.5MnO₃ catalyst [J]. Journal of Catalysis 2001, 197: 350-364.

[24] STATHOPOULOS V, BELESSI V, LADAVOS A. Samarium based high surface area perovskite type oxides SmFe_1-XAlXO₃ (X=0.00, 0.50, 0.95). Part II, Catalytic combustion of CH₄ [J] Reaction Kinetics and Catalysis Letters, 2001, 72: 49-55.

[25] STATHOPOULOS V, BELESSI V, LADAVOS A. Samarium based high surface area perovskite type oxides SmFe_1-XAlXO₃ (X=0.00, 0.50, 0.95). Part I, Synthesis and characterization of materials [J]. Reaction Kinetics and Catalysis Letters, 2001, 72: 43-48.

[26] COSTA C, SAVVA P, ANDRONIKOU C, LAMBROU P, POLYCHRONOPOULOU K, BELESSI V, STATHOPOULOS V, POMONIS P, EFSTATHIOU A. An Investigation of the NO/H₂/O₂ (Lean De-NOx) reaction on a highly active and selective Pt/La_0.7Sr_0.2Ce_0.1FeO₃ catalyst at low temperatures [J]. Journal of Catalysis, 2002, 209: 456-471.

[27] STATHOPOULOS V, BELESSI V, BAKAS T, NEOPHYTIDES S, COSTA C, POMONIS P, EFSTATHIOU A. Comparative study of La-Sr-Fe-O perovskite-type oxides prepared by ceramic and surfactant methods over the CH₄ and H₂ lean-deNOx [J]. Applied Catalysis B: Environmental, 2009, 93: 1-11.

[28] GASPARYAN H, ARGIRUSIS C, SZEPANSKI C, SOURKOUNI G, STATHOPOULOS V, KHARLAMOVA T, SADYKOV V, BEBELIS S. Electrochemical characterization of a La_0.8Sr_0.2Ni_0.4Fe_0.6O_3-δ electrode interfaced with La_9.83Si₅Al_0.75Fe_0.25O_26±δ apatite-type electrolyte [J]. ECS Transactions, 2009, 25: 2681-2688.

[29] JARLIGO M, MACK D, VASSEN R, STVER D. Application of plasma-sprayed complex perovskites as thermal barrier coatings [J]. Journal of Thermal Spray Technology, 2009, 18: 187-193.

[30] JARLIGO M, MAUER G, SEBOLD D, MACK D, VASSEN R, STVER V. Decomposition of Ba(Mg_1/3Ta_2/3)O₃ perovskite during atmospheric plasma spraying [J]. Surface and Coatings Technology, 2012, 206: 2515-2520.

[31] FU F, DAROLIA R, GORMAN M, NAGARAJ B. Thermal barrier coating systems including a rare earth aluminate layer for improved resistance to CMAS infiltration and coated articles: US patent, US8062759 B2 [P]. 2011-11-22.

[32] SUBRAMANIAN R, SABOL S, GOEDJEN J, SLOAN K, VANCE S, Thermal barrier coatings for turbine components: US patent, US6365281 B1 [P]. 2002-04-02.

[33] GADOW R, LISCHKA M. Lanthanum hexaaluminate-novel thermal barrier coatings for gas turbine applications-materials and process development [J]. Surface and Coatings Technology, 2002, 151-152: 392-399.

[34] CHEN X, ZHAO Y, HUANG W, MA H, ZOU B, WANG Y, CAO X. Thermal aging behavior of plasma sprayed LaMgAl11O19 thermal barrier coating [J]. Journal of the European Ceramic Society, 2011, 31: 2285-2294.

[35] CAO X, VASSEN R, JUNGEN W, SCHWARTZ S, TIETZ F, STVER D. Thermal stability of lanthanum zirconate plasma- sprayed coating [J]. Journal of the American Ceramic Society, 2001, 84: 2086-2090.

[36] WANG Y, XIAO P. The phase stability and toughening effect of 3Y-TZP dispersed in the lanthanum zirconate ceramics [J]. Materials Science and Engineering A, 2014, 604: 34-39.

[37] SCHAPER H, DOESBURG E, van REIJEN L. The influence of lanthanum oxide on the thermal stability of gamma alumina catalyst supports [J]. Applied Catalysis, 1983, 7: 211-220.

[38] LUO X, WANG B, Structural and elastic properties of LaAlO3 from first-principles calculations [J]. Journal of Applied Physics, 2008, 104: 63-68.

[39] INABA H, HAYASHI H, SUZUKI M. Structural phase transition of perovskite oxides LaMO₃ and La_0.9Sr_0.1MO₃ with different size of B-site ions [J]. Solid State Ionics, 2001, 144: 99-108.

[40] WANG J, ISHIZAWA N, YE X. Phase transition and thermal expansion of the LaAlO3 single crystal at high temperatures [J]. Journal of Alloys and Compounds, 2014, 594: 23-26.

[41] VASYLECHKO L, SENYSHYN A, BISMAYER U. Perovskite- type aluminates and gallates [M]//Handbook on the Physics and Chemistry of Rare Earths. Vol.39. Netherlands North-Holland: Elsevier, 2009: 113-295.

[42] FU Q, TIETZ F, LERSCH P, STVER D. Evaluation of Sr- and Mn-substituted LaAlO₃ as potential SOFC anode materials [J]. Solid State Ionics, 2006, 177: 1059-1069.

[43] CHEN T, FUNG K. A and B-site substitution of the solid electrolyte LaGaO₃ and LaAlO₃ with the alkaline-earth oxides MgO and SrO [J]. Journal of Alloys and Compounds, 2004, 368: 106-115.

[44] WAN C, QU Z, HE Y, LUAN D, PAN W. Ultralow thermal conductivity in highly anion-defective aluminates [J]. Physical Review Letters, 2008, 101: 085901.

[45] JARLIGO M, MACK D, MAUER G, VASSEN R, STVER D. Atmospheric plasma spraying of high melting temperature complex perovskites for TBC application [J]. Journal of Thermal Spray Technology, 2009, 19: 303-310.

[46] YU H, WANG J, WANG S, KUO Y. Thermochemical behavior of metallic citrate precursors for the production of pure LaAlO₃ [J]. Journal of Physics and Chemistry of Solids, 2009, 70: 218-223.

[47] ASTM C373-88(2006), Standard Test Method for Water Absorption, Bulk Density, Apparent Porosity, and Apparent Specific Gravity of Fired Whiteware Products [S]. ASTM International, West Conshohocken, PA, DOI: 10.1520/C0373 88R06, 2006. (https://www.astm.org/ DATABASE. CART/ HISTORICAL/C373-88R06.htm )

[48] SPIEGLER R, SCHMAUDER S, SIGL L. Fracture toughness evaluation of WC-Co alloys by indentation testing [J] Journal of Hard Materials, 1990, 1: 147-158.

[49] KRUZIC J, KIM D, KOESTER K, RITCHIE R. Indentation techniques for evaluating the fracture toughness of biomaterials and hard tissues [J]. Journal of the Mechanical Behavior of Biomedical Materials, 2009, 2: 384-395.

[50] QUINN G, BRADT R. On the Vickers indentation fracture toughness test [J]. Journal of the American Ceramic Society, 2007, 90: 673-680.

[51] ROCHA-RANGEL E. Fracture toughness determinations by means of indentation fracture, nanocomposites with unique properties and applications in medicine and industry [M]. John Cuppoletti. InTech, DOI: 10.5772/18127, 2011.

[52] ZHANG Z, CHOI B, FLIK M, ANDERSON A. Infrared refractive indices of LaAlO₃, LaGaO₃, and NdGaO₃ [J]. Journal of Optical Society of America B, 1994, 11: 2252-2257.

[53] CHEN B, YU J, LIANG X. LaAlO₃ hollow spheres: Synthesis and luminescence properties [J]. Langmuir, 2011, 27: 11654-11659.

[54] GEORGIOPOULOS I, MARATHONITI E, VOURDAS N, ANDREOULI K, STATHOPOULOS V. Comparative study on liquid plasma sprayed lanthanum aluminate oxide coatings using different feedstock materials for potential TBC application [C]//25th Advanced Aerospace Materials and Processes (AeroMat) Conference and Exposition. Orlando, Florida, USA: ASM, 2014.

[55] MARATHONITI E, VOURDAS N, GEORGIOPOULOS I, TRUSCA O, TRUSCA I, ANDREOULI C, STATHOPOULOS V, Development of LaAlO₃-based thermal barrier coatings by solution precursor thermal spray [C]//International Conference on Material Technologies and Modeling-MMT. Ariel, Israel, 2014: 195-205.
