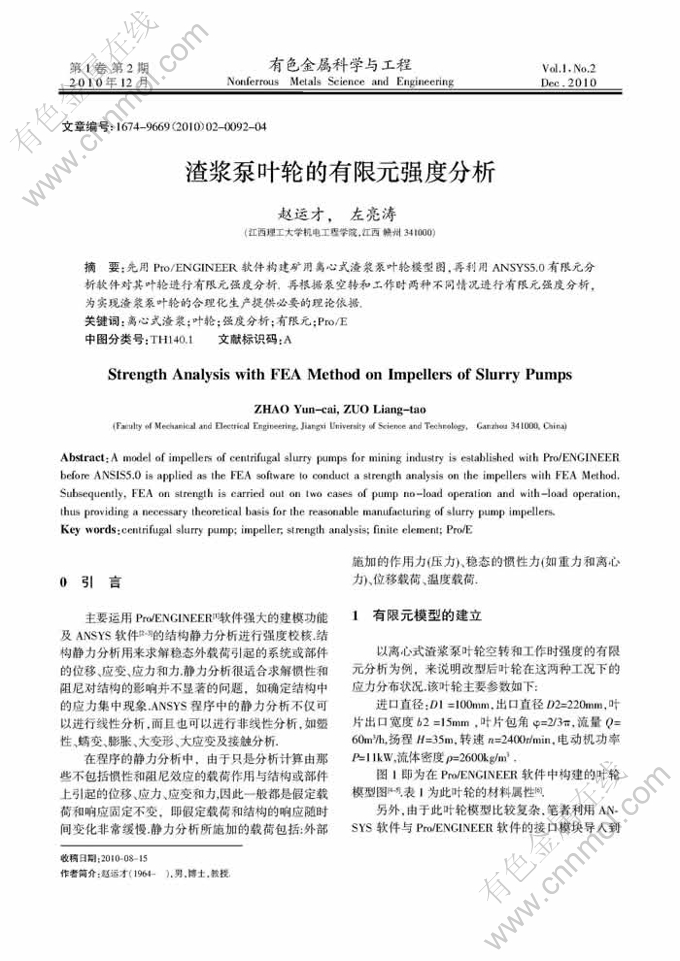

渣浆泵叶轮的有限元强度分析

来源期刊：有色金属科学与工程2010年第2期

论文作者：赵运才 左亮涛

文章页码：92 - 95

关键词：离心式渣浆；叶轮；强度分析；有限元；Pro/E

Key words：centrifugal slurry pump; impeller; strength analysis; finite element; Pro/E

摘    要：先用Pro/ENGINEER软件构建矿用离心式渣浆泵叶轮模型图，再利用ANSYS5.0有限元分析软件对其叶轮进行有限元强度分析．再根据泵空转和工作时两种不同情况进行有限元强度分析，为实现渣浆泵叶轮的合理化生产提供必要的理论依据．

Abstract:

A model of impellers of centrifugal slurry pumps for mining industry is established with Pro/ENGINEER before ANSIS5.0 is applied as the FEA software to conduct a strength analysis on the impellers with FEA Method.Subsequently, FEA on strength is carried out on two cases of pump no-load operation and with-load operation,thus providing a necessary theoretical basis for the reasonable manufacturing of slurry pump impellers.
