Trans. Nonferrous Met. Soc. China 22(2012) 354-359
Influence of pyrolytic carbon coatings on complex permittivity and microwave absorbing properties of Al2O3 fiber woven fabrics
DING Dong-hai, ZHOU Wan-cheng, LUO Fa, ZHU Dong-mei
State Key Laboratory of Solidification Processing, Northwestern Polytechnical University, Xi’an 710072, China
Received 7 April 2011; accepted 2 June 2011
Abstract: The pyrolytic carbon (PyC) coatings were fabricated on Al2O3 fiber fabrics by the method of chemical vapor deposition (CVD). The microstructures of Al2O3 fibers with and without PyC coatings were characterized by SEM and Raman spectroscopy. The influence of deposition time of PyC on the DC conductivity (σd) of Al2O3 filaments and complex permittivity of fabrics at X band (8.2-12.4 GHz) were investigated. The values of σd and complex permittivity increase with increasing deposition time of PyC. The electron relaxation polarization and conductance loss were supposed to be contributed to the increase of ε′ and ε″, respectively. In addition, the reflection loss (RL) of fabrics was calculated. The results show that the microwave absorbing properties of Al2O3 fiber fabrics can be improved by PyC coatings. The best RL results are for 60 min-deposition sample, of which the minimum value is about -40.4 dB at about 9.5 GHz and the absorbing frequency band (AFB) is about 4 GHz.
Key words: complex permittivity; pyrolytic coating; Al2O3 fiber fabric
1 Introduction
Growth of interest in stealth technology applied to reducing the radar cross-section surface of military vehicles has promoted the investigations of microwave absorbing materials. Ceramic fibers, such as SiC fibers [1-5], carbon fibers [6,7] and glass fibers [8], have been investigated intensively as structural microwave absorbing materials at high temperature. The ceramic fibers woven fabrics as microwave absorbing materials are attracting more and more attention because of their light mass, high environmental durability and thermal stability [9-11]. Although the commercially available Nextel series of Al2O3 fibers produced by Minnesota Minning and Manufacturing Corporation (3M) have received much interest as reinforcement [12-15] in continuous fiber ceramic composites (CFCCs), the reports on complex permittivity and microwave absorbing properties on Al2O3 fibers are rare. It has been recognized that the PyC is one of the best interphase materials for the CFCCs. However, the investigations were mostly focused on the microstructure and effect on mechanical properties. Results about the effect of PyC on dielectric and microwave absorbing properties of ceramic fiber or ceramic matrix composites are rare.
In the present investigation, the PyC was coated on Al2O3 fiber fabrics using the method of chemical vapor deposition (CVD). And the microstructure of the PyC coatings was characterized by Raman spectroscopy. Then the influence of PyC deposition time on the complex permittivity of Al2O3 fiber fabrics at X band was studied.
2 Experimental
2.1 Materials
The Nextel 440 Al2O3 fibers were provided by 3M. The fabrics were braided by Nanjing Glass Fiber Institute (China). Table 1 shows the parameters of Nextel 440 fibers. The fabrics structure is 2.5D shallow bending joint shown in Fig. 1. The fiber volume fraction of fabrics was about 40%.
2.2 CVD PyC coatings on fabrics
The PyC coatings were deposited in a hot-wall low-pressure CVD reactor from the C3H6 and H2 gas systems. The C3H6 was the gas precursor, and H2 was the diluent gas. The thickness of PyC coatings was controlled by deposition time. It can be confirmed that the thickness of CVD coatings increases linearly with elongation of deposition time. The temperature and pressure of CVD were 800 °C and 7 kPa, respectively. And the flow rates of C3H6 and H2 were 900 and 600 m3/min, respectively.
Table 1 Parameters of Nextel 440 fiber

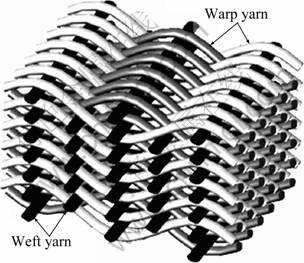

Fig. 1 Schematic showing fabrics structure
2.3 Electric conductivity measurement
The DC conductivity (σd) of Nextel 440 filaments was calculated as the following equation:
(1)
where r is the special conductivity; R is the resistance; S is the cross-section area of filament; L is the length of filament. The electrical resistance of Al2O3 filaments at room temperature was measured by two-probe direct current method [16]. The filaments were tin-lead bonded on alumina substrate. The length of filaments was 1 cm. The average diameter of filaments was considered 11 μm.
2.4 Complex permittivity measurement
The ε′ and ε″ of complex permittivity correlate polarization and loss; the real part (μ′) of complex permeability represents the mount of energy stored in the magnetic material from AC magnetic field, while the imaginary part (μ″) is the energy loss to the magnetic field. The complex permittivity and permeability of fabrics were measured by the method of waveguide using vector network analyzer (E8362B). Because of the low complex permittivity of paraffin wax, the fabrics/ paraffin wax composites were fabricated in order to avoid dispersing of fiber bundles. The dimensions of measured samples were 22.86 mm×10.16 mm×2.0 mm. The wax was insulator, whose ε′ and ε″ were 2.26 and 0 at X band. So, the complex permittivity of the fabric/wax composites was determinated mostly by the fabrics.
Giving the convenience of discussion later, the influence of wax on the complex permittivity was ignored. Based on the measured complex permittivity and permeability, we evaluated the microwave absorbing properties by the following equations with MATLAB [11]:
(2)
where LR denotes the reflection loss in dB unit; Z0 is the characteristic impedance of free space; Zin is the input characteristic impedance at the absorber/free space interface, which can be expressed as:
(3)
where c is the velocity of light; t is the thickness of an absorber; in this paper, t values are in mm unit; the εr is the measured relative complex permittivity; μr is permeability, whose u′ and u″ are considered 1 and 0, respectively, because the Al2O3 fibers and PyC coatings both are none-magnetic substance.
3 Results and discussion
3.1 Microstructure characterization
SEM images of as-received and PyC coated fibers are shown in Fig. 2. It was observed that there are microflaws on the surface of as-received fiber and the PyC coating is smooth.
Many previous studies showed that Raman spectroscopy can be used successfully to determine information about the microstructure of various carbon materials [17, 18]. It has been confirmed that the PyC consists of disorder carbon and micro-crystallite graphite embedded in disorder carbon [14]. As previous studied, the D (disordered) and G (graphitic) peaks at about 1600 and 1330 cm-1 assigned to sp3 and sp2 bonded carbons [9,10]. In the present study, the G peak (1587 cm-1) is obvious in Raman spectroscopy of fibers with PyC coatings, whereas there are only broad peaks in the range of 250-500 cm-1 in Raman spectroscopy of as-received fibers shown in Fig. 3. Generally, the band area ratio (ID/IG) was used to obtain information about the degree of disorder in carbon materials. The relationship between ID/IG and La (graphite crystallite size) is [17-19]
(4)
where C′(λ) is a wavelength-dependent pre-factor, and its value is 4.362.
Fig. 2 SEM images of as-received (a) and PyC coated (b) Al2O3 fibers

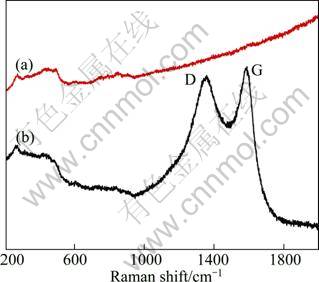

Fig. 3 Raman spectra of Al2O3 fiber fabrics without (a) and with (b) PyC coatings
Based on equation (4), we calculated the value of La, which is 17.96 nm. One can conclude that there is sp2 bonded carbons in PyC coatings.
3.2 Electrical conductivity of Al2O3 fibers
The as-received Al2O3 fibers are typical insulator, whereas the PyC has a significantly higher conductivity because of the existing of π-bonding in PyC. Table 2 shows that the electrical conductivity of fiber with PyC coating increases with the increase of coating time. The value increased from 5 to 334 S/cm. The electrical conductivity of Al2O3 fiber increased sharply when the time of PyC coating was 90 min. We suggest that the conductance mechanism of Al2O3 fiber with PyC coatings is migrating conductance in the graphite plane and hopping conductance among graphite planes based on the discussion on conductance of carbon fibers supposed by CAO et al [19, 20]. In other words, there are free electrons in the graphite plane and weak bond electrons among graphite planes in PyC coatings.

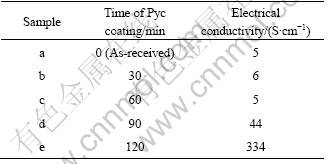

Table 2 σd of Al2O3 fiber as function of deposition time of PyC coatings
3.3 Complex permittivity of fabrics
Figures 4 and 5 show the ε′ and ε″ of complex permittivity of the Al2O3 fiber fabrics with various PyC deposition time at X band, respectively. Overall, it can be noted that the values of ε′ and ε″ increase with increasing the thickness of PyC coatings. The ε′ and ε″ of as-received Al2O3 fiber fabrics are 2.8-3.6 and from -0.1 to 0.2, respectively, which is one typical microwave transmitting material. As to ε′, the value increases from about 3 of sample a to about 9 of Sample e with 120 min coating time. When the time is below 60 min, the ε′ shows insignificant increase. For the Sample d, when the time is 60 min, the ε′ increases obviously to 3.5-5.4. Theε′ increases sharply to 8.2-10.0 in the case of Sample d. The increase of ε″ keeps the same trend as for ε′ described above, and the value increases to 22.5-25.2 for the Sample e. Besides, the ε′ and ε″ spectra for samples (a)-(d), show two obvious resonance peaks at about 9.5 and 12.2 GHz. It is worthwhile to mention that the ε″ increases more rapidly than ε′.

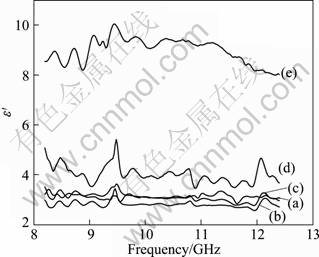

Fig. 4 ε′ as function of frequency in range of 8.2-12.4 GHz for Al2O3 fiber fabrics with various PyC deposition time: (a) As- received; (b) 30 min; (c) 60 min; (d) 90 min; (e) 120 min

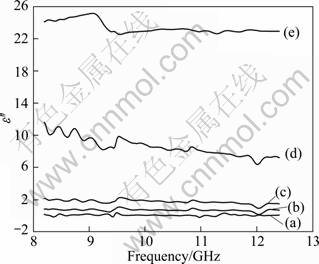

Fig. 5 ε″ as function of frequency in range of 8.2-12.4 GHz for Al2O3 fiber fabrics with various PyC deposition time: (a) As- received; (b) 30 min; (c) 60 min; (d) 90 min; (e) 120 min
In dielectric materials, the loss (ε″) consists of dielectric loss and conductance loss, which are induced by dielectric polarization and free electrons, respectively. At X band, the possible mechanism is electronic relaxation polarization. The loss due to ion displacement polarization is very weak. The weak bound electron in dielectric materials can induce electron relaxation polarization, which is an energy consumption process. This polarization can increase the ε′ and ε″ of complex permittivity, which can be expressed as follows:
(5)
(6)
where εe′ and εe″ are the increased parts of ε′ and ε″ induced by electron relaxation polarization; εs is the static permittivity; ε∞ is the relative dielectric permittivity at the high frequency limit; ω is the angular frequency; τ is the relaxation polarization time [19,20]. For the conductance loss, there is
(7)
where
and ε0 are increased by conductance loss and dielectric constance in vacuum. So, we obtain the following relation:
(8)
Based on the discussion on structure of PyC coatings above, the increase of ε′ may be attributed to the electron relaxation polarization induced by hopping electrons among graphite layers, and the increase of ε″ may be mainly induced by conductance loss. The electron relaxation polarization contributed to the increase of ε″ to some extent. As samples (a)-(c), the ε′ values are similar and the ε″ increases slightly. The reason may be that the graphite planes are too few to establish conductive network. When the PyC coating is enough thick, for samples (d) and (e), the graphite planes are enough to establish conductive network. So, the ε′ and ε′′ increase obviously.
3.4 Microwave absorbing properties
To evaluate the microwave absorbing potential, the reflection loss (RL) in dB unit can be tested or calculated. If the RL values of an absorber are less than -10 dB (90% absorption), then we can say that the absorber works very well. And, the microwave absorbing frequency band (AFB) is defined as the frequency range, in which the RL values are less than -10 dB. The microwave absorbing properties of as-received fiber fabrics are poor due to the low complex permittivity which cannot dissipate electromagnetic energy effectively. Figure 6 shows the calculated reflection loss of samples (b)-(e) at different thicknesses. It was observed that the microwave absorbing potential of Al2O3 fiber fabrics can be improved by PyC coatings. The best results were obtained for Sample c with the time of 60 min. It shows a minimum RL of about -40.4 dB at about 9.5 GHz, and its AFB is about 4 GHz. The matched thickness is 4.5 mm. The reason for smooth absorption curve for Sample b shown in Fig. 6(a) is similar to that of as-received sample. However, when the deposition time is too long (the PyC coating is too thick) for samples (d) and (e), the microwave absorbing properties of fabrics deteriorate. The reason is that the complex permittivity is too high, which cannot match the characteristic impedance of free space.
4 Conclusions
1) The PyC coatings were fabricated on Al2O3 fiber fabrics by the method of CVD. The deposition time of PyC coatings plays an important role in complex permittivity and microwave absorbing properties of Al2O3 fiber fabrics. The values of ε′ and ε″ increase with increase of coating time of PyC, especially when the time is above 90 min. The increase of ε′ and ε″ is mainly attributed to electron relaxation polarization and conductance loss.

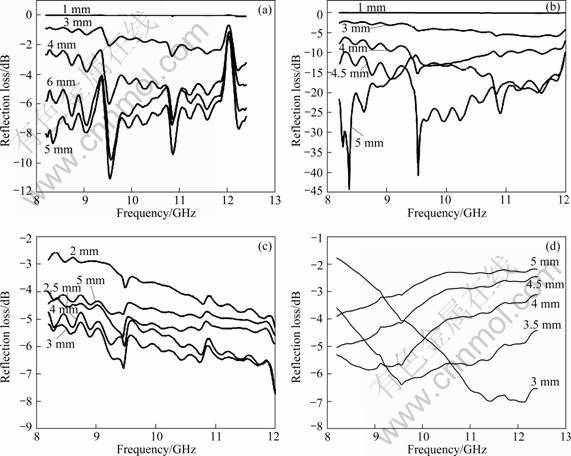

Fig. 6 Microwave absorbing properties of Al2O3 fiber fabrics with different sample thicknesses: (a) 30 min; (b) 60 min; (c) 90 min; (d) 120 min
3) The microwave absorbing potential of Al2O3 fiber fabrics can be improved by PyC coatings. The best results were obtained for Sample c, whose deposition time was 60 min. It shows a minimum RL of about -40.4 dB at about 9.5 GHz, and its AFB is about 4 GHz.
References
[1] CHU Z Y, CHENG H F, ZHOU Y J, WANG Q, WANG J. Anisotropic microwave absorbing properties of oriented SiC short fiber sheets [J]. Materials and Design, 2010, 31: 3140-3145.
[2] YAO Y M, JANIS A, KLEMENT U. Characterization and dielectric properties of β-SiC nanofibres [J]. Journal of Materials Science, 2008, 43: 1094-1101.
[3] KAGAWA Y, MATSUMURA K, IBA H, IMAHASHI Y. Potential of short Si-Ti-C-O fiber-reinforced epoxy matrix composite as electromagnetic wave absorbing material [J]. Journal of Materials Science, 2007, 42: 1116-1121.
[4] LIU X G, WANG Y D, WANG L, LIU J G, LAN X Y. Preparation and microwave electromagnetic properties of cross-shaped SiC fibers [J]. Journal of Inorganic Materials, 2010, 25: 1-4.
[5] JIANG Y G, WANG Y D, LAN X Y, XUE J G, TAN H P. Preparation of C-shaped silicon carbide fibers [J]. Journal of Materials Science, 2004, 39: 5881-5882.
[6] CAO M S, SONG W L, HOU Z L, WEN B, YUAN J. The effects of temperature and frequency on the dielectric properties, electromagnetic interference shielding and microwave-absorption of short carbon fiber/silica composites [J]. Carbon, 2008, 48: 788-796.
[7] WANG X Y, LUO F, YU X M, ZHU D M, ZHOU W C. Influence of short carbon fiber content on mechanical and dielectric properties of Cfiber/Si3N4 composites [J]. Scripta Materialia, 2007, 57: 309-312.
[8] NATIO K, KAGAWA Y, UTSUNO S, NAGANUMA T, KURIHARA K. Dielectric properties of woven fabric glass fiber reinforced polymer matrix composites in the THz frequency range [J]. Composites Science and Technology, 2008, 69: 2027-2029.
[9] DING D H, ZHOU W C, ZHANG B, LUO F, ZHU D M. Complex permittivity and microwave absorbing properties of SiC fiber woven fabrics [J]. Journal of Materials Science, 2011, 46: 2709-2714.
[10] TAN E, KAGAWA Y, DERICIOGLU A F. Electromagnetic wave absorption potential of SiC-based ceramic woven fabrics in the GHz range [J]. Journal of Materials Science, 2009, 44: 1172-1179.
[11] LI W P, ZHU L Q, GU J, LIU H C. Microwave absorption properties of fabrics coated absorbing materials using modified carbonynal iron powder [J]. Composites B, 2011, 42: 626-630.
[12] CHEN Z F, ZHANG L T, CHENG L F, XU Y D. Properties and microstructure of Nextel 720/SiC composites [J]. Ceramic International, 2005, 31: 573-575.
[13] ANTTI M L, LARA-CURZIO E, WARREN R. Thermal degradation of an oxide fibre (Nextel 720)/aluminosilicate composite [J]. Journal of the European Ceramic Society, 2004, 24: 565-578.
[14] BAO Y H, PATRICK S. Nicholson. AlPO4-coated mullite/alumina fiber reinforced reaction-bonded mullite composites [J]. Journal of European Ceramic Society, 2008, 28: 3041-3048.
[15] POULON-QUINTIN A, BERGER M H, BUNSELL A R. Mechanical and micro structural characterisation of Nextel 650 alumina-zirconia fibres [J]. Journal of European Ceramic Society, 2004, 24: 2769-2783.
[16] CHOLLON G, PAILLER R, CANET R, DELHAES P. Correlation between microstructure and electrical properties of SiC-based fibers derived from organosilicon precursors [J]. Journal of the European Ceramic Society, 1998, 18: 725-733.
[17] ZICKER G A, BERND S, NOTBURGA G. A reconsideration of the relationship between the crystallite size La of carbons determined by X-ray diffraction and Raman spectroscopy [J]. Carbon, 2006, 44: 3239-3246.
[18] ANDREA A C. Raman spectroscopy of graphene and graphite: Disorder, electron-phonon coupling, doping and nonadiabatic effects [J]. Solid State Communications, 2007, 143: 47-57.
[19] CAO M S, SONG W L, HOU Z L, WEN B, YUAN J. The effects of temperature and frequency on the dielectric properties, electromagnetic interference shielding and microwave-absorption of short carbon fiber/silica composites [J]. Carbon, 2008, 48: 788-796.
[20] SONG W L, CAO M S, HOU Z L, , YUAN J, FANG X Y. High-temperature microwave absorption and evolutionary behavior of multiwalled carbon nanotube nanocomposite [J]. Scripta Materialia, 2009, 61: 201-204.
热解碳涂层对Al2O3纤维编织体介电及吸波性能的影响
丁冬海, 周万城, 罗 发, 朱冬梅
西北工业大学 凝固技术国家重点实验室，西安 710072
摘 要：采用化学气相沉积法在Al2O3纤维编织体上沉积热解碳涂层，利用SEM及激光拉曼光谱表征沉积与未沉积热解碳界面层的纤维编织体，并研究热解碳沉积时间对纤维电导率及编织体X波段介电吸波性能的影响。结果表明：纤维电导率及编织体复介电常数随着热解碳沉积时间的延长而增大。电子松弛极化引起复介电常数实部的增大，电导损耗引起虚部的增大。热解碳涂层可以改善Al2O3纤维编织体的吸波性能，对于沉积60 min 热解碳涂层的编织体，反射率在9.5 GHz 附近达到-40.4 dB，吸波频带接近4 GHz.
关键词：介电性能；热解碳涂层；Al2O3纤维
(Edited by LI Xiang-qun)
Foundation item: Project (51072165) supported by the National Natural Science Foundation of China; Project (KP200901) supported by the Fund of the State Key Laboratory of Solidification Processing, China
Corresponding author: DING Dong-hai; Tel: +86-29-88494547; Fax: +86-29-88494574; E-mail: 290610692@qq.com
DOI: 10.1016/S1003-6326(11)61183-7
